Super Flower Zillion FG 750W
Serial Number
Lab IDSF75002670
Certification ID252670
  • Test Result Report ID: 24PS2670A
  • Certificate Issue Date: Dec 18, 2024
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandSuper Flower
Manufacturer (OEM)No Info
SeriesZillion FG
Model Number
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)5-10
Rated Frequency (Hz)50-60
Rated Power (W)750
TypeATX12V
Dimensions (W x H x D)
Cooling120mm Sleeve Bearing Fan (ZFH122512H)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202062.52.50.3
Watts10075012.53.6
Total Max. Power (W)750

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18-20AWG No
4+4 pin EPS12V (650mm+150mm) 1 2 18AWG No
6+2 pin PCIe (650mm+150mm) 2 4 18AWG No
SATA (450mm+150mm+150mm+150mm) 2 8 18AWG No
4-pin Molex (500mm+150mm+150mm) / FDD (+150mm) 2 3 / 1 18AWG No
AC Power Cord (1385mm) - C13 coupler 1 1 18AWG No

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Efficiency RatingGOLD
Noise RatingA-
Average Efficiency (>1450 load combinations)88.661%
Average Noise Output (>1450 Load Combinations)26.29dBA
Average PF (>1450 Load Combinations)0.991
Efficiency With 10W (≤500W) or 2% (>500W) Load60.934%
Standby Power Consumption0.0831W
12V Ripple (Full Load)26.80mV
5V Ripple (Full Load)16.01mV
3.3V Ripple (Full Load)16.45mV
5VSB Ripple (Full Load)13.12mV
12V Load Regulation0.39%
5V Load Regulation0.68%
3.3V Load Regulation1.15%
5VSB Load Regulation2.80%
Inrush Current30.370A
Efficiency RatingGOLD
Noise RatingA-
Average Efficiency (>1450 load combinations)90.667%
Average Noise Output (>1450 Load Combinations)27.43dBA
Average PF (>1450 Load Combinations)0.938
Efficiency With 10W (≤500W) or 2% (>500W) Load-%
Standby Power Consumption0.1821W
12V Ripple (Full Load)26.26mV
5V Ripple (Full Load)13.94mV
3.3V Ripple (Full Load)14.38mV
5VSB Ripple (Full Load)9.32mV
12V Load Regulation0.40%
5V Load Regulation0.66%
3.3V Load Regulation1.15%
5VSB Load Regulation2.80%
Inrush Current68.550A
12V Transient Response (150%)11.75V
5V Transient Response (150%)4.922V
3.3V Transient Response (150%)3.252V
5VSB Transient Response (150%)4.985V
Hold-Up Time & Power Ok Signal29.50ms
AC Loss to PWR_OK Hold Up Time22.20ms
PWR_OK Inactive to DC Loss Delay7.30ms
PSU Timings: T1 (20% / 100%)112.0ms112.0ms
PSU Timings: T3 (20% / 100%)254.0ms249.0ms
12V OCP (27.0°C / 45.1°C)84.00A (134.40%), 12.043V81.80A (130.88%), 12.043V
5V OCP (27.0°C / 45.1°C)26.2A (131.00%), 4.953V24.8A (124.00%), 4.961V
3.3V OCP (27.0°C / 45.1°C)25A (125.00%), 3.314V23.5A (117.50%), 3.315V
5VSB OCP (27.0°C / 45.1°C)4.1A (164.00%), 5.016V4.1A (164.00%), 5.016V
OPP (28.37°C / 44.07°C)132.92%123.43%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)29.5
AC Loss to PWR_OK Hold Up Time (ms)22.2
PWR_OK Inactive to DC Loss Delay (ms)7.3

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.06 V 115.01 V 113.85 V 115.09 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.10 % N/A 0.18 % 2.00 % PASS
Real Power: 0.083 W 0.002 W N/A 0.123 W N/A N/A
Apparent Power: 17.473 W 16.899 W N/A 18.055 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.01 V 230.92 V 227.70 V 231.08 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.17 % 0.14 % N/A 0.25 % 2.00 % PASS
Real Power: 0.182 W 0.135 W N/A 0.245 W N/A N/A
Apparent Power: 57.581 W 56.503 W N/A 58.672 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

Graphs

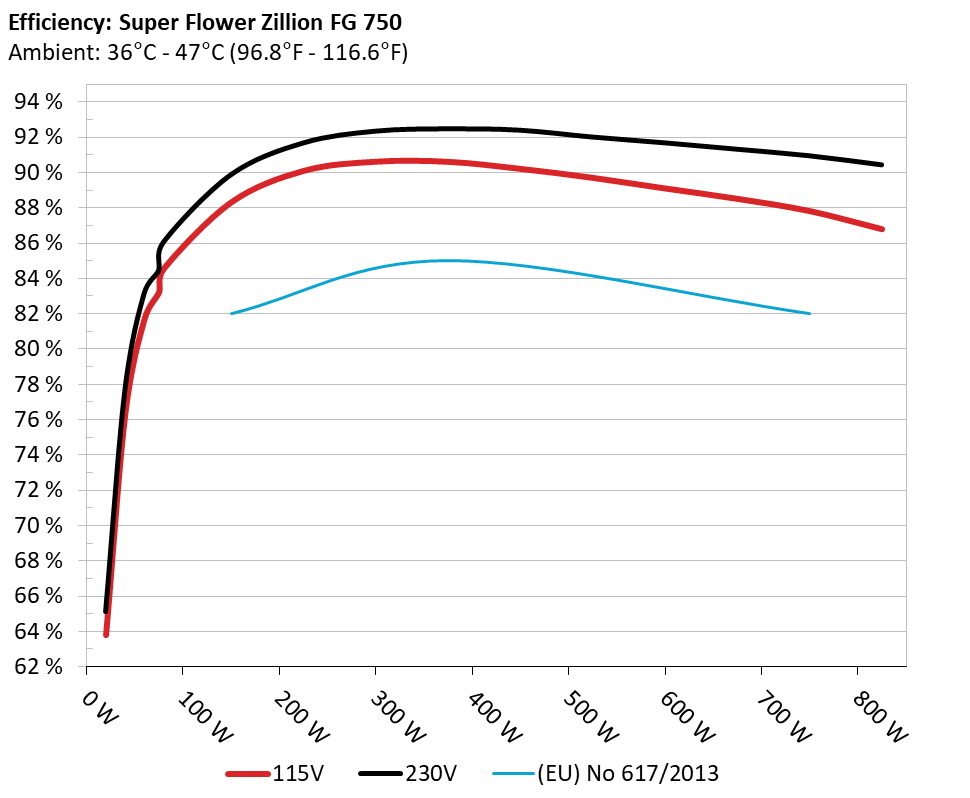

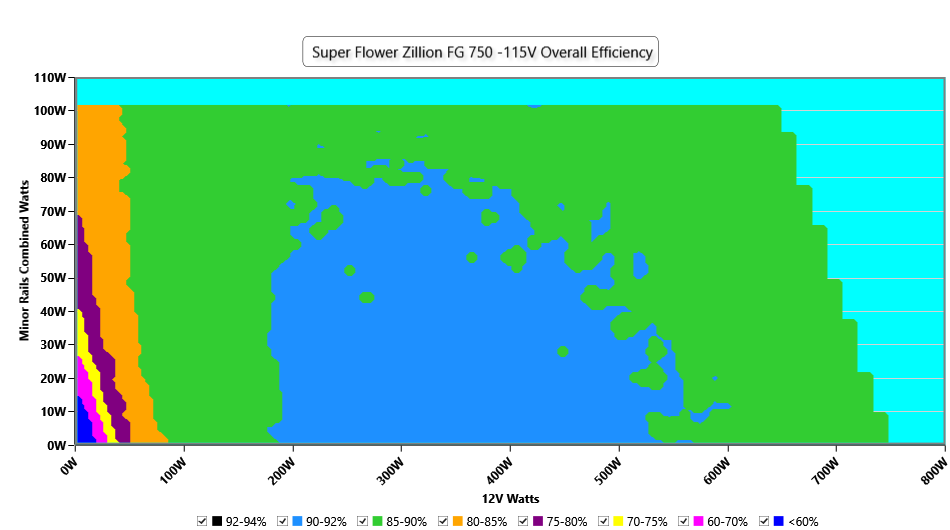

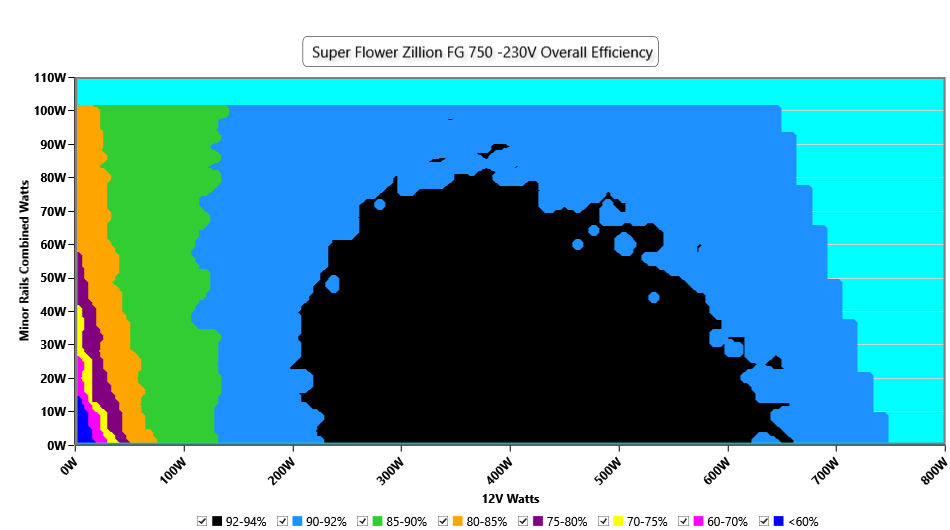

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

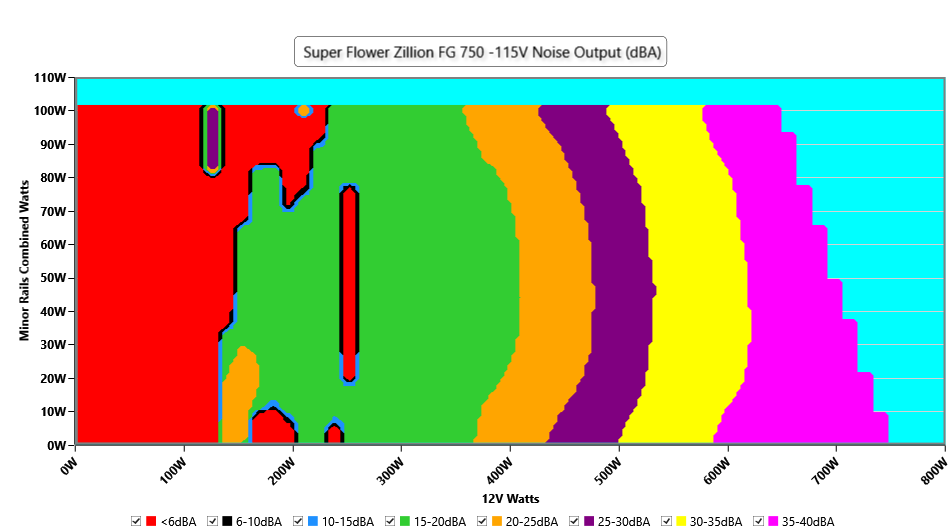

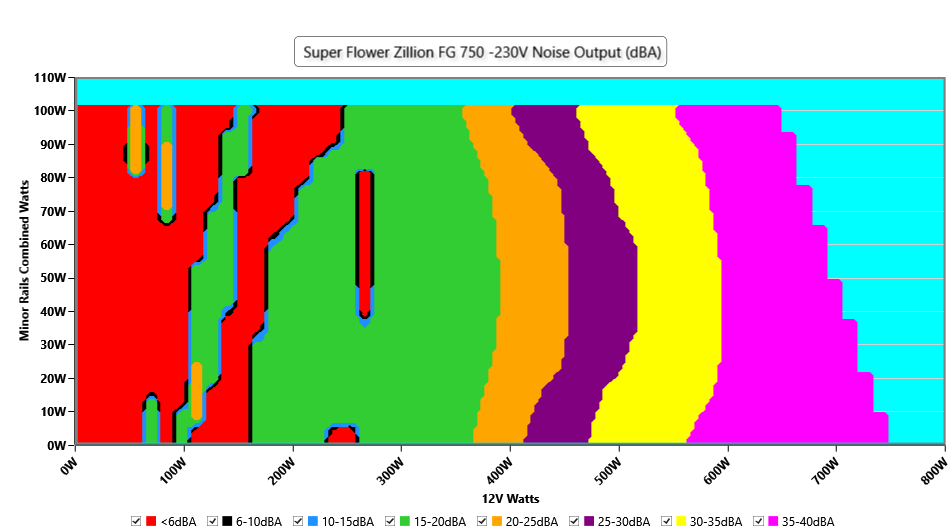

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

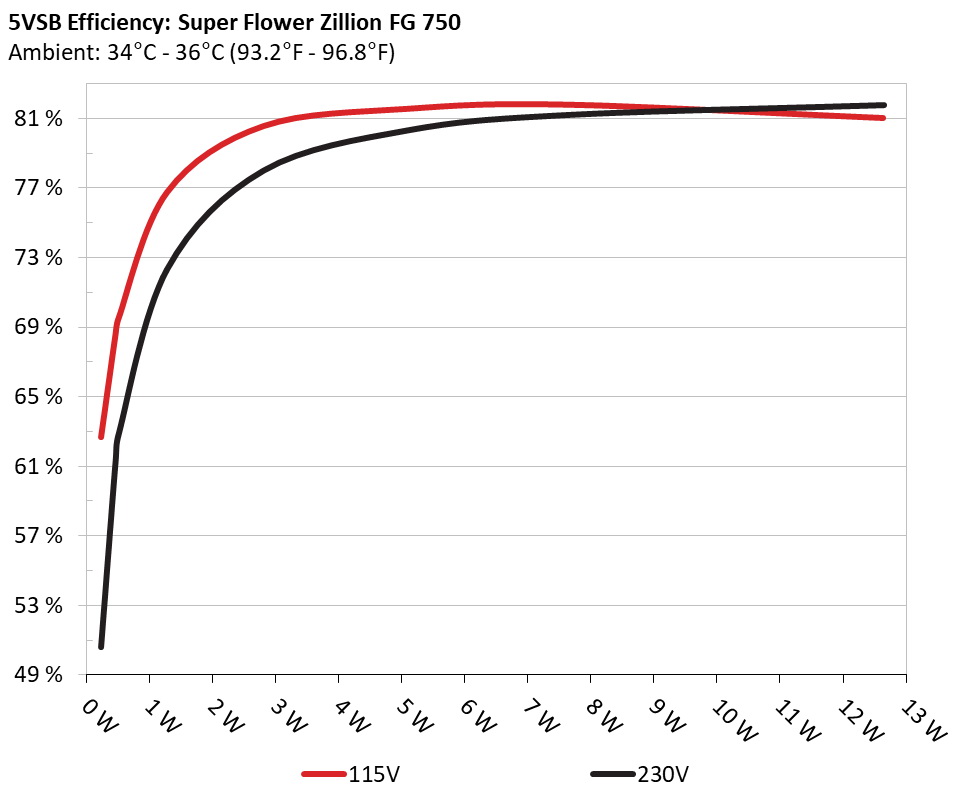

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 62.702% 0.021
5.112V 0.34W 114.94V
2 0.09A 0.46W 68.626% 0.042
5.111V 0.67W 114.95V
3 0.55A 2.806W 80.564% 0.193
5.1V 3.483W 114.94V
4 1A 5.092W 81.559% 0.295
5.09V 6.243W 114.94V
5 1.501A 7.62W 81.796% 0.363
5.078V 9.317W 114.94V
6 2.501A 12.642W 81.03% 0.438
5.055V 15.6W 114.94V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 50.597% 0.008
5.112V 0.455W 230.12V
2 0.09A 0.46W 61.299% 0.014
5.11V 0.751W 230.09V
3 0.55A 2.806W 78.017% 0.066
5.1V 3.597W 230.05V
4 1A 5.092W 80.334% 0.113
5.09V 6.337W 230.04V
5 1.5A 7.621W 81.217% 0.16
5.079V 9.384W 230.04V
6 2.501A 12.643W 81.785% 0.236
5.056V 15.459W 230.04V

Protection Features

OCP (Normal @ 27.0°C)12V: 84.00A (134.40%), 12.043V
5V: 26.2A (131.00%), 4.953V
3.3V: 25A (125.00%), 3.314V
5VSB: 4.1A (164.00%), 5.016V
OCP (Hot @ 45.1°C)12V: 81.80A (130.88%), 12.043V
5V: 24.8A (124.00%), 4.961V
3.3V: 23.5A (117.50%), 3.315V
5VSB: 4.1A (164.00%), 5.016V
OPP (Normal @ 28.4°C)996.92W (132.92%)
OPP (Hot @ 44.1°C)925.72W (123.43%)
OTP✓ (108°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.419A 2.004A 1.977A 0.984A 75.012 83.236% 756 17.8 40.39°C 0.945
12.085V 4.991V 3.339V 5.081V 90.148 44.57°C 114.93V
20% 9.856A 3.008A 2.969A 1.184A 149.982 88.339% 764 18.1 40.71°C 0.991
12.081V 4.988V 3.335V 5.068V 169.795 47.1°C 114.91V
30% 15.646A 3.511A 3.467A 1.385A 224.993 90.12% 806 19.8 41.17°C 0.996
12.076V 4.986V 3.332V 5.055V 249.686 49.62°C 114.89V
40% 21.442A 4.014A 3.966A 1.587A 300.057 90.644% 1000 26.1 41.71°C 0.998
12.072V 4.984V 3.328V 5.043V 331.014 51.24°C 114.9V
50% 26.864A 5.021A 4.963A 1.79A 374.677 90.636% 1148 30.2 42.02°C 0.998
12.067V 4.98V 3.325V 5.03V 413.346 52.07°C 114.88V
60% 32.316A 6.03A 5.963A 1.994A 449.618 90.24% 1356 34.4 42.72°C 0.998
12.062V 4.977V 3.321V 5.016V 498.219 52.9°C 114.86V
70% 37.773A 7.039A 6.966A 2.2A 524.551 89.729% 1599 38.9 43.19°C 0.998
12.057V 4.974V 3.317V 5.002V 584.613 53.42°C 114.85V
80% 43.302A 8.049A 7.97A 2.305A 599.781 89.126% 1779 41.6 43.78°C 0.998
12.052V 4.97V 3.312V 4.99V 672.982 54.34°C 114.82V
90% 49.167A 8.557A 8.462A 2.41A 674.813 88.538% 1910 44.2 44.24°C 0.998
12.047V 4.968V 3.309V 4.979V 762.162 55.24°C 114.79V
100% 55.038A 9.064A 8.986A 2.517A 749.96 87.84% 1919 44.4 45.54°C 0.998
12.042V 4.966V 3.305V 4.968V 853.933 57.82°C 114.77V
110% 60.584A 10.077A 10.088A 2.522A 825.043 86.811% 1927 44.7 46.73°C 0.998
12.037V 4.962V 3.301V 4.957V 950.271 59.92°C 114.74V
CL1 0.116A 12.099A 11.926A 0A 101.318 81.185% 1245 32.3 40.22°C 0.977
12.079V 4.976V 3.329V 5.089V 124.819 45.31°C 114.93V
CL2 0.116A 20.129A 0A 0A 101.404 80.094% 1211 32 41.97°C 0.978
12.083V 4.968V 3.34V 5.096V 126.616 46.63°C 114.93V
CL3 0.116A 0A 19.868A 0A 67.401 74.011% 973 25.3 41.01°C 0.948
12.078V 4.995V 3.322V 5.09V 91.087 46.01°C 114.94V
CL4 62.247A 0A 0A 0A 749.876 88.617% 1922 44.5 45.31°C 0.998
12.047V 4.981V 3.315V 5.039V 846.207 56.83°C 114.76V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.419A 2.004A 1.977A 0.984A 75.01 84.443% 754 17.7 40.44°C 0.698
12.086V 4.991V 3.339V 5.081V 88.832 43.1°C 230.06V
20% 9.856A 3.008A 2.969A 1.184A 149.976 89.865% 762 18.1 40.97°C 0.854
12.081V 4.988V 3.335V 5.068V 166.875 44.9°C 230.05V
30% 15.644A 3.511A 3.467A 1.385A 224.989 91.666% 811 19.9 41.08°C 0.926
12.076V 4.986V 3.332V 5.055V 245.482 46.52°C 230.04V
40% 21.444A 4.015A 3.966A 1.587A 300.08 92.334% 968 25.2 41.88°C 0.962
12.072V 4.983V 3.328V 5.042V 325.004 47.61°C 230.03V
50% 26.872A 5.022A 4.964A 1.79A 374.771 92.466% 1175 30.9 42.21°C 0.979
12.067V 4.98V 3.324V 5.029V 405.302 48.14°C 230.02V
60% 32.324A 6.03A 5.964A 1.995A 449.716 92.389% 1351 34.3 42.57°C 0.986
12.062V 4.977V 3.32V 5.015V 486.759 48.44°C 230V
70% 37.780A 7.04A 6.967A 2.2A 524.635 92.002% 1554 38.2 43.33°C 0.99
12.057V 4.973V 3.316V 5.001V 570.264 49.23°C 229.99V
80% 43.307A 8.05A 7.971A 2.305A 599.849 91.671% 1741 40.6 43.94°C 0.992
12.052V 4.97V 3.312V 4.99V 654.385 49.79°C 229.98V
90% 49.171A 8.557A 8.463A 2.411A 674.873 91.312% 1914 44.3 44.99°C 0.995
12.047V 4.968V 3.309V 4.979V 738.992 50.99°C 229.97V
100% 55.040A 9.065A 8.987A 2.517A 750.004 90.939% 1917 44.3 45.23°C 0.996
12.042V 4.965V 3.305V 4.967V 824.781 51.96°C 229.96V
110% 60.585A 10.076A 10.088A 2.522A 825.038 90.424% 1924 44.6 46.57°C 0.996
12.036V 4.963V 3.301V 4.958V 912.315 53.96°C 229.94V
CL1 0.116A 12.099A 11.926A 0A 101.321 82.637% 1265 32.6 40.59°C 0.782
12.079V 4.976V 3.329V 5.089V 122.62 44.53°C 230.04V
CL2 0.116A 20.128A 0A 0A 101.406 81.581% 1072 28.1 40.21°C 0.786
12.084V 4.968V 3.34V 5.096V 124.316 43.87°C 230.04V
CL3 0.116A 0A 19.868A 0A 67.402 75.203% 877 22.1 40.46°C 0.703
12.078V 4.995V 3.322V 5.09V 89.656 44.48°C 230.04V
CL4 62.245A 0A 0A 0A 749.874 91.73% 1923 44.5 45.41°C 0.995
12.047V 4.981V 3.314V 5.039V 817.529 51.07°C 229.95V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.228A 0.5A 0.494A 0.196A 20.002 63.776% 0 <6.0 44.49°C 0.749
12.089V 5V 3.343V 5.107V 31.386 36.55°C 115V
40W 2.704A 0.7A 0.691A 0.294A 40 76.367% 0 <6.0 46.59°C 0.852
12.086V 4.999V 3.342V 5.103V 52.369 37.04°C 114.99V
60W 4.182A 0.9A 0.889A 0.392A 59.998 81.722% 0 <6.0 45.35°C 0.904
12.084V 4.999V 3.341V 5.098V 73.436 38.41°C 114.99V
80W 5.654A 1.101A 1.086A 0.491A 79.947 84.568% 0 <6.0 42.66°C 0.955
12.081V 4.997V 3.341V 5.094V 94.554 38.33°C 114.98V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.228A 0.5A 0.494A 0.196A 20.003 65.099% 0 <6.0 42.01°C 0.387
12.090V 4.995V 3.343V 5.106V 30.777 36.11°C 230.13V
40W 2.704A 0.7A 0.691A 0.294A 40.001 77.658% 0 <6.0 44.76°C 0.532
12.087V 4.997V 3.342V 5.102V 51.535 37.1°C 230.13V
60W 4.182A 0.901A 0.889A 0.392A 59.999 83.144% 0 <6.0 43.21°C 0.636
12.084V 4.998V 3.341V 5.098V 72.173 38.03°C 230.13V
80W 5.656A 1.101A 1.087A 0.491A 79.952 86.041% 0 <6.0 44.67°C 0.712
12.081V 4.998V 3.34V 5.093V 92.959 39.02°C 230.12V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load7.33mV6.94mV4.93mV7.79mVPass
20% Load9.46mV6.99mV5.55mV8.05mVPass
30% Load8.45mV9.23mV6.10mV8.15mVPass
40% Load8.80mV8.67mV7.07mV8.30mVPass
50% Load10.64mV8.37mV6.41mV7.59mVPass
60% Load11.45mV9.79mV7.12mV8.30mVPass
70% Load12.52mV10.66mV7.27mV8.20mVPass
80% Load13.99mV11.33mV10.98mV8.71mVPass
90% Load18.22mV10.51mV12.56mV8.56mVPass
100% Load26.80mV16.01mV16.45mV13.12mVPass
110% Load33.40mV18.03mV17.31mV14.32mVPass
Crossload112.99mV16.34mV16.27mV15.47mVPass
Crossload28.80mV11.17mV7.22mV10.70mVPass
Crossload38.04mV10.82mV12.00mV10.85mVPass
Crossload429.42mV16.30mV15.21mV16.67mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load7.63mV7.14mV5.34mV7.85mVPass
20% Load10.18mV7.25mV5.49mV7.74mVPass
30% Load8.19mV8.57mV6.20mV7.85mVPass
40% Load9.01mV9.23mV6.66mV8.56mVPass
50% Load11.14mV8.57mV7.22mV8.36mVPass
60% Load11.86mV8.57mV6.87mV8.40mVPass
70% Load11.35mV9.69mV6.87mV8.05mVPass
80% Load13.13mV11.94mV10.12mV8.71mVPass
90% Load14.09mV11.89mV11.75mV8.51mVPass
100% Load26.26mV13.94mV14.38mV9.32mVPass
110% Load31.37mV15.61mV15.26mV9.21mVPass
Crossload18.51mV13.15mV10.68mV11.87mVPass
Crossload28.50mV10.66mV7.07mV11.00mVPass
Crossload38.24mV11.12mV12.11mV11.36mVPass
Crossload425.74mV13.61mV11.26mV12.28mVPass

The results above are not used in the certification process

Super Flower Zillion FG 750W

Top side
Power specifications label
