CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Super Flower Combat FG 650W
Serial NumberN2403CW000003
Lab IDSF65002661
  • Report: 24PS2661A
  • Receipt Date: Nov 6, 2024
  • Test Date: Nov 26, 2024
  • Report Date: Nov 28, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Lab Director

General Information

DUT Information

BrandSuper Flower
Manufacturer (OEM)No Info
SeriesCombat FG
Model NumberSF-650C12FG
Serial NumberN2403CW000003
DUT NotesThe unit broke during -12V SCP testing

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)47-63
Rated Power (W)650
TypeATX12V
Cooling120mm Fluid Dynamic Bearing Fan (ZFF122512H)
Semi-Passive Operation
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2020542.50.3
Watts10064812.53.6
Total Max. Power (W)650

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 24 pin (590mm) 1 1 18AWG No
4+4 pin EPS12V (600mm) 2 2 16AWG No
6+2 pin PCIe (500mm+150mm) 2 4 18AWG No
12+2 pin PCIe (595mm) (600W) 1 1 16-24AWG No
SATA (400mm+150mm+150mm) 2 6 18AWG No
4-pin Molex (400mm+150mm+150mm+150mm) 1 4 18AWG No
FDD Adapter (+150mm) 1 1 18AWG No
AC Power Cord (1350mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary

Efficiency RatingGOLD
Noise RatingStandard++
Average Efficiency (>1450 load combinations)88.391%
Average Noise Output (>1450 Load Combinations)30.50dBA
Average PF (>1450 Load Combinations)0.979
Efficiency With 10W (≤500W) or 2% (>500W) Load62.955%
Standby Power Consumption0.0437W
12V Ripple (Full Load)23.53mV
5V Ripple (Full Load)11.82mV
3.3V Ripple (Full Load)12.83mV
5VSB Ripple (Full Load)13.36mV
12V Load Regulation0.26%
5V Load Regulation0.46%
3.3V Load Regulation0.63%
5VSB Load Regulation2.83%
Inrush Current53.780A
Efficiency RatingSILVER
Noise RatingStandard++
Average Efficiency (>1450 load combinations)90.615%
Average Noise Output (>1450 Load Combinations)30.91dBA
Average PF (>1450 Load Combinations)0.927
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.1215W
12V Ripple (Full Load)24.69mV
5V Ripple (Full Load)12.07mV
3.3V Ripple (Full Load)13.37mV
5VSB Ripple (Full Load)12.59mV
12V Load Regulation0.27%
5V Load Regulation0.42%
3.3V Load Regulation0.63%
5VSB Load Regulation2.78%
Inrush Current79.260A
12V Transient Response (200%)11.46V
5V Transient Response (200%)4.941V
3.3V Transient Response (200%)3.253V
5VSB Transient Response (200%)4.932V
Hold-Up Time & Power Ok Signal15.70ms
AC Loss to PWR_OK Hold Up Time14.50ms
PWR_OK Inactive to DC Loss Delay1.20ms
PSU Timings: T1 (20% / 100%)23.0ms22.0ms
PSU Timings: T3 (20% / 100%)112.0ms113.0ms
12V OCP (28.5°C / 43.7°C)76.40A (141.48%), 12.034V70.60A (130.74%), 12.053V
5V OCP (28.5°C / 43.7°C)28.4A (142.00%), 4.979V28A (140.00%), 4.982V
3.3V OCP (28.5°C / 43.7°C)29.6A (148.00%), 3.344V29.6A (148.00%), 3.344V
5VSB OCP (28.5°C / 43.7°C)3.9A (156.00%), 4.996V
3.9A (156.00%), 4.991V
OPP (29.50°C / 43.58°C)137.09%125.11%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)15.7
AC Loss to PWR_OK Hold Up Time (ms)14.5
PWR_OK Inactive to DC Loss Delay (ms)1.2

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.87 V 114.81 V 113.85 V 114.93 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.98 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.419 1.417 1.340 1.422 1.490 PASS
Mains Voltage THD: 0.15 % 0.09 % N/A 0.27 % 2.00 % PASS
Real Power: 0.044 W 0.015 W N/A 0.064 W N/A N/A
Apparent Power: 10.245 W 10.227 W N/A 10.264 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.95 V 229.87 V 227.70 V 230.02 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.13 % N/A 0.22 % 2.00 % PASS
Real Power: 0.122 W 0.104 W N/A 0.148 W N/A N/A
Apparent Power: 34.575 W 34.544 W N/A 34.602 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

Graphs

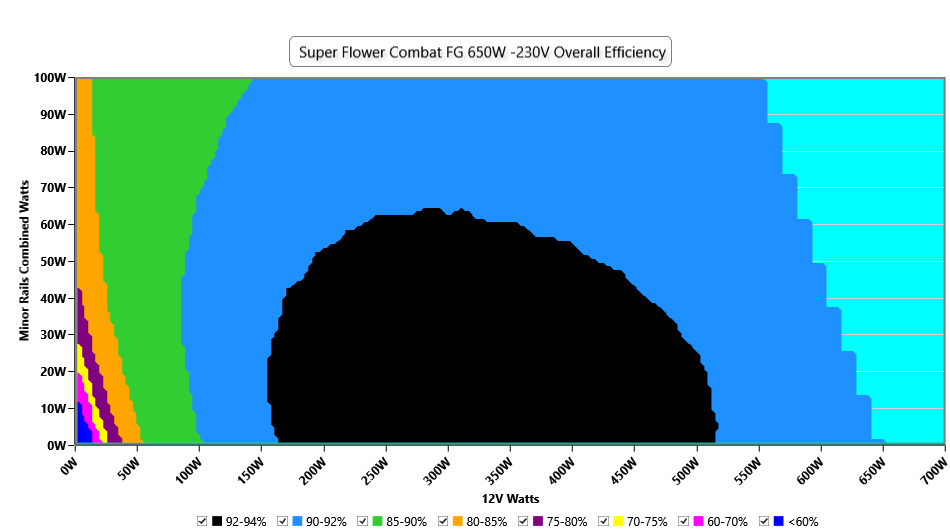

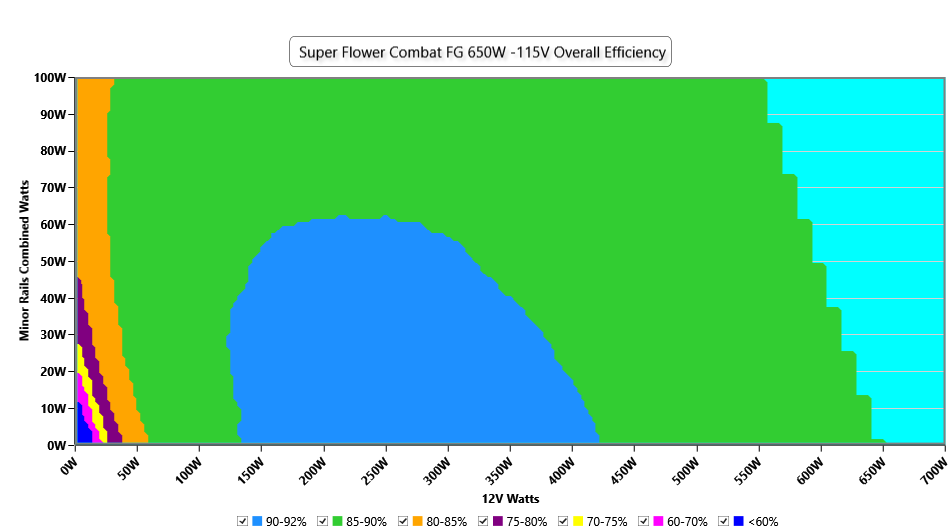

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

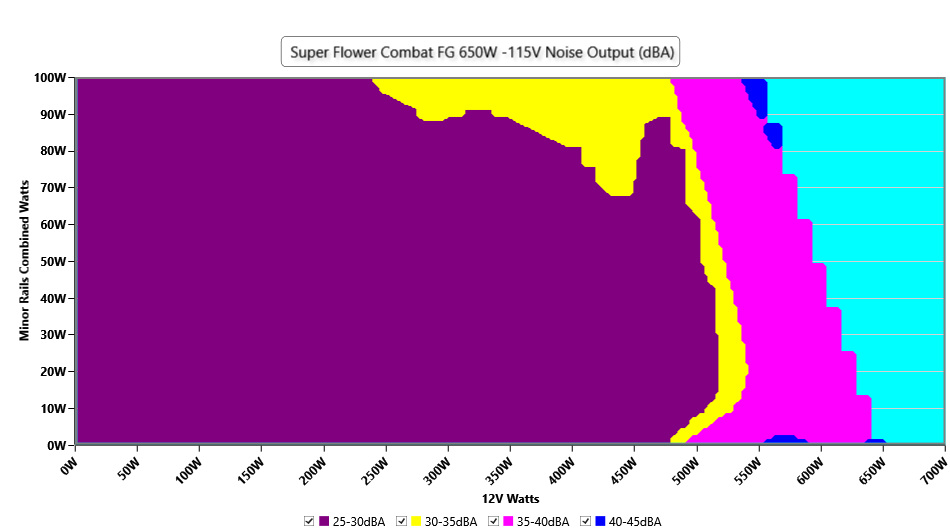

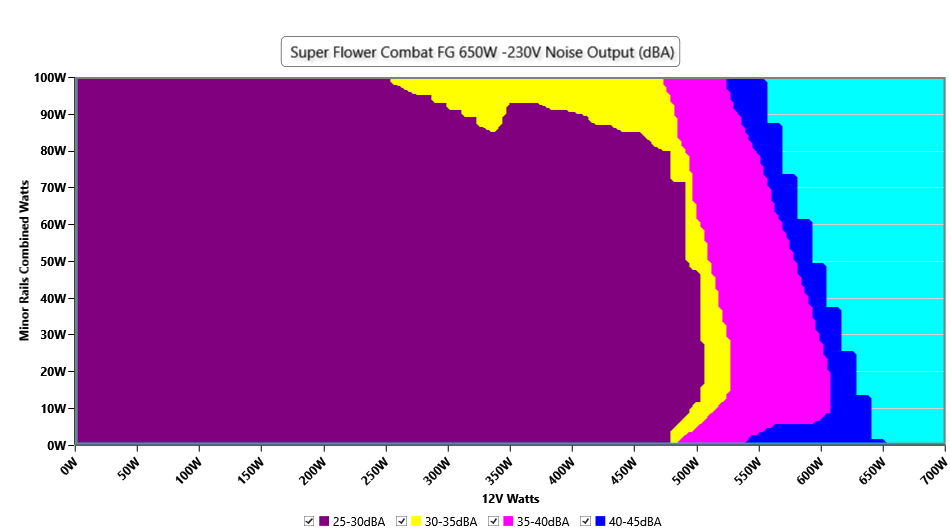

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

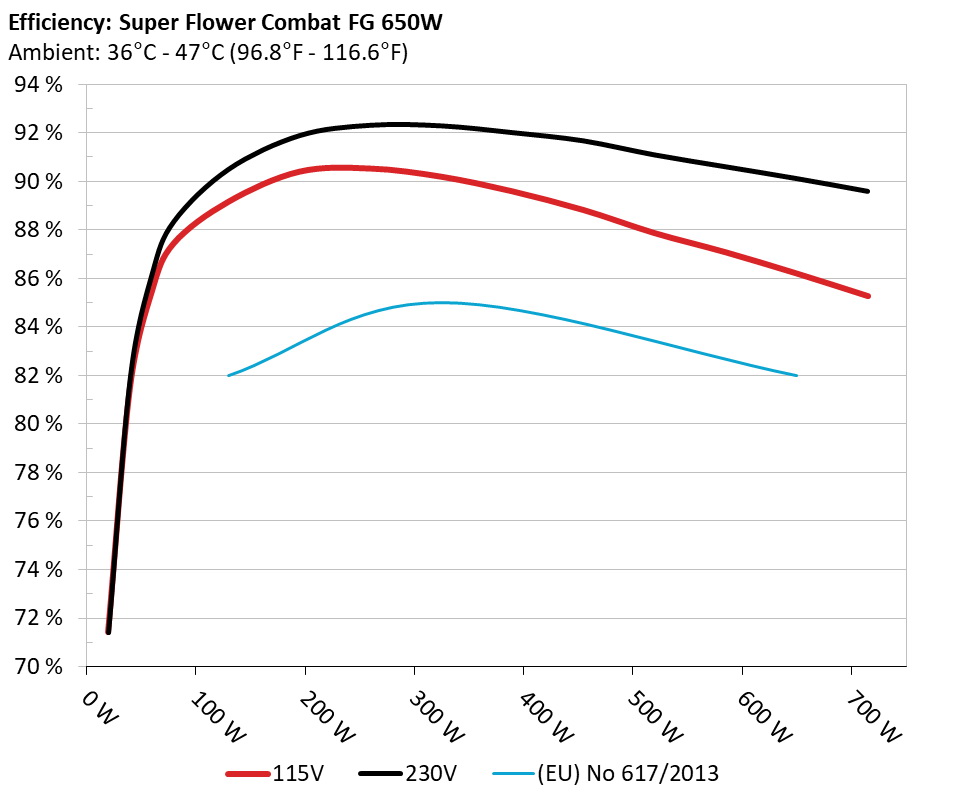

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

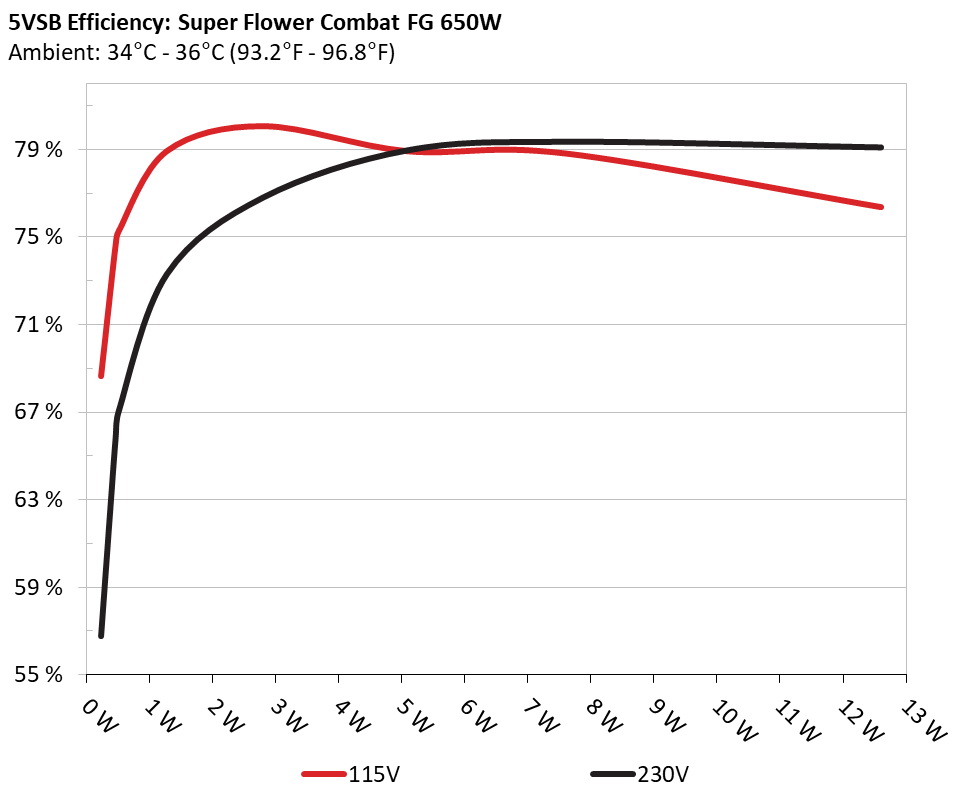

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 68.64% 0.033
5.106V 0.335W 114.87V
2 0.09A 0.46W 74.632% 0.059
5.105V 0.616W 114.88V
3 0.55A 2.801W 80.058% 0.263
5.092V 3.499W 114.87V
4 1A 5.081W 78.917% 0.351
5.08V 6.438W 114.87V
5 1.5A 7.599W 78.81% 0.408
5.066V 9.642W 114.87V
6 2.5A 12.597W 76.362% 0.465
5.039V 16.497W 114.87V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 56.778% 0.012
5.104V 0.405W 229.95V
2 0.09A 0.459W 65.806% 0.02
5.104V 0.698W 229.95V
3 0.55A 2.8W 76.825% 0.101
5.091V 3.645W 229.94V
4 1A 5.08W 78.975% 0.166
5.08V 6.432W 229.95V
5 1.5A 7.599W 79.37% 0.209
5.065V 9.574W 229.95V
6 2.5A 12.596W 79.113% 0.291
5.038V 15.923W 229.95V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.596A 1.997A 1.972A 0.987A 65.002 85.193% 1127 28.5 40.5°C 0.959
12.070V 5.008V 3.346V 5.068V 76.301 41.36°C 114.86V
20% 8.207A 2.997A 2.961A 1.187A 129.935 89.167% 1132 28.8 40.76°C 0.975
12.067V 5.005V 3.344V 5.055V 145.72 42.76°C 114.83V
30% 13.171A 3.498A 3.456A 1.388A 194.937 90.407% 1134 29.1 41.18°C 0.978
12.063V 5.003V 3.342V 5.042V 215.619 43.92°C 114.8V
40% 18.145A 3.999A 3.953A 1.591A 260.023 90.537% 1138 29.8 41.71°C 0.982
12.059V 5.002V 3.34V 5.029V 287.199 45.66°C 114.78V
50% 22.769A 5.001A 4.943A 1.795A 325.02 90.199% 1142 30.8 42.13°C 0.984
12.056V 5V 3.338V 5.015V 360.334 47.63°C 114.75V
60% 27.344A 6.003A 5.935A 1.999A 389.391 89.6% 1145 32.1 42.97°C 0.983
12.053V 4.999V 3.337V 5.002V 434.589 50.08°C 114.73V
70% 31.999A 7.007A 6.928A 2.206A 454.721 88.829% 1148 33 43.35°C 0.983
12.050V 4.996V 3.335V 4.988V 511.91 52.6°C 114.7V
80% 36.657A 8.01A 7.923A 2.311A 519.511 87.881% 1621 38.7 43.95°C 0.984
12.047V 4.993V 3.332V 4.977V 591.153 54.34°C 114.68V
90% 41.720A 8.514A 8.409A 2.416A 584.923 87.084% 2061 44.9 44.21°C 0.985
12.043V 4.991V 3.329V 4.967V 671.676 55.2°C 114.64V
100% 46.719A 9.019A 8.926A 2.523A 649.66 86.214% 2302 46.6 45.79°C 0.986
12.039V 4.989V 3.327V 4.956V 753.551 57.83°C 114.61V
110% 51.452A 10.026A 10.013A 2.527A 715.072 85.278% 2302 46.6 46.77°C 0.986
12.036V 4.987V 3.325V 4.948V 838.519 62.11°C 114.58V
CL1 0.116A 12.049A 11.871A 0A 101.295 83.228% 1149 33.7 41.56°C 0.971
12.080V 4.996V 3.344V 5.078V 121.706 47.82°C 114.84V
CL2 0.115A 20.032A 0A 0A 101.377 80.184% 1160 32.7 40.6°C 0.971
12.084V 4.991V 3.351V 5.084V 126.433 44.78°C 114.84V
CL3 0.115A 0A 19.735A 0A 67.383 76.382% 1128 28.5 42.05°C 0.96
12.078V 5.01V 3.344V 5.082V 88.22 44.86°C 114.85V
CL4 53.957A 0A 0A 0A 649.568 87.569% 2304 46.6 46.85°C 0.986
12.038V 5.005V 3.334V 5.037V 741.787 56.41°C 114.62V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.596A 1.997A 1.972A 0.986A 64.997 85.991% 1127 28.5 40.35°C 0.765
12.071V 5.008V 3.346V 5.069V 75.59 41.38°C 229.94V
20% 8.206A 2.997A 2.961A 1.187A 129.92 90.51% 1131 28.8 40.75°C 0.881
12.067V 5.005V 3.344V 5.056V 143.544 42.4°C 229.93V
30% 13.169A 3.498A 3.456A 1.388A 194.916 91.899% 1133 28.9 41.11°C 0.92
12.064V 5.004V 3.342V 5.043V 212.122 43.15°C 229.92V
40% 18.142A 3.999A 3.952A 1.59A 259.992 92.325% 1137 29.8 41.73°C 0.938
12.060V 5.002V 3.34V 5.031V 281.604 44.5°C 229.9V
50% 22.765A 5A 4.943A 1.794A 324.98 92.299% 1139 30.4 42.02°C 0.948
12.057V 5V 3.338V 5.017V 352.095 45.4°C 229.89V
60% 27.331A 6.002A 5.935A 1.999A 389.254 92.024% 1144 31.7 42.86°C 0.953
12.054V 4.999V 3.336V 5.003V 422.994 47.14°C 229.88V
70% 31.987A 7.006A 6.928A 2.204A 454.579 91.684% 1147 32.5 43.18°C 0.956
12.051V 4.997V 3.335V 4.989V 495.817 48.07°C 229.87V
80% 36.645A 8.009A 7.922A 2.309A 519.372 91.108% 1548 37.1 43.57°C 0.959
12.047V 4.994V 3.332V 4.979V 570.061 48.54°C 229.86V
90% 41.708A 8.513A 8.409A 2.415A 584.783 90.615% 2027 44.6 44.61°C 0.961
12.043V 4.992V 3.329V 4.969V 645.348 49.25°C 229.85V
100% 46.708A 9.017A 8.925A 2.52A 649.507 90.133% 2301 46.6 45.28°C 0.964
12.039V 4.99V 3.327V 4.959V 720.61 49.86°C 229.83V
110% 51.441A 10.024A 10.013A 2.525A 714.928 89.604% 2304 46.6 46.88°C 0.967
12.036V 4.987V 3.325V 4.951V 797.868 52.41°C 229.82V
CL1 0.114A 12.048A 11.873A 0A 101.279 84.218% 1148 33 40.39°C 0.859
12.080V 4.996V 3.344V 5.079V 120.26 44.55°C 229.94V
CL2 0.114A 20.025A 0A 0A 101.342 81.202% 1161 32.5 41.82°C 0.864
12.083V 4.992V 3.351V 5.085V 124.804 44.59°C 229.94V
CL3 0.114A 0A 19.739A 0A 67.376 77.146% 1128 28.5 41.77°C 0.801
12.078V 5.011V 3.343V 5.083V 87.334 44.16°C 229.95V
CL4 53.943A 0A 0A 0A 649.449 91.24% 2307 46.7 47.19°C 0.964
12.040V 5.006V 3.335V 5.038V 711.801 50.35°C 229.83V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.499A 0.493A 0.196A 19.997 71.431% 1114 28.2 36.15°C 0.847
12.068V 5.012V 3.348V 5.097V 27.997 36.23°C 114.88V
40W 2.708A 0.699A 0.69A 0.295A 39.998 81.517% 1118 28.3 37.12°C 0.929
12.067V 5.01V 3.347V 5.092V 49.066 37.78°C 114.87V
60W 4.188A 0.898A 0.887A 0.393A 59.998 85.469% 1121 28.3 38.33°C 0.95
12.068V 5.009V 3.347V 5.087V 70.199 39.07°C 114.86V
80W 5.661A 1.098A 1.085A 0.492A 79.942 87.451% 1124 28.4 39.02°C 0.96
12.068V 5.009V 3.346V 5.081V 91.414 40.13°C 114.85V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.499A 0.493A 0.196A 19.996 71.419% 1112 28.2 36.38°C 0.47
12.067V 5.011V 3.348V 5.097V 27.997 36.46°C 229.95V
40W 2.709A 0.699A 0.69A 0.294A 39.996 81.954% 1115 28.3 37.26°C 0.648
12.067V 5.01V 3.347V 5.093V 48.805 37.54°C 229.95V
60W 4.188A 0.898A 0.887A 0.393A 59.996 86.206% 1121 28.3 38.87°C 0.744
12.067V 5.009V 3.346V 5.088V 69.597 39.39°C 229.94V
80W 5.660A 1.098A 1.085A 0.492A 79.934 88.368% 1122 28.3 39.46°C 0.807
12.068V 5.009V 3.346V 5.082V 90.456 40.18°C 229.94V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load9.54mV8.34mV9.46mV10.84mVPass
20% Load12.44mV8.19mV9.16mV12.28mVPass
30% Load16.36mV8.45mV8.84mV11.82mVPass
40% Load17.23mV8.55mV9.72mV10.53mVPass
50% Load16.29mV9.12mV10.45mV11.82mVPass
60% Load14.35mV9.43mV10.91mV15.38mVPass
70% Load14.64mV9.79mV10.91mV11.25mVPass
80% Load14.49mV10.61mV12.05mV11.36mVPass
90% Load14.75mV10.92mV12.20mV14.25mVPass
100% Load23.53mV11.82mV12.83mV13.36mVPass
110% Load25.03mV12.13mV13.88mV13.90mVPass
Crossload118.16mV11.60mV12.63mV6.98mVPass
Crossload213.14mV16.33mV10.34mV7.38mVPass
Crossload312.99mV8.04mV13.39mV6.76mVPass
Crossload422.56mV10.22mV11.30mV10.12mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load9.64mV8.29mV8.12mV9.70mVPass
20% Load13.21mV8.19mV9.00mV13.21mVPass
30% Load14.35mV7.73mV8.27mV8.00mVPass
40% Load18.37mV8.91mV9.67mV10.84mVPass
50% Load17.55mV8.91mV9.78mV12.70mVPass
60% Load15.38mV9.17mV10.19mV16.26mVPass
70% Load14.44mV9.84mV10.91mV10.74mVPass
80% Load15.00mV11.23mV12.31mV10.63mVPass
90% Load15.26mV11.28mV11.58mV12.90mVPass
100% Load24.69mV12.07mV13.37mV12.59mVPass
110% Load24.76mV12.59mV14.14mV13.45mVPass
Crossload118.70mV11.66mV12.54mV7.03mVPass
Crossload213.20mV17.21mV10.19mV6.97mVPass
Crossload311.81mV7.78mV12.77mV6.50mVPass
Crossload422.54mV10.40mV11.55mV10.59mVPass

The results above are not used in the certification process

Super Flower Combat FG 650W

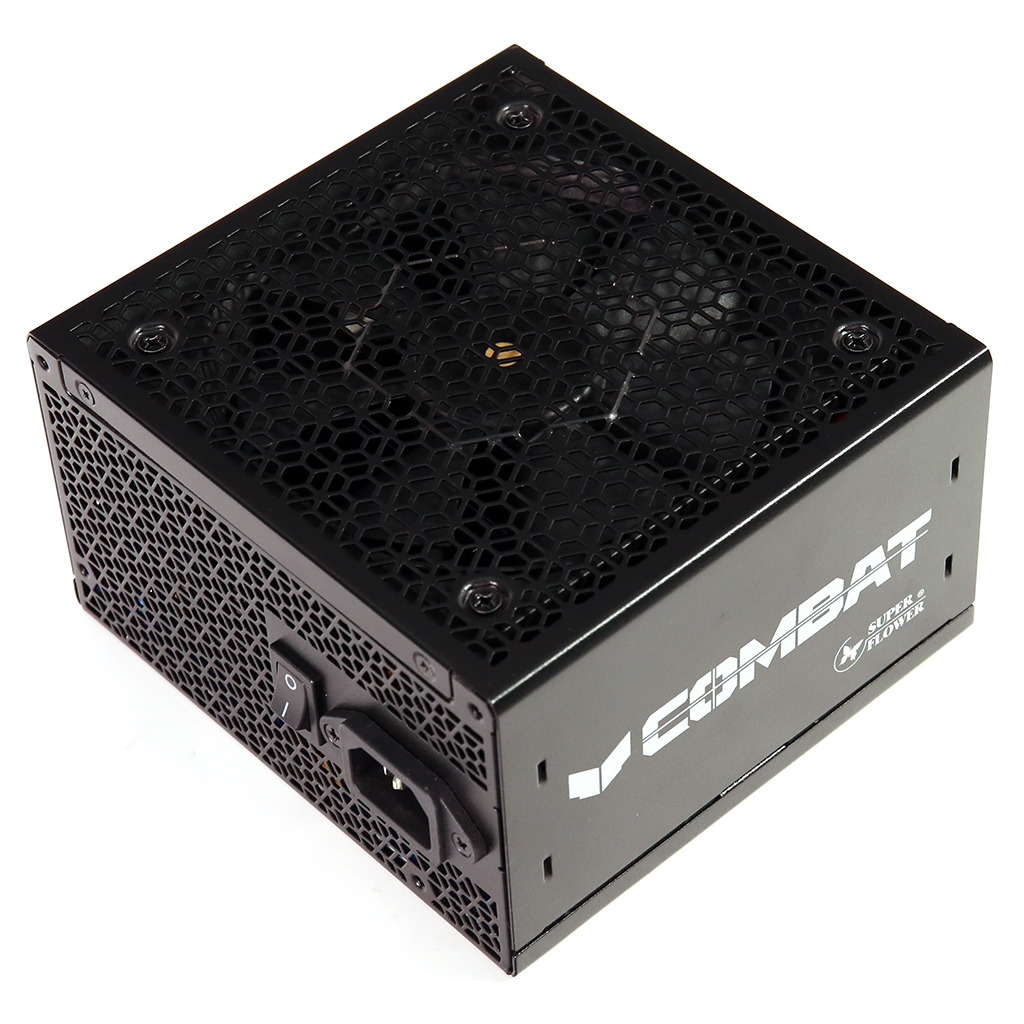

Top side

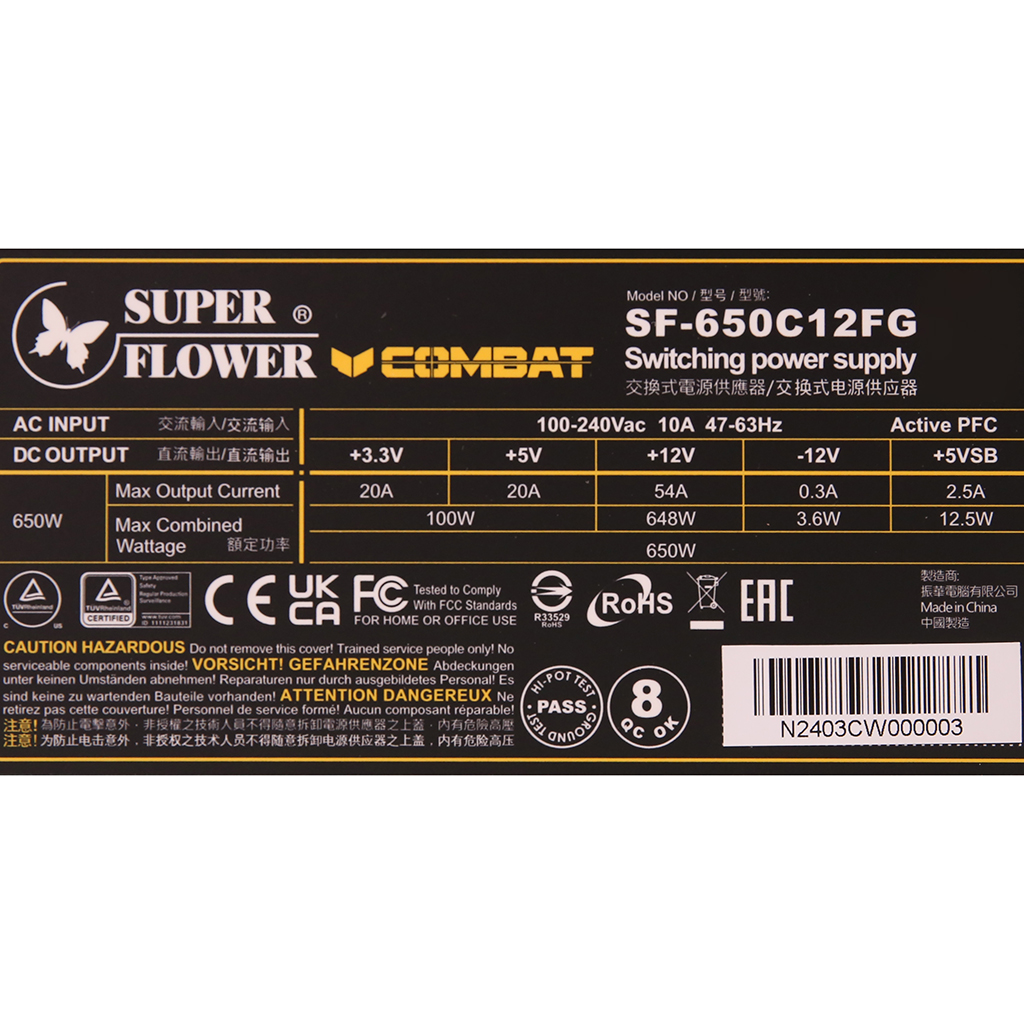

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
