KBM! Gaming FN750
Serial Number
Lab IDKB75002648
  • Report: 24PS2648A
  • Receipt Date: Oct 29, 2024
  • Test Date: Nov 25, 2024
  • Report Date: Nov 27, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandKBM! Gaming
Manufacturer (OEM)Kinpower
SeriesFN
Model NumberFN750
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)16
Rated Frequency (Hz)50-60
Rated Power (W)750
TypeATX12V
Cooling140mm Rifle Bearing Fan
(EFS-14E12H)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202062.530.3
Watts103750153.6
Total Max. Power (W)750

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (550mm) 1 1 18-22AWG No
4+4 pin EPS12V (600mm) 2 2 18AWG No
6+2 pin PCIe (550mm+150mm) 2 4 18AWG No
12+4 pin PCIe (610mm) (600W) 1 1 16-24AWG No
SATA (450mm+155mm+155mm) 3 9 18AWG No

4-pin Molex (450mm+150mm+150mm)

 1 3 18AWG No

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary 115V

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)18.9
AC Loss to PWR_OK Hold Up Time (ms)16
PWR_OK Inactive to DC Loss Delay (ms)2.9

Vampire Power

Tables 115V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.07 V 115.03 V 113.85 V 115.11 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.20 % 2.00 % PASS
Real Power: 0.050 W 0.029 W N/A 0.073 W N/A N/A
Apparent Power: 4.072 W 3.826 W N/A 4.307 W N/A N/A
Power Factor: 0.015 N/A N/A N/A N/A N/A

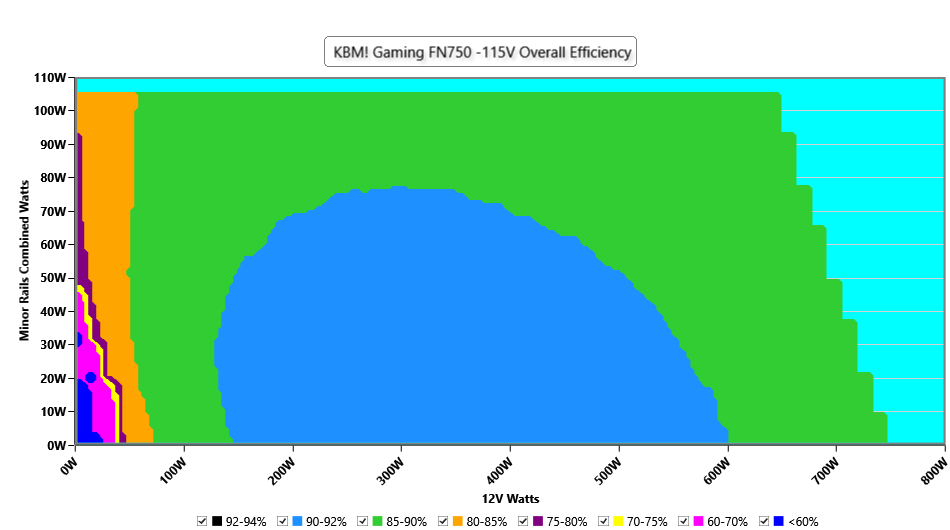

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

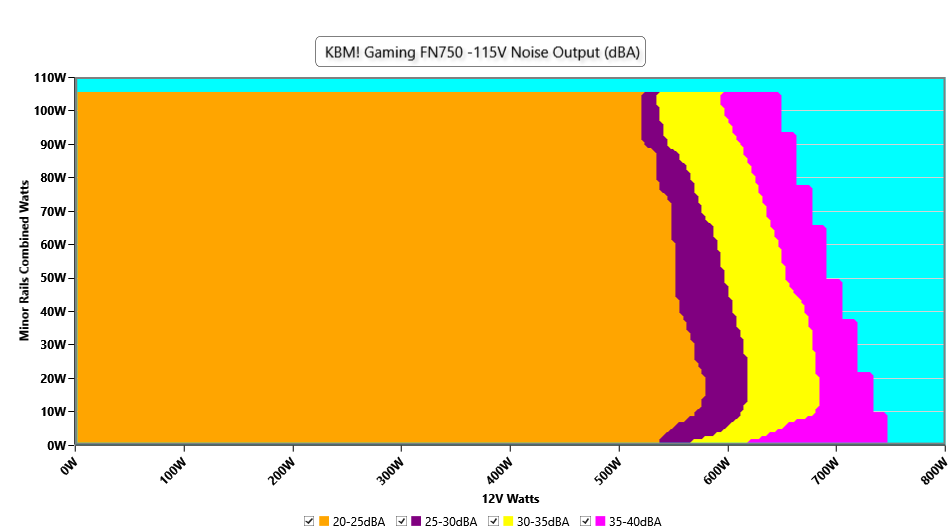

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

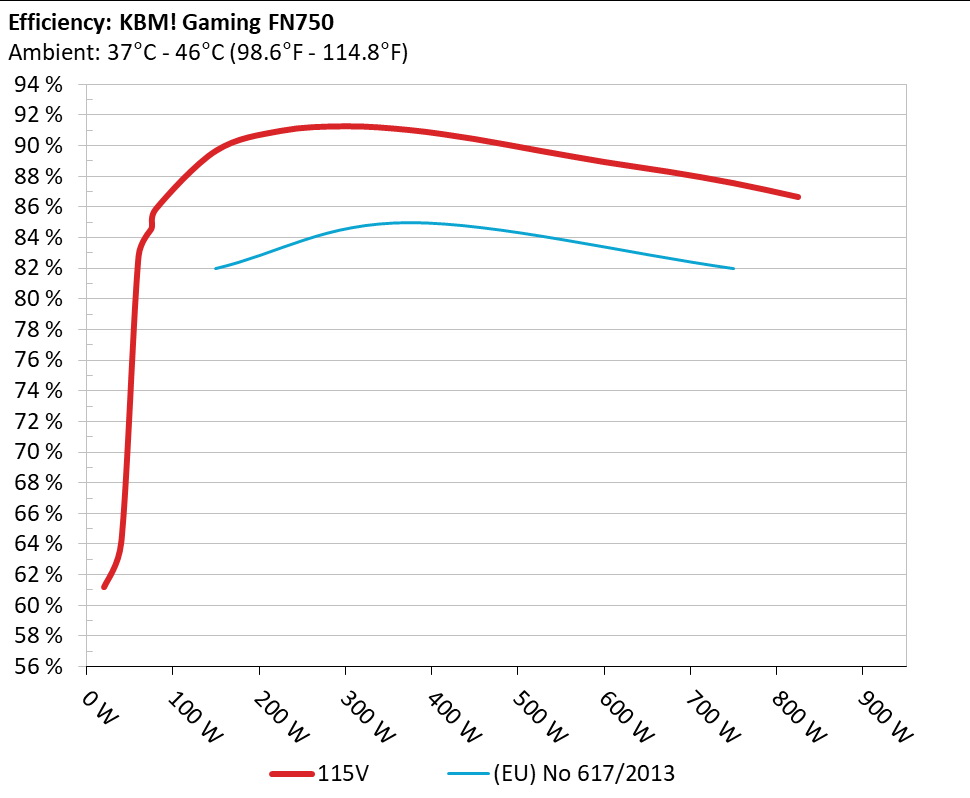

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

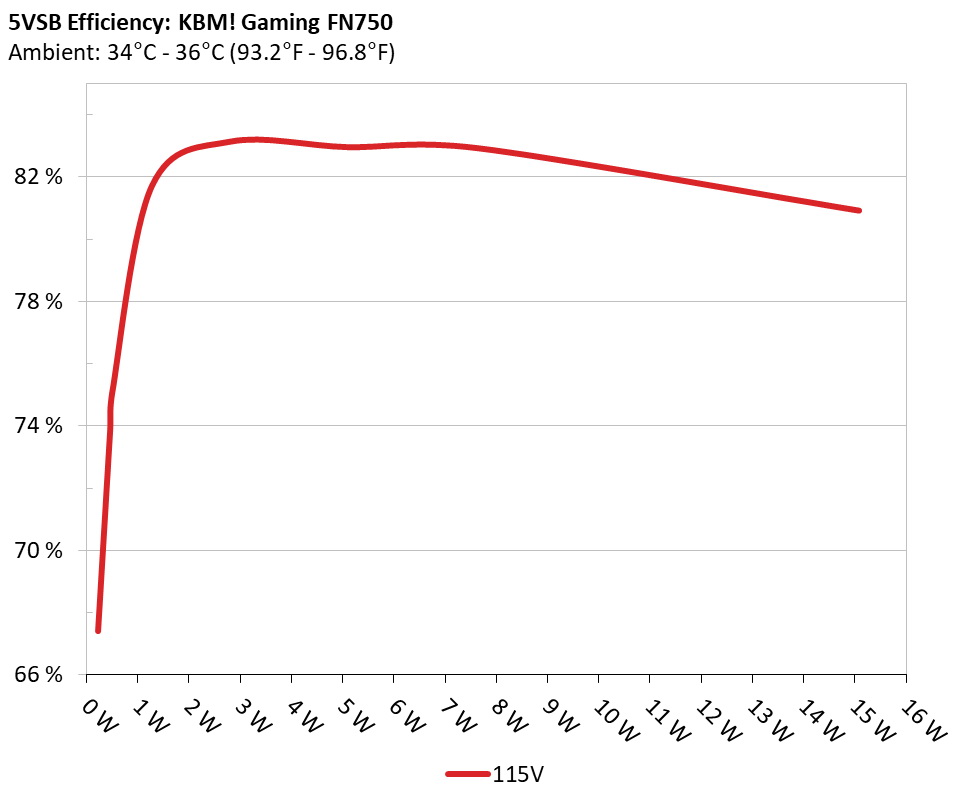

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232W 67.404% 0.083
5.153V 0.344W 114.85V
2 0.09A 0.464W 73.773% 0.144
5.151V 0.629W 114.86V
3 0.55A 2.823W 83.135% 0.397
5.132V 3.396W 114.85V
4 1A 5.114W 82.953% 0.462
5.113V 6.165W 114.85V
5 1.5A 7.639W 82.921% 0.49
5.092V 9.212W 114.84V
6 3.001A 15.08W 80.916% 0.516
5.026V 18.636W 114.83V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.382A 1.977A 1.983A 0.98A 75.007 84.597% 860 24.1 40.33°C 0.942
12.188V 5.058V 3.328V 5.103V 88.664 44.02°C 114.81V
20% 9.772A 2.968A 2.979A 1.181A 149.948 89.68% 861 24.1 40.97°C 0.966
12.183V 5.053V 3.323V 5.082V 167.203 45.26°C 114.79V
30% 15.522A 3.466A 3.479A 1.383A 224.953 90.974% 863 24.3 41.34°C 0.976
12.170V 5.05V 3.32V 5.062V 247.274 47.05°C 114.77V
40% 21.292A 3.963A 3.98A 1.587A 300.047 91.272% 865 24.4 41.96°C 0.983
12.157V 5.047V 3.317V 5.041V 328.738 48.6°C 114.75V
50% 26.682A 4.959A 4.983A 1.793A 374.491 91.025% 868 24.6 42°C 0.987
12.143V 5.042V 3.312V 5.02V 411.41 50.61°C 114.71V
60% 32.125A 5.956A 5.987A 2A 449.42 90.442% 1145 26.7 42.79°C 0.989
12.128V 5.038V 3.308V 4.998V 496.915 51.66°C 114.7V
70% 37.582A 6.954A 6.994A 2.211A 524.348 89.683% 1493 37 43.04°C 0.99
12.113V 5.034V 3.303V 4.975V 584.669 52.05°C 114.67V
80% 43.116A 7.955A 8.005A 2.321A 599.549 88.945% 1742 41.1 43.64°C 0.992
12.099V 5.028V 3.298V 4.956V 674.062 53.68°C 114.64V
90% 48.992A 8.458A 8.499A 2.43A 674.573 88.304% 1745 41.2 44.29°C 0.993
12.085V 5.025V 3.294V 4.938V 763.924 54.86°C 114.6V
100% 54.686A 8.961A 9.024A 3.062A 749.796 87.563% 1746 41.3 45.85°C 0.994
12.071V 5.021V 3.291V 4.9V 856.294 56.37°C 114.57V
110% 60.264A 9.968A 10.135A 3.072A 824.816 86.655% 1748 41.3 46.15°C 0.995
12.055V 5.016V 3.285V 4.884V 951.842 58.77°C 114.55V
CL1 0.115A 12.348A 12.427A 0A 104.302 79.117% 875 25.1 44°C 0.955
12.171V 5.021V 3.291V 5.114V 131.836 54.25°C 114.79V
CL2 0.114A 20.022A 0A 0A 101.345 78.573% 868 24.6 42.1°C 0.957
12.176V 4.992V 3.308V 5.123V 128.982 49.25°C 114.8V
CL3 0.114A 0A 20.177A 0A 67.383 70.128% 854 23.4 41.51°C 0.946
12.174V 5.023V 3.271V 5.123V 96.089 48.56°C 114.81V
CL4 62.004A 0A 0A 0.002A 749.611 88.747% 1770 41.8 43.91°C 0.994
12.089V 5.041V 3.31V 5.04V 844.67 53.45°C 114.58V

The results above are not used in the certification process

Light Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.218A 0.493A 0.495A 0.194A 20.001 61.195% 853 23.3 36.52°C 0.842
12.193V 5.066V 3.336V 5.144V 32.689 37.7°C 114.85V
40W 2.680A 0.691A 0.693A 0.292A 40.003 64.153% 855 23.7 37.97°C 0.924
12.198V 5.063V 3.333V 5.135V 62.36 41.59°C 114.85V
60W 4.145A 0.889A 0.891A 0.39A 60.003 82.8% 855 23.7 38.47°C 0.93
12.191V 5.061V 3.332V 5.13V 72.467 41°C 114.83V
80W 5.606A 1.087A 1.09A 0.488A 79.951 85.872% 858 24 39.06°C 0.945
12.187V 5.061V 3.331V 5.123V 93.105 42.34°C 114.81V

The results above are not used in the certification process

Ripple Measurements 115V

Test12V5V3.3V5VSBPass/Fail
10% Load17.54mV14.93mV17.24mV9.85mVPass
20% Load29.92mV15.14mV17.75mV10.67mVPass
30% Load19.28mV16.73mV19.03mV12.06mVPass
40% Load19.28mV16.32mV18.32mV13.50mVPass
50% Load18.16mV14.06mV17.70mV15.24mVPass
60% Load19.49mV16.63mV18.52mV19.75mVPass
70% Load20.66mV19.81mV18.57mV17.29mVPass
80% Load20.82mV21.60mV20.42mV22.01mVPass
90% Load23.01mV21.45mV19.60mV23.55mVPass
100% Load31.47mV21.29mV21.23mV30.37mVPass
110% Load30.57mV22.50mV23.61mV31.39mVPass
Crossload119.04mV23.78mV24.28mV17.55mVPass
Crossload220.66mV22.79mV25.91mV16.68mVPass
Crossload320.25mV32.90mV21.44mV16.32mVPass
Crossload430.87mV16.08mV16.67mV24.82mVPass

The results above are not used in the certification process

KBM! Gaming FN750

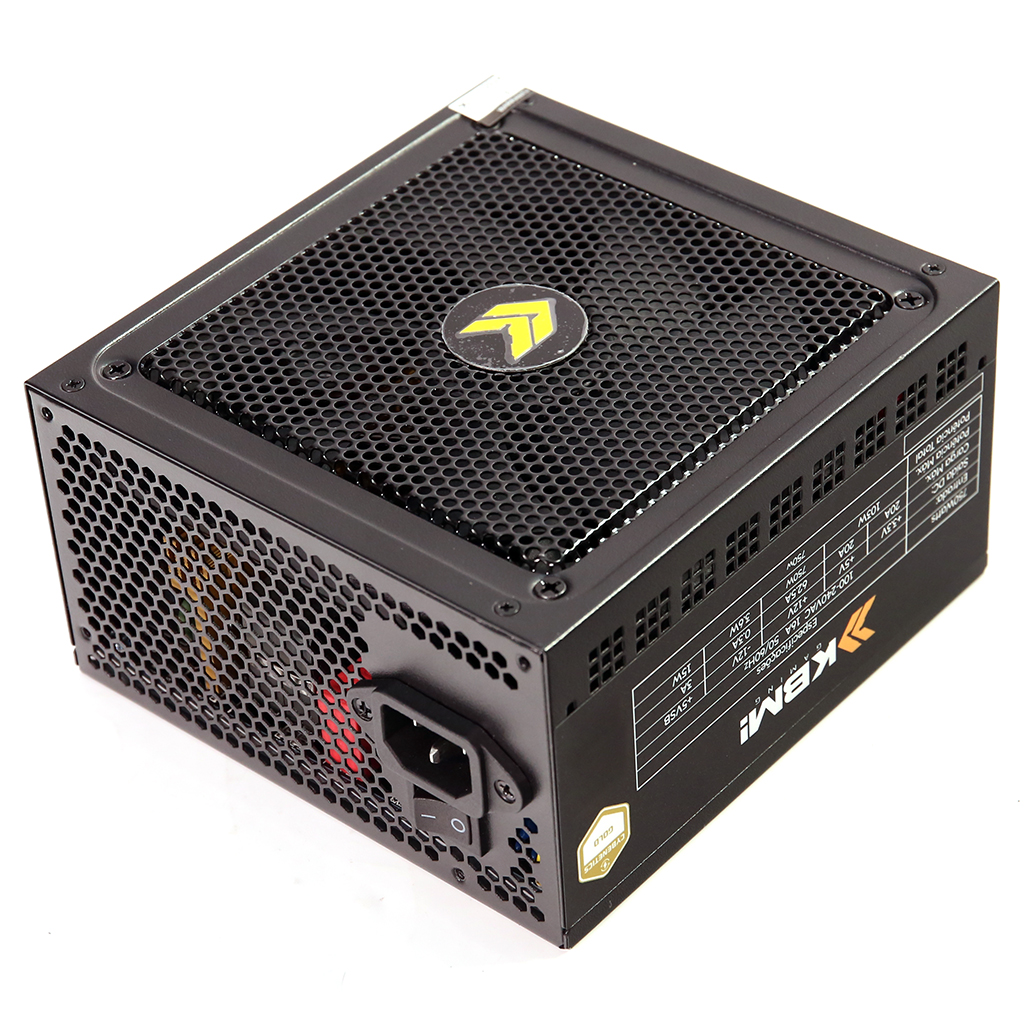

Top side

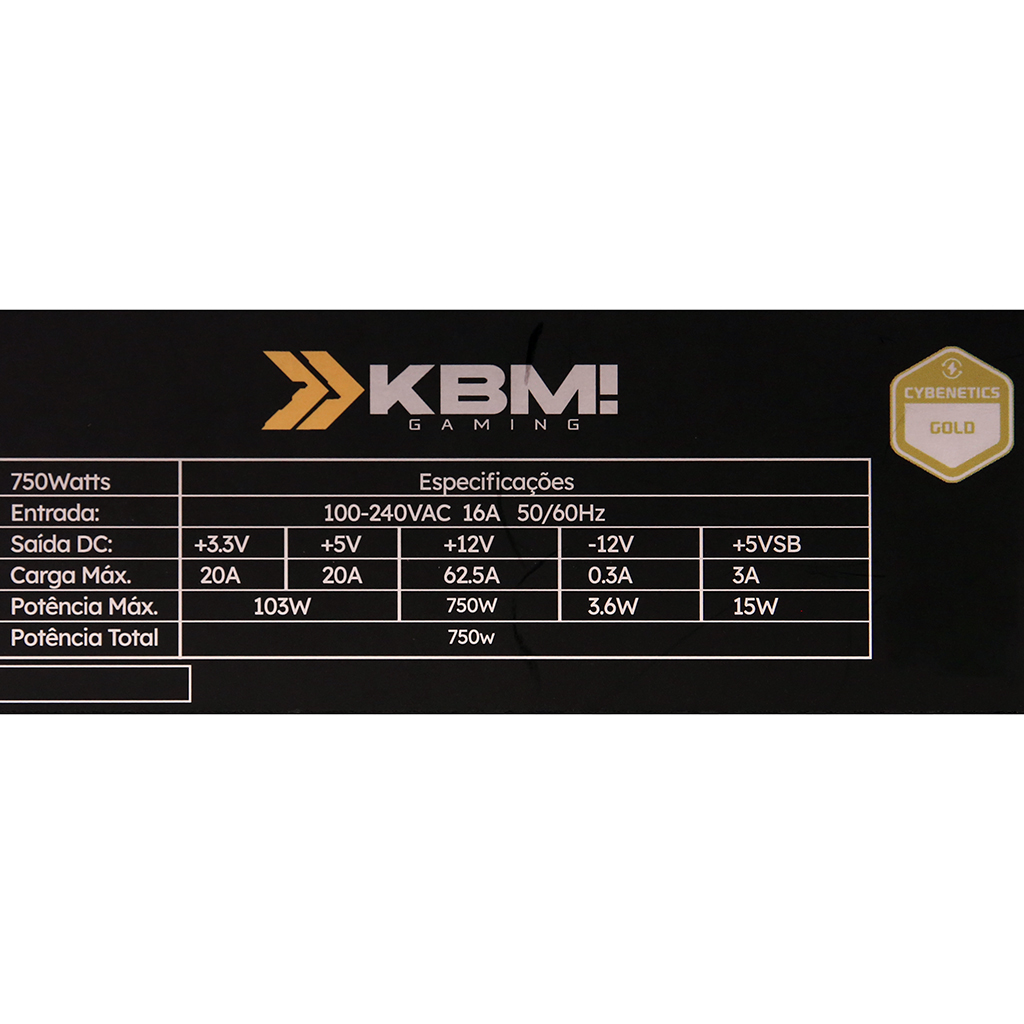

Power specifications label
