CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
KBM! Gaming FN850
Serial Number
Lab IDKB85002647
  • Report: 24PS2647A
  • Receipt Date: Oct 29, 2024
  • Test Date: Nov 25, 2024
  • Report Date: Nov 27, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandKBM! Gaming
Manufacturer (OEM)Kinpower
SeriesFN
Model NumberFN850
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)16
Rated Frequency (Hz)50-60
Rated Power (W)850
TypeATX12V
Cooling140mm Rifle Bearing Fan
(EFS-14E12H)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202070.830.3
Watts103850153.6
Total Max. Power (W)850

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (550mm) 1 1 18-22AWG No
4+4 pin EPS12V (600mm) 2 2 18AWG No
6+2 pin PCIe (550mm+150mm) 2 4 18AWG No
12+4 pin PCIe (610mm) (600W) 1 1 16-24AWG No
SATA (450mm+155mm+155mm) 3 9 18AWG No

4-pin Molex (450mm+150mm+150mm)

 1 3 18AWG No

Parts Description

General Data
Manufacturer (OEM) Kinpower
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistors MF72 10D15, (10 Ohm, @ 25C) & Relay
Bridge Rectifier(s)

2x GBU2010 (1000V, 20A @ 90°C)
APFC MOSFETs

2x FuXin Semiconductor FXN30S60T (600V, 17A @ 100°C, Rds(on): 0.15Ohm)
APFC Boost Diode

1x Global Power G3S06510A (650V, 10A @ 150°C)
Bulk Cap(s)

2x Nippon Chemi-Con (400V, 390uF each or 780uF combined, 2000h @ 105°C, KMR)
Main Switchers

2x FuXin Semiconductor FXN30S60T (600V, 17A @ 100°C, Rds(on): 0.15Ohm)
APFC Controller

Champion CM6500UNX
Resonant Controller Champion CM6901X
Topology

Primary side: APFC, Half-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 8x ALKAIDSEMI AKG60N023G (60V, 84A @ 100°C, Rds(on): 2.3mOhm)
5V & 3.3V DC-DC Converters: 4x Excelliance EMB06N03HR (25V, 97A @ 100°C, Rds(on): 1.4mOhm) PWM Controller(s): 2x AT8853ZSPC
Filtering Capacitors

Electrolytic: 5x TK (@ 105°C, SZ) Polymer: 33x ChengX (PC Series)
Supervisor IC IN1S429I - DCG
Fan Model HUAXINRONG EFS-14E12H (140mm, 12V, 0.30A, Rifle Bearing Fan)
5VSB
Rectifier

1x ES2J SBR (50V, 2A)
Standby PWM Controller XLSEMI XL2576S

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary 115V

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)17.2
AC Loss to PWR_OK Hold Up Time (ms)14.1
PWR_OK Inactive to DC Loss Delay (ms)3.1

Vampire Power

Tables 115V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.07 V 115.03 V 113.85 V 115.11 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.08 % N/A 0.19 % 2.00 % PASS
Real Power: 0.034 W -0.013 W N/A 0.070 W N/A N/A
Apparent Power: 4.003 W 3.770 W N/A 4.241 W N/A N/A
Power Factor: 0.013 N/A N/A N/A N/A N/A

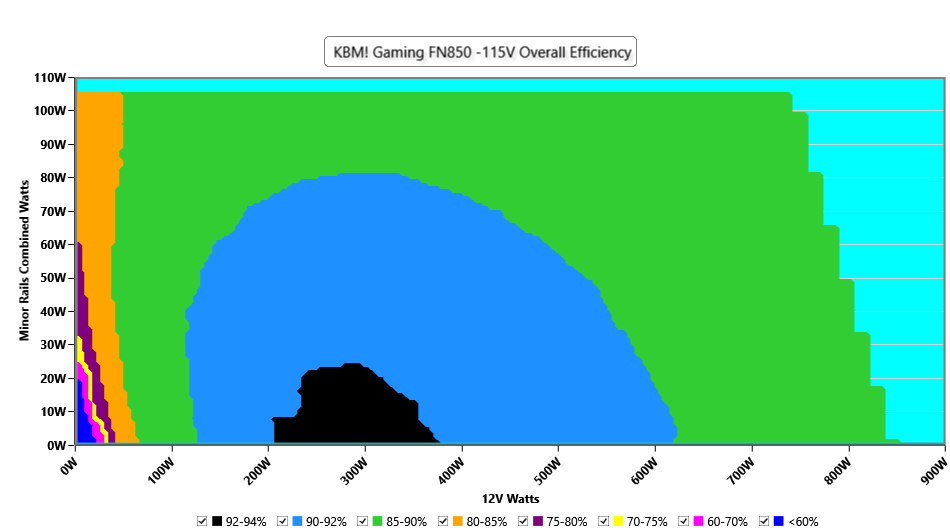

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

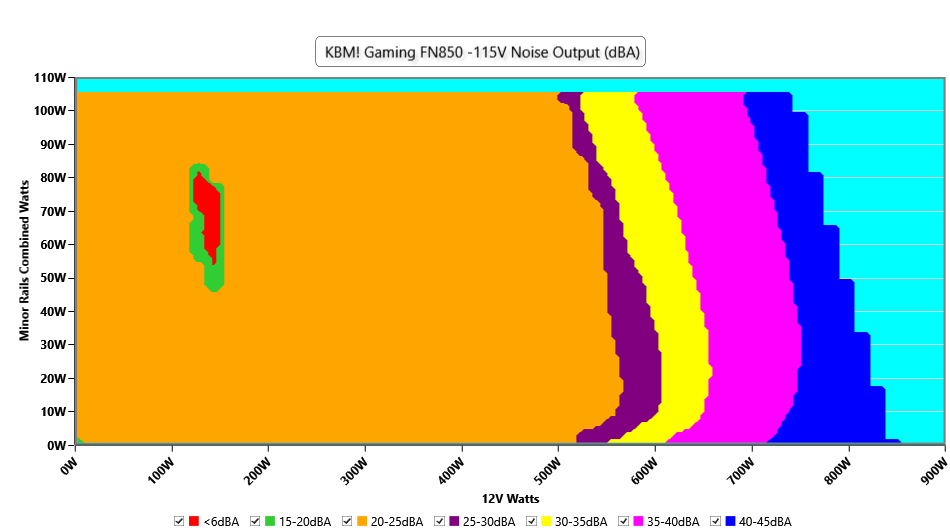

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

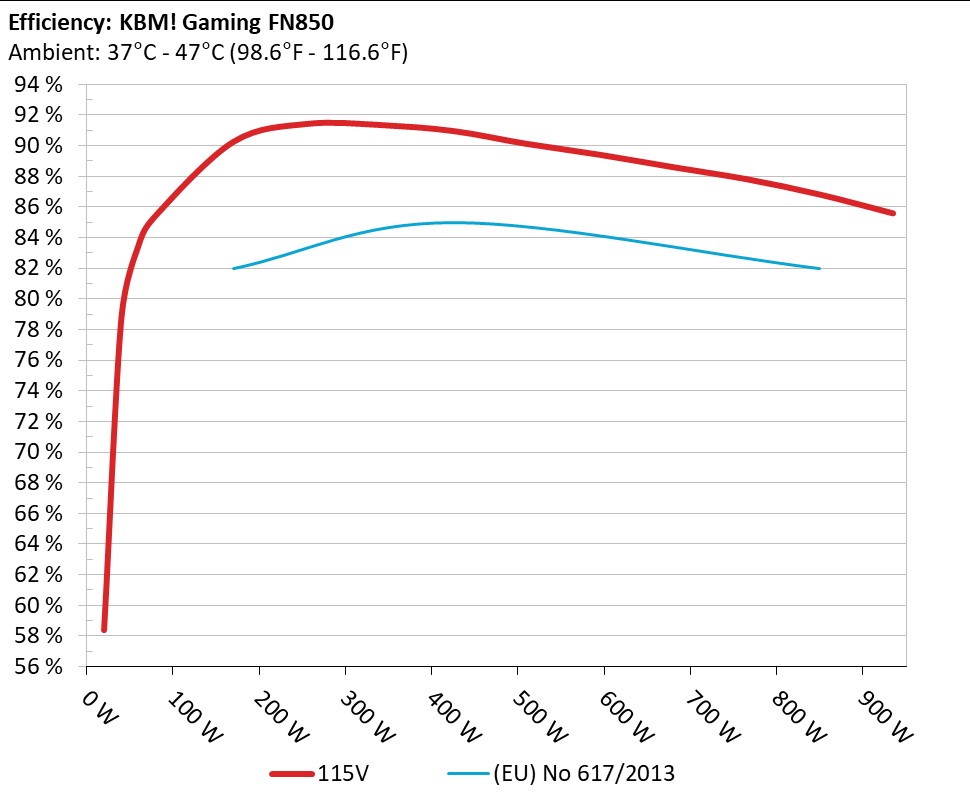

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

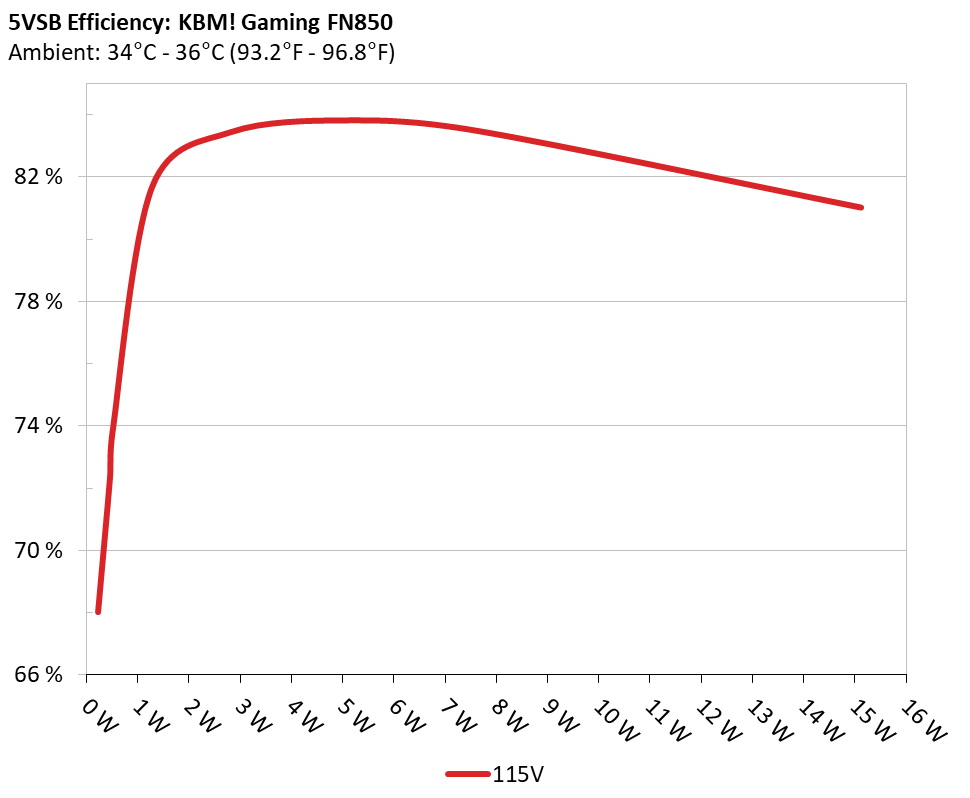

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232W 68.017% 0.083
5.16V 0.341W 115.19V
2 0.09A 0.464W 72.35% 0.147
5.158V 0.641W 115.19V
3 0.55A 2.828W 83.459% 0.397
5.14V 3.389W 115.19V
4 1A 5.124W 83.835% 0.46
5.122V 6.112W 115.19V
5 1.501A 7.655W 83.49% 0.49
5.102V 9.169W 115.19V
6 3.001A 15.124W 81.029% 0.518
5.04V 18.665W 115.18V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.222A 1.978A 1.985A 0.979A 85.007 85.542% 865 24.4 40.25°C 0.948
12.143V 5.056V 3.325V 5.109V 99.376 42.4°C 114.81V
20% 11.460A 2.97A 2.982A 1.18A 169.945 90.262% 866 24.4 40.68°C 0.967
12.133V 5.051V 3.32V 5.087V 188.282 43.28°C 114.78V
30% 18.062A 3.467A 3.483A 1.382A 254.955 91.426% 869 24.6 41.11°C 0.978
12.119V 5.048V 3.317V 5.066V 278.876 44.21°C 114.75V
40% 24.685A 3.965A 3.985A 1.586A 340.048 91.36% 872 25 41.82°C 0.984
12.106V 5.045V 3.313V 5.045V 372.212 45.89°C 114.72V
50% 30.960A 4.96A 4.988A 1.792A 424.853 90.962% 1140 26.6 42.22°C 0.988
12.091V 5.04V 3.308V 5.023V 467.063 46.71°C 114.7V
60% 37.231A 5.957A 5.992A 2A 509.401 90.131% 1432 36.6 42.55°C 0.989
12.076V 5.037V 3.305V 5V 565.178 46.02°C 114.67V
70% 43.582A 6.954A 6.999A 2.21A 594.718 89.413% 1650 39.8 43.03°C 0.991
12.060V 5.034V 3.301V 4.978V 665.141 46.54°C 114.64V
80% 49.949A 7.954A 8.01A 2.32A 679.545 88.604% 1749 41.3 43.87°C 0.993
12.045V 5.029V 3.296V 4.958V 766.945 48.31°C 114.6V
90% 56.726A 8.457A 8.504A 2.43A 764.969 87.818% 1748 41.3 44°C 0.994
12.031V 5.025V 3.292V 4.939V 871.079 49.82°C 114.58V
100% 63.256A 8.961A 9.032A 3.064A 849.778 86.813% 1750 41.3 45.53°C 0.994
12.016V 5.021V 3.288V 4.897V 978.856 52°C 114.54V
110% 69.680A 9.968A 10.145A 3.075A 934.364 85.59% 1753 41.3 46.56°C 0.995
11.999V 5.016V 3.282V 4.879V 1091.683 55.47°C 114.51V
CL1 0.116A 12.345A 12.435A 0A 104.299 79.156% 878 25.2 44.53°C 0.955
12.132V 5.022V 3.289V 5.124V 131.771 51.92°C 114.8V
CL2 0.114A 19.986A 0A 0A 101.343 78.581% 876 25.1 43.55°C 0.956
12.137V 5.001V 3.306V 5.133V 128.967 49.41°C 114.8V
CL3 0.114A 0A 20.219A 0A 67.382 69.872% 861 24.1 42.73°C 0.946
12.132V 5.033V 3.264V 5.133V 96.434 48.49°C 114.82V
CL4 70.611A 0A 0A 0.003A 849.534 87.964% 1761 41.6 44.21°C 0.995
12.031V 5.041V 3.305V 5.042V 965.772 49.56°C 114.55V

The results above are not used in the certification process

Light Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.222A 0.494A 0.495A 0.194A 20.007 58.39% 857 23.9 36.53°C 0.88
12.151V 5.061V 3.331V 5.151V 34.264 40.72°C 114.82V
40W 2.692A 0.692A 0.694A 0.292A 40.004 78.754% 860 24.1 37.93°C 0.918
12.147V 5.06V 3.33V 5.144V 50.797 40.24°C 114.82V
60W 4.160A 0.889A 0.892A 0.389A 60.002 83.515% 862 24.2 38.42°C 0.936
12.145V 5.06V 3.329V 5.137V 71.846 40.45°C 114.82V
80W 5.626A 1.087A 1.091A 0.487A 79.947 85.449% 863 24.3 39.02°C 0.946
12.143V 5.059V 3.327V 5.13V 93.563 40.97°C 114.81V

The results above are not used in the certification process

Ripple Measurements 115V

Test12V5V3.3V5VSBPass/Fail
10% Load20.36mV16.32mV15.90mV11.75mVPass
20% Load19.43mV16.99mV18.83mV12.88mVPass
30% Load17.80mV15.29mV18.06mV13.24mVPass
40% Load18.57mV15.96mV15.85mV13.44mVPass
50% Load22.50mV17.81mV20.68mV15.03mVPass
60% Load21.79mV21.35mV20.52mV16.57mVPass
70% Load20.72mV19.30mV19.29mV17.55mVPass
80% Load22.15mV21.30mV22.32mV19.29mVPass
90% Load24.24mV21.40mV21.91mV20.42mVPass
100% Load29.45mV23.37mV22.87mV28.72mVPass
110% Load31.26mV25.38mV23.42mV32.46mVPass
Crossload127.14mV26.75mV26.03mV11.62mVPass
Crossload220.76mV23.51mV24.68mV11.39mVPass
Crossload321.07mV25.56mV23.65mV10.36mVPass
Crossload430.15mV17.59mV16.83mV21.38mVPass

The results above are not used in the certification process

KBM! Gaming FN850

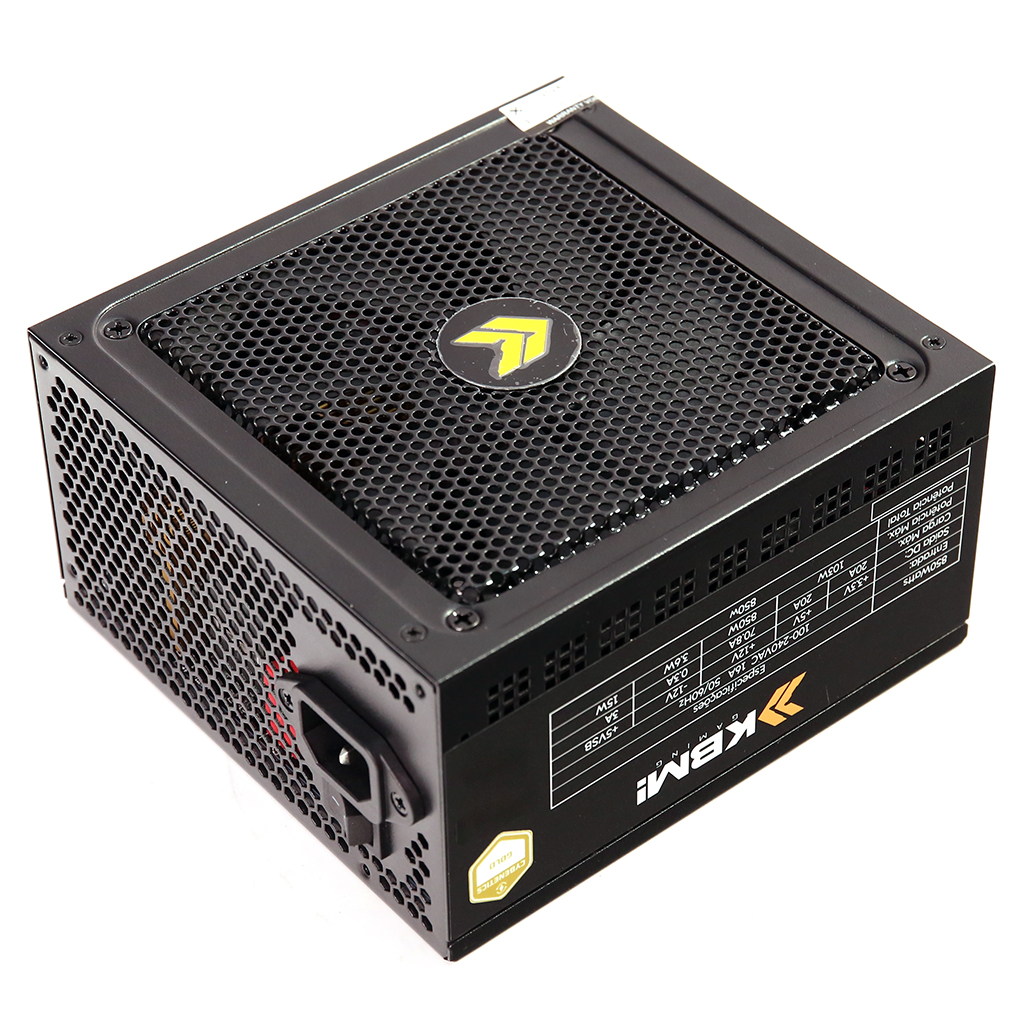

Top side

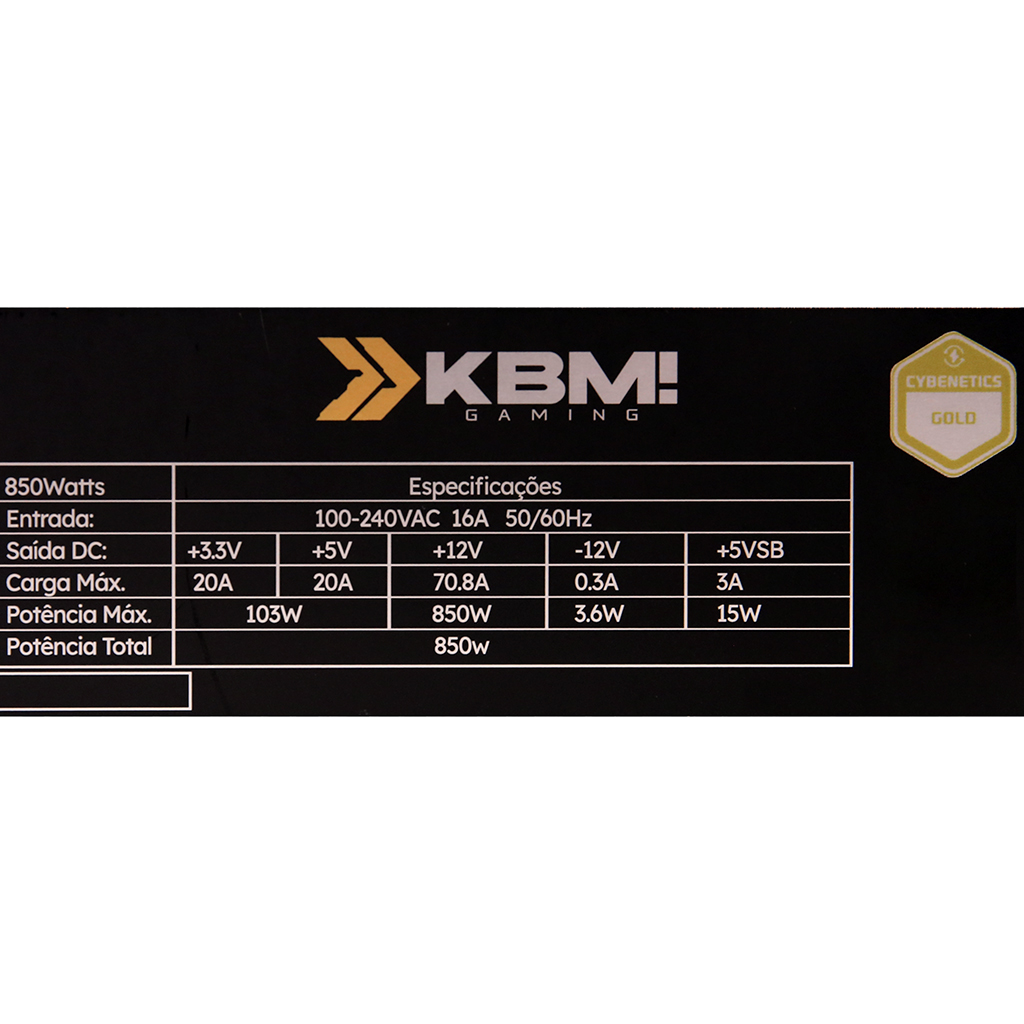

Power specifications label
