Aristeidis Bitziopoulos, Laboratory General Manager
General Information
Green Leaf
製造商 (OEM)
Grean Leaf
Voltron
GL-800
The unit had high ripple during testing and broke during OPP testing under normal conditions. T3 timing was also higher than the required 250ms. Subsequently, it is not ALPM compatible.

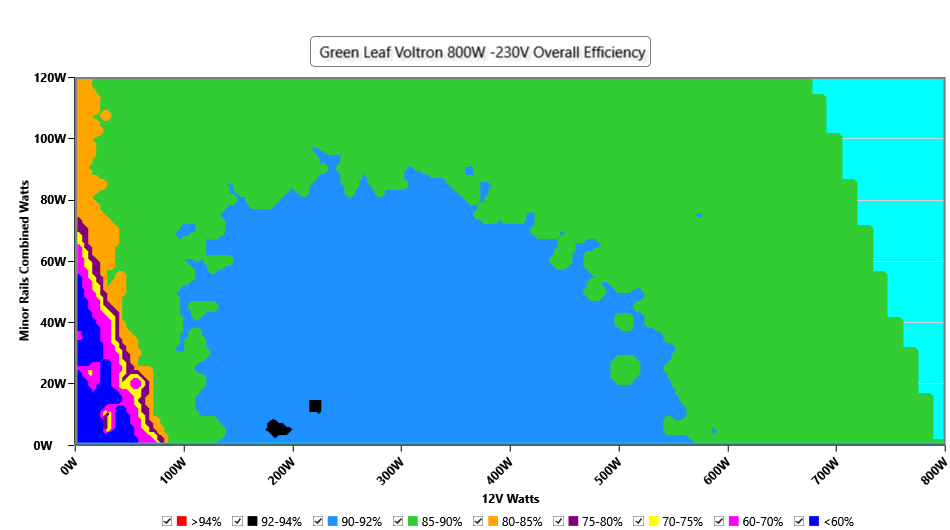

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
230V

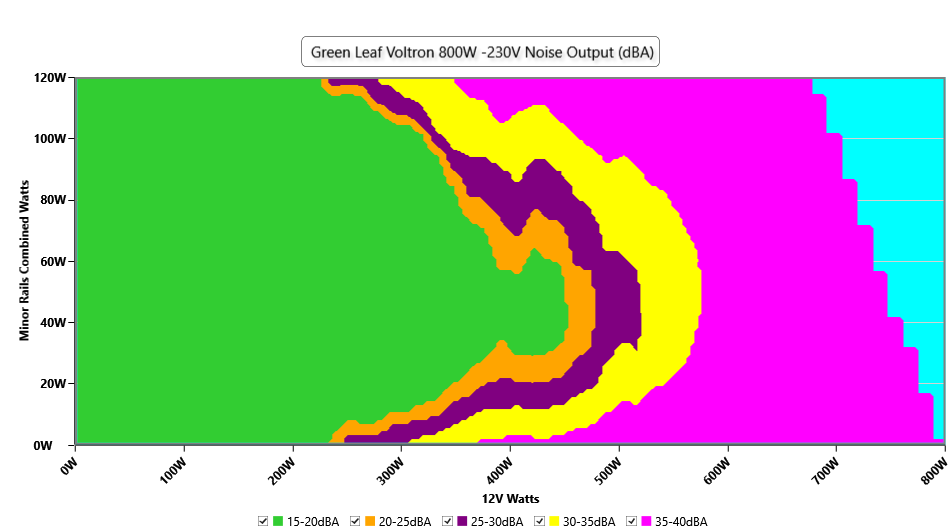

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
Indicative Performance

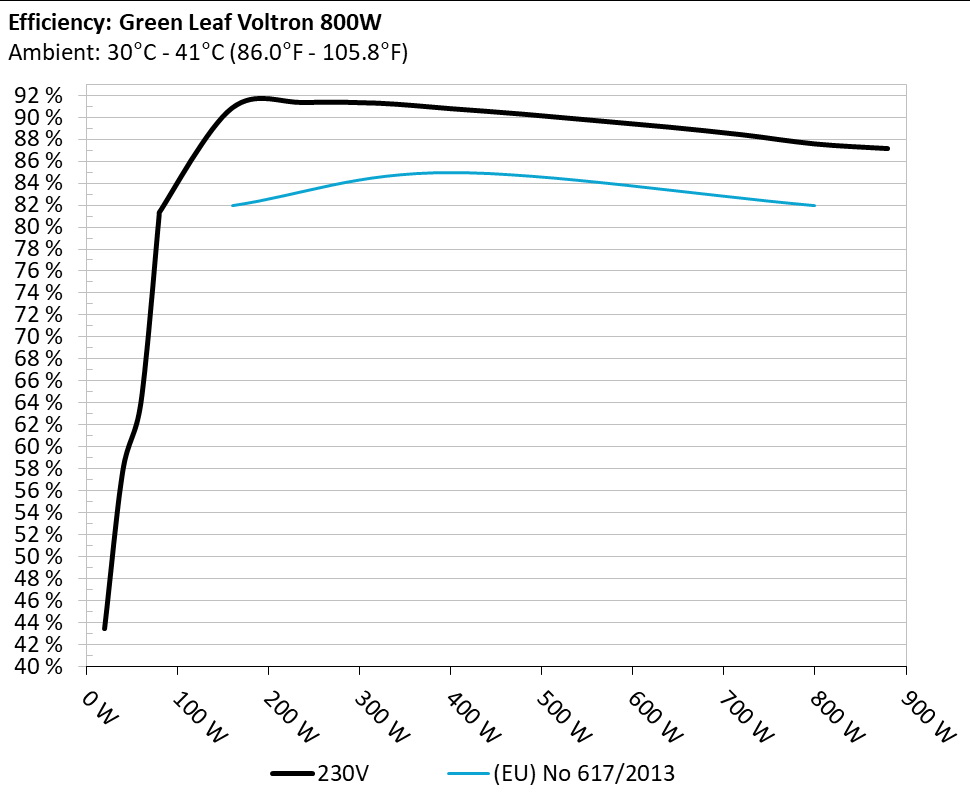

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

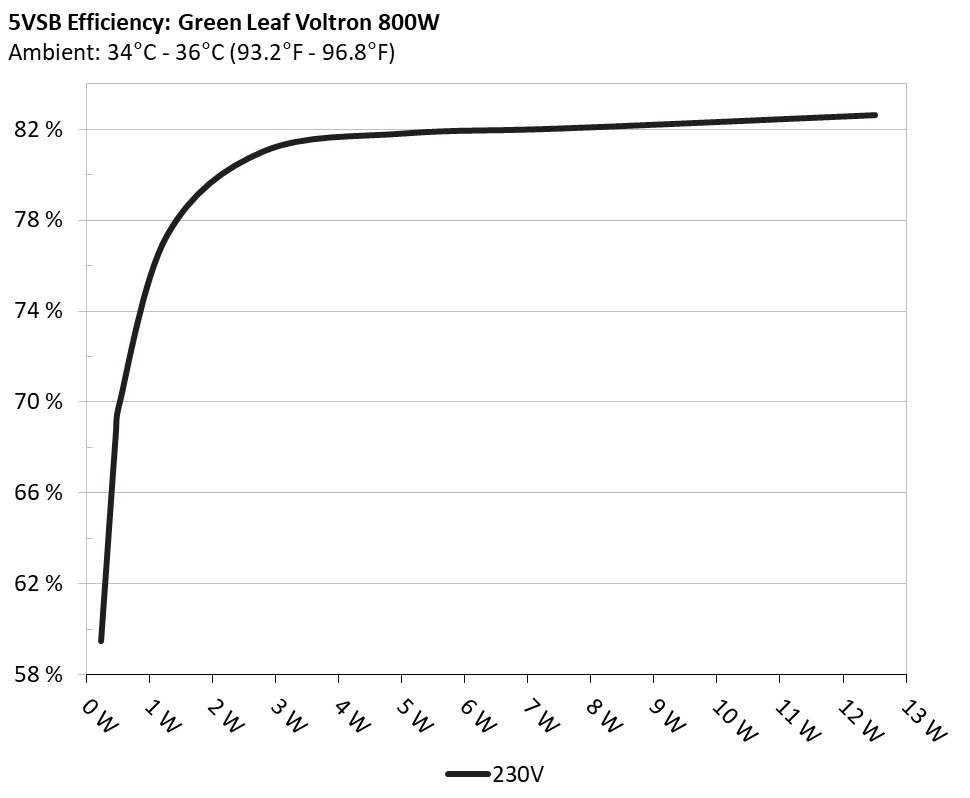

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
230V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.231W
59.504%
0.019
5.13V
0.389W
229.85V
2
0.09A
0.462W
68.502%
0.033
5.128V
0.675W
229.85V
3
0.55A
2.808W
81.032%
0.153
5.105V
3.466W
229.83V
4
1A
5.083W
81.825%
0.239
5.082V
6.212W
229.83V
5
1.5A
7.585W
82.041%
0.278
5.056V
9.247W
229.83V
6
2.501A
12.513W
82.623%
0.352
5.004V
15.144W
229.83V
Supplementary Tests (For Reference)
230V
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
4.772A
1.984A
1.996A
0.987A
80.01
81.327%
820
15.7
34.3°C
0.86
12.240V
5.043V
3.307V
5.066V
93.753
38.13°C
229.93V
20%
10.544A
2.986A
3.009A
1.19A
159.96
90.831%
822
15.9
34.99°C
0.941
12.239V
5.024V
3.29V
5.041V
176.122
38.79°C
229.92V
30%
16.688A
3.493A
3.526A
1.395A
240.009
91.324%
822
15.9
35.02°C
0.957
12.221V
5.011V
3.276V
5.018V
262.773
39.08°C
229.9V
40%
22.849A
4.003A
4.048A
1.602A
320.07
91.269%
826
16
35.74°C
0.966
12.205V
4.997V
3.262V
4.994V
350.651
39.89°C
229.88V
50%
28.658A
5.019A
5.076A
1.811A
399.454
90.774%
1220
28.2
36.54°C
0.972
12.177V
4.983V
3.251V
4.969V
440.062
41.28°C
229.88V
60%
34.529A
6.041A
6.129A
2A
479.781
90.265%
1520
34.5
36.83°C
0.977
12.166V
4.967V
3.231V
4.944V
531.503
41.25°C
229.86V
70%
40.379A
7.07A
7.186A
2.238A
559.612
89.681%
1796
39.4
37.3°C
0.98
12.147V
4.952V
3.215V
4.917V
623.963
42.2°C
229.85V
80%
46.308A
8.106A
8.254A
2.349A
639.607
89.088%
1810
39.5
37.64°C
0.983
12.130V
4.935V
3.198V
4.896V
718.016
44.11°C
229.84V
90%
52.578A
8.64A
8.798A
2.462A
719.394
88.404%
1812
39.5
38.91°C
0.986
12.113V
4.919V
3.183V
4.875V
813.78
46.09°C
229.82V
100%
58.934A
9.181A
9.381A
2.576A
800.121
87.562%
1810
39.5
39.57°C
0.989
12.097V
4.902V
3.166V
4.854V
913.802
49.1°C
229.81V
110%
64.949A
10.229A
10.547A
2.582A
879.838
87.142%
1826
39.8
40.91°C
0.991
12.072V
4.888V
3.157V
4.841V
1009.992
45.72°C
229.79V
CL1
0.115A
14.531A
14.67A
0.001A
121.299
83.328%
1795
39.4
39.33°C
0.932
12.225V
4.968V
3.251V
5.077V
145.65
44.2°C
229.92V
CL2
0.114A
15.017A
0A
0A
76.399
78.975%
1807
39.5
40.71°C
0.845
12.250V
4.994V
3.3V
5.105V
91.63
45.43°C
229.94V
CL3
0.113A
0.001A
15.107A
0A
50.89
54.622%
1034
23.2
36.59°C
0.701
12.243V
5.029V
3.276V
5.101V
68.09
40.02°C
229.94V
CL4
66.061A
0.005A
0.01A
0.006A
800.094
88.259%
1818
39.6
39.02°C
0.989
12.111V
4.957V
3.207V
5.011V
906.732
44.21°C
229.79V
The results above are not used in the certification process
230V
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.212A
0.494A
0.497A
0.195A
20.012
43.478%
819
15.7
30.21°C
0.268
12.253V
5.06V
3.322V
5.118V
22.722
33.53°C
229.95V
40W
2.669A
0.693A
0.696A
0.294A
40.008
57.845%
818
15.6
31.78°C
0.564
12.251V
5.055V
3.318V
5.109V
51.847
33.55°C
229.94V
60W
4.126A
0.891A
0.896A
0.392A
60.007
64.086%
817
15.6
32.7°C
0.694
12.246V
5.051V
3.315V
5.101V
70.702
33.44°C
229.94V
80W
5.582A
1.09A
1.096A
0.491A
79.958
81.133%
817
15.6
33.61°C
0.86
12.241V
5.048V
3.311V
5.093V
93.155
34.36°C
229.93V
The results above are not used in the certification process
230V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
25.7 mV
38.2 mV
45.4 mV
14.1 mV
Pass
20% Load
20.2 mV
36.2 mV
48.3 mV
15.9 mV
Pass
30% Load
23.4 mV
41.4 mV
57.9 mV
17.6 mV
Fail
40% Load
25.4 mV
47.2 mV
59.7 mV
19.2 mV
Fail
50% Load
29.1 mV
51.5 mV
68.3 mV
23.2 mV
Fail
60% Load
30.7 mV
50.2 mV
71.9 mV
24.4 mV
Fail
70% Load
34.4 mV
61.2 mV
79.7 mV
27.3 mV
Fail
80% Load
39.3 mV
71.0 mV
83.7 mV
29.7 mV
Fail
90% Load
42.4 mV
67.0 mV
88.2 mV
33.6 mV
Fail
100% Load
48.3 mV
71.7 mV
93.0 mV
38.6 mV
Fail
110% Load
54.5 mV
74.1 mV
96.1 mV
40.6 mV
Fail
Crossload 1
29.6 mV
48.0 mV
65.2 mV
15.3 mV
Fail
Crossload 2
25.1 mV
36.6 mV
37.3 mV
11.8 mV
Pass
Crossload 3
24.3 mV
33.0 mV
45.7 mV
11.9 mV
Pass
Crossload 4
48.2 mV
66.7 mV
86.7 mV
34.8 mV
Fail
The results above are not used in the certification process
