CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

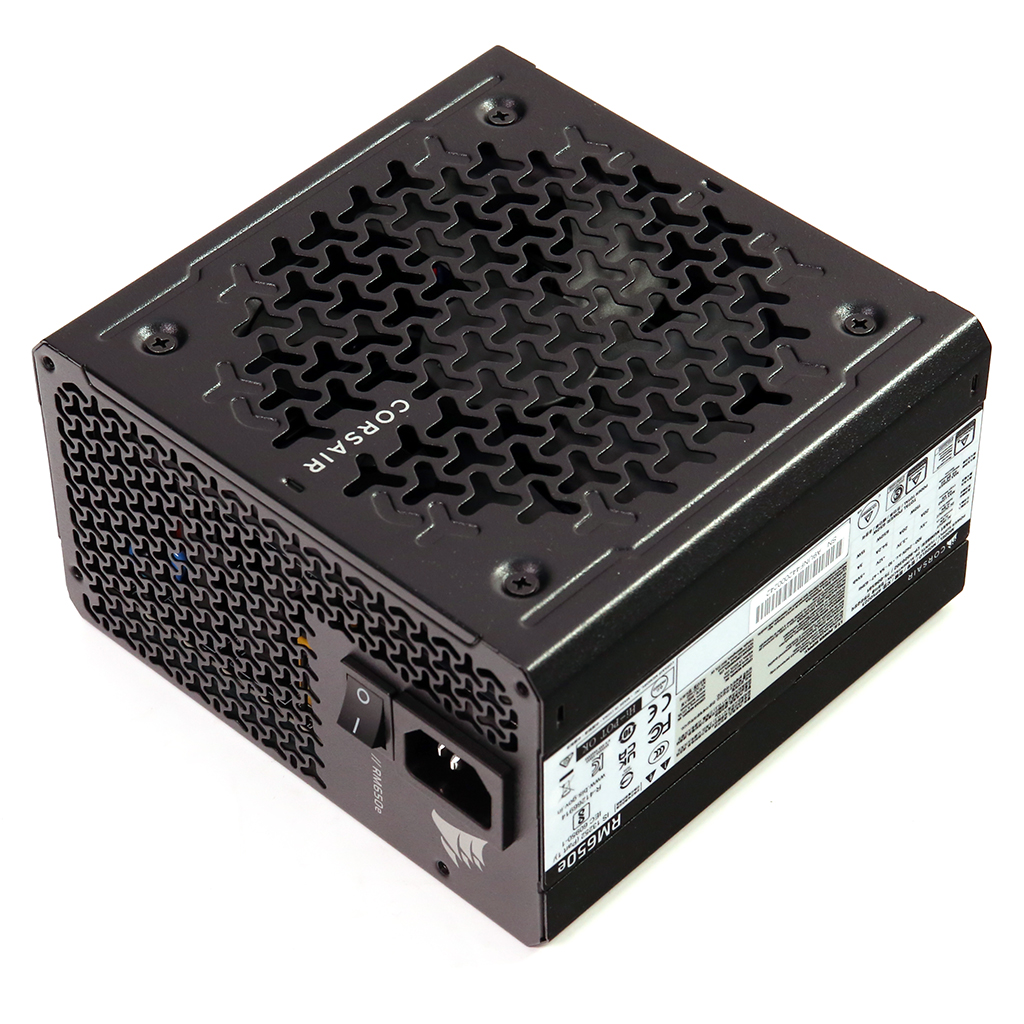

Corsair RM650e (ATX v3.1)
A9UNF442000242
Lab IDCR65002628
  • Report: 24PS2628A
  • Receipt Date: Oct 22, 2024
  • Test Date: Nov 2, 2024
  • Report Date: Nov 4, 2024
115V230V
效率評比
115V230V
噪音評比
Aristeidis Bitziopoulos, Laboratory General Manager

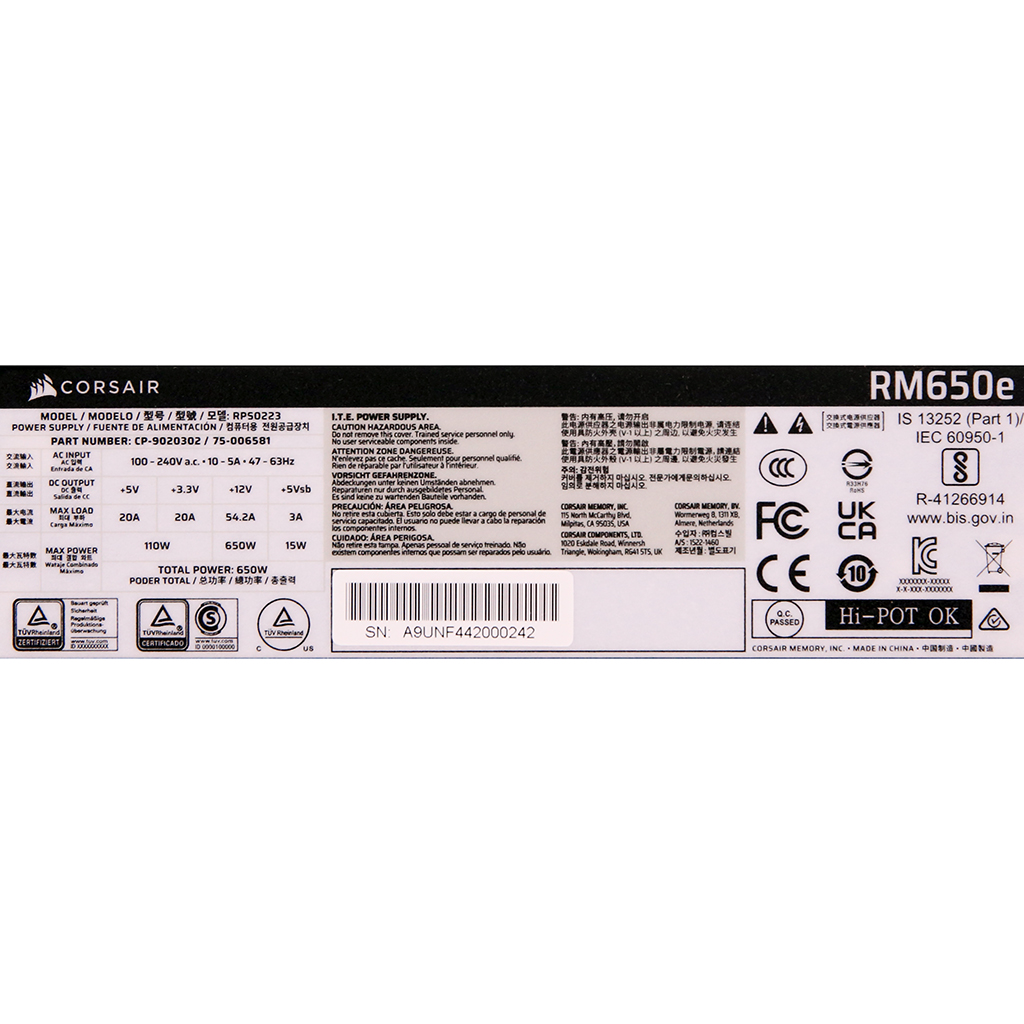

General Information

Corsair
製造商 (OEM)HEC
RMe
RPS0223
A9UNF442000242
This unit ships with 18AWG 12+4pin PCIe cable.

(Vrms)100-240
(Arms)5-10
(Hz)47-63
(W)650
ATX12V
120mm Rifle Bearing Fan (HA1225H12SF-Z)
✓
Fully Modular

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202054.230
Watts110650150
Total Max. Power (W)650

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 24 pin (610mm) 1 1 18-20AWG No
4+4 pin EPS12V (740mm+100mm) 1 2 16-18AWG No
2x 6+2 pin PCIe (650mm) 1 2 16-18AWG No
6+2 pin PCIe (640mm) 1 1 18AWG No
12+2 pin PCIe (640mm) (300W) 1 1 18-24AWG No
SATA (450mm+100mm) / 4-pin Molex (+100mm+100mm) 1 2 / 2 18AWG No
SATA (450mm+100mm+100mm+100mm) 1 4 18AWG No
AC Power Cord (1415mm) 1 1 18AWG -

Parts Description

General Data -
Manufacturer (OEM) HEC
PCB Type Single-Sided
Primary Side -
Transient Filter 4x Y caps, 3x X caps, 2x CM chokes, 1x MOV, 1x Power Integrations CAP200DG (Discharge IC)
Inrush Protection NTC Thermistor SCK-037 (3 Ohm) & Relay
Bridge Rectifier(s)

2x GBU8K (800V, 10A @ 100°C)
APFC MOSFETs

2x Infineon IPAW60R180P7 (650V, 11A @ 100°C, Rds(on): 0.180Ohm)
APFC Boost Diode

1x Hestia H2S060H006 (650V, 6A @ 152°C)
Bulk Cap(s)

1x Teapo (400V, 390uF, 2,000h @ 105°C, LG)
Main Switchers

2x Infineon IPAW60R180P7 (650V, 11A @ 100°C, Rds(on): 0.180Ohm)
APFC Controller

Champion CM6500UNX & CM03AX
Resonant Controller Champion CM6901T6X
Topology

Primary side: APFC, Half-Bridge & LLC Resonant converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs no info
5V & 3.3V DC-DC Converters: 2x Potens Semiconductor PDC39F2BX (30V, 76A @ 100°C, Rds(on): 2.95mOhm) PWM Controller(s): 1x ANPEC APW7159C
Filtering Capacitors

Electrolytic: 6x Teapo (1-3,000h @ 105°C, SC), 2x Nippon Chemi-con (2-5,000h @ 105°C, KZE) 1x Rubycon (4-10,000h @ 105°C, YXF) Polymer: 10x Teapo, 12x
Supervisor IC Weltrend WT7527RT (OCP, OVP, UVP, SCP, PG)
Fan Controller Nuvoton M031FB0AE
Fan Model Hong Hua HA1225H12F-Z (120mm, 12V, 0.58A, Rifle Bearing Fan)
5VSB Circuit -
Rectifier

1x PS1060L SBR (60V, 10A)
Standby PWM Controller Excelliance MOS EM8569D

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

效率評比PLATINUM
噪音評比A++
(>1450 load combinations)89.070%
Average Noise Output (>1450 Load Combinations)12.58dBA
(>1450 Load Combinations)0.989
Efficiency With 10W (≤500W) or 2% (>500W) Load62.614%
0.0515W
12V Ripple (Full Load)38.30mV
5V Ripple (Full Load)15.25mV
3.3V Ripple (Full Load)17.46mV
5VSB Ripple (Full Load)19.58mV
12V Load Regulation0.69%
5V Load Regulation0.54%
3.3V Load Regulation0.86%
5VSB Load Regulation2.19%
Inrush Current90.760A
效率評比PLATINUM
噪音評比A++
(>1450 load combinations)91.226%
Average Noise Output (>1450 Load Combinations)12.63dBA
(>1450 Load Combinations)0.962
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.1035W
12V Ripple (Full Load)37.25mV
5V Ripple (Full Load)15.74mV
3.3V Ripple (Full Load)18.17mV
5VSB Ripple (Full Load)18.82mV
12V Load Regulation0.66%
5V Load Regulation0.54%
3.3V Load Regulation0.80%
5VSB Load Regulation2.15%
Inrush Current118.300A
12V Transient Response (200%)11.55V
5V Transient Response (200%)4.891V
3.3V Transient Response (200%)3.174V
5VSB Transient Response (200%)4.869V
19.40ms
AC Loss to PWR_OK Hold Up Time16.80ms
PWR_OK Inactive to DC Loss Delay2.60ms
PSU Timings: T1 (20% / 100%)49.0ms50.0ms
PSU Timings: T3 (20% / 100%)126.0ms121.0ms
12V OCP (27.8°C / 44.0°C)67.60A (124.72%), 12.034V67.40A (124.35%), 12.046V
5V OCP (27.8°C / 44.0°C)29.9A (149.50%), 4.974V28.7A (143.50%), 4.976V
3.3V OCP (27.8°C / 44.0°C)27.7A (138.50%), 3.262V26.2A (131.00%), 3.268V
5VSB OCP (27.8°C / 44.0°C)4A (133.33%), 4.888V4A (133.33%), 4.89V
OPP (28.46°C / 41.48°C)122.26%122.26%

Hold-Up Time (ms)19.4
AC Loss to PWR_OK Hold Up Time (ms)16.8
PWR_OK Inactive to DC Loss Delay (ms)2.6

待機電源消耗

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.07 V 115.03 V 113.85 V 115.11 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.17 % 2.00 % PASS
Real Power: 0.051 W -0.007 W N/A 0.088 W N/A N/A
Apparent Power: 8.373 W 8.322 W N/A 8.421 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.03 V 230.94 V 227.70 V 231.10 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.15 % N/A 0.25 % 2.00 % PASS
Real Power: 0.104 W 0.059 W N/A 0.172 W N/A N/A
Apparent Power: 28.766 W 28.586 W N/A 28.981 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

Graphs

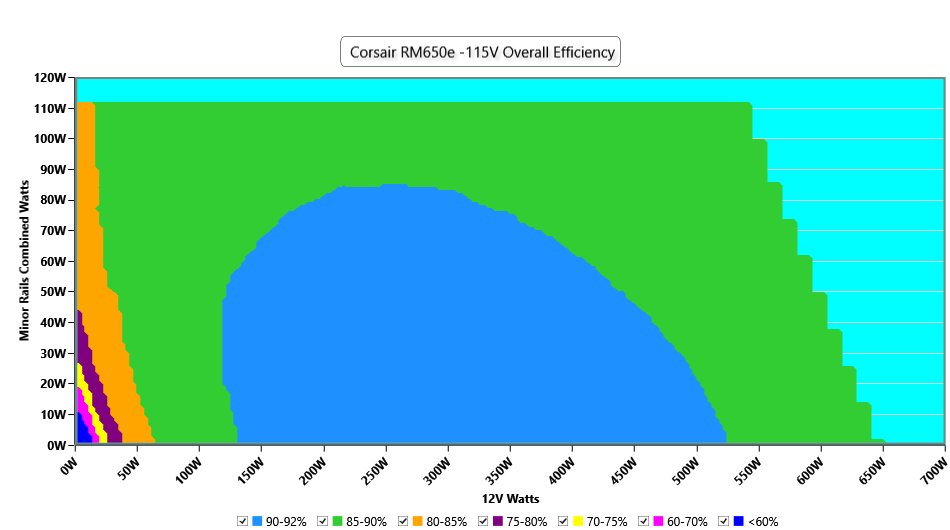

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

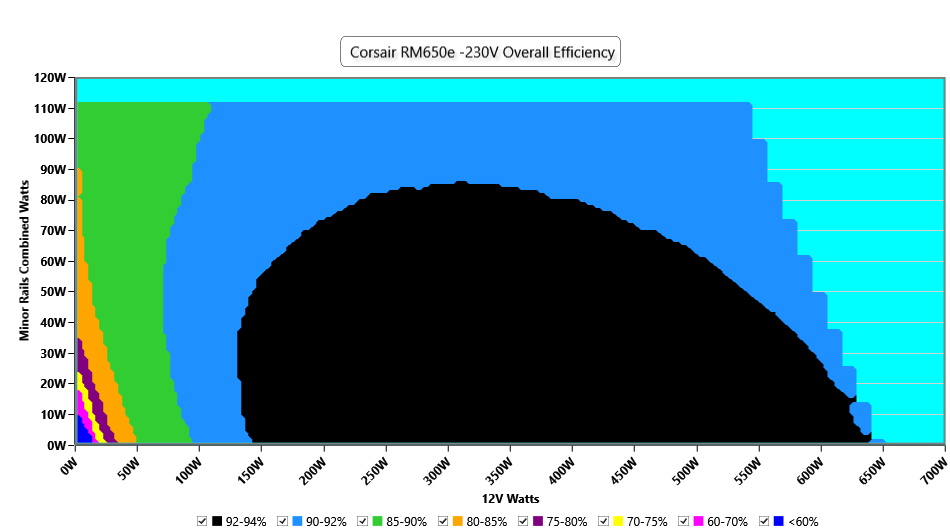

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

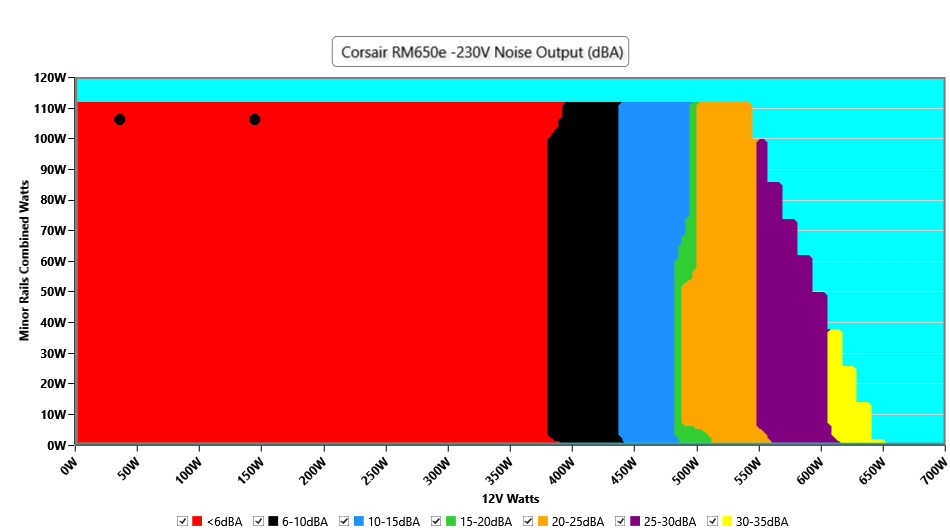

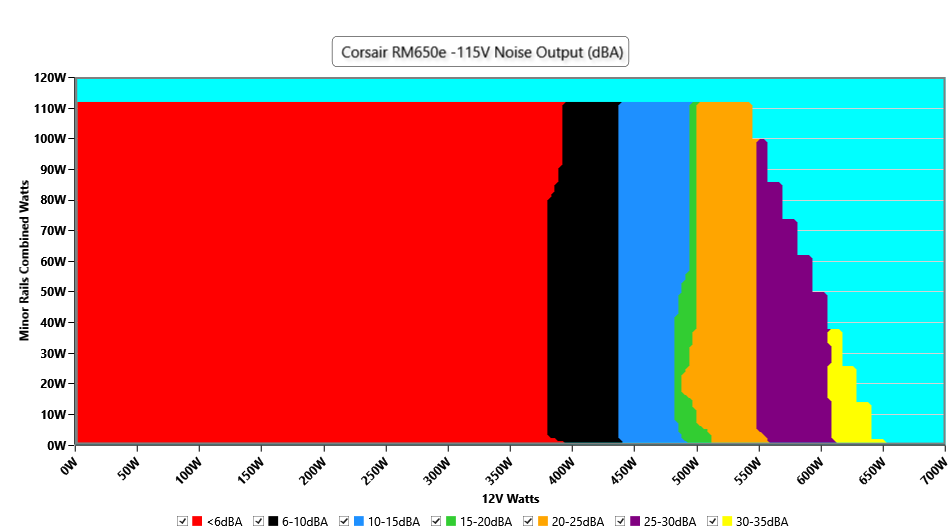

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

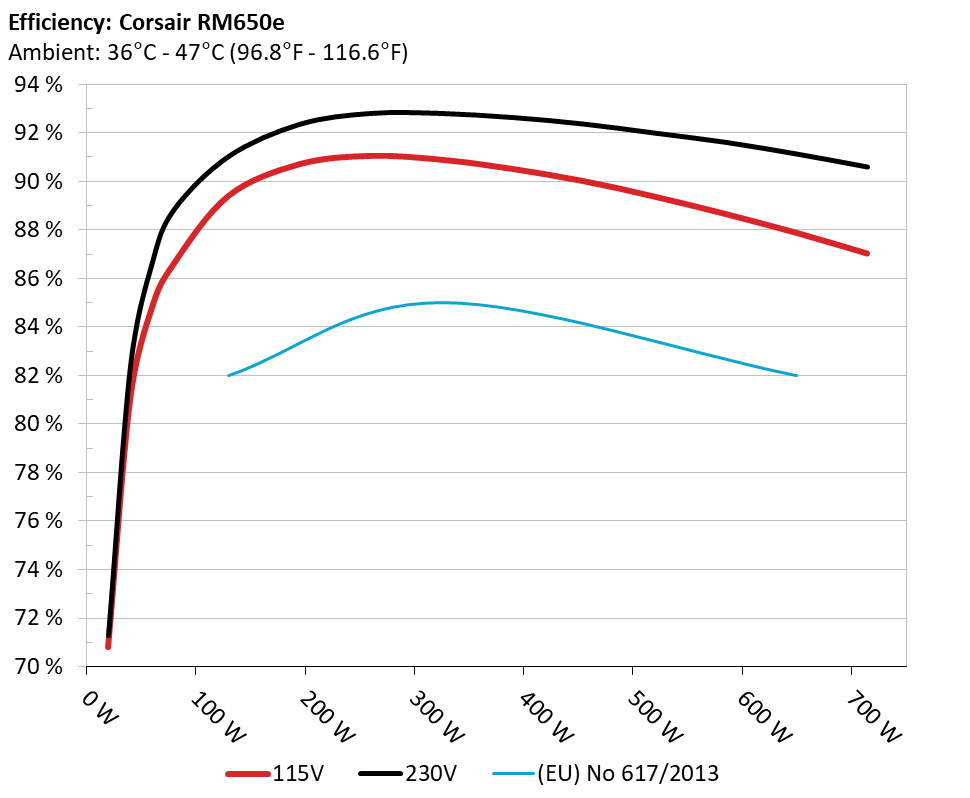

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

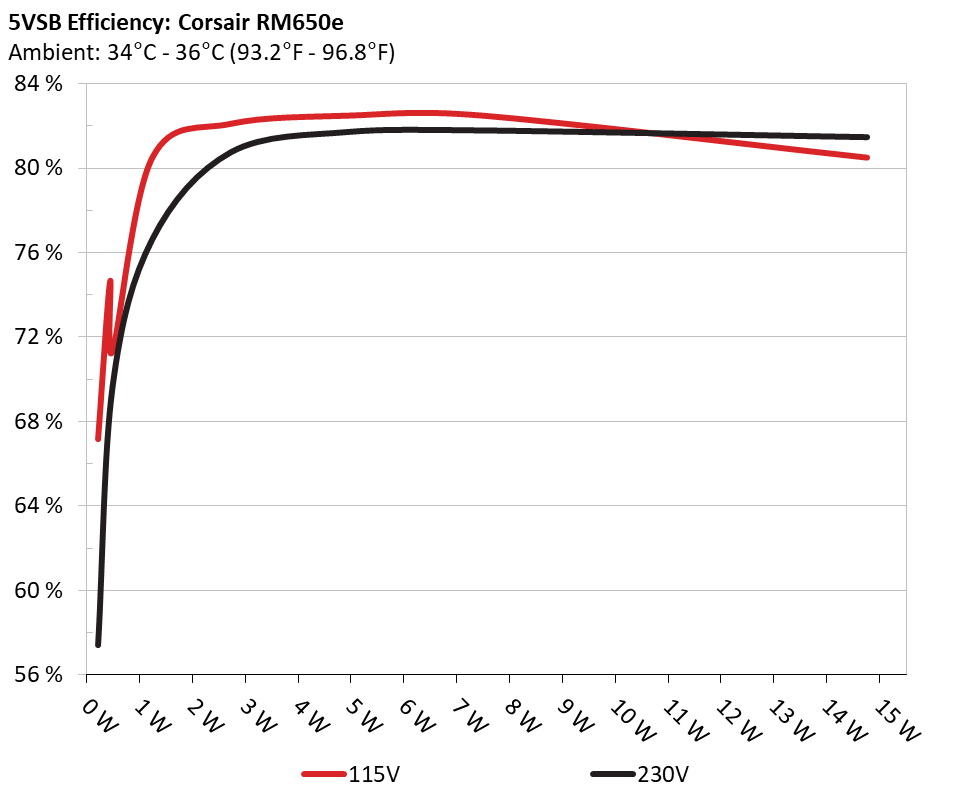

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.225W 67.174% 0.038
4.997V 0.335W 114.86V
2 0.09A 0.45W 74.603% 0.068
4.996V 0.603W 114.85V
3 0.55A 2.742W 82.098% 0.272
4.986V 3.34W 114.85V
4 1A 4.975W 82.478% 0.341
4.975V 6.032W 114.84V
5 1.5A 7.446W 82.487% 0.39
4.963V 9.027W 114.84V
6 3A 14.756W 80.492% 0.454
4.918V 18.333W 114.84V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.225W 57.406% 0.013
4.999V 0.393W 229.84V
2 0.09A 0.45W 69.838% 0.022
4.997V 0.641W 229.84V
3 0.55A 2.742W 80.745% 0.108
4.985V 3.397W 229.83V
4 1A 4.974W 81.7% 0.177
4.974V 6.087W 229.83V
5 1.5A 7.442W 81.769% 0.215
4.96V 9.1W 229.83V
6 3.001A 14.761W 81.45% 0.316
4.92V 18.124W 229.83V

Supplementary Tests (For Reference)

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.582A 2.001A 2.006A 1.006A 65.009 84.609% 0 <6.0 46.83°C 0.971
12.121V 4.998V 3.29V 4.969V 76.833 40.05°C 114.84V
20% 8.177A 3.003A 3.012A 1.21A 129.949 89.409% 0 <6.0 49.39°C 0.989
12.113V 4.995V 3.287V 4.961V 145.341 40.71°C 114.81V
30% 13.125A 3.505A 3.516A 1.413A 194.954 90.72% 0 <6.0 51.15°C 0.986
12.106V 4.993V 3.285V 4.954V 214.893 41.36°C 114.78V
40% 18.086A 4.007A 4.021A 1.618A 260.043 91.064% 0 <6.0 53.65°C 0.987
12.099V 4.992V 3.283V 4.945V 285.558 41.77°C 114.76V
50% 22.709A 5.013A 5.031A 1.823A 325.042 90.904% 406 <6.0 42.28°C 0.99
12.089V 4.988V 3.28V 4.937V 357.567 57.13°C 114.74V
60% 27.290A 6.019A 6.043A 2A 389.285 90.531% 501 <6.0 42.78°C 0.991
12.078V 4.985V 3.277V 4.929V 430.002 58.74°C 114.71V
70% 31.951A 7.027A 7.058A 2.236A 454.73 90.027% 612 8.5 43.41°C 0.992
12.068V 4.982V 3.274V 4.92V 505.104 60.09°C 114.69V
80% 36.622A 8.035A 8.072A 2.341A 519.53 89.389% 734 13.4 43.78°C 0.993
12.059V 4.978V 3.27V 4.914V 581.206 61.91°C 114.67V
90% 41.699A 8.542A 8.569A 2.446A 584.979 88.668% 905 20.6 44.52°C 0.994
12.050V 4.975V 3.268V 4.906V 659.739 63.51°C 114.64V
100% 46.517A 9.049A 9.096A 3.071A 649.794 87.893% 1187 30.1 45.51°C 0.994
12.041V 4.973V 3.265V 4.886V 739.309 64.69°C 114.62V
110% 51.216A 10.061A 10.209A 3.073A 714.413 87.039% 1503 36.9 46.83°C 0.994
12.030V 4.969V 3.261V 4.882V 820.801 64.67°C 114.59V
CL1 0.116A 13.292A 13.353A 0A 111.3 83.886% 1112 27.5 43.32°C 0.988
12.107V 4.981V 3.272V 4.993V 132.679 55.75°C 114.81V
CL2 0.115A 20.06A 0A 0A 101.337 82.783% 1110 27.4 41.45°C 0.987
12.109V 4.982V 3.284V 4.996V 122.411 50.09°C 114.81V
CL3 0.114A 0A 20.161A 0A 67.387 76.525% 847 18.5 41.02°C 0.975
12.106V 4.991V 3.273V 4.996V 88.06 49.02°C 114.83V
CL4 53.929A 0A 0A 0A 649.618 88.979% 1247 31.7 44.21°C 0.994
12.046V 4.987V 3.28V 4.97V 730.082 56.35°C 114.63V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.582A 2.001A 2.007A 1.006A 65.007 86.747% 0 <6.0 44.66°C 0.849
12.116V 4.997V 3.289V 4.969V 74.939 40.14°C 229.83V
20% 8.179A 3.003A 3.013A 1.21A 129.95 91.037% 0 <6.0 45.97°C 0.939
12.110V 4.995V 3.286V 4.961V 142.756 40.51°C 229.82V
30% 13.130A 3.505A 3.517A 1.413A 194.955 92.362% 0 <6.0 47.78°C 0.962
12.102V 4.993V 3.284V 4.953V 211.076 41.28°C 229.8V
40% 18.092A 4.008A 4.022A 1.618A 260.046 92.81% 0 <6.0 48.68°C 0.971
12.096V 4.991V 3.282V 4.945V 280.191 41.85°C 229.79V
50% 22.715A 5.014A 5.033A 1.823A 325.052 92.808% 406 <6.0 42.47°C 0.976
12.087V 4.987V 3.279V 4.937V 350.237 49.29°C 229.78V
60% 27.296A 6.02A 6.045A 2A 389.32 92.644% 501 <6.0 42.78°C 0.979
12.077V 4.984V 3.276V 4.929V 420.231 48.64°C 229.77V
70% 31.959A 7.028A 7.059A 2.236A 454.767 92.373% 610 8.5 43.07°C 0.981
12.067V 4.981V 3.273V 4.92V 492.313 48.2°C 229.75V
80% 36.629A 8.035A 8.074A 2.341A 519.564 92.002% 737 13.5 43.57°C 0.983
12.058V 4.978V 3.27V 4.914V 564.73 48.28°C 229.75V
90% 41.704A 8.542A 8.569A 2.446A 584.991 91.619% 905 20.6 44.45°C 0.984
12.049V 4.975V 3.267V 4.907V 638.502 48.61°C 229.74V
100% 46.523A 9.05A 9.097A 3.071A 649.82 91.135% 1144 28.9 45.64°C 0.985
12.040V 4.972V 3.265V 4.886V 713.031 48.79°C 229.73V
110% 51.220A 10.062A 10.209A 3.073A 714.443 90.603% 1588 38.7 46.02°C 0.986
12.029V 4.969V 3.261V 4.883V 788.546 49.73°C 229.71V
CL1 0.116A 13.293A 13.353A 0A 111.303 85.483% 1115 27.6 42.73°C 0.932
12.107V 4.98V 3.272V 4.993V 130.204 47.68°C 229.81V
CL2 0.116A 20.064A 0A 0A 101.357 84.214% 1358 33.9 42.72°C 0.924
12.110V 4.982V 3.284V 4.996V 120.359 44.94°C 229.81V
CL3 0.115A 0A 20.161A 0A 67.387 78.67% 848 18.6 42.08°C 0.875
12.107V 4.991V 3.273V 4.996V 85.657 44.34°C 229.82V
CL4 53.929A 0A 0A 0A 649.622 92.065% 1245 31.7 45.42°C 0.985
12.046V 4.986V 3.28V 4.971V 705.61 44.55°C 229.72V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.226A 0.5A 0.501A 0.2A 20.003 70.809% 0 <6.0 38.12°C 0.893
12.123V 5V 3.293V 4.993V 28.219 36.15°C 114.84V
40W 2.698A 0.7A 0.702A 0.301A 40.005 80.968% 0 <6.0 40.34°C 0.952
12.121V 4.999V 3.292V 4.991V 49.408 37.74°C 114.85V
60W 4.170A 0.9A 0.902A 0.401A 60.007 84.789% 0 <6.0 42.22°C 0.969
12.120V 4.999V 3.291V 4.986V 70.774 38.18°C 114.84V
80W 5.638A 1.1A 1.103A 0.502A 79.96 86.608% 0 <6.0 44.89°C 0.976
12.119V 4.999V 3.291V 4.981V 92.322 39.13°C 114.84V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.226A 0.5A 0.501A 0.2A 19.996 71.282% 0 <6.0 38.42°C 0.543
12.113V 4.999V 3.291V 4.991V 28.053 36.22°C 229.86V
40W 2.698A 0.7A 0.702A 0.301A 40 82.359% 0 <6.0 39.68°C 0.737
12.113V 4.998V 3.29V 4.989V 48.568 37.21°C 229.85V
60W 4.172A 0.9A 0.903A 0.401A 60.002 86.65% 0 <6.0 41.66°C 0.831
12.112V 4.997V 3.29V 4.985V 69.247 38.85°C 229.84V
80W 5.640A 1.101A 1.104A 0.502A 79.949 88.842% 0 <6.0 42.48°C 0.882
12.112V 4.997V 3.289V 4.98V 89.992 39.09°C 229.84V

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load14.99mV12.37mV13.03mV12.78mVPass
20% Load17.54mV12.63mV13.95mV13.24mVPass
30% Load19.79mV14.01mV15.29mV13.60mVPass
40% Load21.63mV14.68mV16.32mV14.98mVPass
50% Load21.94mV13.50mV15.03mV14.98mVPass
60% Load21.94mV14.62mV16.72mV15.14mVPass
70% Load21.63mV14.78mV15.65mV15.60mVPass
80% Load23.12mV14.52mV17.75mV15.80mVPass
90% Load29.92mV21.04mV21.24mV20.42mVPass
100% Load38.30mV15.25mV17.46mV19.58mVPass
110% Load40.56mV20.62mV23.67mV21.75mVPass
Crossload126.60mV13.97mV17.69mV11.75mVPass
Crossload218.72mV15.96mV14.42mV10.52mVPass
Crossload316.06mV12.67mV17.75mV10.78mVPass
Crossload437.85mV14.34mV14.99mV13.73mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load16.06mV13.34mV14.26mV14.01mVPass
20% Load14.73mV11.44mV12.26mV12.01mVPass
30% Load19.39mV14.63mV15.03mV14.52mVPass
40% Load20.56mV14.32mV15.13mV14.47mVPass
50% Load20.00mV14.11mV15.18mV13.85mVPass
60% Load20.77mV15.45mV15.85mV14.21mVPass
70% Load22.10mV13.65mV14.57mV15.29mVPass
80% Load22.71mV15.09mV16.88mV15.60mVPass
90% Load22.71mV15.55mV16.26mV16.42mVPass
100% Load37.25mV15.74mV18.17mV18.82mVPass
110% Load37.94mV15.55mV18.85mV19.00mVPass
Crossload127.04mV13.95mV16.78mV12.02mVPass
Crossload219.03mV17.70mV14.21mV10.52mVPass
Crossload315.91mV13.35mV17.39mV10.67mVPass
Crossload438.04mV14.76mV15.89mV14.08mVPass

The results above are not used in the certification process

Corsair RM650e (ATX v3.1)

Top side
Power specifications label
CYBENETICS提供ETA和LAMBDA自願性認證 方案以推廣高效及靜音之電源供應器
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
