Cybenetics Test - Thermaltake Toughpower SFX 1000W (ATX v3.1)

Thermaltake Toughpower SFX 1000W (ATX v3.1)

Serial NumberPSSTP1000FNFAPA10DCH00184

Lab IDTT10002575

Report: 24PS2575A
Receipt Date: Sep 10, 2024
Test Date: Sep 19, 2024
Report Date: Sep 25, 2024

	115V	230V
Efficiency Rating

115V	230V
		Noise Rating

Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

Brand	Thermaltake
Manufacturer (OEM)	CE-Link
Series	Toughpower SFX
Model Number	PS-STP-100FNFAPA-1
Serial Number	PSSTP1000FNFAPA10DCH00184
DUT Notes	The unit had voltage drop during OCP testing and didn't shut down. This occurred under both normal and hot conditions.

DUT Specifications

Rated Voltage (Vrms)	100-240
Rated Current (Arms)	15-8
Rated Frequency (Hz)	50-60
Rated Power (W)	1000
Type	SFX
Cooling	92mm Fluid Dynamic Bearing Fan (EFS-09C12H)
Semi-Passive Operation	✓
Cable Design	Fully Modular

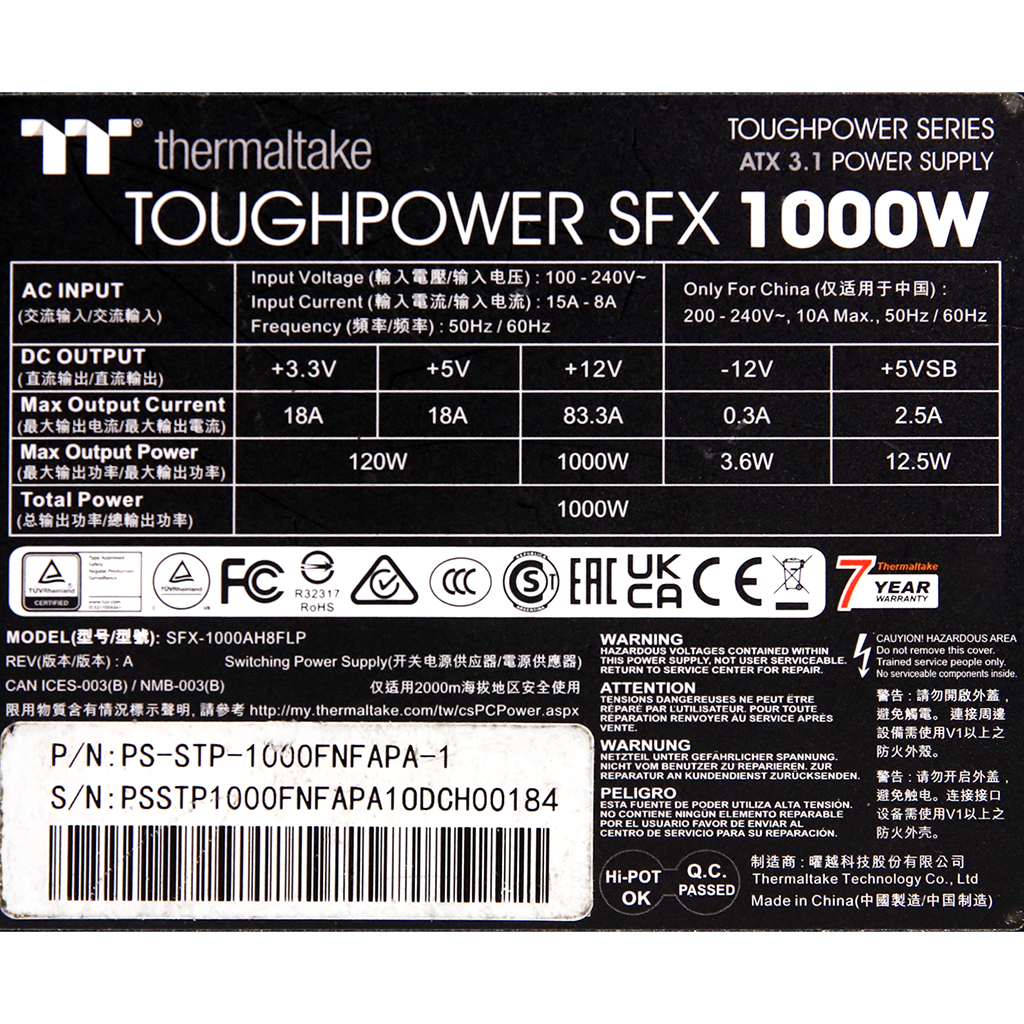

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	18	18	83.3	2.5	0.3
Max. Power	Watts	120		1000	12.5	3.6
Total Max. Power (W)		1000

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 63640-80-80 x10 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P
Power Analyzers	RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes	Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A, Keithley 2015 - THD
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer	4kVA
Testing Methodology	Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 24 pin (300mm)	1	1	16-22AWG	No
4+4 pin EPS12V (400mm)	2	2	16AWG	No
6+2 pin PCIe (400mm+150mm)	2	4	16-18AWG	No
12+4 pin PCIe (400mm) (600W)	1	1	16-26AWG	No
SATA (290mm+150mm+150mm+150mm)	2	8	18AWG	No
4-pin Molex (300mm+150mm+150mm+150mm) / FDD (+150mm)	1	4 / 1	18AWG	No
AC Power Cord (1400mm) - C13 coupler	1	1	17AWG	-

Parts Description

General Data
Manufacturer (OEM)	CE-Link
PCB Type	Single-Sided
Primary Side
Transient Filter	4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection	1x NTC Thermistor MF72-5D15 (5 ohm @ 25°C) & Relay
Bridge Rectifier(s)	2x GBU2506L (600V, 25A @ 100°C)
APFC MOSFETs	2x Lonten LSD65R070GT (650V, 30A @ 100°C, Rds(on): 0.070Ohm)
APFC Boost Diode	1x Global Power G4S06510AT (650V, 10A @ 151°C)
Bulk Cap(s)	2x Rubycon (400V, 470uF or combined 940uF, 2,000h @ 105°C, MXE)
Main Switchers	2x Lonten LSD65R099GF (650V, 25.3A @ 100°C, Rds(on): 0.99Ohm) & 1x Champion CM03X (For no load consumption)
Resonant Controller	Champion CM6901T6X
APFC Controller	ATK AT6103ZSPC
Topology	Primary side: APFC, Half-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs	8x Lonten LSGN04R013WE (40V, 101A @ 100°C, Rds(on): 1.35mOhm)
5V & 3.3V	DC-DC Converters: 2x Xintan NDP23B0QB (30V, 20A @ 25°C, Rds(on): 3mOhm) PWM Controller(s): Xintan NDP2430KC
Filtering Capacitors	Electrolytic: 3x Rubycon (5-6,000h @105°C, ZLH) 1x Rubycon (4-10,000h @105°C, YXJ) 1x Rubycon (4-10,000h @105°C, YXF) Polymer: 55x
Supervisor IC	IN1S3151-SAG
Fan Model	EFS-09C12H (92mm, 12V, 0.40A, Fluid Dynamic Bearing Fan)
5VSB
Rectifier	1x UTC MGBR10L45 (45V, 10A)
Standby PWM Controller	Esthome EST.2915HP

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.1 PSU Power Excursion	✓

Performance Summary

Efficiency Rating	SILVER
Noise Rating	Standard++
Average Efficiency (>1450 load combinations)	91.728%
Average Noise Output (>1450 Load Combinations)	30.69dBA
Average PF (>1450 Load Combinations)	0.924
Efficiency With 10W (≤500W) or 2% (>500W) Load	71.636%
Standby Power Consumption	0.1627W
12V Ripple (Full Load)	24.78mV
5V Ripple (Full Load)	15.70mV
3.3V Ripple (Full Load)	14.92mV
5VSB Ripple (Full Load)	14.96mV
12V Load Regulation	0.52%
5V Load Regulation	1.67%
3.3V Load Regulation	3.03%
5VSB Load Regulation	2.40%
Inrush Current	96.340A
12V Transient Response (200%)	11.34V
5V Transient Response (200%)	4.918V
3.3V Transient Response (200%)	3.219V
5VSB Transient Response (200%)	4.924V
Hold-Up Time & Power Ok Signal	16.60ms
AC Loss to PWR_OK Hold Up Time	13.50ms
PWR_OK Inactive to DC Loss Delay	3.10ms
PSU Timings: T1 (20% / 100%)	122.0ms	122.0ms
PSU Timings: T3 (20% / 100%)	126.0ms	126.0ms
12V OCP (30.0°C / 43.8°C)	115.00A (138.06%), 11.987V	107.00A (128.45%), 11.992V
5V OCP (30.0°C / 43.8°C)	21.8A (121.11%), 4.812V* *Didn't shut down. Voltage Drop (4.561V@22A)	21.4A (118.89%), 4.808V* *Didn't shut down. Voltage Drop (4.572V@21.6A)
3.3V OCP (30.0°C / 43.8°C)	21A (116.67%), 3.271V* *Didn't shut down. Voltage Drop (2.888V@21.2A)	20.8A (115.56%), 3.208V* *Didn't shut down. Voltage Drop (2.968V@21A)
5VSB OCP (30.0°C / 43.8°C)	4.1A (164.00%), 4.965	4.1A (164.00%), 4.963V
OPP (29.88°C / 44.25°C)	132.48%	116.54%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)	16.6
AC Loss to PWR_OK Hold Up Time (ms)	13.5
PWR_OK Inactive to DC Loss Delay (ms)	3.1

Vampire Power

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	115.09 V	115.04 V	113.85 V	115.12 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	59.95 Hz	59.40 Hz	60.02 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.416	1.415	1.340	1.418	1.490	PASS
Mains Voltage THD:	0.14 %	0.08 %	N/A	0.20 %	2.00 %	PASS
Real Power:	0.067 W	0.009 W	N/A	0.115 W	N/A	N/A
Apparent Power:	14.374 W	13.455 W	N/A	15.265 W	N/A	N/A
Power Factor:	0.006	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	231.02 V	230.91 V	227.70 V	231.09 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	49.99 Hz	49.50 Hz	50.01 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.417	1.416	1.340	1.418	1.490	PASS
Mains Voltage THD:	0.17 %	0.15 %	N/A	0.26 %	2.00 %	PASS
Real Power:	0.163 W	0.123 W	N/A	0.234 W	N/A	N/A
Apparent Power:	44.265 W	43.275 W	N/A	45.221 W	N/A	N/A
Power Factor:	0.003	N/A	N/A	N/A	N/A	N/A

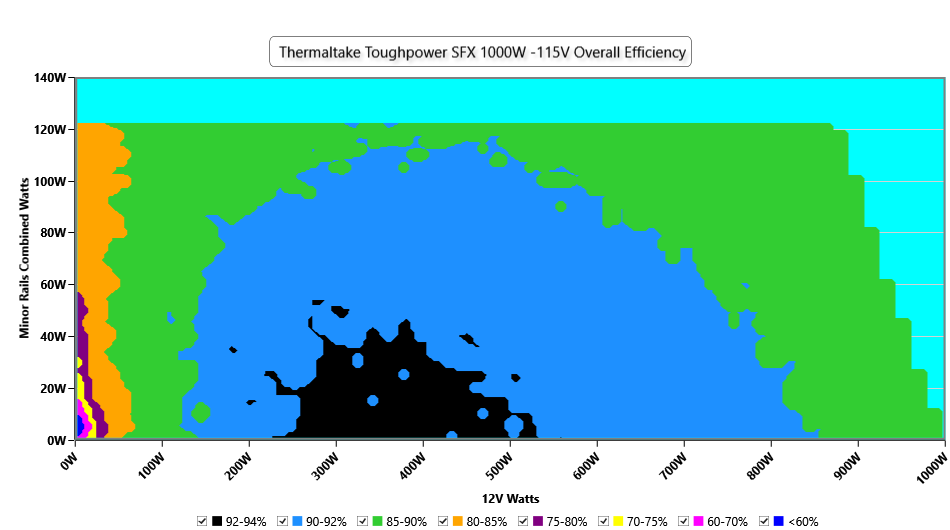

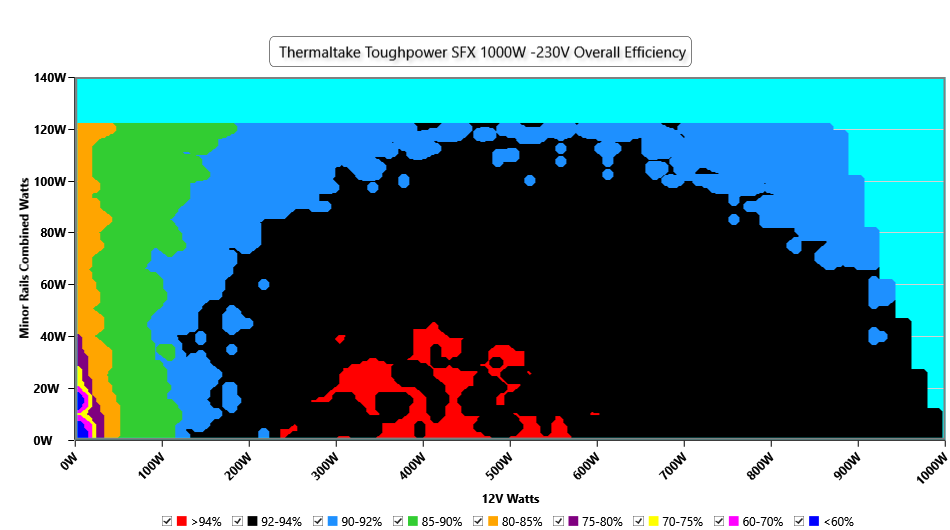

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

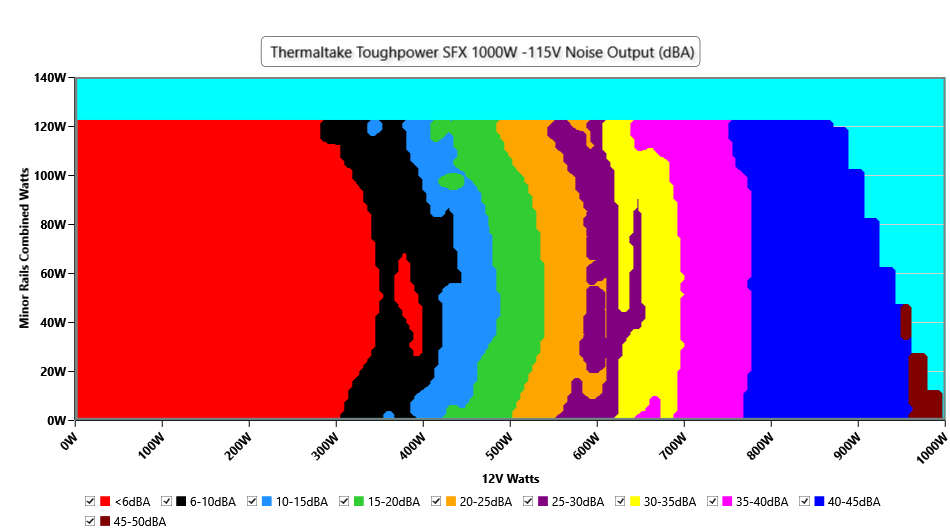

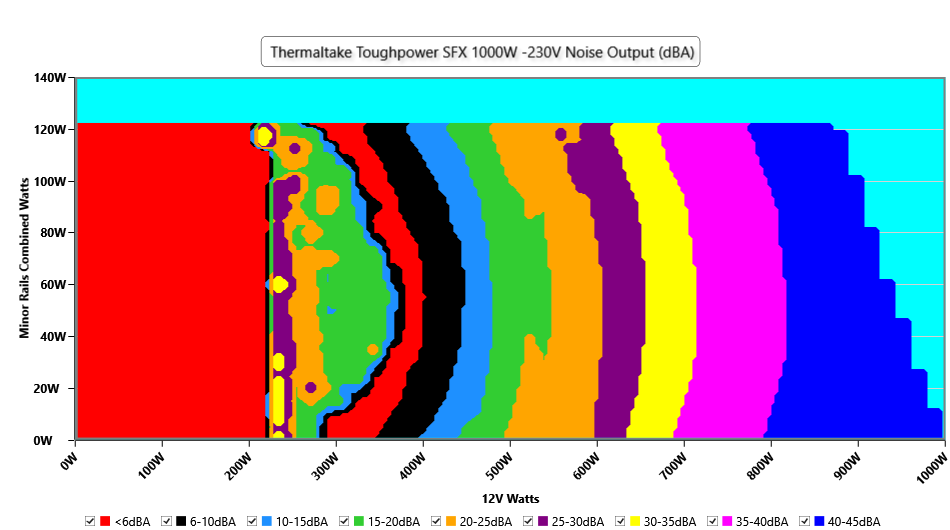

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

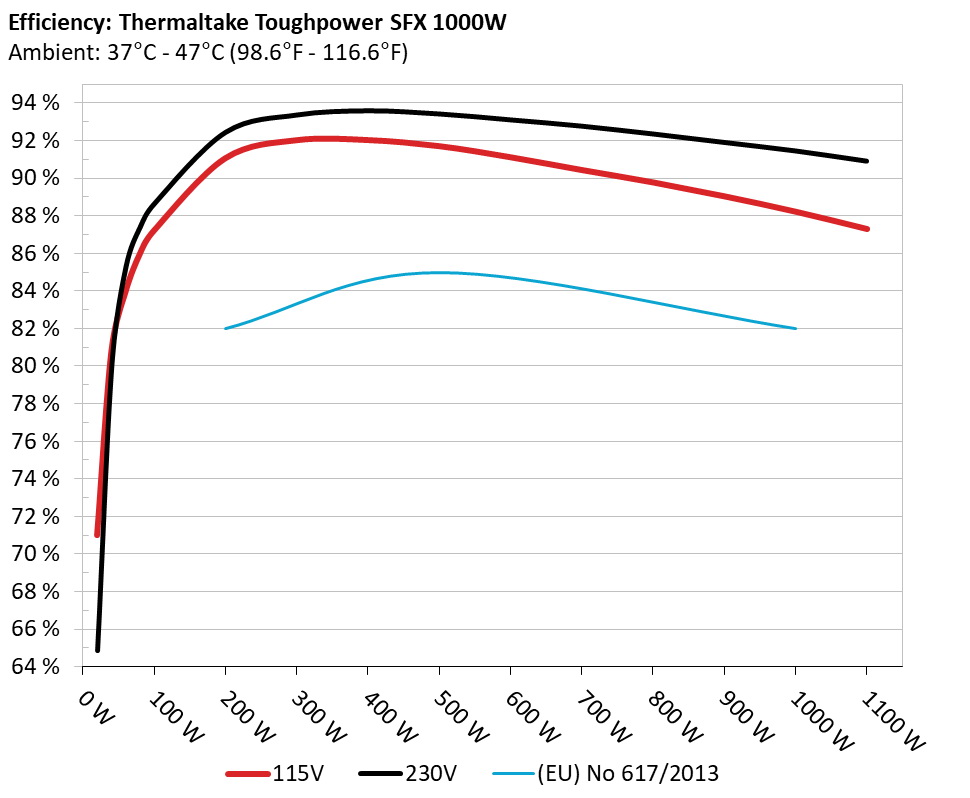

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

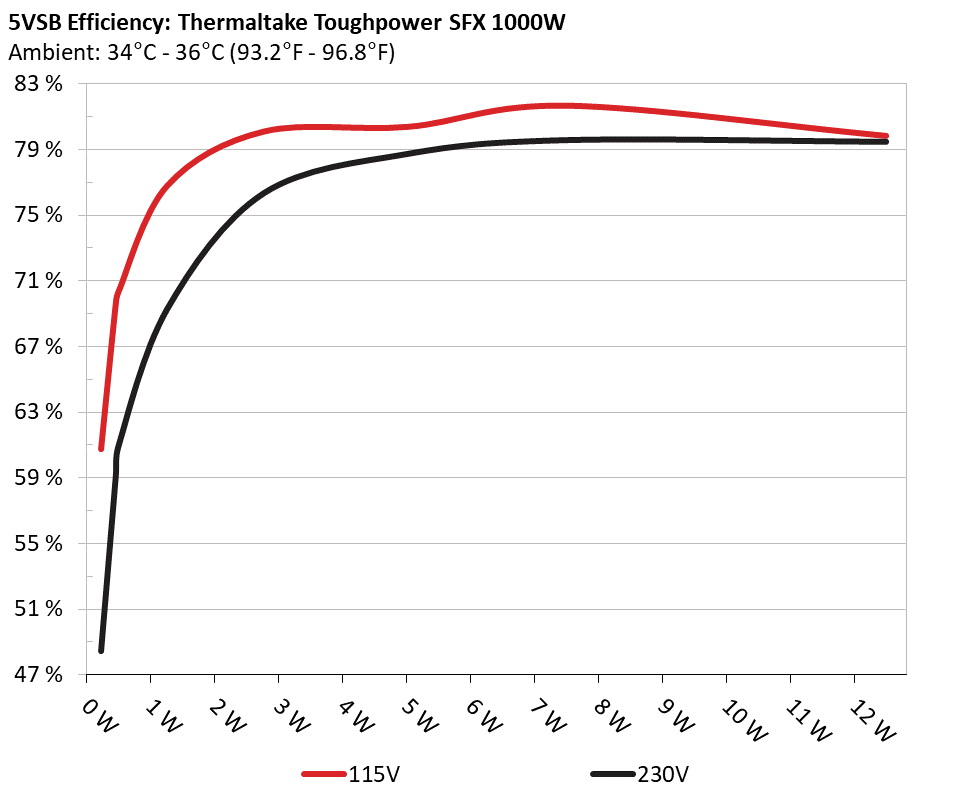

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.227W	60.721%	0.03
1	5.04V	0.374W	60.721%	115.16V
2	0.09A	0.454W	69.506%	0.053
2	5.039V	0.653W	69.506%	115.16V
3	0.55A	2.768W	80.113%	0.232
3	5.03V	3.455W	80.113%	115.18V
4	1A	5.023W	80.401%	0.335
4	5.021V	6.247W	80.401%	115.17V
5	1.5A	7.519W	81.692%	0.392
5	5.011V	9.204W	81.692%	115.16V
6	2.501A	12.482W	79.846%	0.456
6	4.991V	15.632W	79.846%	115.16V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.227W	48.424%	0.011
1	5.04V	0.469W	48.424%	230.42V
2	0.09A	0.454W	58.977%	0.019
2	5.039V	0.771W	58.977%	230.41V
3	0.55A	2.767W	76.349%	0.086
3	5.03V	3.625W	76.349%	230.41V
4	1A	5.022W	78.753%	0.143
4	5.021V	6.377W	78.753%	230.4V
5	1.5A	7.518W	79.586%	0.198
5	5.011V	9.444W	79.586%	230.4V
6	2.501A	12.479W	79.484%	0.278
6	4.991V	15.699W	79.484%	230.4V

Supplementary Tests (For Reference)

Typical Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	6.536A	1.993A	1.975A	0.997A	100.039	87.206%	0	<6.0	48.12°C	0.971
10%	12.001V	5.019V	3.343V	5.017V	114.723	87.206%	0	<6.0	40.21°C	115.16V
20%	14.085A	2.996A	2.971A	1.199A	200	91.046%	0	<6.0	49.66°C	0.97
20%	12.005V	5.009V	3.333V	5.006V	219.669	91.046%	0	<6.0	40.67°C	115.14V
30%	21.996A	3.5A	3.474A	1.402A	300.056	92.006%	0	<6.0	53.18°C	0.985
30%	12.002V	5.002V	3.325V	4.996V	326.119	92.006%	0	<6.0	41.05°C	115.12V
40%	29.889A	4.006A	3.98A	1.605A	399.88	92.011%	983	13.7	41.86°C	0.991
40%	12.000V	4.995V	3.317V	4.985V	434.63	92.011%	983	13.7	54.47°C	115.09V
50%	37.440A	5.016A	4.989A	1.81A	499.578	91.689%	1323	23.1	42.22°C	0.991
50%	11.994V	4.985V	3.308V	4.974V	544.863	91.689%	1323	23.1	53.97°C	115.06V
60%	45.061A	6.031A	6.004A	2.001A	600.014	91.098%	1783	31.8	42.86°C	0.996
60%	11.990V	4.976V	3.298V	4.964V	658.677	91.098%	1783	31.8	54.08°C	115.04V
70%	52.622A	7.049A	7.026A	2.222A	699.799	90.417%	2243	38	43.48°C	0.995
70%	11.985V	4.967V	3.288V	4.952V	774.003	90.417%	2243	38	54.46°C	115.01V
80%	60.261A	8.07A	8.052A	2.327A	799.824	89.76%	2608	43.2	43.89°C	0.996
80%	11.980V	4.957V	3.279V	4.943V	891.182	89.76%	2608	43.2	55.45°C	114.99V
90%	68.238A	8.587A	8.561A	2.433A	899.606	89.02%	2993	47.2	44.98°C	0.997
90%	11.975V	4.95V	3.271V	4.934V	1010.578	89.02%	2993	47.2	57.42°C	114.97V
100%	76.288A	9.106A	9.104A	2.539A	1000.34	88.196%	3307	48.8	45.33°C	0.998
100%	11.970V	4.943V	3.262V	4.925V	1134.235	88.196%	3307	48.8	59.43°C	114.94V
110%	83.934A	10.138A	10.239A	2.543A	1100.175	87.278%	3374	49.4	46.51°C	0.998
110%	11.966V	4.932V	3.252V	4.917V	1260.499	87.278%	3374	49.4	62.17°C	114.91V
CL1	0.117A	14.549A	14.427A	0A	121.313	81.148%	1299	21.9	41.34°C	0.954
CL1	12.019V	4.963V	3.306V	5.024V	149.471	81.148%	1299	21.9	49.81°C	115.15V
CL2	0.116A	18.158A	0A	0A	91.396	80.77%	0	<6.0	44.04°C	0.972
CL2	12.013V	4.956V	3.349V	5.034V	113.138	80.77%	0	<6.0	41.35°C	115.14V
CL3	0.116A	0A	18.193A	0A	60.793	74.499%	0	<6.0	43.28°C	0.738
CL3	12.008V	5.016V	3.265V	5.03V	81.671	74.499%	0	<6.0	40.85°C	115.17V
CL4	83.549A	0A	0A	0A	1000.099	89.011%	3186	48.6	45.29°C	0.998
CL4	11.970V	4.984V	3.297V	4.981V	1123.549	89.011%	3186	48.6	58.68°C	114.94V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	6.487A	1.983A	1.971A	1A	100.032	88.654%	0	<6.0	47.43°C	0.718
10%	12.090V	5.046V	3.35V	5V	112.842	88.654%	0	<6.0	40.34°C	230.42V
20%	13.982A	2.979A	2.965A	1.203A	199.99	92.453%	0	<6.0	48.15°C	0.897
20%	12.093V	5.036V	3.339V	4.989V	216.363	92.453%	0	<6.0	40.76°C	230.41V
30%	21.841A	3.481A	3.468A	1.405A	300.047	93.374%	0	<6.0	50.23°C	0.931
30%	12.086V	5.029V	3.331V	4.981V	321.337	93.374%	0	<6.0	41.28°C	230.4V
40%	29.688A	3.984A	3.974A	1.61A	399.816	93.595%	0	<6.0	51.35°C	0.947
40%	12.079V	5.022V	3.322V	4.971V	427.202	93.595%	0	<6.0	41.79°C	230.39V
50%	37.198A	4.988A	4.982A	1.815A	499.54	93.43%	1256	20.8	42.08°C	0.959
50%	12.071V	5.014V	3.312V	4.959V	534.731	93.43%	1256	20.8	47.71°C	230.38V
60%	44.783A	5.996A	5.996A	2.001A	599.983	93.113%	1748	30.9	42.51°C	0.964
60%	12.064V	5.005V	3.303V	4.948V	644.349	93.113%	1748	30.9	47.91°C	230.37V
70%	52.311A	7.007A	7.016A	2.229A	699.83	92.78%	2311	39.2	43.02°C	0.969
70%	12.057V	4.997V	3.293V	4.935V	754.317	92.78%	2311	39.2	48.4°C	230.36V
80%	59.914A	8.021A	8.043A	2.335A	799.855	92.363%	2763	44.4	43.84°C	0.974
80%	12.049V	4.988V	3.282V	4.926V	866.04	92.363%	2763	44.4	49.52°C	230.35V
90%	67.855A	8.535A	8.554A	2.441A	899.636	91.913%	3131	48.7	44.51°C	0.979
90%	12.042V	4.98V	3.273V	4.916V	978.687	91.913%	3131	48.7	50.41°C	230.33V
100%	75.877A	9.051A	9.098A	2.548A	1000.34	91.458%	3395	49.6	45.11°C	0.983
100%	12.034V	4.973V	3.264V	4.907V	1093.666	91.458%	3395	49.6	51.55°C	230.32V
110%	83.521A	10.075A	10.238A	2.552A	1100.146	90.917%	3403	49.7	46.29°C	0.986
110%	12.025V	4.963V	3.252V	4.899V	1210.056	90.917%	3403	49.7	53.23°C	230.3V
CL1	0.116A	14.441A	14.482A	0A	121.309	82.046%	706	<6.0	40.32°C	0.85
CL1	12.083V	5V	3.293V	5.013V	147.86	82.046%	706	<6.0	48.78°C	230.38V
CL2	0.115A	18.092A	0A	0A	91.398	81.653%	0	<6.0	45.91°C	0.716
CL2	12.091V	4.975V	3.342V	5.017V	112.08	81.653%	0	<6.0	41.11°C	230.38V
CL3	0.115A	0A	18.097A	0A	60.789	75.362%	0	<6.0	43.08°C	0.651
CL3	12.089V	5.038V	3.282V	5.019V	80.715	75.362%	0	<6.0	41.64°C	230.37V
CL4	83.041A	0A	0A	0A	1000.111	92.242%	3188	48.7	45.15°C	0.982
CL4	12.043V	5.009V	3.305V	4.969V	1084.273	92.242%	3188	48.7	50.27°C	230.3V

The results above are not used in the certification process

Light Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.240A	0.497A	0.492A	0.199A	20.014	70.982%	0	<6.0	41.22°C	0.621
20W	11.992V	5.03V	3.354V	5.036V	28.216	70.982%	0	<6.0	36.57°C	115.19V
40W	2.726A	0.696A	0.689A	0.298A	40.011	80.775%	0	<6.0	42.07°C	0.689
40W	11.994V	5.027V	3.351V	5.033V	49.549	80.775%	0	<6.0	37.33°C	115.19V
60W	4.213A	0.896A	0.887A	0.398A	60.011	83.954%	0	<6.0	44.16°C	0.72
60W	11.995V	5.025V	3.35V	5.03V	71.509	83.954%	0	<6.0	38.07°C	115.19V
80W	5.698A	1.095A	1.084A	0.498A	79.99	85.96%	0	<6.0	46.07°C	0.738
80W	11.998V	5.024V	3.349V	5.027V	93.072	85.96%	0	<6.0	39.11°C	115.2V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.228A	0.495A	0.491A	0.199A	20.012	64.834%	0	<6.0	41.85°C	0.452
20W	12.097V	5.056V	3.363V	5.025V	30.866	64.834%	0	<6.0	36.63°C	230.43V
40W	2.704A	0.693A	0.687A	0.299A	40.01	79.992%	0	<6.0	42.54°C	0.544
40W	12.095V	5.054V	3.36V	5.022V	50.018	79.992%	0	<6.0	37.49°C	230.43V
60W	4.179A	0.891A	0.885A	0.399A	60.01	85.299%	0	<6.0	43.65°C	0.623
60W	12.093V	5.051V	3.358V	5.019V	70.393	85.299%	0	<6.0	38.49°C	230.43V
80W	5.653A	1.09A	1.082A	0.499A	79.985	87.409%	0	<6.0	45.62°C	0.677
80W	12.091V	5.05V	3.356V	5.012V	91.416	87.409%	0	<6.0	39.28°C	230.43V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	27.7 mV	8.5 mV	5.6 mV	13.4 mV	Pass
20% Load	11.7 mV	8.2 mV	5.7 mV	14.9 mV	Pass
30% Load	10.6 mV	8.4 mV	6.2 mV	15.1 mV	Pass
40% Load	12.3 mV	9.0 mV	6.2 mV	13.5 mV	Pass
50% Load	13.8 mV	9.0 mV	6.7 mV	15.4 mV	Pass
60% Load	15.7 mV	9.4 mV	7.4 mV	12.4 mV	Pass
70% Load	16.1 mV	9.5 mV	8.0 mV	13.7 mV	Pass
80% Load	18.5 mV	10.6 mV	11.3 mV	14.7 mV	Pass
90% Load	20.5 mV	10.7 mV	12.6 mV	14.0 mV	Pass
100% Load	28.0 mV	11.5 mV	13.4 mV	14.5 mV	Pass
110% Load	32.7 mV	12.4 mV	13.8 mV	14.7 mV	Pass
Crossload 1	21.7 mV	10.6 mV	13.7 mV	9.4 mV	Pass
Crossload 2	18.4 mV	7.6 mV	8.5 mV	6.8 mV	Pass
Crossload 3	8.6 mV	8.6 mV	13.7 mV	9.8 mV	Pass
Crossload 4	27.5 mV	11.7 mV	11.5 mV	8.5 mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	10.8 mV	8.3 mV	6.6 mV	12.5 mV	Pass
20% Load	15.0 mV	8.3 mV	6.9 mV	13.0 mV	Pass
30% Load	12.0 mV	8.5 mV	7.4 mV	13.1 mV	Pass
40% Load	12.2 mV	9.3 mV	8.2 mV	13.3 mV	Pass
50% Load	12.7 mV	10.0 mV	8.4 mV	12.2 mV	Pass
60% Load	13.6 mV	11.4 mV	8.4 mV	12.5 mV	Pass
70% Load	15.6 mV	13.2 mV	10.1 mV	12.5 mV	Pass
80% Load	16.8 mV	13.4 mV	13.5 mV	12.9 mV	Pass
90% Load	18.1 mV	16.0 mV	13.6 mV	13.4 mV	Pass
100% Load	24.8 mV	15.7 mV	14.9 mV	15.0 mV	Pass
110% Load	26.7 mV	16.7 mV	16.3 mV	16.6 mV	Pass
Crossload 1	15.7 mV	17.0 mV	16.7 mV	11.9 mV	Pass
Crossload 2	10.3 mV	8.6 mV	9.4 mV	9.7 mV	Pass
Crossload 3	7.4 mV	9.2 mV	11.2 mV	9.1 mV	Pass
Crossload 4	24.8 mV	13.1 mV	14.0 mV	11.1 mV	Pass

The results above are not used in the certification process

Thermaltake Toughpower SFX 1000W (ATX v3.1)

Top side

Power specifications label

General Information

DUT Information

DUT Specifications

Power Specifications

Test Equipment

Cables and Connectors

Parts Description

Test Results

Temperature & Compliance Info

Performance Summary

Hold-Up Time & Power Ok Signal

Vampire Power

Tables

Graphs

Efficiency Graph

INFO

INFO

Noise Graph

INFO

INFO

Indicative Performance

Efficiency under high ambient temperature

INFO

5VSB Efficiency

INFO

5VSB Efficiency (ERP LOT 3/6 & CEC)

Supplementary Tests (For Reference)

Typical Load Tests

Light Load Tests

Ripple Measurements

Thermaltake Toughpower SFX 1000W (ATX v3.1)
