CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Zalman TeraMax II SE 1000W
Serial Number
Lab IDZL10002567
  • Report: 24PS2567A
  • Receipt Date: Sep 6, 2024
  • Test Date: Sep 12, 2024
  • Report Date: Sep 13, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

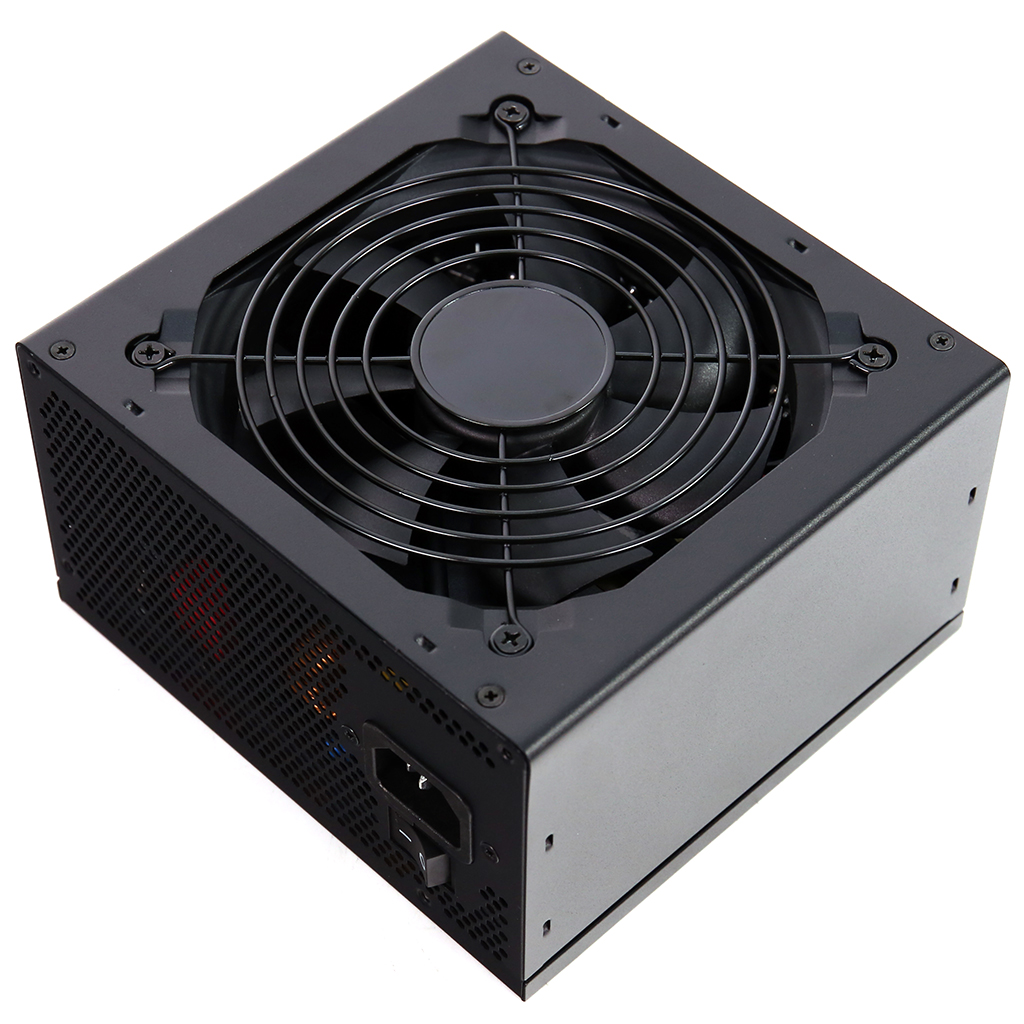

DUT Information

BrandZalman
Manufacturer (OEM)Huizhou Jiumeng Electronics Technology Co., Ltd
SeriesTeraMax II SE
Model NumberZM1000-TMX2SE
Serial Number
DUT Notes

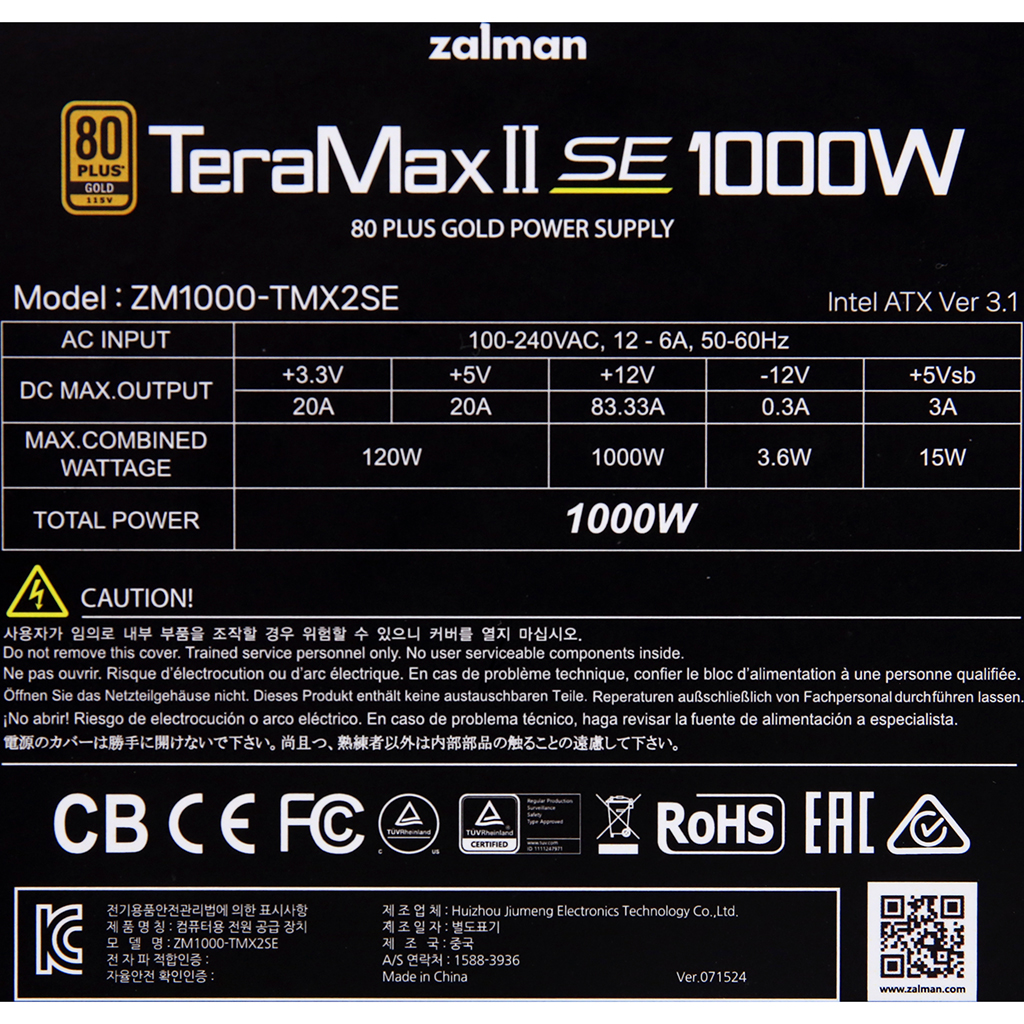

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)6-12
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Cooling120mm Fluid Dynamic Bearing Fan (PY-12225M12S)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202083.3330.3
Watts1201000153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18AWG No
4+4 pin EPS12V (750mm) 2 2 18AWG No
6+2 pin PCIe (550mm+150mm) 1 2 18AWG No
6+2 pin PCIe (550mm) 2 2 18AWG No
12+4 pin PCIe (610mm) (600W) 1 1 16-26AWG No
SATA (500mm+150mm+150mm+145mm) 3 12 18AWG No
4-pin Molex (500mm+150mm+150mm) / FDD (+155mm) 1 3 / 1 18-22AWG No

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)19.8
AC Loss to PWR_OK Hold Up Time (ms)17.4
PWR_OK Inactive to DC Loss Delay (ms)2.4

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.85 V 114.80 V 113.85 V 114.88 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.98 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.419 1.418 1.340 1.420 1.490 PASS
Mains Voltage THD: 0.14 % 0.11 % N/A 0.19 % 2.00 % PASS
Real Power: 0.013 W 0.011 W N/A 0.015 W N/A N/A
Apparent Power: 10.307 W 10.283 W N/A 10.329 W N/A N/A
Power Factor: 0.001 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.85 V 229.80 V 227.70 V 229.91 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.419 1.418 1.340 1.420 1.490 PASS
Mains Voltage THD: 0.17 % 0.15 % N/A 0.20 % 2.00 % PASS
Real Power: 0.074 W 0.037 W N/A 0.111 W N/A N/A
Apparent Power: 34.565 W 34.496 W N/A 34.608 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

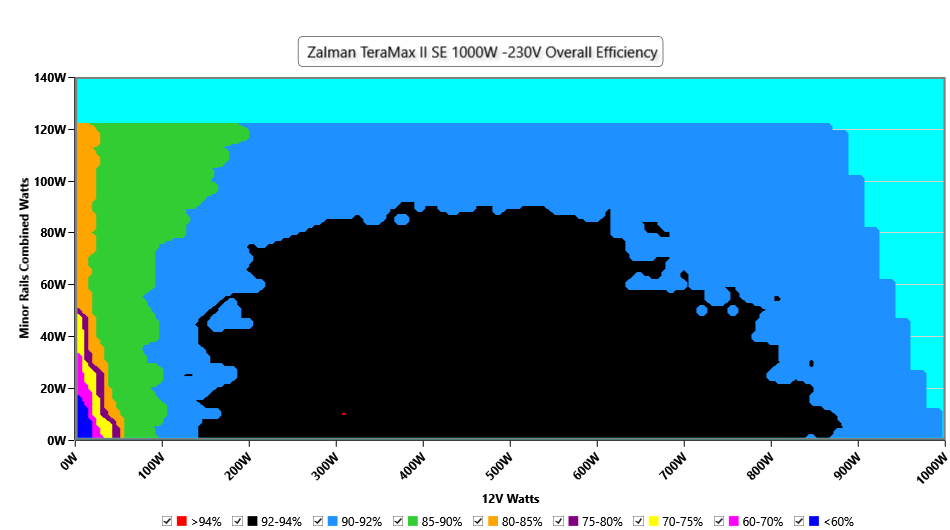

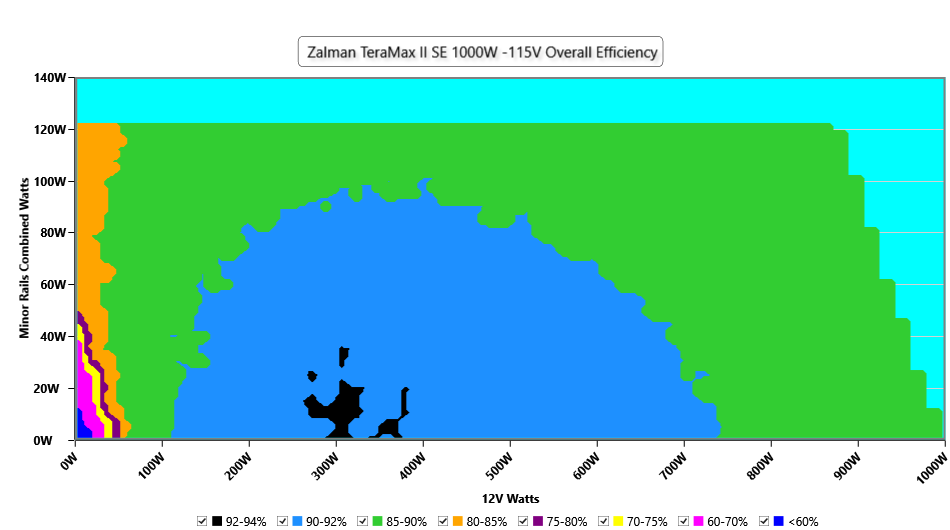

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

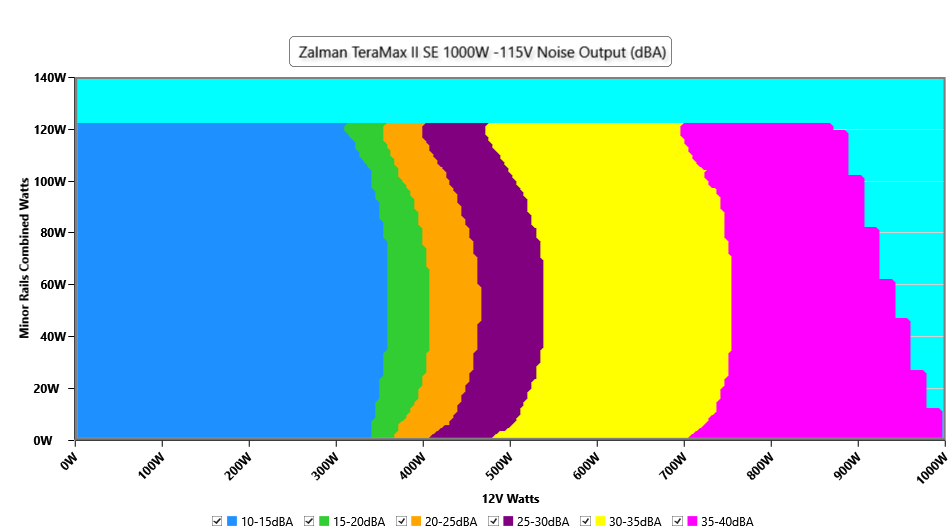

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

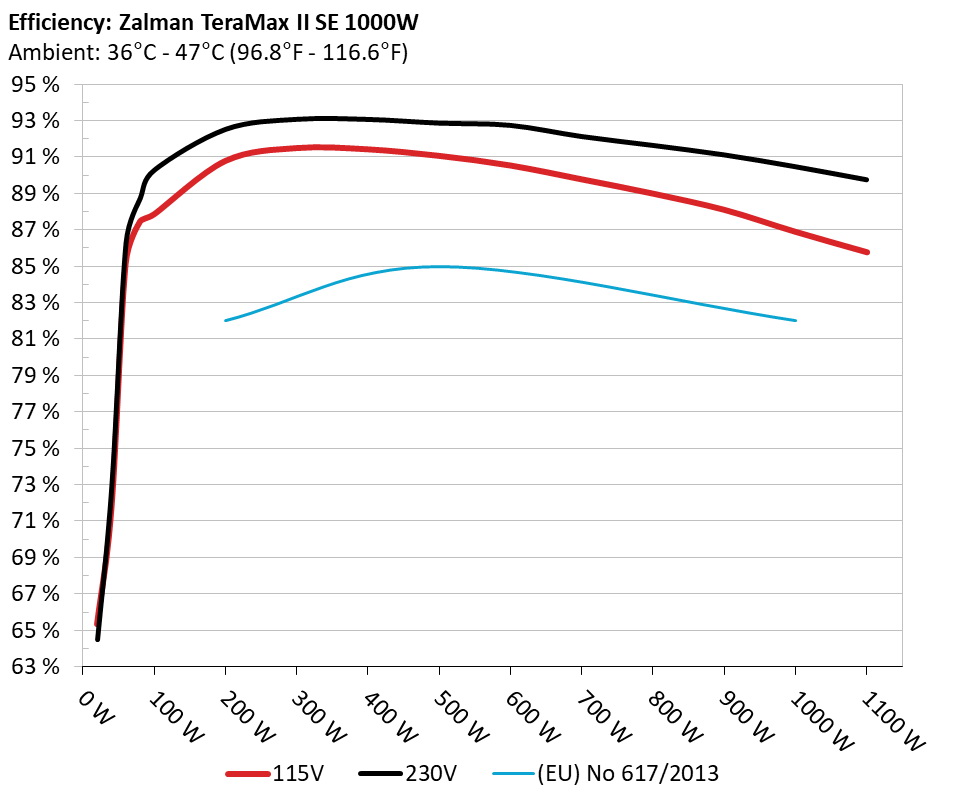

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

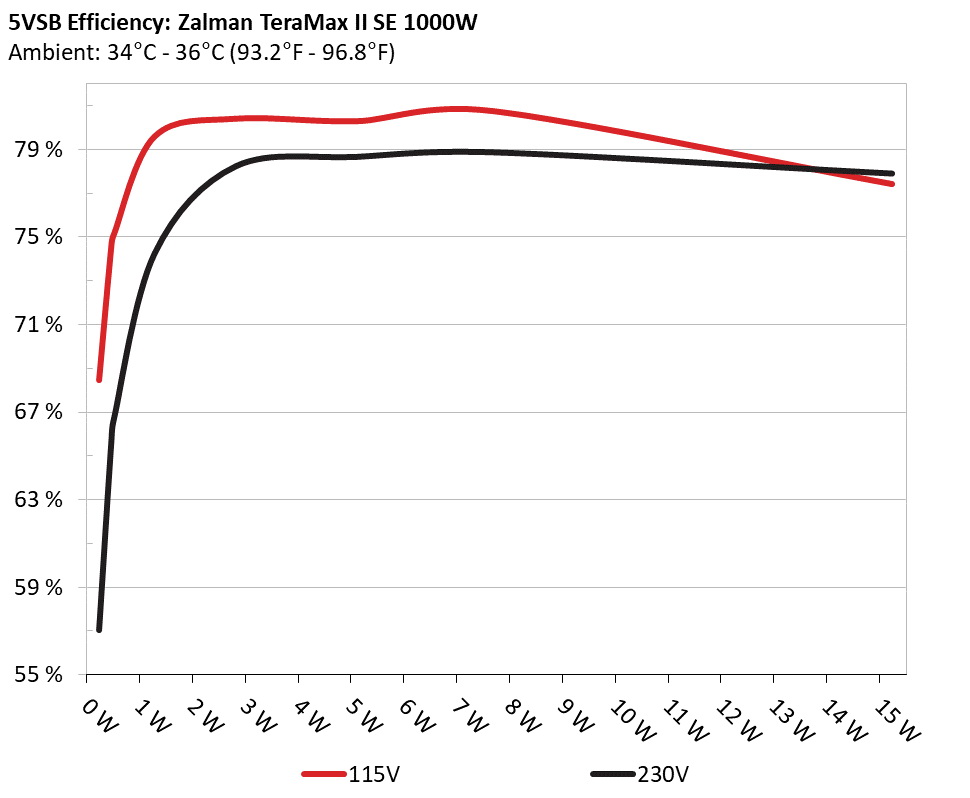

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 68.455% 0.033
5.141V 0.338W 114.86V
2 0.09A 0.463W 74.61% 0.059
5.14V 0.621W 114.86V
3 0.55A 2.822W 80.42% 0.262
5.131V 3.509W 114.86V
4 1A 5.122W 80.304% 0.355
5.122V 6.378W 114.85V
5 1.5A 7.668W 80.77% 0.411
5.112V 9.494W 114.83V
6 3A 15.239W 77.429% 0.479
5.079V 19.682W 114.83V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 57.04% 0.012
5.141V 0.405W 229.84V
2 0.09A 0.463W 65.68% 0.02
5.14V 0.706W 229.84V
3 0.55A 2.822W 78.232% 0.099
5.131V 3.608W 229.83V
4 1A 5.122W 78.66% 0.167
5.122V 6.512W 229.83V
5 1.5A 7.669W 78.867% 0.222
5.112V 9.724W 229.84V
6 3A 15.243W 77.897% 0.333
5.081V 19.569W 229.83V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.418A 1.958A 1.95A 0.978A 99.987 87.87% 756 14.4 40.38°C 0.963
12.213V 5.106V 3.384V 5.113V 113.782 43.87°C 114.81V
20% 13.853A 2.946A 2.936A 1.176A 199.935 90.802% 760 14.7 40.91°C 0.965
12.203V 5.092V 3.371V 5.101V 220.191 45.2°C 114.77V
30% 21.651A 3.444A 3.437A 1.376A 299.99 91.509% 805 16.9 41.17°C 0.985
12.190V 5.081V 3.361V 5.088V 327.833 48.09°C 114.73V
40% 29.422A 3.945A 3.939A 1.576A 399.525 91.44% 1176 28 41.89°C 0.993
12.178V 5.07V 3.351V 5.076V 436.925 49.85°C 114.71V
50% 36.878A 4.943A 4.941A 1.778A 499.279 91.085% 1324 31.8 42.11°C 0.997
12.169V 5.058V 3.339V 5.063V 548.172 50.4°C 114.66V
60% 44.411A 5.95A 5.956A 1.98A 599.796 90.55% 1499 35 42.61°C 0.998
12.159V 5.042V 3.325V 5.051V 662.591 53.11°C 114.64V
70% 51.889A 6.963A 6.977A 2.184A 699.53 89.79% 1626 37.6 43.14°C 0.999
12.149V 5.027V 3.311V 5.038V 779.053 56.01°C 114.6V
80% 59.451A 7.984A 8.013A 2.288A 799.532 89.003% 1751 39.7 43.76°C 0.999
12.139V 5.009V 3.294V 5.026V 898.331 60.35°C 114.57V
90% 67.356A 8.505A 8.528A 2.393A 899.34 88.116% 1813 40.9 44.7°C 0.999
12.128V 4.997V 3.283V 5.015V 1020.67 63.18°C 114.53V
100% 75.078A 9.028A 9.079A 3.005A 999.336 86.907% 1860 41.8 45.82°C 0.997
12.116V 4.984V 3.271V 4.993V 1149.9 66.69°C 114.49V
110% 82.761A 10.071A 10.236A 3.011A 1099.98 85.779% 1880 42 46.73°C 0.995
12.103V 4.964V 3.253V 4.982V 1282.334 73.09°C 114.46V
CL1 0.114A 14.497A 14.57A 0A 121.297 80.754% 1309 31.7 42.94°C 0.983
12.188V 4.981V 3.274V 5.123V 149.947 54.35°C 114.81V
CL2 0.114A 19.87A 0A 0A 101.344 80.565% 1027 23.9 42.22°C 0.969
12.195V 5.03V 3.329V 5.129V 125.789 49.93°C 114.81V
CL3 0.113A 0A 20.029A 0A 67.383 74.66% 845 17.8 40.98°C 0.964
12.197V 5.017V 3.295V 5.129V 90.244 48.05°C 114.82V
CL4 82.438A 0A 0.001A 0.003A 999.925 88.063% 1829 41.2 46.5°C 0.999
12.129V 5.066V 3.344V 5.061V 1135.506 62.35°C 114.5V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.418A 1.96A 1.95A 0.978A 99.986 88.723% 757 14.5 40.37°C 0.809
12.213V 5.102V 3.385V 5.113V 112.543 43.77°C 229.83V
20% 13.853A 2.948A 2.936A 1.176A 199.934 92.541% 758 14.6 40.63°C 0.9
12.203V 5.088V 3.371V 5.101V 216.467 45°C 229.81V
30% 21.646A 3.446A 3.435A 1.376A 299.975 93.092% 770 14.9 41.04°C 0.925
12.193V 5.078V 3.362V 5.089V 322.245 46.99°C 229.78V
40% 29.420A 3.946A 3.937A 1.576A 399.512 93.085% 1102 26.1 41.91°C 0.94
12.179V 5.068V 3.353V 5.077V 429.203 49.62°C 229.78V
50% 36.872A 4.946A 4.941A 1.777A 499.225 92.882% 1332 31.9 42.09°C 0.948
12.170V 5.054V 3.339V 5.064V 537.473 51.58°C 229.76V
60% 44.407A 5.954A 5.955A 1.98A 599.771 92.758% 1484 34.7 42.86°C 0.959
12.160V 5.039V 3.325V 5.051V 647 53.34°C 229.75V
70% 51.885A 6.968A 6.978A 2.183A 699.505 92.145% 1608 37.5 43.21°C 0.962
12.150V 5.024V 3.311V 5.038V 758.961 56°C 229.71V
80% 59.445A 7.989A 8.011A 2.288A 799.504 91.659% 1718 38.9 43.86°C 0.967
12.140V 5.006V 3.295V 5.027V 872.258 59.64°C 229.7V
90% 67.344A 8.506A 8.522A 2.392A 899.302 91.14% 1791 40.4 44.31°C 0.973
12.129V 4.996V 3.285V 5.016V 986.771 62.51°C 229.69V
100% 75.064A 9.03A 9.073A 3.003A 999.314 90.491% 1844 41.5 45.06°C 0.978
12.118V 4.983V 3.273V 4.995V 1104.127 66.67°C 229.67V
110% 82.742A 10.074A 10.23A 3.01A 1099.948 89.77% 1875 42 46.37°C 0.982
12.105V 4.963V 3.255V 4.984V 1226.15 72.72°C 229.65V
CL1 0.114A 14.506A 14.569A 0A 121.293 82.102% 1388 33.1 43.96°C 0.854
12.188V 4.977V 3.274V 5.123V 147.801 56.87°C 229.82V
CL2 0.113A 19.883A 0A 0A 101.335 81.644% 1036 24.1 42.4°C 0.826
12.196V 5.027V 3.329V 5.129V 124.099 51.12°C 229.82V
CL3 0.113A 0A 20.026A 0A 67.38 76.042% 847 17.8 41.34°C 0.649
12.198V 5.013V 3.296V 5.129V 88.601 48.79°C 229.83V
CL4 82.428A 0A 0.001A 0.003A 999.916 91.414% 1833 41.3 45.25°C 0.977
12.130V 5.064V 3.346V 5.062V 1093.854 63.78°C 229.67V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.214A 0.487A 0.484A 0.195A 19.996 65.324% 740 14.1 36.04°C 0.78
12.226V 5.13V 3.406V 5.136V 30.641 39.31°C 114.85V
40W 2.674A 0.683A 0.679A 0.292A 39.997 71.677% 746 14.2 37.8°C 0.869
12.222V 5.124V 3.401V 5.132V 55.822 45.25°C 114.86V
60W 4.136A 0.879A 0.874A 0.39A 59.997 85.153% 750 14.8 38.24°C 0.891
12.218V 5.119V 3.396V 5.129V 70.741 42.14°C 114.86V
80W 5.592A 1.075A 1.07A 0.488A 79.936 87.451% 752 14.8 39.01°C 0.908
12.216V 5.115V 3.393V 5.125V 91.48 42.56°C 114.84V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.215A 0.487A 0.484A 0.195A 20.001 64.482% 741 14.1 36.49°C 0.452
12.225V 5.128V 3.407V 5.136V 30.213 37.79°C 229.83V
40W 2.675A 0.684A 0.679A 0.292A 39.998 72.925% 751 14.8 37.22°C 0.57
12.220V 5.119V 3.4V 5.132V 54.85 38.18°C 229.83V
60W 4.136A 0.879A 0.874A 0.39A 59.997 86.304% 752 14.8 38.77°C 0.609
12.218V 5.116V 3.397V 5.129V 69.514 39.79°C 229.82V
80W 5.592A 1.076A 1.069A 0.488A 79.935 88.744% 753 14.8 39.2°C 0.651
12.216V 5.113V 3.394V 5.125V 90.206 39.03°C 229.82V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load16.93mV13.70mV14.57mV10.21mVPass
20% Load20.46mV15.81mV17.24mV12.01mVPass
30% Load22.56mV16.32mV17.95mV13.70mVPass
40% Load22.86mV25.92mV26.58mV14.21mVPass
50% Load20.00mV19.50mV21.81mV13.19mVPass
60% Load22.81mV26.53mV34.53mV15.60mVPass
70% Load28.39mV34.39mV34.63mV17.96mVPass
80% Load31.50mV37.00mV29.09mV19.39mVPass
90% Load38.87mV34.03mV29.76mV21.24mVPass
100% Load39.06mV34.40mV30.06mV24.92mVPass
110% Load45.69mV34.32mV30.76mV27.28mVPass
Crossload119.87mV16.10mV19.88mV12.58mVPass
Crossload218.92mV21.50mV15.29mV10.42mVPass
Crossload316.32mV15.04mV19.75mV9.75mVPass
Crossload442.21mV27.99mV29.72mV22.49mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load15.75mV11.86mV13.08mV8.36mVPass
20% Load17.85mV13.65mV14.42mV11.19mVPass
30% Load19.54mV16.01mV17.29mV13.65mVPass
40% Load17.90mV20.58mV22.01mV11.85mVPass
50% Load23.88mV22.94mV27.81mV15.55mVPass
60% Load22.04mV24.63mV30.42mV14.52mVPass
70% Load24.65mV31.51mV32.22mV16.68mVPass
80% Load28.85mV34.28mV29.76mV19.65mVPass
90% Load31.05mV32.38mV28.21mV21.29mVPass
100% Load36.51mV32.87mV29.86mV25.13mVPass
110% Load40.20mV34.59mV30.46mV26.55mVPass
Crossload116.12mV13.31mV16.63mV11.90mVPass
Crossload219.43mV20.12mV14.52mV10.88mVPass
Crossload317.44mV14.68mV17.85mV10.11mVPass
Crossload437.13mV28.67mV28.26mV22.87mVPass

The results above are not used in the certification process

Zalman TeraMax II SE 1000W

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
