Asus ROG-STRIX-1200P-GAMING
Serial Number2O074137128
Lab IDAS12002564
  • Report: 24PS2564A
  • Receipt Date: Sep 4, 2024
  • Test Date: Sep 10, 2024
  • Report Date: Sep 11, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandAsus
Manufacturer (OEM)Great Wall
SeriesROG Strix
Model NumberROG-STRIX-1200P-GAMING
Serial Number2O074137128
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15-7.5
Rated Frequency (Hz)47-63
Rated Power (W)1200
TypeATX12V
Cooling135mm Dual Ball Bearing Fan (F1214025BL)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps252510030.3
Watts1301200153.6
Total Max. Power (W)1200

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (610mm) 1 1 18AWG No
4+4 pin EPS12V (1000mm) 2 2 18AWG No
6+2 pin PCIe (750mm) 4 4 18AWG No
12+4 pin PCIe (745mm) (600W) 1 1 16-24AWG No
SATA (400mm+120mm+120mm) 2 6 18AWG No

4-pin Molex (390mm+150mm+150mm)

 1 3 18AWG No

Parts Description

General Data
Manufacturer (OEM) Great Wall
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor SCK205 (5 Ohm @ 25°C) & Relay
Bridge Rectifier(s)

2x Vishay GBUE2560 (600V , 25A @ 140°C)
APFC MODFETs

1x Transphorm TP65H035G4WS (650V, 29.5A @ 100°C, Rds(on): 0.41Ohm)
APFC Boost Diode

1x CREE C3D16065 (650V, 16A @ 142°C)
Bulk Cap(s)

1x Rubycon (420V, 470uF , 3000h @ 105°C, MXK) & 1x Rubycon (420V , 820uF , 3000h @ 105°C, MXT)
Main Switchers

2x Rohm Semiconductor R6055VNZ4 (600V, 55A @ 25°C, Rds(on): 0.08Ohm)
APFC Controller

1x Champion CM6502UHHX & 1x Champion CM03X (reduce the no-load consumption)
Resonant Controller

1x Champion 6901X
IC DRIVER

1x Novosense NSi6602
Topology

Primary side: APFC, Half-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 6x Infineon BSC014N04LS (40V, 100A @ 100°C, Rds(on): 1.4mOhm)
5V & 3.3V DC-DC Converters: 4x GP4A24 PWM Controller(s): 1x ANPEC APW7159C
Filtering Capacitors

Electrolytic: 1x Rubycon (4-10,000 @ 105°C, YXJ), 1x Rubycon (3-6,000 @ 105°C, YXT), 1x Rubycon (3-6,000 @ 105°C, YXG), 1x Rubycon (2-10,000 @ 105°C, YXF), 4x Nichicon (6-10000 @ 105°C, HW), Polymer: 35x FPCAP , 7x Nippon Chemi-Con
Supervisor IC Weltrend WT7881P
Fan Controller AS358M
Fan Model EVERFLOW F1214025BL (135mm, 12V, 0.2A , Double Ball Bearing Fan)
5VSB Circuit
High Side Rectifier

1x ER2J (600V, 2A @ 100°C)
Standby PWM Controller Power Integrations TNY278PN

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)18.7
AC Loss to PWR_OK Hold Up Time (ms)18.7
PWR_OK Inactive to DC Loss Delay (ms)0

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.07 V 115.04 V 113.85 V 115.11 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.18 % 2.00 % PASS
Real Power: 0.077 W 0.052 W N/A 0.107 W N/A N/A
Apparent Power: 12.247 W 11.906 W N/A 12.598 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.02 V 230.93 V 227.70 V 231.10 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.15 % N/A 0.26 % 2.00 % PASS
Real Power: 0.153 W 0.102 W N/A 0.266 W N/A N/A
Apparent Power: 40.995 W 40.168 W N/A 41.813 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

Efficiency Graph

INFO

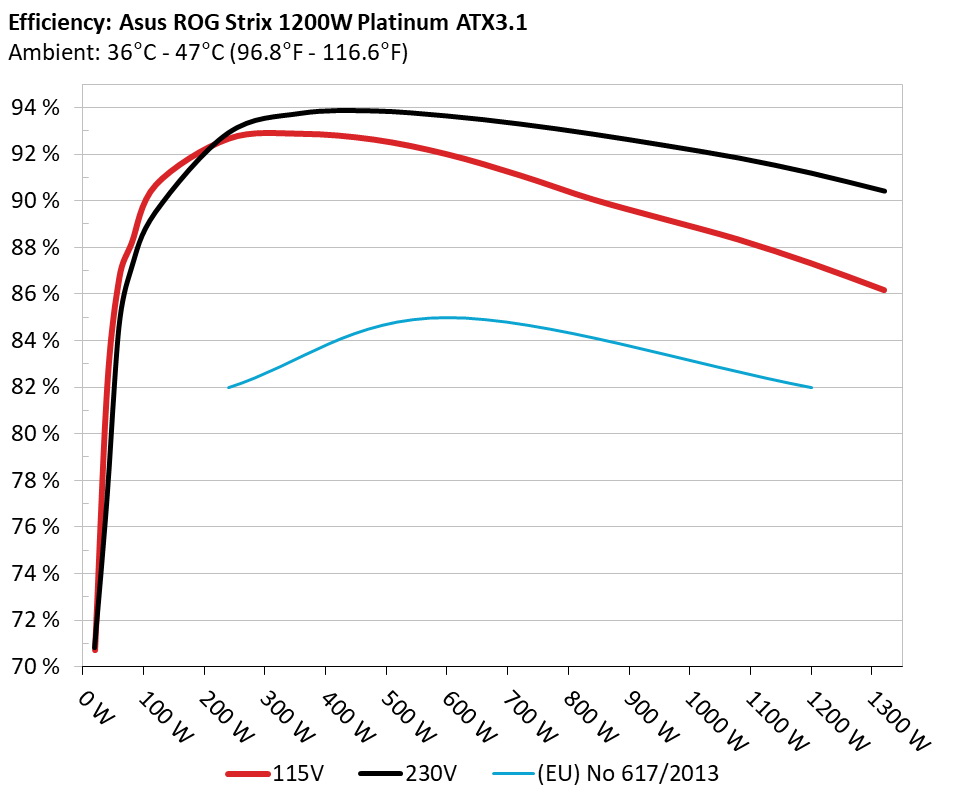

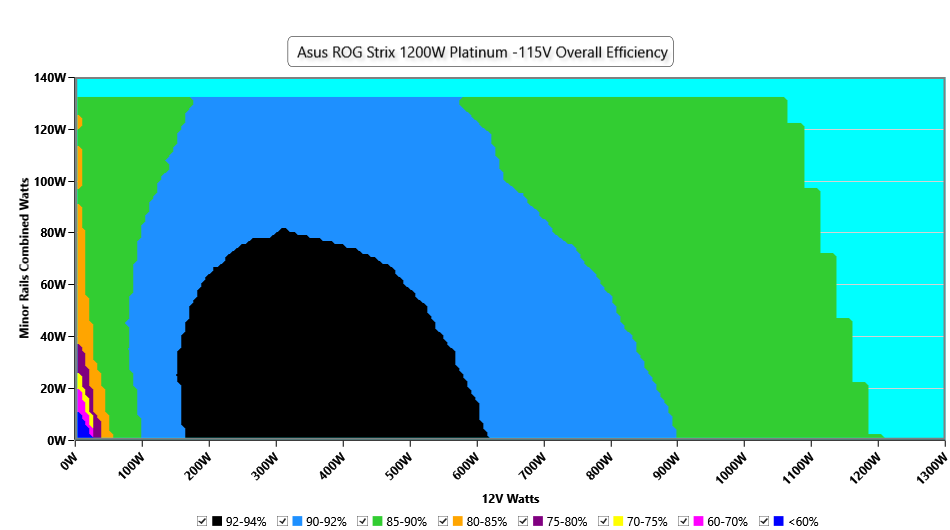

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

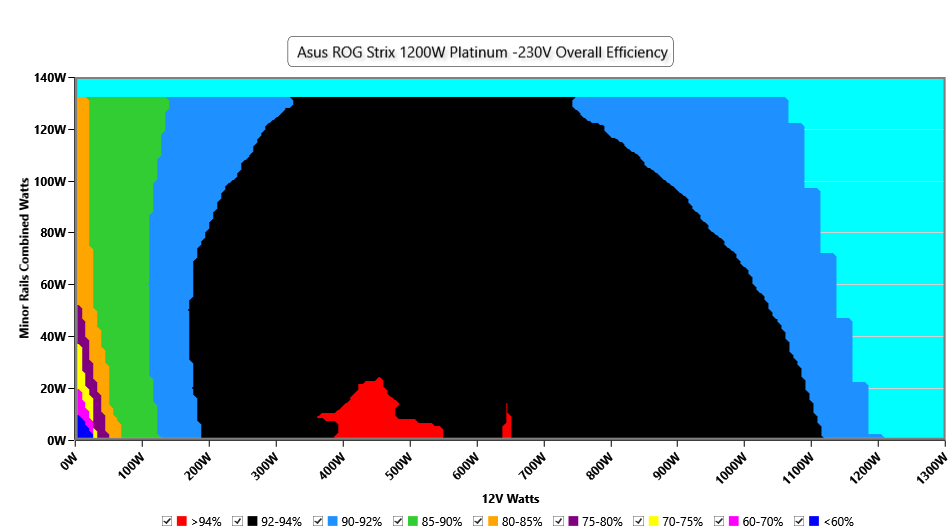

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

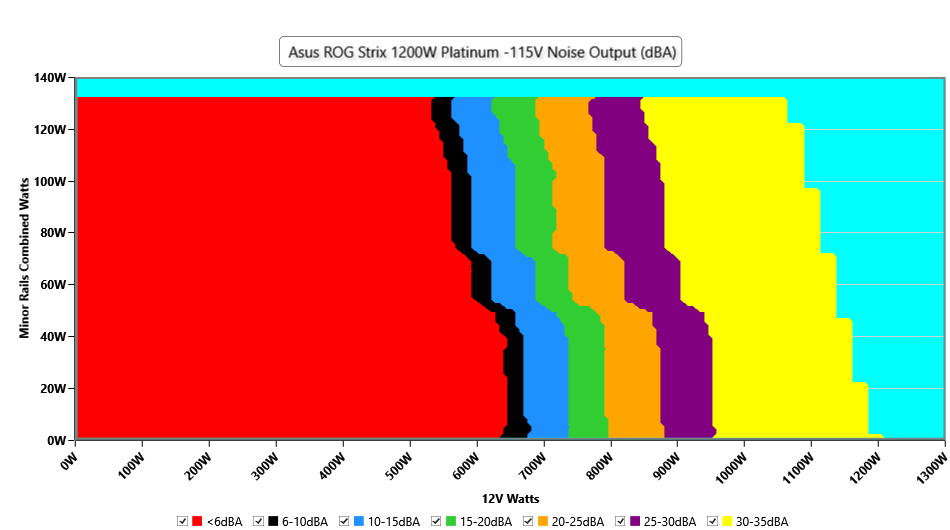

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

5VSB Efficiency

INFO

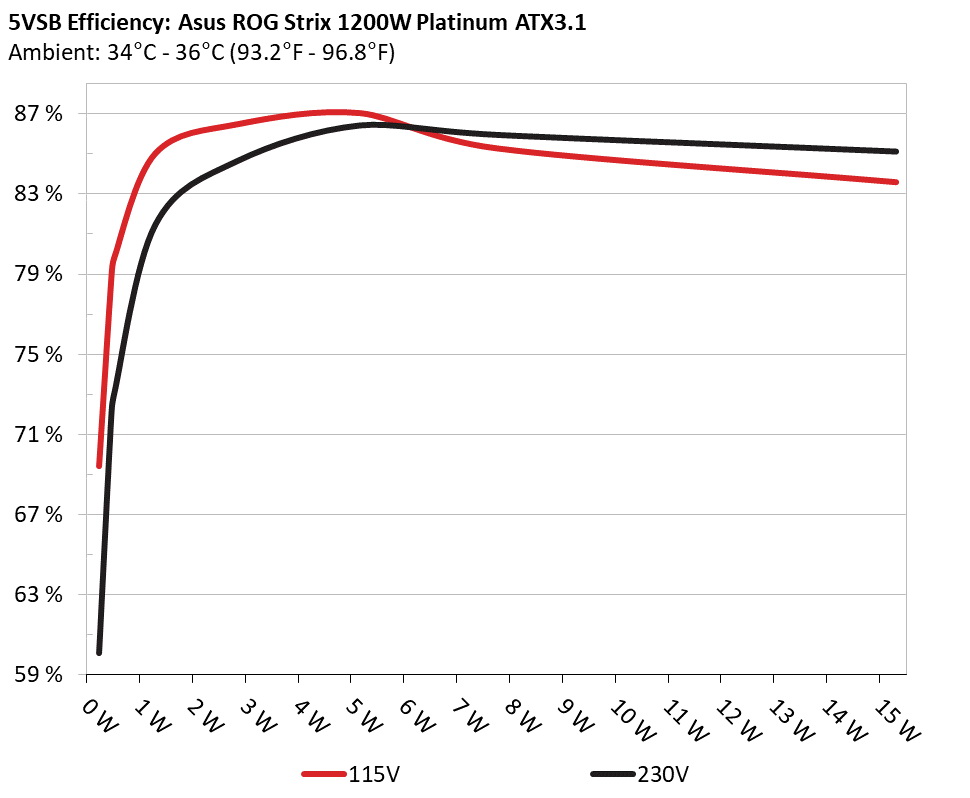

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.234W 68.921% 0.029
5.2V 0.34W 114.93V
2 0.09A 0.468W 78.383% 0.05
5.198V 0.597W 114.93V
3 0.55A 2.851W 85.991% 0.232
5.183V 3.315W 114.92V
4 1A 5.169W 86.547% 0.334
5.168V 5.972W 114.92V
5 1.5A 7.73W 84.797% 0.391
5.152V 9.116W 114.92V
6 3A 15.303W 83.098% 0.476
5.101V 18.415W 114.91V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.234W 59.583% 0.009
5.2V 0.395W 229.89V
2 0.09A 0.468W 71.545% 0.015
5.198V 0.656W 229.89V
3 0.55A 2.851W 84.147% 0.077
5.183V 3.39W 229.89V
4 1A 5.169W 85.921% 0.131
5.169V 6.017W 229.89V
5 1.5A 7.73W 85.454% 0.185
5.153V 9.047W 229.89V
6 3A 15.306W 84.62% 0.298
5.102V 18.088W 229.89V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.138A 1.958A 2.002A 0.969A 120.003 90.686% 0 <6.0 44.27°C 0.979
12.093V 5.106V 3.297V 5.162V 132.33 40.43°C 114.87V
20% 17.292A 2.94A 3.005A 1.166A 239.965 92.671% 0 <6.0 44.21°C 0.979
12.090V 5.103V 3.294V 5.146V 258.943 40.52°C 114.83V
30% 26.736A 3.431A 3.508A 1.365A 359.212 92.878% 0 <6.0 45.71°C 0.987
12.087V 5.101V 3.293V 5.129V 386.762 41.13°C 114.79V
40% 36.276A 3.922A 4.012A 1.565A 479.578 92.631% 0 <6.0 45.75°C 0.991
12.084V 5.1V 3.291V 5.112V 517.732 41.83°C 114.75V
50% 45.424A 4.907A 5.02A 1.767A 599.331 92.006% 340 <6.0 42.41°C 0.994
12.082V 5.095V 3.287V 5.095V 651.399 57.15°C 114.7V
60% 54.639A 5.895A 6.03A 1.97A 719.847 91.099% 528 9 42.79°C 0.995
12.080V 5.09V 3.284V 5.077V 790.184 58.22°C 114.66V
70% 63.792A 6.883A 7.042A 2.174A 839.568 90.067% 727 19.3 43.2°C 0.996
12.078V 5.086V 3.281V 5.059V 932.162 59.04°C 114.62V
80% 73.023A 7.87A 8.054A 2.28A 959.568 89.205% 950 27.8 43.93°C 0.997
12.075V 5.082V 3.278V 5.044V 1075.679 58.57°C 114.57V
90% 82.584A 8.366A 8.548A 2.386A 1079.358 88.346% 1156 34.3 44.75°C 0.997
12.071V 5.079V 3.276V 5.029V 1221.743 59.44°C 114.52V
100% 91.955A 8.862A 9.073A 3.001A 1199.397 87.324% 1225 35.5 45.2°C 0.998
12.068V 5.077V 3.274V 4.998V 1373.504 62.66°C 114.46V
110% 101.248A 9.853A 10.181A 3.009A 1320.006 86.171% 1348 36.4 46.8°C 0.998
12.066V 5.074V 3.271V 4.985V 1531.851 66.55°C 114.4V
CL1 0.116A 15.424A 15.737A 0A 131.303 84.363% 462 <6.0 40.46°C 0.982
12.110V 5.076V 3.279V 5.184V 155.643 50.41°C 114.86V
CL2 0.116A 24.639A 0A 0A 126.244 82.295% 588 11.9 40.94°C 0.982
12.107V 5.067V 3.293V 5.188V 153.406 54.37°C 114.86V
CL3 0.114A 0A 25.173A 0A 83.897 77.581% 642 15.5 40.22°C 0.969
12.105V 5.106V 3.277V 5.188V 108.142 49.86°C 114.88V
CL4 99.475A 0A 0A 0A 1199.964 88.005% 1231 35.6 45.98°C 0.997
12.063V 5.101V 3.287V 5.101V 1363.525 58.26°C 114.48V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.136A 1.958A 2.002A 0.969A 120.007 89.505% 0 <6.0 42.88°C 0.883
12.094V 5.107V 3.297V 5.163V 134.079 40.47°C 229.87V
20% 17.286A 2.939A 3.005A 1.166A 239.973 92.908% 0 <6.0 42.98°C 0.946
12.094V 5.104V 3.294V 5.146V 258.291 40.51°C 229.85V
30% 26.731A 3.43A 3.508A 1.365A 359.233 93.75% 0 <6.0 44.02°C 0.967
12.090V 5.102V 3.293V 5.129V 383.184 41.14°C 229.83V
40% 36.272A 3.923A 4.012A 1.565A 479.601 93.852% 327 <6.0 41.55°C 0.974
12.086V 5.099V 3.29V 5.113V 511.017 54.51°C 229.81V
50% 45.423A 4.908A 5.021A 1.766A 599.351 93.639% 410 <6.0 42.47°C 0.98
12.083V 5.094V 3.287V 5.096V 640.067 56.17°C 229.79V
60% 54.643A 5.894A 6.031A 1.969A 719.868 93.292% 561 10.2 42.91°C 0.984
12.079V 5.09V 3.284V 5.078V 771.626 56.9°C 229.77V
70% 63.803A 6.883A 7.043A 2.174A 839.587 92.861% 727 19.3 43.2°C 0.986
12.076V 5.086V 3.28V 5.061V 904.137 56.79°C 229.75V
80% 73.038A 7.87A 8.056A 2.279A 959.584 92.366% 950 27.8 43.92°C 0.988
12.072V 5.082V 3.277V 5.046V 1038.887 56.55°C 229.73V
90% 82.605A 8.366A 8.551A 2.385A 1079.375 91.836% 1157 34.3 44.36°C 0.989
12.068V 5.079V 3.275V 5.032V 1175.327 56.56°C 229.7V
100% 91.980A 8.863A 9.076A 3A 1199.421 91.185% 1227 35.5 45.49°C 0.991
12.065V 5.077V 3.273V 5.001V 1315.365 59.03°C 229.68V
110% 101.279A 9.854A 10.185A 3.007A 1320.017 90.413% 1338 35.9 46.6°C 0.992
12.062V 5.073V 3.27V 4.988V 1459.984 61.88°C 229.66V
CL1 0.116A 15.42A 15.737A 0A 131.304 83.721% 457 <6.0 40.03°C 0.911
12.113V 5.077V 3.279V 5.184V 156.836 52.75°C 229.86V
CL2 0.116A 24.63A 0A 0A 126.246 81.573% 587 11.9 40.4°C 0.908
12.111V 5.069V 3.293V 5.188V 154.766 49.99°C 229.86V
CL3 0.114A 0A 25.168A 0A 83.898 76.461% 643 15.5 40.65°C 0.851
12.102V 5.105V 3.278V 5.188V 109.722 48.22°C 229.87V
CL4 99.495A 0A 0A 0A 1199.963 91.725% 1231 35.6 45.67°C 0.99
12.060V 5.099V 3.286V 5.103V 1308.227 56.08°C 229.68V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.228A 0.489A 0.5A 0.193A 20.004 70.717% 0 <6.0 37.93°C 0.857
12.088V 5.109V 3.3V 5.195V 28.289 36.01°C 114.91V
40W 2.703A 0.685A 0.7A 0.289A 40.004 82.052% 0 <6.0 40.19°C 0.924
12.096V 5.109V 3.299V 5.19V 48.754 37.27°C 114.89V
60W 4.178A 0.881A 0.9A 0.386A 60.003 86.711% 0 <6.0 40.92°C 0.959
12.095V 5.109V 3.299V 5.186V 69.2 38.04°C 114.89V
80W 5.649A 1.077A 1.1A 0.483A 79.953 88.168% 0 <6.0 42.37°C 0.965
12.094V 5.109V 3.299V 5.181V 90.685 39.11°C 114.88V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.226A 0.489A 0.5A 0.193A 20.002 70.827% 0 <6.0 38.95°C 0.473
12.118V 5.11V 3.3V 5.195V 28.239 36.33°C 229.89V
40W 2.700A 0.685A 0.7A 0.289A 40.003 77.09% 0 <6.0 39°C 0.672
12.106V 5.11V 3.3V 5.19V 51.893 37.04°C 229.88V
60W 4.180A 0.881A 0.9A 0.386A 60.005 84.559% 0 <6.0 39.87°C 0.766
12.089V 5.109V 3.299V 5.186V 70.961 38.38°C 229.88V
80W 5.652A 1.077A 1.1A 0.483A 79.96 87.049% 0 <6.0 41.97°C 0.819
12.090V 5.109V 3.299V 5.181V 91.856 39.5°C 229.88V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 14.1 mV 13.6 mV 16.5 mV 12.7 mV Pass
20% Load 14.5 mV 15.0 mV 17.2 mV 14.1 mV Pass
30% Load 14.5 mV 13.4 mV 17.1 mV 12.9 mV Pass
40% Load 16.3 mV 14.4 mV 17.7 mV 13.1 mV Pass
50% Load 16.4 mV 14.7 mV 16.6 mV 14.7 mV Pass
60% Load 16.5 mV 14.1 mV 17.2 mV 14.0 mV Pass
70% Load 17.7 mV 14.2 mV 17.9 mV 16.2 mV Pass
80% Load 19.4 mV 15.1 mV 18.9 mV 14.6 mV Pass
90% Load 21.3 mV 15.2 mV 19.0 mV 15.8 mV Pass
100% Load 24.6 mV 17.4 mV 20.8 mV 17.7 mV Pass
110% Load 25.9 mV 16.0 mV 21.0 mV 18.5 mV Pass
Crossload 1 27.3 mV 16.2 mV 24.0 mV 13.4 mV Pass
Crossload 2 21.3 mV 23.5 mV 25.0 mV 12.5 mV Pass
Crossload 3 18.5 mV 14.3 mV 23.3 mV 13.7 mV Pass
Crossload 4 22.5 mV 15.1 mV 18.6 mV 14.4 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 16.9 mV 14.4 mV 17.0 mV 12.9 mV Pass
20% Load 15.9 mV 14.9 mV 17.4 mV 13.4 mV Pass
30% Load 15.6 mV 16.0 mV 17.7 mV 14.2 mV Pass
40% Load 15.3 mV 15.1 mV 17.9 mV 14.1 mV Pass
50% Load 15.6 mV 14.7 mV 18.2 mV 14.0 mV Pass
60% Load 16.3 mV 15.1 mV 17.4 mV 14.2 mV Pass
70% Load 17.9 mV 14.8 mV 17.8 mV 14.7 mV Pass
80% Load 21.5 mV 14.9 mV 18.8 mV 15.9 mV Pass
90% Load 21.4 mV 16.1 mV 18.6 mV 15.6 mV Pass
100% Load 26.0 mV 16.6 mV 21.3 mV 17.2 mV Pass
110% Load 26.9 mV 16.9 mV 22.3 mV 16.9 mV Pass
Crossload 1 29.1 mV 17.6 mV 23.4 mV 13.8 mV Pass
Crossload 2 74.0 mV 23.5 mV 19.9 mV 13.3 mV Pass
Crossload 3 18.8 mV 15.3 mV 23.3 mV 13.0 mV Pass
Crossload 4 23.3 mV 16.0 mV 18.9 mV 15.4 mV Pass

The results above are not used in the certification process

Asus ROG-STRIX-1200P-GAMING

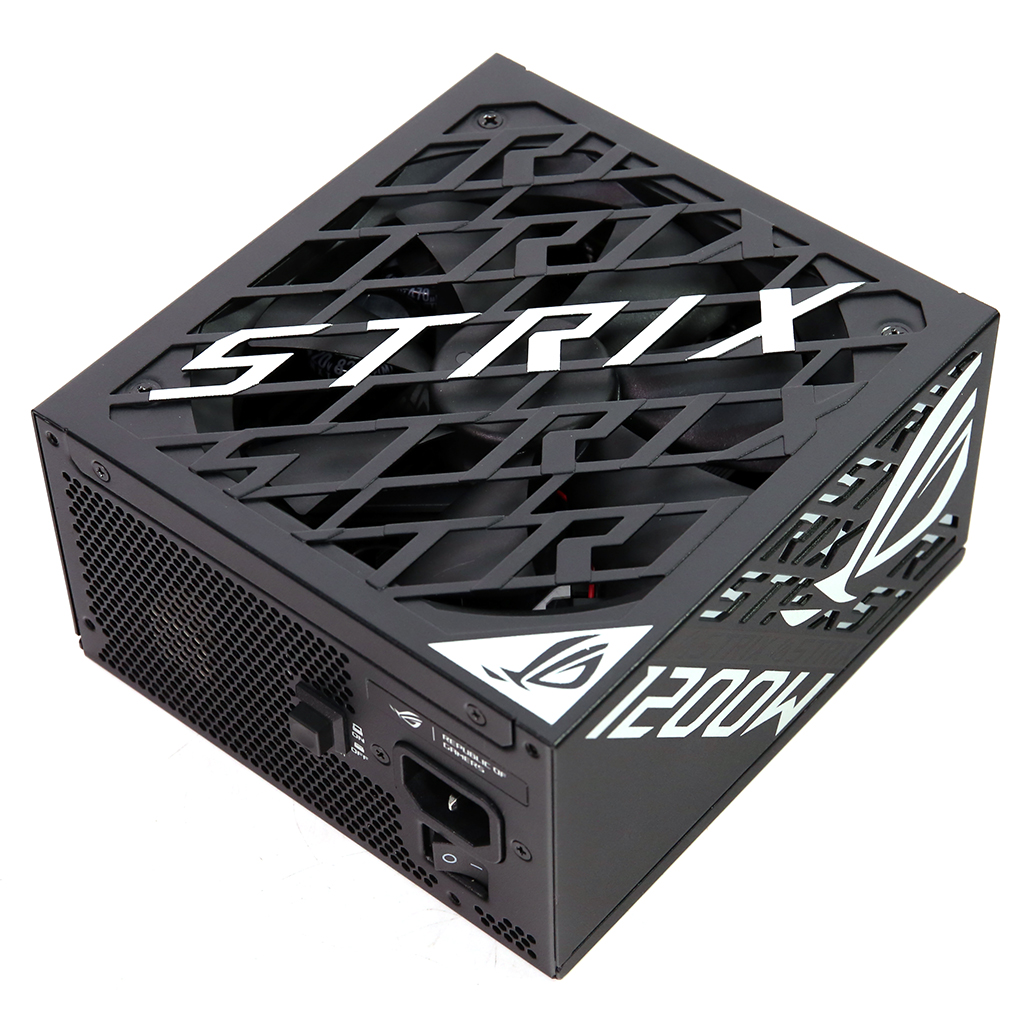

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
