CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
FSP Technology VITA GM 650W
Serial NumberS4081000047
Lab IDFS65002557
  • Report: 24PS2557A
  • Receipt Date: Aug 27, 2024
  • Test Date: Sep 3, 2024
  • Report Date: Sep 5, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

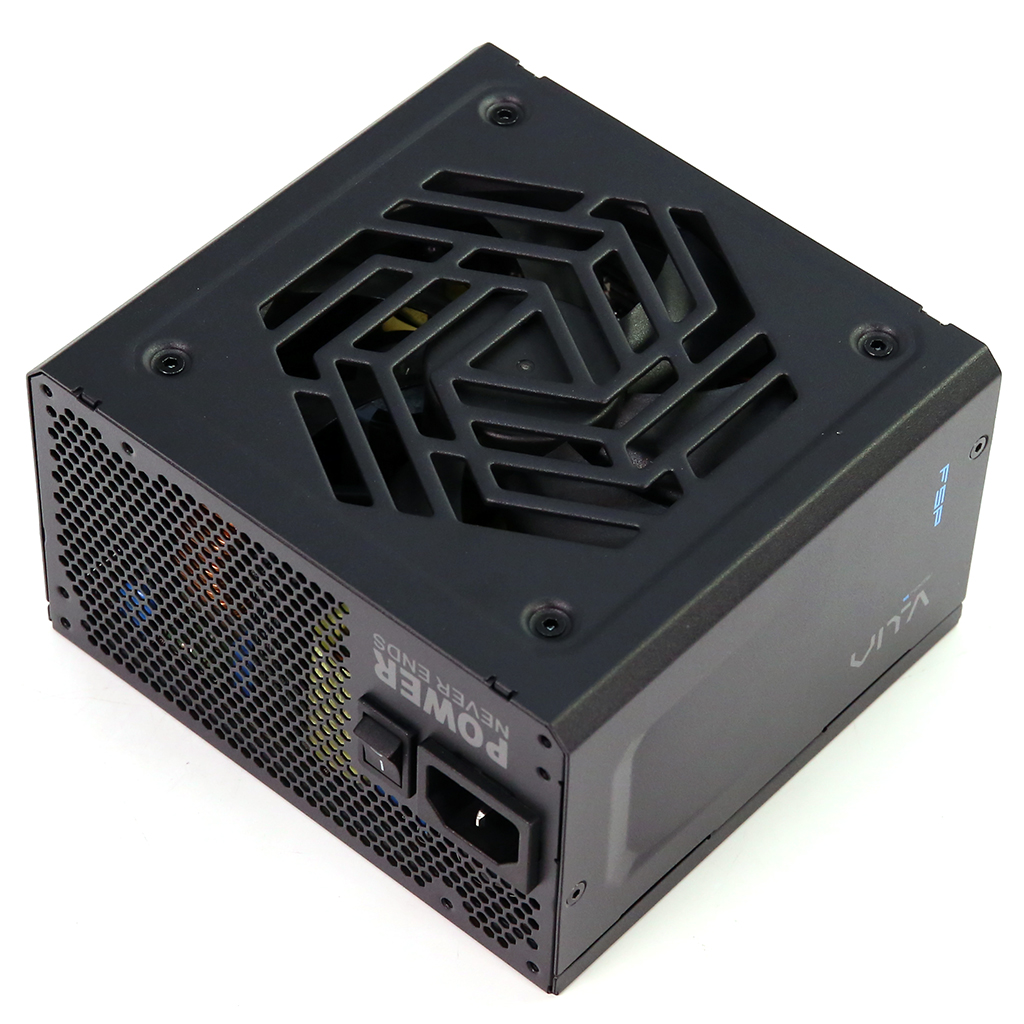

DUT Information

BrandFSP Technology
Manufacturer (OEM)FSP
SeriesVITA GM
Model NumberVITA-650GM
Serial NumberS4081000047
DUT Notes

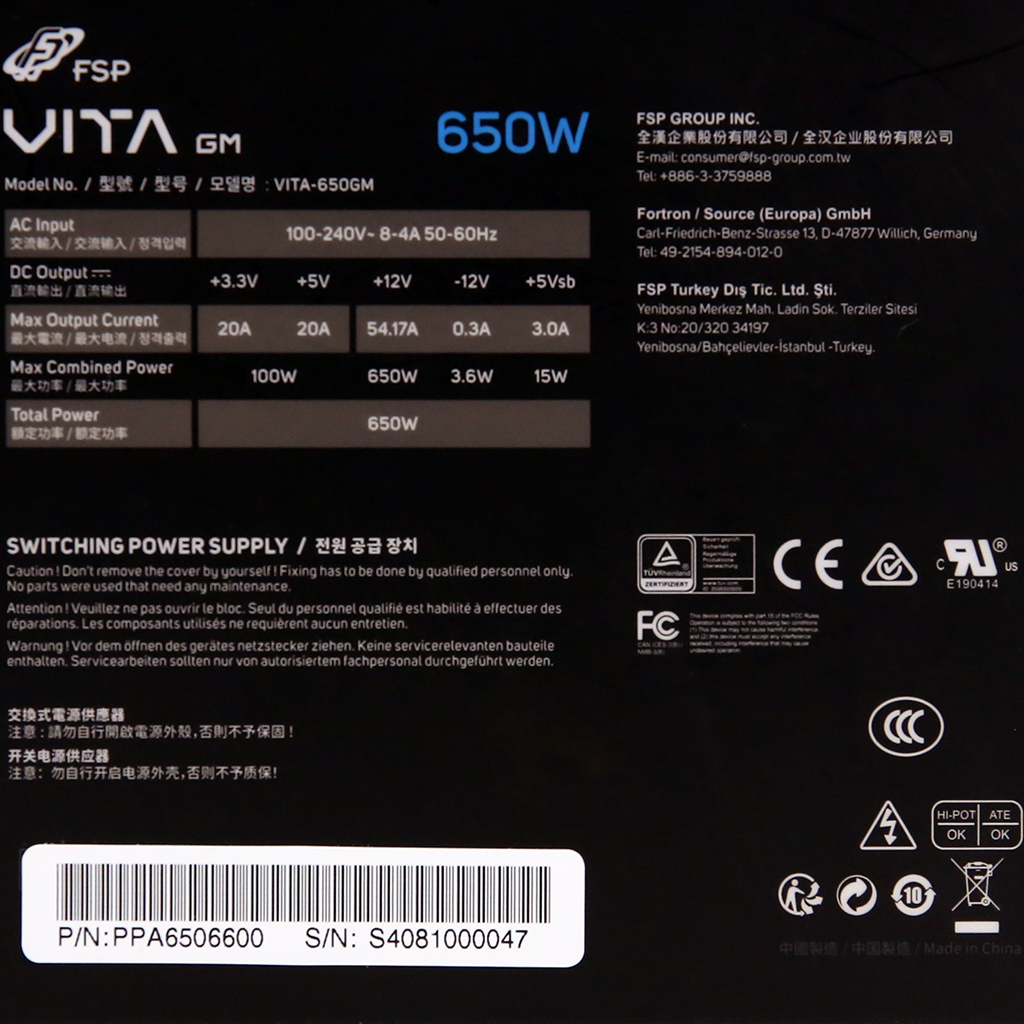

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)8-4
Rated Frequency (Hz)50-60
Rated Power (W)650
TypeATX12V
Cooling120mm Rifle Bearing Fan (D12SH-12)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202054.1730.3
Watts100650153.6
Total Max. Power (W)650

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18-22AWG No
4+4 pin EPS12V (705mm) 2 2 18AWG No
6+2 pin PCIe (650mm+150mm) 1 2 18AWG No
6+2 pin PCIe (500mm+150mm) 1 2 18AWG No
SATA (500mm+160mm) / 4-pin Molex (+155mm+100mm) 2 4 / 4 18AWG No
SATA (495mm+150mm+150mm+150mm) 1 4 18AWG No

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)21.5
AC Loss to PWR_OK Hold Up Time (ms)16.8
PWR_OK Inactive to DC Loss Delay (ms)4.7

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.08 V 115.05 V 113.85 V 115.13 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.18 % 2.00 % PASS
Real Power: 0.057 W 0.008 W N/A 0.089 W N/A N/A
Apparent Power: 13.014 W 12.956 W N/A 13.082 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.04 V 230.94 V 227.70 V 231.10 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.15 % N/A 0.26 % 2.00 % PASS
Real Power: 0.143 W 0.104 W N/A 0.198 W N/A N/A
Apparent Power: 44.607 W 44.318 W N/A 44.954 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

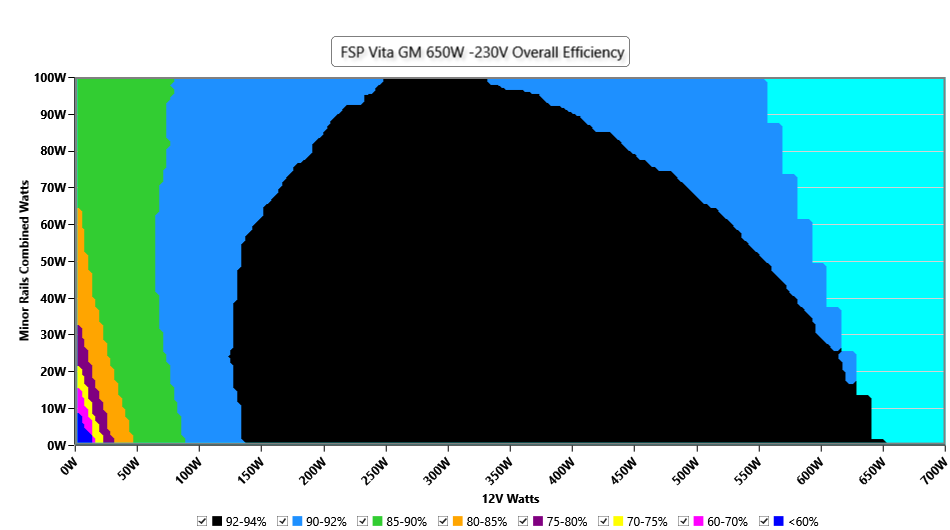

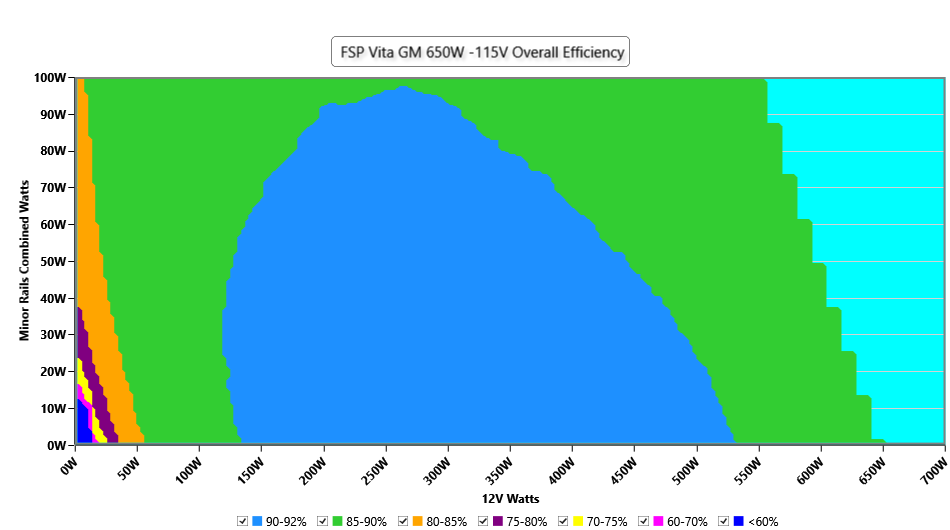

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

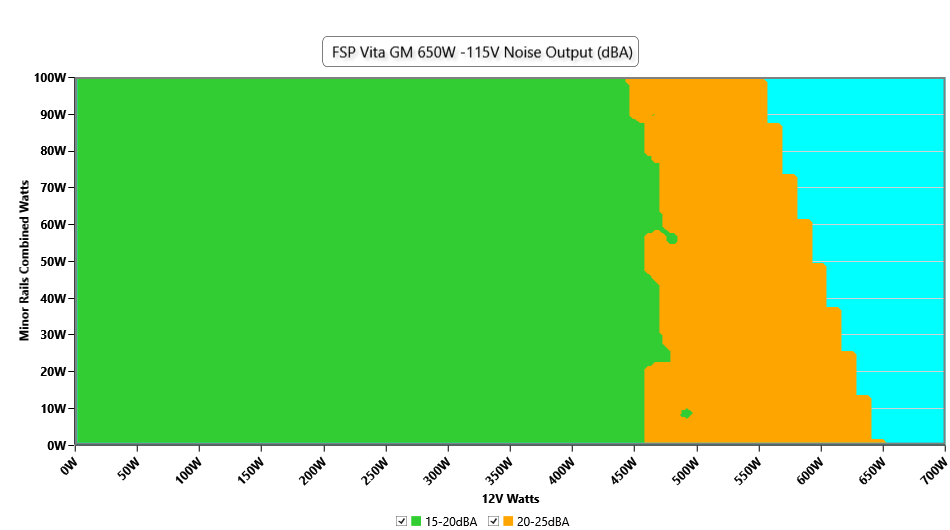

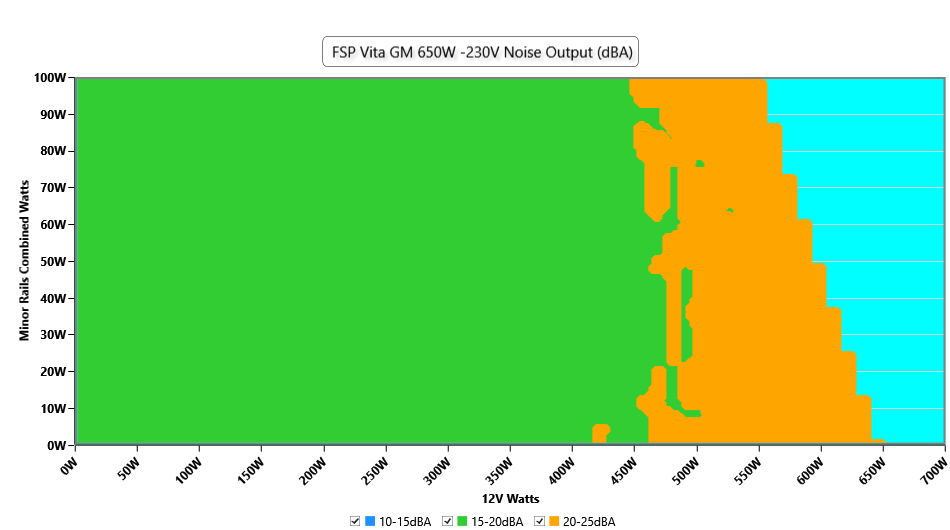

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

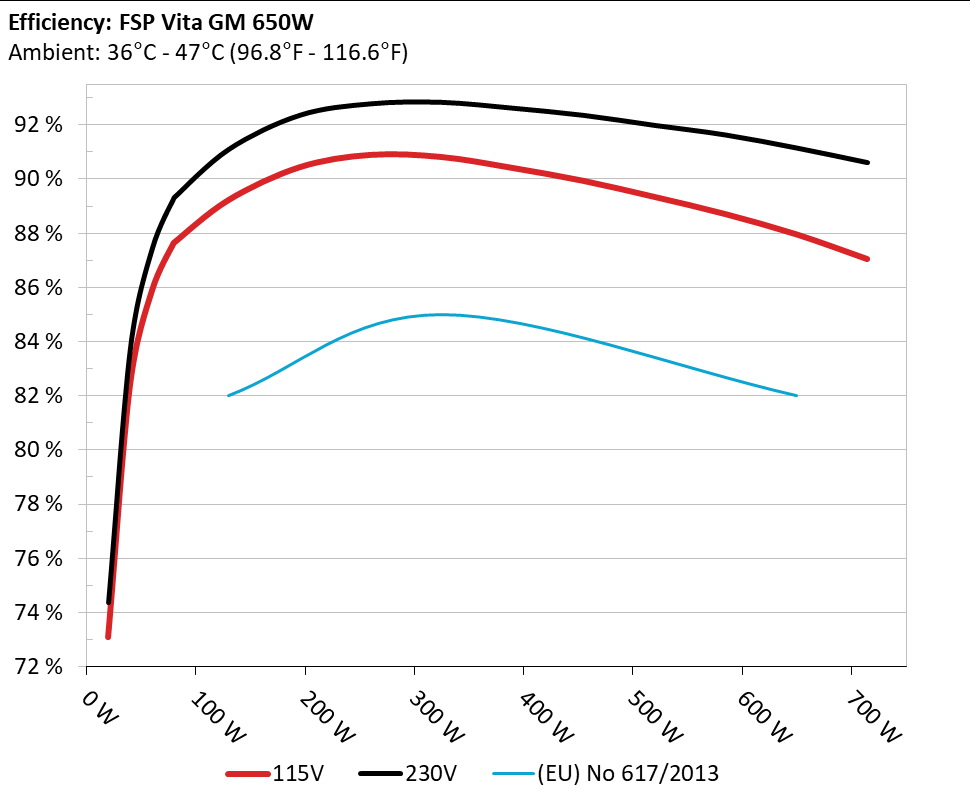

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

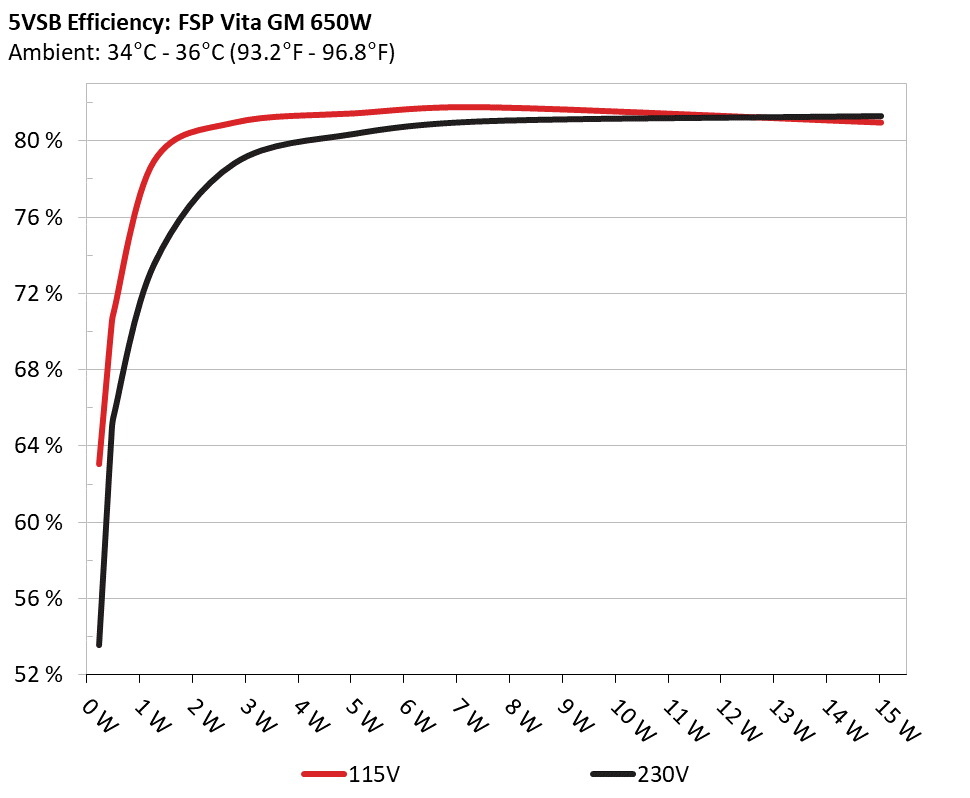

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229W 63.045% 0.028
5.093V 0.363W 114.87V
2 0.09A 0.458W 70.146% 0.05
5.086V 0.653W 114.88V
3 0.55A 2.791W 80.968% 0.223
5.074V 3.447W 114.87V
4 1A 5.063W 81.45% 0.327
5.063V 6.216W 114.87V
5 1.5A 7.576W 81.767% 0.387
5.051V 9.265W 114.87V
6 3A 15.034W 80.968% 0.471
5.012V 18.568W 114.87V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229W 53.56% 0.01
5.094V 0.429W 229.94V
2 0.09A 0.458W 64.332% 0.016
5.093V 0.713W 229.94V
3 0.55A 2.791W 78.842% 0.077
5.076V 3.54W 229.94V
4 1A 5.064W 80.39% 0.132
5.064V 6.3W 229.94V
5 1.5A 7.577W 81.057% 0.184
5.052V 9.347W 229.94V
6 3A 15.035W 81.32% 0.294
5.012V 18.489W 229.94V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.550A 1.964A 1.955A 0.987A 64.997 85.554% 703 16.6 40.12°C 0.958
12.227V 5.091V 3.377V 5.065V 75.972 42.67°C 114.85V
20% 8.105A 2.952A 2.94A 1.187A 129.922 89.22% 704 16.7 40.91°C 0.977
12.218V 5.082V 3.367V 5.054V 145.62 43.54°C 114.82V
30% 13.012A 3.449A 3.439A 1.388A 194.922 90.435% 705 16.8 41.22°C 0.981
12.210V 5.075V 3.359V 5.044V 215.538 44.32°C 114.81V
40% 17.932A 3.947A 3.939A 1.59A 260.006 90.894% 706 16.9 41.95°C 0.982
12.201V 5.067V 3.351V 5.033V 286.055 45.61°C 114.78V
50% 22.512A 4.943A 4.939A 1.792A 325.002 90.815% 740 17.5 42.23°C 0.983
12.193V 5.058V 3.341V 5.022V 357.875 47.27°C 114.76V
60% 27.041A 5.942A 5.944A 1.996A 389.316 90.415% 862 21.5 42.76°C 0.984
12.185V 5.049V 3.332V 5.01V 430.587 49.34°C 114.74V
70% 31.661A 6.945A 6.955A 2.2A 454.637 89.935% 949 23.6 43.11°C 0.985
12.177V 5.04V 3.322V 4.999V 505.517 50.5°C 114.71V
80% 36.288A 7.95A 7.971A 2.304A 519.418 89.345% 1059 26.5 43.64°C 0.987
12.167V 5.031V 3.312V 4.99V 581.362 51.9°C 114.69V
90% 41.316A 8.46A 8.476A 2.409A 584.837 88.705% 1166 29.9 44.48°C 0.988
12.159V 5.023V 3.303V 4.981V 659.307 53.23°C 114.67V
100% 46.087A 8.972A 9.015A 3.025A 649.656 87.958% 1196 30 45.5°C 0.989
12.150V 5.015V 3.294V 4.958V 738.603 55.26°C 114.63V
110% 50.734A 9.989A 10.139A 3.029A 714.294 87.048% 1390 34.3 46.16°C 0.99
12.142V 5.005V 3.284V 4.952V 820.571 57.22°C 114.61V
CL1 0.114A 11.901A 11.863A 0A 101.283 84.607% 800 19.4 40.94°C 0.973
12.219V 5.058V 3.346V 5.085V 119.709 50.74°C 114.84V
CL2 0.113A 19.78A 0A 0A 101.368 83.223% 740 17.5 40.27°C 0.973
12.222V 5.055V 3.364V 5.087V 121.805 47.93°C 114.83V
CL3 0.113A 0A 19.751A 0A 67.375 78.809% 738 17.5 40.94°C 0.962
12.218V 5.07V 3.341V 5.082V 85.492 47.11°C 114.85V
CL4 53.427A 0A 0A 0.001A 649.494 88.961% 1191 30 45.74°C 0.989
12.156V 5.041V 3.321V 5.049V 730.099 53.14°C 114.64V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.550A 1.964A 1.955A 0.987A 65 87.158% 704 16.7 40.38°C 0.76
12.226V 5.091V 3.375V 5.065V 74.578 43.27°C 229.93V
20% 8.105A 2.952A 2.941A 1.187A 129.928 91.101% 704 16.7 40.62°C 0.886
12.217V 5.082V 3.366V 5.054V 142.618 43.38°C 229.92V
30% 13.013A 3.449A 3.44A 1.388A 194.928 92.36% 706 16.9 41.05°C 0.929
12.209V 5.074V 3.358V 5.044V 211.054 44.81°C 229.91V
40% 17.934A 3.947A 3.941A 1.59A 260.012 92.784% 706 16.9 41.61°C 0.948
12.201V 5.067V 3.35V 5.033V 280.233 45.63°C 229.9V
50% 22.510A 4.943A 4.94A 1.792A 324.998 92.836% 772 18.3 42.09°C 0.959
12.194V 5.058V 3.34V 5.022V 350.079 47.51°C 229.89V
60% 27.042A 5.942A 5.946A 1.996A 389.309 92.624% 830 21 42.81°C 0.965
12.185V 5.049V 3.33V 5.01V 420.31 48.48°C 229.88V
70% 31.661A 6.945A 6.958A 2.2A 454.631 92.357% 978 24.2 43.27°C 0.97
12.177V 5.04V 3.32V 4.998V 492.256 49.8°C 229.87V
80% 36.290A 7.95A 7.974A 2.305A 519.421 91.989% 1077 27.7 43.96°C 0.973
12.167V 5.031V 3.31V 4.989V 564.66 49.88°C 229.86V
90% 41.323A 8.46A 8.48A 2.409A 584.852 91.632% 1138 29.6 44.24°C 0.975
12.157V 5.023V 3.302V 4.98V 638.263 51.46°C 229.85V
100% 46.090A 8.973A 9.019A 3.026A 649.673 91.151% 1226 30.6 45.68°C 0.977
12.150V 5.015V 3.293V 4.957V 712.746 53.2°C 229.84V
110% 50.742A 9.989A 10.143A 3.029A 714.293 90.614% 1627 38.4 46.26°C 0.979
12.140V 5.005V 3.283V 4.951V 788.291 54.15°C 229.82V
CL1 0.114A 11.9A 11.868A 0A 101.283 86.371% 772 18.3 40.85°C 0.857
12.218V 5.058V 3.345V 5.084V 117.265 49.3°C 229.93V
CL2 0.113A 19.78A 0A 0A 101.37 84.908% 771 18.3 40.45°C 0.86
12.222V 5.055V 3.363V 5.087V 119.389 47.43°C 229.93V
CL3 0.113A 0A 19.76A 0A 67.375 80.347% 740 17.5 40.67°C 0.788
12.218V 5.07V 3.34V 5.083V 83.855 46.81°C 229.93V
CL4 53.425A 0A 0A 0.001A 649.488 92.102% 1188 30 45.45°C 0.977
12.157V 5.041V 3.319V 5.049V 705.185 52.22°C 229.83V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.214A 0.49A 0.488A 0.197A 19.993 73.08% 692 15.9 36.24°C 0.846
12.225V 5.098V 3.384V 5.087V 27.362 37.07°C 114.86V
40W 2.673A 0.687A 0.683A 0.295A 39.994 82.379% 697 16.1 37.44°C 0.927
12.227V 5.096V 3.382V 5.084V 48.546 38.22°C 114.86V
60W 4.133A 0.883A 0.879A 0.394A 59.995 85.863% 698 16.2 38.41°C 0.952
12.225V 5.094V 3.38V 5.081V 69.874 40.23°C 114.85V
80W 5.588A 1.08A 1.075A 0.492A 79.935 87.638% 700 16.4 39.32°C 0.963
12.224V 5.092V 3.378V 5.077V 91.208 41.24°C 114.84V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.214A 0.49A 0.488A 0.197A 19.996 74.384% 695 15.9 36.08°C 0.443
12.226V 5.098V 3.383V 5.087V 26.88 36.76°C 229.94V
40W 2.674A 0.687A 0.683A 0.295A 40 83.762% 697 16.1 37.32°C 0.629
12.224V 5.096V 3.381V 5.084V 47.755 38.41°C 229.94V
60W 4.134A 0.884A 0.879A 0.394A 60.003 87.439% 698 16.2 38.21°C 0.738
12.223V 5.094V 3.378V 5.08V 68.627 39.59°C 229.93V
80W 5.589A 1.08A 1.075A 0.492A 79.946 89.322% 701 16.4 39.34°C 0.802
12.223V 5.092V 3.376V 5.077V 89.503 41.25°C 229.93V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 14.5 mV 12.7 mV 12.7 mV 10.8 mV Pass
20% Load 14.3 mV 11.9 mV 12.4 mV 11.4 mV Pass
30% Load 12.8 mV 14.8 mV 15.7 mV 12.5 mV Pass
40% Load 13.7 mV 12.9 mV 13.3 mV 12.5 mV Pass
50% Load 13.3 mV 13.1 mV 13.7 mV 13.5 mV Pass
60% Load 13.0 mV 14.6 mV 15.9 mV 15.6 mV Pass
70% Load 13.5 mV 15.8 mV 16.5 mV 15.0 mV Pass
80% Load 14.5 mV 14.4 mV 16.8 mV 15.5 mV Pass
90% Load 14.8 mV 15.3 mV 17.4 mV 16.3 mV Pass
100% Load 21.8 mV 16.9 mV 18.1 mV 18.5 mV Pass
110% Load 22.4 mV 17.9 mV 19.7 mV 18.7 mV Pass
Crossload 1 20.5 mV 13.1 mV 13.9 mV 11.4 mV Pass
Crossload 2 14.9 mV 15.6 mV 12.8 mV 9.1 mV Pass
Crossload 3 19.3 mV 15.7 mV 27.9 mV 8.8 mV Pass
Crossload 4 22.3 mV 17.4 mV 17.1 mV 17.0 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 14.3 mV 11.1 mV 12.2 mV 11.2 mV Pass
20% Load 13.7 mV 13.2 mV 13.4 mV 11.0 mV Pass
30% Load 12.3 mV 15.2 mV 16.7 mV 11.8 mV Pass
40% Load 12.6 mV 12.4 mV 13.5 mV 13.0 mV Pass
50% Load 13.5 mV 13.1 mV 13.6 mV 13.6 mV Pass
60% Load 13.9 mV 13.6 mV 16.6 mV 14.0 mV Pass
70% Load 14.2 mV 14.1 mV 14.5 mV 15.6 mV Pass
80% Load 14.2 mV 15.7 mV 16.6 mV 15.6 mV Pass
90% Load 14.2 mV 16.3 mV 16.4 mV 16.0 mV Pass
100% Load 21.9 mV 17.4 mV 18.9 mV 18.1 mV Pass
110% Load 21.9 mV 18.1 mV 18.2 mV 18.2 mV Pass
Crossload 1 22.1 mV 13.8 mV 14.0 mV 10.9 mV Pass
Crossload 2 14.1 mV 15.7 mV 12.6 mV 9.1 mV Pass
Crossload 3 14.4 mV 11.2 mV 14.8 mV 8.7 mV Pass
Crossload 4 22.2 mV 18.1 mV 16.5 mV 16.6 mV Pass

The results above are not used in the certification process

FSP Technology VITA GM 650W

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
