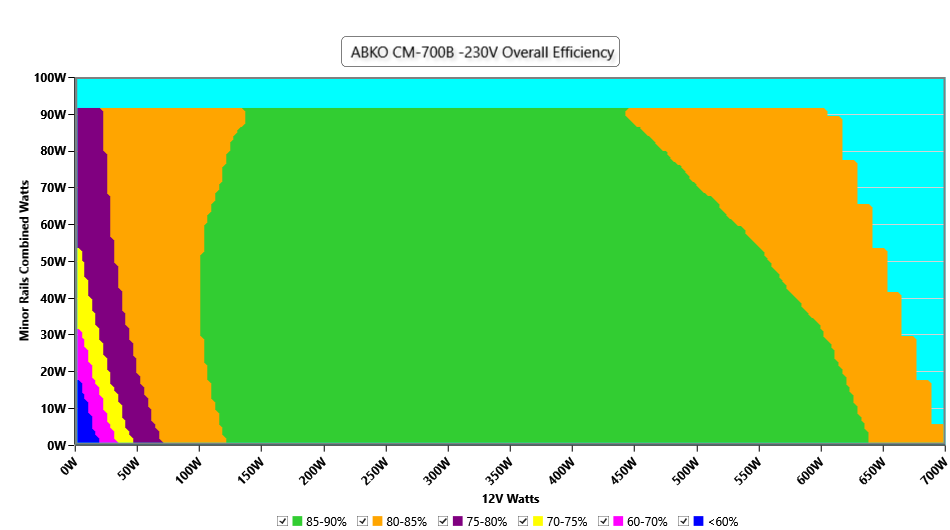

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
230V

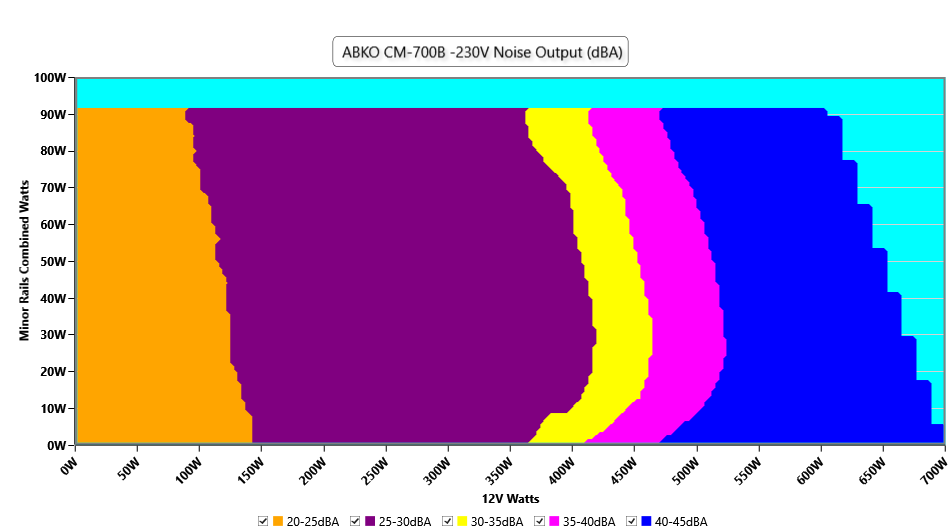

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
Indicative Performance

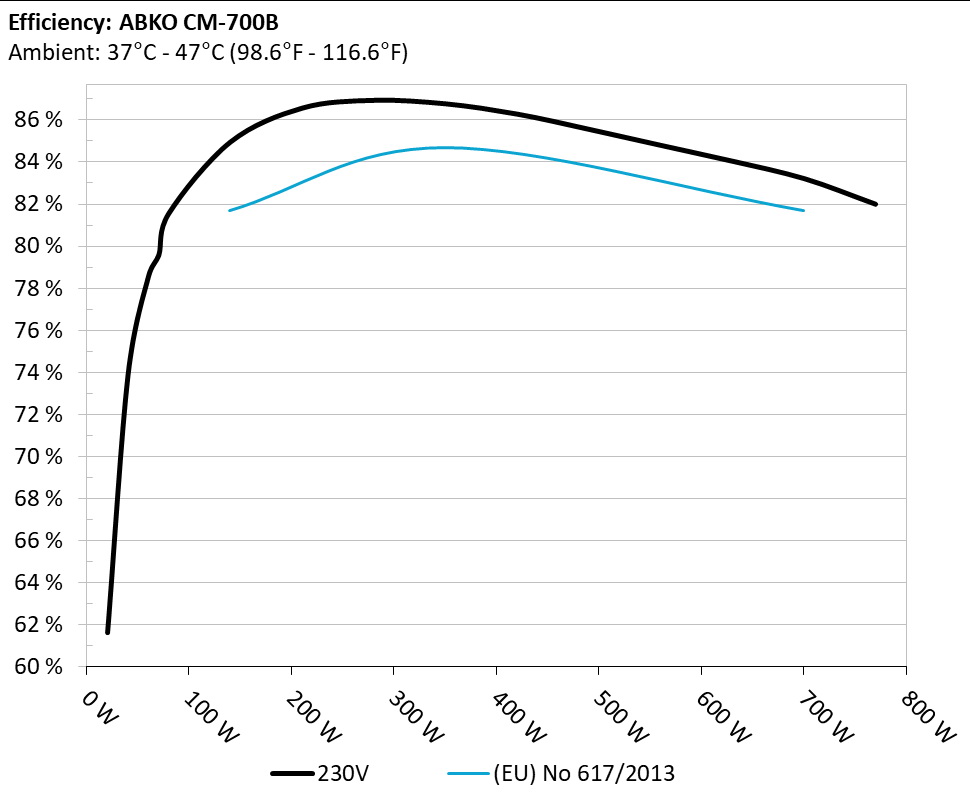

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

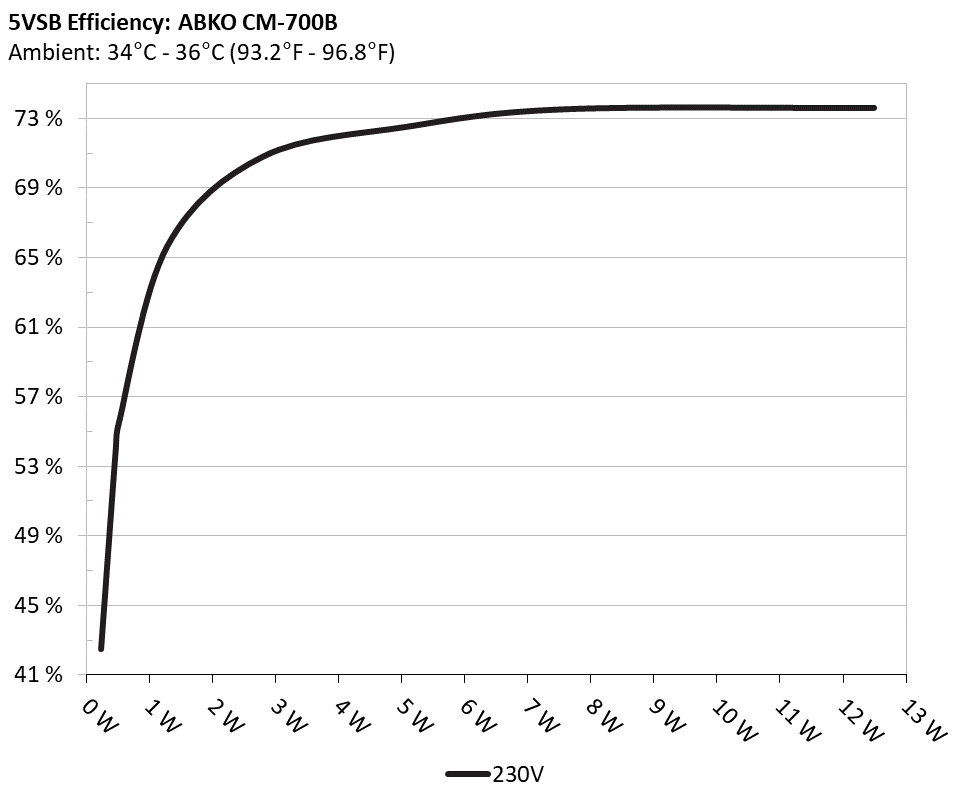

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
230V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.231W
42.804%
0.031
5.132V
0.54W
230.39V
2
0.09A
0.462W
55.259%
0.047
5.13V
0.837W
230.39V
3
0.55A
2.808W
72.3%
0.184
5.104V
3.884W
230.4V
4
1A
5.082W
73.526%
0.262
5.08V
6.912W
230.42V
5
1.501A
7.583W
74.697%
0.306
5.054V
10.154W
230.41V
6
2.501A
12.503W
75.015%
0.356
5V
16.666W
230.42V
Supplementary Tests (For Reference)
230V
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
3.871A
1.971A
1.968A
0.988A
70.007
79.862%
938
25.7
34.45°C
0.921
12.503V
5.075V
3.354V
5.061V
87.662
38.61°C
230.39V
20%
8.740A
2.97A
2.969A
1.192A
139.966
85.235%
943
25.9
34.73°C
0.972
12.478V
5.052V
3.335V
5.036V
164.213
40.35°C
230.39V
30%
13.967A
3.476A
3.478A
1.397A
210.012
86.846%
951
26
35.2°C
0.986
12.455V
5.035V
3.321V
5.013V
241.82
42.17°C
230.39V
40%
19.213A
3.987A
3.993A
1.604A
280.065
87.214%
971
26.5
35.63°C
0.991
12.432V
5.018V
3.306V
4.989V
321.124
44.67°C
230.38V
50%
24.138A
5.009A
5.022A
1.814A
350.042
87.049%
994
27.5
36.37°C
0.993
12.409V
4.993V
3.286V
4.962V
402.121
46.93°C
230.37V
60%
29.088A
6.042A
6.064A
2.001A
419.975
86.56%
1081
29.7
36.78°C
0.993
12.386V
4.967V
3.266V
4.936V
485.183
49.37°C
230.38V
70%
34.069A
7.085A
7.12A
2.242A
490.185
85.836%
1436
38.3
37.36°C
0.992
12.359V
4.942V
3.245V
4.907V
571.071
50.26°C
230.37V
80%
39.076A
8.136A
8.187A
2.355A
559.767
85.079%
1718
43
37.85°C
0.992
12.331V
4.917V
3.224V
4.885V
657.942
51.4°C
230.34V
90%
44.495A
8.676A
8.726A
2.467A
629.978
84.324%
1820
45.1
38.61°C
0.993
12.304V
4.899V
3.209V
4.865V
747.098
53.66°C
230.32V
100%
49.932A
9.222A
9.303A
2.581A
700.299
83.492%
1821
45.2
39.65°C
0.993
12.279V
4.88V
3.192V
4.845V
838.767
56.99°C
230.31V
110%
55.014A
10.312A
10.507A
2.591A
769.726
82.281%
1823
45.3
40.95°C
0.987
12.250V
4.849V
3.169V
4.826V
935.493
61.92°C
230.32V
CL1
0.112A
10.98A
10.923A
0.001A
91.312
78.699%
978
27
34.09°C
0.955
12.508V
4.937V
3.268V
5.064V
116.027
45.63°C
230.41V
CL2
0.113A
18.293A
0A
0.001A
91.414
77.088%
967
26.5
35.04°C
0.956
12.511V
4.92V
3.308V
5.084V
118.584
43.51°C
230.4V
CL3
0.112A
0A
18.152A
0.002A
60.806
70.76%
954
26
35.39°C
0.919
12.506V
5.018V
3.272V
5.072V
85.932
41.74°C
230.4V
CL4
57.002A
0A
0A
0.001A
700.156
84.425%
1814
45
39.8°C
0.993
12.283V
5.029V
3.293V
5.043V
829.325
54.89°C
230.3V
The results above are not used in the certification process
230V
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.186A
0.49A
0.489A
0.195A
20.007
61.924%
923
25.2
30.61°C
0.746
12.518V
5.105V
3.377V
5.118V
32.307
34.42°C
230.41V
40W
2.614A
0.686A
0.685A
0.294A
40.003
74.178%
923
25.2
31.67°C
0.838
12.510V
5.1V
3.372V
5.109V
53.928
35.39°C
230.4V
60W
4.041A
0.884A
0.882A
0.392A
60.002
78.859%
926
25.4
32.87°C
0.898
12.504V
5.094V
3.368V
5.1V
76.088
36.68°C
230.4V
80W
5.468A
1.081A
1.079A
0.491A
79.966
81.855%
932
25.5
33.37°C
0.933
12.499V
5.088V
3.363V
5.091V
97.694
37.84°C
230.4V
The results above are not used in the certification process
230V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
16.6 mV
11.9 mV
11.1 mV
35.2 mV
Pass
20% Load
17.4 mV
13.1 mV
12.3 mV
35.4 mV
Pass
30% Load
19.0 mV
14.5 mV
12.6 mV
35.6 mV
Pass
40% Load
20.6 mV
16.2 mV
13.7 mV
34.7 mV
Pass
50% Load
23.1 mV
18.2 mV
14.1 mV
33.1 mV
Pass
60% Load
27.0 mV
19.5 mV
14.8 mV
32.5 mV
Pass
70% Load
30.0 mV
22.3 mV
17.2 mV
32.8 mV
Pass
80% Load
32.1 mV
25.1 mV
22.1 mV
33.4 mV
Pass
90% Load
33.8 mV
27.1 mV
22.3 mV
33.4 mV
Pass
100% Load
49.9 mV
31.0 mV
26.1 mV
37.6 mV
Pass
110% Load
63.0 mV
33.6 mV
28.5 mV
39.2 mV
Pass
Crossload 1
23.8 mV
17.5 mV
22.2 mV
58.2 mV
Fail
Crossload 2
28.7 mV
24.9 mV
12.7 mV
53.7 mV
Fail
Crossload 3
27.2 mV
12.7 mV
29.6 mV
59.9 mV
Fail
Crossload 4
45.3 mV
26.9 mV
16.7 mV
59.4 mV
Fail
The results above are not used in the certification process
