Einarex Apex L1 650W
Lab IDEX65002549
  • Report: 24PS2549A
  • Receipt Date: Aug 13, 2024
  • Test Date: Aug 26, 2024
  • Report Date: Aug 27, 2024
115V230V
效率評比
115V230V
噪音評比
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Einarex
製造商 (OEM)Tecnomall Technology
Apex L1
Apex L1 650W
Protections are not properly set. Not smooth voltage waveform and voltage spikes during turn on tests. Improper DC Power Sequencing.

(Vrms)200-240
(Arms)6
(Hz)50-60
(W)650
ATX12V
120mm Hydro Dynamic Bearing Fan
✗
Semi Modular

Rail3.3V5V12V5VSB-12V
Max. PowerAmps18185330.3
Watts120636153.6
Total Max. Power (W)650

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (520mm) 1 1 18-22AWG No
8 pin EPS12V (610mm) / 4 + 4 pin EPS12V (+150mm) 1 2 18AWG No
Modular Cables
6+2 pin PCIe (530mm) 1 1 18AWG No
6+2 pin PCIe (550mm+145mm) 1 2 18AWG No
SATA (450mm+155mm+155mm) 2 6 18AWG No
4-pin Molex (450mm+150mm) 1 1 18AWG No
AC Power Cord (1410mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓

Performance Summary 230V

效率評比BRONZE
噪音評比
(>1450 load combinations)85.555%
Average Noise Output (>1450 Load Combinations)45.78dBA
(>1450 Load Combinations)0.931
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.1062W
12V Ripple (Full Load)52.99mV
5V Ripple (Full Load)29.78mV
3.3V Ripple (Full Load)40.36mV
5VSB Ripple (Full Load)19.34mV
12V Load Regulation2.75%
5V Load Regulation2.73%
3.3V Load Regulation3.33%
5VSB Load Regulation4.80%
Inrush Current133.600A
12.20ms
AC Loss to PWR_OK Hold Up Time9.70ms
PWR_OK Inactive to DC Loss Delay2.50ms
PSU Timings: T1 (20% / 100%)61.0ms60.0ms
PSU Timings: T3 (20% / 100%)309.0ms320.0ms
12V OCP (28.2°C / 40.8°C)56.00A (105.66%), 11.418V56.00A (105.66%), 11.418V
5V OCP (28.2°C / 40.8°C)Starts < 4.75VStarts < 4.75V
3.3V OCP (28.2°C / 40.8°C)27.3A (151.67%), 3.157V21.2A (117.78%), 3.16V
5VSB OCP (28.2°C / 40.8°C)4.7A (156.67%), 4.942V4.4A (146.67%), 4.92V
OPP (28.72°C / 45.74°C)125.39%123.18%

Hold-Up Time (ms)12.2
AC Loss to PWR_OK Hold Up Time (ms)9.7
PWR_OK Inactive to DC Loss Delay (ms)2.5

待機電源消耗

Tables 230V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.08 V 230.95 V 227.70 V 231.12 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.14 % N/A 0.28 % 2.00 % PASS
Real Power: 0.106 W 0.071 W N/A 0.167 W N/A N/A
Apparent Power: 22.741 W 22.395 W N/A 23.134 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Graphs 230V

230V

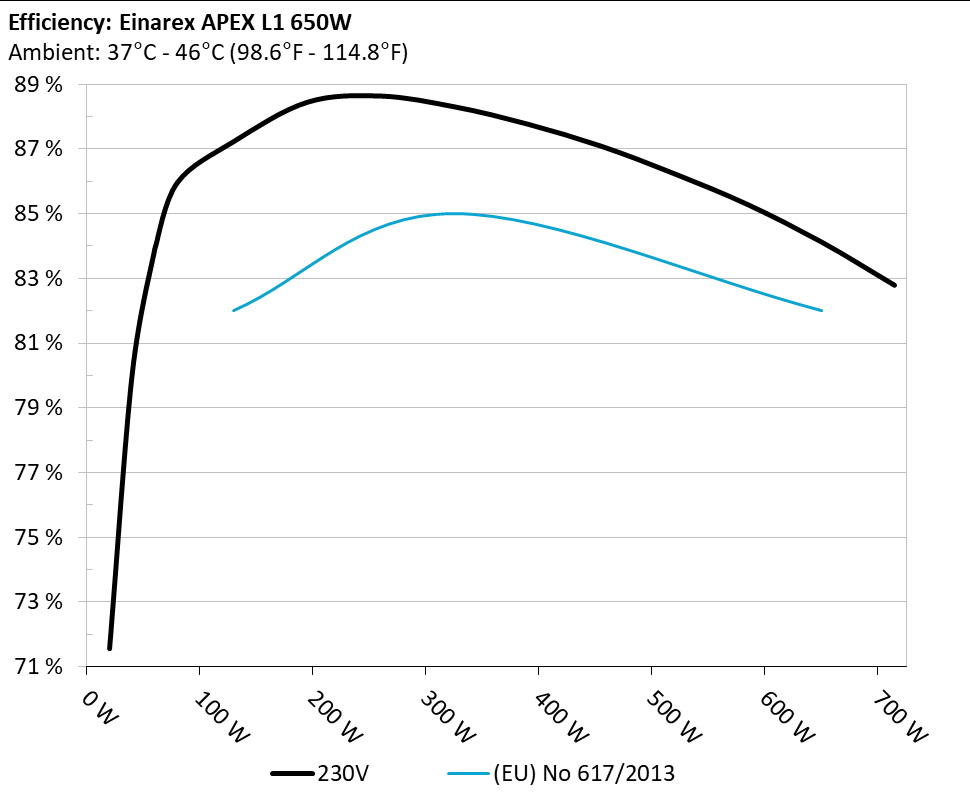

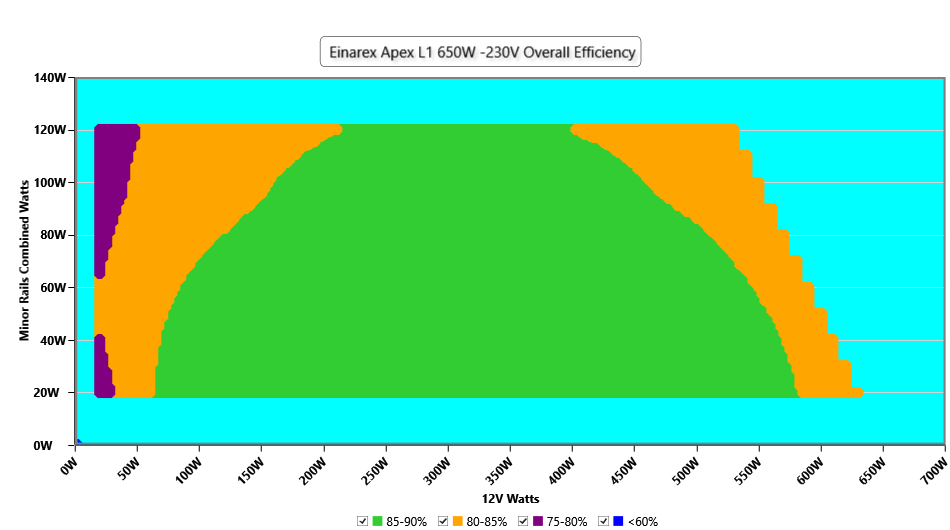

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

230V

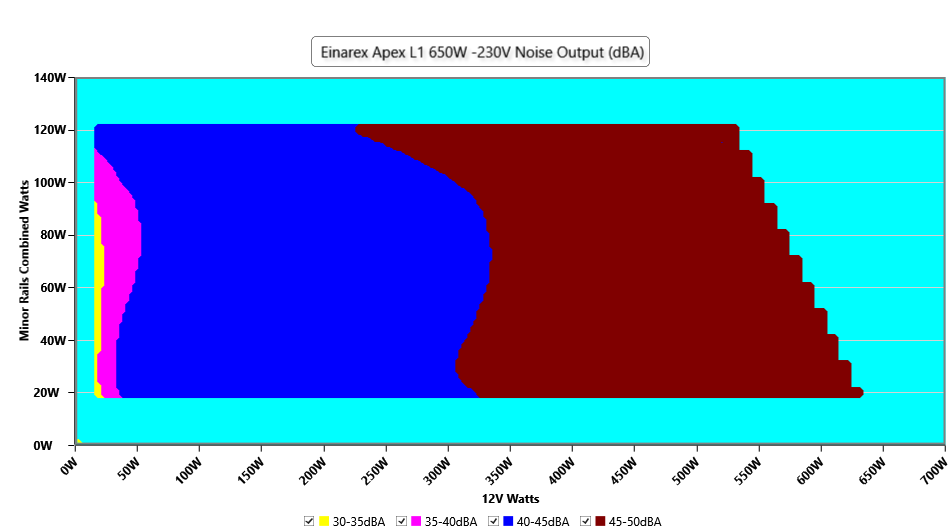

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

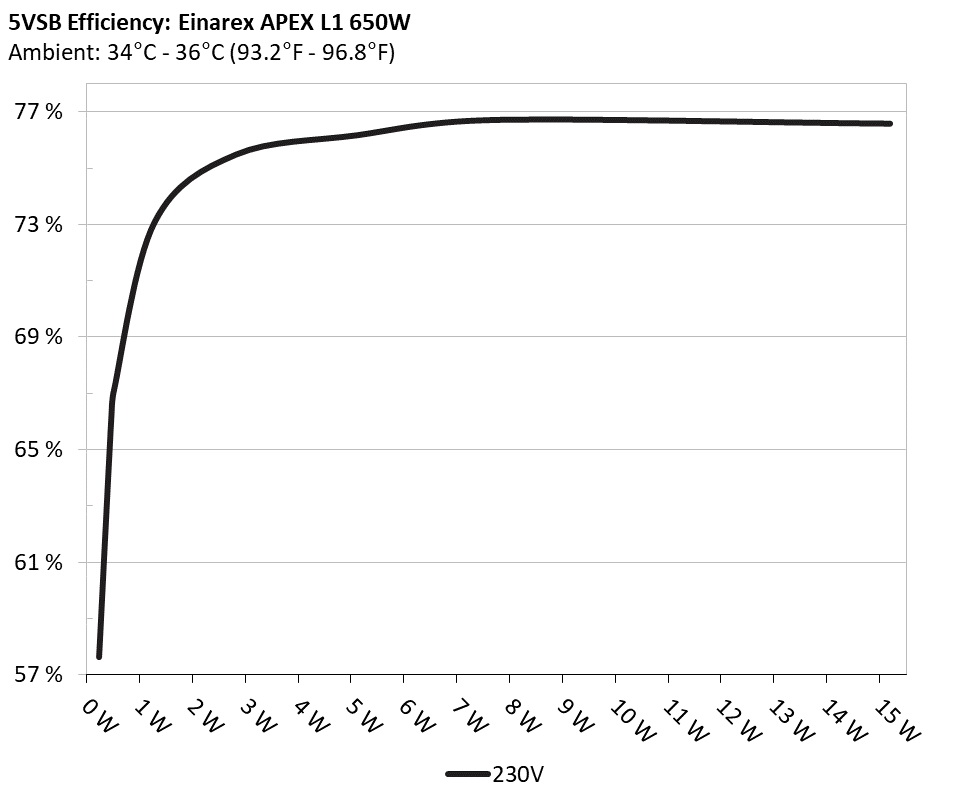

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

230V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232W 57.621% 0.017
5.144V 0.404W 229.84V
2 0.09A 0.463W 66.143% 0.029
5.142V 0.7W 229.83V
3 0.55A 2.822W 75.498% 0.138
5.129V 3.739W 229.83V
4 1A 5.118W 76.187% 0.214
5.118V 6.717W 229.83V
5 1.5A 7.658W 76.727% 0.249
5.105V 9.982W 229.83V
6 3A 15.196W 76.599% 0.335
5.065V 19.838W 229.84V

Supplementary Tests (For Reference)

230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.567A 1.944A 1.941A 0.98A 65.006 82.695% 1429 40.2 40.04°C 0.805
12.168V 5.143V 3.401V 5.102V 78.609 42.12°C 229.82V
20% 8.150A 2.928A 2.92A 1.181A 129.94 87.235% 1548 42.7 40.93°C 0.862
12.152V 5.123V 3.39V 5.082V 148.955 43.22°C 229.81V
30% 13.119A 3.418A 3.416A 1.383A 194.943 88.45% 1640 43.4 41.13°C 0.89
12.112V 5.12V 3.381V 5.062V 220.398 44.14°C 229.8V
40% 18.127A 3.908A 3.915A 1.587A 260.028 88.64% 1713 44.1 41.72°C 0.91
12.072V 5.118V 3.371V 5.042V 293.353 45.34°C 229.79V
50% 22.789A 4.901A 4.911A 1.793A 325.025 88.308% 1790 47.4 42.48°C 0.93
12.046V 5.102V 3.36V 5.021V 368.058 46.8°C 229.77V
60% 27.420A 5.901A 5.914A 2A 389.367 87.776% 1863 49.3 42.83°C 0.946
12.019V 5.084V 3.349V 4.999V 443.59 48.34°C 229.77V
70% 32.153A 6.907A 6.923A 2.211A 454.677 87.092% 1887 49.5 43.3°C 0.956
11.991V 5.068V 3.337V 4.976V 522.067 50.02°C 229.76V
80% 36.915A 7.915A 7.939A 2.321A 519.463 86.24% 1891 49.4 43.91°C 0.965
11.962V 5.053V 3.325V 4.956V 602.344 52.07°C 229.74V
90% 42.193A 8.409A 8.447A 2.432A 584.879 85.277% 1890 49.5 44.57°C 0.971
11.907V 5.054V 3.314V 4.935V 685.86 54.3°C 229.73V
100% 47.277A 8.904A 8.993A 3.062A 649.705 84.125% 1892 49.3 45.4°C 0.974
11.845V 5.053V 3.302V 4.9V 772.314 58.24°C 229.72V
110% 52.234A 9.919A 10.122A 3.075A 714.333 82.787% 1887 49.5 46.39°C 0.977
11.794V 5.04V 3.29V 4.878V 862.861 61.07°C 229.7V
CL1 1.904A 15.183A 14.231A 0.493A 146.416 77.066% 1940 50.7 40.22°C 0.865
12.613V 4.756V 3.352V 5.067V 189.989 47.99°C 229.81V
CL2 1.898A 18.319A 0.977A 0.491A 116.486 79.198% 1889 49.5 40°C 0.854
12.649V 4.732V 3.377V 5.09V 147.081 44.49°C 229.82V
CL3 1.974A 0.974A 16.124A 0.491A 85.902 74.531% 1825 49.5 41.33°C 0.837
12.163V 5.134V 3.374V 5.092V 115.256 44.25°C 229.82V
CL4 56.010A 0.935A 0.991A 0.501A 649.936 84.096% 1848 49.7 45.49°C 0.975
11.411V 5.348V 3.329V 4.987V 772.869 54.99°C 229.72V

The results above are not used in the certification process

230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.220A 0.483A 0.484A 0.195A 20.002 71.545% 882 26.4 36.86°C 0.628
12.171V 5.171V 3.412V 5.135V 27.957 38.28°C 229.84V
40W 2.698A 0.674A 0.678A 0.293A 40.001 80.036% 1066 31.5 37.3°C 0.72
12.114V 5.191V 3.409V 5.128V 49.978 39.21°C 229.83V
60W 4.172A 0.868A 0.872A 0.391A 60.002 83.917% 1221 35.5 38.31°C 0.795
12.112V 5.184V 3.406V 5.121V 71.502 40.14°C 229.82V
80W 5.643A 1.062A 1.067A 0.489A 79.954 85.962% 1339 38.5 39.4°C 0.826
12.108V 5.179V 3.402V 5.114V 93.011 41.29°C 229.83V

The results above are not used in the certification process

230V

Test12V5V3.3V5VSBPass/Fail
10% Load22.04mV15.09mV15.80mV16.72mVPass
20% Load20.20mV15.14mV15.55mV17.60mVPass
30% Load22.50mV17.04mV18.63mV17.44mVPass
40% Load24.30mV15.81mV21.29mV16.98mVPass
50% Load27.16mV16.37mV23.65mV17.29mVPass
60% Load31.46mV17.60mV26.93mV17.96mVPass
70% Load33.30mV18.78mV29.04mV18.16mVPass
80% Load34.57mV20.58mV32.01mV18.11mVPass
90% Load37.03mV21.50mV34.22mV18.57mVPass
100% Load52.99mV29.78mV40.36mV19.34mVPass
110% Load61.43mV33.22mV44.18mV21.31mVPass
Crossload126.34mV35.93mV24.90mV17.18mVPass
Crossload224.70mV23.71mV15.39mV13.44mVPass
Crossload322.40mV16.01mV23.44mV16.47mVPass
Crossload462.51mV27.34mV42.59mV19.81mVPass

The results above are not used in the certification process

Einarex Apex L1 650W

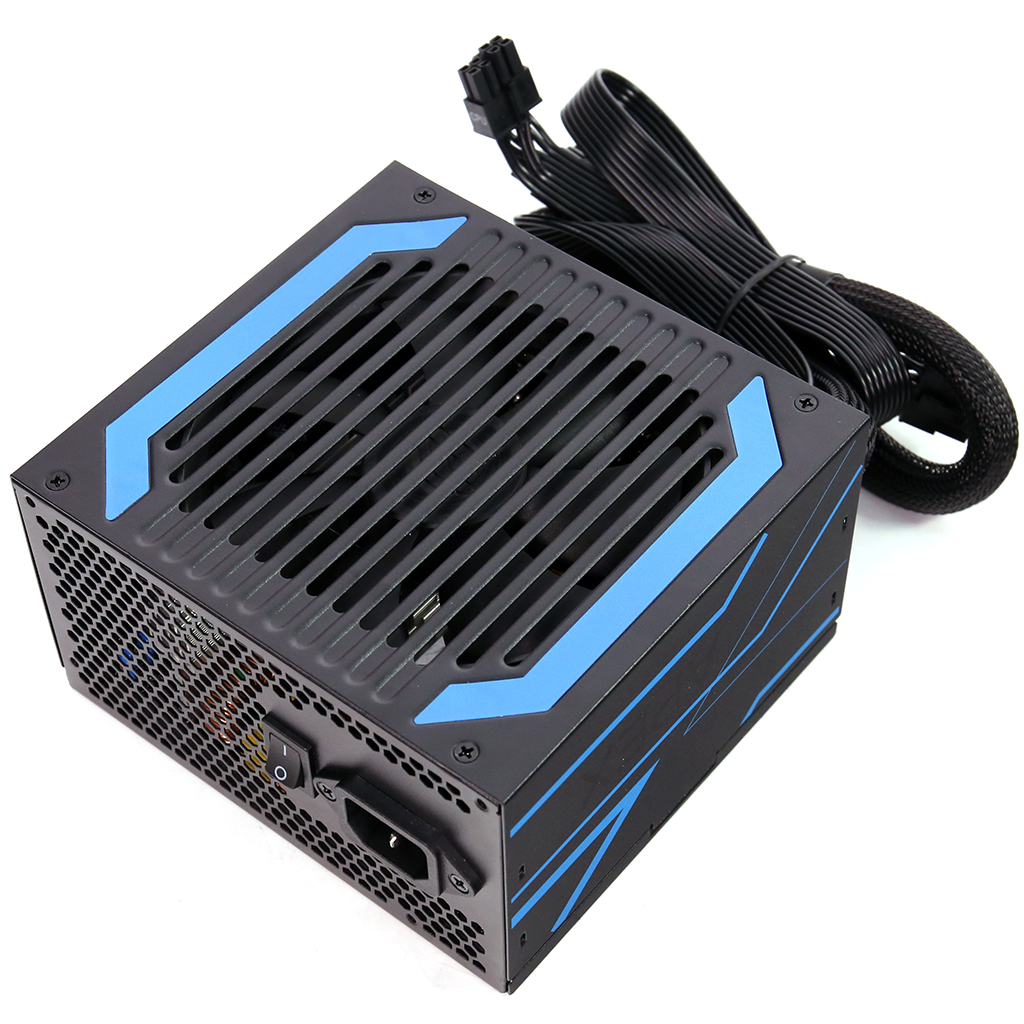

Top side

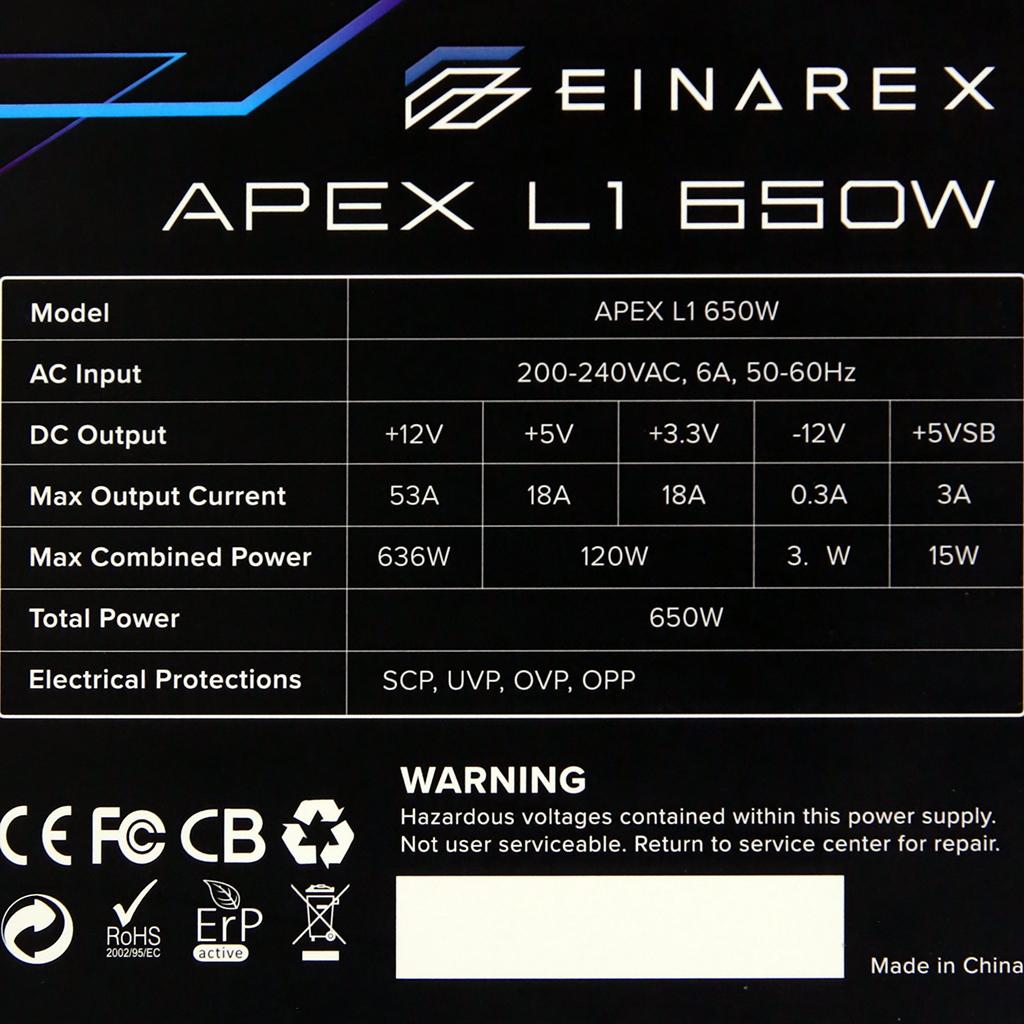

Power specifications label
