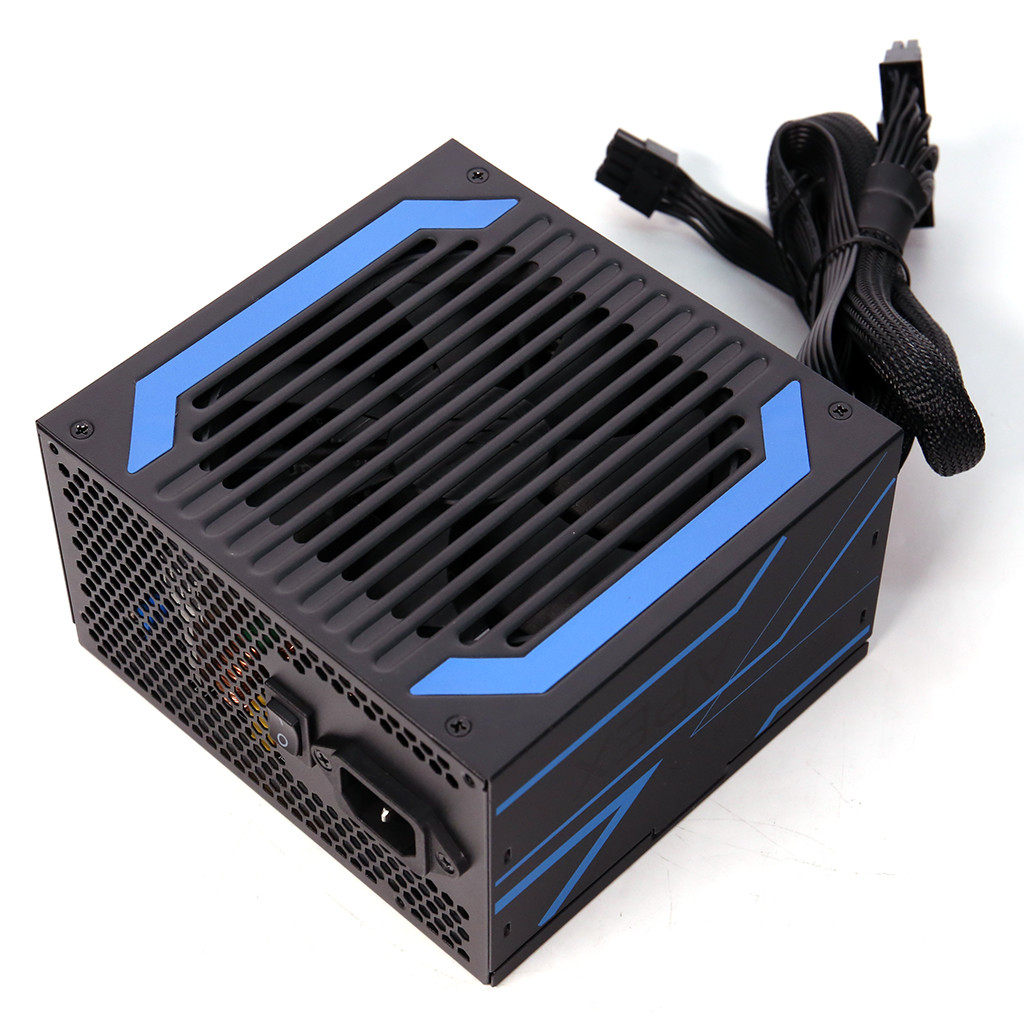

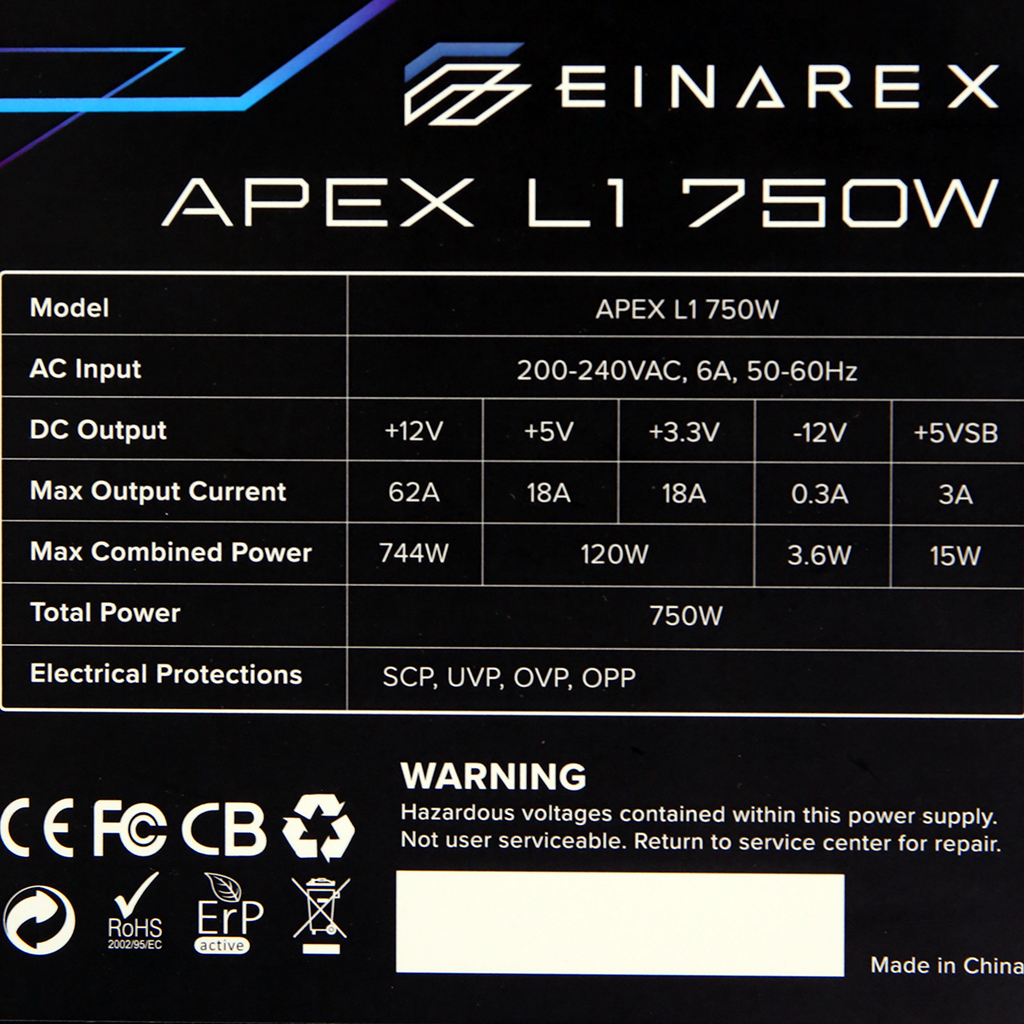

66.00A (106.45%), 11.416V* *Didn't shut down, low voltage (11.099V@80A)
64.00A (103.23%), 11.425V* *Didn't shut down, low voltage (11.055V@81A)
5V OCP (25.9°C / 42.2°C)
3.3V OCP (25.9°C / 42.2°C)
27.2A (151.11%), 3.143V* *Didn't shut down, low voltage (3.126V@27.3A)
22A (122.22%), 3.151V* *Didn't shut down, low voltage (2.507V@27.1A)
5VSB OCP (25.9°C / 42.2°C)
4.7A (156.67%), 4.919V
4.3A (143.33%), 4.95V
OPP (27.12°C / 43.60°C)
123.07%
122.67%
Hold-Up Time (ms)
11.9
AC Loss to PWR_OK Hold Up Time (ms)
9.1
PWR_OK Inactive to DC Loss Delay (ms)
2.8
待機電源消耗
Tables 230V
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
231.05 V
230.93 V
227.70 V
231.10 V
232.30 V
PASS
Mains Frequency:
50.00 Hz
49.99 Hz
49.50 Hz
50.01 Hz
50.50 Hz
PASS
Mains Voltage CF:
1.417
1.417
1.340
1.419
1.490
PASS
Mains Voltage THD:
0.17 %
0.14 %
N/A
0.29 %
2.00 %
PASS
Real Power:
0.107 W
0.065 W
N/A
0.183 W
N/A
N/A
Apparent Power:
21.648 W
21.271 W
N/A
22.045 W
N/A
N/A
Power Factor:
0.006
N/A
N/A
N/A
N/A
N/A
Graphs 230V
230V

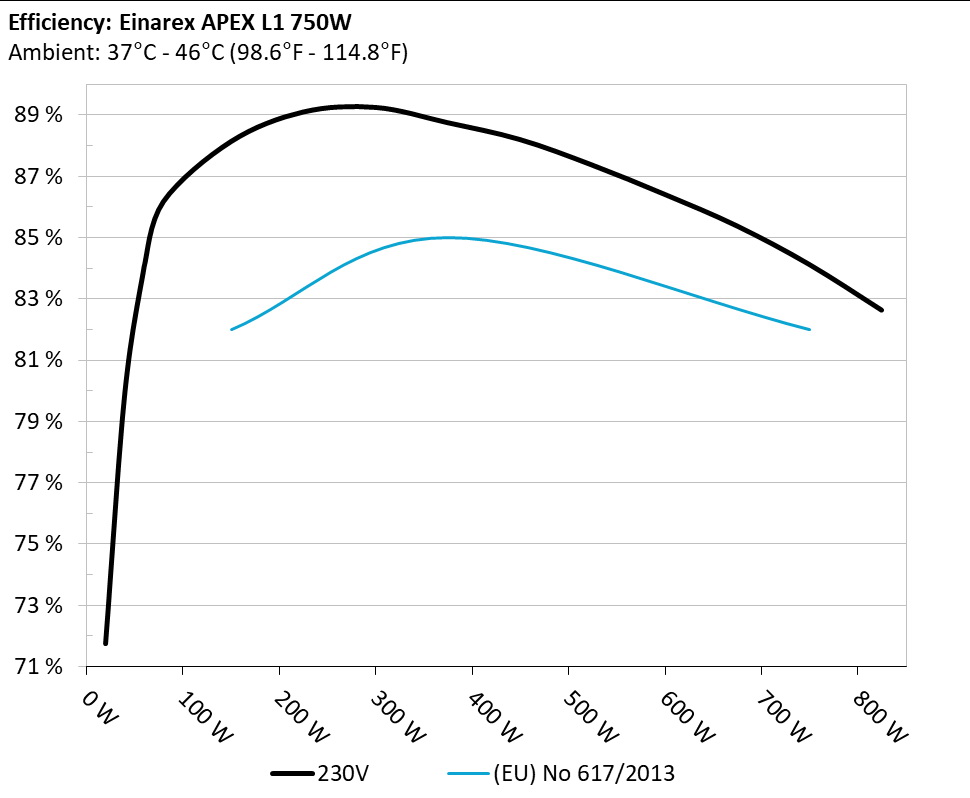

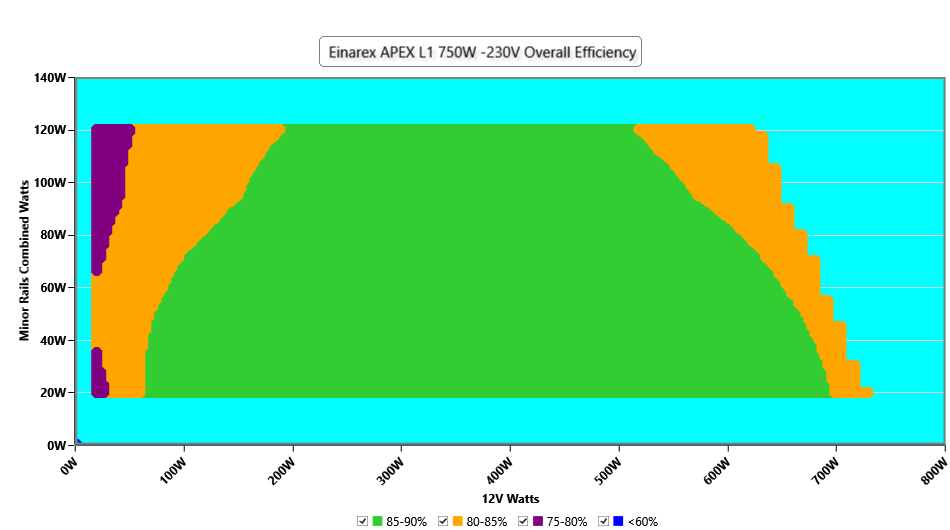

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
230V

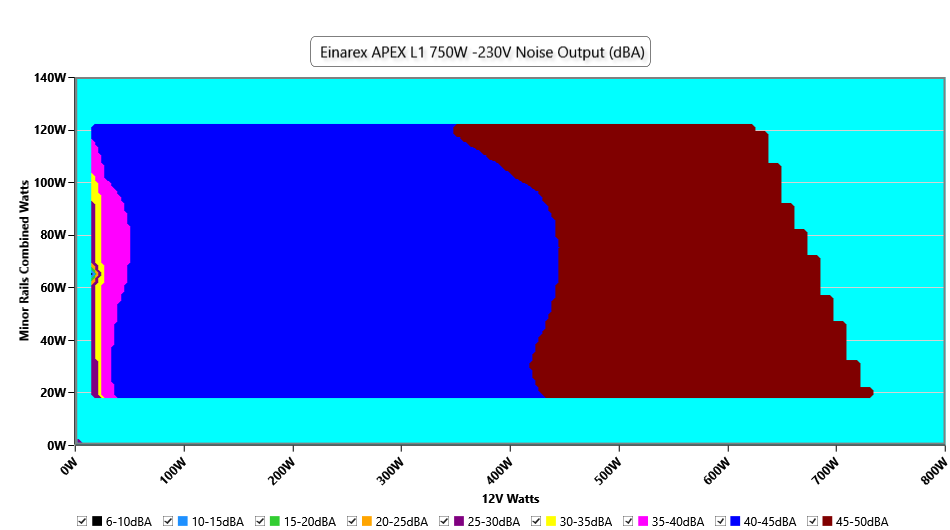

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
Indicative Performance
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

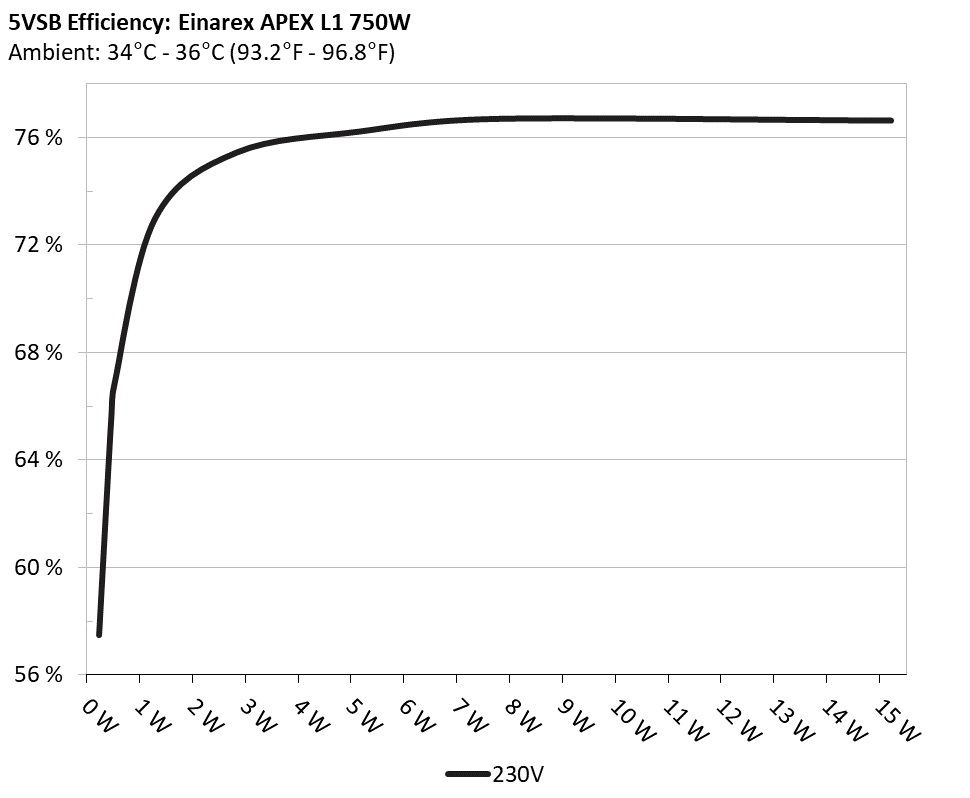

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
230V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.233W
57.472%
0.017
5.178V
0.406W
229.84V
2
0.09A
0.466W
65.663%
0.03
5.175V
0.711W
229.86V
3
0.55A
2.838W
75.453%
0.143
5.159V
3.761W
229.84V
4
1A
5.144W
76.227%
0.219
5.143V
6.749W
229.84V
5
1.5A
7.689W
76.7%
0.251
5.125V
10.025W
229.84V
6
3A
15.215W
76.639%
0.335
5.071V
19.852W
229.84V
Supplementary Tests (For Reference)
230V
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
4.392A
1.945A
1.947A
0.976A
75.002
84.231%
1455
42.2
40.08°C
0.768
12.158V
5.141V
3.389V
5.125V
89.043
42.23°C
229.83V
20%
9.811A
2.93A
2.934A
1.177A
149.933
88.12%
1571
43.8
40.71°C
0.841
12.134V
5.119V
3.374V
5.1V
170.146
43.5°C
229.82V
30%
15.624A
3.423A
3.436A
1.379A
224.932
89.085%
1677
43.3
41.26°C
0.872
12.089V
5.113V
3.361V
5.076V
252.492
45.2°C
229.81V
40%
21.492A
3.916A
3.944A
1.584A
300.021
89.234%
1746
45.1
41.79°C
0.896
12.043V
5.107V
3.347V
5.052V
336.218
46.68°C
229.79V
50%
26.994A
4.915A
4.954A
1.791A
374.417
88.739%
1831
49.7
42.44°C
0.918
12.000V
5.087V
3.331V
5.026V
421.932
48.52°C
229.78V
60%
32.514A
5.921A
5.975A
2A
449.334
88.192%
1902
49.3
42.76°C
0.935
11.980V
5.067V
3.314V
5V
509.496
50.59°C
229.77V
70%
38.122A
6.934A
7.006A
2.212A
524.263
87.361%
1922
49.9
43.33°C
0.95
11.940V
5.048V
3.297V
4.973V
600.112
52.71°C
229.76V
80%
43.806A
7.952A
8.049A
2.325A
599.49
86.406%
1923
49.9
43.67°C
0.959
11.907V
5.03V
3.28V
4.947V
693.806
55.99°C
229.74V
90%
50.023A
8.466A
8.578A
2.438A
674.525
85.377%
1919
49.8
44.56°C
0.966
11.835V
5.02V
3.264V
4.923V
790.059
60.1°C
229.72V
100%
56.093A
8.974A
9.146A
3.077A
749.755
84.119%
1915
49.7
45.32°C
0.972
11.767V
5.014V
3.247V
4.875V
891.312
64.46°C
229.71V
110%
62.002A
10.002A
10.318A
3.094A
824.779
82.63%
1912
49.5
46.47°C
0.976
11.717V
4.999V
3.227V
4.848V
998.162
69.87°C
229.68V
CL1
1.910A
15.201A
14.417A
0.491A
146.418
77.315%
1962
51.1
40.3°C
0.843
12.576V
4.75V
3.308V
5.096V
189.382
46.61°C
229.82V
CL2
1.902A
18.328A
0.981A
0.488A
116.487
79.698%
1891
49.4
40.03°C
0.827
12.620V
4.729V
3.365V
5.119V
146.161
44.34°C
229.82V
CL3
1.974A
0.976A
16.336A
0.488A
85.902
73.882%
1838
49.7
40.48°C
0.805
12.162V
5.123V
3.33V
5.12V
116.27
43.7°C
229.83V
CL4
64.933A
0.943A
1.002A
0.501A
749.957
84.493%
1888
49.5
44.98°C
0.974
11.383V
5.302V
3.293V
4.995V
887.605
56.96°C
229.71V
The results above are not used in the certification process
230V
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.219A
0.484A
0.485A
0.194A
20.004
71.764%
928
27.7
36.69°C
0.563
12.181V
5.165V
3.405V
5.167V
27.876
37.88°C
229.85V
40W
2.700A
0.675A
0.679A
0.291A
40.002
79.946%
1058
31.4
37.79°C
0.616
12.109V
5.187V
3.401V
5.16V
50.04
38.95°C
229.85V
60W
4.171A
0.869A
0.874A
0.388A
60
84.06%
1194
36.1
38.57°C
0.726
12.114V
5.18V
3.397V
5.152V
71.376
40.04°C
229.84V
80W
5.641A
1.063A
1.07A
0.486A
79.94
86.164%
1307
38.8
39.29°C
0.775
12.110V
5.173V
3.393V
5.144V
92.775
41.3°C
229.83V
The results above are not used in the certification process
230V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
23.22mV
19.14mV
16.11mV
16.68mV
Pass
20% Load
24.45mV
18.48mV
18.21mV
17.14mV
Pass
30% Load
25.78mV
19.71mV
18.67mV
17.34mV
Pass
40% Load
26.03mV
19.71mV
18.98mV
15.60mV
Pass
50% Load
29.46mV
19.96mV
20.52mV
16.32mV
Pass
60% Load
33.66mV
20.63mV
20.52mV
17.08mV
Pass
70% Load
34.37mV
21.04mV
23.03mV
18.16mV
Pass
80% Load
38.46mV
22.07mV
24.88mV
19.96mV
Pass
90% Load
51.15mV
25.61mV
25.65mV
21.24mV
Pass
100% Load
71.44mV
35.56mV
28.98mV
27.01mV
Pass
110% Load
78.22mV
40.01mV
33.41mV
31.21mV
Pass
Crossload1
30.24mV
31.39mV
25.33mV
15.64mV
Pass
Crossload2
27.26mV
28.33mV
15.75mV
13.14mV
Pass
Crossload3
22.20mV
20.12mV
21.96mV
14.42mV
Pass
Crossload4
80.14mV
35.40mV
33.55mV
31.13mV
Pass
The results above are not used in the certification process
