CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

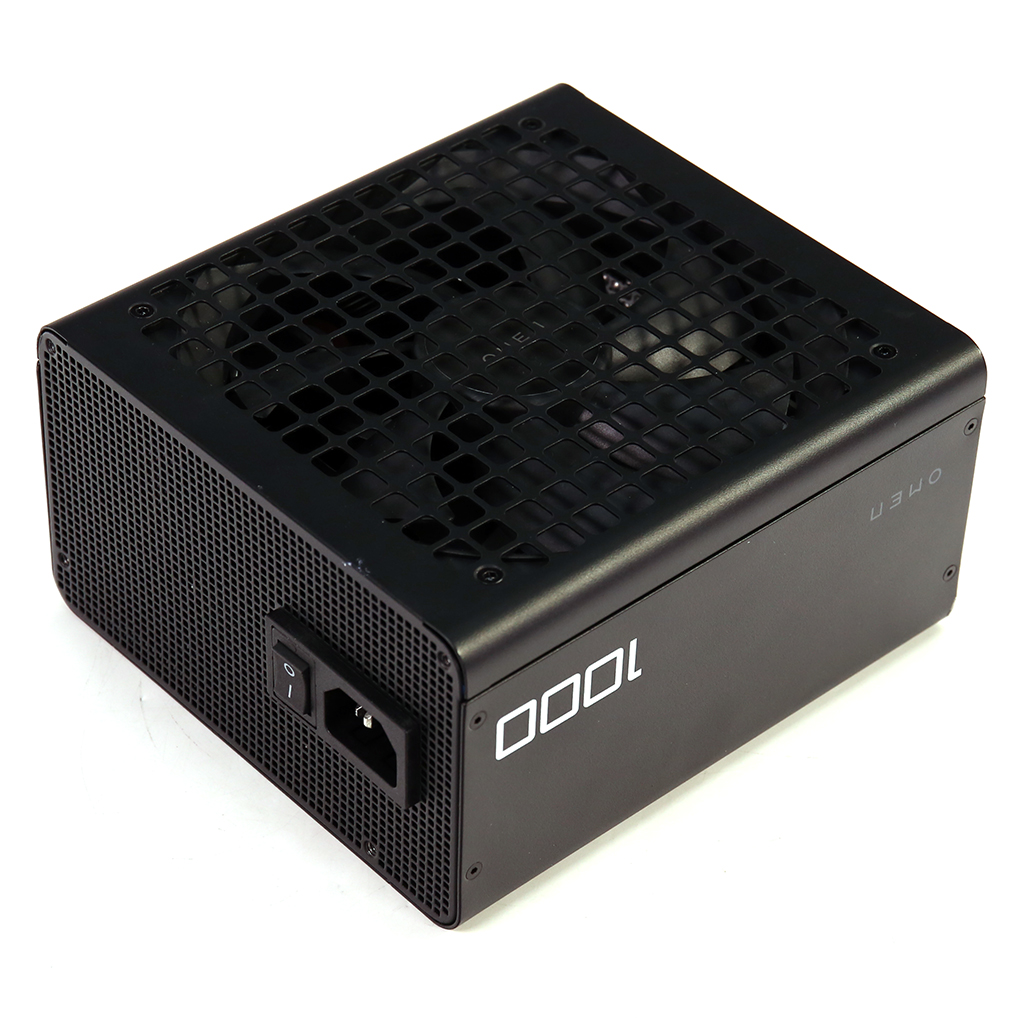

OMEN PS-4102-2 (1000W)
Serial Number
Lab IDOM10002528
  • Report: 24PS2528A
  • Receipt Date: Aug 2, 2024
  • Test Date: Aug 9, 2024
  • Report Date: Aug 10, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandOMEN
Manufacturer (OEM)Lite-On
Series
Model NumberPS-4102-2
Serial Number
DUT Notes

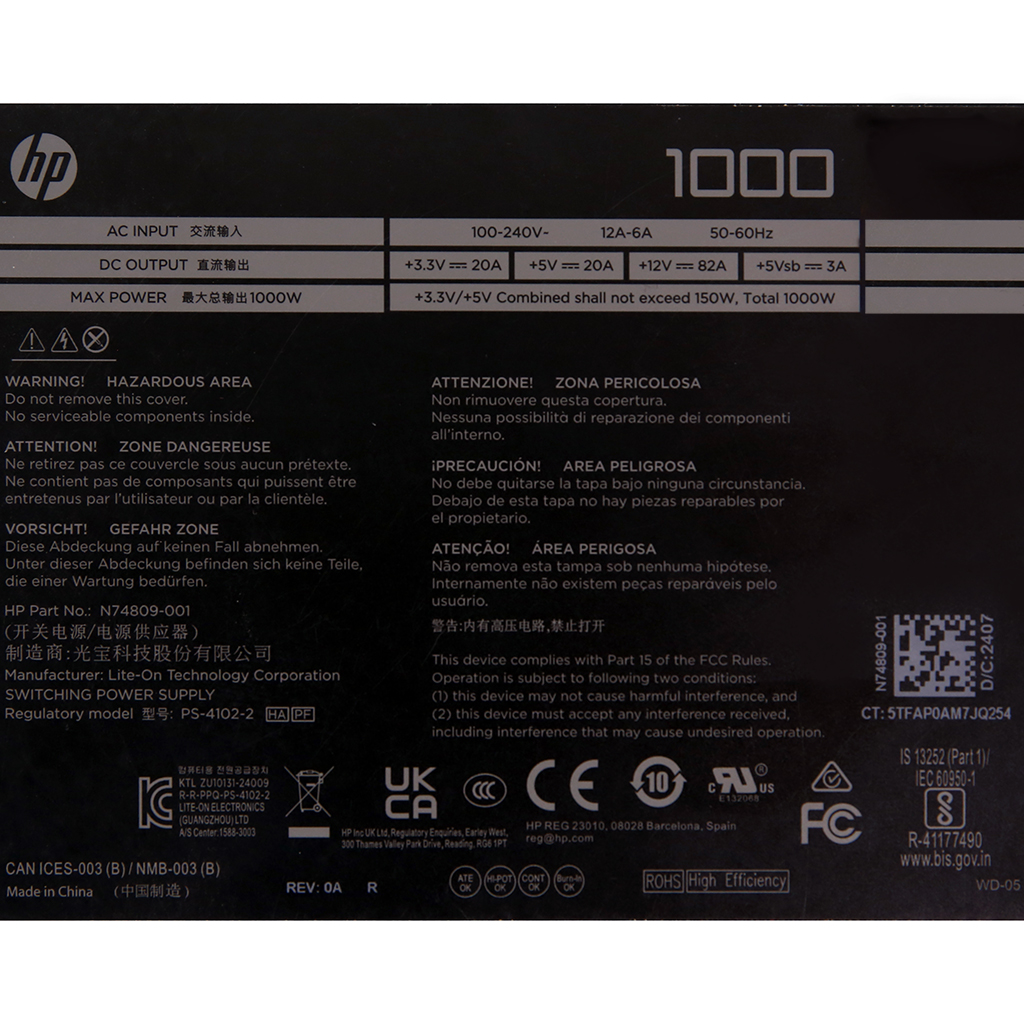

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)6-12
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Cooling135mm Fluid Dynamic Bearing Fan (HA13525H12F-Z)
Semi-Passive Operation✓
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps20208230
Watts150984150
Total Max. Power (W)1000

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (595mm) 1 1 18-22AWG No
4+4 pin EPS12V (650mm) 2 2 18AWG No
6+2 pin PCIe (650mm) 2 2 18AWG No
12+4 pin PCIe (650mm) (600W) 1 1 16-24AWG No
SATA (465mm+115mm+115mm+115mm) 1 4 18AWG No
SATA (455mm+115mm+115mm) 2 6 18AWG No
4-pin Molex (450mm+100mm+100mm+100mm) 1 4 18AWG No

Parts Description

General Data
Manufacturer (OEM) Lite-On
PCB Type Single-Sided
Primary Side
Transient Filter 6x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 2x NTC Thermistor SCK 105 (2 Ohm @25°C) & Relay
Bridge Rectifier(s)

2x GBJ1510 (1000V, 15A @ 100°C)
APFC MOSFETs

2x Infineon IPW60R120P7 (650V, 16A @ 100°C, Rds(on): 0.120Ohm)
APFC Boost Diode

2x WeEn WNSC5D04650X (650V, 4A @ 93°C)
Bulk Cap(s)

2x Nippon Chemi-con (450V, 3900uF or 780uF combined, 2,000h @ 105°C, KMQ)
Main Switchers

2x Infineon IPA60R120P7 (650V, 16A @ 100°C, Rds(on): 0.120Ohm)
PFC/LLC Controller

NXP TEA2017AAT
Topology

Primary side: APFC, Half-Bridge & Double Forward Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 6x UBIQ QN4106 & MPS MP6924B (Rectifier)
5V & 3.3V DC-DC Converters: 2x XEMI XP3NA3R4MT (30V, 46A @ 100°C, Rds(on): 3.4mOhm) 2x UBIQ QN3106M6N (30V, 57A @ 100°C, Rds(on): 3.8mOhm) PWM Controller(s): uPI Semi uP3861P
Filtering Capacitors

Electrolytic: 2x Nippon Chemi-con (2-5,000h @ 105°C, KZE) 1x Lelon (@ 105°C, LZG) Polymer: 28x Nippon Chemi-con, 3x Rubycon (YXM), 1x Aishi (RF),
Supervisor IC

IN1T703I-SDG
Fan Controller Weltrend WT763001
Fan Model Hong Hua HA13525H12F-Z (135mm, 12V, 0.50A, Fluid Dynamic Bearing Fan)
5VSB
Rectifier
Standby PWM Controller Excellence MOS EM8569D

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)21
AC Loss to PWR_OK Hold Up Time (ms)18.1
PWR_OK Inactive to DC Loss Delay (ms)2.9

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.09 V 115.05 V 113.85 V 115.12 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.19 % 2.00 % PASS
Real Power: 0.065 W 0.049 W N/A 0.081 W N/A N/A
Apparent Power: 11.914 W 11.456 W N/A 12.384 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.05 V 230.93 V 227.70 V 231.10 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.15 % N/A 0.27 % 2.00 % PASS
Real Power: 0.115 W 0.087 W N/A 0.151 W N/A N/A
Apparent Power: 39.723 W 38.920 W N/A 40.585 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

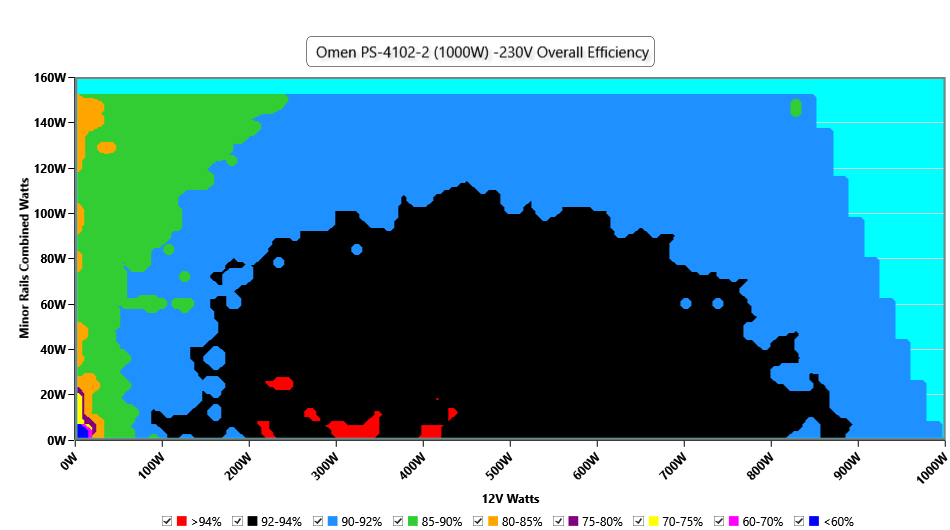

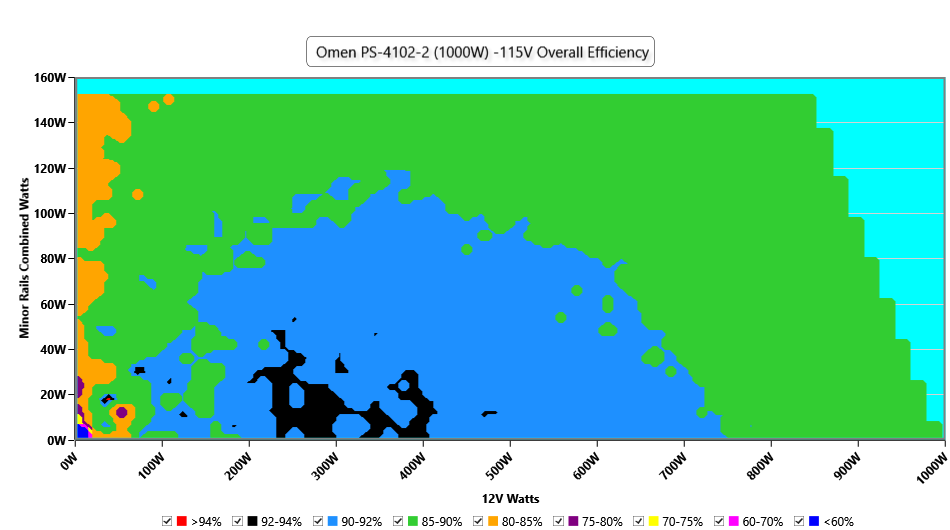

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

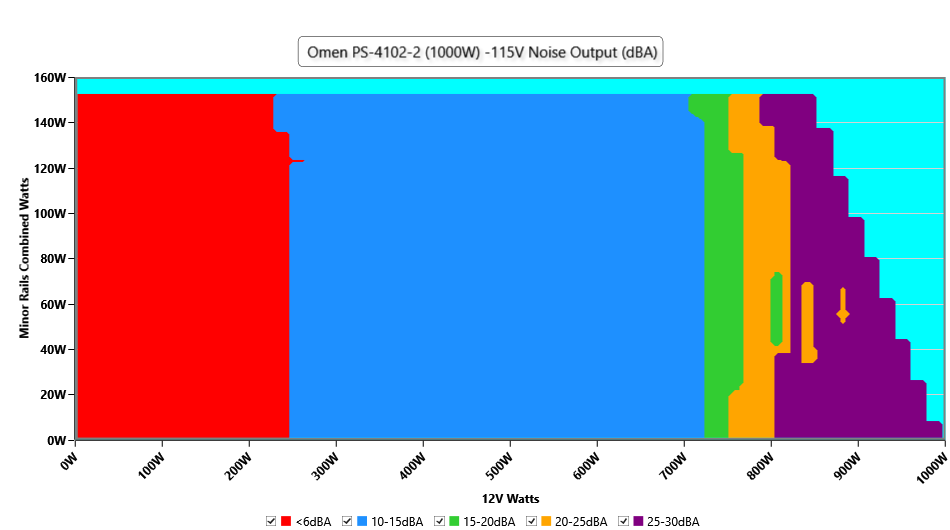

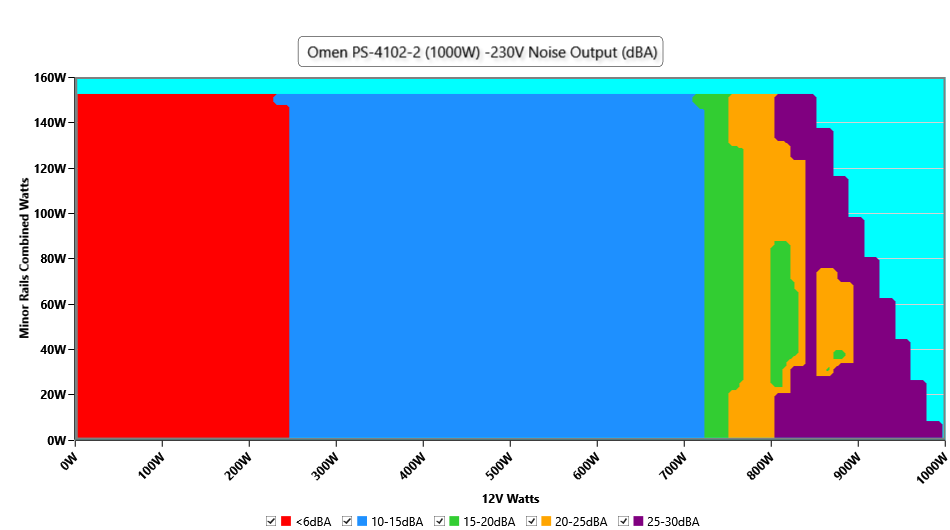

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

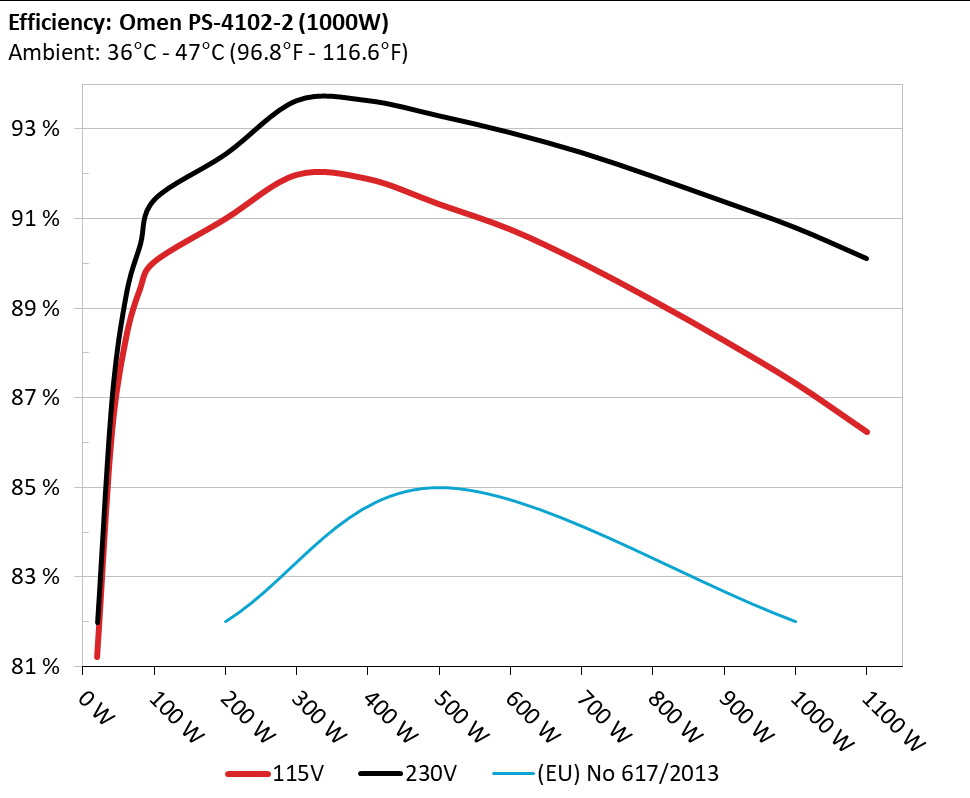

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

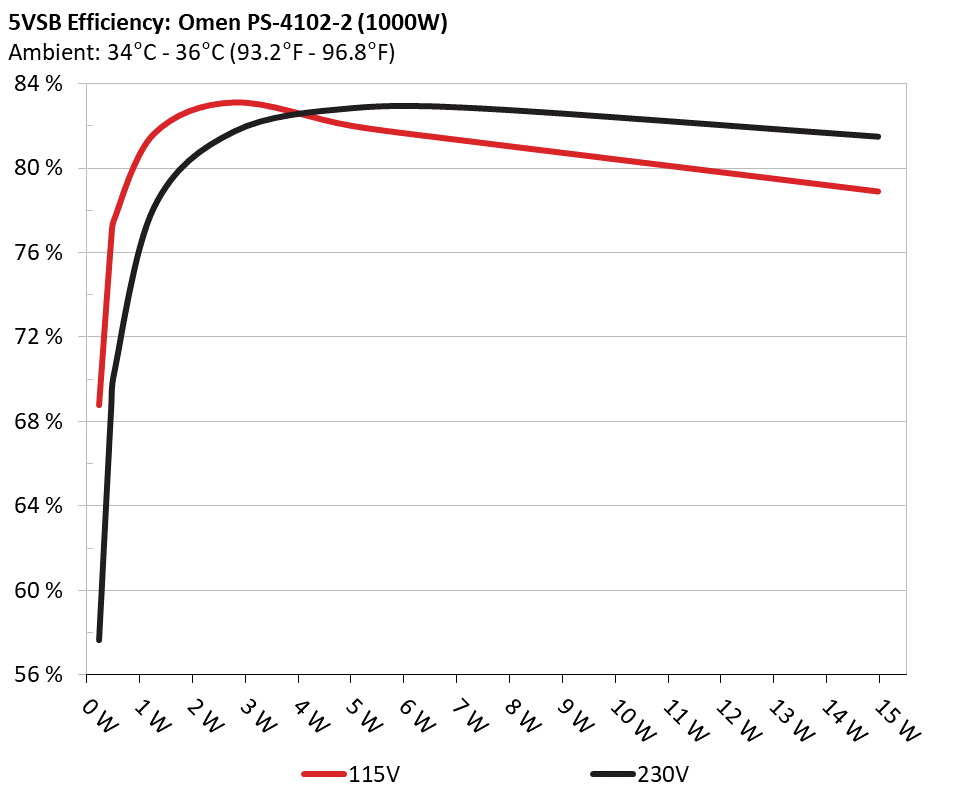

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 68.773% 0.029
5.067V 0.332W 114.84V
2 0.09A 0.456W 76.601% 0.052
5.066V 0.595W 114.85V
3 0.55A 2.78W 83.13% 0.256
5.054V 3.344W 114.83V
4 1A 5.042W 82.004% 0.387
5.041V 6.148W 114.83V
5 1.5A 7.543W 81.193% 0.472
5.028V 9.29W 114.83V
6 3A 14.967W 78.905% 0.573
4.989V 18.969W 114.83V
Test #
5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 57.629% 0.01
5.067V 0.396W 229.83V
2 0.09A 0.456W 68.587% 0.018
5.066V 0.665W 229.84V
3 0.55A 2.78W 81.735% 0.088
5.054V 3.401W 229.83V
4 1A 5.042W 82.852% 0.151
5.042V 6.085W 229.83V
5 1.5A 7.544W 82.818% 0.214
5.029V 9.109W 229.84V
6 3A 14.967W 81.493% 0.348
4.989V 18.367W 229.82V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.470A 1.944A 1.987A 0.992A 99.992 90.041% 0 <6.0 45.04°C 0.896
12.117V 5.145V 3.322V 5.041V 111.223 40.07°C 114.82V
20% 13.964A 2.919A 2.987A 1.193A 199.942 91.003% 0 <6.0 46.32°C 0.971
12.106V 5.139V 3.315V 5.028V 219.697 40.51°C 114.78V
30% 21.815A 3.408A 3.49A 1.396A 299.992 91.987% 0 <6.0 47.07°C 0.983
12.099V 5.135V 3.31V 5.016V 326.115 41.26°C 114.74V
40% 29.639A 3.899A 3.995A 1.599A 399.548 91.895% 0 <6.0 46.18°C 0.989
12.091V 5.13V 3.304V 5.004V 434.778 41.58°C 114.72V
50% 37.158A 4.875A 5.002A 1.804A 499.283 91.332% 694 14.4 42.09°C 0.993
12.078V 5.128V 3.299V 4.99V 546.699 56.31°C 114.68V
60% 44.769A 5.855A 6.014A 2A 599.759 90.766% 693 14.4 42.52°C 0.995
12.062V 5.124V 3.292V 4.976V 660.862 58.84°C 114.64V
70% 52.316A 6.838A 7.034A 2.217A 699.539 90.023% 730 16 43.12°C 0.996
12.051V 5.119V 3.285V 4.962V 777.071 61.76°C 114.61V
80% 59.941A 7.82A 8.055A 2.323A 799.552 89.182% 950 25 43.88°C 0.996
12.040V 5.114V 3.277V 4.951V 896.538 56.23°C 114.56V
90% 67.916A 8.315A 8.554A 2.43A 899.361 88.287% 1222 32.7 44.85°C 0.996
12.028V 5.111V 3.273V 4.939V 1018.668 56.83°C 114.53V
100% 75.729A 8.81A 9.087A 3.053A 999.38 87.333% 1461 40.7 45.55°C 0.996
12.013V 5.108V 3.268V 4.913V 1144.387 57.95°C 114.49V
110% 83.466A 9.797A 10.211A 3.059A 1099.993 86.243% 1671 41.3 46.54°C 0.996
12.002V 5.104V 3.261V 4.904V 1275.528 58.43°C 114.45V
CL1 0.128A 17.744A 18.478A 0A 151.444 82.208% 693 14.4 40.33°C 0.962
12.131V 5.089V 3.225V 5.059V 184.25 51.72°C 114.79V
CL2 0.118A 19.6A 0A 0A 101.402 83.741% 692 14.3 40.52°C 0.919
12.137V 5.1V 3.313V 5.068V 121.034 48.52°C 114.81V
CL3 0.115A 0A 20.421A 0A 67.39 77.51% 690 14.3 40.58°C 0.866
12.132V 5.127V 3.232V 5.066V 87.283 46.47°C 114.82V
CL4 83.151A 0A 0A 0A 999.932 88.172% 1220 32.8 45.69°C 0.996
12.026V 5.13V 3.316V 5.003V 1134.013 56.16°C 114.51V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.469A 1.944A 1.987A 0.992A 99.995 91.102% 0 <6.0 45.35°C 0.932
12.118V 5.144V 3.321V 5.041V 109.737 40.13°C 229.83V
20% 13.964A 2.919A 2.987A 1.193A 199.942 92.452% 0 <6.0 45.6°C 0.921
12.106V 5.139V 3.314V 5.028V 216.326 40.71°C 229.81V
30% 21.817A 3.408A 3.49A 1.396A 299.986 93.647% 0 <6.0 46.11°C 0.934
12.098V 5.135V 3.309V 5.016V 320.35 41.27°C 229.8V
40% 29.642A 3.899A 3.995A 1.599A 399.522 93.645% 0 <6.0 45.74°C 0.95
12.088V 5.13V 3.304V 5.003V 426.686 41.67°C 229.78V
50% 37.157A 4.876A 5.004A 1.804A 499.251 93.307% 693 14.4 42.41°C 0.964
12.077V 5.127V 3.298V 4.99V 535.095 47.33°C 229.76V
60% 44.773A 5.855A 6.015A 2A 599.736 92.929% 693 14.4 42.86°C 0.974
12.060V 5.124V 3.292V 4.975V 645.366 48.92°C 229.75V
70% 52.327A 6.838A 7.034A 2.217A 699.52 92.485% 712 15.2 43.3°C 0.981
12.048V 5.119V 3.285V 4.961V 756.372 50.05°C 229.73V
80% 59.962A 7.821A 8.056A 2.324A 799.534 91.954% 948 25 43.87°C 0.987
12.035V 5.114V 3.277V 4.95V 869.519 50.59°C 229.71V
90% 67.941A 8.314A 8.555A 2.43A 899.324 91.391% 1133 30.7 44.47°C 0.99
12.024V 5.111V 3.273V 4.938V 983.982 50.91°C 229.7V
100% 75.757A 8.808A 9.086A 3.054A 999.348 90.812% 1382 38.3 45.33°C 0.992
12.008V 5.108V 3.269V 4.912V 1100.335 51.39°C 229.68V
110% 83.500A 9.796A 10.211A 3.06A 1099.969 90.119% 1603 43.3 46.42°C 0.994
11.996V 5.104V 3.261V 4.903V 1220.614 52.53°C 229.66V
CL1 0.128A 17.741A 18.476A 0A 151.44 83.494% 694 14.4 40.61°C 0.929
12.131V 5.09V 3.226V 5.058V 181.448 47.44°C 229.82V
CL2 0.118A 19.602A 0A 0A 101.4 84.917% 692 14.3 40.74°C 0.935
12.136V 5.099V 3.313V 5.066V 119.402 45.31°C 229.83V
CL3 0.115A 0A 20.422A 0A 67.39 78.441% 690 14.3 40.3°C 0.903
12.131V 5.128V 3.232V 5.063V 85.955 43.74°C 229.83V
CL4 83.176A 0A 0A 0A 999.917 91.56% 1132 30.7 45.1°C 0.992
12.022V 5.13V 3.317V 5.002V 1092.187 50.05°C 229.68V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.222A 0.485A 0.495A 0.197A 19.998 81.218% 0 <6.0 40.43°C 0.474
12.143V 5.152V 3.332V 5.068V 24.66 36.02°C 114.84V
40W 2.692A 0.68A 0.694A 0.296A 39.999 86.092% 0 <6.0 42.67°C 0.673
12.141V 5.15V 3.331V 5.064V 46.469 37.68°C 114.83V
60W 4.164A 0.874A 0.892A 0.395A 59.999 88.297% 0 <6.0 42.77°C 0.833
12.136V 5.149V 3.329V 5.06V 67.937 38.01°C 114.83V
80W 5.636A 1.068A 1.091A 0.494A 79.939 89.423% 0 <6.0 45.34°C 0.867
12.121V 5.148V 3.328V 5.056V 89.219 39.04°C 114.81V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.222A 0.485A 0.495A 0.197A 19.998 81.988% 0 <6.0 41.17°C 0.355
12.143V 5.151V 3.332V 5.068V 24.43 36.15°C 229.83V
40W 2.692A 0.68A 0.694A 0.296A 39.999 86.918% 0 <6.0 43.14°C 0.517
12.141V 5.15V 3.33V 5.064V 46.068 37.21°C 229.83V
60W 4.164A 0.874A 0.892A 0.395A 59.999 89.286% 0 <6.0 44.04°C 0.836
12.136V 5.149V 3.329V 5.06V 67.219 38.02°C 229.83V
80W 5.636A 1.068A 1.091A 0.494A 79.94 90.424% 0 <6.0 45.58°C 0.907
12.120V 5.147V 3.327V 5.056V 88.38 39.24°C 229.83V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load40.25mV19.30mV19.44mV11.49mVPass
20% Load63.22mV20.48mV25.96mV11.90mVPass
30% Load25.68mV18.12mV20.11mV11.19mVPass
40% Load25.73mV18.53mV20.93mV12.06mVPass
50% Load29.00mV18.27mV19.19mV11.85mVPass
60% Load29.10mV18.38mV19.75mV11.80mVPass
70% Load30.63mV20.58mV21.19mV13.08mVPass
80% Load32.53mV20.37mV19.80mV13.24mVPass
90% Load33.86mV23.40mV22.73mV12.72mVPass
100% Load44.57mV23.31mV24.74mV15.65mVPass
110% Load47.57mV23.67mV24.41mV15.23mVPass
Crossload166.34mV26.28mV26.42mV17.94mVPass
Crossload245.73mV23.87mV21.96mV15.04mVPass
Crossload337.44mV18.02mV23.14mV14.32mVPass
Crossload445.09mV21.51mV21.92mV16.78mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load36.93mV15.29mV16.06mV9.34mVPass
20% Load60.86mV17.25mV25.03mV9.96mVPass
30% Load16.21mV13.86mV19.08mV9.13mVPass
40% Load19.74mV14.78mV19.24mV9.75mVPass
50% Load19.69mV14.16mV15.49mV9.90mVPass
60% Load21.63mV14.93mV15.59mV9.24mVPass
70% Load21.23mV15.55mV16.93mV10.00mVPass
80% Load27.82mV16.78mV16.57mV9.95mVPass
90% Load26.18mV17.25mV16.72mV10.72mVPass
100% Load35.11mV19.86mV19.93mV12.52mVPass
110% Load36.19mV20.23mV20.67mV13.16mVPass
Crossload158.33mV23.60mV24.07mV14.91mVPass
Crossload243.63mV20.22mV16.83mV13.18mVPass
Crossload329.51mV14.01mV19.75mV12.42mVPass
Crossload433.16mV18.37mV17.24mV14.81mVPass

The results above are not used in the certification process

OMEN PS-4102-2 (1000W)

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
