Cooler Master MWE Bronze 750 V3 230V
MPE7501ACABW3BEU1241500002
Lab IDCM75002526
  • Report: 24PS2526A
  • Receipt Date: Jul 16, 2024
  • Test Date: Aug 7, 2024
  • Report Date: Aug 7, 2024
115V230V
效率評比
115V230V
噪音評比
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Cooler Master
製造商 (OEM)
MWE Bronze V3
MPE-7501-ACABW
MPE7501ACABW3BEU1241500002
Broke during 5V SCP testing

(Vrms)200-240
(Arms)6
(Hz)50-60
(W)750
ATX12V
120mm Fluid Dynamic Bearing Fan (HA1225H12F-Z)
✓
Fixed cables

Rail3.3V5V12V5VSB-12V
Max. PowerAmps20206230.3
Watts120744153.6
Total Max. Power (W)750

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 24 pin (510mm) 1 1 18-20AWG No
8 pin EPS12V (560mm) / 4+4 pin EPS12V(+120mm) 1 2 18AWG No
6+2 pin PCIe (540mm+100mm) 2 4 16-18AWG No
SATA (420mm+150mm+150mm) 2 6 18-20AWG No
4-pin Molex (400mm+150mm+150mm) 1 3 18-20AWG No
Modular Cables
AC Power Cord (1385mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary 230V

效率評比SILVER
噪音評比Standard+
(>1450 load combinations)87.812%
Average Noise Output (>1450 Load Combinations)38.77dBA
(>1450 Load Combinations)0.958
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.1801W
12V Ripple (Full Load)40.28mV
5V Ripple (Full Load)22.91mV
3.3V Ripple (Full Load)18.16mV
5VSB Ripple (Full Load)52.06mV
12V Load Regulation1.98%
5V Load Regulation3.19%
3.3V Load Regulation4.93%
5VSB Load Regulation4.57%
Inrush Current126.700A
12V Transient Response (150%)11.61V
5V Transient Response (150%)4.945V
3.3V Transient Response (150%)3.168V
5VSB Transient Response (150%)4.958V
21.00ms
AC Loss to PWR_OK Hold Up Time19.60ms
PWR_OK Inactive to DC Loss Delay1.40ms
PSU Timings: T1 (20% / 100%)58.0ms58.0ms
PSU Timings: T3 (20% / 100%)125.0ms126.0ms
OPP (30.15°C / 0.00°C)132.18%0.00%

Hold-Up Time (ms)21
AC Loss to PWR_OK Hold Up Time (ms)19.6
PWR_OK Inactive to DC Loss Delay (ms)1.4

待機電源消耗

Tables 230V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.06 V 230.96 V 227.70 V 231.12 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.417 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.15 % N/A 0.26 % 2.00 % PASS
Real Power: 0.180 W 0.147 W N/A 0.219 W N/A N/A
Apparent Power: 51.182 W 50.902 W N/A 51.507 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

Graphs 230V

230V

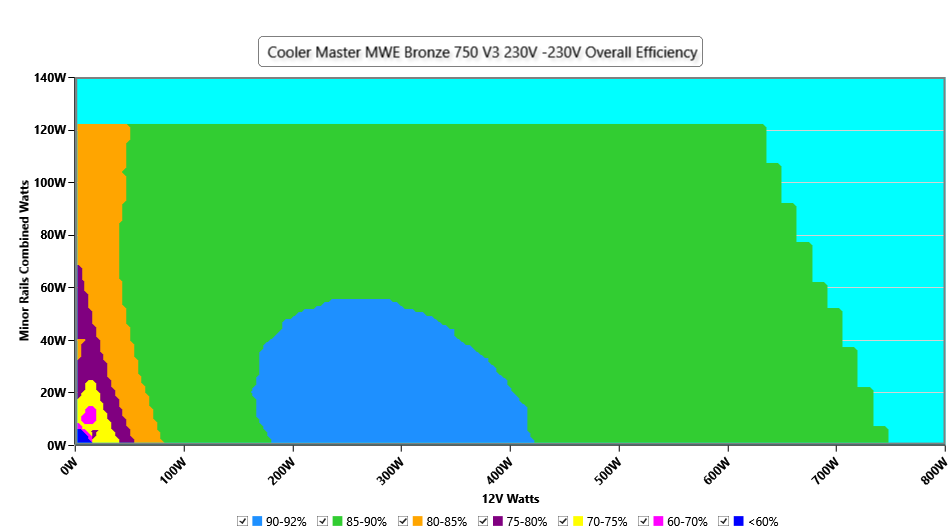

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

230V

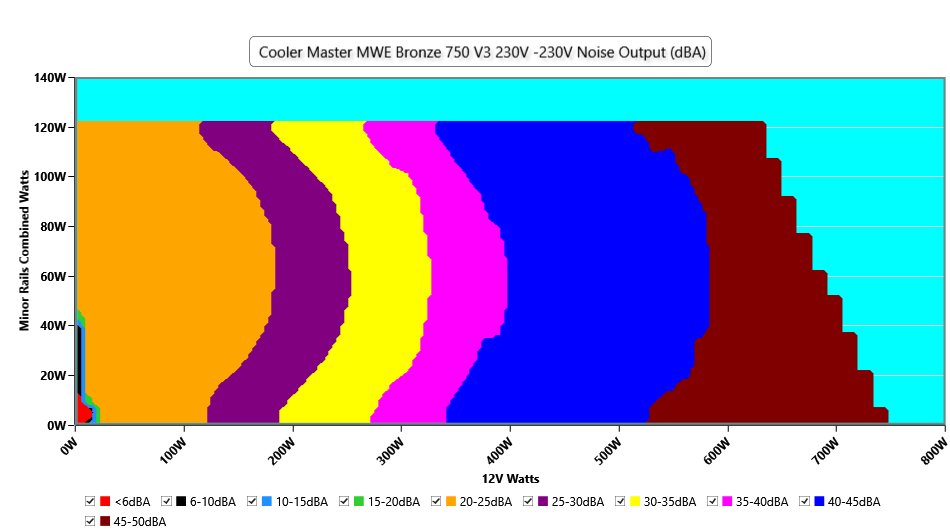

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

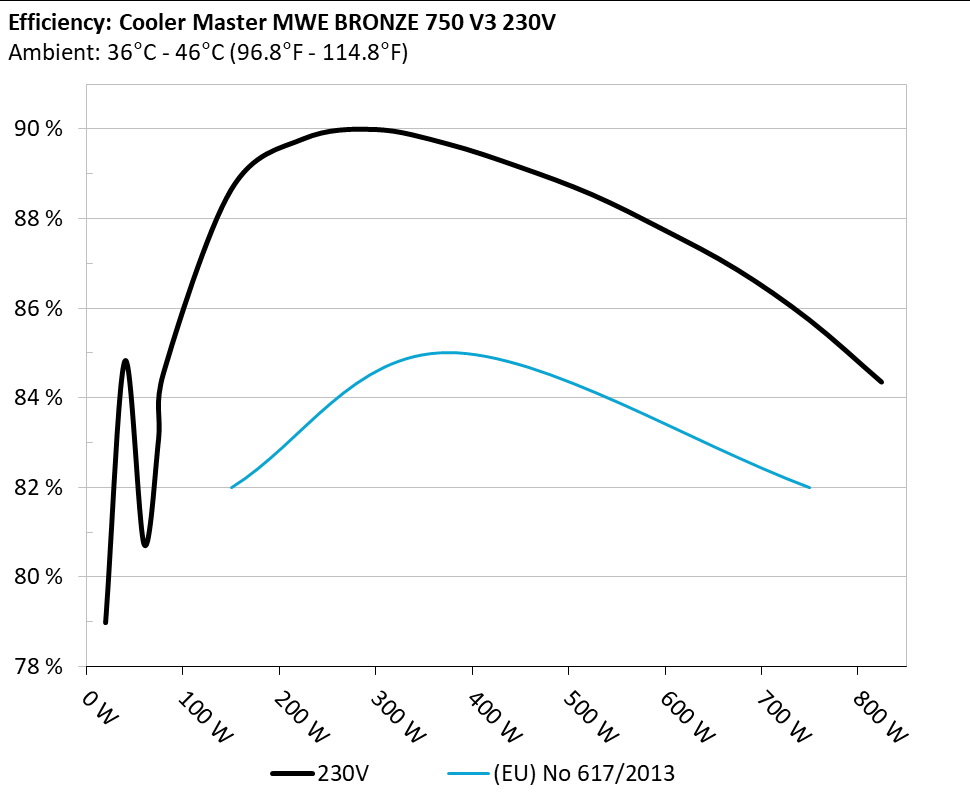

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

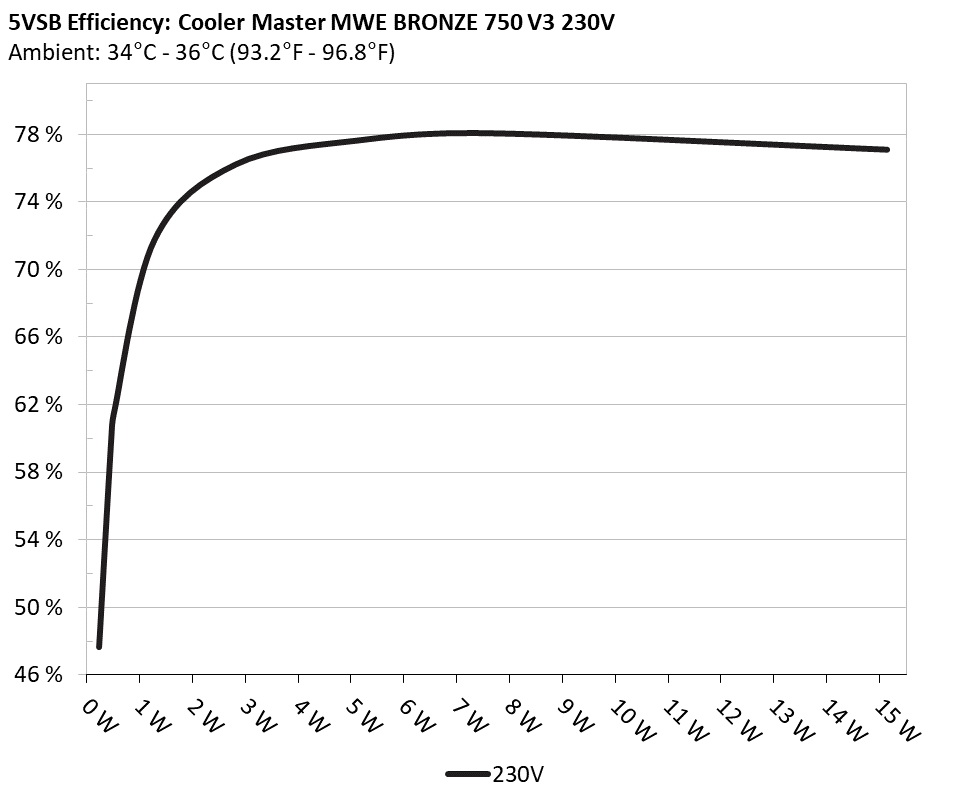

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

230V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 47.665% 0.01
5.137V 0.485W 230.37V
2 0.09A 0.462W 60.045% 0.016
5.136V 0.77W 230.37V
3 0.55A 2.818W 76.218% 0.074
5.122V 3.698W 230.37V
4 1A 5.11W 77.627% 0.126
5.108V 6.585W 230.36V
5 1.5A 7.641W 78.059% 0.177
5.093V 9.79W 230.36V
6 3.001A 15.142W 77.091% 0.289
5.047V 19.641W 230.36V

Supplementary Tests (For Reference)

230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.367A 1.95A 1.973A 0.982A 75.006 83.099% 1525 34.1 40.21°C 0.801
12.229V 5.129V 3.346V 5.09V 90.261 41.97°C 230.4V
20% 9.764A 2.935A 2.973A 1.184A 149.976 88.636% 1647 36 40.66°C 0.92
12.194V 5.112V 3.33V 5.071V 169.203 42.4°C 230.4V
30% 15.526A 3.433A 3.483A 1.386A 224.995 89.778% 1895 40.9 41.3°C 0.956
12.169V 5.099V 3.317V 5.053V 250.618 43.18°C 230.4V
40% 21.312A 3.934A 3.997A 1.59A 300.1 89.989% 2120 42.8 41.88°C 0.971
12.147V 5.086V 3.303V 5.034V 333.486 43.86°C 230.4V
50% 26.743A 4.934A 5.022A 1.796A 374.799 89.667% 2343 45.3 42.14°C 0.979
12.126V 5.069V 3.286V 5.013V 417.991 44.32°C 230.39V
60% 32.207A 5.94A 6.056A 2.001A 449.663 89.15% 2347 45.4 42.68°C 0.984
12.105V 5.053V 3.27V 4.993V 504.389 44.98°C 230.38V
70% 37.691A 6.953A 7.102A 2.213A 524.567 88.538% 2349 45.4 43.18°C 0.987
12.083V 5.036V 3.253V 4.972V 592.477 46.26°C 230.36V
80% 43.264A 7.972A 8.158A 2.322A 599.767 87.744% 2353 45.5 43.63°C 0.988
12.062V 5.018V 3.236V 4.954V 683.542 47.23°C 230.35V
90% 49.189A 8.495A 8.692A 2.432A 674.779 86.866% 2354 45.5 44.51°C 0.99
12.041V 5.004V 3.221V 4.936V 776.801 48.5°C 230.33V
100% 54.935A 9.023A 9.265A 3.062A 750 85.743% 2357 45.5 45.07°C 0.991
12.020V 4.988V 3.205V 4.9V 874.704 50.22°C 230.32V
110% 60.577A 10.063A 10.449A 3.073A 825.031 84.354% 2363 45.6 46.31°C 0.992
11.997V 4.969V 3.186V 4.882V 978.066 52.52°C 230.31V
CL1 0.115A 14.337A 14.579A 0.001A 121.309 80.304% 2288 44.8 40.65°C 0.906
12.208V 5.036V 3.272V 5.083V 151.064 44.01°C 230.4V
CL2 0.114A 19.88A 0A 0.001A 101.404 79.349% 2094 42.6 40.05°C 0.878
12.222V 5.03V 3.335V 5.104V 127.798 42.49°C 230.4V
CL3 0.114A 0A 20.186A 0.001A 67.401 72.108% 2024 41.9 40.99°C 0.811
12.215V 5.116V 3.269V 5.098V 93.473 43.06°C 230.41V
CL4 62.374A 0A 0A 0.001A 749.853 86.929% 2363 45.6 45.47°C 0.991
12.021V 5.058V 3.262V 5.018V 862.621 49.35°C 230.33V

The results above are not used in the certification process

230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.216A 0.486A 0.491A 0.195A 20.012 78.99% 0 <6.0 41.64°C 0.382
12.226V 5.147V 3.363V 5.124V 25.336 36.12°C 230.42V
40W 2.668A 0.681A 0.688A 0.293A 40.007 84.823% 0 <6.0 42.74°C 0.59
12.258V 5.143V 3.359V 5.118V 47.169 37.11°C 230.41V
60W 4.130A 0.876A 0.885A 0.391A 60.003 80.734% 1437 32.4 38.87°C 0.746
12.234V 5.139V 3.355V 5.112V 74.324 40.1°C 230.41V
80W 5.588A 1.072A 1.083A 0.49A 79.97 84.547% 1402 31.4 39.28°C 0.813
12.228V 5.135V 3.351V 5.106V 94.587 40.76°C 230.4V

The results above are not used in the certification process

230V

Test12V5V3.3V5VSBPass/Fail
10% Load7.68mV13.98mV8.24mV34.95mVPass
20% Load23.64mV13.42mV8.24mV33.98mVPass
30% Load22.32mV13.62mV8.69mV34.34mVPass
40% Load22.17mV14.18mV9.00mV34.59mVPass
50% Load23.14mV15.15mV10.32mV37.39mVPass
60% Load22.93mV16.53mV12.67mV39.48mVPass
70% Load23.24mV17.19mV11.70mV40.50mVPass
80% Load24.46mV18.26mV15.62mV41.06mVPass
90% Load24.97mV19.33mV15.67mV43.20mVPass
100% Load40.28mV22.91mV18.16mV52.06mVFail
110% Load44.26mV24.02mV19.52mV53.96mVFail
Crossload138.77mV26.95mV23.67mV40.61mVPass
Crossload213.49mV37.54mV13.02mV36.58mVPass
Crossload311.25mV14.54mV24.77mV33.73mVPass
Crossload439.40mV16.13mV9.24mV43.06mVPass

The results above are not used in the certification process

Cooler Master MWE Bronze 750 V3 230V

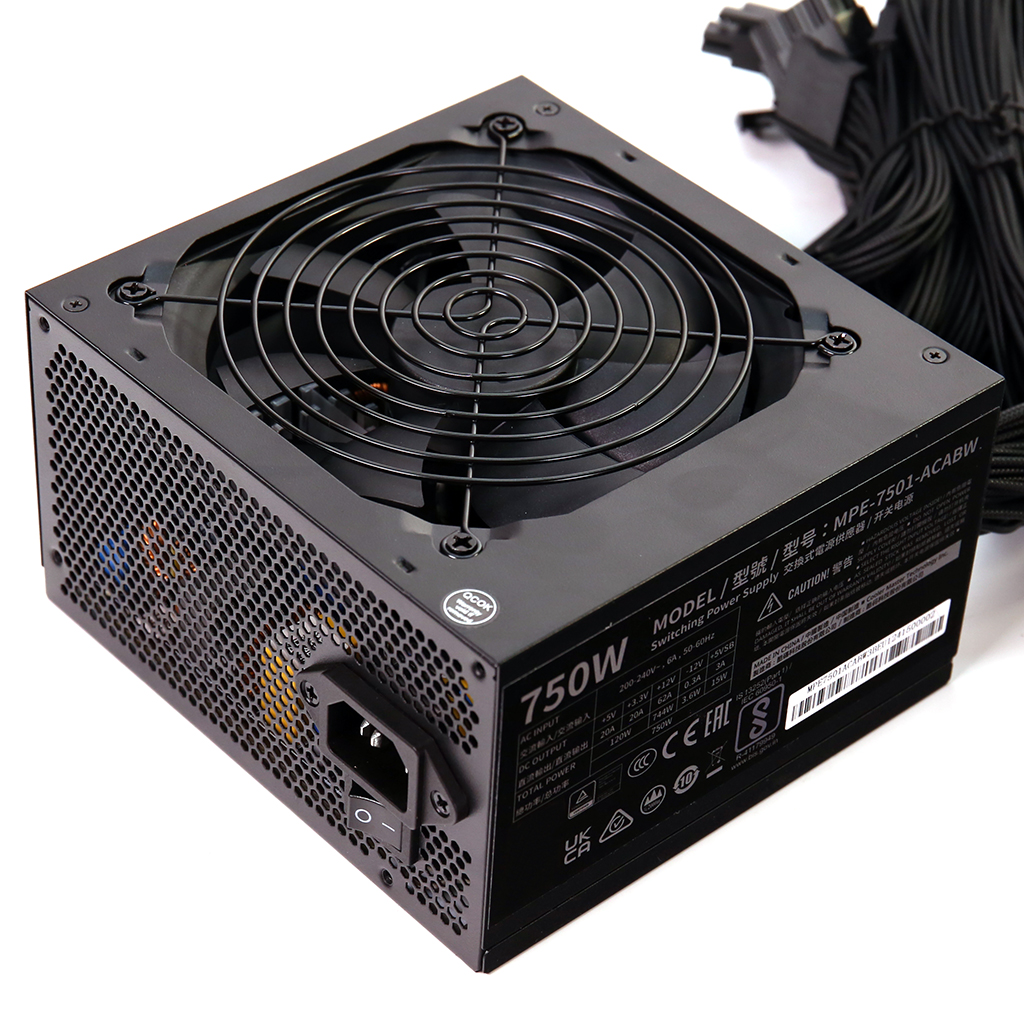

Top side

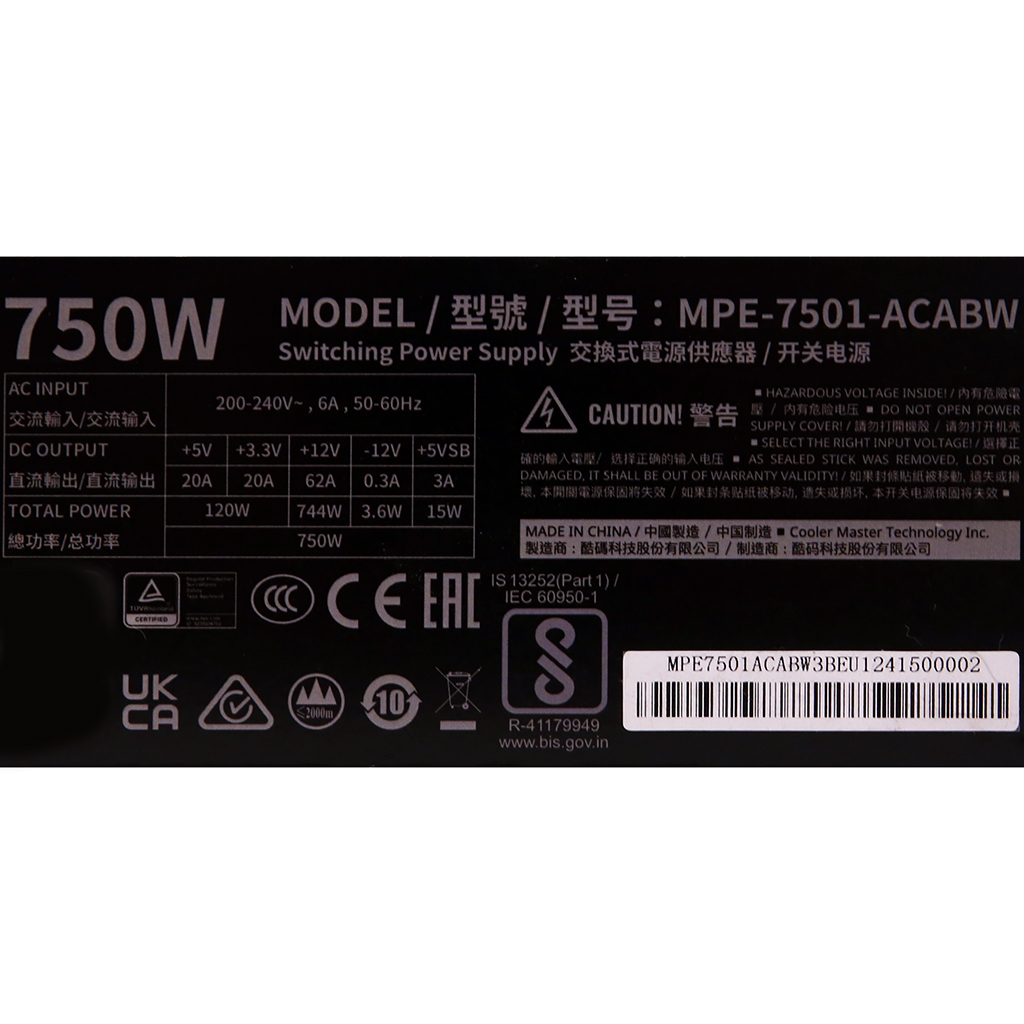

Power specifications label
