CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Duex Pulse 850W
Serial Number
Lab IDDX85002501
  • Report: 24PS2501A
  • Receipt Date: Jul 1, 2024
  • Test Date: Jul 8, 2024
  • Report Date: Jul 12, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandDuex
Manufacturer (OEM)Kinpower
SeriesPulse
Model NumberDXF0PR0850WG3
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)16
Rated Frequency (Hz)50-60
Rated Power (W)850
TypeATX12V
Cooling120mm Rifle Bearing Fan
(EFS-12E12H)
Semi-Passive Operation✓
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202070.830.3
Watts103850153.6
Total Max. Power (W)850

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18-22AWG No
4+4 pin EPS12V (700mm) 2 2 18AWG No
6+2 pin PCIe (600mm+150mm) 2 4 18AWG No
12+4 pin PCIe (600mm) (600W) 1 1 16-24AWG No
SATA (450mm+150mm+150mm) 2 6 18AWG No
4-pin Molex (450mm+150mm+150mm) 1 3 18AWG No

Parts Description

General Data
Manufacturer (OEM) Kinpower
PCB Type Double-Sided
Primary Side
Transient Filter 2x Y caps, 1x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor M72 5D-15 (5 Ohm @25°C) & Relay
Bridge Rectifier(s)

2x HY Electronic GBU2506L (600V, 25A @ 150°C)
APFC MOSFETs

2x Sanrise Tech SRC60R140B (600V, 11.2A @ 125°C, Rds(on): 140mOhm)
APFC Boost Diode

1x Global Power Technology G3S06510A (650V, 10A @ 153.5°C)
Bulk Cap(s)

1x Nippon Chemi-Con (400V, 680uF, 2000h @ 105°C, KMW)
Main Switchers

2x Sanrise Tech SRC60R140B (600V, 11.2A @ 125°C, Rds(on): 140mOhm)
APFC Controller

Champion CM6500UNX
Resonant Controller

Champion CM6901X
Topology

Primary side: APFC, Half-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 6x Alkaidsemi Technologies AKG40N025G (40V, 74A @ 100°C, Rds(on): 2.5mOhm)
5V & 3.3V DC-DC Converters: 4x Excelliance EMB06N03R (20V, 45A @ 100°C, Rds(on): 6mOhm PWM Controller(s): 2x Aplustek AT8853ZSPC
Filtering Capacitors

Electrolytic: 3x TK (105°C, SZ) Polymer: 34x Chengx (PC), 2x TK (SZ)
Supervisor IC IN1S4291-SCG
Fan Model DWPH EFS-12E12H (120mm, 12V, 0.50A, Rifle Bearing Fan)
5VSB Circuit
Low Side Rectifier

Dongke DK5V45R15S (45V, Rds(on): 15mOhm)
Standby PWM Controller FuXin Semiconductor FXI8252S

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary 115V

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)20
AC Loss to PWR_OK Hold Up Time (ms)16.9
PWR_OK Inactive to DC Loss Delay (ms)3.1

Vampire Power

Tables 115V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.08 V 115.04 V 113.85 V 115.12 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.08 % N/A 0.18 % 2.00 % PASS
Real Power: 0.037 W -0.001 W N/A 0.065 W N/A N/A
Apparent Power: 2.385 W 2.317 W N/A 2.468 W N/A N/A
Power Factor: 0.021 N/A N/A N/A N/A N/A

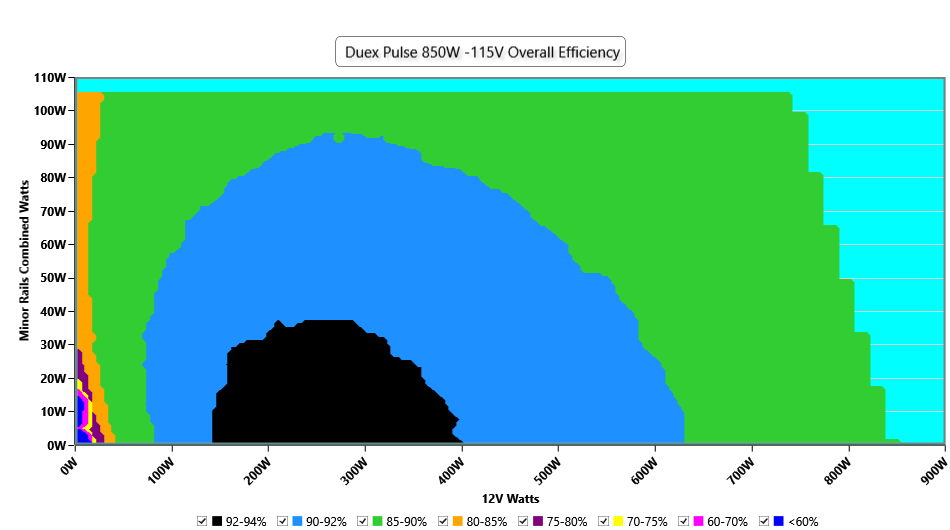

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

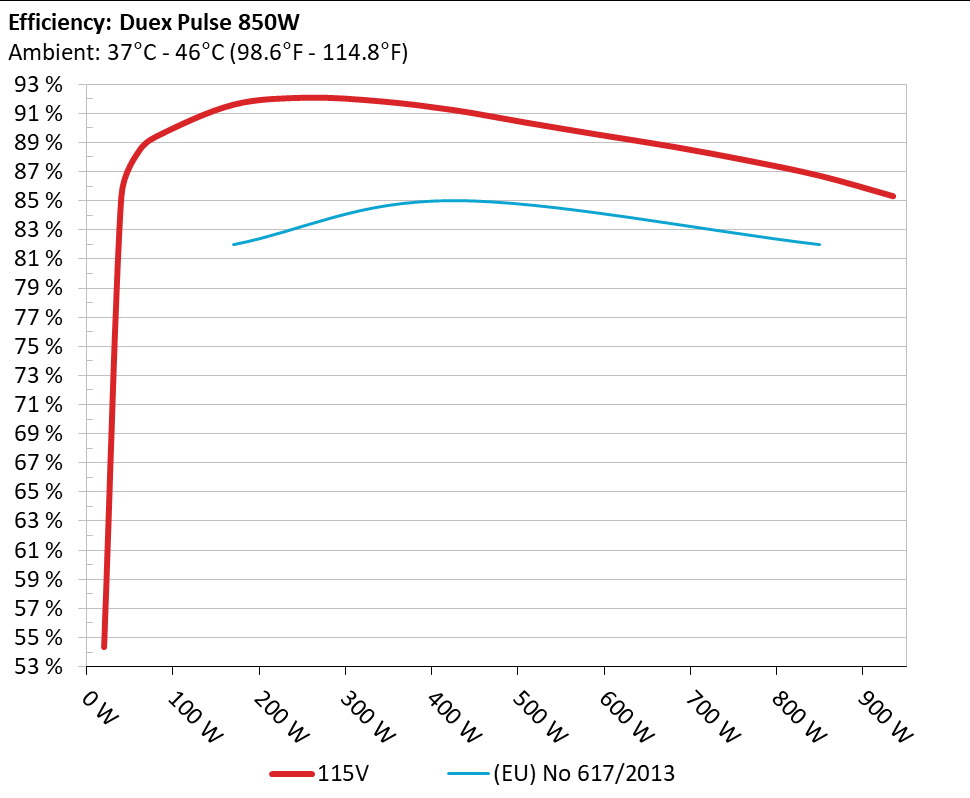

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

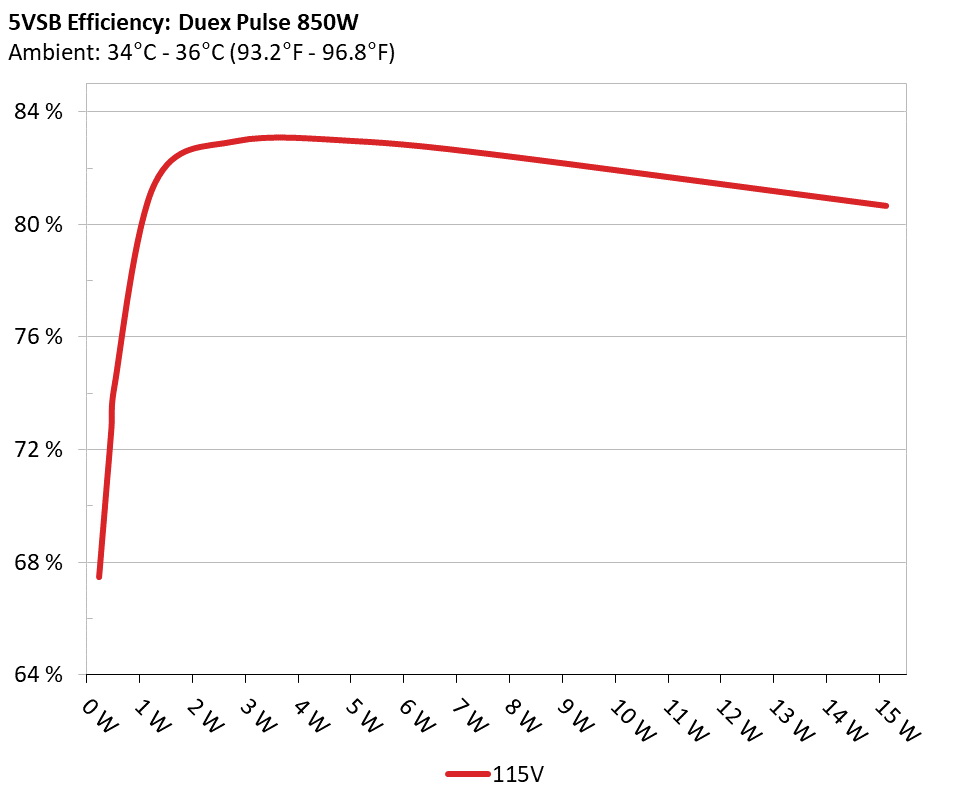

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232W 67.485% 0.119
5.152V 0.344W 114.86V
2 0.09A 0.464W 72.752% 0.192
5.151V 0.638W 114.86V
3 0.55A 2.823W 82.955% 0.386
5.133V 3.403W 114.84V
4 1A 5.116W 82.953% 0.43
5.116V 6.168W 114.84V
5 1.5A 7.647W 82.493% 0.447
5.098V 9.27W 114.84V
6 3A 15.122W 80.66% 0.475
5.041V 18.747W 114.84V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.194A 1.98A 1.982A 0.979A 84.997 89.525% 877 20.5 40.29°C 0.94
12.206V 5.049V 3.33V 5.106V 94.94 42.5°C 114.81V
20% 11.400A 2.974A 2.978A 1.179A 169.916 91.578% 880 20.6 40.6°C 0.965
12.195V 5.044V 3.324V 5.087V 185.539 44.12°C 114.79V
30% 17.963A 3.471A 3.478A 1.381A 254.915 92.055% 882 20.6 41.05°C 0.977
12.184V 5.04V 3.321V 5.069V 276.914 45.85°C 114.76V
40% 24.545A 3.97A 3.979A 1.584A 339.996 91.81% 884 20.6 41.53°C 0.984
12.173V 5.037V 3.317V 5.05V 370.322 47.42°C 114.73V
50% 30.770A 4.969A 4.983A 1.79A 424.756 91.208% 890 20.7 42.26°C 0.988
12.163V 5.031V 3.311V 5.03V 465.703 50.46°C 114.71V
60% 36.990A 5.967A 5.989A 1.996A 509.281 90.342% 1450 36.1 42.73°C 0.99
12.151V 5.027V 3.306V 5.009V 563.723 51.16°C 114.67V
70% 43.296A 6.969A 6.997A 2.205A 594.595 89.501% 1752 41.6 43.09°C 0.992
12.137V 5.023V 3.302V 4.989V 664.35 52.14°C 114.64V
80% 49.617A 7.97A 8.008A 2.313A 679.439 88.694% 1865 44.2 43.58°C 0.993
12.124V 5.018V 3.297V 4.972V 766.044 54.17°C 114.62V
90% 56.337A 8.477A 8.506A 2.422A 764.886 87.752% 1863 44.2 44.14°C 0.994
12.113V 5.013V 3.291V 4.955V 871.633 56.36°C 114.61V
100% 62.803A 8.983A 9.035A 3.05A 849.703 86.694% 1865 44.2 45°C 0.995
12.101V 5.009V 3.287V 4.918V 980.109 59.43°C 114.54V
110% 69.152A 9.998A 10.157A 3.06A 934.293 85.304% 1866 44.2 46.42°C 0.995
12.090V 5.001V 3.278V 4.903V 1095.267 63.51°C 114.52V
CL1 0.114A 12.386A 12.45A 0.001A 104.292 82.87% 885 20.6 40.36°C 0.952
12.199V 5.006V 3.285V 5.128V 125.849 53.74°C 114.81V
CL2 0.113A 20.048A 0A 0.001A 101.33 81.382% 891 20.7 40.53°C 0.952
12.198V 4.985V 3.306V 5.134V 124.514 50°C 114.82V
CL3 0.113A 0A 20.195A 0A 67.381 74.863% 875 20.5 40.22°C 0.938
12.197V 5.016V 3.268V 5.134V 90.007 47.35°C 114.82V
CL4 70.141A 0A 0A 0.007A 849.496 87.866% 1880 44.5 46.85°C 0.995
12.111V 5.031V 3.309V 5.053V 966.806 56.11°C 114.56V

The results above are not used in the certification process

Light Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.216A 0.494A 0.494A 0.195A 19.996 54.375% 869 20.4 36.59°C 0.87
12.201V 5.061V 3.341V 5.141V 36.776 41.94°C 114.83V
40W 2.677A 0.692A 0.692A 0.292A 39.994 85.299% 870 20.4 37.07°C 0.891
12.210V 5.055V 3.337V 5.139V 46.886 40.3°C 114.83V
60W 4.138A 0.89A 0.891A 0.39A 59.993 88.354% 874 20.5 38.37°C 0.921
12.209V 5.053V 3.334V 5.133V 67.9 41.53°C 114.82V
80W 5.596A 1.088A 1.088A 0.488A 79.924 89.995% 874 20.5 39.48°C 0.937
12.203V 5.053V 3.335V 5.126V 88.811 41.05°C 114.81V

The results above are not used in the certification process

Ripple Measurements 115V

Test12V5V3.3V5VSBPass/Fail
10% Load19.13mV16.93mV15.49mV14.06mVPass
20% Load21.53mV16.78mV15.80mV17.86mVPass
30% Load21.48mV17.60mV15.85mV20.47mVPass
40% Load23.58mV17.30mV16.83mV23.71mVPass
50% Load23.43mV16.89mV15.08mV24.12mVPass
60% Load26.60mV18.73mV17.60mV29.40mVPass
70% Load26.80mV19.91mV17.50mV32.43mVPass
80% Load28.39mV27.81mV27.50mV35.10mVPass
90% Load28.13mV22.17mV23.55mV39.35mVPass
100% Load38.15mV28.37mV27.42mV44.62mVPass
110% Load40.22mV29.78mV26.66mV48.64mVPass
Crossload126.88mV26.63mV25.37mV15.36mVPass
Crossload221.18mV22.79mV16.72mV13.24mVPass
Crossload318.97mV43.47mV20.42mV12.47mVPass
Crossload438.18mV22.21mV18.52mV42.08mVPass

The results above are not used in the certification process

Duex Pulse 850W

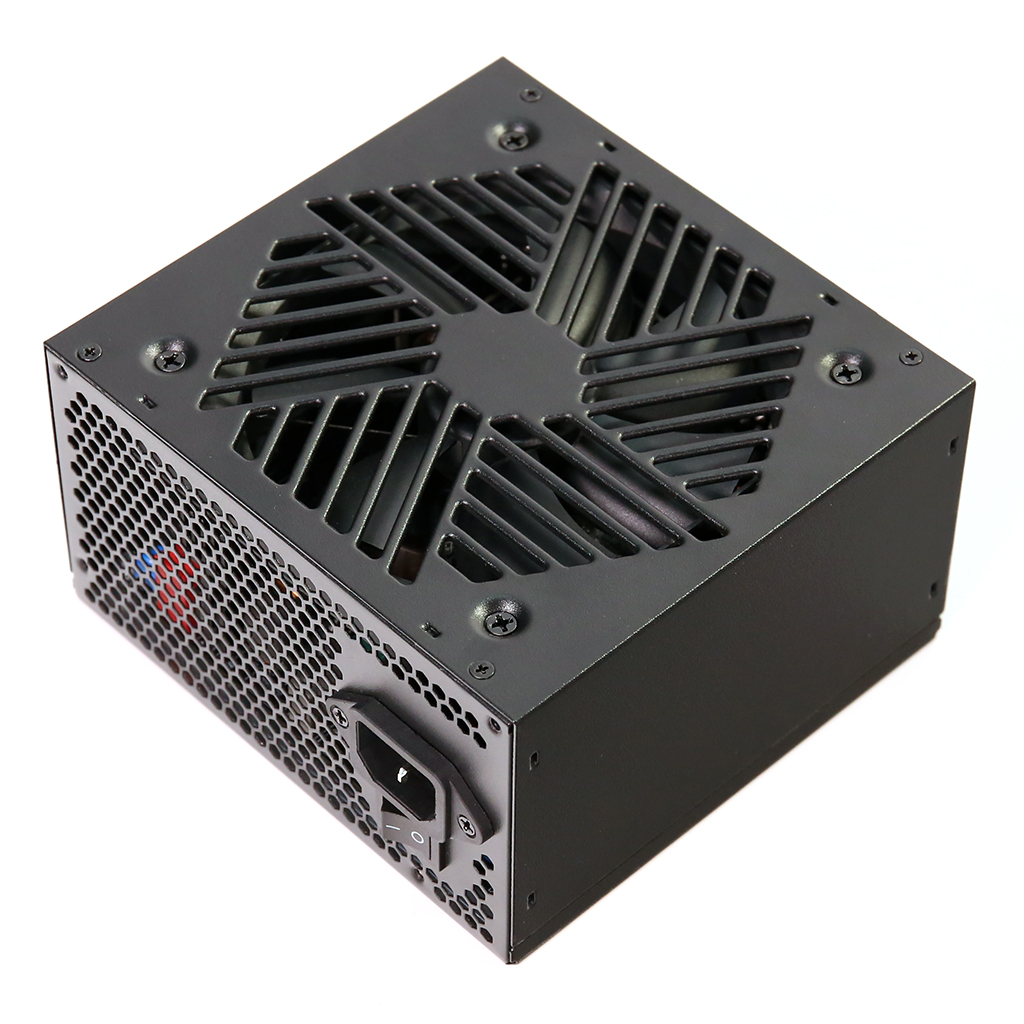

Top side

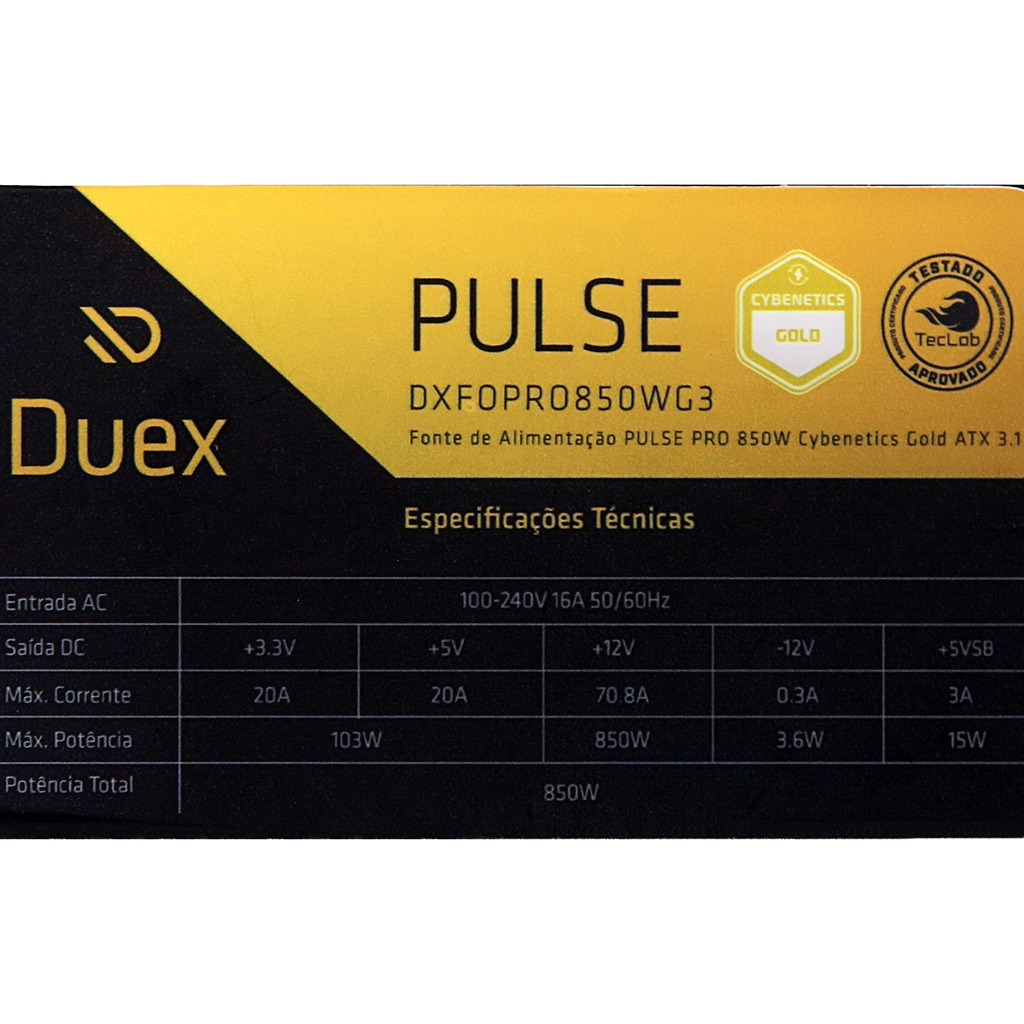

Power specifications label
