CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Cooler Master X SILENT EDGE PLATINUM 1100 230V
Serial Number
Lab IDCM11002485
  • Report: 24PS2485A
  • Receipt Date: May 29, 2024
  • Test Date: Jun 21, 2024
  • Report Date: Jun 25, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandCooler Master
Manufacturer (OEM)Cooler Master
SeriesX Silent
Model NumberMPS-B001-AZBP
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)200-240
Rated Current (Arms)6.1
Rated Frequency (Hz)50-60
Rated Power (W)1100
TypeATX12V
CoolingPassive
Semi-Passive Operation✓
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202091.630.3
Watts1201099.2153.6
Total Max. Power (W)1100

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 24 pin (645mm) 1 1 18-22AWG No
4+4 pin EPS12V (645mm) 1 1 16AWG No
8 pin EPS12V (645mm) 1 1 16AWG No
6+2 pin PCIe (550mm) 4 4 16-18AWG No
12+4 pin PCIe (650mm) (600W) 1 1 16-28AWG No
SATA (500mm+140mm+140mm+140mm) 3 12 18AWG No
4-pin Molex (500mm+120mm+120mm+120mm) 1 4 18AWG No
4-pin PWM Fan Connector (400mm) 1 1 28AWG No
USB M/B Connector (790mm) 1 1 24AWG No
AC Power Cord (1360mm) - C13 coupler 1 1 17AWG -

Parts Description


General Data
Manufacturer (OEM) Cooler Master
Platform MPS-D001-AFAP
PCB Type Double-Sided (Four-layer board
Primary Side
Transient Filter 2x Y caps, 1x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor SCK20100 (10 Ohm @25°C) & Relay
Rectifier MOSFETs
4x Infineon  IPT60R022S7 (600V, 23A @ 140°C, Rds(on): 0.0.22Ohm)
APFC MOSFETs
2x Infineon IMW65R072M1H (650V, 18A @ 100°C, Rds(on): 0.094Ohm)
APFC Driver
Infineon 2EDN7524F
APFC Boost Diode
1x Infineon IDW10G65C5 (650V, 10A @ 130°C)
Bulk Cap(s)
2x TDK B43641 (450V, 560uF each or 1120uF combined, 2000h @ 105°C)
Main Switchers
4x Infineon IPW60R070CFD7(650V, 31A @ 25°C, Rds(on): 0.07Ohm)
Driver ICs
2x Infineon 2ED21814S06J(650V, 31A @ 25°C, Rds(on): 0.07Ohm)
APFC Controller
Infineon ICE3PCS01G
Resonant Controller
Infineon ICE2HS01G
Primary Side MCU
Topology
Primary side: Bridgeless PFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 12x Infineon ISC010N04NM6 (40V, 201A @ 100°C, Rds(on): 1.0mOhm)
5V & 3.3V DC-DC Converters: 6x Infineon ISC011N03L5S (30V, 100A @ 100°C, Rds(on): 1.1mOhm)
PWM Controller(s): 1x
Filtering Capacitors

Electrolytic:
2x Rubycon (6-10,000 @ 105°C, ZLH),
Polymer: 42x Nippon Chemi-Con, 7x
Supervisor IC Weltrend WT7502
Secondary Side MCU Silicon Labs C8051F380-GQ
5VSB
TVS Diode
Low Side Rectifier
DK DK5V45R05M (45V, Rds(on): 5mOh)
Standby PWM Controller Infineon ICE5QR1680BG

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary 230V

Efficiency RatingPLATINUM
Noise RatingA++
Average Efficiency (>1450 load combinations)92.611%
Average Noise Output (>1450 Load Combinations)6.00dBA
Average PF (>1450 Load Combinations)0.964
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.1643W
12V Ripple (Full Load)29.97mV
5V Ripple (Full Load)15.59mV
3.3V Ripple (Full Load)13.97mV
5VSB Ripple (Full Load)9.58mV
12V Load Regulation0.51%
5V Load Regulation0.96%
3.3V Load Regulation2.05%
5VSB Load Regulation2.82%
Inrush Current0.000A
12V Transient Response (200%)11.12V
5V Transient Response (200%)4.900V
3.3V Transient Response (200%)3.265V
5VSB Transient Response (200%)4.866V
Hold-Up Time & Power Ok Signal26.40ms
AC Loss to PWR_OK Hold Up Time19.30ms
PWR_OK Inactive to DC Loss Delay7.10ms
PSU Timings: T1 (20% / 100%)84.0ms83.0ms
PSU Timings: T3 (20% / 100%)125.0ms126.0ms
12V OCP (27.3°C / 42.1°C)111.40A (121.62%), 11.937V110.20A (120.31%), 11.949V
5V OCP (27.3°C / 42.1°C)25.0A (125.00%), 5.004V24.0A (120.00%), 5.018V
3.3V OCP (27.3°C / 42.1°C)25.1A (125.50%), 3.354V24.0A (120.00%), 3.361V
5VSB OCP (27.3°C / 42.1°C)4.4A (146.67%), 4.965V4.1A (136.67%), 4.973V
OPP (26.99°C / 41.85°C)120.52%120.25%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)26.4
AC Loss to PWR_OK Hold Up Time (ms)19.3
PWR_OK Inactive to DC Loss Delay (ms)7.1

Vampire Power

Tables 230V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.02 V 230.93 V 227.70 V 231.10 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.15 % N/A 0.27 % 2.00 % PASS
Real Power: 0.164 W 0.123 W N/A 0.211 W N/A N/A
Apparent Power: 46.789 W 46.075 W N/A 47.582 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

Graphs 230V

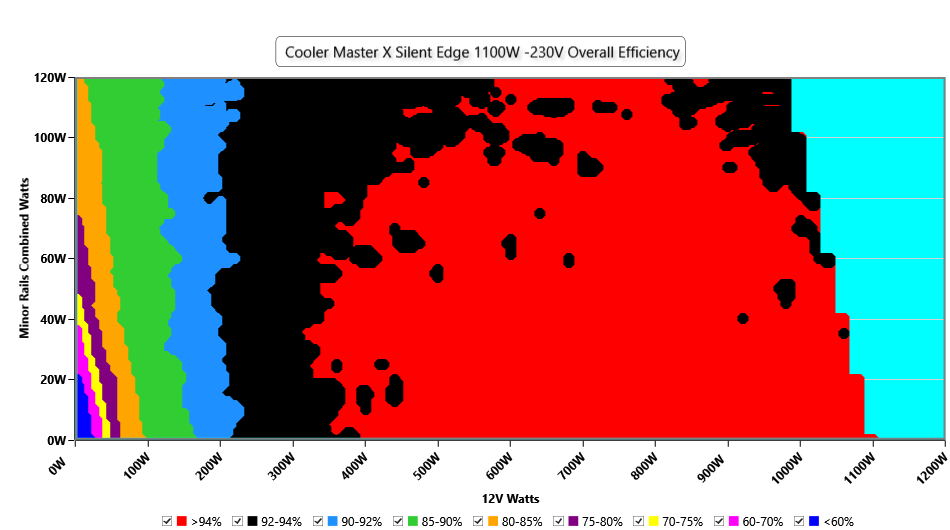

Efficiency Graph

230V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

230V

Indicative Performance

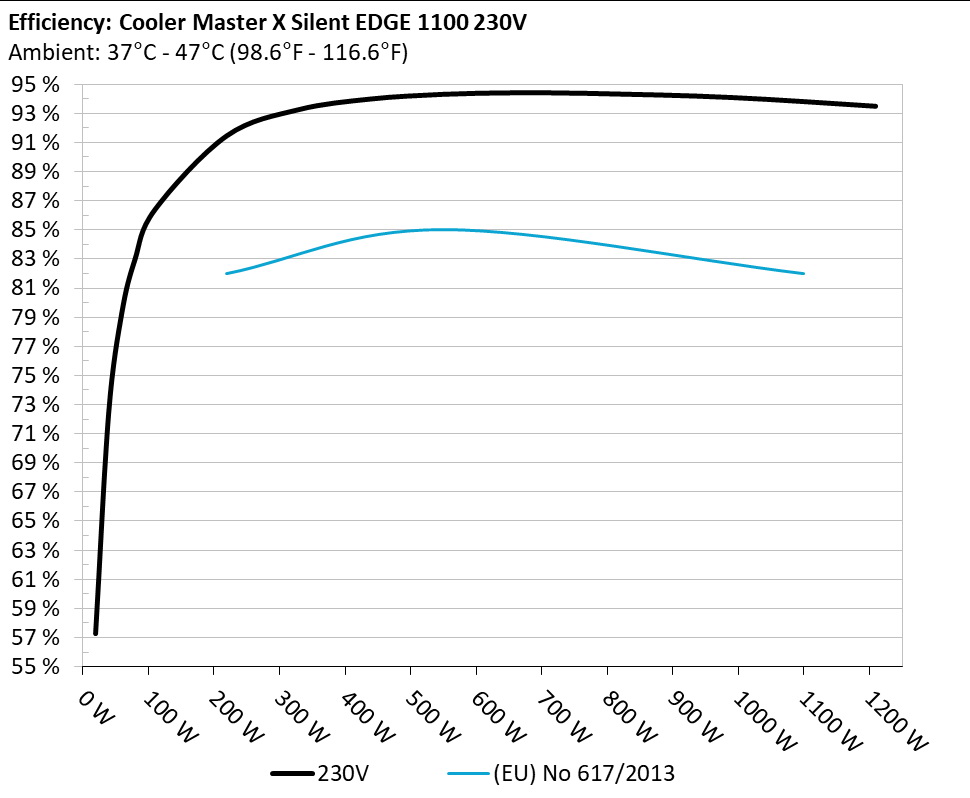

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

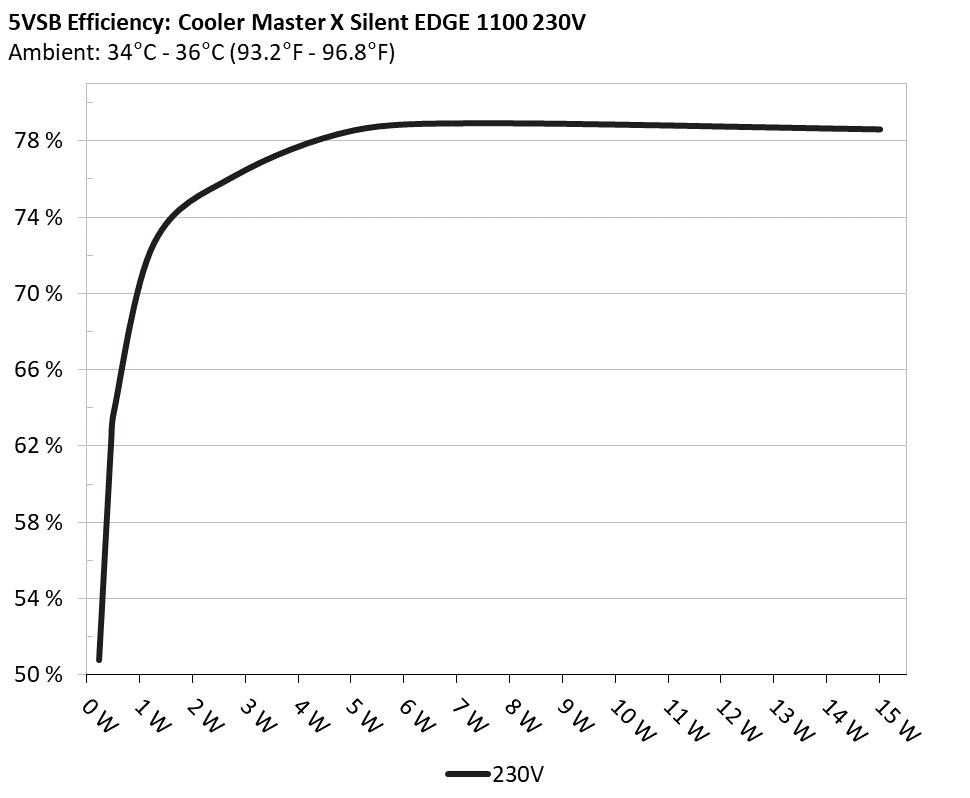

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 230V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 50.779% 0.01
5.069V 0.449W 230.36V
2 0.09A 0.456W 62.194% 0.017
5.068V 0.733W 230.35V
3 0.55A 2.782W 76.134% 0.081
5.057V 3.654W 230.37V
4 1A 5.048W 78.536% 0.137
5.047V 6.428W 230.37V
5 1.5A 7.554W 78.906% 0.192
5.035V 9.574W 230.37V
6 3A 14.998W 78.586% 0.312
4.999V 19.085W 230.37V

Supplementary Tests (For Reference)

Typical Load Tests 230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Temps (In/Out) PF/AC Volts
10% 7.367A 1.985A 1.951A 0.992A 110.014 86.352% 44.56°C 0.841
12.001V 5.04V 3.382V 5.043V 127.399 40.35°C 230.36V
20% 15.762A 2.98A 2.933A 1.193A 219.977 91.448% 44.53°C 0.934
11.995V 5.034V 3.375V 5.031V 240.56 40.54°C 230.34V
30% 24.521A 3.48A 3.429A 1.395A 330.031 93.249% 45.84°C 0.966
11.989V 5.03V 3.369V 5.02V 353.914 41.18°C 230.32V
40% 33.258A 3.981A 3.926A 1.598A 439.721 93.979% 46.72°C 0.978
11.982V 5.025V 3.362V 5.008V 467.883 41.82°C 230.3V
50% 41.695A 4.982A 4.918A 1.802A 549.848 94.299% 47.48°C 0.984
11.976V 5.02V 3.355V 4.996V 583.105 42.22°C 230.29V
60% 50.146A 5.984A 5.914A 2.001A 659.985 94.403% 48.6°C 0.988
11.969V 5.015V 3.348V 4.984V 699.122 42.56°C 230.28V
70% 58.603A 6.988A 6.914A 2.213A 770.157 94.364% 50.03°C 0.991
11.962V 5.01V 3.341V 4.971V 816.174 43.21°C 230.27V
80% 67.070A 7.993A 7.917A 2.318A 879.74 94.254% 51.52°C 0.992
11.956V 5.005V 3.334V 4.961V 933.429 43.71°C 230.25V
90% 75.952A 8.499A 8.413A 2.424A 989.952 94.083% 53.34°C 0.994
11.948V 5.001V 3.328V 4.951V 1052.251 44.34°C 230.24V
100% 84.558A 9.006A 8.941A 3.044A 1099.578 93.804% 56.47°C 0.995
11.943V 4.997V 3.321V 4.928V 1172.157 45.88°C 230.22V
110% 93.121A 10.016A 10.047A 3.05A 1209.855 93.482% 58.66°C 0.995
11.936V 4.992V 3.314V 4.919V 1294.201 46.74°C 230.21V
CL1 0.117A 14.348A 14.16A 0A 121.308 85.177% 51.42°C 0.861
12.000V 5.032V 3.368V 5.06V 142.433 40.06°C 230.37V
CL2 0.117A 19.858A 0A 0A 101.4 83.6% 55.11°C 0.833
12.006V 5.036V 3.387V 5.068V 121.303 40.3°C 230.38V
CL3 0.116A 0A 19.586A 0A 67.393 77.156% 54.08°C 0.775
12.003V 5.049V 3.369V 5.063V 87.341 39.96°C 230.38V
CL4 92.048A 0A 0A 0A 1100.137 94.246% 57.19°C 0.995
11.952V 5.017V 3.338V 5.01V 1167.231 45.02°C 230.24V

The results above are not used in the certification process

Light Load Tests 230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Temps (In/Out) PF/AC Volts
20W 1.238A 0.496A 0.487A 0.197A 20.004 57.277% 42.65°C 0.551
12.004V 5.045V 3.389V 5.067V 34.968 36.77°C 230.37V
40W 2.724A 0.694A 0.682A 0.296A 40.003 72.441% 41.37°C 0.673
12.003V 5.045V 3.389V 5.064V 55.217 37.32°C 230.37V
60W 4.210A 0.892A 0.877A 0.395A 60.002 79.302% 42.46°C 0.746
12.003V 5.044V 3.387V 5.061V 75.663 38.11°C 230.37V
80W 5.693A 1.091A 1.072A 0.495A 79.965 82.943% 43.19°C 0.789
12.002V 5.044V 3.386V 5.057V 96.403 39.07°C 230.37V

The results above are not used in the certification process

Ripple Measurements 230V

Test12V5V3.3V5VSBPass/Fail
10% Load6.77mV9.08mV6.10mV5.20mVPass
20% Load7.53mV9.74mV6.10mV5.20mVPass
30% Load8.44mV10.35mV6.56mV5.45mVPass
40% Load9.77mV10.35mV6.71mV5.55mVPass
50% Load11.48mV10.25mV6.92mV5.71mVPass
60% Load13.42mV10.86mV7.17mV6.06mVPass
70% Load15.91mV12.14mV7.83mV6.32mVPass
80% Load17.80mV13.62mV12.41mV6.93mVPass
90% Load19.42mV13.77mV13.17mV6.72mVPass
100% Load29.97mV15.59mV13.97mV9.58mVPass
110% Load31.73mV18.41mV14.91mV9.94mVPass
Crossload110.03mV14.67mV13.86mV19.83mVPass
Crossload27.17mV12.65mV5.59mV15.03mVPass
Crossload37.02mV13.01mV19.38mV14.32mVPass
Crossload428.32mV11.27mV7.53mV9.41mVPass

The results above are not used in the certification process

Cooler Master X SILENT EDGE PLATINUM 1100 230V

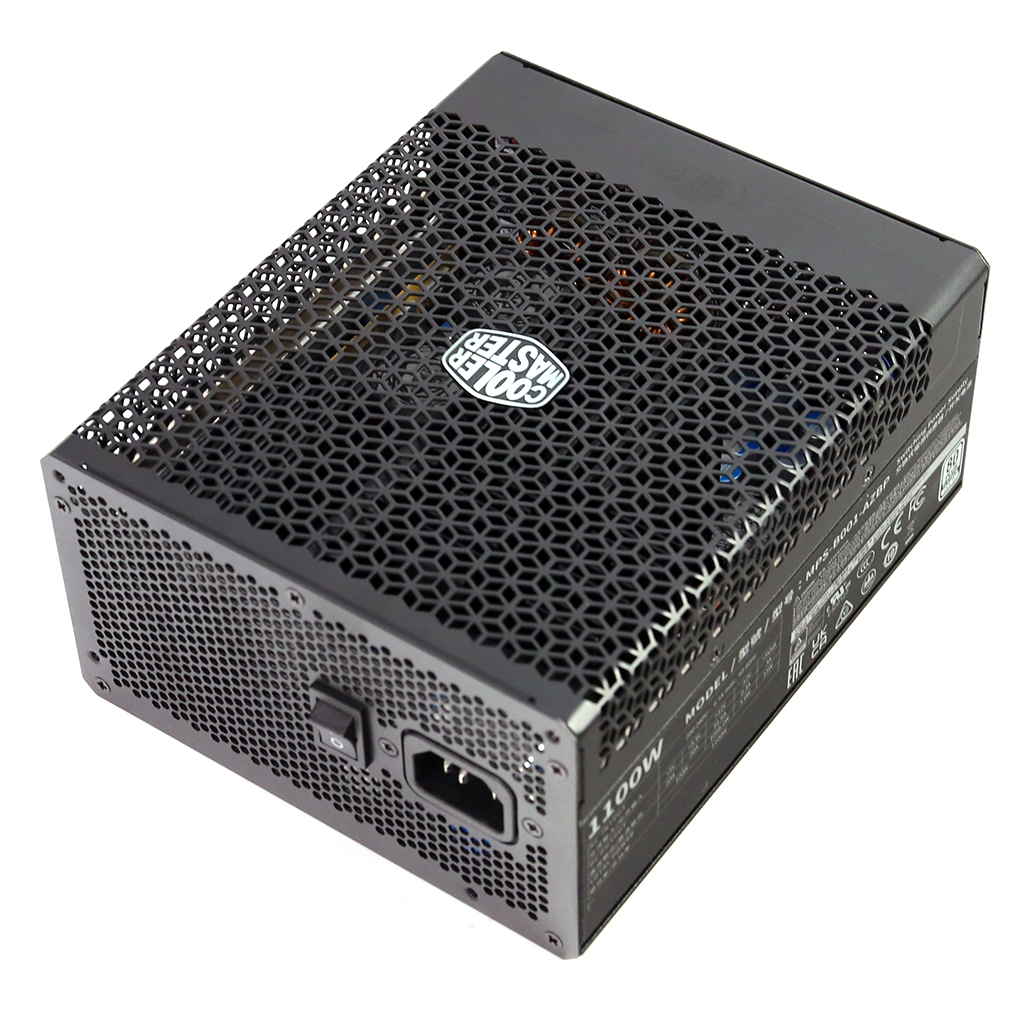

Top side

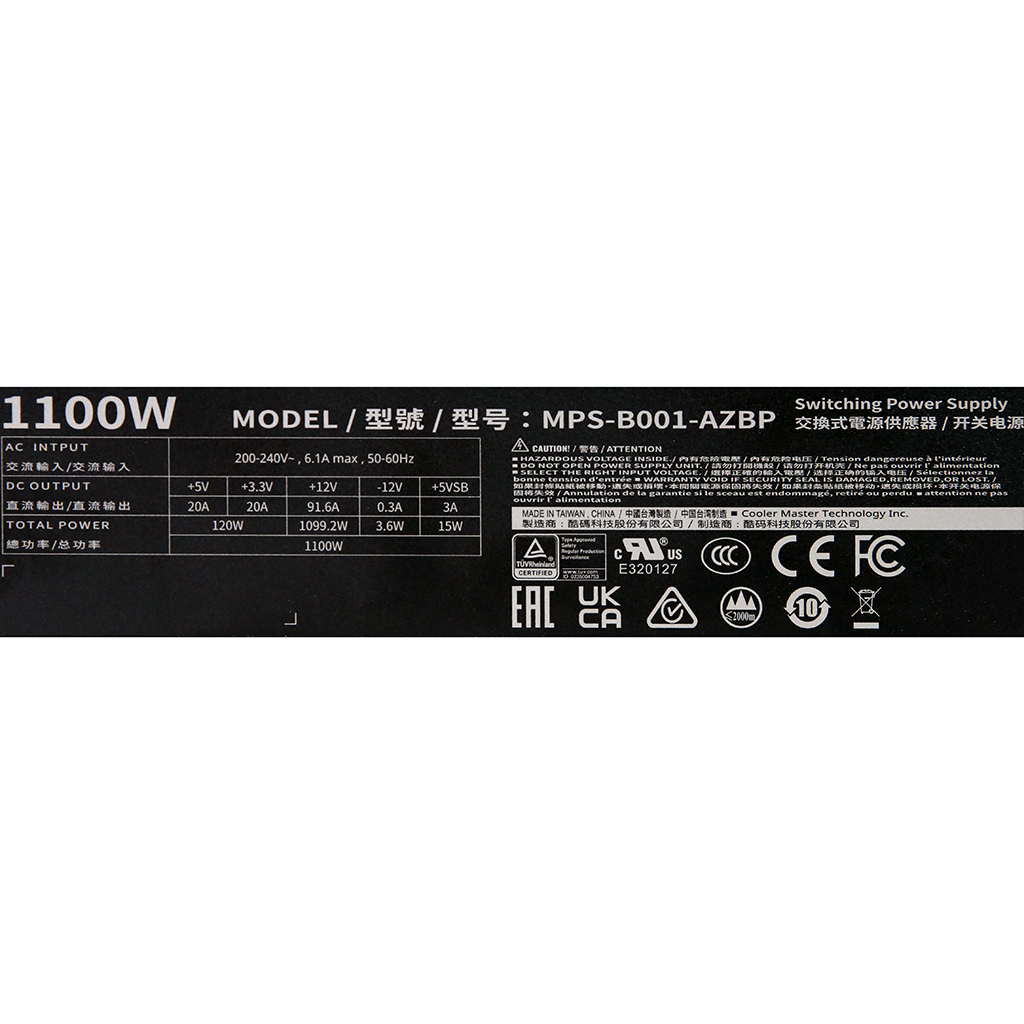

Power specifications label
