GOGHUNTERS Nirvana N17 850W (115V)
Serial Number2N120091838
Lab IDHU85002473
  • Report: 24PS2473A
  • Receipt Date: May 17, 2024
  • Test Date: Jun 5, 2024
  • Report Date: Jun 7, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandGOGHUNTERS
Manufacturer (OEM)Great Wall
SeriesNirvana N
Model NumberGW-ATX1700BL N17MG
Serial Number2N120091838
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-120
Rated Current (Arms)10
Rated Frequency (Hz)50-60
Rated Power (W)850
TypeATX12V
Cooling140mm Double Ball Bearing Fan
(HA1425M12B-Z)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps252570.830.8
Watts130849.6159.6
Total Max. Power (W)850

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16-20AWG No
4+4 pin EPS12V (650mm) 2 2 18AWG No
2x 6+2 pin PCIe (600mm) 4 8 18AWG No
12+4 pin PCIe (680mm) (600W) 2 2 16-24AWG No
SATA (500mm+105mm+105mm+105mm) 1 4 18AWG No
2x 4-pin Molex (450mm) 2 4 18AWG No

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary 115V

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)16.3
AC Loss to PWR_OK Hold Up Time (ms)13.2
PWR_OK Inactive to DC Loss Delay (ms)3.1

Vampire Power

Tables 115V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.07 V 115.03 V 113.85 V 115.11 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.19 % 2.00 % PASS
Real Power: 0.051 W 0.029 W N/A 0.081 W N/A N/A
Apparent Power: 12.357 W 11.386 W N/A 13.369 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A

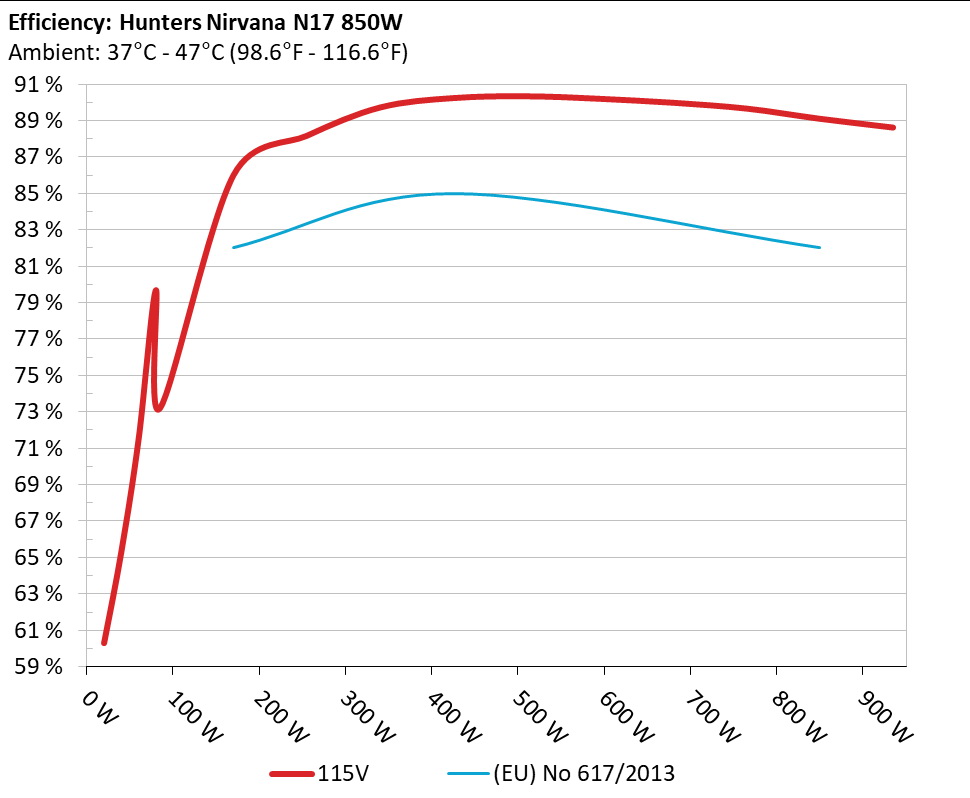

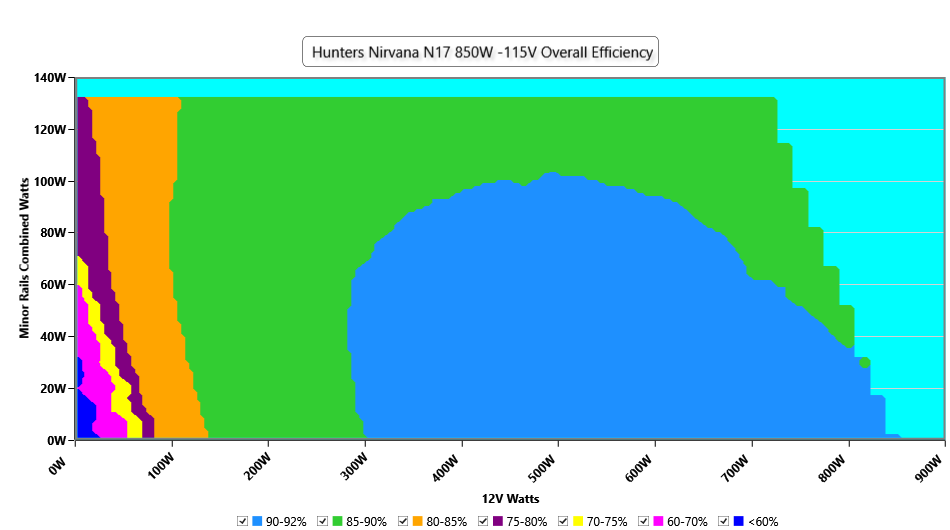

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

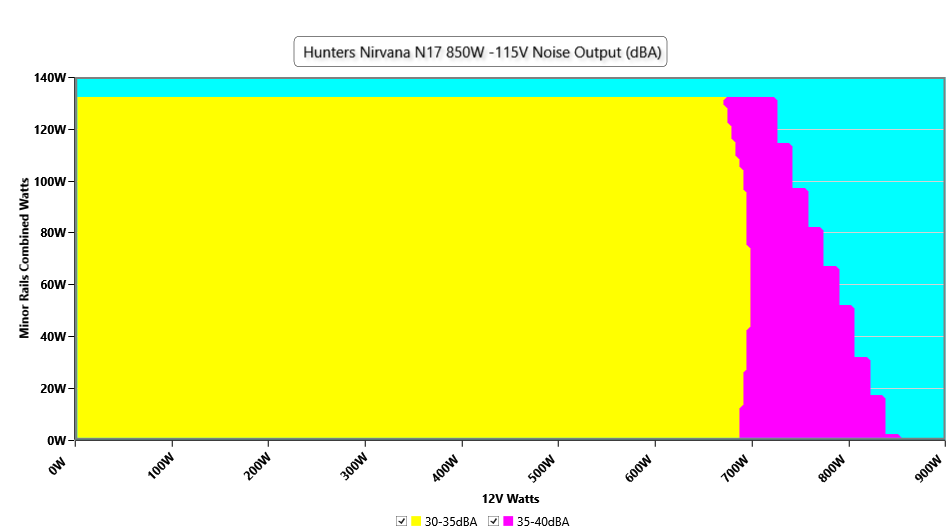

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

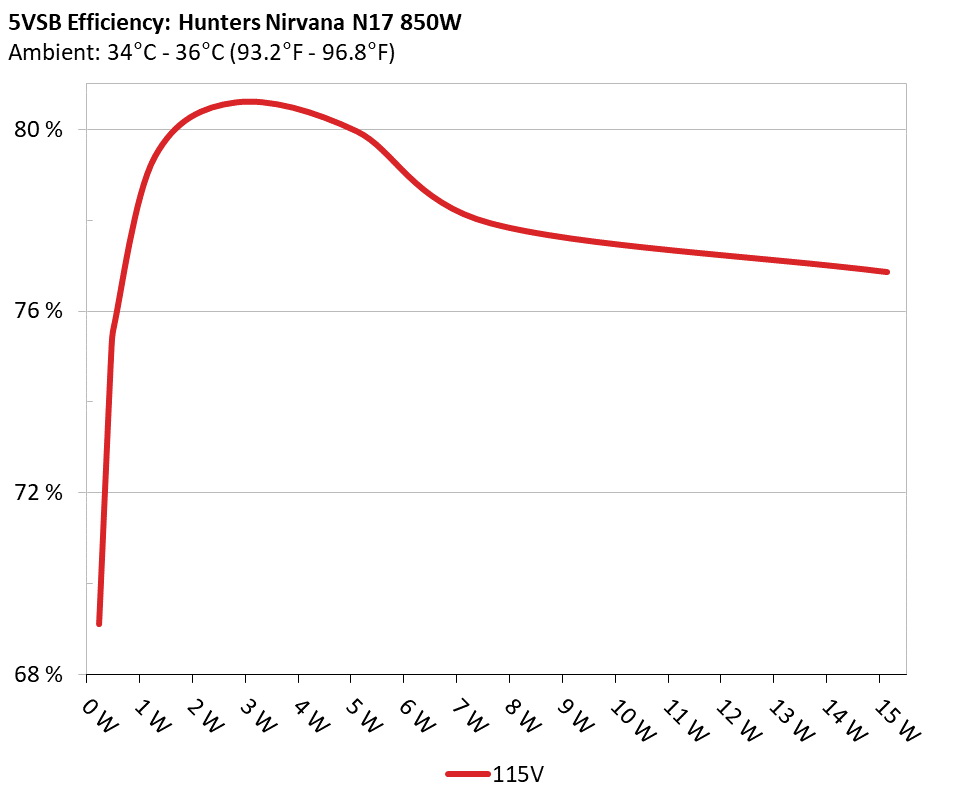

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 69.121% 0.034
5.131V 0.334W 114.87V
2 0.09A 0.462W 75.116% 0.061
5.132V 0.615W 114.87V
3 0.55A 2.815W 80.592% 0.263
5.118V 3.492W 114.86V
4 1A 5.105W 79.958% 0.345
5.104V 6.385W 114.86V
5 1.5A 7.635W 77.935% 0.402
5.089V 9.797W 114.87V
6 3A 15.134W 76.862% 0.472
5.044V 19.69W 114.86V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.254A 1.984A 1.98A 0.983A 85.002 73.225% 1215 34.9 40.42°C 0.92
12.068V 5.04V 3.333V 5.089V 116.081 45.98°C 114.83V
20% 11.540A 2.977A 2.972A 1.18A 169.938 86.02% 1331 38.3 40.96°C 0.954
12.048V 5.039V 3.331V 5.084V 197.558 45.91°C 114.8V
30% 18.174A 3.475A 3.469A 1.38A 254.943 88.184% 1447 40.2 41.03°C 0.964
12.044V 5.037V 3.329V 5.073V 289.102 46.5°C 114.77V
40% 24.819A 3.972A 3.968A 1.581A 340.032 89.744% 1475 41.6 41.91°C 0.972
12.040V 5.036V 3.327V 5.062V 378.887 47.5°C 114.75V
50% 31.090A 4.967A 4.963A 1.782A 424.871 90.259% 1478 41.6 42.13°C 0.978
12.041V 5.034V 3.325V 5.051V 470.726 48.43°C 114.71V
60% 37.353A 5.962A 5.96A 1.985A 509.39 90.356% 1547 42.9 42.75°C 0.982
12.036V 5.033V 3.323V 5.039V 563.764 50.14°C 114.69V
70% 43.691A 6.958A 6.958A 2.188A 594.704 90.216% 1594 45.1 43.24°C 0.986
12.030V 5.031V 3.32V 5.028V 659.2 51.06°C 114.66V
80% 50.032A 7.952A 7.956A 2.292A 679.511 90.001% 1666 47.8 43.91°C 0.988
12.025V 5.03V 3.318V 5.019V 755.008 52.42°C 114.63V
90% 56.779A 8.451A 8.443A 2.396A 764.941 89.678% 1732 49 44.38°C 0.99
12.019V 5.029V 3.316V 5.01V 852.988 53.81°C 114.6V
100% 63.268A 8.95A 8.961A 3.008A 849.741 89.119% 1836 49.1 45.22°C 0.991
12.013V 5.028V 3.314V 4.987V 953.493 55.6°C 114.57V
110% 69.632A 9.948A 10.053A 3.011A 934.316 88.636% 1929 52.6 46.46°C 0.992
12.007V 5.026V 3.312V 4.982V 1054.106 57.83°C 114.54V
CL1 0.115A 15.573A 15.527A 0A 131.291 78.468% 1450 40.3 40.64°C 0.948
12.041V 5.028V 3.323V 5.109V 167.32 47.77°C 114.8V
CL2 0.115A 24.866A 0A 0A 126.249 76.727% 1423 39.5 40.47°C 0.946
12.047V 5.022V 3.337V 5.115V 164.545 46.43°C 114.81V
CL3 0.115A 0A 24.869A 0A 83.882 70.25% 1307 37.7 40.63°C 0.923
12.046V 5.045V 3.317V 5.112V 119.406 45.72°C 114.82V
CL4 70.672A 0A 0A 0A 849.515 90.069% 1654 46.8 45.16°C 0.991
12.021V 5.037V 3.322V 5.078V 943.186 54.14°C 114.58V

The results above are not used in the certification process

Light Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.227A 0.496A 0.495A 0.195A 19.998 60.293% 1197 34.8 36.89°C 0.811
12.098V 5.041V 3.335V 5.122V 33.168 39.17°C 114.84V
40W 2.706A 0.694A 0.693A 0.293A 39.998 65.329% 1198 34.8 37.12°C 0.874
12.077V 5.041V 3.335V 5.115V 61.224 40.85°C 114.84V
60W 4.187A 0.893A 0.891A 0.391A 59.998 71.52% 1200 34.8 38.25°C 0.899
12.067V 5.041V 3.334V 5.111V 83.888 42.47°C 114.84V
80W 5.665A 1.091A 1.089A 0.489A 79.942 79.69% 1202 34.8 39.32°C 0.915
12.060V 5.041V 3.334V 5.11V 100.322 43°C 114.82V

The results above are not used in the certification process

Ripple Measurements 115V

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 20.4 mV 10.4 mV 11.4 mV 11.0 mV Pass
20% Load 23.2 mV 10.2 mV 10.7 mV 9.7 mV Pass
30% Load 26.9 mV 11.0 mV 11.4 mV 15.5 mV Pass
40% Load 25.2 mV 10.9 mV 11.5 mV 14.3 mV Pass
50% Load 18.5 mV 11.3 mV 12.1 mV 15.0 mV Pass
60% Load 19.4 mV 11.4 mV 11.8 mV 15.9 mV Pass
70% Load 17.0 mV 11.6 mV 12.8 mV 16.2 mV Pass
80% Load 16.8 mV 12.9 mV 13.5 mV 19.1 mV Pass
90% Load 17.4 mV 13.0 mV 14.0 mV 18.4 mV Pass
100% Load 25.3 mV 14.3 mV 15.0 mV 18.1 mV Pass
110% Load 25.6 mV 16.3 mV 16.5 mV 18.3 mV Pass
Crossload 1 21.3 mV 13.6 mV 14.6 mV 7.2 mV Pass
Crossload 2 17.2 mV 18.6 mV 11.7 mV 7.1 mV Pass
Crossload 3 12.2 mV 11.1 mV 15.9 mV 6.7 mV Pass
Crossload 4 25.0 mV 15.6 mV 13.3 mV 10.2 mV Pass

The results above are not used in the certification process

GOGHUNTERS Nirvana N17 850W (115V)

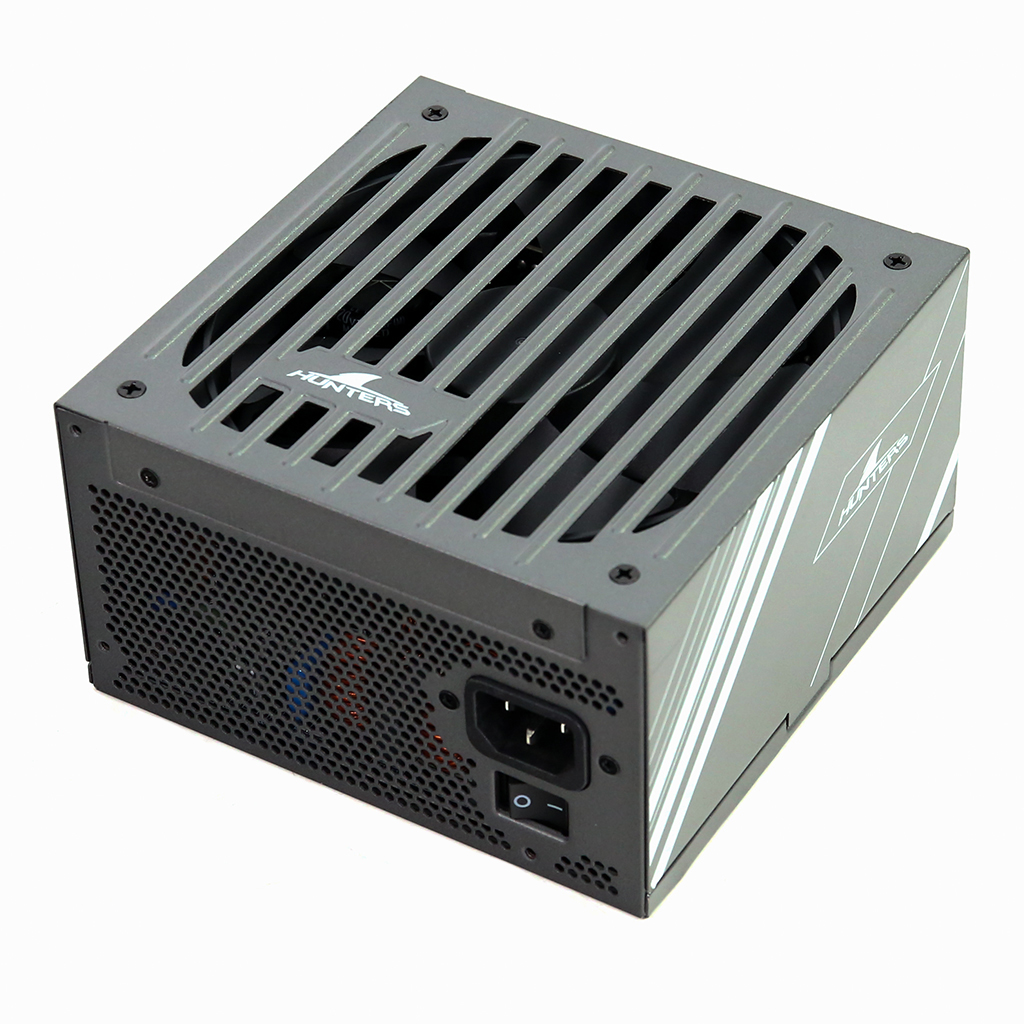

Top side

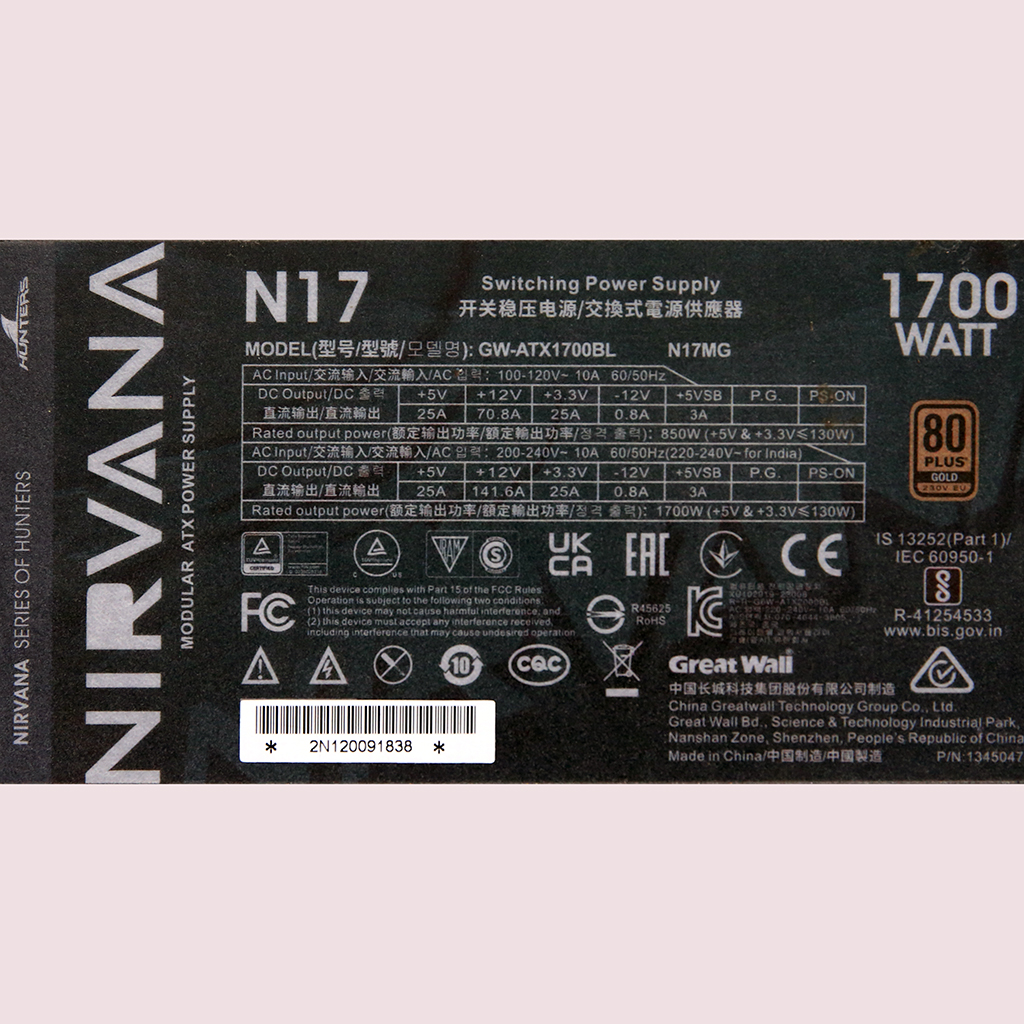

Power specifications label
