ABYSM GAMING Morpheo GX5 850W
AB2823AB218501S500502
Lab IDAB85002457
  • Report: 24PS2457A
  • Receipt Date: May 8, 2024
  • Test Date: May 28, 2024
  • Report Date: May 28, 2024
115V230V
效率評比
115V230V
噪音評比
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

ABYSM GAMING
製造商 (OEM)Helly Technology
Morpheo GX5
AB2823AB218501S500502

(Vrms)100-240
(Arms)12-6
(Hz)47-63
(W)850
ATX12V
120mm Fluid Dynamic Bearing Fan
(HA1225M12F-Z)
✓ (selectable)
Fully Modular

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2020702.50.3
Watts10084012.53.6
Total Max. Power (W)850

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16-18AWG No
4+4 pin EPS12V (650mm) 2 2 16AWG No
6+2 pin PCIe (750mm) 3 3 16-18AWG No
12+4 pin PCIe (715mm) (600W) 1 1 16-24AWG No
SATA (450mm+145mm+145mm+145mm) 2 8 18AWG No
SATA (450mm+145mm) / 4-pin Molex (+150mm+145mm) 1 2 / 2 18AWG No
AC Power Cord (1360mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Hold-Up Time (ms)20.9
AC Loss to PWR_OK Hold Up Time (ms)17.7
PWR_OK Inactive to DC Loss Delay (ms)3.2

待機電源消耗

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.85 V 114.79 V 113.85 V 114.88 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.98 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.419 1.418 1.340 1.420 1.490 PASS
Mains Voltage THD: 0.14 % 0.12 % N/A 0.18 % 2.00 % PASS
Real Power: 0.044 W 0.011 W N/A 0.068 W N/A N/A
Apparent Power: 7.804 W 7.786 W N/A 7.823 W N/A N/A
Power Factor: 0.008 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.86 V 229.79 V 227.70 V 229.90 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.418 1.417 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.15 % 2.00 % PASS
Real Power: 0.099 W 0.081 W N/A 0.126 W N/A N/A
Apparent Power: 26.405 W 26.366 W N/A 26.444 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

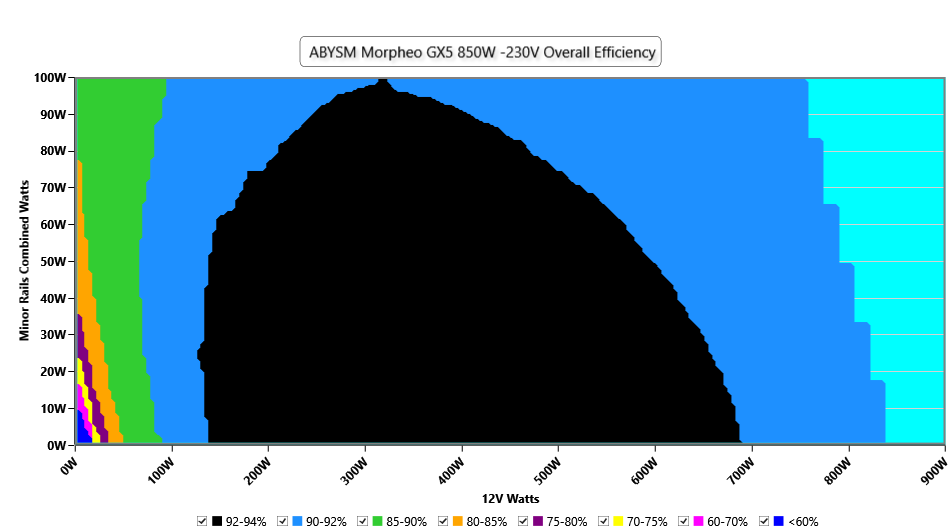

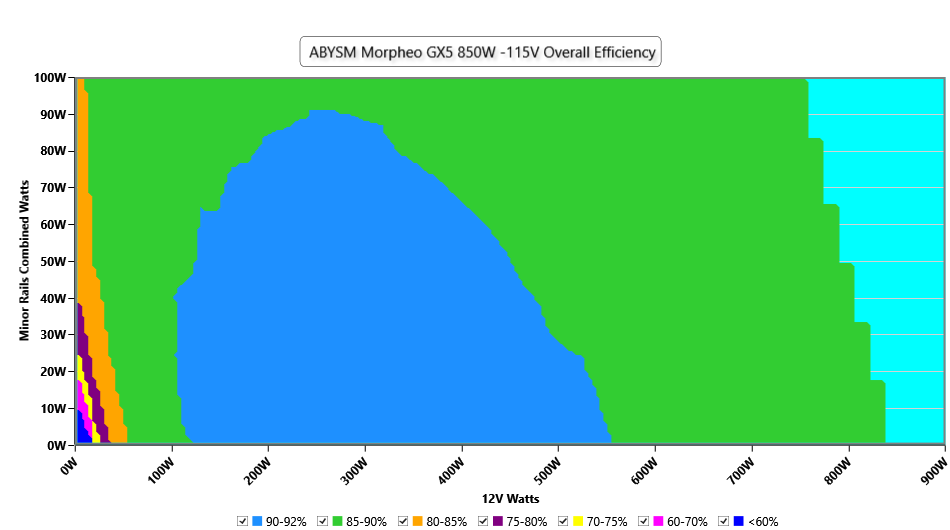

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

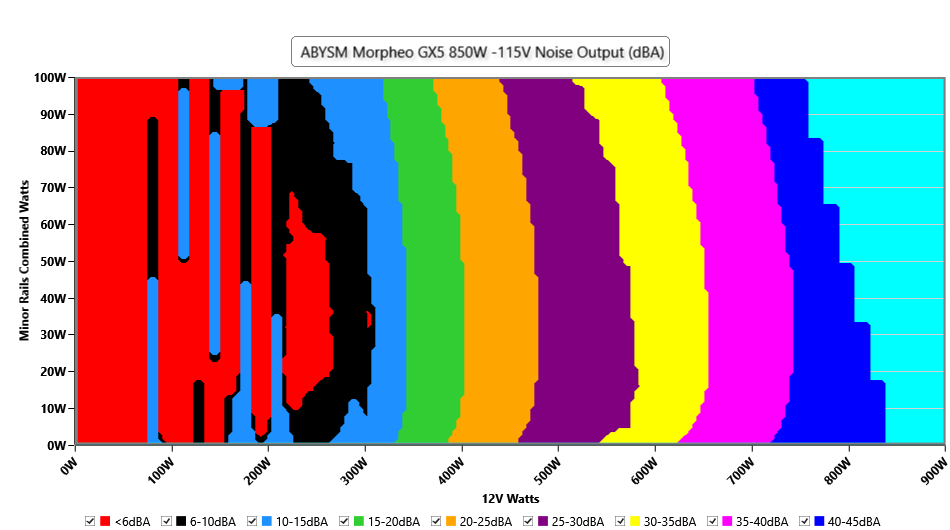

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

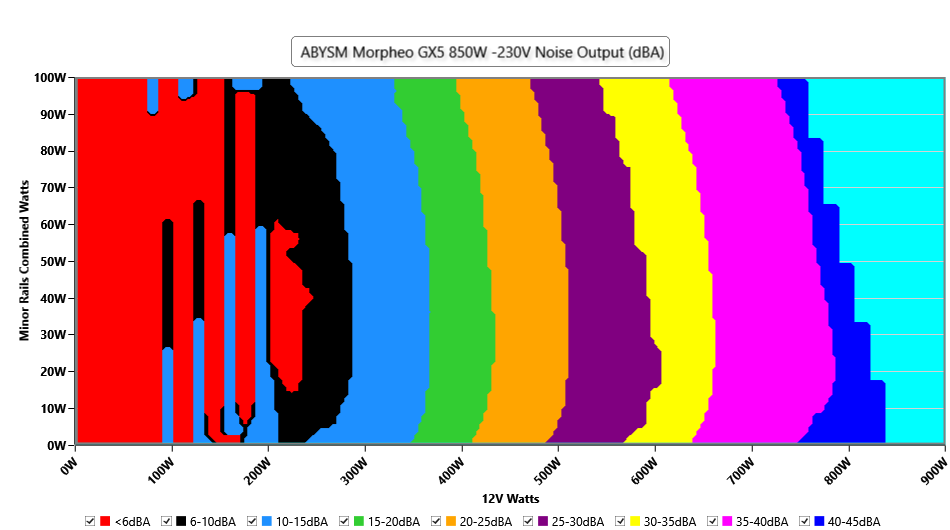

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

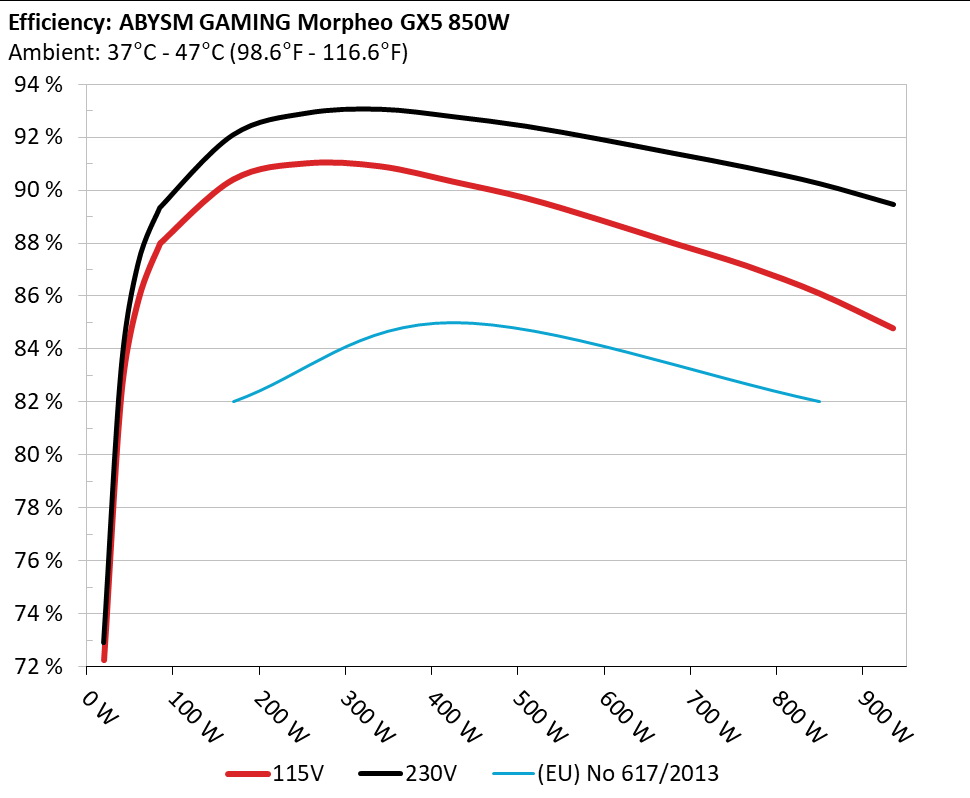

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

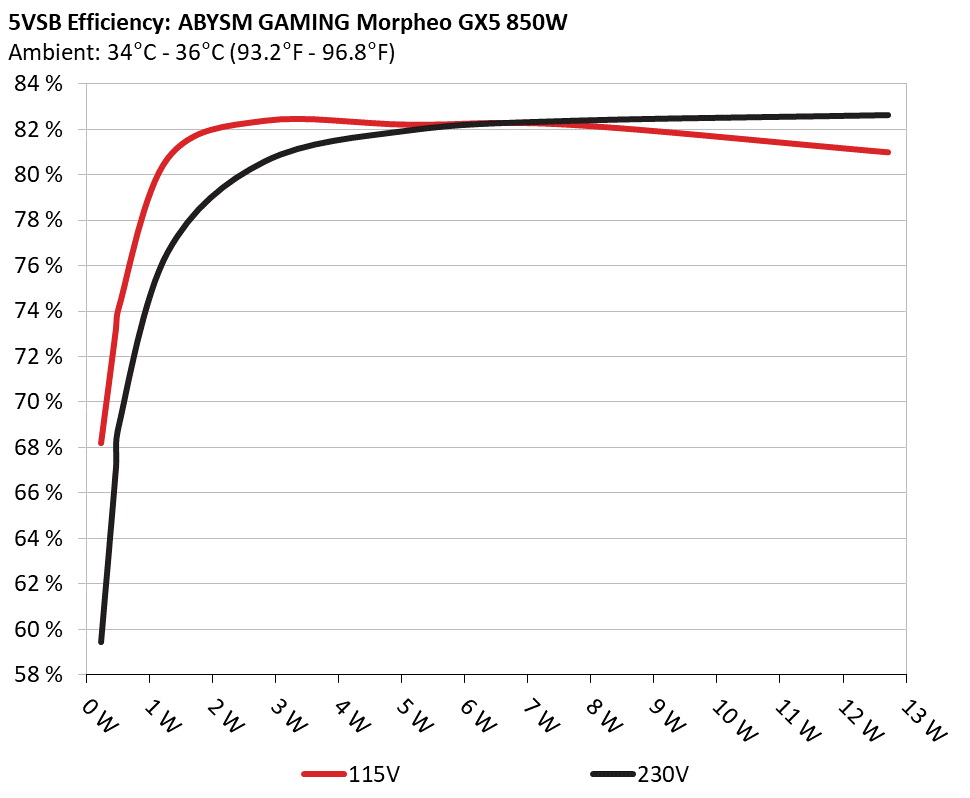

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232W 68.188% 0.043
5.162V 0.34W 114.85V
2 0.09A 0.465W 73.143% 0.079
5.16V 0.635W 114.86V
3 0.55A 2.83W 82.378% 0.314
5.146V 3.435W 114.87V
4 1A 5.133W 82.201% 0.417
5.132V 6.244W 114.86V
5 1.5A 7.677W 82.199% 0.463
5.118V 9.34W 114.87V
6 2.5A 12.719W 80.99% 0.518
5.087V 15.705W 114.87V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232W 59.443% 0.015
5.162V 0.391W 229.94V
2 0.09A 0.465W 67% 0.026
5.16V 0.694W 229.94V
3 0.55A 2.83W 80.599% 0.124
5.145V 3.511W 229.93V
4 1A 5.133W 81.965% 0.203
5.132V 6.262W 229.94V
5 1.5A 7.677W 82.383% 0.27
5.117V 9.319W 229.94V
6 2.5A 12.721W 82.636% 0.34
5.088V 15.394W 229.94V

Supplementary Tests (For Reference)

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.184A 1.97A 1.971A 0.976A 85.002 87.407% 706 12.7 40.01°C 0.974
12.229V 5.078V 3.348V 5.126V 97.252 44.23°C 114.84V
20% 11.376A 2.957A 2.961A 1.174A 169.941 90.415% 745 14.6 40.59°C 0.981
12.221V 5.074V 3.344V 5.111V 187.958 45.09°C 114.82V
30% 17.920A 3.451A 3.457A 1.374A 254.947 91.022% 832 18.2 41.08°C 0.986
12.216V 5.071V 3.341V 5.097V 280.096 46.13°C 114.79V
40% 24.476A 3.947A 3.955A 1.574A 340.039 90.911% 955 22.3 41.67°C 0.991
12.209V 5.068V 3.338V 5.082V 374.035 47.24°C 114.75V
50% 30.681A 4.937A 4.949A 1.776A 424.895 90.33% 1096 26.8 42.12°C 0.994
12.203V 5.065V 3.334V 5.068V 470.384 48.13°C 114.73V
60% 36.868A 5.93A 5.946A 1.979A 509.421 89.706% 1401 33.7 42.62°C 0.995
12.195V 5.06V 3.33V 5.052V 567.874 49.21°C 114.7V
70% 43.122A 6.923A 6.944A 2.184A 594.723 88.89% 1591 37.3 43.36°C 0.996
12.189V 5.057V 3.327V 5.037V 669.057 50.44°C 114.67V
80% 49.386A 7.917A 7.944A 2.289A 679.548 88.014% 1814 40.7 43.53°C 0.997
12.183V 5.052V 3.323V 5.024V 772.089 51.6°C 114.63V
90% 56.048A 8.417A 8.433A 2.394A 764.974 87.152% 1872 41.5 44.37°C 0.997
12.177V 5.049V 3.32V 5.012V 877.75 53.45°C 114.6V
100% 62.645A 8.917A 8.954A 2.5A 849.692 86.108% 1870 41.4 45.98°C 0.997
12.171V 5.047V 3.317V 5V 986.78 56.15°C 114.57V
110% 68.986A 9.915A 10.049A 2.505A 935.074 84.792% 1870 41.4 46.6°C 0.998
12.166V 5.043V 3.313V 4.99V 1102.79 57.5°C 114.52V
CL1 0.115A 11.903A 11.894A 0A 101.302 83.578% 1018 24.2 40.77°C 0.985
12.232V 5.058V 3.338V 5.14V 121.206 50.59°C 114.84V
CL2 0.114A 19.812A 0A 0A 101.386 82.196% 902 20.4 40.72°C 0.985
12.232V 5.047V 3.349V 5.146V 123.346 48.16°C 114.84V
CL3 0.113A 0A 19.796A 0A 67.386 77.697% 855 19.0 40.67°C 0.975
12.228V 5.081V 3.334V 5.143V 86.728 48.74°C 114.85V
CL4 69.773A 0A 0A 0A 849.563 86.96% 1869 41.4 45.85°C 0.997
12.176V 5.066V 3.328V 5.091V 976.967 54.61°C 114.57V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.185A 1.97A 1.972A 0.976A 85.004 88.788% 698 12.3 40.24°C 0.877
12.229V 5.077V 3.347V 5.125V 95.74 44.47°C 229.93V
20% 11.377A 2.957A 2.961A 1.174A 169.94 92.081% 751 14.8 40.69°C 0.943
12.222V 5.074V 3.344V 5.11V 184.557 45.22°C 229.91V
30% 17.919A 3.452A 3.457A 1.374A 254.947 92.898% 841 18.7 41.42°C 0.962
12.216V 5.071V 3.341V 5.096V 274.436 46.49°C 229.9V
40% 24.475A 3.947A 3.955A 1.574A 340.034 93.046% 958 22.4 41.73°C 0.97
12.209V 5.068V 3.338V 5.082V 365.446 47.32°C 229.89V
50% 30.679A 4.937A 4.949A 1.776A 424.872 92.766% 1093 26.6 42.49°C 0.976
12.202V 5.064V 3.334V 5.067V 458.006 48.57°C 229.87V
60% 36.865A 5.93A 5.946A 1.98A 509.389 92.404% 1402 33.7 42.8°C 0.979
12.195V 5.06V 3.33V 5.052V 551.265 49.31°C 229.86V
70% 43.120A 6.924A 6.945A 2.184A 594.686 91.915% 1578 37.1 43.05°C 0.983
12.188V 5.056V 3.327V 5.037V 646.998 50.1°C 229.85V
80% 49.385A 7.917A 7.944A 2.289A 679.512 91.387% 1802 40.5 43.88°C 0.984
12.182V 5.052V 3.323V 5.024V 743.551 51.92°C 229.84V
90% 56.046A 8.417A 8.434A 2.394A 764.938 90.851% 1859 41.2 44.77°C 0.985
12.176V 5.049V 3.32V 5.012V 841.97 53.85°C 229.83V
100% 62.647A 8.918A 8.954A 2.5A 849.655 90.234% 1860 41.2 45.75°C 0.987
12.171V 5.046V 3.317V 5V 941.611 55.78°C 229.81V
110% 68.994A 9.916A 10.049A 2.505A 935.034 89.451% 1864 41.3 46.53°C 0.988
12.165V 5.042V 3.313V 4.99V 1045.312 57.42°C 229.8V
CL1 0.115A 11.904A 11.894A 0A 101.296 85.046% 1010 24.0 41.3°C 0.906
12.232V 5.057V 3.338V 5.14V 119.107 48.38°C 229.93V
CL2 0.113A 19.815A 0A 0A 101.382 83.563% 895 20.2 40.41°C 0.908
12.232V 5.046V 3.349V 5.146V 121.324 49.33°C 229.93V
CL3 0.113A 0A 19.795A 0A 67.383 78.786% 849 19.0 40.68°C 0.859
12.227V 5.08V 3.334V 5.143V 85.526 47.6°C 229.93V
CL4 69.775A 0A 0A 0A 849.52 90.944% 1863 41.3 45.98°C 0.986
12.176V 5.066V 3.328V 5.092V 934.12 55.35°C 229.81V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.214A 0.492A 0.492A 0.194A 19.997 72.262% 0 <6.0 39.69°C 0.894
12.227V 5.083V 3.351V 5.156V 27.673 36.55°C 114.87V
40W 2.674A 0.689A 0.689A 0.291A 39.997 82.274% 0 <6.0 40.45°C 0.946
12.228V 5.082V 3.351V 5.151V 48.616 37.12°C 114.86V
60W 4.132A 0.886A 0.886A 0.389A 59.997 85.88% 0 <6.0 41.81°C 0.966
12.227V 5.082V 3.35V 5.147V 69.859 38.21°C 114.85V
80W 5.586A 1.083A 1.083A 0.486A 79.941 88.001% 0 <6.0 43.18°C 0.974
12.228V 5.081V 3.35V 5.142V 90.839 39.22°C 114.85V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.214A 0.492A 0.492A 0.194A 19.996 72.918% 0 <6.0 39.86°C 0.57
12.228V 5.082V 3.351V 5.155V 27.422 36.79°C 229.94V
40W 2.673A 0.689A 0.689A 0.291A 39.998 83.161% 0 <6.0 41.08°C 0.736
12.228V 5.082V 3.351V 5.151V 48.097 37.88°C 229.94V
60W 4.132A 0.886A 0.886A 0.389A 60 87.234% 0 <6.0 42.01°C 0.818
12.229V 5.081V 3.35V 5.146V 68.779 38.51°C 229.94V
80W 5.587A 1.083A 1.084A 0.486A 79.946 89.328% 0 <6.0 43.24°C 0.866
12.228V 5.08V 3.35V 5.141V 89.497 39.45°C 229.92V

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load11.76mV11.80mV12.93mV9.14mVPass
20% Load11.19mV13.24mV14.12mV8.98mVPass
30% Load12.17mV13.19mV15.20mV9.45mVPass
40% Load12.01mV14.43mV15.98mV9.70mVPass
50% Load12.63mV15.40mV17.06mV10.22mVPass
60% Load13.40mV16.64mV17.94mV10.53mVPass
70% Load13.87mV17.52mV19.03mV11.77mVPass
80% Load14.23mV18.45mV20.27mV12.08mVPass
90% Load15.11mV19.42mV21.56mV12.34mVPass
100% Load23.22mV21.52mV24.78mV14.98mVPass
110% Load23.58mV21.32mV25.71mV15.86mVPass
Crossload116.40mV15.23mV16.82mV23.98mVPass
Crossload211.86mV16.54mV14.84mV21.63mVPass
Crossload310.93mV12.98mV15.10mV21.94mVPass
Crossload423.31mV18.80mV23.47mV28.90mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load10.98mV11.95mV12.56mV8.73mVPass
20% Load11.24mV12.05mV13.91mV8.67mVPass
30% Load11.76mV13.65mV15.15mV8.93mVPass
40% Load12.06mV15.76mV16.50mV10.07mVPass
50% Load12.78mV14.94mV16.55mV10.38mVPass
60% Load13.30mV16.33mV17.69mV11.36mVPass
70% Load13.51mV17.62mV19.08mV11.87mVPass
80% Load14.54mV17.88mV21.10mV11.92mVPass
90% Load14.95mV20.86mV22.70mV12.85mVPass
100% Load23.11mV21.72mV24.01mV13.81mVPass
110% Load25.46mV21.97mV24.66mV14.33mVPass
Crossload116.19mV14.75mV16.23mV23.44mVPass
Crossload211.40mV16.49mV14.33mV23.18mVPass
Crossload310.83mV12.52mV15.25mV21.58mVPass
Crossload422.96mV19.89mV23.10mV27.55mVPass

The results above are not used in the certification process

ABYSM GAMING Morpheo GX5 850W

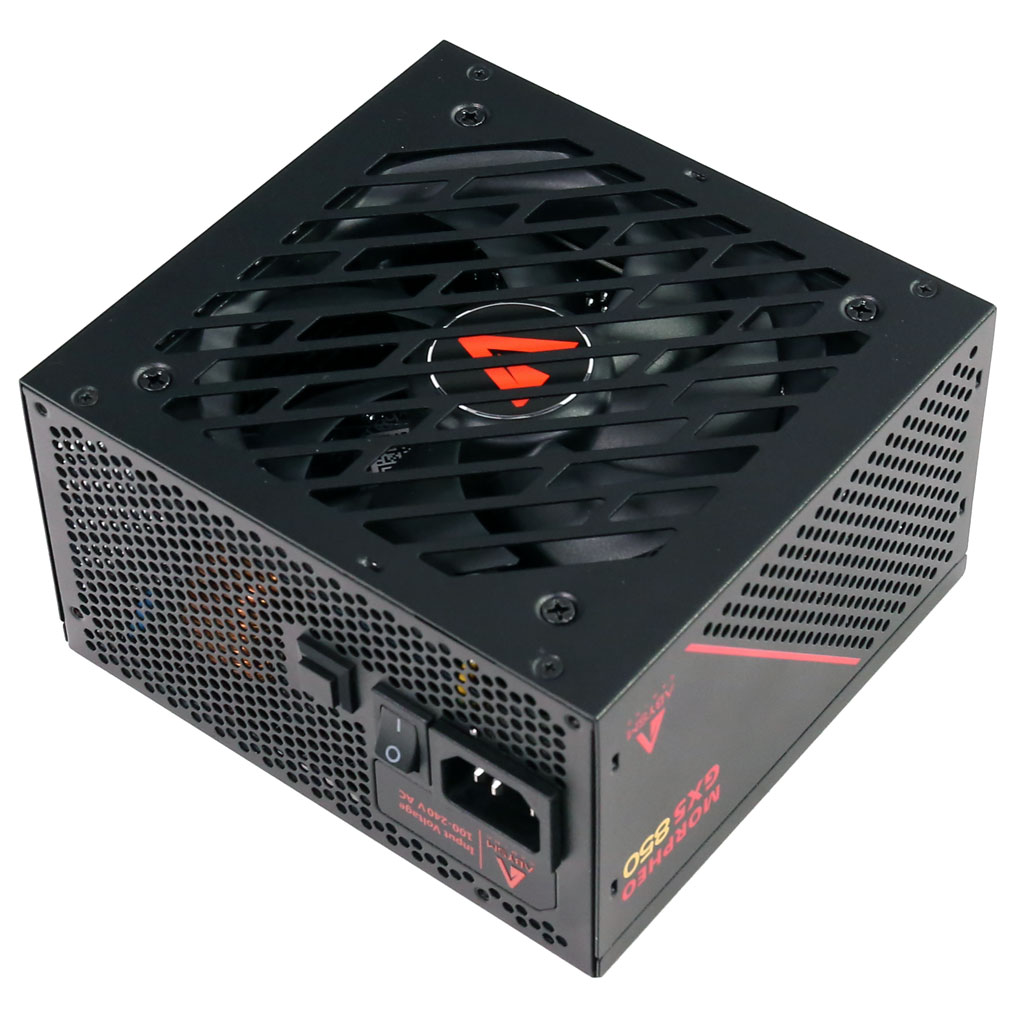

Top side

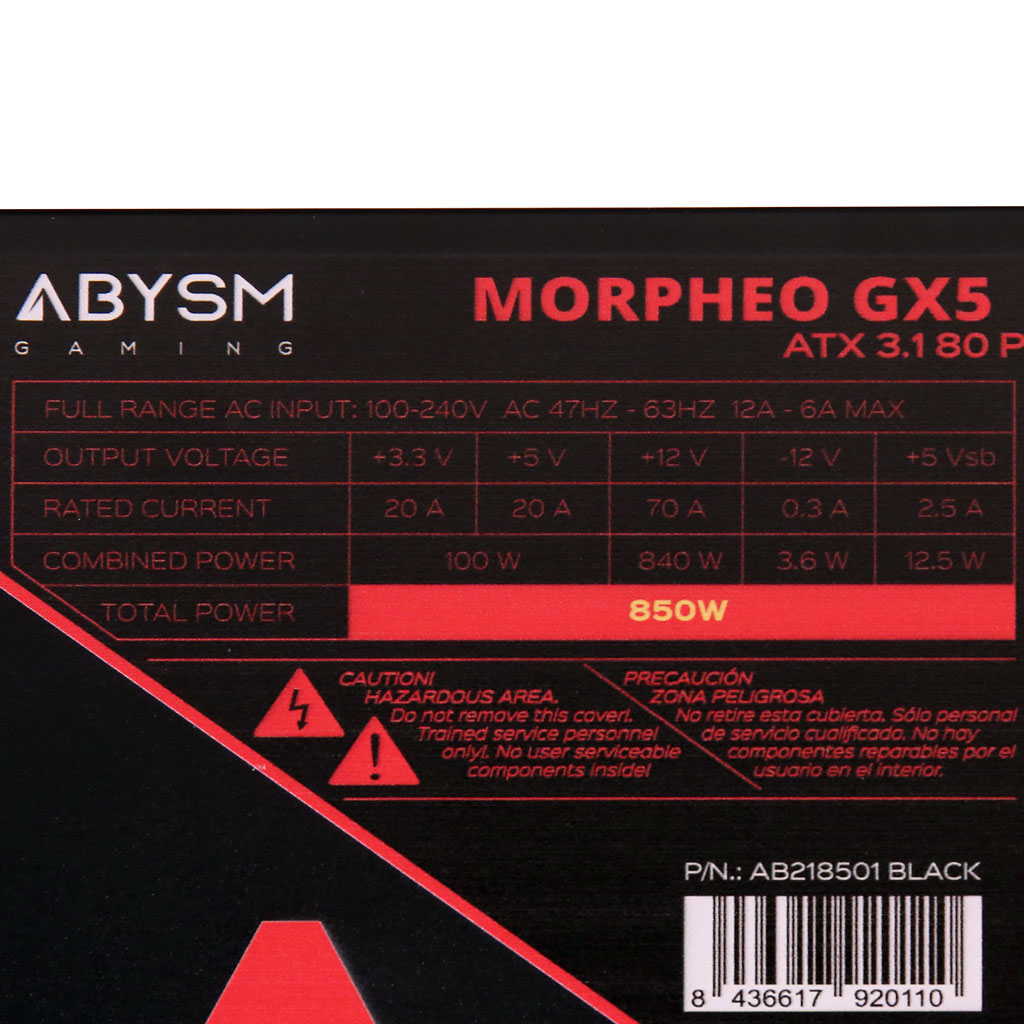

Power specifications label
