CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Kinpower PS650B
Serial Number
Lab IDKP65002453
  • Report: 24PS2453A
  • Receipt Date: Apr 23, 2024
  • Test Date: Apr 30, 2024
  • Report Date: May 20, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandKinpower
Manufacturer (OEM)Kinpower
Series
Model Number
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)50-60
Rated Power (W)650
TypeATX12V
Cooling120mm Rifle Bearing Fan
(EFS-12E12H)
Semi-Passive Operation✗
Cable DesignFixed cables

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps20205020.3
Watts103600103.6
Total Max. Power (W)650

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (490mm) 1 1 18-24AWG No
4+4 pin EPS12V (570mm) 1 1 18AWG No
6+2 pin PCIe (520mm+150mm) 1 2 18AWG No
SATA (380mm+155mm+155mm) 2 6 18AWG No
4-pin Molex (390mm+150mm+150mm) 1 3 18AWG No

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)17
AC Loss to PWR_OK Hold Up Time (ms)13.6
PWR_OK Inactive to DC Loss Delay (ms)3.4

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.06 V 115.03 V 113.85 V 115.10 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.19 % 2.00 % PASS
Real Power: 0.067 W 0.019 W N/A 0.091 W N/A N/A
Apparent Power: 6.817 W 6.715 W N/A 6.934 W N/A N/A
Power Factor: 0.011 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.00 V 230.90 V 227.70 V 231.06 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.14 % N/A 0.26 % 2.00 % PASS
Real Power: 0.159 W 0.142 W N/A 0.193 W N/A N/A
Apparent Power: 22.738 W 22.468 W N/A 23.031 W N/A N/A
Power Factor: 0.007 N/A N/A N/A N/A N/A

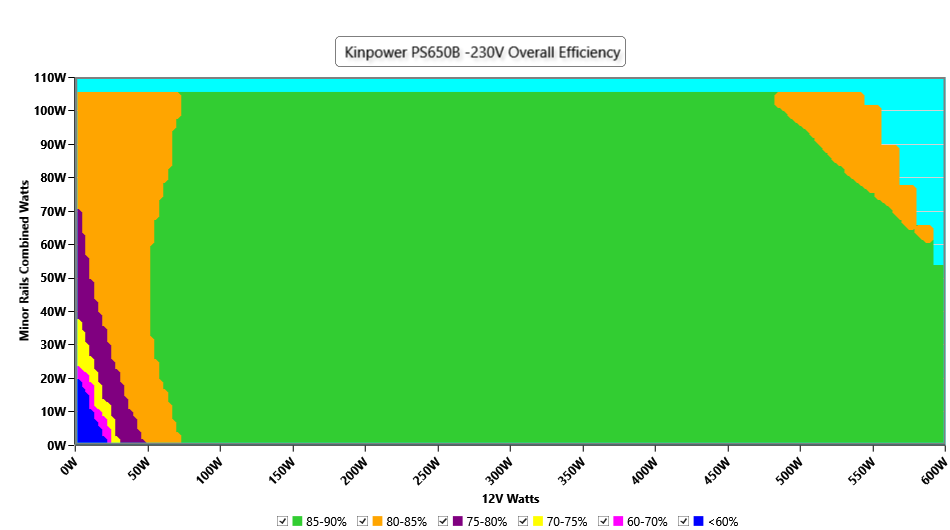

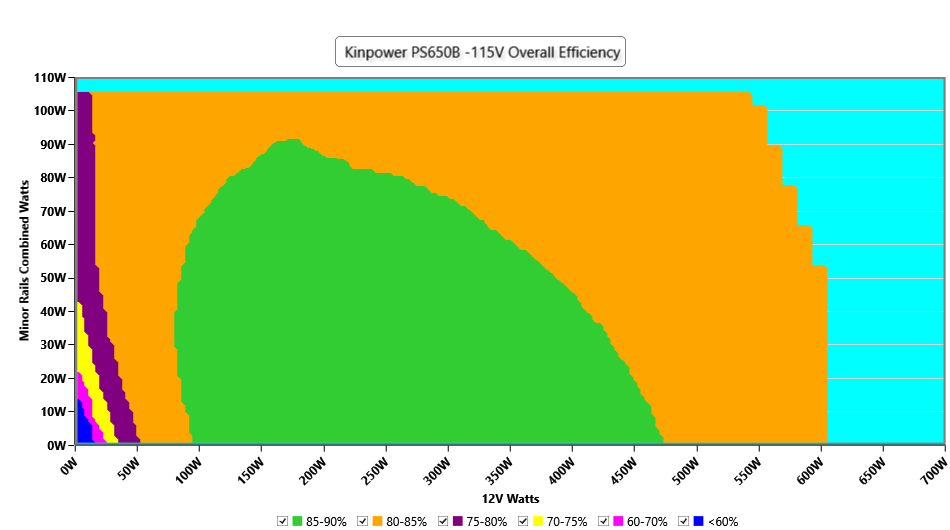

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

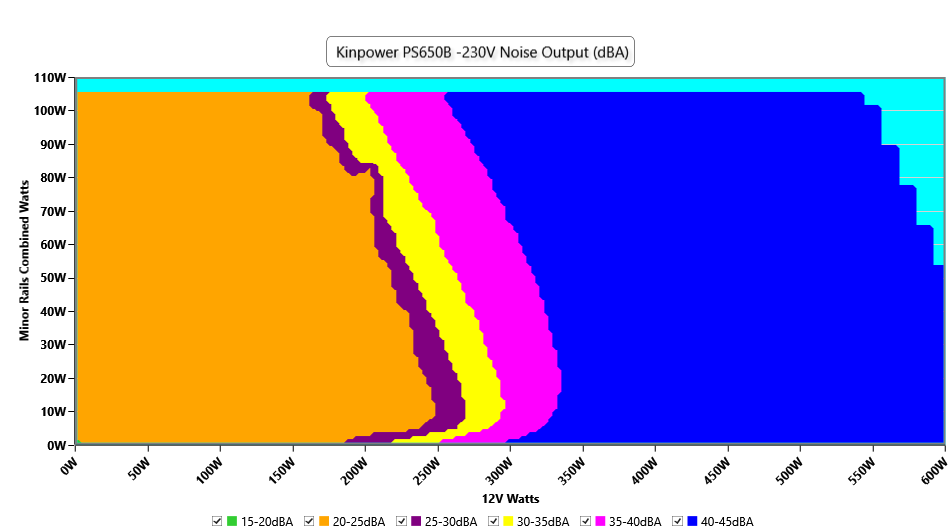

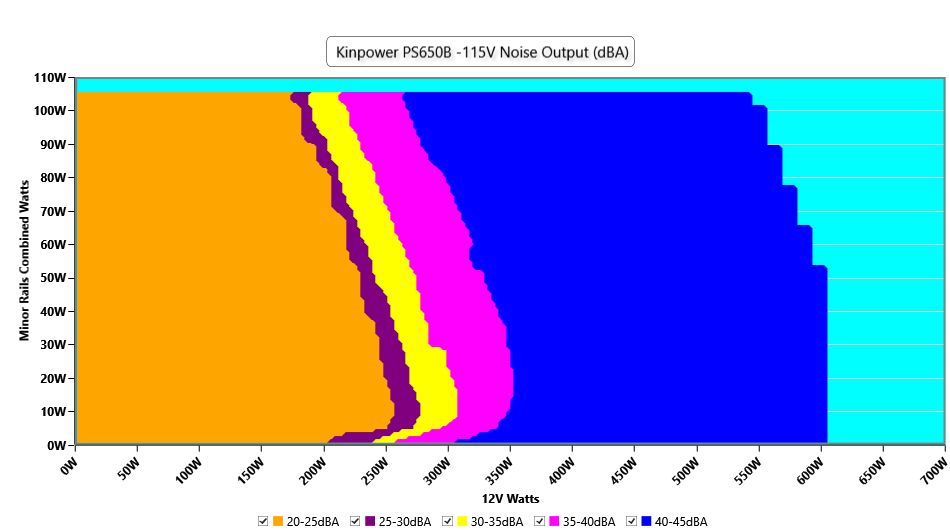

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

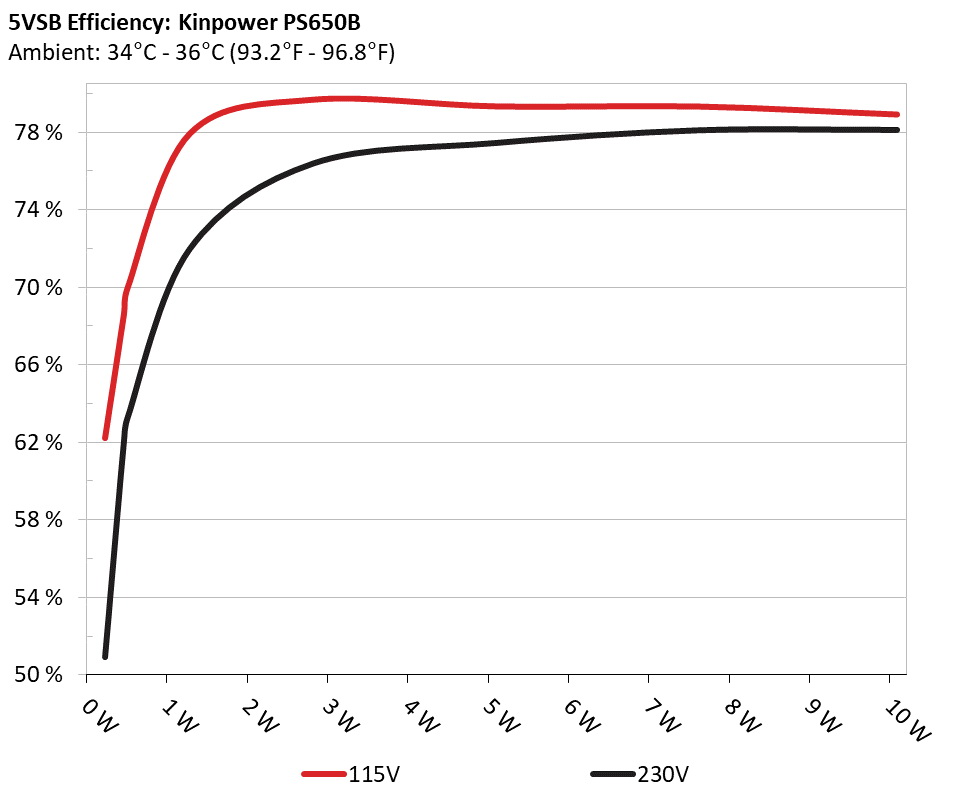

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232W 61.698% 0.052
5.164V 0.376W 114.88V
2 0.09A 0.465W 68.065% 0.092
5.162V 0.683W 114.87V
3 0.55A 2.824W 79.203% 0.32
5.134V 3.566W 114.87V
4 1A 5.108W 78.855% 0.404
5.108V 6.478W 114.87V
5 1.5A 7.617W 78.846% 0.44
5.077V 9.66W 114.86V
6 2A 10.093W 78.436% 0.465
5.046V 12.868W 114.86V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232W 50.43% 0.019
5.163V 0.461W 229.94V
2 0.09A 0.465W 61.476% 0.031
5.16V 0.757W 229.94V
3 0.55A 2.823W 75.877% 0.14
5.133V 3.721W 229.94V
4 1A 5.106W 76.935% 0.22
5.106V 6.636W 229.94V
5 1.5A 7.614W 77.586% 0.281
5.076V 9.814W 229.94V
6 2A 10.091W 77.606% 0.316
5.045V 13.003W 229.94V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.626A 1.969A 1.991A 0.983A 65.206 81.655% 917 20.5 40.39°C 0.928
12.025V 5.08V 3.316V 5.088V 79.853 44.63°C 114.85V
20% 8.283A 2.967A 3.004A 1.185A 130.347 85.815% 916 20.5 40.54°C 0.952
12.006V 5.057V 3.296V 5.064V 151.893 45.14°C 114.83V
30% 13.309A 3.474A 3.524A 1.389A 195.593 86.958% 921 20.6 41.34°C 0.97
11.987V 5.039V 3.278V 5.041V 224.928 46.35°C 114.8V
40% 18.353A 3.985A 4.049A 1.595A 260.842 86.589% 1566 37.4 41.76°C 0.978
11.967V 5.021V 3.261V 5.017V 301.243 46.76°C 114.78V
50% 23.060A 5.003A 5.092A 1.803A 326.004 85.974% 1914 43.0 42.03°C 0.982
11.947V 4.999V 3.241V 4.993V 379.188 47.58°C 114.76V
60% 27.775A 6.033A 6.153A 2A 391.007 85.235% 1915 43.1 42.94°C 0.984
11.926V 4.974V 3.218V 4.968V 458.737 49.06°C 114.73V
70% 32.528A 7.076A 7.23A 2.227A 456.37 84.319% 1915 43.1 43.11°C 0.985
11.905V 4.948V 3.196V 4.94V 541.239 50.13°C 114.71V
80% 37.301A 8.129A 8.325A 2.338A 521.187 83.205% 1914 43.0 43.8°C 0.986
11.884V 4.921V 3.171V 4.92V 626.387 51.97°C 114.68V
90% 42.495A 8.684A 8.896A 2.451A 586.607 81.84% 1913 43.0 44.25°C 0.985
11.863V 4.894V 3.147V 4.898V 716.772 53.41°C 114.65V
100% 47.908A 9.229A 9.491A 2A 651.824 80.772% 1915 43.1 45.69°C 0.986
11.841V 4.876V 3.129V 4.92V 807.006 55.84°C 114.63V
110% 52.731A 10.312A 10.725A 2A 716.383 79.211% 1915 43.1 46.53°C 0.986
11.820V 4.849V 3.105V 4.908V 904.414 57.43°C 114.61V
CL1 0.116A 12.48A 12.622A 0A 104.295 79.036% 927 20.6 40.2°C 0.938
12.015V 4.968V 3.24V 5.124V 131.962 45.91°C 114.81V
CL2 0.115A 20.338A 0A 0A 101.352 77.68% 908 20.4 40.79°C 0.94
12.023V 4.915V 3.279V 5.133V 130.482 48.47°C 114.82V
CL3 0.115A 0A 16.263A 0A 54.186 72.456% 916 20.5 40.2°C 0.922
12.025V 5.061V 3.247V 5.136V 74.774 49.38°C 114.84V
CL4 55.022A 0.001A 0.003A 0.001A 651.935 81.715% 1923 43.4 45.7°C 0.987
11.848V 4.964V 3.185V 5.076V 797.827 55.98°C 114.63V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.626A 1.969A 1.991A 0.983A 65.201 82.972% 911 20.4 40.46°C 0.741
12.027V 5.079V 3.315V 5.089V 78.582 44.6°C 229.94V
20% 8.281A 2.966A 3.003A 1.184A 130.333 87.546% 910 20.4 40.86°C 0.864
12.007V 5.058V 3.296V 5.066V 148.872 45.37°C 229.92V
30% 13.305A 3.473A 3.523A 1.388A 195.57 88.863% 925 20.6 41.3°C 0.906
11.989V 5.039V 3.279V 5.043V 220.08 46.38°C 229.91V
40% 18.346A 3.983A 4.047A 1.594A 260.808 88.575% 1480 35.9 41.77°C 0.928
11.969V 5.022V 3.262V 5.021V 294.448 47.3°C 229.9V
50% 23.051A 5.001A 5.09A 1.801A 325.958 88.12% 1906 42.9 42.2°C 0.941
11.950V 5V 3.242V 4.997V 369.905 48.28°C 229.89V
60% 27.757A 6.03A 6.149A 2A 390.877 87.662% 1916 43.1 42.89°C 0.949
11.929V 4.976V 3.22V 4.972V 445.89 49.46°C 229.88V
70% 32.510A 7.073A 7.226A 2.225A 456.256 87.006% 1914 43.0 43.01°C 0.953
11.908V 4.95V 3.197V 4.945V 524.395 50.02°C 229.87V
80% 37.283A 8.125A 8.319A 2.336A 521.089 86.242% 1912 43.0 43.79°C 0.957
11.887V 4.923V 3.173V 4.924V 604.217 51.97°C 229.86V
90% 42.471A 8.675A 8.886A 2.447A 586.483 85.432% 1914 43.0 44.14°C 0.96
11.867V 4.899V 3.151V 4.905V 686.494 53.22°C 229.84V
100% 47.882A 9.217A 9.474A 2A 651.71 84.702% 1912 43.0 45.59°C 0.964
11.845V 4.882V 3.135V 4.926V 769.419 55.67°C 229.83V
110% 52.702A 10.3A 10.708A 2A 716.281 83.65% 1913 43.0 46.55°C 0.967
11.824V 4.854V 3.11V 4.915V 856.271 57.41°C 229.82V
CL1 0.115A 12.471A 12.613A 0A 104.283 80.757% 924 20.6 40.61°C 0.84
12.016V 4.971V 3.242V 5.125V 129.137 45.9°C 229.93V
CL2 0.115A 20.353A 0A 0A 101.347 79.094% 908 20.4 42.37°C 0.841
12.023V 4.911V 3.281V 5.133V 128.143 49.45°C 229.93V
CL3 0.115A 0A 16.262A 0A 54.183 73.378% 916 20.5 41.28°C 0.733
12.026V 5.058V 3.247V 5.136V 73.846 50.35°C 229.94V
CL4 55.021A 0.001A 0.003A 0.001A 651.973 85.423% 1918 43.2 44.42°C 0.963
11.849V 4.962V 3.187V 5.076V 763.229 55.28°C 229.83V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.234A 0.49A 0.495A 0.194A 19.999 69.639% 913 20.5 36.65°C 0.8
12.038V 5.103V 3.335V 5.148V 28.717 39.77°C 114.87V
40W 2.717A 0.687A 0.694A 0.292A 40 76.923% 913 20.5 37°C 0.872
12.032V 5.097V 3.33V 5.139V 52.001 40.4°C 114.86V
60W 4.202A 0.884A 0.893A 0.39A 60.001 81.796% 914 20.5 38.15°C 0.923
12.026V 5.092V 3.324V 5.13V 73.353 41.91°C 114.85V
80W 5.684A 1.082A 1.094A 0.488A 79.95 83.815% 915 20.5 39.78°C 0.932
12.020V 5.085V 3.319V 5.12V 95.388 43.69°C 114.84V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.233A 0.489A 0.494A 0.194A 19.991 60.248% 901 20.3 36.52°C 0.456
12.036V 5.108V 3.339V 5.15V 28.003 39.7°C 229.94V
40W 2.716A 0.686A 0.693A 0.292A 39.992 77.643% 904 20.3 37.51°C 0.628
12.031V 5.101V 3.332V 5.14V 51.51 40.85°C 229.94V
60W 4.201A 0.884A 0.893A 0.39A 59.993 82.854% 908 20.4 38.49°C 0.722
12.027V 5.092V 3.324V 5.13V 72.409 41.93°C 229.93V
80W 5.681A 1.082A 1.094A 0.488A 79.93 85.63% 909 20.4 39.98°C 0.783
12.022V 5.085V 3.318V 5.121V 93.344 43.78°C 229.93V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 17.5 mV 18.9 mV 23.7 mV 18.3 mV Pass
20% Load 20.0 mV 19.7 mV 27.7 mV 19.6 mV Pass
30% Load 21.0 mV 21.2 mV 29.4 mV 20.0 mV Pass
40% Load 21.5 mV 24.0 mV 32.9 mV 21.9 mV Pass
50% Load 22.8 mV 25.4 mV 35.5 mV 22.5 mV Pass
60% Load 23.6 mV 28.3 mV 40.3 mV 22.3 mV Pass
70% Load 24.7 mV 32.0 mV 44.2 mV 23.3 mV Pass
80% Load 26.6 mV 36.5 mV 48.2 mV 25.1 mV Pass
90% Load 28.6 mV 35.8 mV 48.7 mV 23.4 mV Pass
100% Load 36.3 mV 44.6 mV 58.4 mV 27.1 mV Fail
110% Load 39.5 mV 49.0 mV 63.4 mV 29.0 mV Fail
Crossload 1 30.8 mV 37.1 mV 47.5 mV 17.9 mV Pass
Crossload 2 28.3 mV 37.7 mV 53.8 mV 14.4 mV Fail
Crossload 3 19.5 mV 23.3 mV 33.2 mV 13.4 mV Pass
Crossload 4 40.2 mV 30.2 mV 43.0 mV 19.1 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 18.2 mV 18.7 mV 22.6 mV 17.7 mV Pass
20% Load 19.3 mV 20.6 mV 27.0 mV 20.2 mV Pass
30% Load 22.0 mV 22.4 mV 29.8 mV 19.8 mV Pass
40% Load 22.4 mV 23.0 mV 31.5 mV 21.2 mV Pass
50% Load 22.5 mV 25.8 mV 36.6 mV 23.0 mV Pass
60% Load 24.3 mV 29.2 mV 40.1 mV 22.7 mV Pass
70% Load 26.3 mV 34.5 mV 43.3 mV 25.0 mV Pass
80% Load 26.8 mV 35.9 mV 49.4 mV 25.6 mV Pass
90% Load 29.9 mV 38.3 mV 51.9 mV 24.9 mV Fail
100% Load 36.7 mV 43.6 mV 57.8 mV 27.5 mV Fail
110% Load 39.9 mV 45.6 mV 66.0 mV 28.2 mV Fail
Crossload 1 26.4 mV 37.7 mV 45.9 mV 17.8 mV Pass
Crossload 2 23.7 mV 34.5 mV 54.4 mV 13.0 mV Fail
Crossload 3 22.9 mV 24.7 mV 34.8 mV 14.7 mV Pass
Crossload 4 38.7 mV 28.9 mV 42.0 mV 18.5 mV Pass

The results above are not used in the certification process

Kinpower PS650B

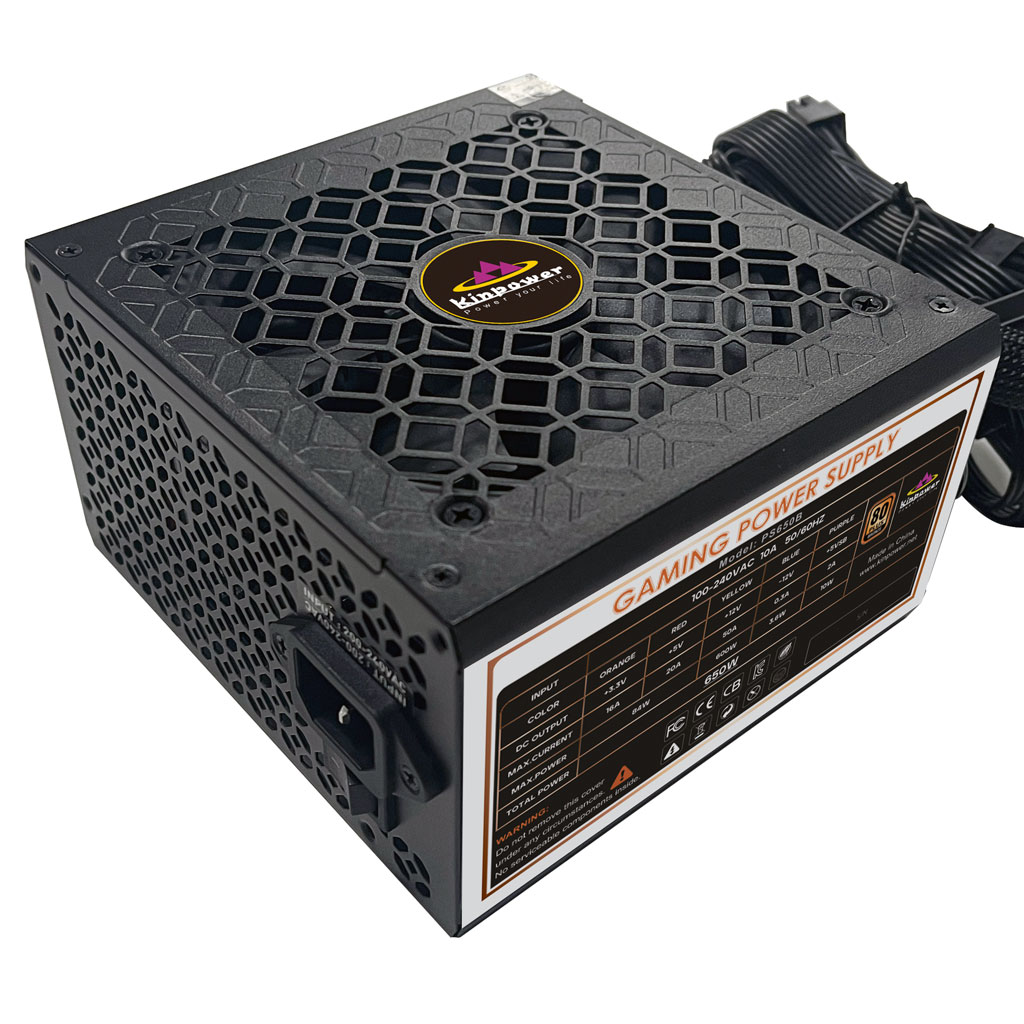

Top side

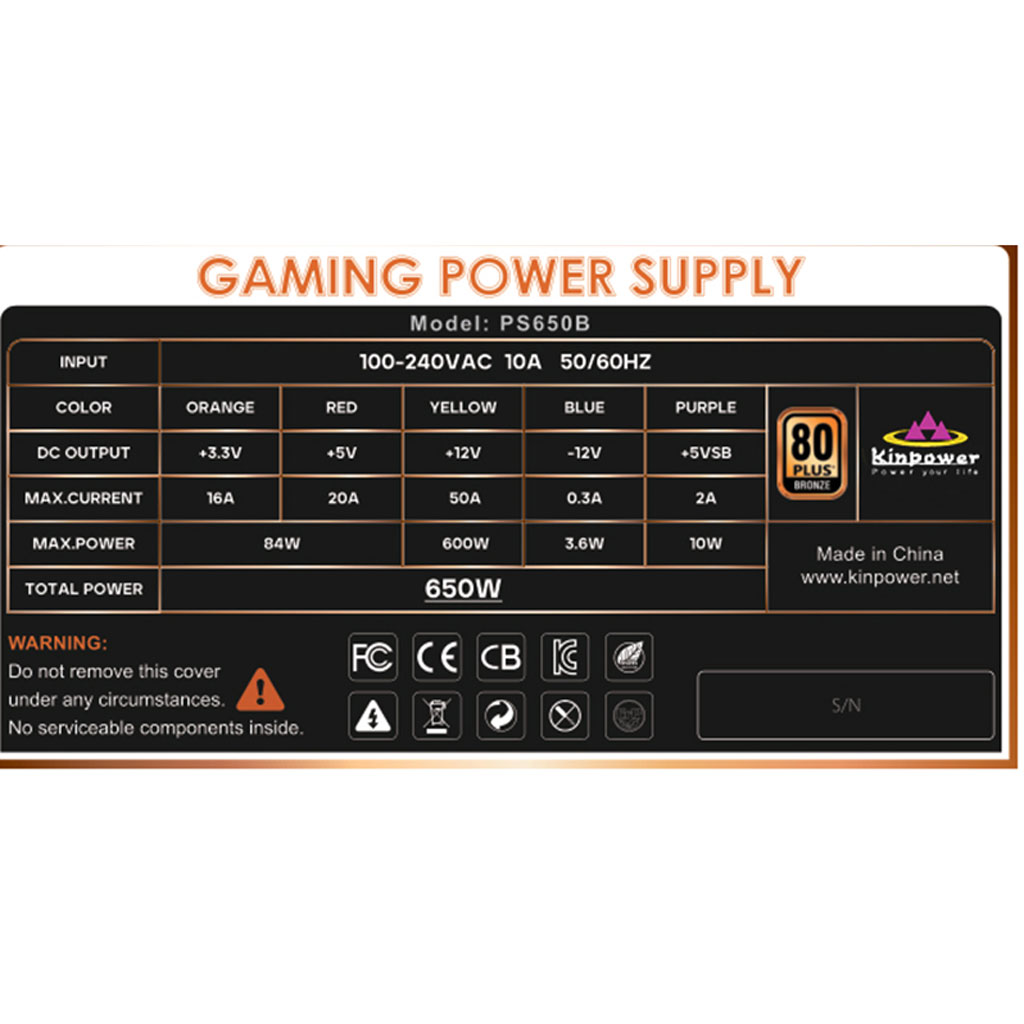

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
