CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

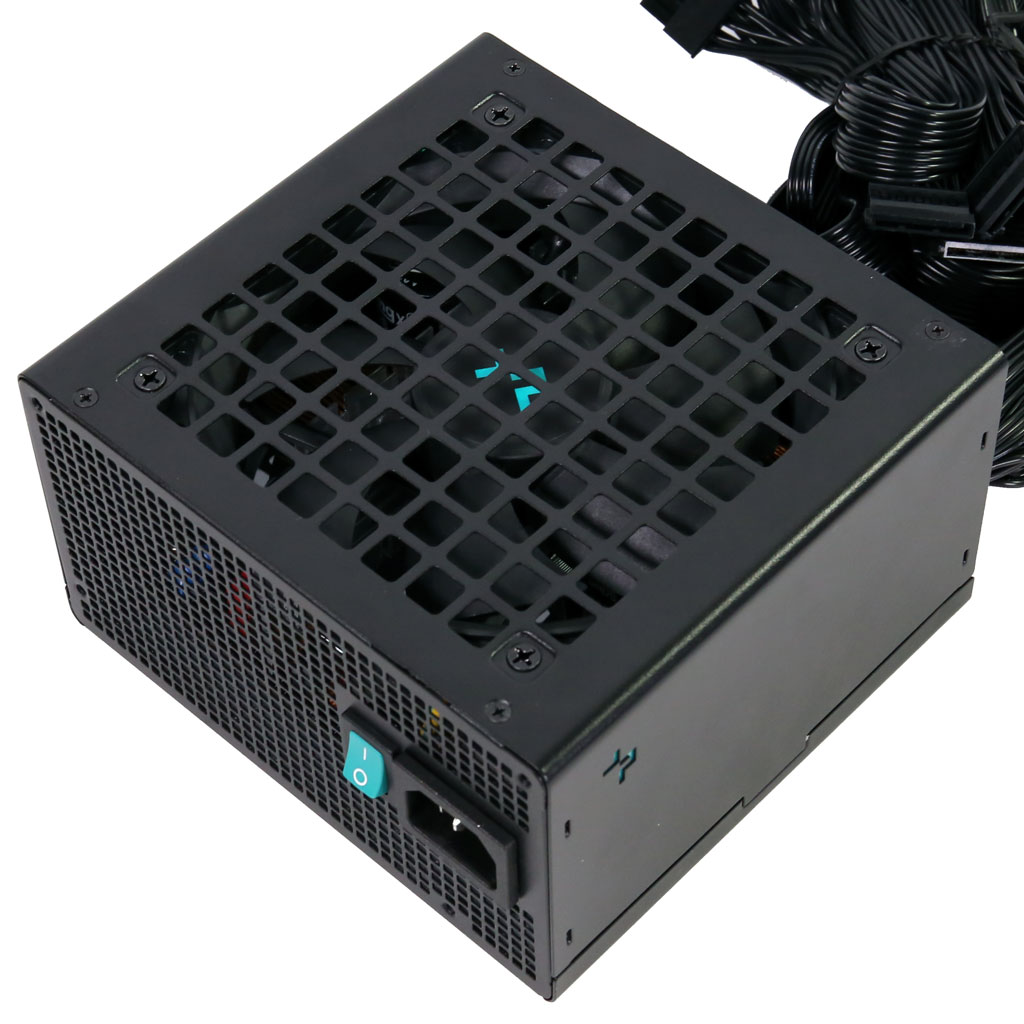

Gamer Storm PL800D
Serial Number10000143161B4241500001
Lab IDGA80002429
  • Report: 24PS2429A
  • Receipt Date: Aug 14, 2024
  • Test Date: Aug 22, 2024
  • Report Date: Sep 16, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandGamer Storm
Manufacturer (OEM)Helly Technology
SeriesPL-D
Model NumberPL800D-FC
Serial Number10000143161B4241500001
DUT Notes

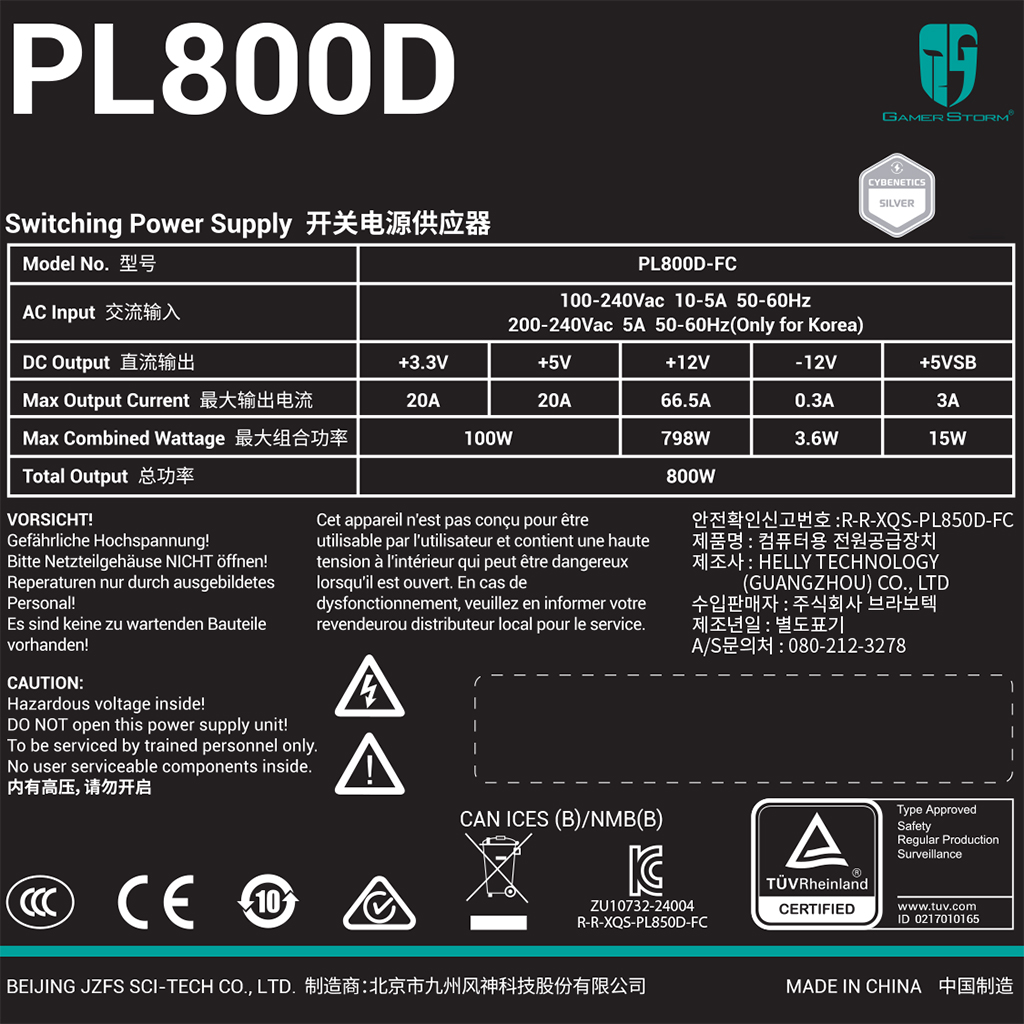

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10-5
Rated Frequency (Hz)50-60
Rated Power (W)800
TypeATX12V
Cooling120mm Hydraulic Bearing Fan (W12025HZ12SEMA)
Semi-Passive Operation✗
Cable DesignFixed cables

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202066.530.3
Watts100798153.6
Total Max. Power (W)800

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (560mm) 1 1 18-22AWG No
4+4 pin EPS12V (735mm) 2 2 18AWG No
6+2 pin PCIe (590mm+120mm) 1 2 18AWG No
6+2 pin PCIe (580mm) 1 1 18AWG No
12+2 pin PCIe (590mm) (600W) 1 1 16-26AWG No
SATA (445mm+105mm+105mm+105mm) / 4-pin Molex (+100mm) 2 8 / 2 18AWG No
Modular Cables
AC Power Cord (1385mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) Helly Technology
PCB Type Double-Sided
Primary Side
Transient Filter 2x Y caps, 1x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor MF72 10D-20 (10 Ohm @25°C) & Relay
Bridge Rectifier(s) 2x GBU1508 ((560V, 15A @ 100°C)
APFC MOSFETs 2x Oriental Semiconductor OSG55R140FF (550V, 14.5A @ 100°C, Rds(on): 0.14Ohm)
APFC Boost Diode 1x WeEN BYC15X-600P (600V, 10A @ 25°C)
Bulk Cap(s) 1x Chengx (420V, 560uF @ 105°C, LS)
Main Switchers 2x FuXin Semiconductor FXN28N50F (500V, 16.7A @ 100°C, Rds(on): 0.20Ohm)
PFC/PWM Controller Champion CM6800UX
Topology Primary side: APFC, Double Forward
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 3x Oriental Semiconductor SFS06R03PF (60V, 160A @ 25°C, Rds(on): 3.5mOhm)
5V & 3.3V DC-DC Converters: 2x XSEMI XP3NA3R4MT  (30V, 46A @ 100°C, Rds(on): 3.4mOhm)
2x Rectron Semiconductor 3N5R0 (30V, 19.7A @ @ 70°C, Rds(on): 5mOhm)
PWM Controller(s): 2x ANPEC APW7073
Filtering Capacitors Electrolytic:
9x Chengx (2-3,000 @ 105°C,GR),
Polymer: 9x Apaq
Supervisor IC Infinno IN1S429I-SCG (OCP, OVP, UVP, SCP, PG)
Fan Model WAM W12025HZ12SEMA (120mm, 12V, 0.25A, Hydraulic Bearing Fan)
5VSB
High Side Rectifier P6SMB (220V , 1A)
Standby PWM Controller Excelliance MOS EM8564A

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)19.8
AC Loss to PWR_OK Hold Up Time (ms)17.3
PWR_OK Inactive to DC Loss Delay (ms)2.5

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.16 V 115.12 V 113.85 V 115.18 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.15 % 2.00 % PASS
Real Power: 0.034 W 0.007 W N/A 0.048 W N/A N/A
Apparent Power: 8.447 W 8.442 W N/A 8.453 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.37 V 230.35 V 227.70 V 230.40 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.068 W 0.057 W N/A 0.078 W N/A N/A
Apparent Power: 28.311 W 28.300 W N/A 28.324 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

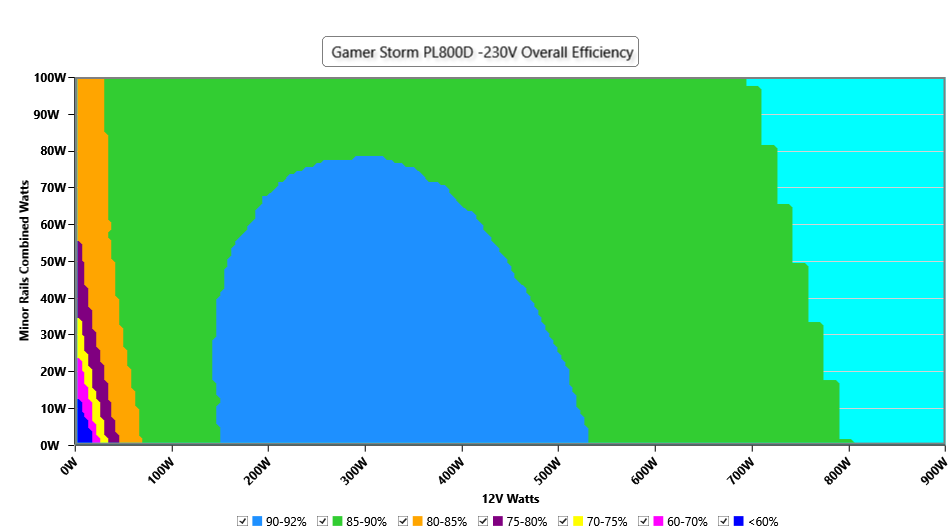

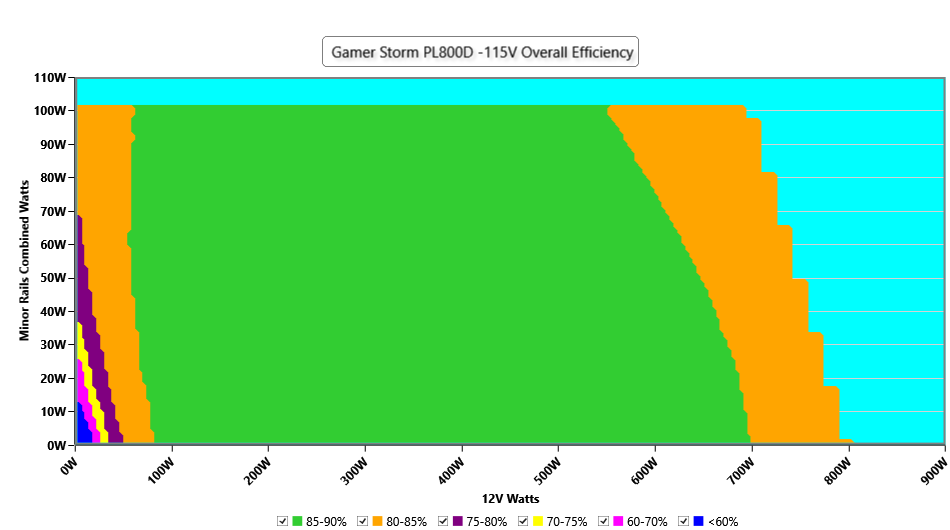

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

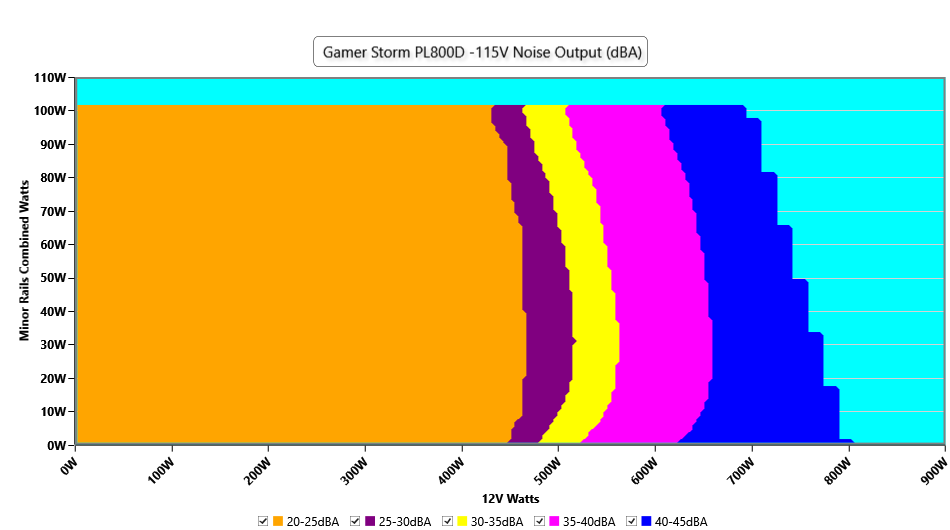

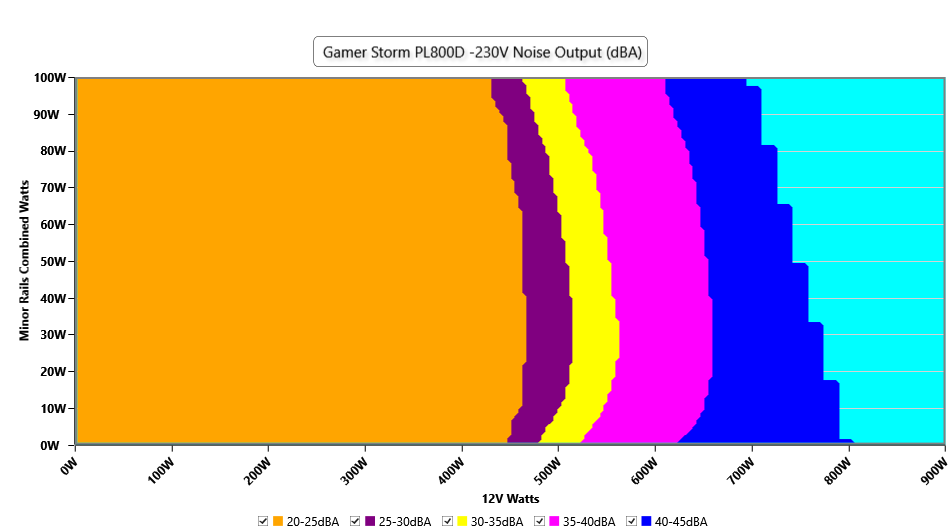

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

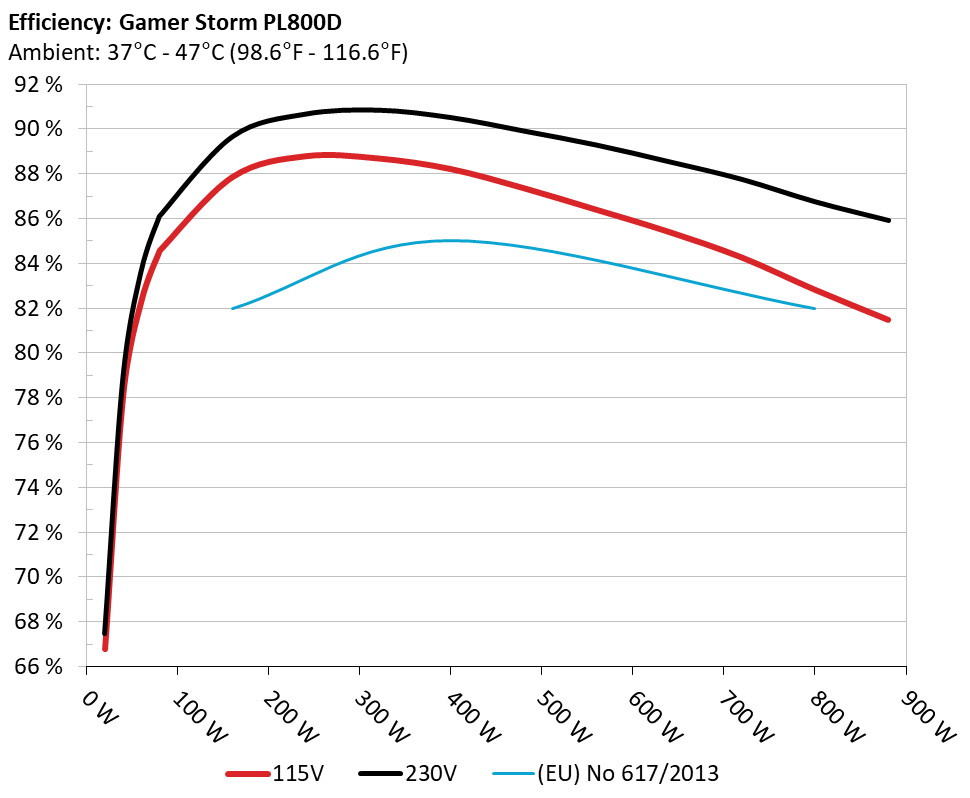

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

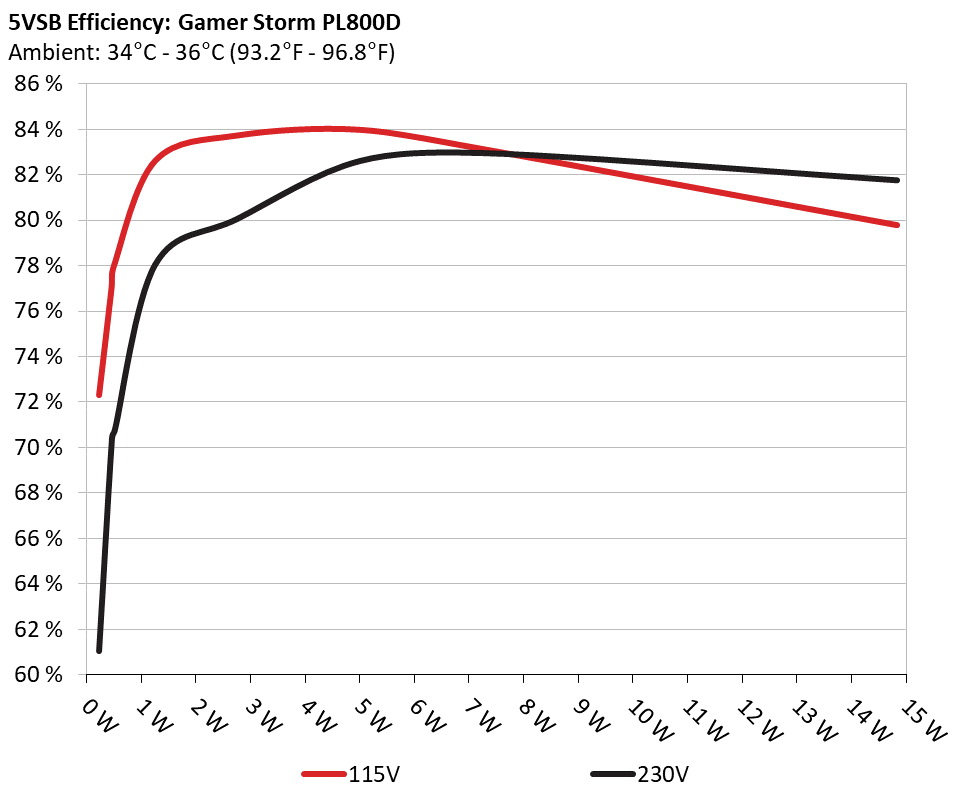

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.226W 72.3% 0.037
5.028V 0.313W 115.16V
2 0.09A 0.453W 77.006% 0.068
5.027V 0.588W 115.16V
3 0.55A 2.758W 83.743% 0.296
5.014V 3.294W 115.15V
4 1A 5.002W 83.992% 0.404
5.001V 5.955W 115.15V
5 1.5A 7.481W 83.041% 0.467
4.986V 9.009W 115.15V
6 3A 14.83W 79.791% 0.538
4.943V 18.586W 115.14V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.226W 61.065% 0.013
5.028V 0.37W 230.36V
2 0.09A 0.462W 70.427% 0.022
5.027V 0.656W 230.36V
3 0.55A 2.758W 80.046% 0.116
5.014V 3.445W 230.36V
4 1A 5.002W 82.588% 0.189
5.001V 6.056W 230.36V
5 1.5A 7.481W 82.912% 0.255
4.987V 9.023W 230.36V
6 3A 14.831W 81.74% 0.373
4.943V 18.144W 230.35V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.881A 1.963A 1.98A 1.002A 80 84.049% 1071 25.5 40.49°C 0.948
11.965V 5.096V 3.333V 4.992V 95.181 44.76°C 115.12V
20% 10.792A 2.945A 2.974A 1.205A 159.944 87.87% 1076 25.5 40.65°C 0.972
11.958V 5.093V 3.328V 4.978V 182.021 45.21°C 115.1V
30% 17.063A 3.438A 3.474A 1.41A 239.985 88.799% 1080 25.6 41.22°C 0.984
11.951V 5.092V 3.325V 4.965V 270.255 46.27°C 115.09V
40% 23.343A 3.93A 3.973A 1.616A 320.04 88.703% 1087 25.6 41.71°C 0.989
11.945V 5.09V 3.322V 4.951V 360.788 47.22°C 115.06V
50% 29.225A 4.916A 4.974A 1.824A 399.373 88.231% 1091 25.9 42.16°C 0.992
11.937V 5.087V 3.317V 4.936V 452.646 48.27°C 115.05V
60% 35.212A 5.902A 5.978A 2A 479.724 87.376% 1392 32.6 42.88°C 0.993
11.930V 5.084V 3.312V 4.922V 549.034 49.38°C 115.02V
70% 41.141A 6.89A 6.986A 2.242A 559.587 86.412% 1737 39.8 43.32°C 0.994
11.921V 5.081V 3.307V 4.906V 647.582 50.35°C 115V
80% 47.147A 7.877A 7.995A 2.35A 639.598 85.418% 2006 43.0 43.67°C 0.995
11.914V 5.078V 3.302V 4.894V 748.784 51.84°C 114.98V
90% 53.496A 8.374A 8.488A 2.458A 719.427 84.278% 2094 44.2 44.69°C 0.995
11.906V 5.075V 3.298V 4.883V 853.639 53.82°C 114.95V
100% 59.653A 8.869A 9.013A 3.09A 799.45 82.843% 2101 44.4 45.63°C 0.996
11.898V 5.073V 3.295V 4.855V 965.029 55.64°C 114.93V
110% 65.749A 9.862A 10.123A 3.096A 880.057 81.497% 2105 44.4 46.73°C 0.996
11.890V 5.07V 3.289V 4.846V 1079.906 57.63°C 114.9V
CL1 0.117A 11.846A 12.006A 0A 101.291 80.707% 1108 26.5 40.86°C 0.958
11.958V 5.082V 3.306V 5.007V 125.509 51.13°C 115.12V
CL2 0.117A 19.713A 0A 0A 101.389 80.192% 1109 26.5 40.22°C 0.958
11.962V 5.073V 3.34V 5.014V 126.432 47.72°C 115.12V
CL3 0.117A 0A 20.075A 0A 67.387 74.858% 1082 25.5 40.77°C 0.949
11.958V 5.1V 3.287V 5.009V 90.018 46.32°C 115.13V
CL4 67.186A 0.001A 0A 0.002A 800.083 83.816% 2101 44.4 45.21°C 0.996
11.908V 5.087V 3.321V 4.958V 954.606 54.94°C 114.94V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.881A 1.963A 1.98A 1.002A 80.004 85.591% 1078 25.5 40.37°C 0.847
11.964V 5.095V 3.333V 4.992V 93.475 44.61°C 230.37V
20% 10.794A 2.946A 2.975A 1.206A 159.966 89.666% 1082 25.5 40.79°C 0.906
11.957V 5.093V 3.328V 4.978V 178.405 45.31°C 230.36V
30% 17.067A 3.439A 3.474A 1.411A 240.014 90.676% 1085 25.6 41.24°C 0.932
11.950V 5.091V 3.325V 4.964V 264.693 46.26°C 230.36V
40% 23.349A 3.931A 3.974A 1.617A 320.072 90.855% 1088 25.7 41.6°C 0.946
11.944V 5.089V 3.322V 4.95V 352.289 47.21°C 230.35V
50% 29.236A 4.917A 4.974A 1.824A 399.469 90.528% 1098 26.0 42.21°C 0.955
11.936V 5.086V 3.318V 4.935V 441.267 48.21°C 230.34V
60% 35.224A 5.904A 5.978A 2.001A 479.835 89.927% 1423 33.1 42.72°C 0.963
11.929V 5.083V 3.313V 4.921V 533.584 49.23°C 230.33V
70% 41.155A 6.893A 6.985A 2.243A 559.703 89.297% 1759 39.7 43.31°C 0.969
11.920V 5.08V 3.308V 4.905V 626.787 50.4°C 230.33V
80% 47.161A 7.88A 7.993A 2.351A 639.722 88.55% 2032 43.4 43.94°C 0.973
11.913V 5.076V 3.303V 4.893V 722.443 51.95°C 230.31V
90% 53.510A 8.377A 8.486A 2.459A 719.553 87.761% 2103 44.4 44.37°C 0.977
11.905V 5.074V 3.299V 4.881V 819.905 53.39°C 230.3V
100% 59.666A 8.873A 9.011A 3.091A 799.577 86.764% 2111 44.5 45.61°C 0.98
11.897V 5.072V 3.295V 4.853V 921.546 55.62°C 230.29V
110% 65.763A 9.866A 10.12A 3.097A 880.176 85.931% 2113 44.5 46.75°C 0.983
11.889V 5.068V 3.29V 4.844V 1024.332 57.64°C 230.27V
CL1 0.117A 11.85A 11.997A 0A 101.301 82.365% 1109 26.5 40.26°C 0.879
11.956V 5.08V 3.309V 5.006V 122.992 50.95°C 230.37V
CL2 0.117A 19.718A 0A 0A 101.397 81.678% 1111 26.5 40.34°C 0.879
11.960V 5.071V 3.34V 5.013V 124.14 48.06°C 230.37V
CL3 0.117A 0A 20.055A 0A 67.392 76.286% 1083 25.5 41.2°C 0.842
11.956V 5.098V 3.291V 5.009V 88.344 45.32°C 230.39V
CL4 67.198A 0.001A 0A 0.002A 800.164 87.567% 2103 44.4 45.76°C 0.98
11.908V 5.088V 3.321V 4.957V 913.794 55.68°C 230.32V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.240A 0.49A 0.494A 0.199A 20.002 66.793% 1051 24.8 36.59°C 0.929
11.970V 5.099V 3.338V 5.022V 29.947 39.72°C 115.15V
40W 2.732A 0.687A 0.692A 0.299A 39.999 78.175% 1059 25.2 37.92°C 0.974
11.969V 5.098V 3.337V 5.017V 51.166 41.26°C 115.14V
60W 4.222A 0.883A 0.89A 0.399A 59.997 82.348% 1063 25.3 38.43°C 0.953
11.967V 5.097V 3.336V 5.013V 72.862 41.96°C 115.13V
80W 5.710A 1.079A 1.088A 0.499A 79.952 84.583% 1062 25.3 39.07°C 0.948
11.965V 5.097V 3.335V 5.008V 94.526 42.87°C 115.13V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.240A 0.49A 0.494A 0.199A 20.003 67.469% 1060 25.2 36.67°C 0.603
11.969V 5.098V 3.338V 5.022V 29.645 39.83°C 230.38V
40W 2.732A 0.687A 0.692A 0.299A 40.002 78.874% 1064 25.4 37.59°C 0.754
11.968V 5.097V 3.337V 5.017V 50.721 40.87°C 230.37V
60W 4.222A 0.883A 0.89A 0.399A 60.001 83.651% 1068 25.5 38.04°C 0.819
11.966V 5.096V 3.336V 5.012V 71.726 41.63°C 230.37V
80W 5.711A 1.08A 1.088A 0.499A 79.965 86.11% 1070 25.6 39.36°C 0.846
11.965V 5.096V 3.335V 5.007V 92.863 43.12°C 230.37V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load7.84mV9.49mV6.10mV6.57mVPass
20% Load8.75mV9.85mV6.36mV7.03mVPass
30% Load9.56mV10.66mV7.07mV8.25mVPass
40% Load9.31mV9.74mV6.36mV7.34mVPass
50% Load11.65mV12.19mV8.09mV9.22mVPass
60% Load13.99mV13.57mV9.10mV10.60mVPass
70% Load15.42mV14.48mV9.97mV12.68mVPass
80% Load17.51mV16.53mV17.85mV17.02mVPass
90% Load22.13mV18.36mV19.23mV22.62mVPass
100% Load36.18mV23.20mV22.64mV25.23mVPass
110% Load42.62mV25.15mV25.42mV22.39mVPass
Crossload112.05mV14.40mV17.58mV6.81mVPass
Crossload29.36mV15.41mV9.05mV7.03mVPass
Crossload38.45mV10.97mV17.80mV5.91mVPass
Crossload436.96mV21.48mV15.68mV15.61mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load7.53mV9.44mV5.69mV6.27mVPass
20% Load8.60mV9.59mV6.26mV6.78mVPass
30% Load10.28mV10.41mV6.67mV7.49mVPass
40% Load10.94mV11.47mV7.43mV8.41mVPass
50% Load13.03mV11.84mV7.98mV9.17mVPass
60% Load13.89mV13.11mV8.95mV9.88mVPass
70% Load16.13mV14.33mV10.17mV11.31mVPass
80% Load17.40mV16.48mV17.95mV12.28mVPass
90% Load21.12mV18.26mV19.58mV13.75mVPass
100% Load33.16mV22.03mV22.65mV18.40mVPass
110% Load40.31mV24.54mV25.35mV20.34mVPass
Crossload110.81mV14.41mV17.98mV6.96mVPass
Crossload28.80mV14.79mV8.95mV6.88mVPass
Crossload38.14mV9.85mV17.44mV5.66mVPass
Crossload434.86mV20.86mV15.30mV14.68mVPass

The results above are not used in the certification process

Gamer Storm PL800D

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
