CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
FSP Technology Advan GM 1000W
Serial NumberS3161030004
Lab IDFS10002425
  • Report: 24PS2425A
  • Receipt Date: Apr 9, 2024
  • Test Date: Apr 23, 2024
  • Report Date: Apr 24, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandFSP Technology
Manufacturer (OEM)FSP
SeriesAdvan GM
Model NumberADVAN-1000GM
Serial NumberS3161030004
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)12-6
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Cooling120mm Rifle Bearing Fan
(D12SH-12)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202083.3330.3
Watts1001000153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18-22AWG No
4+4 pin EPS12V (700mm) 2 2 18AWG No
6+2 pin PCIe (650mm+155mm) 1 2 16-18AWG No
6+2 pin PCIe (500mm+150mm) 1 2 16-18AWG No
12+4 pin PCIe (700mm) (600W) 1 1 16-28AWG No
SATA (500mm+155mm+155mm+155mm) 2 8 18AWG No
SATA (500mm+155mm) / 4-pin Molex (+155mm+100mm) 1 2 / 2 18AWG No

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)18.3
AC Loss to PWR_OK Hold Up Time (ms)17.6
PWR_OK Inactive to DC Loss Delay (ms)0.7

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.84 V 114.78 V 113.85 V 114.90 V 116.15 V PASS
Mains Frequency: 60.01 Hz 59.99 Hz 59.40 Hz 60.03 Hz 60.60 Hz PASS
Mains Voltage CF: 1.420 1.419 1.340 1.423 1.490 PASS
Mains Voltage THD: 0.15 % 0.09 % N/A 0.25 % 2.00 % PASS
Real Power: 0.066 W 0.016 W N/A 0.097 W N/A N/A
Apparent Power: 10.317 W 10.296 W N/A 10.337 W N/A N/A
Power Factor: 0.008 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.87 V 229.78 V 227.70 V 229.94 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.98 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.419 1.418 1.340 1.420 1.490 PASS
Mains Voltage THD: 0.16 % 0.12 % N/A 0.21 % 2.00 % PASS
Real Power: 0.211 W 0.171 W N/A 0.249 W N/A N/A
Apparent Power: 34.878 W 34.853 W N/A 34.902 W N/A N/A
Power Factor: 0.007 N/A N/A N/A N/A N/A

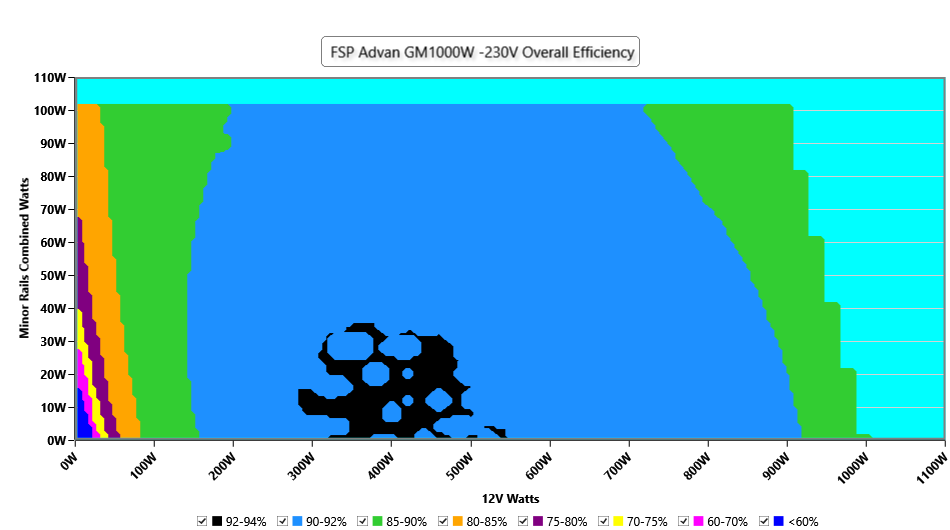

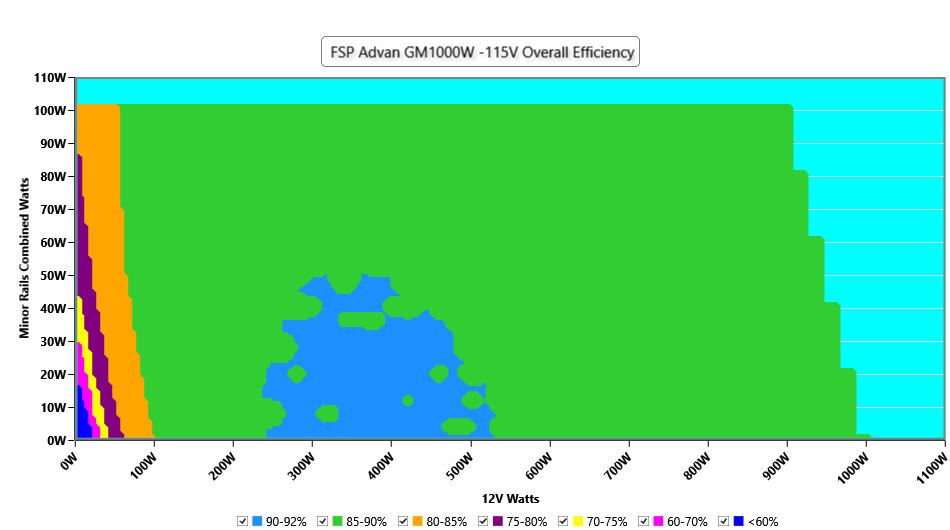

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

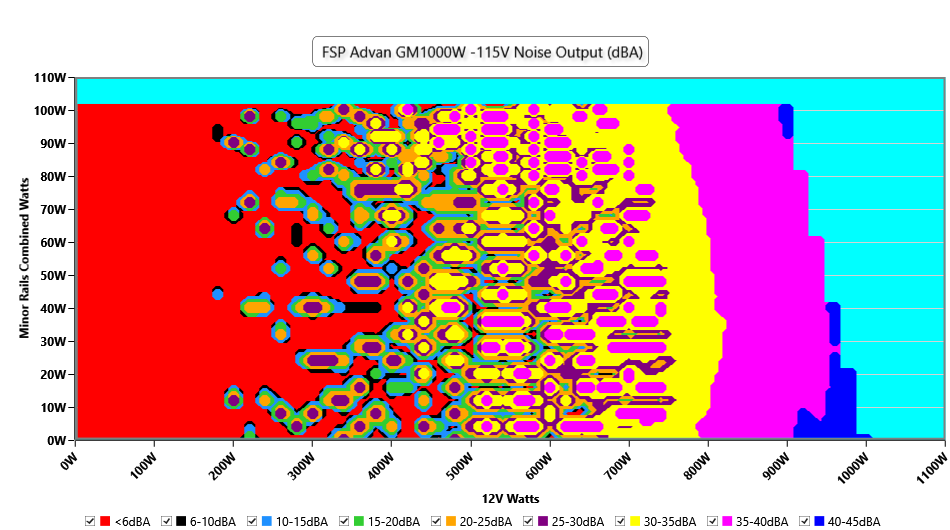

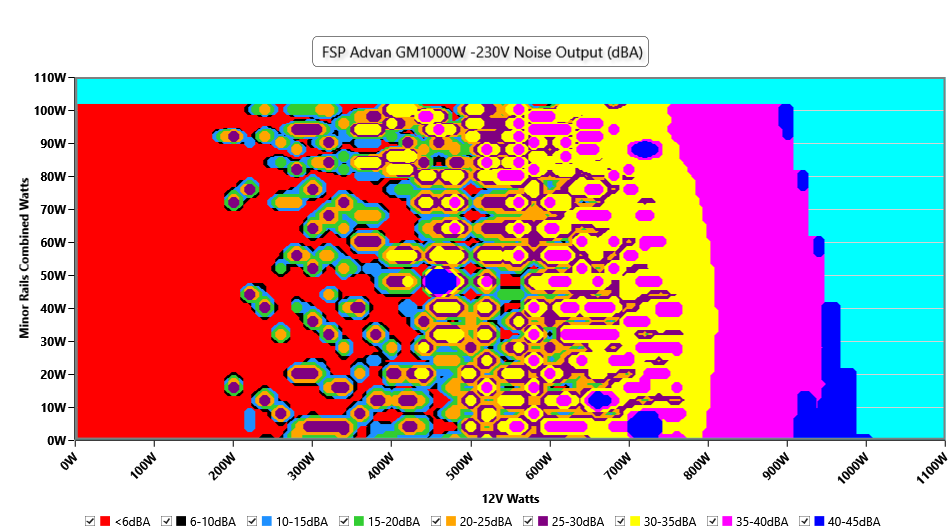

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

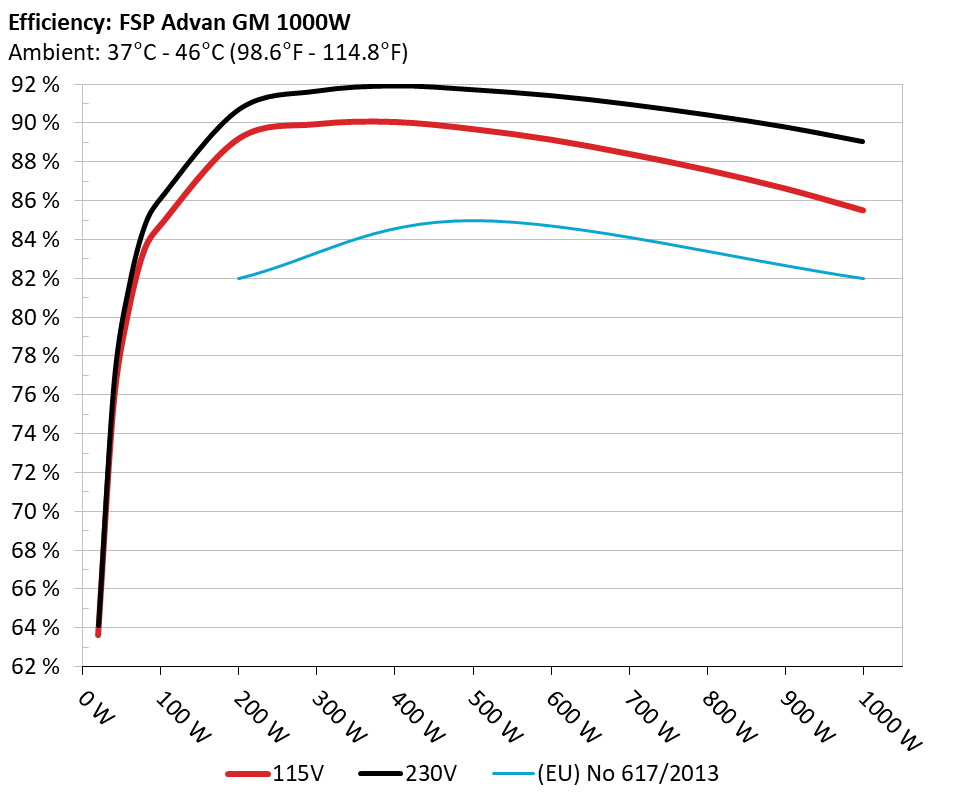

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

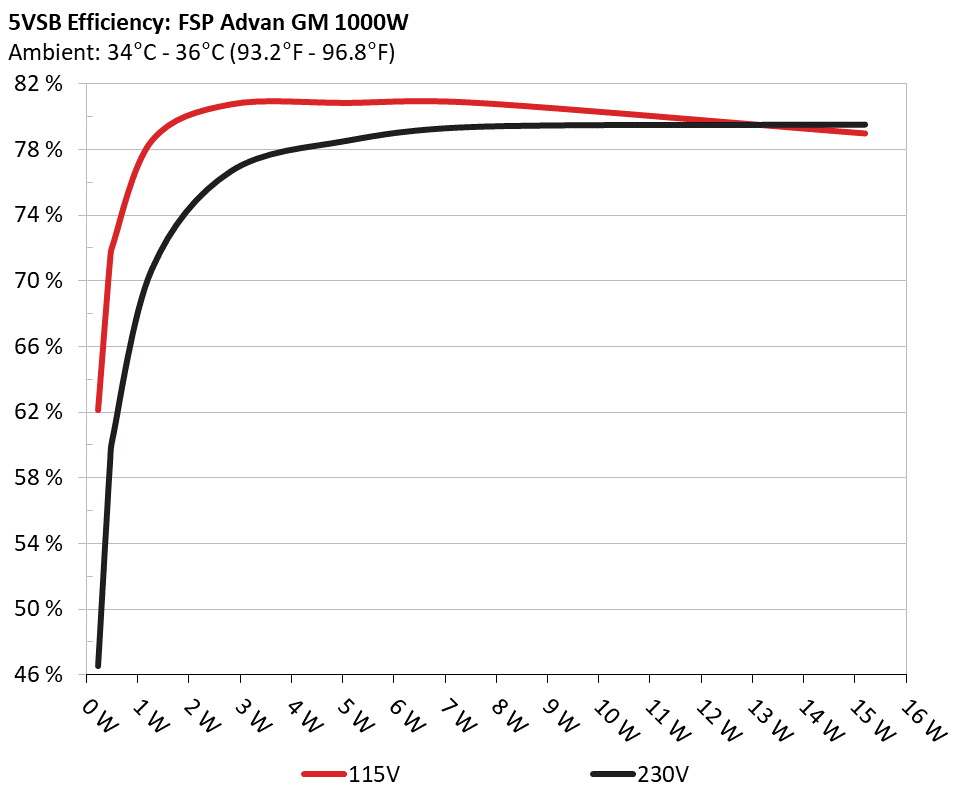

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 62.117% 0.036
5.12V 0.371W 114.85V
2 0.09A 0.461W 71.201% 0.062
5.119V 0.648W 114.84V
3 0.55A 2.811W 80.756% 0.262
5.11V 3.481W 114.84V
4 1A 5.102W 80.85% 0.346
5.101V 6.311W 114.84V
5 1.5A 7.638W 80.848% 0.406
5.092V 9.447W 114.83V
6 3A 15.19W 78.987% 0.479
5.063V 19.231W 114.84V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 46.538% 0.014
5.12V 0.495W 229.84V
2 0.09A 0.461W 58.842% 0.022
5.119V 0.783W 229.85V
3 0.55A 2.811W 76.65% 0.101
5.11V 3.668W 229.85V
4 1A 5.102W 78.538% 0.167
5.101V 6.496W 229.84V
5 1.5A 7.638W 79.379% 0.208
5.092V 9.623W 229.84V
6 3A 15.19W 79.514% 0.318
5.063V 19.104W 229.85V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.498A 1.976A 1.976A 0.982A 99.996 84.739% 0 <6.0 44.3°C 0.979
12.064V 5.062V 3.339V 5.09V 118.006 40.03°C 114.82V
20% 14.054A 2.971A 2.976A 1.182A 199.95 89.191% 0 <6.0 45.22°C 0.995
12.029V 5.049V 3.326V 5.077V 224.181 40.66°C 114.78V
30% 21.961A 3.474A 3.484A 1.382A 300.008 89.939% 1002 29.0 41.36°C 0.993
12.019V 5.038V 3.315V 5.065V 333.568 46.55°C 114.75V
40% 29.846A 3.979A 3.996A 1.584A 399.591 90.051% 1027 29.7 41.76°C 0.994
12.008V 5.027V 3.304V 5.053V 443.746 47.26°C 114.72V
50% 37.420A 4.988A 5.014A 1.786A 499.32 89.686% 1135 32.2 42.34°C 0.995
11.994V 5.013V 3.291V 5.041V 556.726 48.37°C 114.69V
60% 45.083A 6.002A 6.041A 1.989A 599.867 89.139% 1401 37.1 42.85°C 0.995
11.979V 4.999V 3.278V 5.028V 672.962 49.35°C 114.65V
70% 52.694A 7.022A 7.077A 2.193A 699.584 88.406% 1287 35.2 43.4°C 0.994
11.965V 4.985V 3.265V 5.017V 791.332 50.45°C 114.61V
80% 60.387A 8.045A 8.12A 2.297A 799.556 87.575% 1419 37.4 43.79°C 0.994
11.951V 4.971V 3.251V 5.007V 912.994 51.93°C 114.58V
90% 68.427A 8.568A 8.644A 2.402A 899.322 86.621% 1721 41.7 44.59°C 0.993
11.938V 4.959V 3.239V 4.997V 1038.229 53.63°C 114.53V
100% 76.288A 9.096A 9.203A 3.015A 999.33 85.495% 2036 45.3 45.67°C 0.992
11.924V 4.947V 3.227V 4.976V 1168.873 55.61°C 114.49V
CL1 0.115A 11.984A 12.024A 0A 101.279 80.912% 961 28.4 41.48°C 0.98
12.045V 5.023V 3.302V 5.104V 125.176 50.06°C 114.81V
CL2 0.115A 19.9A 0A 0A 101.326 79.46% 945 28.0 40.8°C 0.981
12.043V 5.022V 3.318V 5.106V 127.517 49.65°C 114.81V
CL3 0.113A 0A 19.993A 0A 67.379 73.898% 859 24.9 40.25°C 0.969
12.151V 5.045V 3.301V 5.106V 91.186 50.41°C 114.83V
CL4 83.822A 0A 0A 0A 999.879 86.27% 2002 44.9 44.7°C 0.992
11.929V 4.986V 3.262V 5.043V 1159.018 54.35°C 114.5V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.490A 1.975A 1.976A 0.982A 99.982 86.123% 0 <6.0 44.57°C 0.869
12.077V 5.062V 3.339V 5.089V 116.094 40.29°C 229.83V
20% 14.050A 2.97A 2.976A 1.182A 199.925 90.68% 0 <6.0 45.4°C 0.943
12.031V 5.05V 3.327V 5.077V 220.473 40.86°C 229.81V
30% 21.957A 3.473A 3.484A 1.382A 299.966 91.63% 1021 29.5 41.42°C 0.966
12.019V 5.039V 3.315V 5.065V 327.361 46.43°C 229.8V
40% 29.837A 3.978A 3.994A 1.583A 399.46 91.896% 1023 29.5 41.66°C 0.977
12.007V 5.027V 3.305V 5.054V 434.691 47.27°C 229.78V
50% 37.409A 4.986A 5.012A 1.785A 499.189 91.699% 1332 36.2 42.27°C 0.981
11.994V 5.014V 3.292V 5.042V 544.382 48.3°C 229.77V
60% 45.069A 6A 6.039A 1.988A 599.731 91.396% 1411 37.3 42.98°C 0.983
11.980V 5V 3.279V 5.03V 656.195 49.52°C 229.74V
70% 52.680A 7.019A 7.074A 2.192A 699.457 90.948% 1284 35.1 43.04°C 0.984
11.966V 4.986V 3.266V 5.018V 769.064 50.05°C 229.73V
80% 60.377A 8.043A 8.118A 2.296A 799.486 90.406% 1398 37.1 43.8°C 0.982
11.952V 4.972V 3.252V 5.007V 884.328 51.89°C 229.71V
90% 68.420A 8.567A 8.642A 2.401A 899.281 89.787% 1704 41.4 44.21°C 0.979
11.938V 4.96V 3.24V 4.997V 1001.574 53.36°C 229.7V
100% 76.285A 9.095A 9.202A 3.014A 999.303 89.029% 2029 45.2 45.68°C 0.977
11.924V 4.947V 3.227V 4.976V 1122.45 55.62°C 229.68V
CL1 0.115A 11.985A 12.023A 0A 101.289 82.085% 898 26.0 40.04°C 0.879
12.053V 5.023V 3.302V 5.104V 123.399 49.72°C 229.83V
CL2 0.115A 19.9A 0A 0A 101.331 80.799% 925 27.1 40.88°C 0.881
12.048V 5.022V 3.318V 5.106V 125.414 50.36°C 229.83V
CL3 0.113A 0A 19.991A 0A 67.38 75.208% 787 22.4 41.69°C 0.813
12.163V 5.045V 3.301V 5.106V 89.591 49.96°C 229.83V
CL4 83.814A 0A 0A 0A 999.883 89.72% 2003 44.9 45.88°C 0.977
11.930V 4.986V 3.262V 5.043V 1114.458 54.7°C 229.68V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.205A 0.493A 0.492A 0.196A 19.996 63.603% 0 <6.0 39.82°C 0.864
12.321V 5.074V 3.353V 5.113V 31.439 36.69°C 114.84V
40W 2.666A 0.69A 0.69A 0.294A 39.998 75.548% 0 <6.0 40.66°C 0.936
12.262V 5.071V 3.35V 5.11V 52.944 37.33°C 114.83V
60W 4.140A 0.888A 0.887A 0.392A 59.998 80.501% 0 <6.0 42.18°C 0.959
12.206V 5.069V 3.347V 5.106V 74.531 38.57°C 114.83V
80W 5.632A 1.085A 1.085A 0.49A 79.942 83.538% 0 <6.0 43.11°C 0.972
12.129V 5.067V 3.345V 5.102V 95.696 39.12°C 114.83V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.204A 0.493A 0.492A 0.196A 19.996 64.118% 0 <6.0 39.69°C 0.491
12.326V 5.074V 3.353V 5.113V 31.186 36.56°C 229.84V
40W 2.664A 0.69A 0.69A 0.294A 39.998 76.671% 0 <6.0 40.43°C 0.658
12.269V 5.071V 3.35V 5.109V 52.17 37.05°C 229.84V
60W 4.136A 0.888A 0.887A 0.392A 59.998 81.743% 0 <6.0 41.76°C 0.763
12.218V 5.069V 3.347V 5.105V 73.398 38.26°C 229.83V
80W 5.625A 1.085A 1.085A 0.49A 79.934 84.783% 0 <6.0 42.98°C 0.827
12.143V 5.067V 3.345V 5.102V 94.28 39.27°C 229.83V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load21.69mV12.42mV12.93mV7.64mVPass
20% Load20.66mV13.75mV14.21mV7.75mVPass
30% Load21.74mV13.50mV14.62mV8.01mVPass
40% Load19.18mV16.01mV14.67mV8.21mVPass
50% Load31.35mV15.45mV16.36mV8.77mVPass
60% Load35.70mV14.98mV15.44mV11.59mVPass
70% Load32.48mV16.89mV16.83mV11.80mVPass
80% Load25.78mV19.96mV18.88mV13.08mVPass
90% Load22.66mV19.29mV19.50mV15.19mVPass
100% Load44.84mV22.97mV22.70mV18.83mVPass
110% Load0.00mV0.00mV0.00mV0.00mVPass
Crossload135.72mV16.93mV22.18mV8.87mVPass
Crossload227.31mV22.99mV18.42mV8.67mVPass
Crossload336.57mV15.76mV25.34mV8.36mVPass
Crossload440.29mV20.13mV16.00mV9.85mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load26.39mV12.88mV14.01mV8.77mVPass
20% Load20.51mV14.32mV14.98mV8.72mVPass
30% Load19.28mV14.42mV14.52mV8.88mVPass
40% Load51.96mV17.09mV16.32mV8.67mVPass
50% Load39.69mV16.88mV18.57mV9.96mVPass
60% Load30.12mV16.01mV16.26mV9.39mVPass
70% Load35.24mV18.17mV17.60mV10.83mVPass
80% Load24.19mV18.68mV19.03mV10.57mVPass
90% Load21.99mV19.30mV19.55mV12.98mVPass
100% Load34.23mV20.27mV19.97mV14.59mVPass
110% Load0.00mV0.00mV0.00mV0.00mVPass
Crossload134.54mV16.20mV21.16mV8.70mVPass
Crossload224.19mV22.43mV18.77mV7.80mVPass
Crossload336.21mV15.30mV26.11mV16.11mVPass
Crossload434.51mV20.68mV14.18mV9.53mVPass

The results above are not used in the certification process

FSP Technology Advan GM 1000W

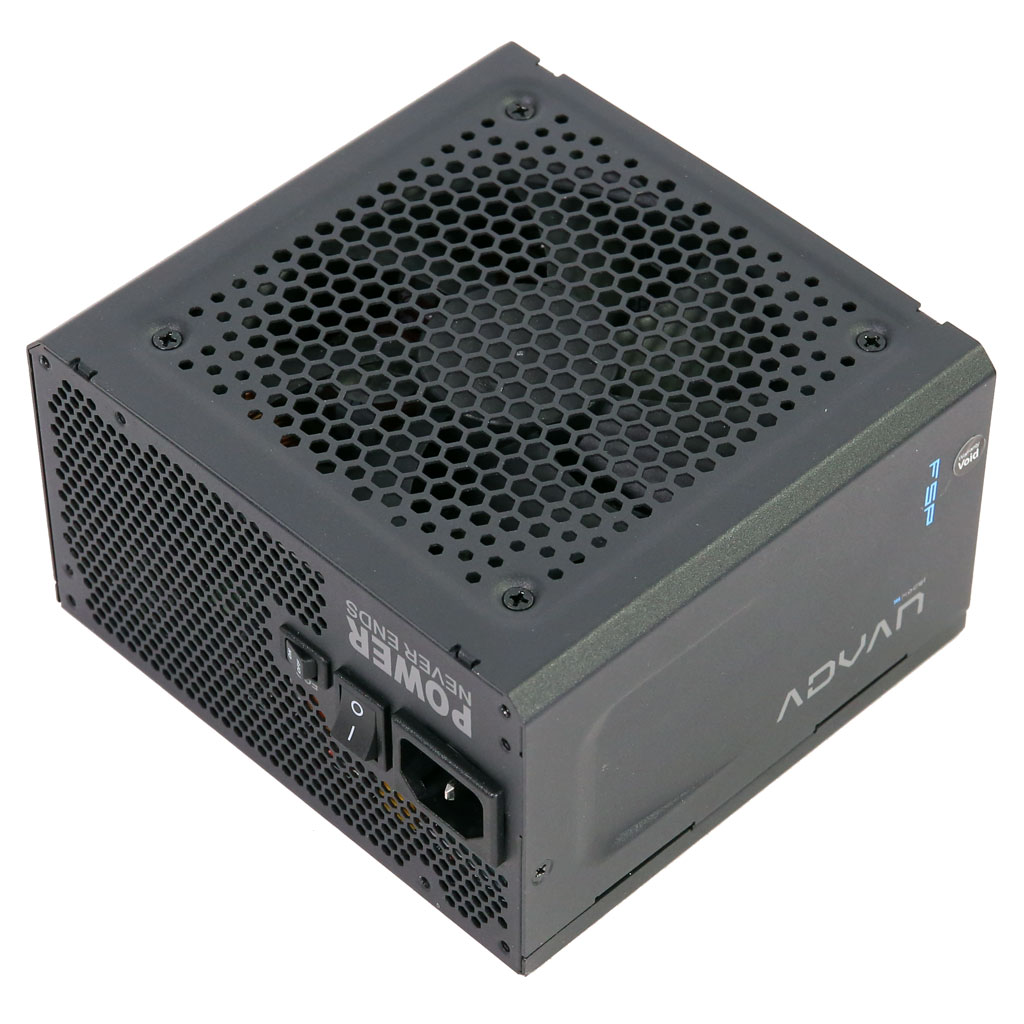

Top side

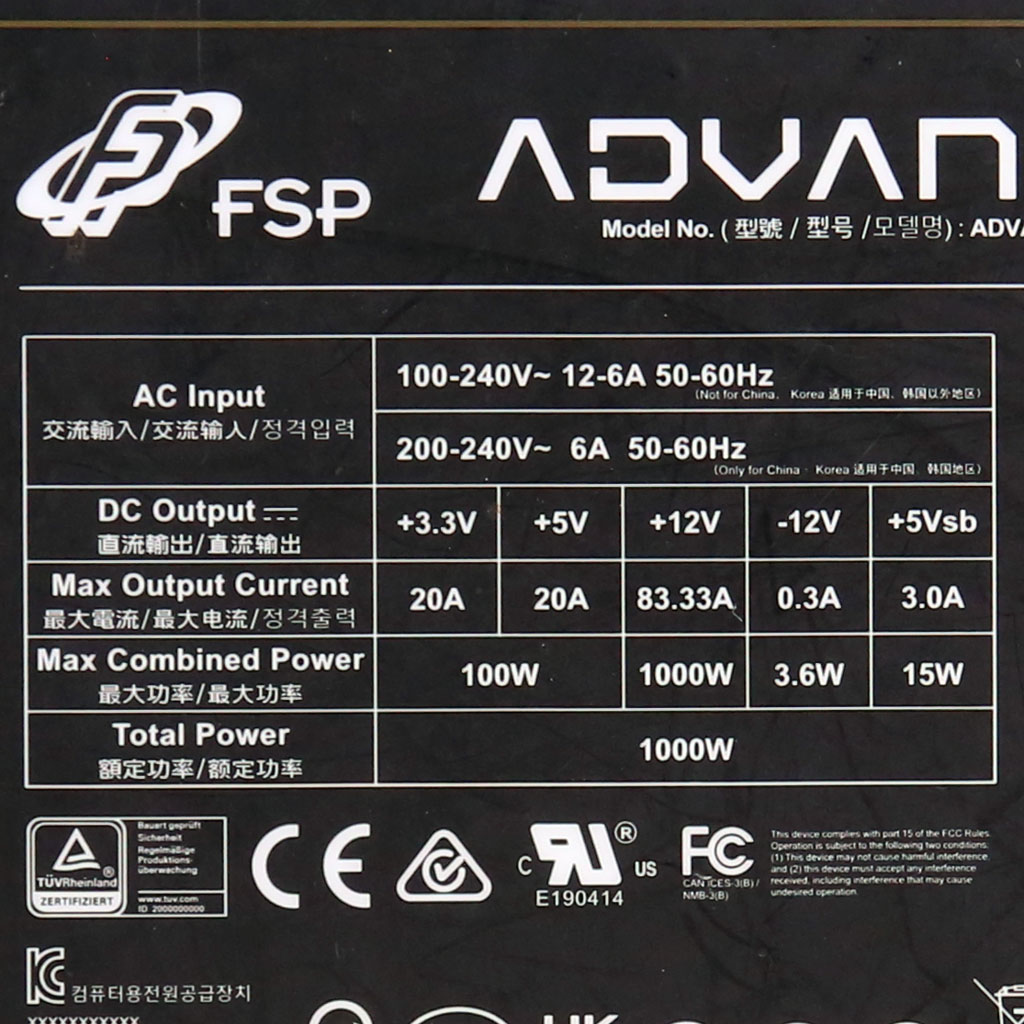

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
