Seasonic Focus Plus Platinum 650W
Serial NumberR1707AA170400337
Lab ID241
  • Report:
  • Receipt Date: Nov 1, 2018
  • Test Date: Nov 9, 2018
  • Report Date: Nov 12, 2018
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandSeasonic
Manufacturer (OEM)Seasonic
SeriesFOCUS Plus Platinum
Model NumberSSR-650PX
Serial NumberR1707AA170400337
DUT NotesRetested on 04/10/2018

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)9-4.5
Rated Frequency (Hz)50-60
Rated Power (W)650
TypeATX12V
Cooling120mm Fluid Dynamic Bearing Fan
(HA1225M12F-Z)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps20205430.3
Watts100648153.6
Total Max. Power (W)650

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18-22AWG Yes
4+4 pin EPS12V (650mm) 1 1 18AWG Yes
6+2 pin PCIe (680mm+80mm) 2 4 18AWG Yes
SATA (450mm+110mm+110mm+110mm) 2 8 18AWG No
4 pin Molex (450mm+120mm+120mm) 1 3 18AWG No
FDD Adapter (+105mm) 1 1 22AWG No
AC Power Cord (1370mm) - C13 coupler 1 1 18AWG No

Parts Description

General Data
Manufacturer (OEM) Seasonic
Platform Model PX
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV , 1x CM02X
Inrush Protection NTC Thermistor & Diode
Bridge Rectifier(s) 2x GBU1506 (600V, 15A @ 100°C)
APFC MOSFETS 2x Infineon IPP50R199CP (550V, 15A @ 100°C, 0.199Ohm)
APFC Boost Diode 1x STMicroelectronics STTH8S06D (600V, 8A @ 125°C)
Hold-up Cap(s) 1x Nippon Chemi-Con (400V, 450uF, 2000h @ 105°C, CE)
Main Switchers 4x Infineon IPP50R250CP (550V, 9A @ 100°C, 0.25Ohm)
APFC Controller Champion CM6500UNX
Resonant Controller Champion CM6901T6X
Topology Primary side: Full-Bridge & LLC Resonant Controller
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 4x Nexperia PSMN2R6-40YS (40V, 100A @ 100°C, 3.7mOhm @ 100°C)
5V & 3.3V DC-DC Converters: 6x Infineon BSC0906NS (30V, 40A @ 100°C, 4.5mOhm)
PWM Controller: APW7159
Filtering Capacitors Electrolytics: Chemi-Con (1-5,000 @ 105°C, KZE), Chemi-Con (4-10,000 @ 105°C, KY), W
Polymers: Chemi-Con
Supervisor IC Weltrend WT7527V (OVP, UVP, OCP, SCP, PG)
Fan Model Hong Hua HA1225M12F-Z (120mm, 12V, 0.45A, 2050 RPM, Fluid Dynamic Bearing)
5VSB Circuit
Standby PWM Controller Excelliance EM8569C
Rectifier P10V45SP SBR (45V, 10A @ 50% Duty Cycle)

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)22
AC Loss to PWR_OK Hold Up Time (ms)17.4
PWR_OK Inactive to DC Loss Delay (ms)4.6

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

5VSB Efficiency

INFO

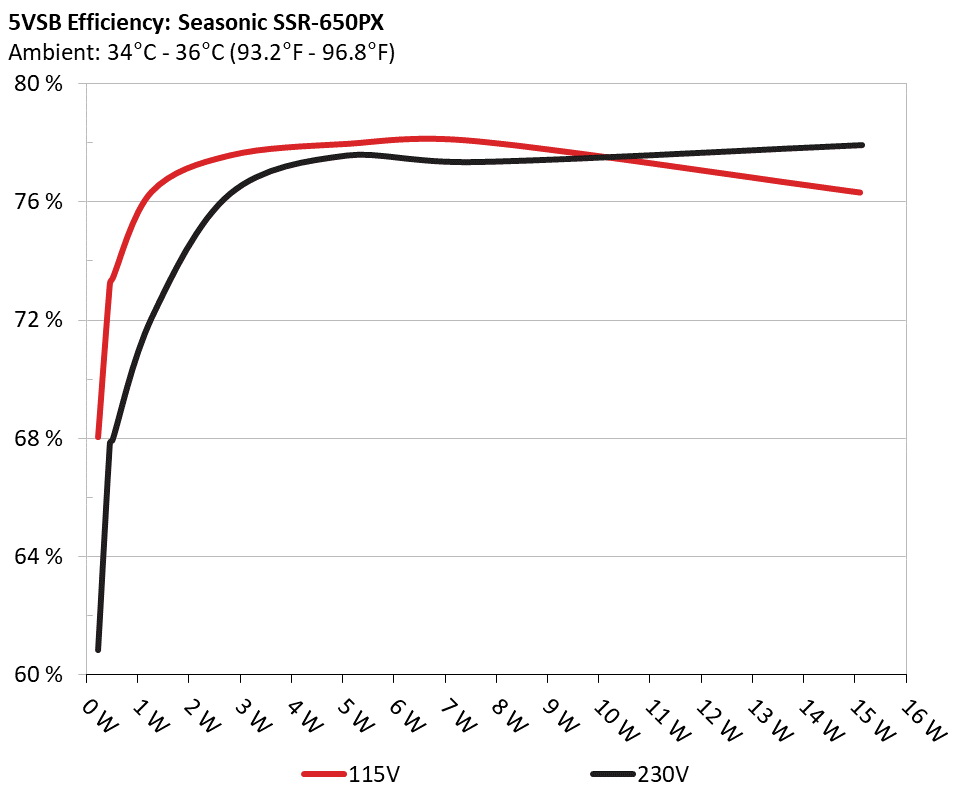

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 68.047% 0.029
5.112V 0.338 115.27V
2 0.090A 0.460 73.248% 0.054
5.111V 0.628 115.27V
3 0.550A 2.805 77.593% 0.251
5.100V 3.615 115.26V
4 1.000A 5.090 77.984% 0.350
5.091V 6.527 115.26V
5 1.500A 7.619 78.072% 0.408
5.080V 9.759 115.26V
6 3.000A 15.106 76.335% 0.479
5.036V 19.789 115.25V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 60.847% 0.012
5.112V 0.378 230.83V
2 0.090A 0.460 67.847% 0.021
5.111V 0.678 230.82V
3 0.550A 2.805 76.285% 0.106
5.100V 3.677 230.82V
4 1.000A 5.090 77.580% 0.175
5.090V 6.561 230.81V
5 1.500A 7.619 77.358% 0.236
5.079V 9.849 230.82V
6 3.000A 15.135 77.931% 0.338
5.045V 19.421 230.82V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.557A 1.984A 1.989A 0.984A 64.736 86.050% 0 <6.0 45.47°C 0.958
12.134V 5.029V 3.316V 5.084V 75.231 38.02°C 115.29V
2 8.107A 2.983A 2.985A 1.183A 129.267 89.991% 0 <6.0 46.33°C 0.979
12.134V 5.028V 3.315V 5.074V 143.644 38.38°C 115.20V
3 13.051A 3.481A 3.470A 1.382A 194.391 90.999% 0 <6.0 47.30°C 0.987
12.136V 5.028V 3.315V 5.064V 213.620 38.77°C 115.11V
4 17.994A 3.976A 3.983A 1.583A 259.599 91.212% 485 9.3 39.00°C 0.989
12.138V 5.027V 3.314V 5.054V 284.610 49.36°C 115.12V
5 22.606A 4.974A 4.982A 1.785A 324.927 91.087% 445 9.6 39.68°C 0.990
12.139V 5.027V 3.313V 5.044V 356.722 51.37°C 115.02V
6 27.154A 5.970A 5.977A 1.987A 389.451 90.764% 795 18.9 40.03°C 0.991
12.140V 5.026V 3.312V 5.033V 429.079 51.88°C 114.92V
7 31.770A 6.962A 6.978A 2.191A 454.772 90.291% 1155 28.7 41.34°C 0.991
12.140V 5.025V 3.310V 5.022V 503.673 53.59°C 114.94V
8 36.388A 7.964A 7.979A 2.395A 520.095 89.795% 1670 37.2 42.84°C 0.991
12.138V 5.024V 3.309V 5.012V 579.203 55.57°C 114.84V
9 41.400A 8.463A 8.464A 2.398A 585.024 89.380% 2005 41.1 43.86°C 0.991
12.138V 5.023V 3.308V 5.005V 654.535 56.75°C 114.74V
10 46.149A 8.962A 8.980A 3.009A 649.864 88.838% 2025 41.2 45.29°C 0.992
12.138V 5.022V 3.307V 4.986V 731.517 58.65°C 114.63V
11 51.480A 8.963A 8.982A 3.013A 714.688 88.339% 2035 41.3 46.57°C 0.993
12.140V 5.022V 3.307V 4.980V 809.032 60.54°C 114.64V
CL1 0.738A 12.001A 12.001A 0.000A 109.074 86.604% 445 9.6 43.65°C 0.979
12.143V 5.026V 3.316V 5.092V 125.946 52.20°C 115.21V
CL2 54.012A 1.002A 1.000A 1.000A 668.978 89.315% 2025 41.2 45.89°C 0.992
12.138V 5.024V 3.308V 5.039V 749.007 59.16°C 114.62V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.565A 1.988A 1.991A 0.984A 64.877 86.983% 0 <6.0 47.54°C 0.815
12.139V 5.029V 3.316V 5.083V 74.586 38.12°C 230.90V
2 8.113A 2.984A 2.989A 1.183A 129.398 91.271% 0 <6.0 48.29°C 0.914
12.139V 5.028V 3.315V 5.073V 141.774 38.44°C 230.86V
3 13.055A 3.483A 3.469A 1.383A 194.487 92.439% 450 9.9 38.54°C 0.948
12.139V 5.028V 3.314V 5.064V 210.394 48.90°C 230.81V
4 17.999A 3.979A 3.987A 1.583A 259.699 92.903% 445 9.6 39.23°C 0.962
12.139V 5.027V 3.313V 5.053V 279.539 50.09°C 230.77V
5 22.612A 4.974A 4.984A 1.785A 325.017 92.978% 465 9.8 39.66°C 0.971
12.140V 5.026V 3.312V 5.043V 349.565 50.64°C 230.72V
6 27.160A 5.971A 5.979A 1.987A 389.523 92.814% 795 18.9 40.65°C 0.976
12.140V 5.025V 3.311V 5.033V 419.683 52.02°C 230.67V
7 31.773A 6.969A 6.980A 2.191A 454.836 92.528% 1130 29.9 41.56°C 0.979
12.140V 5.024V 3.309V 5.022V 491.564 53.19°C 230.71V
8 36.393A 7.964A 7.980A 2.395A 520.158 92.254% 1655 37.0 42.54°C 0.982
12.138V 5.024V 3.309V 5.012V 563.835 54.42°C 230.67V
9 41.402A 8.464A 8.466A 2.398A 585.061 92.005% 2005 41.1 43.97°C 0.984
12.138V 5.023V 3.308V 5.006V 635.904 56.20°C 230.62V
10 46.151A 8.962A 8.983A 3.009A 649.900 91.654% 2025 41.2 45.48°C 0.985
12.138V 5.022V 3.307V 4.987V 709.083 58.16°C 230.57V
11 51.487A 8.963A 8.984A 3.012A 714.717 91.382% 2035 41.3 46.41°C 0.987
12.139V 5.022V 3.306V 4.981V 782.120 59.81°C 230.51V
CL1 0.740A 12.002A 12.000A 0.000A 109.101 87.748% 445 9.6 44.07°C 0.900
12.143V 5.026V 3.316V 5.091V 124.335 50.37°C 230.95V
CL2 54.016A 1.002A 0.999A 1.000A 669.025 92.214% 2025 41.2 45.69°C 0.986
12.138V 5.025V 3.307V 5.040V 725.512 55.59°C 230.56V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.172A 0.494A 0.480A 0.196A 19.296 70.980% 0 <6.0 0.860
12.128V 5.035V 3.319V 5.107V 27.185 115.34V
2 2.427A 0.993A 0.995A 0.392A 39.729 81.845% 0 <6.0 0.930
12.129V 5.029V 3.316V 5.100V 48.542 115.32V
3 3.619A 1.490A 1.476A 0.589A 59.286 85.605% 0 <6.0 0.957
12.130V 5.029V 3.316V 5.094V 69.255 115.29V
4 4.873A 1.987A 1.989A 0.786A 79.711 87.547% 0 <6.0 0.970
12.133V 5.029V 3.316V 5.088V 91.049 115.26V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.193A 0.497A 0.484A 0.196A 19.591 73.068% 0 <6.0 0.538
12.138V 5.034V 3.320V 5.106V 26.812 230.93V
2 2.446A 0.995A 0.996A 0.392A 39.994 83.058% 0 <6.0 0.713
12.138V 5.029V 3.316V 5.100V 48.152 230.91V
3 3.631A 1.491A 1.477A 0.589A 59.470 86.919% 0 <6.0 0.796
12.138V 5.029V 3.316V 5.094V 68.420 230.90V
4 4.886A 1.989A 1.992A 0.786A 79.913 88.916% 0 <6.0 0.849
12.138V 5.029V 3.316V 5.087V 89.875 230.89V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 8.1 mV 4.8 mV 3.7 mV 3.9 mV Pass
20% Load 11.7 mV 5.6 mV 4.3 mV 4.3 mV Pass
30% Load 14.3 mV 6.0 mV 4.9 mV 4.4 mV Pass
40% Load 17.0 mV 6.5 mV 5.6 mV 4.7 mV Pass
50% Load 19.0 mV 7.9 mV 6.5 mV 4.9 mV Pass
60% Load 20.4 mV 9.3 mV 7.1 mV 5.4 mV Pass
70% Load 22.1 mV 10.4 mV 8.2 mV 7.2 mV Pass
80% Load 22.4 mV 10.9 mV 9.0 mV 9.5 mV Pass
90% Load 23.4 mV 9.9 mV 9.0 mV 9.8 mV Pass
100% Load 24.5 mV 11.0 mV 9.4 mV 8.1 mV Pass
110% Load 26.7 mV 11.5 mV 9.7 mV 8.9 mV Pass
Crossload 1 10.6 mV 9.5 mV 8.4 mV 5.2 mV Pass
Crossload 2 24.9 mV 8.2 mV 5.6 mV 7.8 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 8.2 mV 4.7 mV 3.6 mV 3.6 mV Pass
20% Load 11.4 mV 5.2 mV 4.5 mV 4.0 mV Pass
30% Load 14.3 mV 6.1 mV 4.8 mV 4.2 mV Pass
40% Load 16.9 mV 6.5 mV 5.4 mV 4.3 mV Pass
50% Load 19.2 mV 8.0 mV 6.3 mV 4.4 mV Pass
60% Load 20.5 mV 8.8 mV 7.5 mV 4.9 mV Pass
70% Load 22.2 mV 10.5 mV 8.5 mV 4.9 mV Pass
80% Load 22.8 mV 11.0 mV 9.3 mV 5.9 mV Pass
90% Load 23.6 mV 11.0 mV 9.3 mV 6.3 mV Pass
100% Load 25.1 mV 11.5 mV 9.8 mV 6.0 mV Pass
110% Load 26.8 mV 11.2 mV 9.7 mV 6.7 mV Pass
Crossload 1 10.6 mV 9.3 mV 8.3 mV 5.3 mV Pass
Crossload 2 25.4 mV 8.0 mV 5.9 mV 5.2 mV Pass

The results above are not used in the certification process

Seasonic Focus Plus Platinum 650W

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
