CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
MSI MAG A1000GL PCIE5
Serial Number
Lab IDMS10002409
  • Report: 24PS2409A
  • Receipt Date: Mar 22, 2024
  • Test Date: Apr 8, 2024
  • Report Date: Apr 9, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandMSI
Manufacturer (OEM)CWT
SeriesMAG A-GL PCIE5
Model Number
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)13
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Cooling135mm Fluid Dynamic Bearing Fan
(HA13525H12SF-Z)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps222283.330.3
Watts120999.6153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16AWG No
4+4 pin EPS12V (750mm) 2 2 16AWG No
6+2 pin PCIe (600mm+150mm) 2 4 16-18AWG No
12+4 pin PCIe (590mm) (450W) 1 1 16-26AWG No
SATA (500mm+150mm+150mm+150mm) 2 8 18AWG No
4-pin Molex (500mm+150mm+150mm+150mm) / FDD (+150mm) 1 4 / 1 18-20AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)19.5
AC Loss to PWR_OK Hold Up Time (ms)17.4
PWR_OK Inactive to DC Loss Delay (ms)2.1

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.12 V 115.10 V 113.85 V 115.16 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.15 % 2.00 % PASS
Real Power: 0.015 W 0.013 W N/A 0.017 W N/A N/A
Apparent Power: 9.739 W 9.736 W N/A 9.746 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.37 V 230.33 V 227.70 V 230.37 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.070 W 0.062 W N/A 0.086 W N/A N/A
Apparent Power: 32.577 W 32.564 W N/A 32.589 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

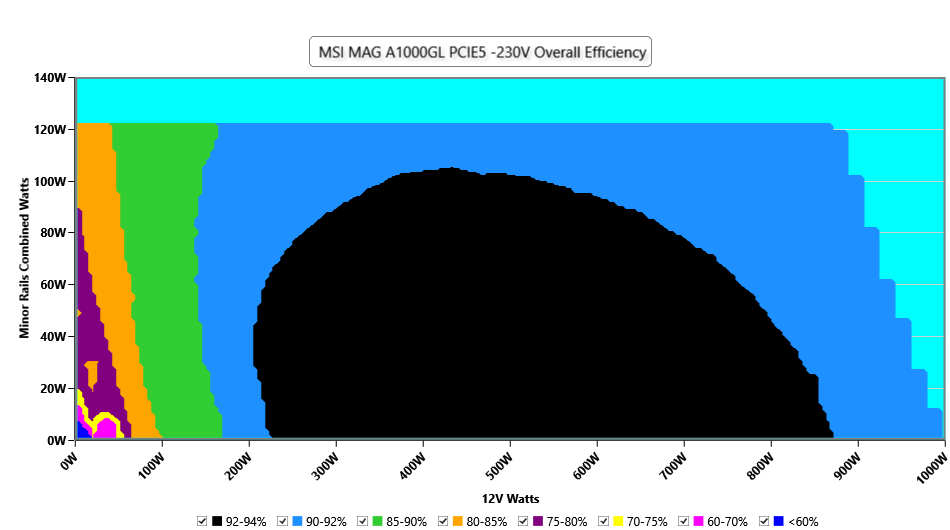

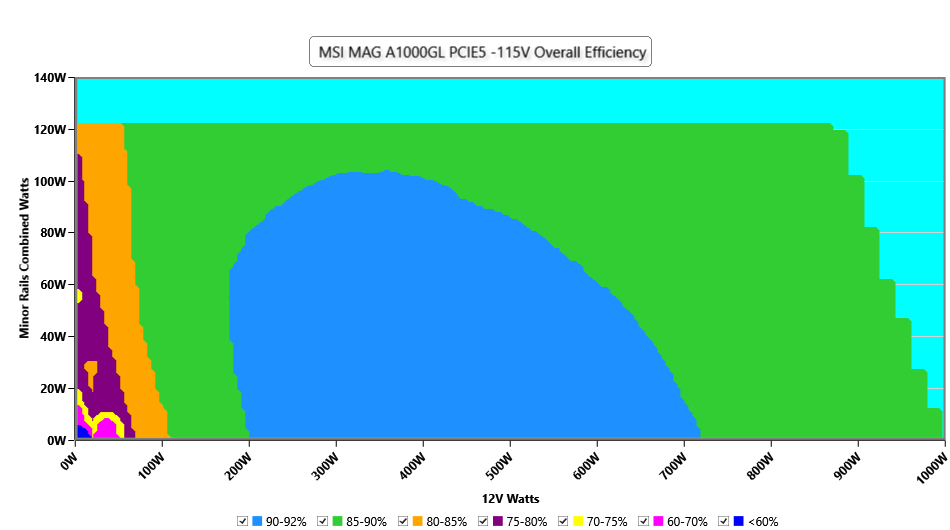

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

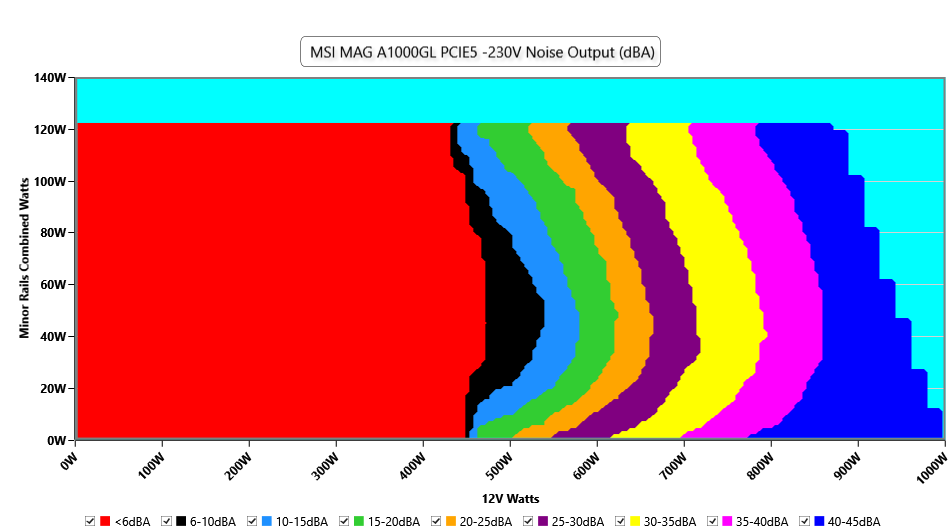

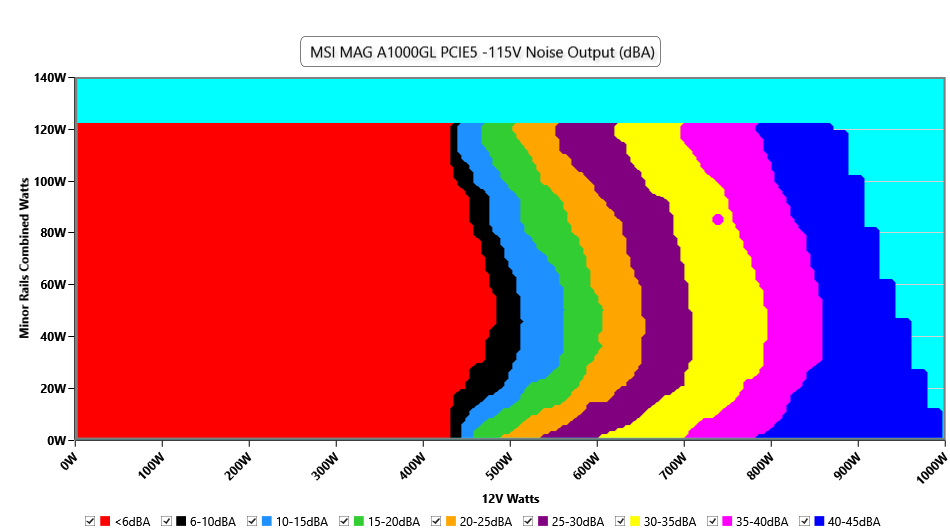

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

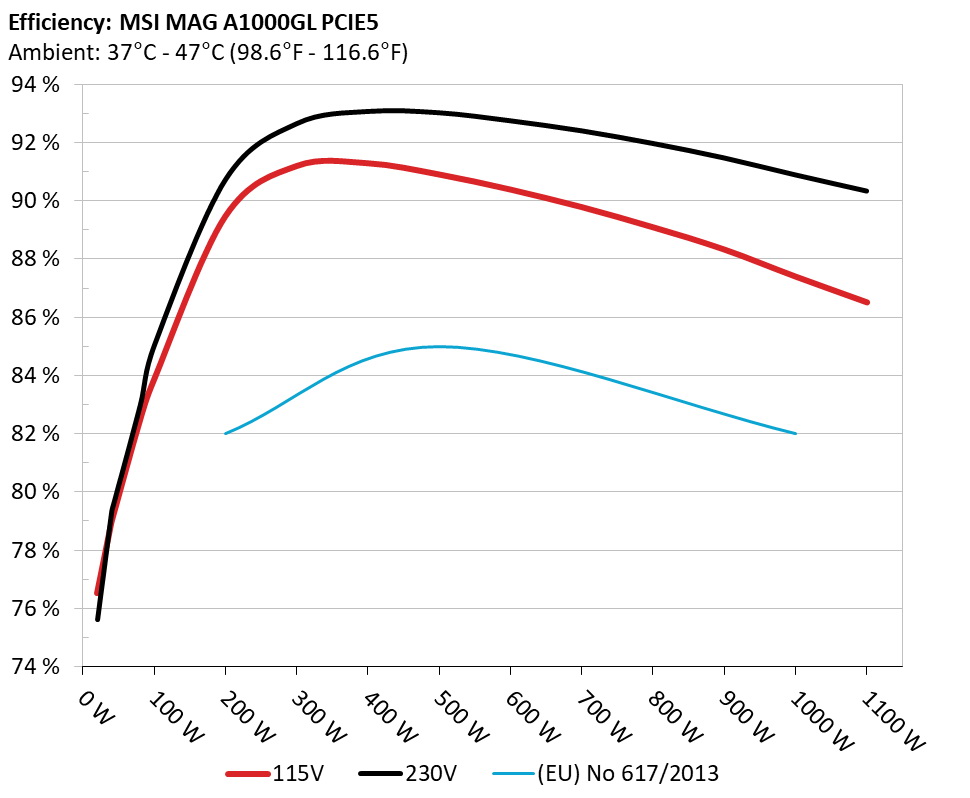

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

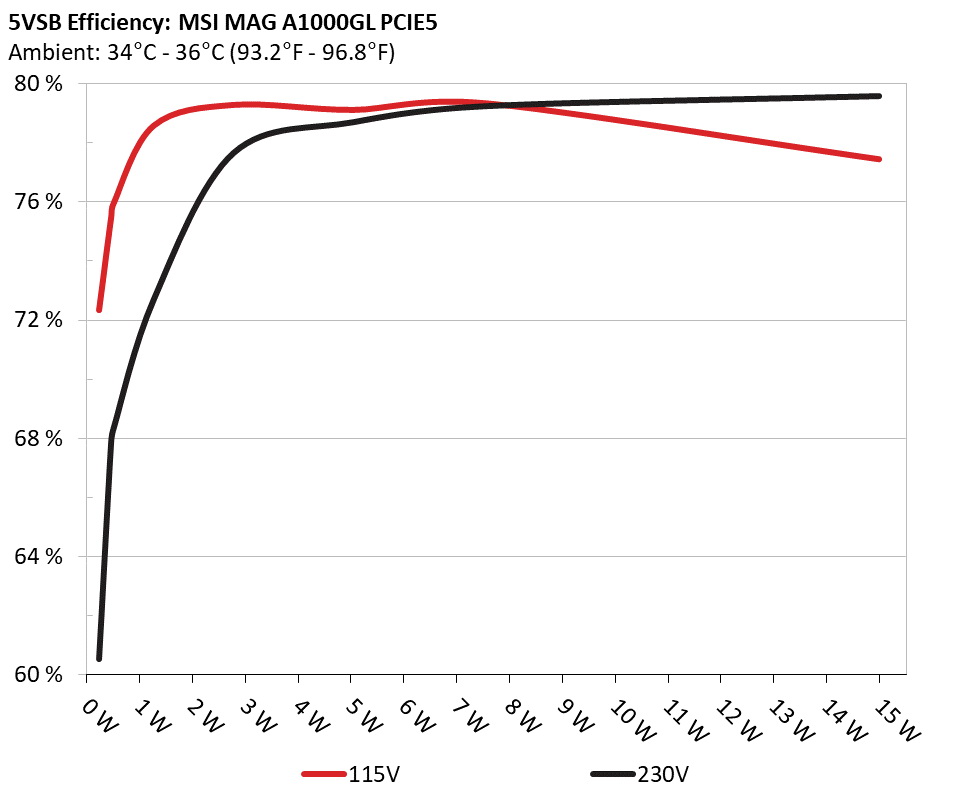

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 72.348% 0.032
5.061V 0.315W 115.16V
2 0.09A 0.455W 75.455% 0.061
5.059V 0.603W 115.16V
3 0.55A 2.778W 79.275% 0.277
5.048V 3.504W 115.17V
4 1A 5.04W 79.104% 0.383
5.038V 6.372W 115.17V
5 1.5A 7.544W 79.327% 0.439
5.028V 9.51W 115.17V
6 3.001A 14.982W 77.441% 0.513
4.993V 19.345W 115.16V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 60.544% 0.012
5.065V 0.377W 230.41V
2 0.09A 0.456W 67.864% 0.021
5.062V 0.672W 230.41V
3 0.55A 2.778W 77.655% 0.105
5.049V 3.577W 230.41V
4 1A 5.04W 78.687% 0.175
5.038V 6.407W 230.41V
5 1.5A 7.544W 79.227% 0.236
5.028V 9.522W 230.41V
6 3.001A 14.982W 79.567% 0.346
4.993V 18.832W 230.4V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.444A 1.983A 1.937A 0.992A 100.01 83.86% 404 <6.0 40.17°C 0.981
12.168V 5.045V 3.407V 5.042V 119.258 44.4°C 115.12V
20% 13.896A 2.975A 2.909A 1.193A 199.965 89.462% 405 <6.0 40.89°C 0.988
12.166V 5.042V 3.403V 5.032V 223.519 45.44°C 115.09V
30% 21.732A 3.473A 3.397A 1.387A 300.019 91.188% 405 <6.0 41.13°C 0.985
12.146V 5.041V 3.4V 5.048V 329.012 46.21°C 115.06V
40% 29.555A 3.97A 3.887A 1.587A 399.752 91.282% 406 <6.0 41.88°C 0.985
12.131V 5.039V 3.396V 5.042V 437.931 47.39°C 115.02V
50% 37.056A 4.965A 4.864A 1.789A 499.464 90.899% 554 12.0 42.3°C 0.987
12.115V 5.037V 3.393V 5.032V 549.472 48.35°C 114.99V
60% 44.651A 5.962A 5.843A 1.993A 600.009 90.378% 871 26.5 42.46°C 0.989
12.098V 5.034V 3.389V 5.02V 663.887 49.01°C 114.96V
70% 52.200A 6.96A 6.825A 2.197A 699.736 89.777% 1209 36.2 43.11°C 0.991
12.081V 5.03V 3.385V 5.007V 779.416 50.13°C 114.93V
80% 59.839A 7.958A 7.808A 2.302A 799.764 89.084% 1588 43.2 43.62°C 0.992
12.063V 5.026V 3.381V 4.997V 897.757 51.8°C 114.9V
90% 67.818A 8.461A 8.292A 2.407A 899.601 88.324% 1917 47.6 44.52°C 0.993
12.049V 5.024V 3.377V 4.986V 1018.521 53.54°C 114.89V
100% 75.556A 8.963A 8.805A 3.022A 999.666 87.394% 2216 50.5 45.87°C 0.994
12.044V 5.021V 3.373V 4.964V 1143.868 55.89°C 114.86V
110% 83.214A 9.964A 9.885A 3.026A 1100.239 86.507% 2217 50.5 46.57°C 0.994
12.040V 5.019V 3.369V 4.957V 1271.85 57.49°C 114.82V
CL1 0.115A 14.335A 14.064A 0A 121.307 81.2% 443 7.1 41.23°C 0.985
12.168V 5.037V 3.391V 5.062V 149.39 46.76°C 115.12V
CL2 0.115A 21.825A 0A 0A 111.394 78.279% 442 7.1 41.13°C 0.986
12.176V 5.04V 3.401V 5.069V 142.304 48.64°C 115.12V
CL3 0.115A 0A 21.461A 0A 73.992 73.673% 441 7.1 41.61°C 0.979
12.173V 5.057V 3.382V 5.064V 100.432 50.73°C 115.13V
CL4 83.013A 0A 0A 0A 1000.08 88.025% 2216 50.5 45.71°C 0.994
12.047V 5.038V 3.381V 5.048V 1136.137 56.67°C 114.85V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.446A 1.983A 1.938A 0.992A 100.035 85.046% 409 6.2 40.33°C 0.895
12.168V 5.046V 3.406V 5.042V 117.625 44.58°C 230.43V
20% 13.901A 2.975A 2.91A 1.193A 199.997 90.728% 409 6.2 40.62°C 0.949
12.164V 5.043V 3.403V 5.031V 220.435 45.21°C 230.41V
30% 21.737A 3.472A 3.398A 1.387A 300.06 92.641% 410 6.2 41.12°C 0.965
12.145V 5.042V 3.399V 5.048V 323.888 46.15°C 230.4V
40% 29.569A 3.97A 3.888A 1.587A 399.869 93.057% 410 6.2 41.68°C 0.972
12.129V 5.04V 3.396V 5.041V 429.693 47.19°C 230.39V
50% 37.079A 4.965A 4.866A 1.79A 499.637 93.013% 622 15.5 42.47°C 0.975
12.113V 5.037V 3.392V 5.03V 537.17 48.52°C 230.37V
60% 44.673A 5.962A 5.845A 1.993A 600.138 92.737% 917 28.2 42.6°C 0.978
12.095V 5.034V 3.388V 5.018V 647.136 49.22°C 230.36V
70% 52.224A 6.96A 6.827A 2.198A 699.852 92.392% 1234 36.9 43.13°C 0.98
12.078V 5.03V 3.384V 5.006V 757.481 50.16°C 230.34V
80% 59.865A 7.958A 7.811A 2.303A 799.872 91.959% 1237 37.0 43.89°C 0.981
12.060V 5.027V 3.38V 4.995V 869.811 52.01°C 230.32V
90% 67.839A 8.461A 8.293A 2.407A 899.666 91.464% 1237 37.0 44.21°C 0.981
12.046V 5.024V 3.376V 4.986V 983.63 53.29°C 230.31V
100% 75.578A 8.963A 8.806A 3.023A 999.686 90.882% 1237 37.0 45.55°C 0.983
12.041V 5.021V 3.373V 4.963V 1099.975 55.57°C 230.29V
110% 83.244A 9.964A 9.886A 3.027A 1100.288 90.326% 1237 37.0 46.65°C 0.984
12.036V 5.019V 3.368V 4.957V 1218.135 57.58°C 230.28V
CL1 0.115A 14.339A 14.067A 0A 121.304 81.864% 444 7.1 41.35°C 0.922
12.165V 5.035V 3.391V 5.06V 148.181 46.84°C 230.41V
CL2 0.115A 21.837A 0A 0A 111.397 78.704% 444 7.1 41.26°C 0.917
12.174V 5.037V 3.4V 5.067V 141.541 48.28°C 230.41V
CL3 0.115A 0A 21.464A 0A 73.994 74.426% 444 7.1 41.67°C 0.871
12.172V 5.054V 3.382V 5.063V 99.418 50.72°C 230.41V
CL4 83.042A 0A 0A 0A 1000.128 91.453% 2225 50.6 45.89°C 0.983
12.043V 5.036V 3.38V 5.047V 1093.595 56.87°C 230.29V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.495A 0.484A 0.197A 20.004 76.524% 398 <6.0 36.59°C 0.888
12.082V 5.046V 3.409V 5.065V 26.137 39.66°C 115.15V
40W 2.704A 0.694A 0.678A 0.296A 40.002 82.951% 399 <6.0 37.09°C 0.947
12.087V 5.046V 3.409V 5.062V 48.225 40.35°C 115.15V
60W 4.152A 0.892A 0.871A 0.395A 60.001 78.956% 402 <6.0 38.16°C 0.969
12.168V 5.046V 3.409V 5.059V 75.985 42.01°C 115.13V
80W 5.615A 1.09A 1.065A 0.495A 79.958 82.44% 403 <6.0 39.1°C 0.978
12.168V 5.046V 3.408V 5.056V 96.986 43.06°C 115.12V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.495A 0.484A 0.197A 20.011 75.616% 403 <6.0 36.86°C 0.509
12.081V 5.047V 3.409V 5.064V 26.468 39.94°C 230.44V
40W 2.706A 0.694A 0.678A 0.297A 40.009 82.152% 404 <6.0 37.55°C 0.707
12.086V 5.047V 3.408V 5.061V 48.697 40.85°C 230.44V
60W 4.154A 0.892A 0.872A 0.396A 60.008 79.351% 407 <6.0 38.79°C 0.822
12.166V 5.047V 3.409V 5.058V 75.625 42.3°C 230.43V
80W 5.618A 1.09A 1.065A 0.495A 79.981 82.98% 408 <6.0 39.44°C 0.865
12.167V 5.047V 3.408V 5.055V 96.379 43.3°C 230.43V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load9.67mV7.55mV5.60mV6.11mVPass
20% Load9.31mV6.27mV4.88mV6.16mVPass
30% Load11.51mV7.24mV5.34mV6.88mVPass
40% Load11.25mV8.87mV5.70mV7.75mVPass
50% Load11.70mV11.33mV6.51mV9.07mVPass
60% Load12.72mV17.65mV9.46mV9.99mVPass
70% Load14.45mV11.07mV7.12mV9.88mVPass
80% Load15.31mV12.14mV10.48mV11.36mVPass
90% Load16.64mV13.77mV10.89mV13.04mVPass
100% Load24.43mV15.25mV12.33mV17.54mVPass
110% Load25.12mV17.19mV12.84mV18.83mVPass
Crossload120.96mV10.12mV11.25mV7.54mVPass
Crossload210.89mV13.67mV5.44mV6.32mVPass
Crossload312.97mV8.52mV15.36mV6.32mVPass
Crossload422.92mV13.65mV8.74mV11.40mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load9.67mV7.60mV5.55mV6.27mVPass
20% Load8.45mV6.02mV4.98mV5.66mVPass
30% Load11.11mV6.99mV4.98mV6.11mVPass
40% Load9.99mV7.39mV4.93mV6.73mVPass
50% Load11.55mV13.16mV6.61mV7.44mVPass
60% Load13.18mV18.52mV9.36mV8.00mVPass
70% Load13.89mV11.37mV6.71mV8.35mVPass
80% Load15.27mV12.04mV10.43mV9.53mVPass
90% Load17.04mV13.47mV11.04mV10.60mVPass
100% Load25.16mV15.40mV12.03mV15.64mVPass
110% Load25.29mV17.94mV12.92mV15.59mVPass
Crossload121.52mV9.56mV11.36mV7.08mVPass
Crossload210.99mV13.31mV5.09mV6.47mVPass
Crossload312.92mV8.06mV15.77mV6.62mVPass
Crossload423.61mV13.36mV9.16mV10.90mVPass

The results above are not used in the certification process

MSI MAG A1000GL PCIE5

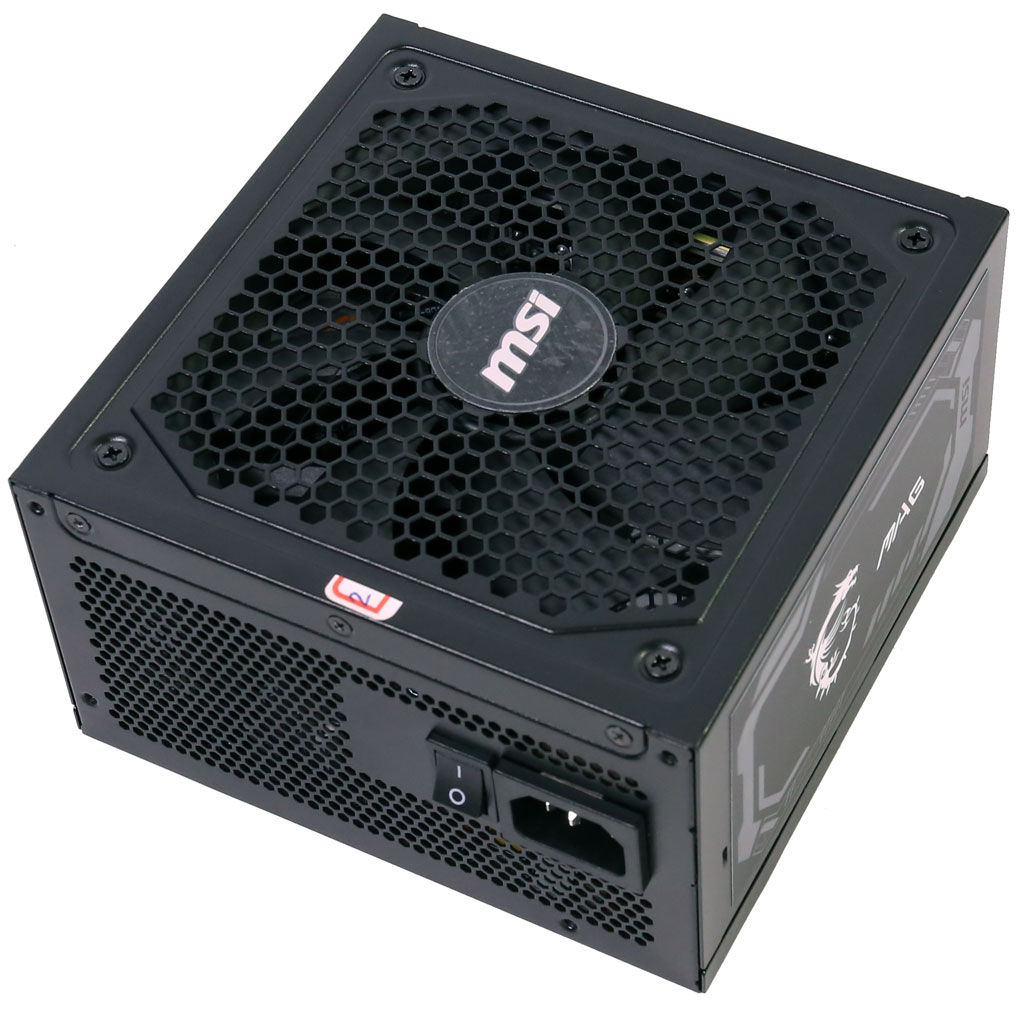

Top side

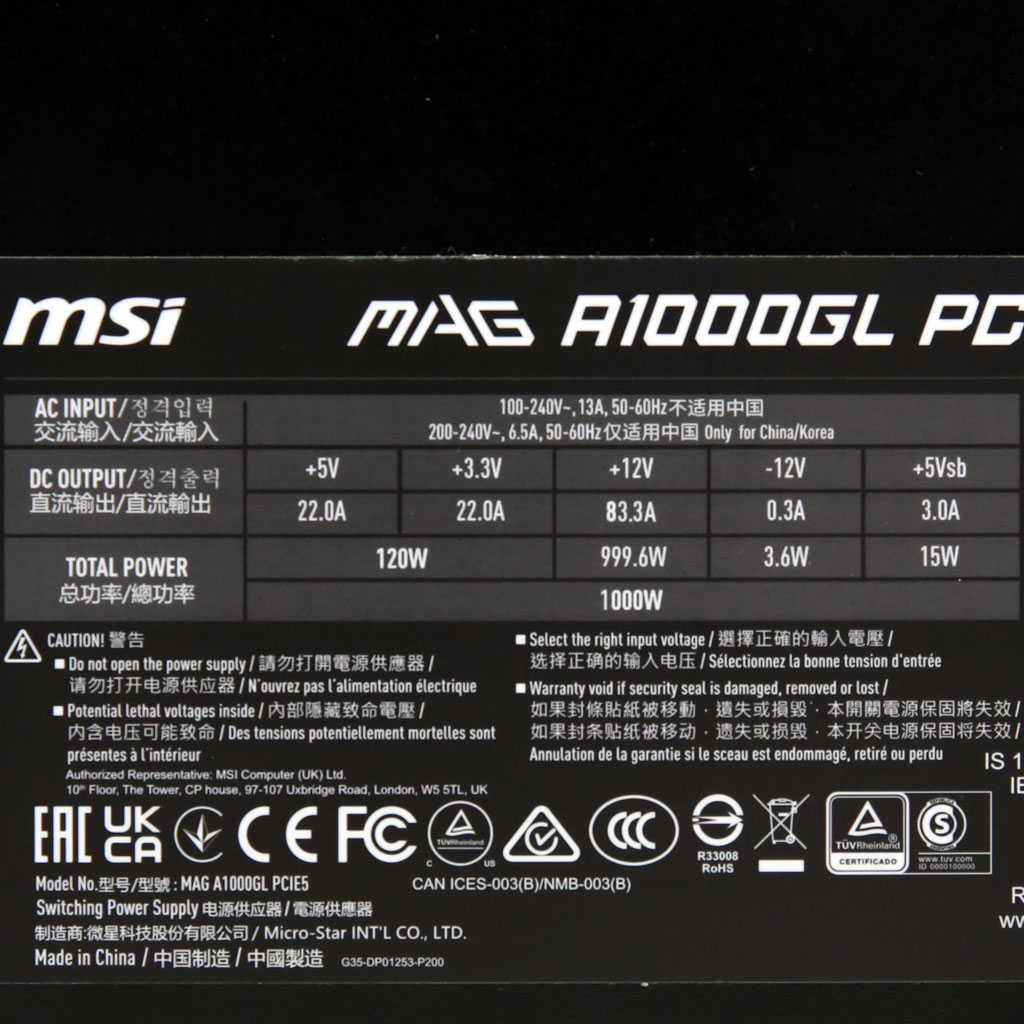

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
