CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

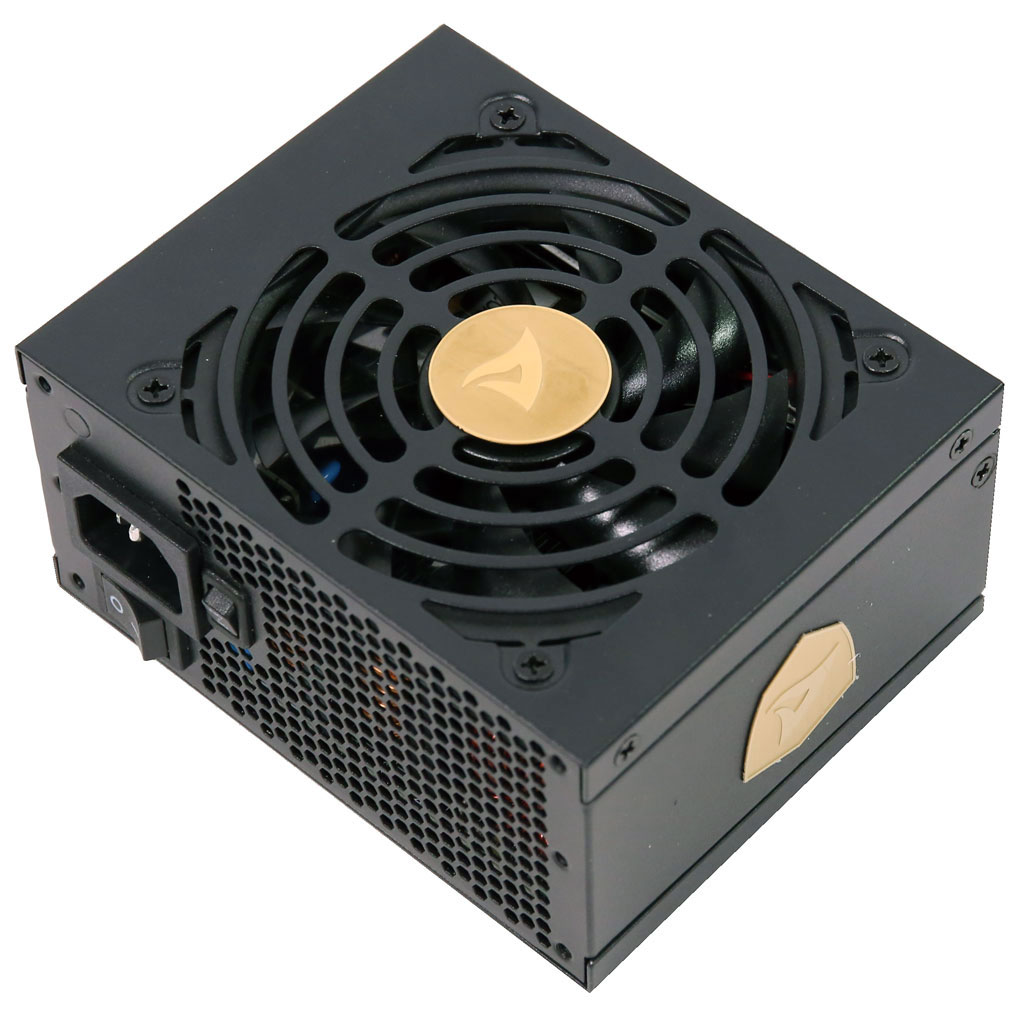

Sharkoon Rebel P20 SFX 1000
Serial Number
Lab IDSK10002380
  • Report: 24PS2380A
  • Receipt Date: Feb 12, 2024
  • Test Date: Mar 7, 2024
  • Report Date: Mar 14, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandSharkoon
Manufacturer (OEM)Sirfa
SeriesRebel P20 SFX
Model NumberRebel P20 SFX 1000
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)12-6
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeSFX
Cooling92mm Fluid Dynamic Bearing Fan
(S0921512HHB)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

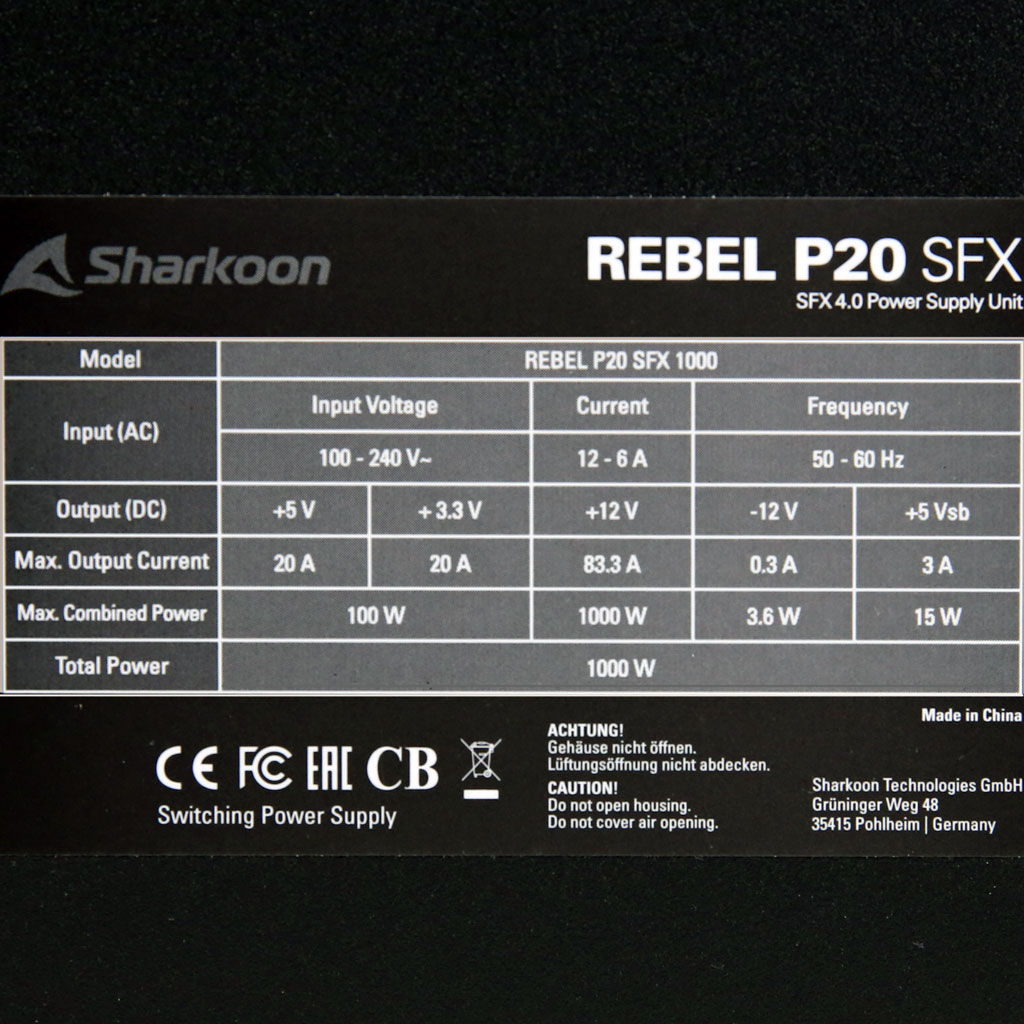

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202083.330.3
Watts1001000153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (300mm) 1 1 16-18AWG No
4+4 pin EPS12V (420mm) 1 1 16AWG No
8 pin EPS12V (420mm) 1 1 16AWG No
6+2 pin PCIe (420mm+150mm) 1 2 16-18AWG No
12+4 pin PCIe (430mm) (600W) 1 1 16-24AWG No
SATA (330mm+150mm+150mm+150mm) 2 8 18AWG No
4-pin Molex Adapter (+150mm) 1 1 18AWG No

Parts Description

General Data
Manufacturer (OEM) Sirfa
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x Discharger IC HF81
Inrush Protection 1x NTC Thermistor SCK-057 (5 Ohm @25°C) & Relay
Bridge Rectifier(s)
1x
APFC MOSFETs
1x Infineon IPW60R037P7 (650V, 48A @ 100°C, Rds(on): 0.037Ohm)
APFC Boost Diode
1x Toshiba TRS10E65F (650V, 10A @ 25°C)
Bulk Cap(s)
1x Rubycon (420V, 560uF, 2,000h @ 105°C, MXT)
Main Switchers
2x Wuhan Xinyuan CWS60R099BF (600V, 25A @ 100°C, Rds(on): 0.099Ohm)
APFC Controller
Infineon ICE3PCS01G
Resonant Controller
Champion CU6901VAC
Topology
Primary side: APFC, Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 6x Toshiba TPHR8504PL (40V, 150A @ 25°C, Rds(on): 1.4mOhm)
5V & 3.3V DC-DC Converters: 6x Infineon BSC0906NS (30V, 40A @ 100°C, Rds(on): 4.5mOhm)
PWM Controller(s): 1x Upi-Semi UP3861P
Filtering Capacitors

Electrolytic:
5x Rubycon (6-10,0000 @ 105°C,ZLH),
3x Rubycon (3-6,0000 @ 105°C, YXG),
Polymer: 12x FPCAP, 1x Rubycon YXG, 9x Nippon Chemicon
Supervisor IC Weltrend WT7527RA (OVD, PGO, UVD)
Micro Controller / Fan controller STC15W408AS
Fan Model DC Brushless S0921512HHB (92mm, 12V, 0.5A, Fluid Dynamic Bearing Fan)
5VSB
High Side Rectifier
2x Vishay RS1D (140V, 30A @ 150°C
Standby PWM Controller SI8016HSP8

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)15.7
AC Loss to PWR_OK Hold Up Time (ms)14.2
PWR_OK Inactive to DC Loss Delay (ms)1.5

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.05 V 115.01 V 113.85 V 115.09 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.18 % 2.00 % PASS
Real Power: 0.095 W 0.062 W N/A 0.141 W N/A N/A
Apparent Power: 9.974 W 9.385 W N/A 10.553 W N/A N/A
Power Factor: 0.011 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.00 V 230.89 V 227.70 V 231.07 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.14 % N/A 0.28 % 2.00 % PASS
Real Power: 0.178 W 0.108 W N/A 0.250 W N/A N/A
Apparent Power: 31.132 W 30.322 W N/A 31.949 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A

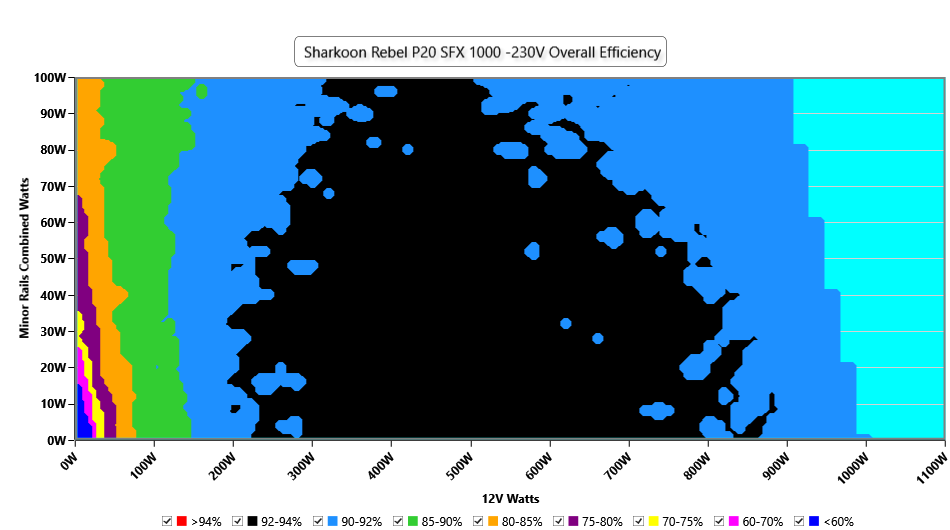

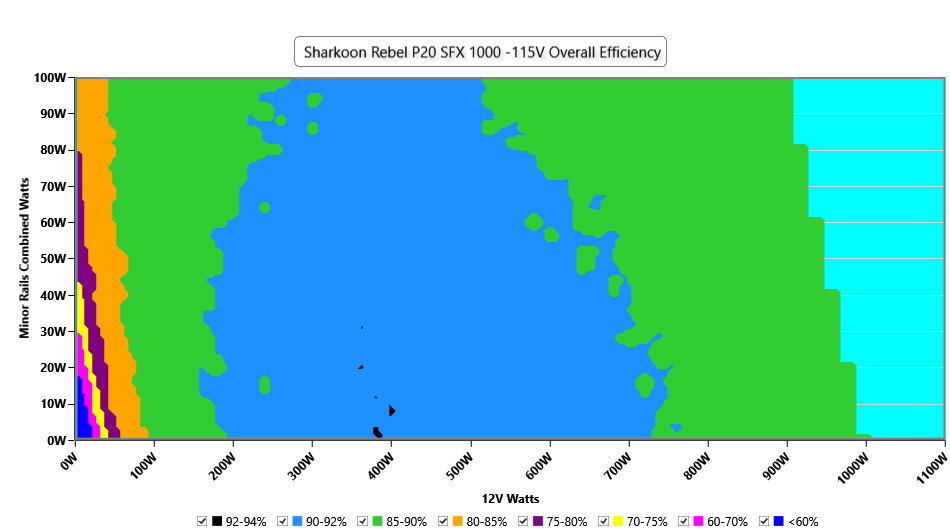

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

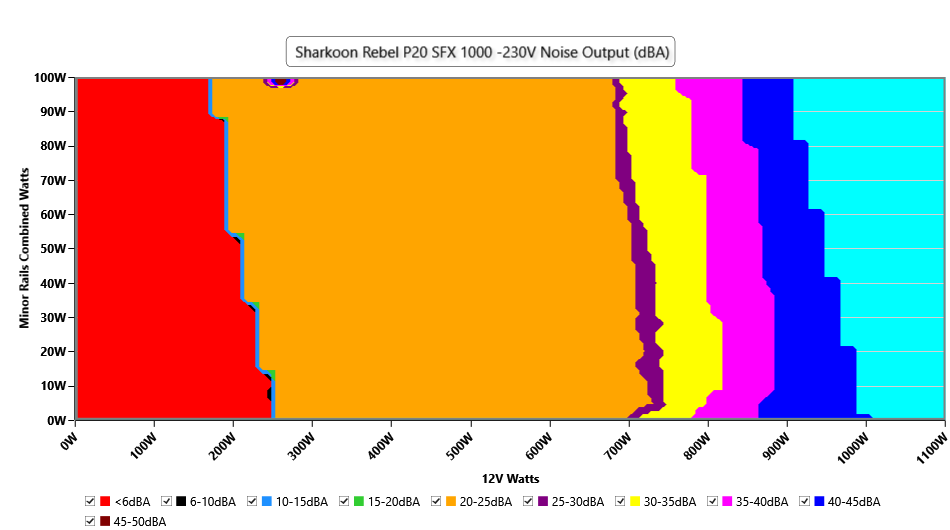

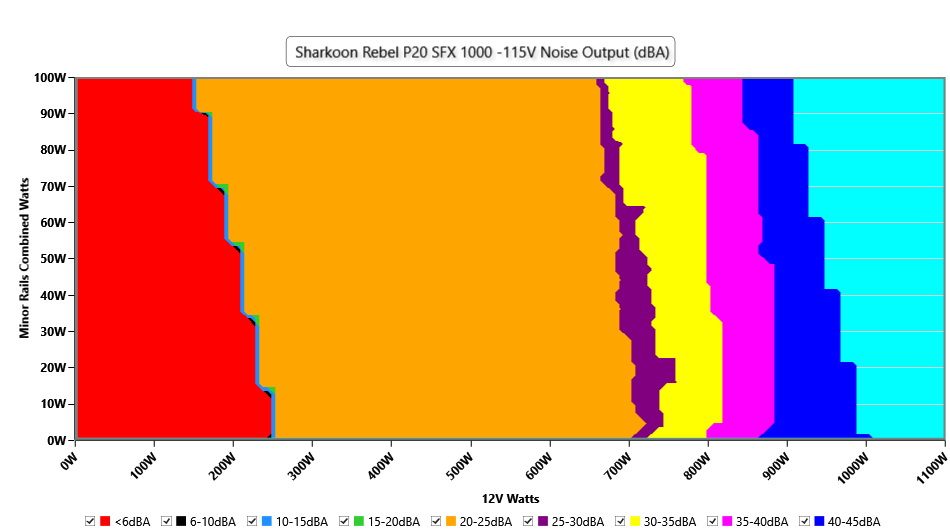

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

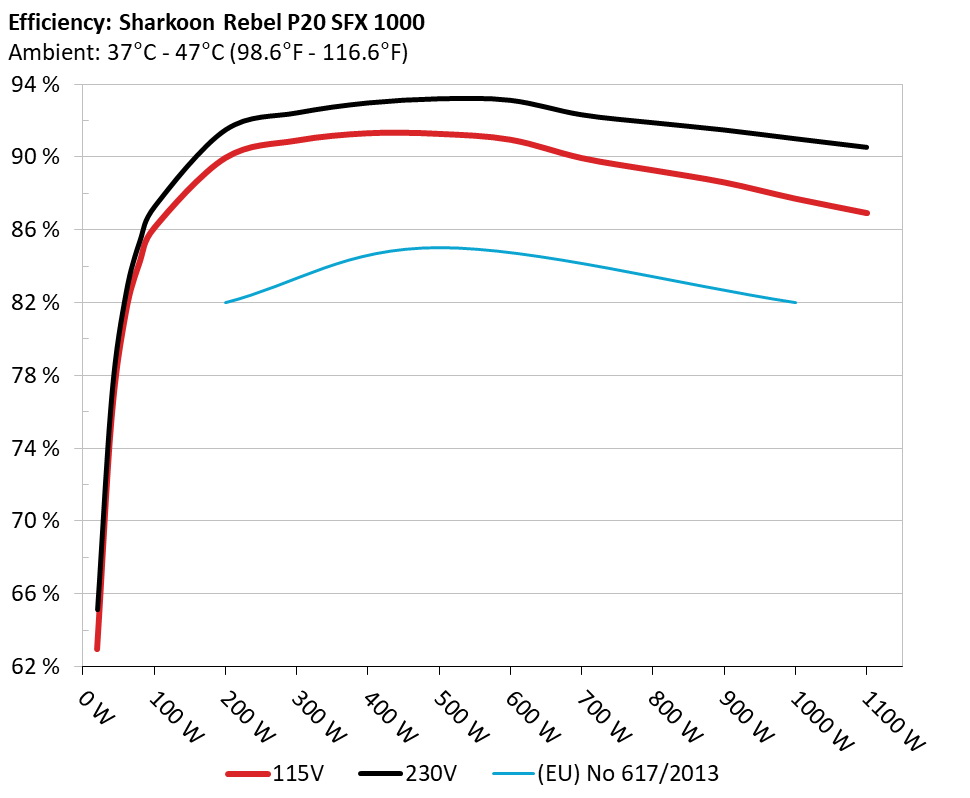

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

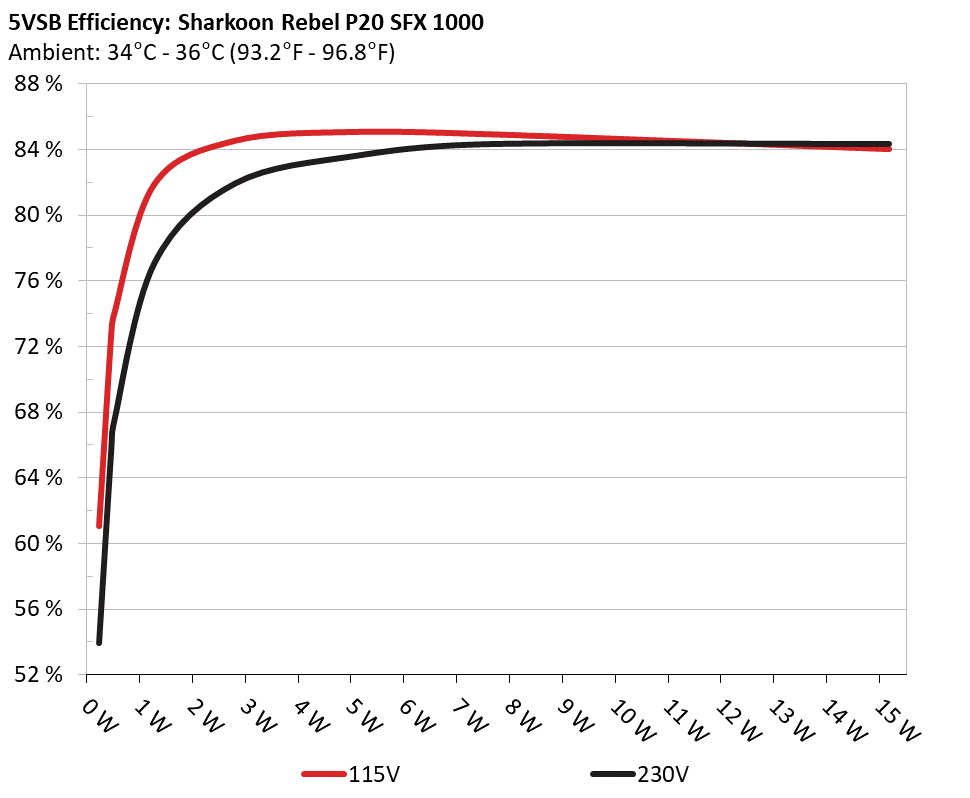

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229W 60.55% 0.032
5.098V 0.293W 114.84V
2 0.09A 0.459W 72.275% 0.069
5.097V 0.636W 114.85V
3 0.55A 2.8W 84.019% 0.273
5.09V 3.332W 114.85V
4 1A 5.085W 84.555% 0.368
5.084V 6.013W 114.85V
5 1.5A 7.617W 84.414% 0.413
5.078V 9.024W 114.85V
6 3A 15.173W 83.51% 0.478
5.057V 18.169W 114.84V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229W 53.443% 0.014
5.098V 0.43W 229.86V
2 0.09A 0.459W 65.206% 0.023
5.097V 0.705W 229.89V
3 0.55A 2.8W 81.405% 0.107
5.09V 3.44W 229.86V
4 1A 5.085W 83.088% 0.176
5.084V 6.119W 229.86V
5 1.5A 7.617W 83.803% 0.229
5.078V 9.09W 229.86V
6 3A 15.174W 83.812% 0.334
5.058V 18.105W 229.86V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.446A 2.009A 2A 0.984A 99.986 86.096% 0 <6.0 44.32°C 0.972
12.161V 4.977V 3.3V 5.079V 116.131 40.28°C 114.83V
20% 13.922A 3.016A 3.002A 1.184A 199.938 89.955% 0 <6.0 44.98°C 0.989
12.142V 4.974V 3.298V 5.069V 222.261 40.7°C 114.79V
30% 21.782A 3.517A 3.503A 1.384A 299.988 90.907% 1307 23 41.26°C 0.993
12.117V 4.976V 3.297V 5.059V 330.005 46.03°C 114.75V
40% 29.633A 4.018A 4.005A 1.585A 399.531 91.308% 1300 22.8 41.72°C 0.996
12.092V 4.978V 3.296V 5.049V 437.527 46.75°C 114.73V
50% 37.175A 5.024A 5.006A 1.787A 499.263 91.276% 1299 22.8 42.31°C 0.997
12.072V 4.976V 3.296V 5.038V 546.97 47.82°C 114.69V
60% 44.805A 6.045A 6.01A 1.99A 599.81 90.953% 1301 22.8 42.73°C 0.997
12.052V 4.963V 3.295V 5.027V 659.411 48.77°C 114.66V
70% 52.376A 7.076A 7.025A 2.193A 699.552 89.946% 1755 32.6 43.27°C 0.997
12.037V 4.947V 3.289V 5.016V 777.708 50.4°C 114.62V
80% 60.062A 8.105A 8.042A 2.297A 799.564 89.275% 2171 38.3 43.91°C 0.998
12.015V 4.935V 3.283V 5.006V 895.655 52.06°C 114.59V
90% 68.118A 8.626A 8.539A 2.402A 899.372 88.607% 2778 46.2 44.62°C 0.996
11.993V 4.927V 3.279V 4.996V 1015.026 53.71°C 114.55V
100% 75.998A 9.15A 9.069A 3.013A 999.395 87.71% 3120 49.4 45.34°C 0.988
11.970V 4.918V 3.275V 4.979V 1139.434 55.39°C 114.5V
110% 83.820A 10.195A 10.185A 3.019A 1100.004 86.916% 3123 49.4 46.6°C 0.989
11.951V 4.904V 3.269V 4.97V 1265.611 57.58°C 114.47V
CL1 0.115A 12.272A 12.084A 0A 101.304 80.367% 0 <6.0 45.57°C 0.977
12.196V 4.906V 3.285V 5.086V 126.059 40.03°C 114.82V
CL2 0.114A 20.5A 0A 0A 101.343 78.499% 0 <6.0 48.59°C 0.976
12.193V 4.876V 3.275V 5.089V 129.142 41.56°C 114.82V
CL3 0.113A 0A 20.2A 0A 67.385 72.577% 0 <6.0 49.81°C 0.965
12.195V 4.909V 3.267V 5.088V 92.864 40.68°C 114.84V
CL4 83.524A 0A 0A 0.001A 999.952 88.242% 3119 49.4 45.88°C 0.994
11.972V 4.922V 3.268V 5.029V 1133.21 56.84°C 114.51V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.446A 2.01A 2.001A 0.985A 100.001 87.262% 0 <6.0 44.38°C 0.868
12.163V 4.975V 3.298V 5.079V 114.646 40.31°C 229.84V
20% 13.922A 3.016A 3.003A 1.184A 199.956 91.485% 0 <6.0 45.04°C 0.951
12.143V 4.973V 3.297V 5.068V 218.587 40.75°C 229.82V
30% 21.793A 3.514A 3.504A 1.384A 300.011 92.411% 1287 22.4 41.1°C 0.972
12.112V 4.981V 3.297V 5.059V 324.691 45.86°C 229.8V
40% 29.645A 4.016A 4.006A 1.585A 399.585 92.956% 1290 22.5 41.83°C 0.982
12.088V 4.98V 3.295V 5.048V 429.859 46.91°C 229.79V
50% 37.184A 5.022A 5.007A 1.787A 499.294 93.185% 1293 22.6 42.22°C 0.988
12.069V 4.978V 3.296V 5.038V 535.785 47.75°C 229.77V
60% 44.811A 6.043A 6.011A 1.99A 599.818 93.101% 1295 22.7 42.9°C 0.992
12.051V 4.965V 3.294V 5.027V 644.257 48.93°C 229.76V
70% 52.383A 7.073A 7.026A 2.193A 699.547 92.309% 1302 22.9 43.41°C 0.993
12.035V 4.949V 3.288V 5.016V 757.828 50.47°C 229.74V
80% 60.062A 8.103A 8.043A 2.297A 799.553 91.873% 2169 38.3 43.82°C 0.994
12.015V 4.936V 3.282V 5.006V 870.283 51.85°C 229.72V
90% 68.117A 8.622A 8.54A 2.402A 899.339 91.477% 2638 45 44.35°C 0.995
11.993V 4.929V 3.278V 4.996V 983.11 53.42°C 229.71V
100% 75.995A 9.146A 9.07A 3.013A 999.371 90.995% 3124 49.4 45.84°C 0.995
11.970V 4.92V 3.274V 4.979V 1098.251 55.89°C 229.68V
110% 83.820A 10.19A 10.186A 3.018A 1099.991 90.524% 3126 49.4 46.58°C 0.995
11.950V 4.906V 3.269V 4.97V 1215.184 57.55°C 229.66V
CL1 0.115A 12.264A 12.085A 0A 101.302 81.902% 0 <6.0 47.19°C 0.875
12.190V 4.909V 3.285V 5.086V 123.71 41.67°C 229.84V
CL2 0.114A 20.525A 0A 0A 101.342 79.771% 0 <6.0 48.19°C 0.89
12.189V 4.87V 3.273V 5.088V 127.067 41.11°C 229.84V
CL3 0.113A 0A 20.194A 0A 67.382 74.009% 0 <6.0 50.64°C 0.811
12.189V 4.911V 3.268V 5.089V 91.083 41.54°C 229.84V
CL4 83.538A 0A 0A 0.001A 999.923 91.477% 3121 49.4 45.44°C 0.995
11.969V 4.922V 3.268V 5.029V 1093.092 56.39°C 229.69V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.220A 0.502A 0.5A 0.196A 19.993 62.944% 0 <6.0 39.69°C 0.858
12.168V 4.984V 3.301V 5.096V 31.762 36.65°C 114.84V
40W 2.686A 0.702A 0.7A 0.294A 39.994 75.527% 0 <6.0 40.35°C 0.926
12.166V 4.982V 3.301V 5.094V 52.957 37.03°C 114.84V
60W 4.154A 0.903A 0.9A 0.393A 59.995 81.407% 0 <6.0 41.85°C 0.949
12.165V 4.98V 3.301V 5.091V 73.701 38.03°C 114.83V
80W 5.616A 1.105A 1.1A 0.491A 79.934 84.25% 0 <6.0 43.4°C 0.966
12.163V 4.978V 3.3V 5.088V 94.872 39.42°C 114.82V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.220A 0.502A 0.5A 0.196A 20.001 65.159% 0 <6.0 39.83°C 0.488
12.172V 4.981V 3.3V 5.096V 30.886 36.78°C 229.85V
40W 2.686A 0.703A 0.7A 0.295A 40.001 76.893% 0 <6.0 40.72°C 0.645
12.169V 4.979V 3.3V 5.093V 52.022 37.45°C 229.85V
60W 4.154A 0.904A 0.9A 0.393A 60.001 82.509% 0 <6.0 41.66°C 0.744
12.167V 4.978V 3.3V 5.09V 72.788 38.13°C 229.84V
80W 5.616A 1.105A 1.1A 0.491A 79.946 85.435% 0 <6.0 42.93°C 0.816
12.165V 4.977V 3.299V 5.087V 93.566 39.08°C 229.84V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load19.23mV15.45mV15.70mV11.55mVPass
20% Load21.23mV15.09mV15.23mV11.65mVPass
30% Load24.30mV15.60mV15.65mV11.85mVPass
40% Load25.06mV17.24mV18.01mV11.80mVPass
50% Load27.21mV16.42mV17.91mV13.50mVPass
60% Load29.82mV16.47mV17.14mV12.06mVPass
70% Load25.93mV15.86mV18.01mV11.75mVPass
80% Load27.57mV17.50mV17.91mV12.31mVPass
90% Load29.97mV16.53mV21.14mV12.67mVPass
100% Load47.23mV17.93mV20.83mV15.31mVPass
110% Load47.44mV17.37mV20.16mV15.74mVPass
Crossload126.40mV15.90mV15.46mV20.59mVPass
Crossload219.23mV17.34mV14.47mV20.78mVPass
Crossload319.69mV15.65mV15.55mV20.68mVPass
Crossload447.23mV17.77mV18.87mV24.58mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load18.72mV14.73mV14.26mV11.03mVPass
20% Load19.23mV14.22mV14.31mV10.93mVPass
30% Load21.07mV14.78mV14.93mV11.65mVPass
40% Load23.17mV15.91mV16.42mV11.60mVPass
50% Load26.60mV15.39mV16.37mV12.41mVPass
60% Load28.13mV16.27mV18.83mV12.06mVPass
70% Load25.42mV16.68mV19.54mV12.11mVPass
80% Load27.47mV16.11mV19.75mV12.16mVPass
90% Load28.90mV17.14mV20.93mV12.52mVPass
100% Load47.38mV16.47mV17.95mV14.05mVPass
110% Load48.02mV17.95mV19.49mV15.01mVPass
Crossload127.53mV15.79mV15.32mV21.93mVPass
Crossload221.12mV19.04mV15.44mV20.94mVPass
Crossload318.05mV14.63mV15.70mV20.01mVPass
Crossload445.76mV16.79mV17.86mV23.43mVPass

The results above are not used in the certification process

Sharkoon Rebel P20 SFX 1000

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
