CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
BoostBoxx PB1000P
2N124104016
Lab IDBB10002347
  • Report: 24PS2347A
  • Receipt Date: Jan 25, 2024
  • Test Date: Feb 6, 2024
  • Report Date: Feb 9, 2024
115V230V
效率評比
115V230V
噪音評比
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

BoostBoxx
製造商 (OEM)Great Wall
PB-P
PB1000P 89495/CSL23073
2N124104016

(Vrms)100-240
(Arms)13-6
(Hz)60-50
(W)1000
ATX12V
140mm Double Ball Bearing Fan
(HA1425M12B-Z)
✓
Fully Modular

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202083.3340.5
Watts1301000206
Total Max. Power (W)1000

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18-20AWG No
4+4 pin EPS12V (700mm) 2 2 18AWG No
6+2 pin PCIe (700mm+150mm) 2 4 18AWG No
12+4 pin PCIe (700mm) (600W) 1 1 16-24AWG No
SATA (1000mm+120mm+120mm) 1 3 18AWG No
SATA (1000mm) / 4-pin Molex (+150mm+150mm) 1 1 / 2 18AWG No
SATA (900mm) / 4-pin Molex (+150mm) / FDD (+150mm) 1 1 / 1 / 1 18-22AWG Νο
AC Power Cord (1650mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary 230V

效率評比PLATINUM
噪音評比A-
(>1450 load combinations)91.765%
Average Noise Output (>1450 Load Combinations)28.86dBA
(>1450 Load Combinations)0.952
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.1670W
12V Ripple (Full Load)36.73mV
5V Ripple (Full Load)15.58mV
3.3V Ripple (Full Load)14.34mV
5VSB Ripple (Full Load)36.46mV
12V Load Regulation0.96%
5V Load Regulation0.58%
3.3V Load Regulation1.10%
5VSB Load Regulation3.89%
Inrush Current133.200A
12V Transient Response (200%)11.24V
5V Transient Response (200%)4.918V
3.3V Transient Response (200%)3.195V
5VSB Transient Response (200%)4.958V
18.20ms
AC Loss to PWR_OK Hold Up Time15.30ms
PWR_OK Inactive to DC Loss Delay2.90ms
PSU Timings: T1 (20% / 100%)74.0ms81.0ms
PSU Timings: T3 (20% / 100%)127.0ms127.0ms
OPP (27.46°C / 42.23°C)131.54%128.53%

Hold-Up Time (ms)18.2
AC Loss to PWR_OK Hold Up Time (ms)15.3
PWR_OK Inactive to DC Loss Delay (ms)2.9

待機電源消耗

Tables 230V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.38 V 230.38 V 227.70 V 230.42 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.167 W 0.141 W N/A 0.202 W N/A N/A
Apparent Power: 30.204 W 30.193 W N/A 30.215 W N/A N/A
Power Factor: 0.006 N/A N/A N/A N/A N/A

Graphs 230V

230V

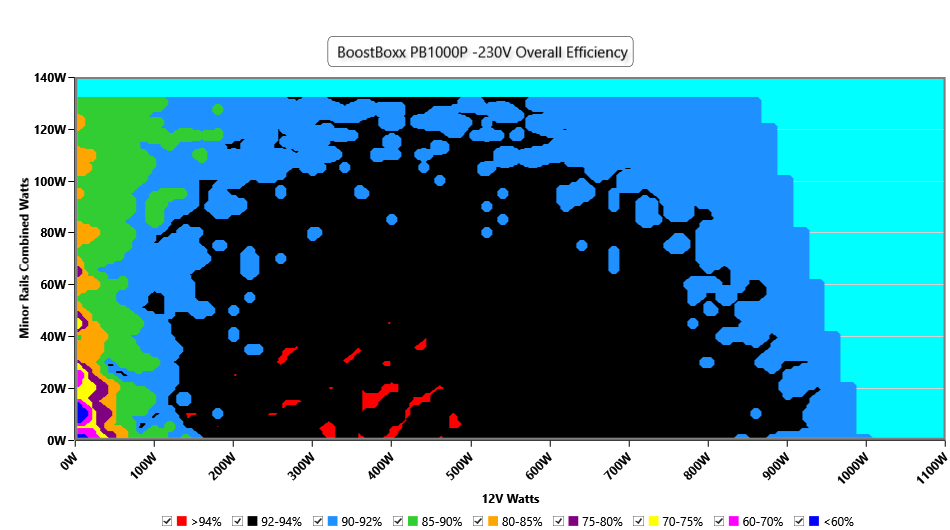

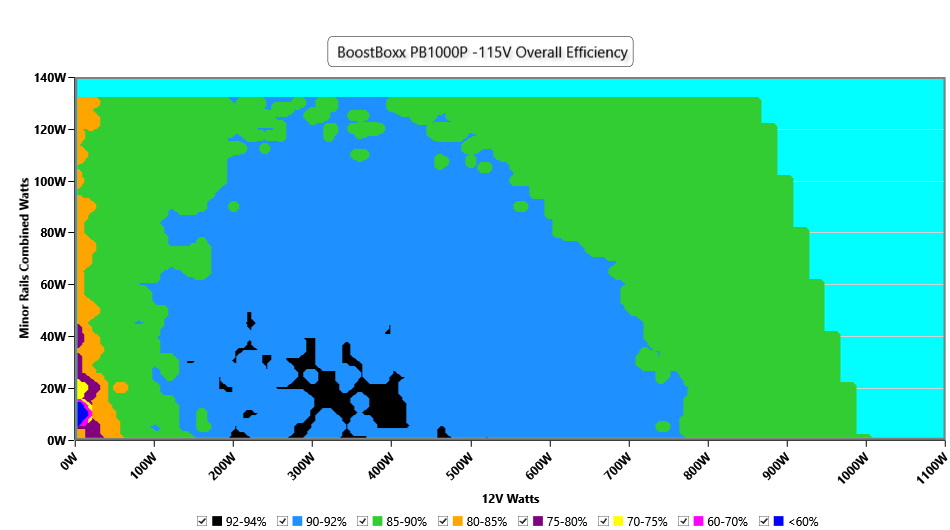

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

230V

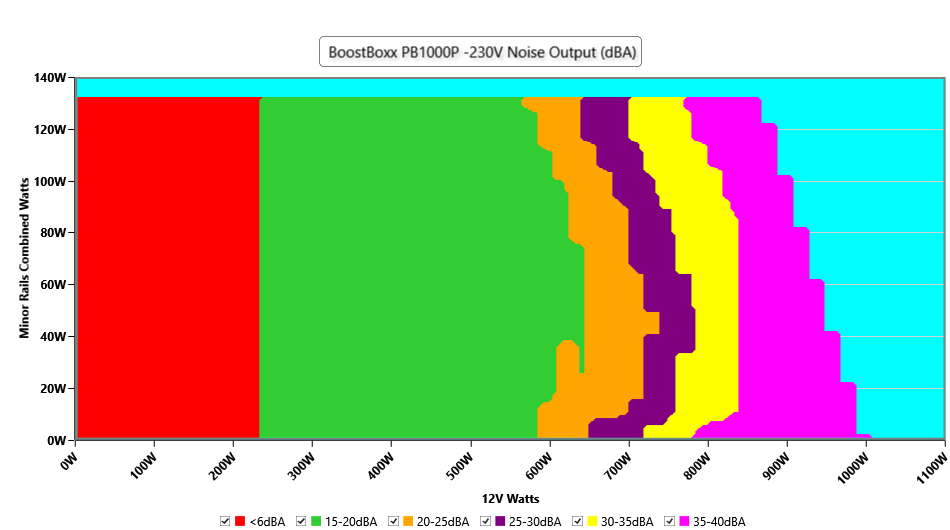

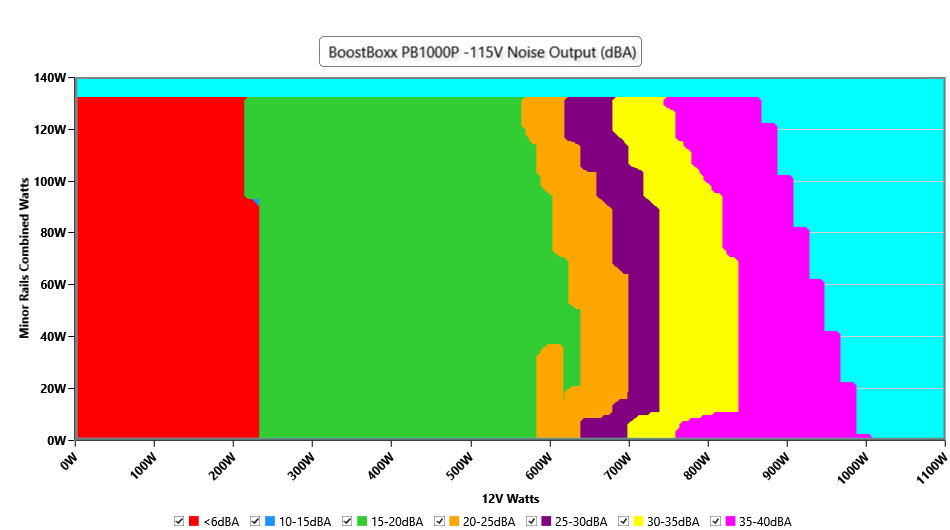

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

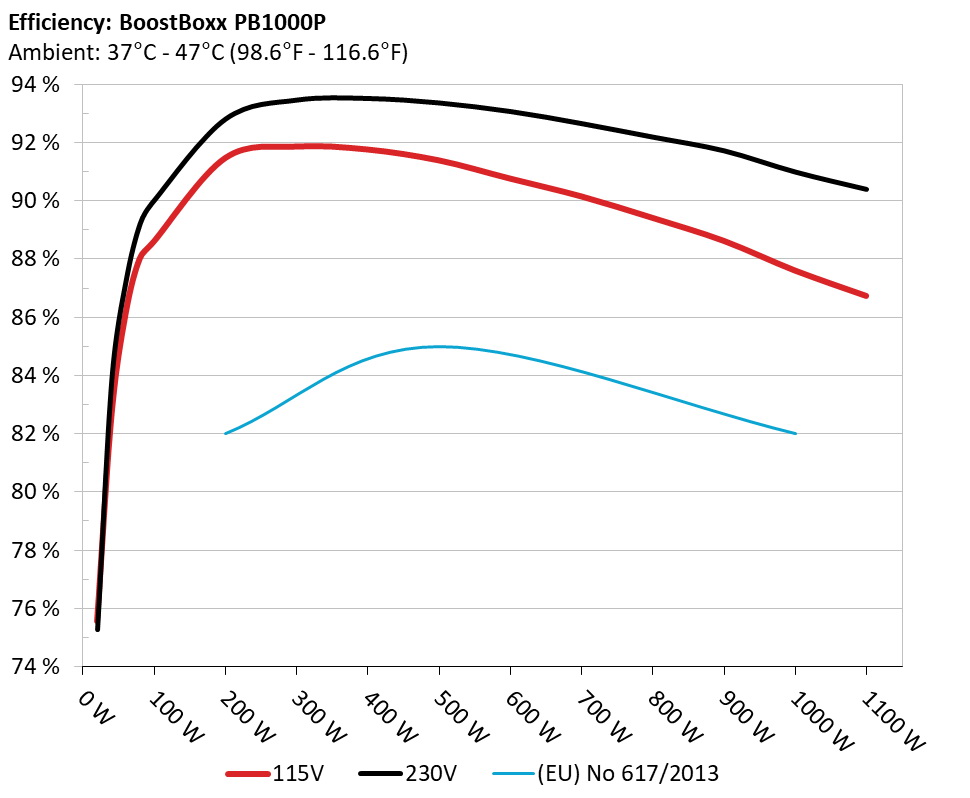

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

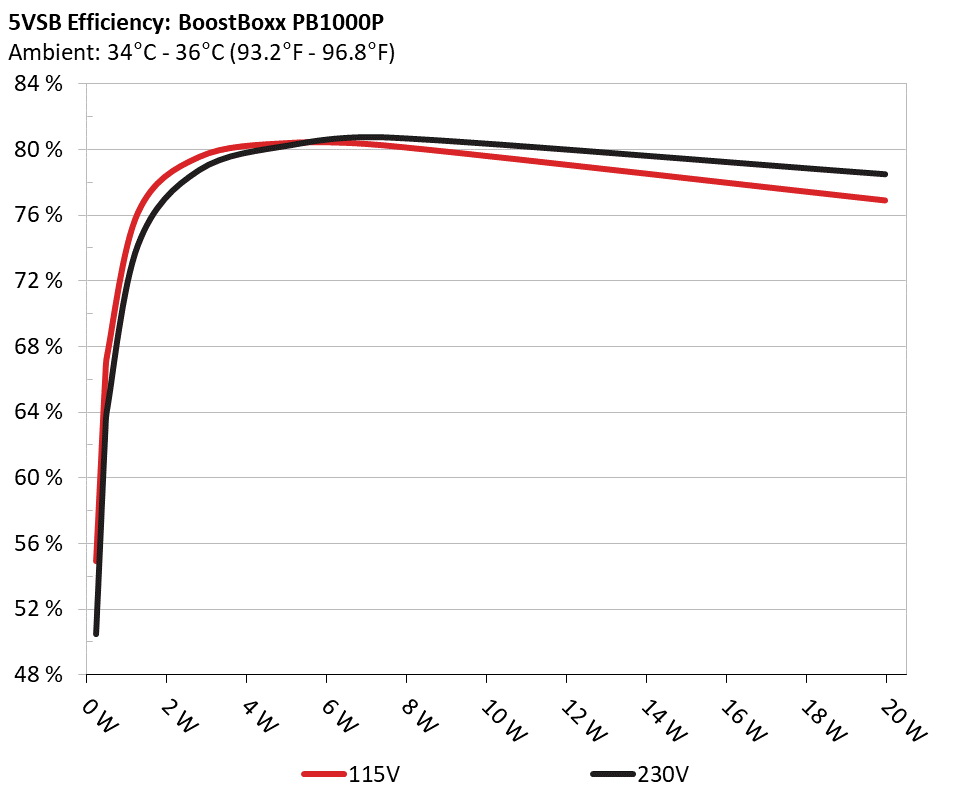

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

230V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 49.974% 0.015
5.106V 0.461W 230.39V
2 0.09A 0.46W 62.308% 0.024
5.105V 0.739W 230.39V
3 0.55A 2.801W 78.207% 0.112
5.092V 3.582W 230.39V
4 1A 5.08W 79.729% 0.183
5.079V 6.372W 230.39V
5 1.5A 7.598W 80.198% 0.244
5.064V 9.473W 230.39V
6 4.001A 19.967W 77.967% 0.383
4.991V 25.61W 230.39V

Supplementary Tests (For Reference)

230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.484A 1.985A 1.988A 0.987A 100.013 90.023% 0 <6.0 44.41°C 0.811
12.095V 5.038V 3.32V 5.069V 111.166 40.18°C 230.38V
20% 13.992A 2.98A 2.985A 1.187A 199.97 92.814% 0 <6.0 45.23°C 0.876
12.082V 5.036V 3.317V 5.055V 215.711 40.7°C 230.38V
30% 21.864A 3.477A 3.486A 1.388A 300.021 93.463% 0 <6.0 46.28°C 0.926
12.073V 5.034V 3.314V 5.043V 321.089 41.28°C 230.36V
40% 29.724A 3.979A 3.99A 1.591A 399.739 93.516% 763 17.6 41.52°C 0.966
12.062V 5.028V 3.309V 5.03V 427.517 47.04°C 230.35V
50% 37.246A 4.977A 4.993A 1.794A 499.466 93.364% 760 17.6 42.19°C 0.985
12.053V 5.024V 3.305V 5.017V 535.022 48.22°C 230.34V
60% 44.855A 5.977A 5.999A 1.999A 600.012 93.068% 874 21.6 42.67°C 0.991
12.043V 5.021V 3.301V 5.003V 644.743 49.19°C 230.32V
70% 52.401A 6.977A 7.008A 2.205A 699.75 92.654% 1184 30.9 43.25°C 0.993
12.035V 5.018V 3.297V 4.989V 755.267 50.35°C 230.31V
80% 60.033A 7.977A 8.016A 2.31A 799.779 92.189% 1460 37.2 43.85°C 0.994
12.024V 5.015V 3.293V 4.978V 867.461 51.93°C 230.29V
90% 68.007A 8.479A 8.511A 2.416A 899.574 91.719% 1711 41.9 44.66°C 0.994
12.015V 5.012V 3.29V 4.968V 980.883 53.71°C 230.28V
100% 75.444A 8.982A 9.038A 4.075A 999.773 90.988% 1940 45.5 45.83°C 0.995
11.997V 5.01V 3.286V 4.909V 1098.808 55.91°C 230.27V
110% 83.137A 9.987A 10.146A 4.083A 1099.604 90.394% 2014 46.2 46.76°C 0.996
11.984V 5.007V 3.282V 4.899V 1216.614 57.69°C 230.26V
CL1 0.121A 15.616A 15.617A 0A 131.364 85.747% 761 17.6 40.61°C 0.846
12.067V 5.014V 3.304V 5.084V 153.284 46.07°C 230.38V
CL2 0.118A 19.957A 0A 0A 101.426 84.545% 761 17.6 40.29°C 0.82
12.087V 5.01V 3.322V 5.095V 120.001 47.38°C 230.39V
CL3 0.116A 0A 19.996A 0A 67.393 80.64% 760 17.6 40.59°C 0.777
12.089V 5.038V 3.3V 5.09V 83.711 49.61°C 230.38V
CL4 83.153A 0A 0A 0.003A 1000.103 91.855% 1870 44.3 45.6°C 0.995
12.027V 5.025V 3.297V 5.042V 1088.777 56.58°C 230.28V

The results above are not used in the certification process

230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.226A 0.496A 0.497A 0.196A 20.004 75.266% 0 <6.0 39.93°C 0.495
12.113V 5.038V 3.322V 5.1V 26.081 36.85°C 230.39V
40W 2.700A 0.695A 0.695A 0.294A 40.001 83.848% 0 <6.0 41.17°C 0.667
12.109V 5.038V 3.322V 5.095V 47.796 37.85°C 230.39V
60W 4.174A 0.893A 0.894A 0.393A 60 87.237% 0 <6.0 42.08°C 0.744
12.105V 5.039V 3.322V 5.091V 68.891 38.64°C 230.38V
80W 5.646A 1.092A 1.093A 0.492A 79.959 89.223% 0 <6.0 43.25°C 0.785
12.102V 5.038V 3.321V 5.086V 89.682 39.39°C 230.38V

The results above are not used in the certification process

230V

Test12V5V3.3V5VSBPass/Fail
10% Load20.71mV8.01mV5.44mV10.90mVPass
20% Load8.40mV7.09mV4.63mV12.94mVPass
30% Load12.36mV8.37mV5.34mV14.42mVPass
40% Load15.67mV8.87mV5.85mV14.01mVPass
50% Load17.50mV10.30mV6.61mV14.62mVPass
60% Load19.79mV10.51mV7.43mV19.31mVPass
70% Load21.83mV11.53mV7.93mV18.70mVPass
80% Load29.16mV13.46mV13.07mV21.96mVPass
90% Load29.16mV13.21mV13.94mV24.66mVPass
100% Load36.73mV15.58mV14.34mV36.46mVPass
110% Load40.18mV16.56mV16.49mV39.87mVPass
Crossload127.29mV14.67mV15.83mV10.37mVPass
Crossload222.24mV14.79mV5.80mV9.02mVPass
Crossload320.30mV12.40mV18.01mV8.71mVPass
Crossload437.04mV13.33mV9.29mV20.00mVPass

The results above are not used in the certification process

BoostBoxx PB1000P

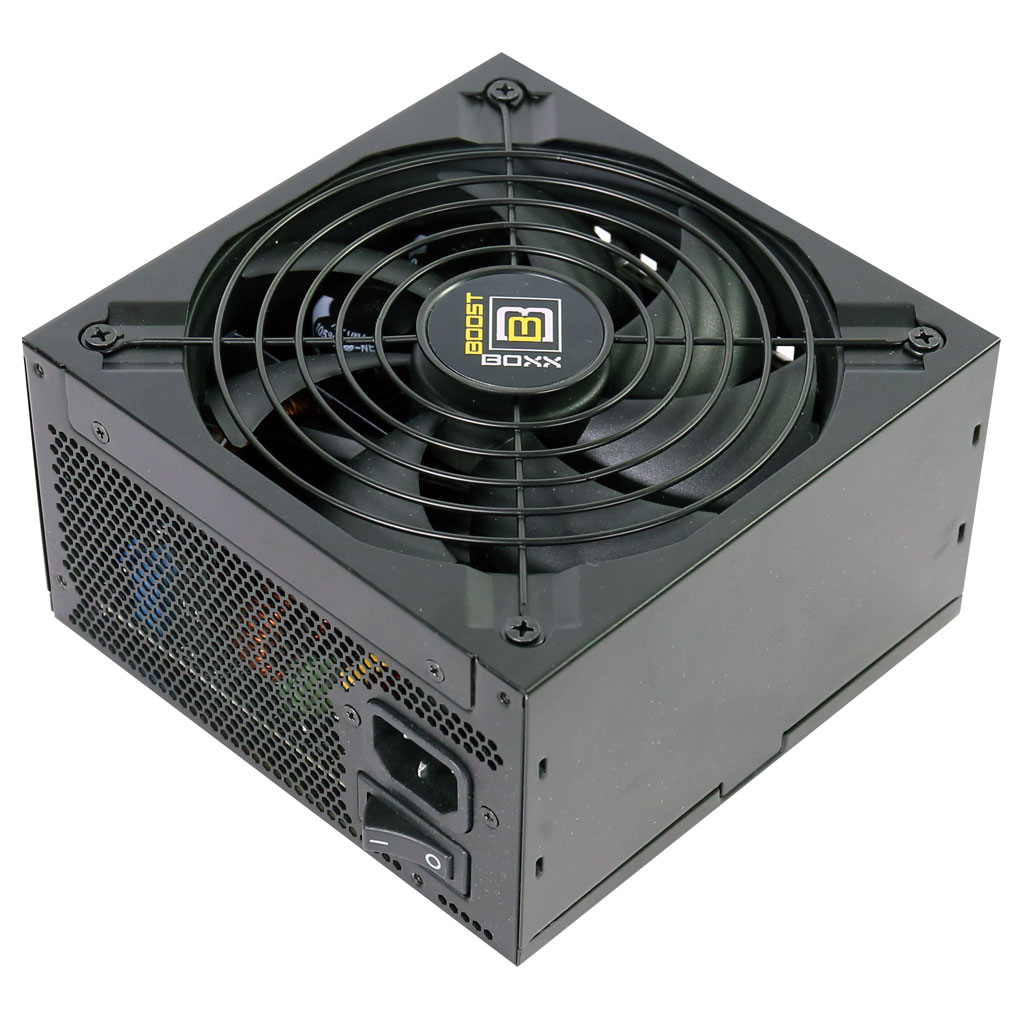

Top side

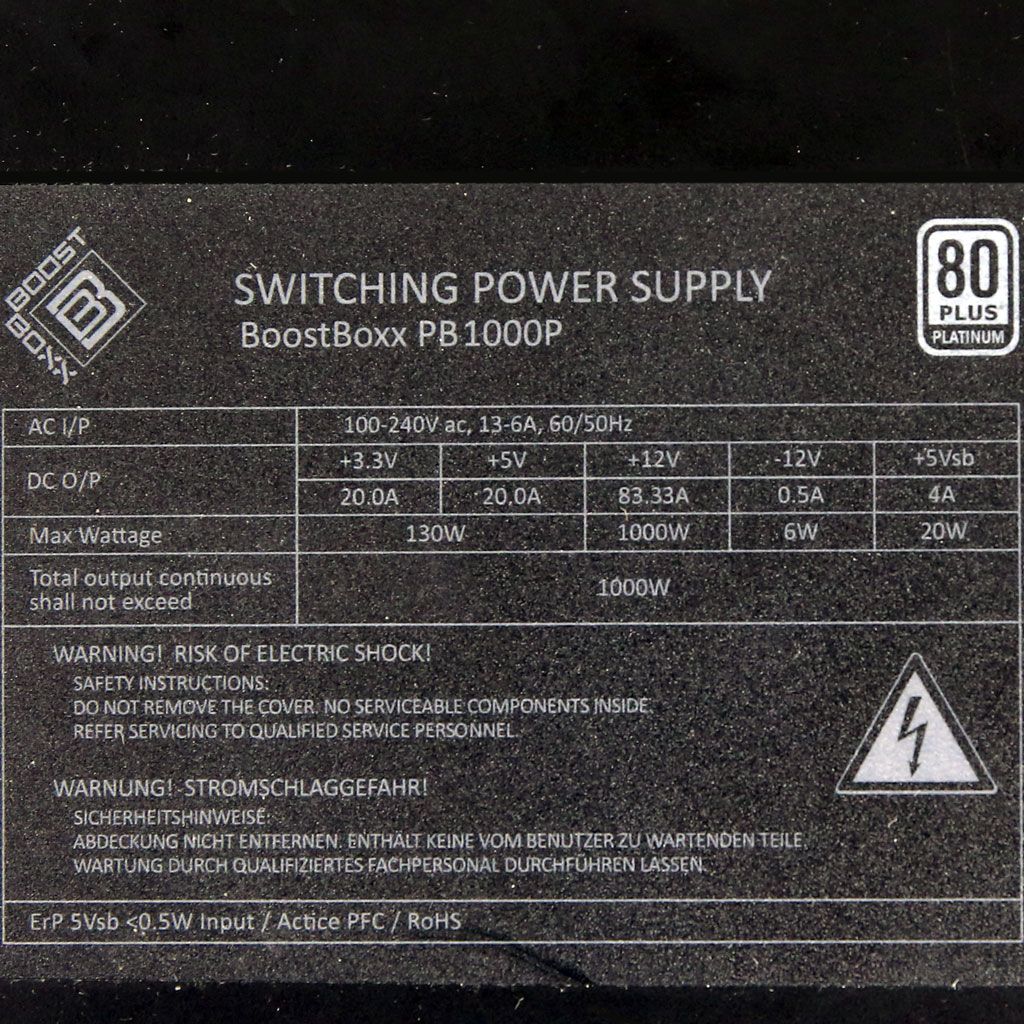

Power specifications label
