CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
BoostBoxx PB1200P
2N124106015
Lab IDBB12002343
  • Report: 24PS2343A
  • Receipt Date: Jan 25, 2024
  • Test Date: Feb 2, 2024
  • Report Date: Feb 6, 2024
115V230V
效率評比
115V230V
噪音評比
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

BoostBoxx
製造商 (OEM)Great Wall
PB-P
PB1200P 89496/CSL23073
2N124106015

(Vrms)100-240
(Arms)15-7
(Hz)60-50
(W)1200
ATX12V
140mm Fluid Dynamic Bearing Fan
(HA1425H12B-Z)
✓
Fully Modular

Rail3.3V5V12V5VSB-12V
Max. PowerAmps252510040.5
Watts1501200206
Total Max. Power (W)1200

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18-20AWG No
4+4 pin EPS12V (700mm) 2 2 18AWG No
6+2 pin PCIe (700mm+150mm) 2 4 18AWG No
12+4 pin PCIe (700mm) (600W) 1 1 16-24AWG No
SATA (1000mm+120mm+120mm) 1 3 18AWG No
SATA (1000mm) / 4-pin Molex (+150mm+150mm) 1 1 / 2 18AWG No
SATA (900mm) / 4-pin Molex (+150mm) / FDD (+150mm) 1 1 / 1 / 1 18-22AWG Νο
AC Power Cord (1670mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary 230V

效率評比PLATINUM
噪音評比Standard+
(>1450 load combinations)91.042%
Average Noise Output (>1450 Load Combinations)39.29dBA
(>1450 Load Combinations)0.963
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.1664W
12V Ripple (Full Load)46.22mV
5V Ripple (Full Load)18.15mV
3.3V Ripple (Full Load)16.31mV
5VSB Ripple (Full Load)43.85mV
12V Load Regulation1.00%
5V Load Regulation0.62%
3.3V Load Regulation1.26%
5VSB Load Regulation4.25%
Inrush Current133.900A
12V Transient Response (200%)11.07V
5V Transient Response (200%)4.872V
3.3V Transient Response (200%)3.145V
5VSB Transient Response (200%)4.908V
19.90ms
AC Loss to PWR_OK Hold Up Time17.10ms
PWR_OK Inactive to DC Loss Delay2.80ms
PSU Timings: T1 (20% / 100%)41.0ms69.0ms
PSU Timings: T3 (20% / 100%)127.0ms127.0ms
OPP (26.25°C / 41.60°C)132.58%126.17%

Hold-Up Time (ms)19.9
AC Loss to PWR_OK Hold Up Time (ms)17.1
PWR_OK Inactive to DC Loss Delay (ms)2.8

待機電源消耗

Tables 230V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.38 V 230.37 V 227.70 V 230.40 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.166 W 0.140 W N/A 0.204 W N/A N/A
Apparent Power: 30.483 W 30.470 W N/A 30.494 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A

Graphs 230V

230V

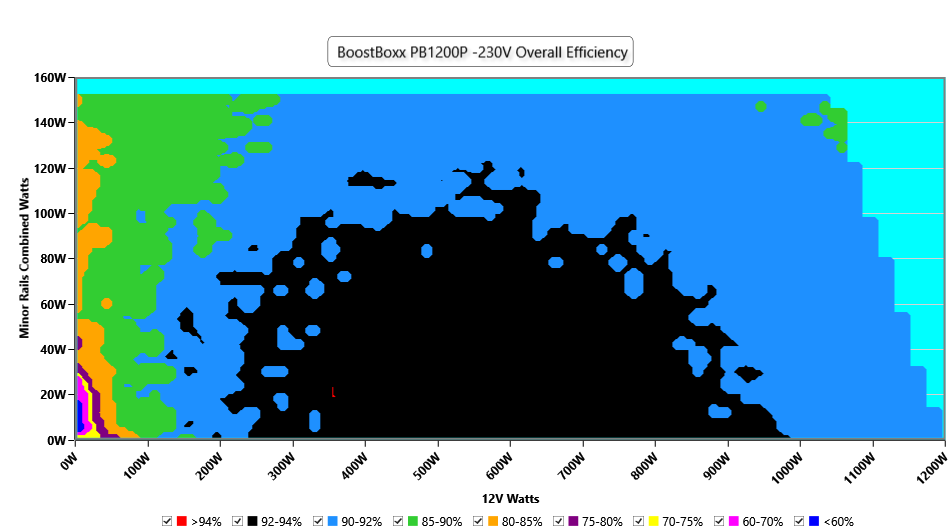

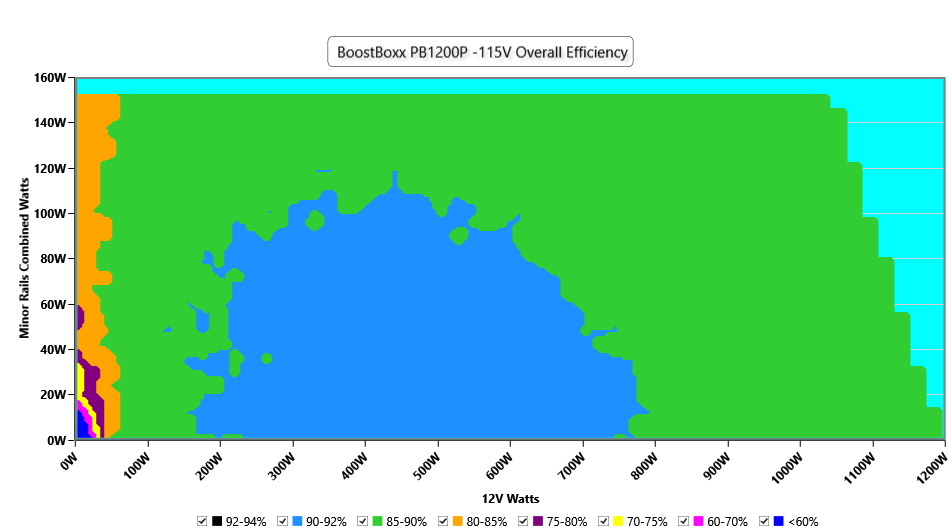

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

230V

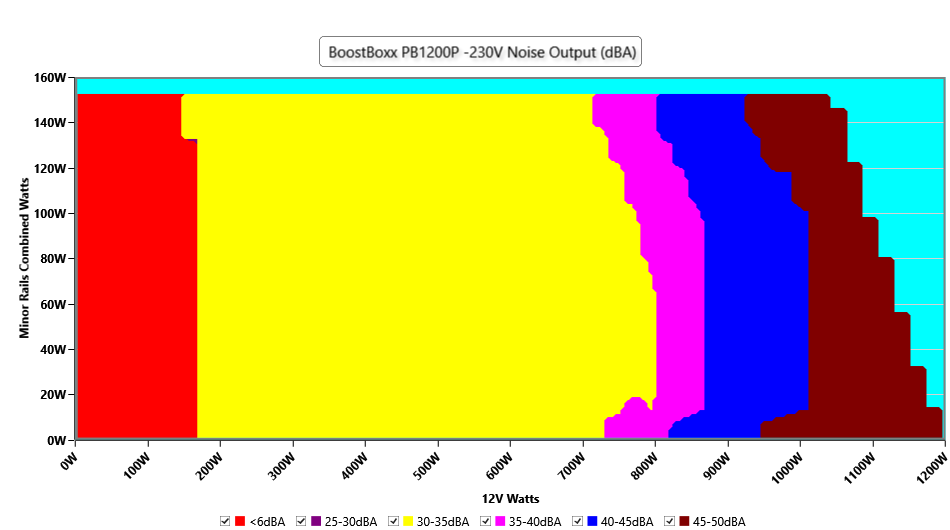

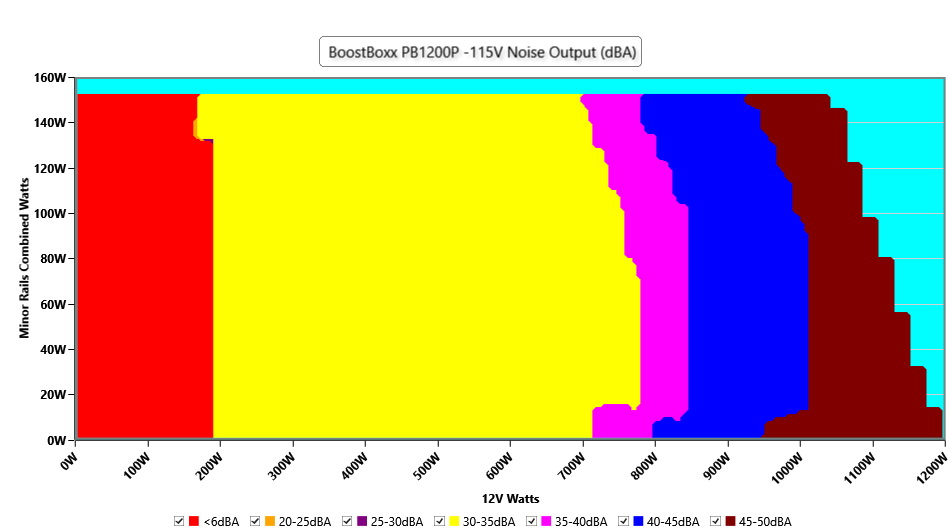

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

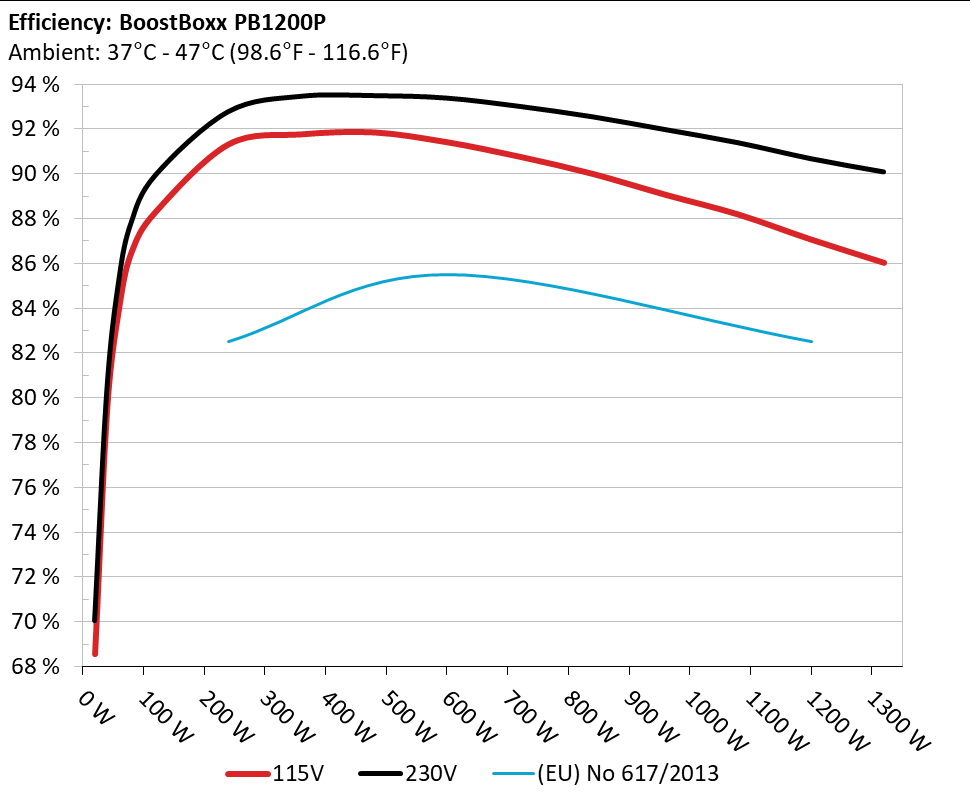

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

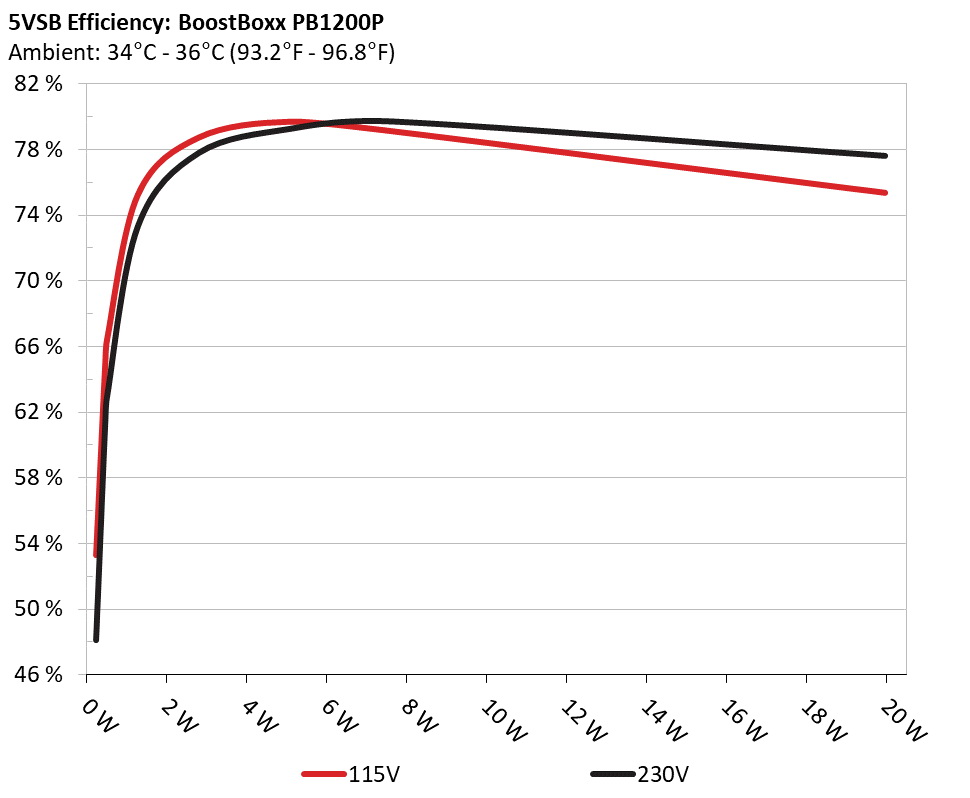

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

230V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 48.608% 0.015
5.106V 0.473W 230.38V
2 0.09A 0.46W 61.928% 0.024
5.105V 0.743W 230.38V
3 0.55A 2.802W 78.258% 0.111
5.092V 3.581W 230.38V
4 1A 5.081W 79.718% 0.182
5.079V 6.375W 230.38V
5 1.5A 7.598W 80.172% 0.243
5.064V 9.478W 230.38V
6 4.001A 19.964W 78.075% 0.382
4.99V 25.573W 230.38V

Supplementary Tests (For Reference)

230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.120A 1.99A 2.001A 0.987A 120 89.453% 0 <6.0 44.35°C 0.839
12.119V 5.025V 3.298V 5.067V 134.391 40.08°C 230.36V
20% 17.268A 2.987A 3.005A 1.188A 239.956 92.292% 0 <6.0 45.33°C 0.905
12.107V 5.023V 3.295V 5.052V 259.936 40.78°C 230.35V
30% 26.726A 3.486A 3.509A 1.39A 359.279 92.978% 1223 31.3 41.36°C 0.958
12.095V 5.02V 3.291V 5.037V 386.438 46.42°C 230.34V
40% 36.282A 3.988A 4.017A 1.593A 479.648 93.011% 1222 31.2 41.72°C 0.984
12.084V 5.016V 3.286V 5.023V 515.634 47.25°C 230.32V
50% 45.465A 4.988A 5.027A 1.797A 599.413 92.901% 1222 31.2 42.3°C 0.992
12.074V 5.013V 3.282V 5.009V 645.146 48.37°C 230.3V
60% 54.733A 5.99A 6.04A 2A 719.932 92.529% 1538 37.9 42.9°C 0.993
12.061V 5.01V 3.278V 4.993V 778.028 49.41°C 230.29V
70% 63.954A 6.993A 7.055A 2.21A 839.679 92.066% 1874 43.6 43.29°C 0.994
12.049V 5.006V 3.274V 4.978V 912.019 50.39°C 230.27V
80% 73.263A 7.995A 8.072A 2.316A 959.678 91.493% 2178 47.8 43.86°C 0.995
12.037V 5.003V 3.27V 4.965V 1048.976 52.01°C 230.26V
90% 82.921A 8.499A 8.571A 2.423A 1079.499 90.907% 2445 50.6 44.31°C 0.996
12.023V 5V 3.266V 4.953V 1187.733 53.38°C 230.24V
100% 92.028A 9.003A 9.103A 4.091A 1199.75 90.192% 2517 52.0 45.95°C 0.997
12.008V 4.998V 3.262V 4.89V 1330.018 55.98°C 230.23V
110% 101.419A 10.009A 10.219A 4.101A 1319.578 89.6% 2517 52.0 46.85°C 0.997
11.993V 4.995V 3.258V 4.878V 1472.755 57.76°C 230.21V
CL1 0.116A 18.052A 18.152A 0A 151.295 83.294% 1219 31.1 40.16°C 0.867
12.100V 5.002V 3.283V 5.08V 181.958 45.58°C 230.36V
CL2 0.123A 25.018A 0A 0A 126.486 81.342% 1221 31.2 41.89°C 0.852
12.111V 4.996V 3.3V 5.09V 155.535 49.01°C 230.36V
CL3 0.116A 0A 25.162A 0A 83.899 77.087% 1220 31.1 40.68°C 0.814
12.110V 5.024V 3.278V 5.085V 108.969 49.73°C 230.37V
CL4 99.811A 0A 0A 0.004A 1200.101 90.978% 2530 52.1 45.65°C 0.997
12.024V 5.011V 3.272V 5.027V 1319.078 56.59°C 230.23V

The results above are not used in the certification process

230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.224A 0.497A 0.5A 0.196A 20.002 69.541% 0 <6.0 39.84°C 0.527
12.128V 5.029V 3.303V 5.098V 29.014 36.75°C 230.39V
40W 2.696A 0.696A 0.7A 0.295A 39.999 79.811% 0 <6.0 41.24°C 0.677
12.126V 5.029V 3.302V 5.094V 49.881 37.91°C 230.39V
60W 4.168A 0.895A 0.9A 0.393A 59.998 84.782% 0 <6.0 42.42°C 0.752
12.124V 5.028V 3.301V 5.089V 70.802 38.91°C 230.38V
80W 5.636A 1.094A 1.1A 0.492A 79.956 87.318% 0 <6.0 43.25°C 0.79
12.121V 5.028V 3.301V 5.085V 91.604 39.36°C 230.38V

The results above are not used in the certification process

230V

Test12V5V3.3V5VSBPass/Fail
10% Load31.24mV9.44mV6.10mV16.76mVPass
20% Load13.18mV9.23mV5.80mV22.26mVPass
30% Load16.54mV10.97mV6.05mV23.28mVPass
40% Load19.95mV10.86mV5.95mV20.53mVPass
50% Load22.90mV11.58mV7.02mV18.14mVPass
60% Load27.53mV11.89mV7.99mV21.50mVPass
70% Load33.48mV12.91mV8.70mV23.59mVPass
80% Load38.87mV13.93mV13.17mV27.05mVPass
90% Load42.03mV14.64mV14.55mV29.34mVPass
100% Load46.22mV18.15mV16.31mV43.85mVPass
110% Load57.74mV18.83mV18.10mV45.49mVPass
Crossload112.95mV16.33mV18.94mV12.63mVPass
Crossload235.57mV18.82mV8.59mV12.48mVPass
Crossload326.76mV15.40mV22.13mV12.23mVPass
Crossload452.13mV15.16mV11.23mV26.42mVPass

The results above are not used in the certification process

BoostBoxx PB1200P

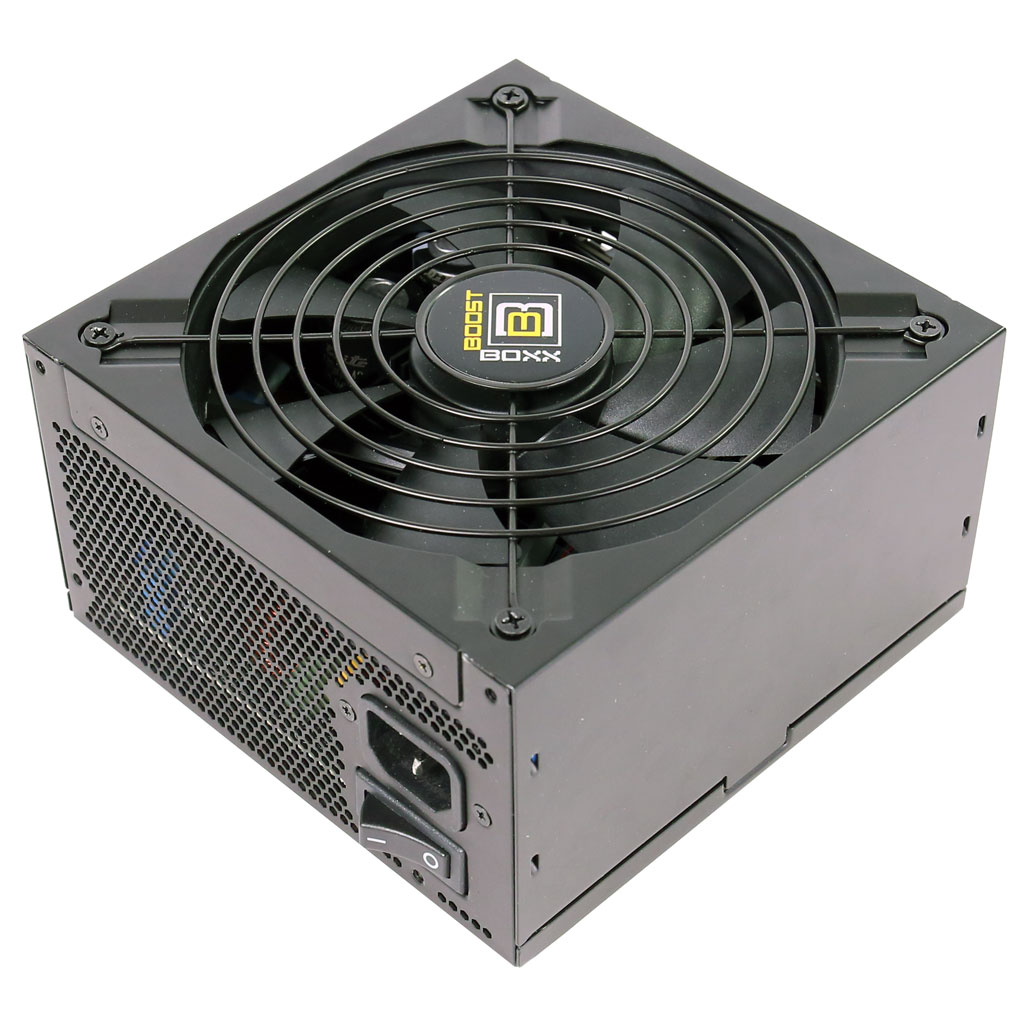

Top side

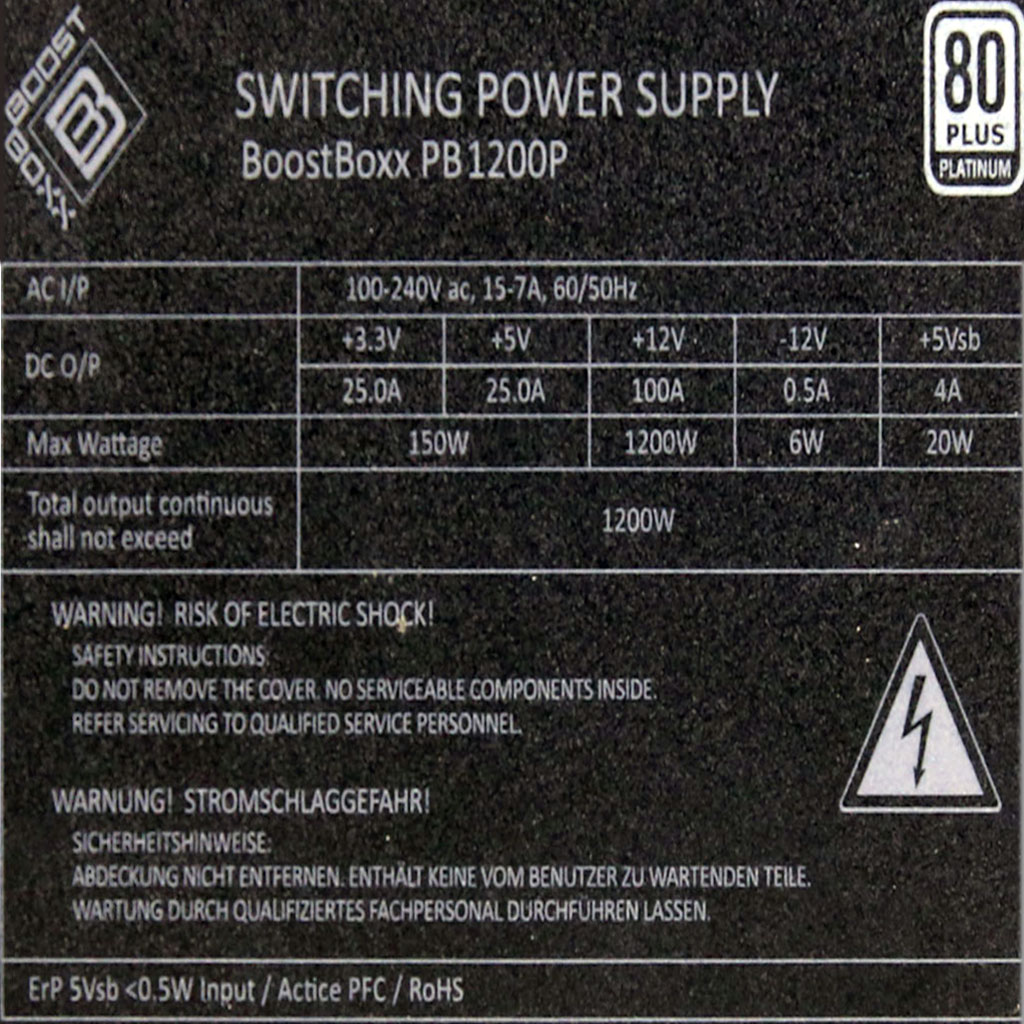

Power specifications label
CYBENETICS提供ETA和LAMBDA自願性認證 方案以推廣高效及靜音之電源供應器
