Gamer Storm PN650D
Serial Number
Lab IDGA65002339
  • Report: 24PS2339A
  • Receipt Date: Sep 5, 2024
  • Test Date: Sep 19, 2024
  • Report Date: Sep 26, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandGamer Storm
Manufacturer (OEM)CWT
SeriesPN-D
Model NumberPN650D-FC
Serial Number
DUT NotesCWT GPW platform

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10-5
Rated Frequency (Hz)50-60
Rated Power (W)650
TypeATX12V
Cooling120mm Rifle Bearing Fan (DF1202512SEHN)
Semi-Passive Operation✗
Cable DesignFixed cables

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps20205430.3
Watts100648153.6
Total Max. Power (W)650

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (550mm) 1 1 18-20AWG No
4+4 pin EPS12V (730mm+150mm) 1 2 18AWG No
6+2 pin PCIe (590mm+120mm) 1 2 18AWG No
6+2 pin PCIe (590mm) 1 1 18AWG No
12+4 pin PCIe (610mm) (450W) 1 1 16-24AWG No
SATA (450mm+120mm+120mm) / 4-pin Molex (+120mm) 2 6 / 2 18AWG No

Parts Description

General Data
Manufacturer (OEM) CWT
Platform GPW
PCB Type Single-Sided
Primary Side
Transient Filter 2x Y caps, 1x X caps, 2x CM chokes, 1x MOV. 1x CAP200DG (Discharge IC
Inrush Protection 1x NTC Thermistor SCK-056 (5 Ohm @25°C) & Relay
Bridge Rectifier(s) 1x GBU1006 (600V, 10A @ 150°C)
APFC MOSFETs 2x Champion GPT22N50SYX & 1x Sync Power SPN5003 (for reducing the no-load consuption)
APFC Boost Diode 1x CRMICRO CRXI06D065G2 (600V, 6A @ 167°C)
Bulk Cap(s) 1x Chengx (400V, 560uF, 2000h @ 85°C, AP)
Main Switchers 4x Silan Microelectronics SVF13N50F (500V, 8.2A @ 100°C, Rds(on): 0.52Ohm)
Resonant Controller Champion CM6901X
APFC Controller Champion 6500UNX
Topology Primary side: APFC, Full-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 4 x InPower Semiconductor FTG014N04SA (40V, 100A)
5V & 3.3V DC-DC Converters: 4x SPN3006 (30V, 57A @ 100°C, Rds(on): 5.5mOhm) PWM Controller(s): 1x ANPEC APW7159
Filtering Capacitors Electrolytic: 11x Chengx (2-4,000 @ 105°C, GR), Polymer: 9x CapXon , 3x Chengx , 3x Elite , 2x Apaq
Supervisor IC INI1S429I - DCG
Fan Model Martech DF1202512SEHN (120mm, 12V, 0.42A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Standby PWM Controller Power Integrations TNY290

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)16.2
AC Loss to PWR_OK Hold Up Time (ms)15
PWR_OK Inactive to DC Loss Delay (ms)1.2

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.13 V 115.11 V 113.85 V 115.16 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.15 % 2.00 % PASS
Real Power: 0.054 W 0.048 W N/A 0.061 W N/A N/A
Apparent Power: 9.899 W 9.895 W N/A 9.903 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.37 V 230.34 V 227.70 V 230.39 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.415 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.118 W 0.103 W N/A 0.147 W N/A N/A
Apparent Power: 33.104 W 33.091 W N/A 33.115 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

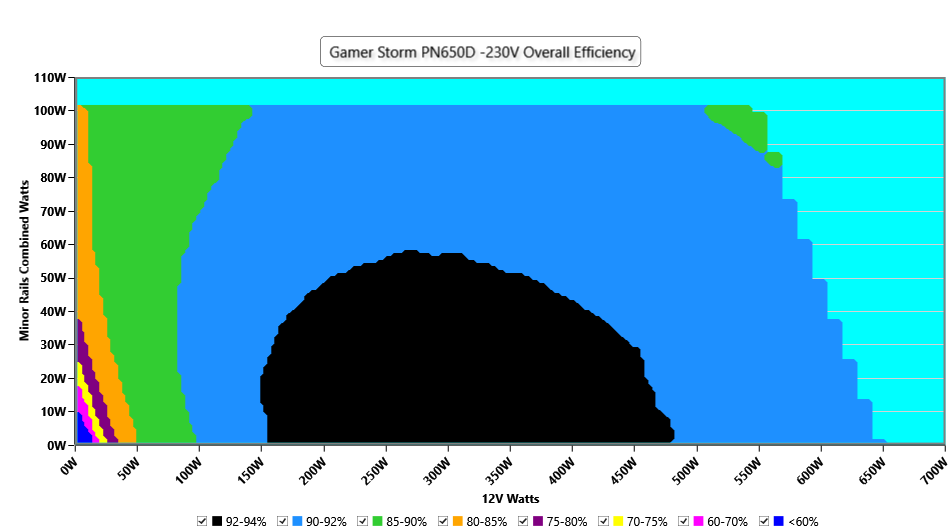

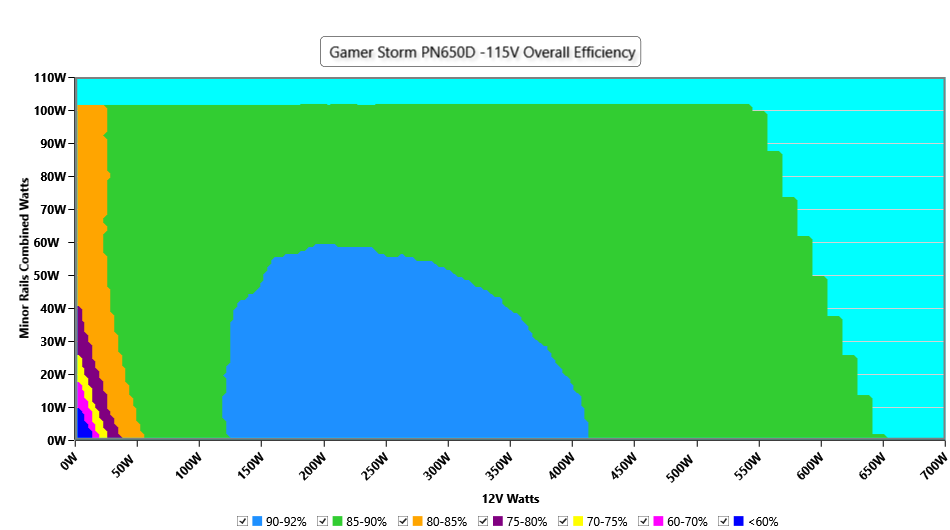

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

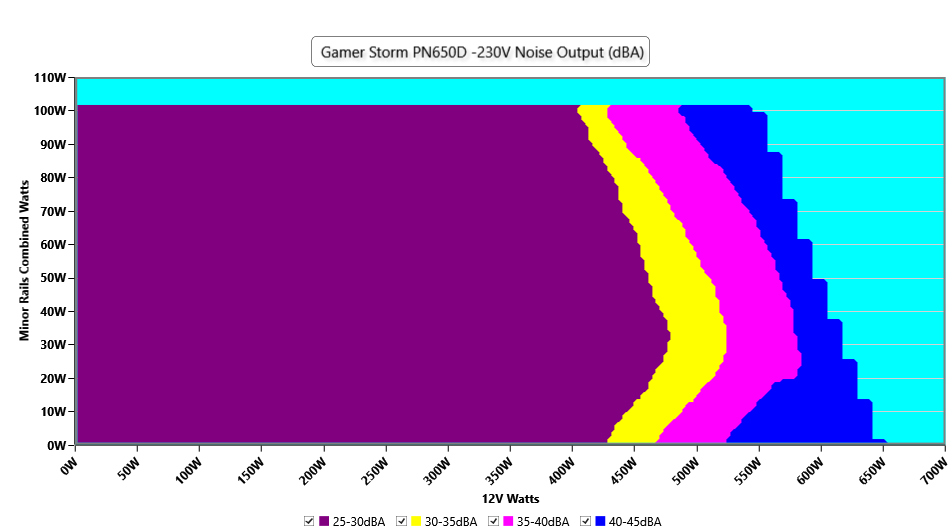

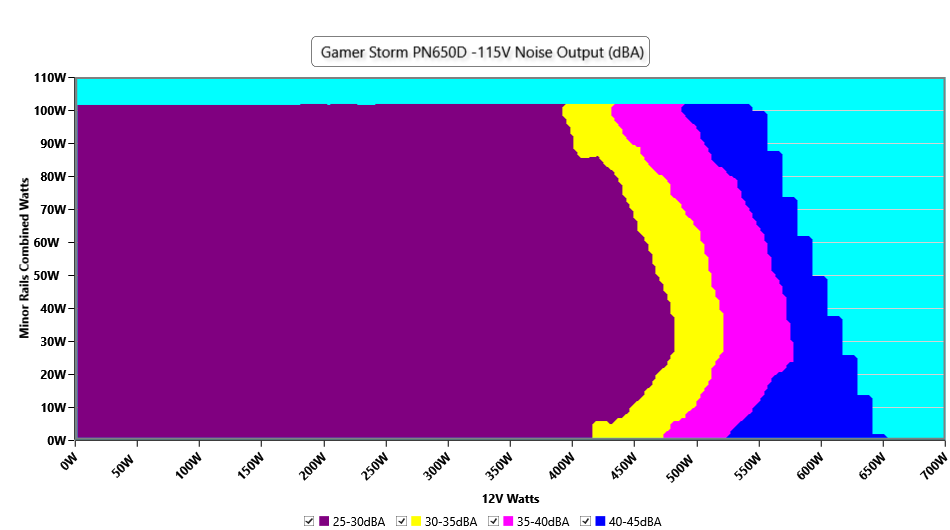

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

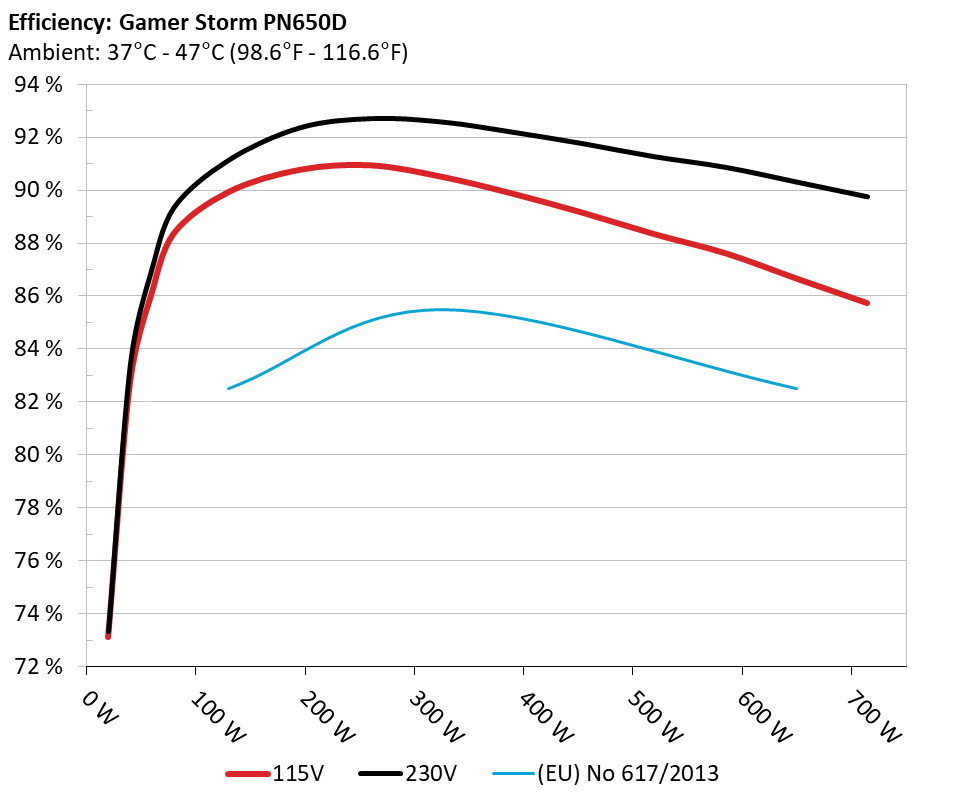

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

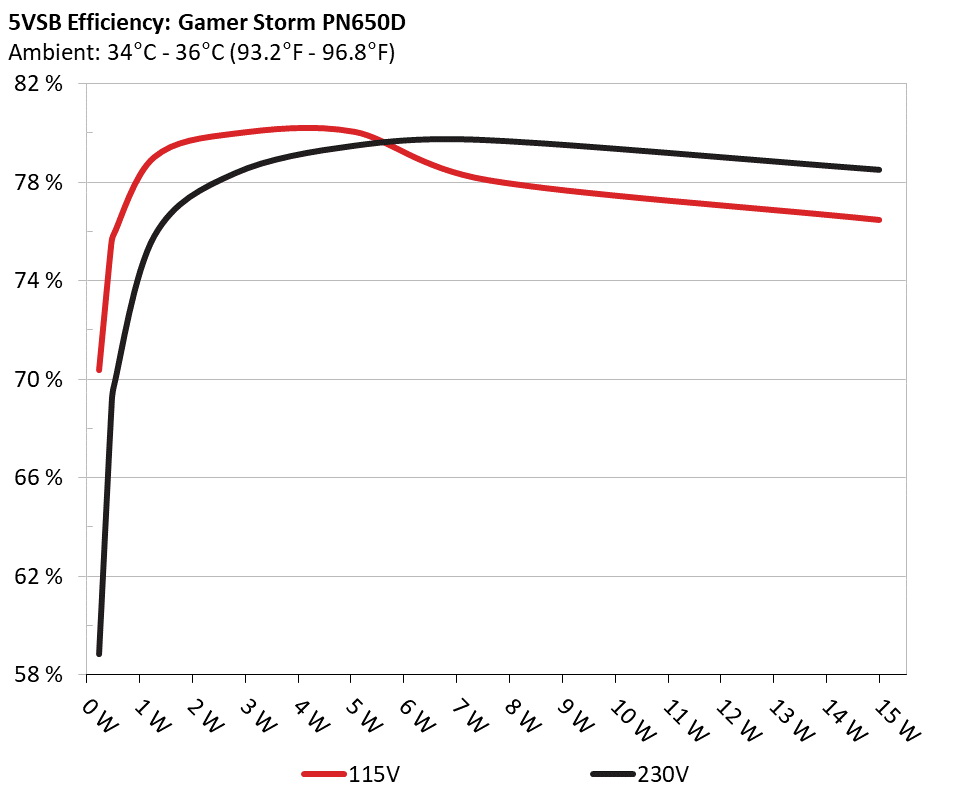

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 69.872% 0.033
5.099V 0.329W 115.16V
2 0.09A 0.459W 74.972% 0.061
5.097V 0.612W 115.17V
3 0.55A 2.796W 79.492% 0.269
5.081V 3.517W 115.16V
4 1A 5.067W 79.56% 0.366
5.065V 6.369W 115.16V
5 1.5A 7.575W 77.601% 0.417
5.049V 9.762W 115.16V
6 3A 14.985W 75.98% 0.481
4.995V 19.721W 115.16V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 58.344% 0.012
5.097V 0.394W 230.4V
2 0.09A 0.459W 68.155% 0.02
5.096V 0.674W 230.4V
3 0.55A 2.795W 77.856% 0.103
5.081V 3.591W 230.4V
4 1A 5.067W 78.984% 0.171
5.065V 6.414W 230.4V
5 1.5A 7.573W 79.206% 0.23
5.047V 9.562W 230.4V
6 3.001A 14.983W 78.005% 0.334
4.994V 19.207W 230.4V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.582A 1.975A 1.966A 0.99A 65.008 85.635% 1101 26.7 40.34°C 0.954
12.115V 5.064V 3.357V 5.051V 75.914 44.62°C 115.15V
20% 8.180A 2.964A 2.952A 1.192A 129.961 89.429% 1104 26.7 40.64°C 0.973
12.108V 5.062V 3.354V 5.034V 145.324 45.18°C 115.13V
30% 13.132A 3.46A 3.446A 1.396A 194.969 90.268% 1107 26.7 41.37°C 0.98
12.101V 5.06V 3.352V 5.016V 215.99 46.44°C 115.11V
40% 18.095A 3.955A 3.941A 1.601A 260.058 90.442% 1110 26.7 41.92°C 0.983
12.095V 5.058V 3.35V 4.998V 287.541 47.43°C 115.09V
50% 22.712A 4.945A 4.929A 1.808A 325.053 90.009% 1246 30.1 42.13°C 0.983
12.088V 5.056V 3.348V 4.979V 361.133 48.15°C 115.08V
60% 27.302A 5.937A 5.92A 2.001A 389.489 89.379% 1679 39.0 42.92°C 0.984
12.078V 5.054V 3.345V 4.961V 435.776 49.49°C 115.06V
70% 31.964A 6.929A 6.912A 2.226A 454.877 88.64% 2073 44.6 43.26°C 0.984
12.068V 5.052V 3.343V 4.942V 513.179 50.31°C 115.03V
80% 36.631A 7.921A 7.904A 2.334A 519.68 87.839% 2281 46.6 43.66°C 0.985
12.061V 5.05V 3.34V 4.927V 591.629 51.75°C 115.01V
90% 41.694A 8.418A 8.387A 2.443A 585.09 87.116% 2281 46.6 44.94°C 0.986
12.054V 5.049V 3.338V 4.912V 671.627 54.03°C 114.99V
100% 46.498A 8.914A 8.901A 3.077A 649.926 86.161% 2283 46.6 45.5°C 0.987
12.048V 5.049V 3.336V 4.876V 754.316 55.58°C 114.97V
110% 51.180A 9.908A 9.988A 3.084A 714.56 85.234% 2287 46.6 46.76°C 0.989
12.041V 5.046V 3.334V 4.864V 838.371 57.69°C 114.95V
CL1 0.116A 11.909A 11.85A 0A 101.298 83.555% 1121 26.8 41.32°C 0.972
12.111V 5.055V 3.35V 5.064V 121.235 46.81°C 115.14V
CL2 0.115A 19.78A 0A 0A 101.394 81.606% 1127 26.9 41.31°C 0.973
12.116V 5.055V 3.364V 5.072V 124.25 48.41°C 115.14V
CL3 0.115A 0A 19.713A 0A 67.391 76.533% 1109 26.7 40.99°C 0.963
12.115V 5.075V 3.348V 5.069V 88.055 50.1°C 115.15V
CL4 53.909A 0A 0A 0A 649.711 87.386% 2288 46.7 45.46°C 0.988
12.052V 5.064V 3.348V 5.004V 743.502 56.4°C 114.98V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.582A 1.975A 1.966A 0.99A 65.003 86.581% 1100 26.7 40.27°C 0.79
12.116V 5.064V 3.357V 5.052V 75.074 44.48°C 230.37V
20% 8.180A 2.964A 2.952A 1.192A 129.945 90.64% 1104 26.7 40.83°C 0.894
12.108V 5.061V 3.354V 5.034V 143.364 45.33°C 230.36V
30% 13.130A 3.459A 3.446A 1.396A 194.95 91.863% 1107 26.7 41.37°C 0.929
12.101V 5.06V 3.352V 5.017V 212.219 46.38°C 230.36V
40% 18.093A 3.955A 3.94A 1.601A 260.034 92.212% 1110 26.7 41.63°C 0.944
12.095V 5.058V 3.35V 4.999V 282 47.19°C 230.35V
50% 22.711A 4.945A 4.929A 1.808A 325.028 92.086% 1291 31.0 42.21°C 0.954
12.088V 5.056V 3.348V 4.98V 352.962 48.29°C 230.35V
60% 27.296A 5.937A 5.919A 2A 389.421 91.701% 1663 38.8 42.95°C 0.96
12.078V 5.055V 3.345V 4.962V 424.664 49.49°C 230.34V
70% 31.956A 6.929A 6.91A 2.226A 454.809 91.259% 2052 44.3 43.34°C 0.963
12.069V 5.053V 3.343V 4.943V 498.374 50.38°C 230.33V
80% 36.622A 7.92A 7.903A 2.334A 519.607 90.772% 2276 46.5 43.72°C 0.966
12.062V 5.05V 3.34V 4.928V 572.429 51.73°C 230.32V
90% 41.687A 8.417A 8.386A 2.443A 585.023 90.367% 2277 46.5 44.68°C 0.968
12.055V 5.049V 3.338V 4.913V 647.381 53.76°C 230.31V
100% 46.493A 8.913A 8.9A 3.076A 649.864 89.812% 2280 46.6 45.99°C 0.97
12.048V 5.049V 3.337V 4.877V 723.585 56.01°C 230.3V
110% 51.177A 9.908A 9.987A 3.084A 714.498 89.256% 2282 46.6 46.98°C 0.971
12.040V 5.047V 3.334V 4.864V 800.506 57.92°C 230.29V
CL1 0.115A 11.906A 11.848A 0A 101.294 84.825% 1121 26.8 41.16°C 0.871
12.111V 5.056V 3.351V 5.065V 119.42 46.61°C 230.36V
CL2 0.115A 19.783A 0A 0.002A 101.399 82.768% 1126 26.9 40.09°C 0.875
12.115V 5.054V 3.364V 5.072V 122.512 47.16°C 230.36V
CL3 0.115A 0A 19.714A 0.001A 67.396 77.402% 1107 26.7 40.79°C 0.82
12.112V 5.075V 3.347V 5.07V 87.074 49.82°C 230.37V
CL4 53.905A 0A 0A 0A 649.691 90.919% 2283 46.6 45.54°C 0.971
12.052V 5.063V 3.347V 5.004V 714.585 56.5°C 230.3V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.226A 0.494A 0.491A 0.197A 20.008 72.605% 1088 26.4 36.65°C 0.858
12.111V 5.064V 3.358V 5.088V 27.557 39.72°C 115.17V
40W 2.700A 0.691A 0.688A 0.295A 40.005 82.214% 1091 26.5 37.43°C 0.927
12.110V 5.064V 3.357V 5.082V 48.66 40.76°C 115.16V
60W 4.173A 0.889A 0.885A 0.394A 60.004 85.939% 1094 26.5 38.35°C 0.952
12.110V 5.064V 3.357V 5.075V 69.823 42.09°C 115.15V
80W 5.644A 1.086A 1.081A 0.493A 79.97 87.861% 1097 26.6 39.31°C 0.965
12.110V 5.064V 3.357V 5.069V 91.021 43.29°C 115.15V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.226A 0.494A 0.491A 0.197A 20.002 72.815% 1090 26.5 36.85°C 0.51
12.112V 5.065V 3.358V 5.089V 27.469 39.91°C 230.36V
40W 2.698A 0.691A 0.688A 0.295A 40 82.931% 1093 26.5 37.28°C 0.684
12.113V 5.065V 3.358V 5.083V 48.232 40.56°C 230.36V
60W 4.172A 0.889A 0.884A 0.394A 59.998 86.856% 1095 26.6 38.92°C 0.771
12.111V 5.065V 3.357V 5.076V 69.075 42.44°C 230.37V
80W 5.640A 1.086A 1.081A 0.493A 79.955 88.857% 1100 26.7 39.15°C 0.826
12.112V 5.065V 3.357V 5.07V 89.982 42.98°C 230.36V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load11.87mV7.96mV6.00mV5.40mVPass
20% Load15.13mV8.37mV7.88mV5.76mVPass
30% Load16.81mV9.13mV8.09mV7.24mVPass
40% Load18.79mV9.38mV7.38mV6.98mVPass
50% Load18.49mV14.13mV7.58mV8.05mVPass
60% Load16.94mV16.98mV8.59mV9.58mVPass
70% Load15.88mV18.36mV9.20mV10.95mVPass
80% Load16.69mV11.88mV10.68mV9.07mVPass
90% Load17.71mV12.81mV11.24mV9.12mVPass
100% Load28.44mV14.26mV13.03mV11.06mVPass
110% Load29.80mV16.37mV17.65mV12.24mVPass
Crossload122.96mV14.15mV10.88mV7.39mVPass
Crossload217.45mV18.57mV10.02mV7.69mVPass
Crossload320.35mV10.10mV15.41mV5.91mVPass
Crossload427.14mV16.43mV10.06mV12.79mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load12.21mV12.45mV10.93mV11.21mVPass
20% Load15.74mV13.32mV12.87mV13.25mVPass
30% Load18.27mV14.23mV14.09mV16.86mVPass
40% Load21.07mV14.94mV13.83mV15.90mVPass
50% Load22.18mV27.14mV13.43mV20.63mVPass
60% Load25.14mV28.16mV14.80mV25.57mVPass
70% Load25.44mV30.81mV15.82mV26.14mVPass
80% Load26.46mV28.97mV18.56mV25.37mVPass
90% Load27.42mV20.96mV19.68mV23.74mVPass
100% Load39.88mV23.65mV22.79mV27.37mVPass
110% Load42.11mV27.08mV25.76mV27.73mVPass
Crossload134.45mV30.92mV21.02mV19.22mVPass
Crossload227.94mV34.38mV17.95mV21.55mVPass
Crossload331.09mV18.36mV30.06mV12.84mVPass
Crossload435.22mV28.92mV18.49mV22.31mVPass

The results above are not used in the certification process

Gamer Storm PN650D

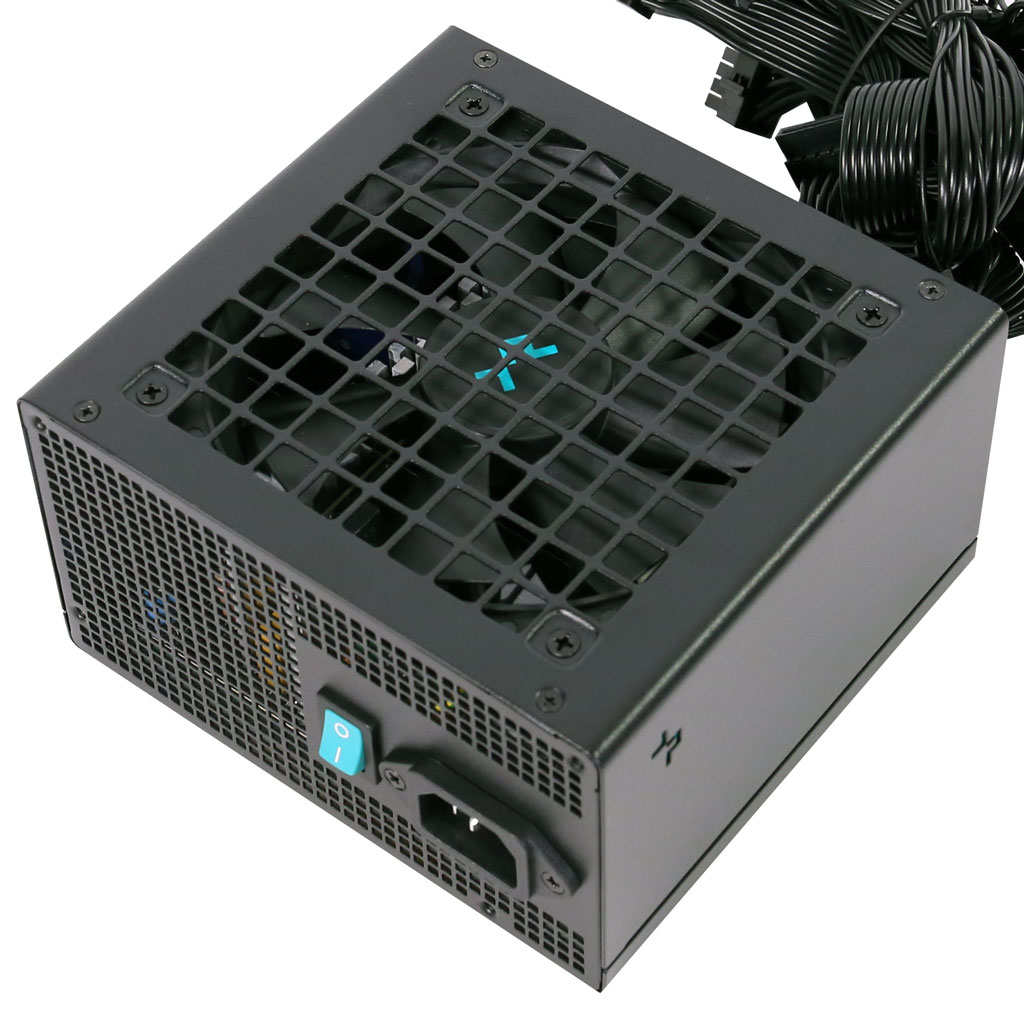

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
