CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Raijintek Cratos 1000W
Serial Number
Lab IDRJ10002332
  • Report: 24PS2332A
  • Receipt Date: Dec 28, 2023
  • Test Date: Jan 22, 2024
  • Report Date: Jan 26, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandRaijintek
Manufacturer (OEM)SANR
SeriesCratos
Model Number
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)13-6.5
Rated Frequency (Hz)47-63
Rated Power (W)1000
TypeATX12V
Cooling120mm Fluid Dynamic Bearing Fan
(CF-D12025H12M)
Semi-Passive Operation✓
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps20208330.3
Watts1301000153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18-22AWG No
4+4 pin EPS12V (650mm) 2 2 18AWG No
6+2 pin PCIe (650mm+150mm) 2 4 18AWG No
6+2 pin PCIe (550mm) 1 1 18AWG No
12+4 pin PCIe (610mm) (600W) 1 1 16-26AWG No
SATA (450mm+150mm+150mm+150mm) 2 8 18AWG No
4-pin Molex (500mm+150mm+150mm) 1 3 18AWG No
FDD Adapter (105mm) 1 1 18AWG No
AC Power Cord (1100mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary 230V

Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)91.414%
Average Noise Output (>1450 Load Combinations)27.01dBA
Average PF (>1450 Load Combinations)0.955
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.1058W
12V Ripple (Full Load)44.80mV
5V Ripple (Full Load)31.24mV
3.3V Ripple (Full Load)33.79mV
5VSB Ripple (Full Load)27.92mV
12V Load Regulation0.31%
5V Load Regulation0.38%
3.3V Load Regulation0.45%
5VSB Load Regulation1.73%
Inrush Current36.060A
12V Transient Response (200%)11.31V
5V Transient Response (200%)4.909V
3.3V Transient Response (200%)3.198V
5VSB Transient Response (200%)4.836V
Hold-Up Time & Power Ok Signal23.20ms
AC Loss to PWR_OK Hold Up Time20.30ms
PWR_OK Inactive to DC Loss Delay2.90ms
PSU Timings: T1 (20% / 100%)102.0ms102.0ms
PSU Timings: T3 (20% / 100%)118.0ms120.0ms
OPP (29.45°C / 44.57°C)149.87%146.28%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)23.2
AC Loss to PWR_OK Hold Up Time (ms)20.3
PWR_OK Inactive to DC Loss Delay (ms)2.9

Vampire Power

Tables 230V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.89 V 229.82 V 227.70 V 229.95 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.418 1.417 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.13 % 0.08 % N/A 0.18 % 2.00 % PASS
Real Power: 0.106 W 0.076 W N/A 0.143 W N/A N/A
Apparent Power: 30.470 W 30.415 W N/A 30.512 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Graphs 230V

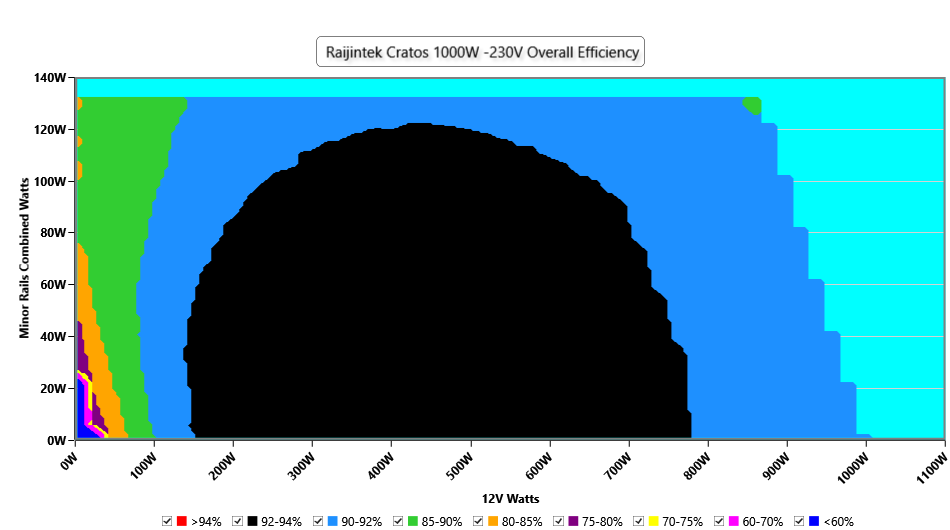

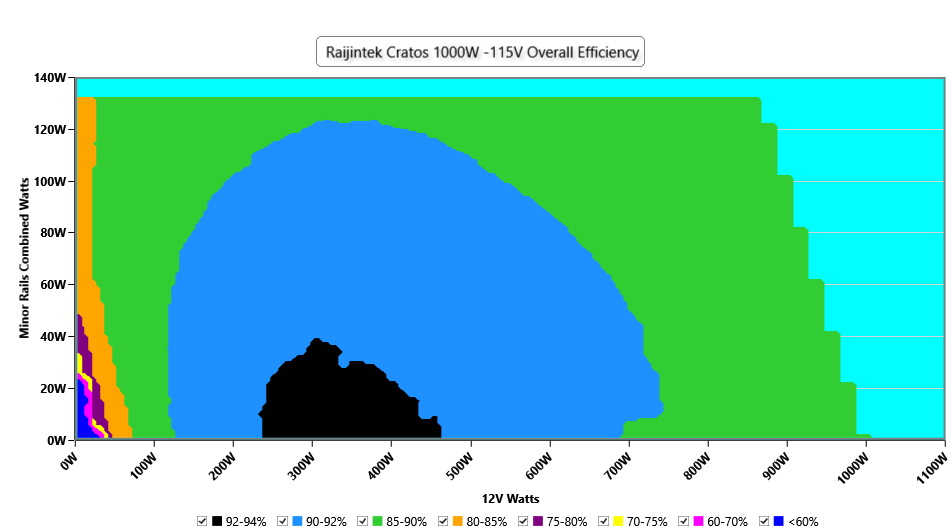

Efficiency Graph

230V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

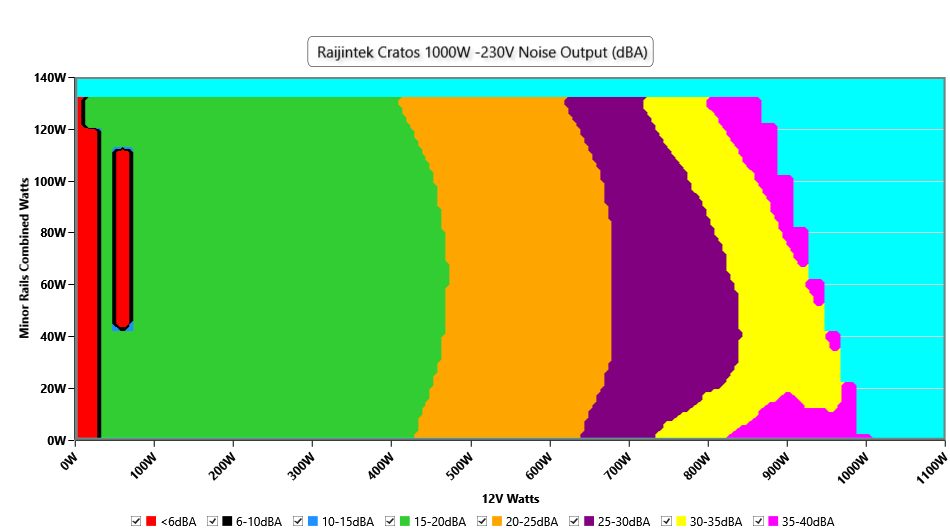

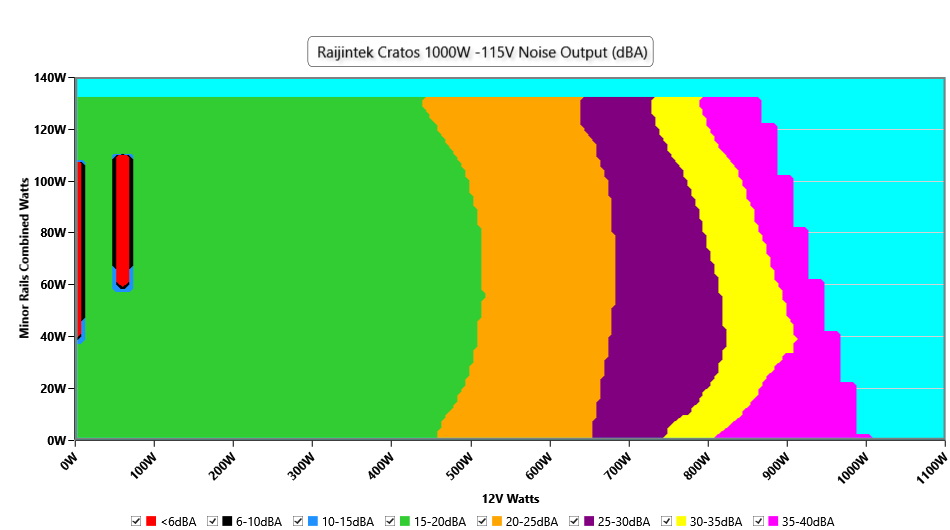

Noise Graph

230V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

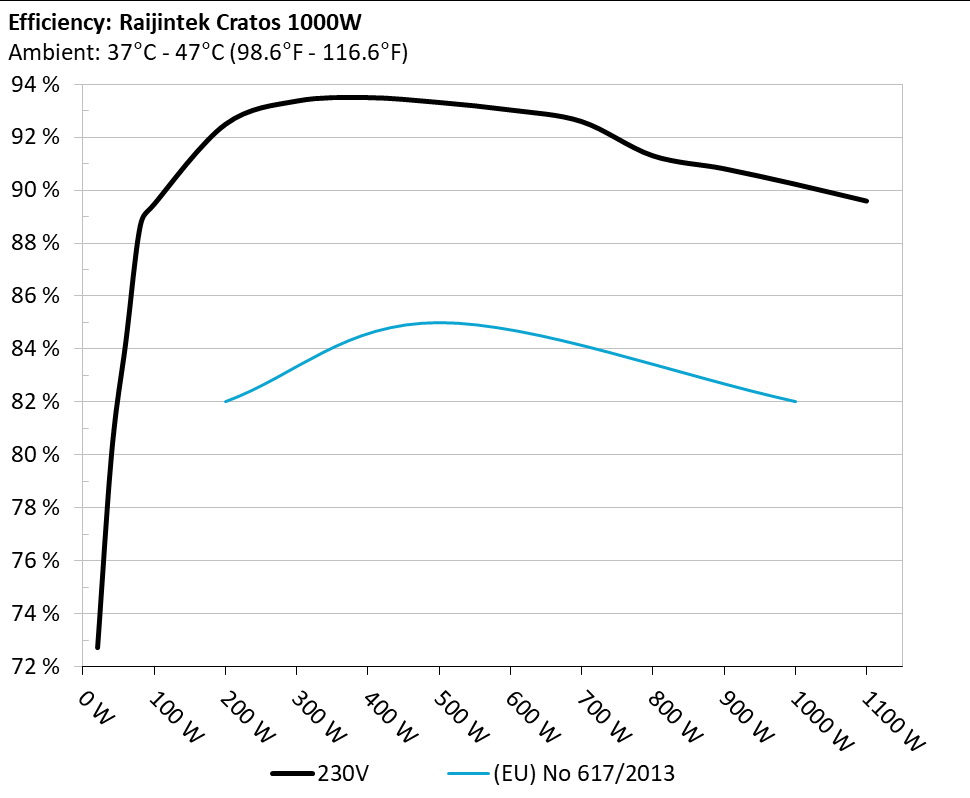

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

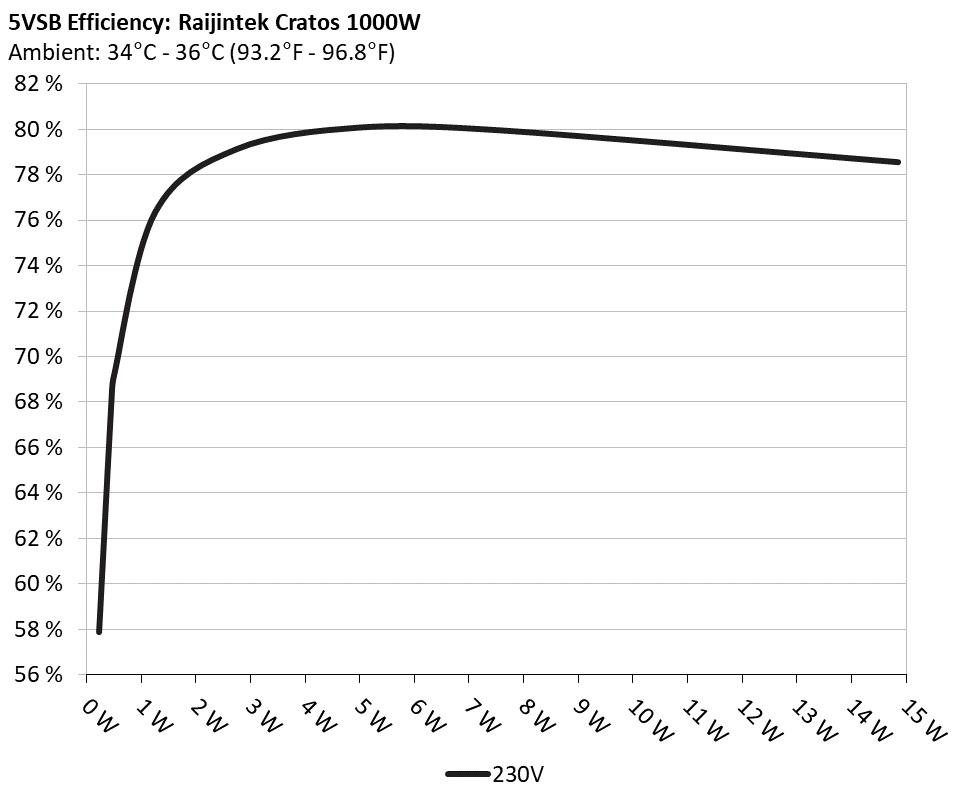

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 230V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.225W 57.875% 0.014
5.004V 0.389W 229.86V
2 0.09A 0.45W 67.996% 0.024
5.003V 0.662W 229.86V
3 0.55A 2.748W 79.12% 0.12
4.995V 3.473W 229.86V
4 1A 4.987W 80.065% 0.199
4.987V 6.229W 229.86V
5 1.5A 7.467W 79.957% 0.269
4.978V 9.339W 229.86V
6 3A 14.852W 78.541% 0.378
4.95V 18.909W 229.86V

Supplementary Tests (For Reference)

Typical Load Tests 230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.554A 1.987A 1.976A 1.003A 99.991 89.498% 907 17.2 40.06°C 0.835
11.962V 5.033V 3.34V 4.984V 111.726 44.33°C 229.84V
20% 14.127A 2.981A 2.966A 1.206A 199.939 92.508% 916 17.6 40.54°C 0.927
11.966V 5.031V 3.338V 4.977V 216.137 45.05°C 229.83V
30% 22.068A 3.479A 3.461A 1.409A 299.986 93.379% 968 19.5 41.34°C 0.955
11.960V 5.03V 3.338V 4.97V 321.254 46.38°C 229.81V
40% 29.972A 3.978A 3.956A 1.612A 399.515 93.508% 1025 21.4 41.91°C 0.965
11.955V 5.028V 3.337V 4.963V 427.252 47.44°C 229.8V
50% 37.549A 4.974A 4.947A 1.816A 499.233 93.328% 1091 23.5 42.06°C 0.973
11.951V 5.026V 3.335V 4.956V 534.919 48.15°C 229.78V
60% 45.201A 5.972A 5.94A 2A 599.669 93.041% 1160 25.4 42.82°C 0.978
11.946V 5.024V 3.334V 4.949V 644.521 49.39°C 229.76V
70% 52.786A 6.97A 6.933A 2.226A 699.479 92.606% 1229 27.2 43.08°C 0.98
11.942V 5.022V 3.332V 4.942V 755.327 50.19°C 229.75V
80% 60.441A 7.968A 7.927A 2.33A 799.517 91.314% 1716 37.1 43.89°C 0.983
11.939V 5.02V 3.33V 4.936V 875.571 51.95°C 229.73V
90% 68.447A 8.47A 8.409A 2.434A 899.306 90.824% 1769 37.9 44.4°C 0.985
11.934V 5.017V 3.329V 4.93V 990.168 53.46°C 229.71V
100% 76.256A 8.971A 8.922A 3.052A 999.332 90.239% 1770 37.9 45.87°C 0.987
11.929V 5.016V 3.328V 4.915V 1107.425 55.89°C 229.69V
110% 84.000A 9.972A 10.007A 3.055A 1099.96 89.601% 1768 37.9 46.95°C 0.988
11.924V 5.014V 3.327V 4.911V 1227.627 57.88°C 229.68V
CL1 0.117A 15.625A 15.52A 0A 131.302 82.947% 1748 37.6 40.79°C 0.898
11.980V 5.012V 3.325V 5.002V 158.301 46.26°C 229.84V
CL2 0.116A 19.936A 0A 0A 101.34 83.05% 1001 20.5 40.55°C 0.854
11.974V 5.014V 3.34V 5.003V 122.027 47.64°C 229.85V
CL3 0.115A 0A 19.844A 0A 67.382 77.696% 1014 21.0 40.72°C 0.778
11.974V 5.028V 3.326V 5.003V 86.728 49.79°C 229.85V
CL4 83.871A 0A 0A 0.002A 999.91 91.047% 1783 38.1 46.14°C 0.986
11.922V 5.03V 3.339V 4.973V 1098.241 57.09°C 229.69V

The results above are not used in the certification process

Light Load Tests 230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.241A 0.496A 0.494A 0.2A 19.998 72.731% 0 <6.0 39.72°C 0.46
11.966V 5.035V 3.343V 5V 27.496 36.67°C 229.86V
40W 2.732A 0.695A 0.691A 0.3A 39.999 80.154% 897 16.9 37.38°C 0.621
11.964V 5.035V 3.342V 4.998V 49.901 40.68°C 229.85V
60W 4.224A 0.894A 0.889A 0.4A 59.999 84.354% 903 17.1 38.3°C 0.728
11.963V 5.035V 3.341V 4.996V 71.128 41.81°C 229.85V
80W 5.711A 1.092A 1.086A 0.501A 79.94 88.667% 903 17.1 39.15°C 0.787
11.961V 5.034V 3.341V 4.993V 90.151 42.98°C 229.85V

The results above are not used in the certification process

Ripple Measurements 230V

Test12V5V3.3V5VSBPass/Fail
10% Load32.48mV21.60mV24.73mV10.57mVPass
20% Load41.38mV21.71mV27.70mV11.39mVPass
30% Load34.63mV24.02mV26.17mV12.88mVPass
40% Load32.69mV23.56mV26.32mV14.47mVPass
50% Load31.97mV26.18mV30.42mV15.70mVPass
60% Load32.48mV28.38mV29.14mV17.19mVPass
70% Load32.12mV30.23mV30.32mV19.19mVPass
80% Load30.49mV31.00mV31.91mV21.40mVPass
90% Load29.67mV30.12mV31.60mV22.37mVPass
100% Load44.80mV31.24mV33.79mV27.92mVPass
110% Load43.25mV34.90mV36.46mV29.94mVPass
Crossload143.28mV26.20mV32.81mV14.15mVPass
Crossload238.62mV30.74mV32.37mV12.62mVPass
Crossload338.66mV21.71mV27.86mV12.52mVPass
Crossload444.25mV31.80mV30.44mV29.23mVPass

The results above are not used in the certification process

Raijintek Cratos 1000W

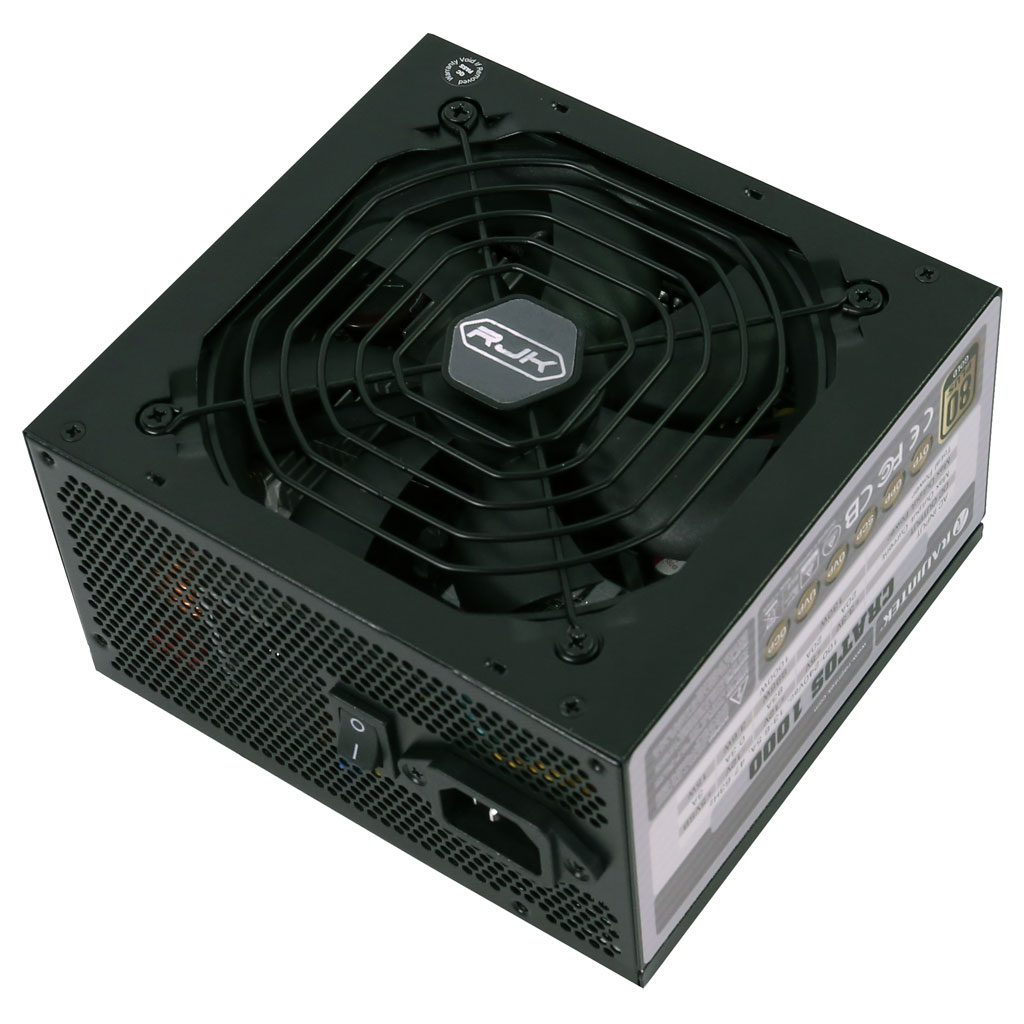

Top side

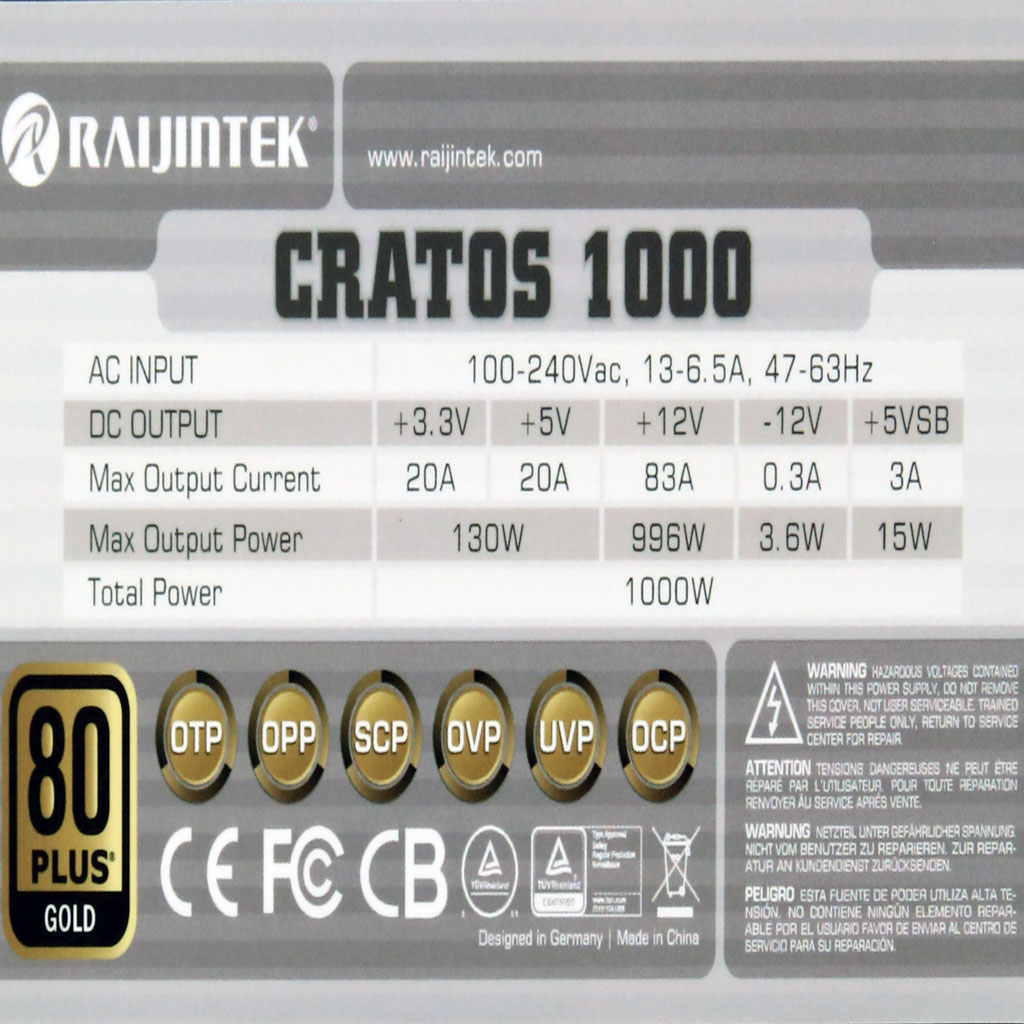

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
