CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Raijintek Ampere 1200W
Serial Number
Lab IDRJ12002329
  • Report: 24PS2329A
  • Receipt Date: Dec 18, 2023
  • Test Date: Jan 17, 2024
  • Report Date: Jan 19, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandRaijintek
Manufacturer (OEM)Andyson
SeriesAmpere
Model NumberAmpere 1200W
Serial Number
DUT Notes

DUT Specifications

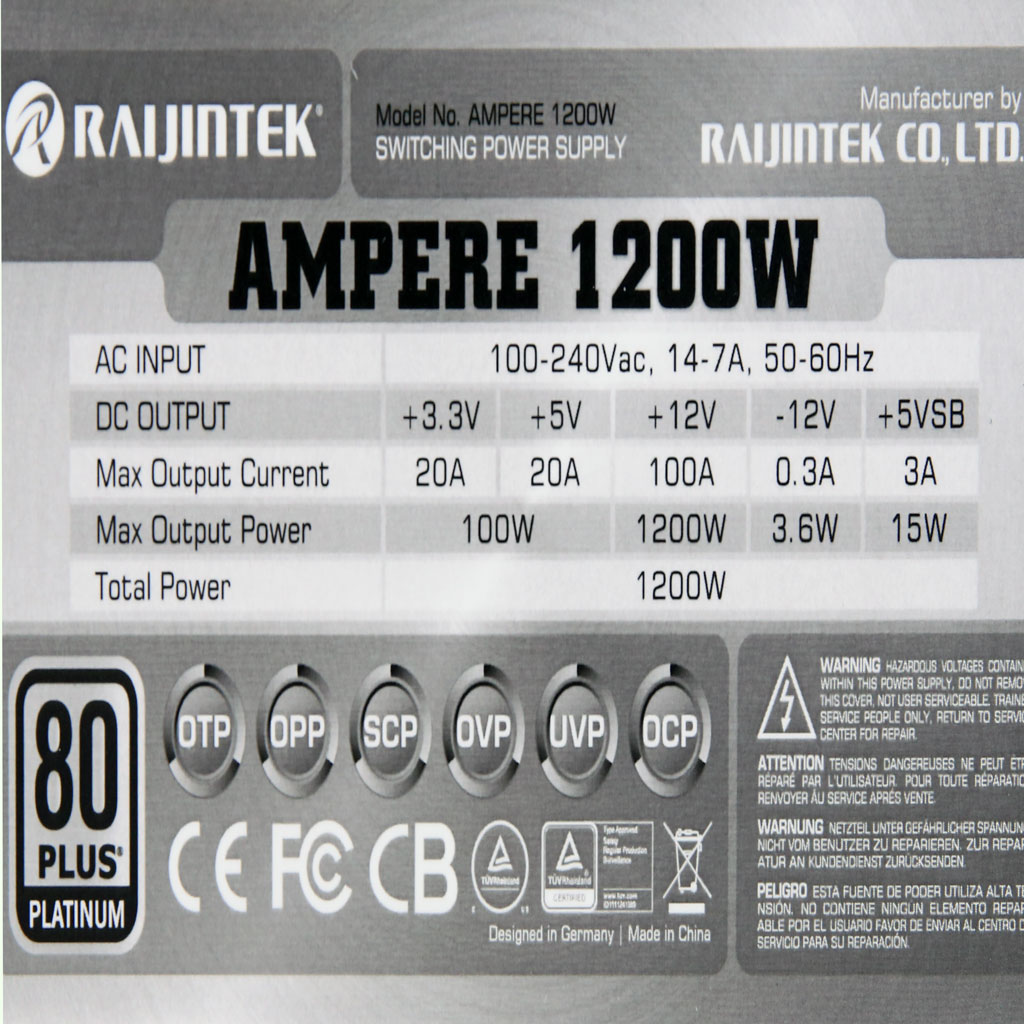

Rated Voltage (Vrms)100-240
Rated Current (Arms)14-7
Rated Frequency (Hz)50-60
Rated Power (W)1200
TypeATX12V
Cooling120mm Fluid Dynamic Bearing Fan
(HA1225H12F-Z)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202010030.3
Watts1001200153.6
Total Max. Power (W)1200

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16AWG No
4+4 pin EPS12V (700mm) 2 2 16AWG No
6+2 pin PCIe (550mm+150mm) 2 4 16-18AWG No
12+4 pin PCIe (600mm) (600W) 1 1 16-26AWG No
SATA (500mm+150mm+150mm+150mm) 2 8 18AWG No
4-pin Molex (500mm+150mm+150mm) / FDD (+150mm) 1 3 / 1 18AWG No

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)23.8
AC Loss to PWR_OK Hold Up Time (ms)18.8
PWR_OK Inactive to DC Loss Delay (ms)5

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.88 V 114.78 V 113.85 V 114.97 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.97 Hz 59.40 Hz 60.03 Hz 60.60 Hz PASS
Mains Voltage CF: 1.421 1.419 1.340 1.424 1.490 PASS
Mains Voltage THD: 0.15 % 0.11 % N/A 0.29 % 2.00 % PASS
Real Power: 0.050 W 0.001 W N/A 0.086 W N/A N/A
Apparent Power: 7.935 W 7.905 W N/A 7.985 W N/A N/A
Power Factor: 0.008 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.87 V 229.79 V 227.70 V 229.92 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.418 1.417 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.19 % 2.00 % PASS
Real Power: 0.122 W 0.079 W N/A 0.179 W N/A N/A
Apparent Power: 27.851 W 27.810 W N/A 27.896 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

Efficiency Graph

INFO

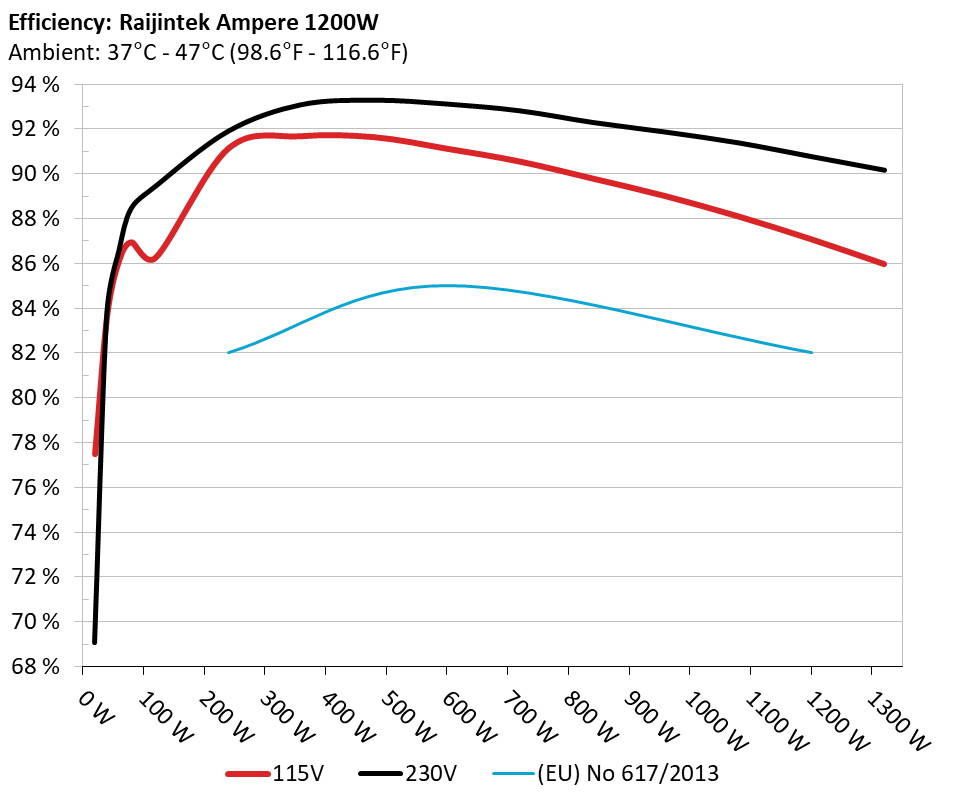

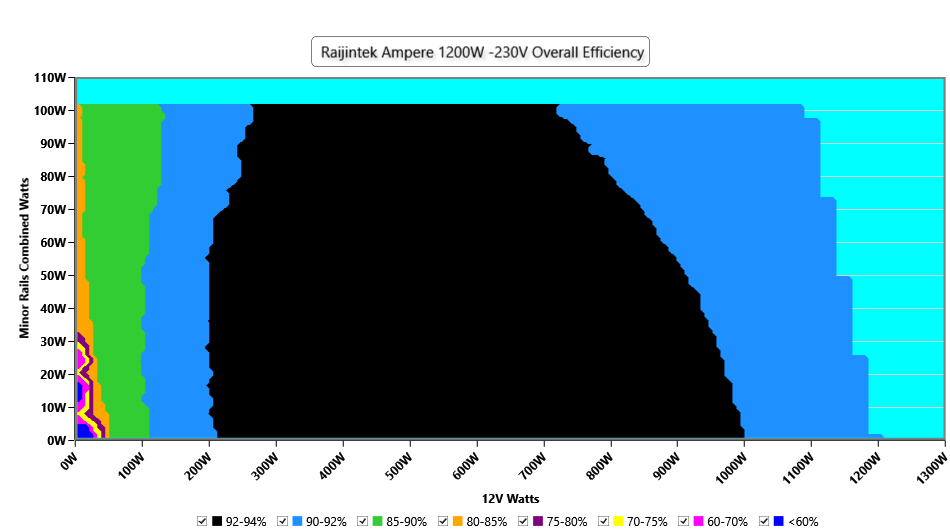

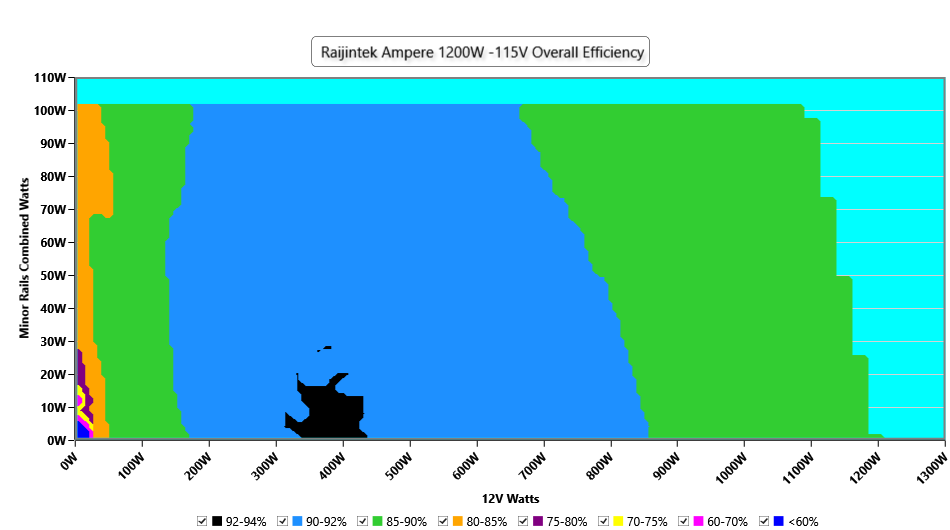

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

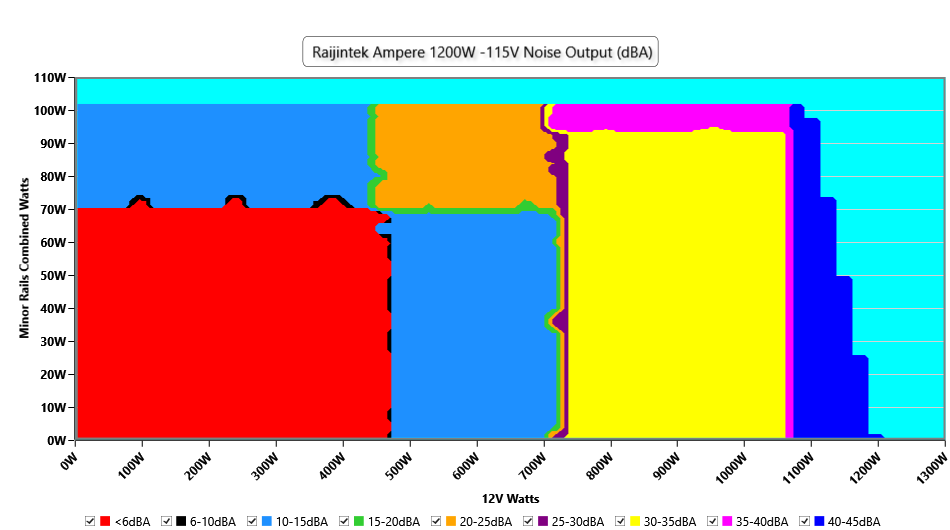

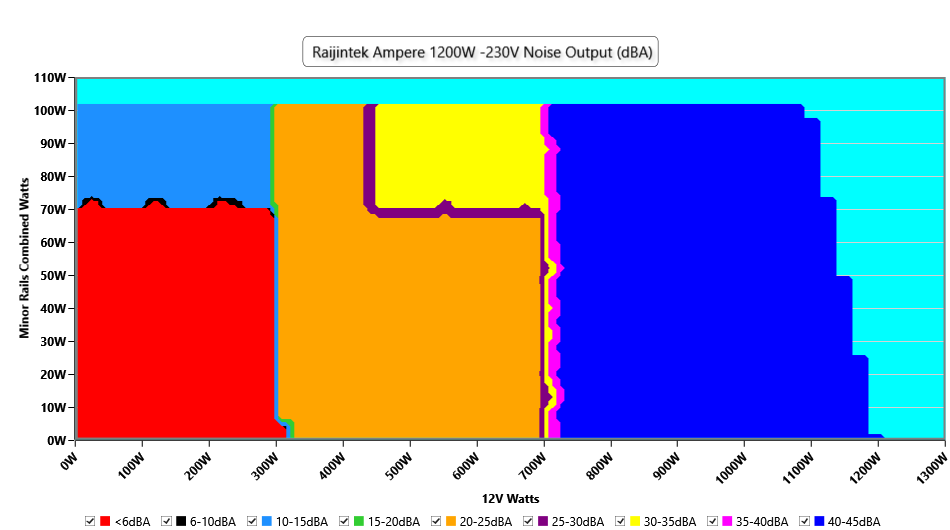

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

5VSB Efficiency

INFO

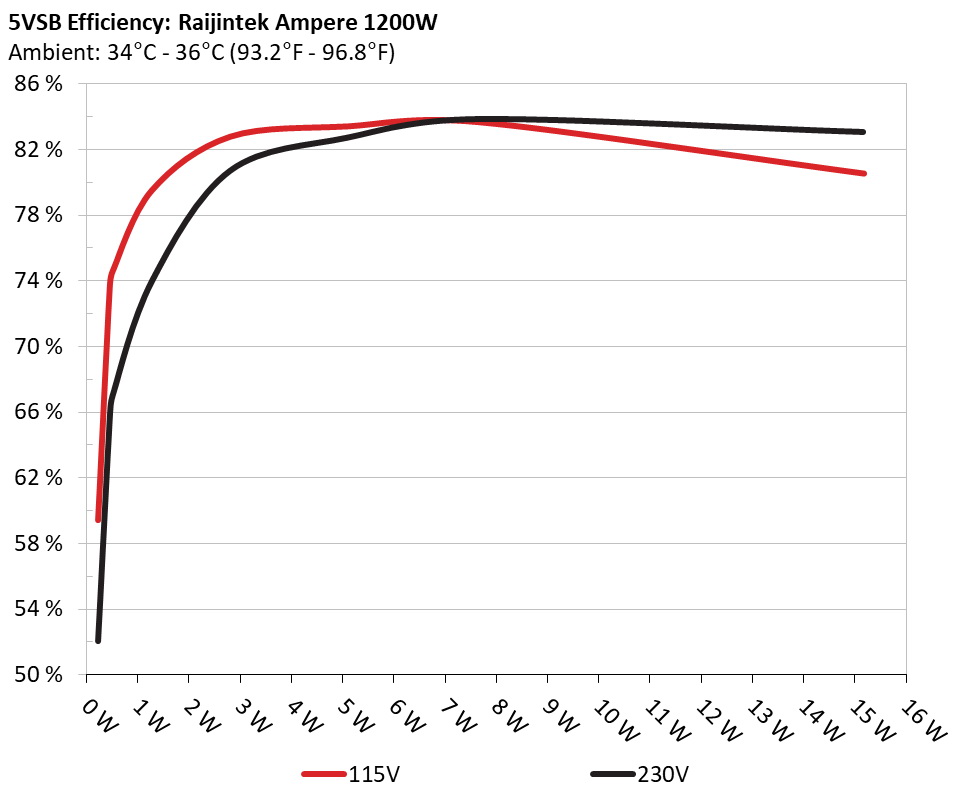

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 59.398% 0.05
5.12V 0.387W 114.85V
2 0.09A 0.461W 73.788% 0.079
5.118V 0.625W 114.85V
3 0.55A 2.81W 82.8% 0.3
5.108V 3.394W 114.85V
4 1A 5.099W 83.427% 0.377
5.099V 6.112W 114.86V
5 1.5A 7.634W 83.69% 0.424
5.089V 9.122W 114.85V
6 3A 15.171W 80.547% 0.487
5.057V 18.835W 114.84V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 52.043% 0.017
5.121V 0.444W 229.86V
2 0.09A 0.461W 65.735% 0.026
5.12V 0.702W 229.86V
3 0.55A 2.81W 80.712% 0.122
5.109V 3.482W 229.86V
4 1A 5.1W 82.728% 0.196
5.1V 6.165W 229.86V
5 1.5A 7.634W 83.858% 0.257
5.089V 9.103W 229.86V
6 3A 15.165W 83.07% 0.354
5.055V 18.256W 229.85V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.095A 1.984A 1.943A 0.982A 119.99 86.269% 0 <6.0 44.25°C 0.96
12.154V 5.039V 3.396V 5.09V 139.092 40.03°C 114.82V
20% 17.225A 2.977A 2.917A 1.182A 239.947 91.143% 0 <6.0 45.44°C 0.972
12.136V 5.039V 3.394V 5.075V 263.267 40.87°C 114.79V
30% 26.635A 3.473A 3.405A 1.383A 359.169 91.686% 0 <6.0 46.35°C 0.975
12.131V 5.039V 3.392V 5.061V 391.737 41.29°C 114.75V
40% 36.134A 3.97A 3.893A 1.586A 479.537 91.646% 0 <6.0 47.41°C 0.98
12.131V 5.038V 3.391V 5.046V 523.251 41.9°C 114.71V
50% 45.261A 4.969A 4.873A 1.789A 599.304 91.131% 1018 23.6 42.23°C 0.983
12.125V 5.032V 3.386V 5.031V 657.63 48.28°C 114.67V
60% 54.461A 5.969A 5.855A 1.994A 719.825 90.556% 1014 23.5 42.74°C 0.985
12.119V 5.027V 3.382V 5.015V 794.892 49.29°C 114.62V
70% 63.596A 6.969A 6.838A 2.2A 839.574 89.799% 1704 38.6 43.44°C 0.986
12.115V 5.023V 3.379V 5V 934.952 50.47°C 114.59V
80% 72.774A 7.966A 7.819A 2.307A 959.574 89.016% 1702 38.5 43.39°C 0.987
12.116V 5.021V 3.376V 4.986V 1077.984 51.53°C 114.54V
90% 82.252A 8.464A 8.297A 2.414A 1079.388 88.113% 1700 38.5 44.9°C 0.988
12.120V 5.021V 3.374V 4.973V 1224.999 53.95°C 114.49V
100% 91.575A 8.966A 8.808A 3.032A 1199.428 87.096% 2171 45.2 45.77°C 0.989
12.118V 5.019V 3.372V 4.948V 1377.17 55.81°C 114.44V
110% 100.754A 9.962A 9.881A 3.04A 1320.04 85.983% 2175 45.3 46.56°C 0.99
12.126V 5.019V 3.37V 4.935V 1535.245 57.5°C 114.38V
CL1 0.116A 11.927A 11.692A 0A 101.306 83.978% 1040 24.2 41.34°C 0.96
12.080V 5.048V 3.395V 5.105V 120.635 46.85°C 114.82V
CL2 0.115A 19.739A 0A 0A 101.348 82.767% 1042 24.2 40.28°C 0.96
12.060V 5.064V 3.387V 5.108V 122.45 47.37°C 114.82V
CL3 0.115A 0A 19.381A 0A 67.384 78.768% 1040 24.2 40.04°C 0.94
12.043V 5.033V 3.405V 5.108V 85.557 49.09°C 114.83V
CL4 99.216A 0A 0A 0.001A 1199.955 87.732% 2168 45.2 45.5°C 0.988
12.094V 5.016V 3.375V 5.022V 1367.747 56.48°C 114.45V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.145A 1.985A 1.957A 0.983A 119.977 89.43% 1039 24.1 40.04°C 0.852
12.079V 5.037V 3.373V 5.087V 134.159 44.27°C 229.85V
20% 17.290A 2.979A 2.938A 1.183A 239.933 91.888% 1036 24.1 40.86°C 0.93
12.090V 5.035V 3.369V 5.071V 261.114 45.39°C 229.83V
30% 26.638A 3.477A 3.431A 1.385A 359.111 93.063% 1029 23.9 41.06°C 0.95
12.128V 5.033V 3.366V 5.055V 385.886 46.07°C 229.8V
40% 36.147A 3.976A 3.925A 1.588A 479.492 93.269% 1026 23.8 41.78°C 0.959
12.125V 5.03V 3.363V 5.039V 514.097 47.29°C 229.79V
50% 45.258A 4.974A 4.912A 1.792A 599.262 93.099% 1030 23.9 42.39°C 0.965
12.125V 5.027V 3.359V 5.022V 643.68 48.4°C 229.77V
60% 54.429A 5.974A 5.901A 1.998A 719.785 92.796% 1026 23.8 42.76°C 0.968
12.125V 5.022V 3.355V 5.005V 775.662 49.33°C 229.74V
70% 63.554A 6.978A 6.895A 2.206A 839.542 92.278% 1695 38.4 43.22°C 0.971
12.122V 5.016V 3.351V 4.988V 909.792 50.28°C 229.72V
80% 72.736A 7.979A 7.888A 2.313A 959.537 91.848% 1694 38.4 43.73°C 0.974
12.122V 5.012V 3.347V 4.973V 1044.707 51.79°C 229.7V
90% 82.220A 8.482A 8.374A 2.421A 1079.353 91.37% 1693 38.4 44.12°C 0.975
12.124V 5.01V 3.343V 4.958V 1181.302 53.17°C 229.68V
100% 91.527A 8.987A 8.893A 3.042A 1199.381 90.757% 2152 44.9 45.34°C 0.977
12.124V 5.007V 3.34V 4.931V 1321.533 55.35°C 229.66V
110% 100.755A 9.993A 9.984A 3.051A 1320.03 90.15% 2156 45.0 46.76°C 0.978
12.126V 5.003V 3.335V 4.917V 1464.263 57.7°C 229.63V
CL1 0.116A 11.965A 11.811A 0A 101.304 84.53% 1048 24.4 40.24°C 0.834
12.121V 5.031V 3.361V 5.099V 119.84 45.72°C 229.84V
CL2 0.115A 19.881A 0A 0A 101.344 82.829% 1713 38.7 40.33°C 0.836
12.104V 5.027V 3.368V 5.103V 122.351 47.44°C 229.84V
CL3 0.114A 0A 19.641A 0A 67.385 78.585% 1693 38.4 39.97°C 0.76
12.092V 5.039V 3.36V 5.104V 85.745 49.12°C 229.85V
CL4 99.136A 0A 0A 0.001A 1199.961 91.282% 2147 39.3 45.17°C 0.976
12.104V 5.023V 3.355V 5.01V 1314.567 56.13°C 229.66V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.234A 0.496A 0.485A 0.196A 19.998 77.501% 0 <6.0 39.68°C 0.744
12.038V 5.042V 3.399V 5.116V 25.803 36.59°C 114.85V
40W 2.716A 0.694A 0.68A 0.293A 39.998 83.714% 0 <6.0 40.89°C 0.881
12.034V 5.042V 3.399V 5.112V 47.782 37.62°C 114.85V
60W 4.199A 0.892A 0.874A 0.392A 59.997 86.174% 0 <6.0 42.13°C 0.922
12.034V 5.042V 3.398V 5.108V 69.622 38.41°C 114.83V
80W 5.678A 1.091A 1.068A 0.49A 79.94 86.954% 0 <6.0 43.25°C 0.943
12.032V 5.041V 3.397V 5.104V 91.935 39.29°C 114.84V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.495A 0.488A 0.196A 19.991 69.094% 0 <6.0 39.81°C 0.457
12.070V 5.046V 3.379V 5.114V 28.245 36.76°C 229.87V
40W 2.708A 0.694A 0.684A 0.293A 39.991 83.727% 0 <6.0 40.85°C 0.595
12.071V 5.04V 3.377V 5.111V 47.768 37.51°C 229.86V
60W 4.184A 0.892A 0.88A 0.392A 59.991 86.557% 0 <6.0 42.12°C 0.701
12.074V 5.04V 3.376V 5.107V 69.317 38.61°C 229.86V
80W 5.654A 1.091A 1.075A 0.49A 79.926 88.43% 0 <6.0 42.98°C 0.765
12.081V 5.039V 3.375V 5.102V 90.38 39.24°C 229.85V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 45.1 mV 44.4 mV 44.8 mV 47.4 mV Pass
20% Load 45.5 mV 43.7 mV 45.3 mV 47.5 mV Pass
30% Load 46.3 mV 43.3 mV 45.9 mV 47.0 mV Pass
40% Load 44.8 mV 43.0 mV 44.3 mV 47.0 mV Pass
50% Load 46.8 mV 45.2 mV 46.9 mV 49.5 mV Pass
60% Load 47.1 mV 43.9 mV 47.1 mV 49.8 mV Pass
70% Load 44.6 mV 44.0 mV 47.2 mV 49.9 mV Pass
80% Load 46.4 mV 44.8 mV 49.9 mV 50.0 mV Pass
90% Load 44.1 mV 42.1 mV 47.8 mV 48.8 mV Pass
100% Load 49.0 mV 45.0 mV 51.8 mV 54.2 mV Fail
110% Load 51.2 mV 45.9 mV 51.7 mV 57.6 mV Fail
Crossload 1 56.2 mV 45.1 mV 46.7 mV 44.2 mV Pass
Crossload 2 55.5 mV 48.0 mV 47.4 mV 43.0 mV Pass
Crossload 3 56.0 mV 44.6 mV 47.4 mV 43.4 mV Pass
Crossload 4 54.0 mV 44.3 mV 51.1 mV 48.7 mV Fail

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load23.63mV12.98mV15.75mV16.78mVPass
20% Load54.78mV14.06mV15.19mV16.57mVPass
30% Load18.16mV13.50mV16.78mV16.47mVPass
40% Load18.92mV14.11mV16.21mV17.55mVPass
50% Load19.03mV13.39mV16.32mV19.24mVPass
60% Load20.41mV14.47mV17.91mV19.70mVPass
70% Load22.25mV14.62mV17.91mV20.68mVPass
80% Load21.48mV14.01mV19.09mV21.40mVPass
90% Load22.40mV14.42mV18.78mV22.99mVPass
100% Load29.13mV14.16mV26.27mV25.98mVPass
110% Load31.26mV14.34mV25.31mV29.70mVPass
Crossload124.97mV13.67mV16.51mV13.93mVPass
Crossload225.68mV17.19mV15.44mV13.14mVPass
Crossload329.77mV13.24mV17.95mV13.70mVPass
Crossload430.89mV14.91mV24.10mV20.08mVPass

The results above are not used in the certification process

Raijintek Ampere 1200W

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
