ErP Lot 6 2013: Partially
ErP Lot 3 2014 & CEC: Partially
(EU) No 617/2013 Compliance
✓
Performance Summary
Efficiency Rating
BRONZE
Noise Rating
Standard++
Average Efficiency (>1450 load combinations)
84.526%
Average Noise Output (>1450 Load Combinations)
30.93dBA
Average PF (>1450 Load Combinations)
0.964
Efficiency With 10W (≤500W) or 2% (>500W) Load
59.039%
Standby Power Consumption
0.1255W
12V Ripple (Full Load)
73.05mV
5V Ripple (Full Load)
25.55mV
3.3V Ripple (Full Load)
38.11mV
5VSB Ripple (Full Load)
24.62mV
12V Load Regulation
2.09%
5V Load Regulation
6.33%
3.3V Load Regulation
6.42%
5VSB Load Regulation
7.27%
Inrush Current
163.800A
Efficiency Rating
Noise Rating
Standard++
Average Efficiency (>1450 load combinations)
85.653%
Average Noise Output (>1450 Load Combinations)
30.43dBA
Average PF (>1450 Load Combinations)
0.883
Efficiency With 10W (≤500W) or 2% (>500W) Load
0.000%
Standby Power Consumption
0.3108W
12V Ripple (Full Load)
34.64mV
5V Ripple (Full Load)
26.61mV
3.3V Ripple (Full Load)
36.83mV
5VSB Ripple (Full Load)
21.61mV
12V Load Regulation
2.08%
5V Load Regulation
6.39%
3.3V Load Regulation
6.42%
5VSB Load Regulation
7.20%
Inrush Current
182.300A
Hold-Up Time & Power Ok Signal
9.40ms
AC Loss to PWR_OK Hold Up Time
15.50ms
PWR_OK Inactive to DC Loss Delay
-6.10ms
PSU Timings: T1 (20% / 100%)
95.0ms
92.0ms
PSU Timings: T3 (20% / 100%)
325.0ms
315.0ms
OPP (27.18°C / 41.98°C)
130.49%
130.49%
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
9.4
AC Loss to PWR_OK Hold Up Time (ms)
15.5
PWR_OK Inactive to DC Loss Delay (ms)
-6.1
Vampire Power
Tables
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
114.94 V
114.86 V
113.85 V
115.03 V
116.15 V
PASS
Mains Frequency:
60.00 Hz
59.98 Hz
59.40 Hz
60.01 Hz
60.60 Hz
PASS
Mains Voltage CF:
1.421
1.419
1.340
1.423
1.490
PASS
Mains Voltage THD:
0.30 %
0.22 %
N/A
0.40 %
2.00 %
PASS
Real Power:
0.126 W
0.112 W
N/A
0.140 W
N/A
N/A
Apparent Power:
6.478 W
6.462 W
N/A
6.499 W
N/A
N/A
Power Factor:
0.019
N/A
N/A
N/A
N/A
N/A
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
229.89 V
229.78 V
227.70 V
229.99 V
232.30 V
PASS
Mains Frequency:
50.00 Hz
49.98 Hz
49.50 Hz
50.02 Hz
50.50 Hz
PASS
Mains Voltage CF:
1.418
1.416
1.340
1.419
1.490
PASS
Mains Voltage THD:
0.19 %
0.15 %
N/A
0.26 %
2.00 %
PASS
Real Power:
0.311 W
0.258 W
N/A
0.368 W
N/A
N/A
Apparent Power:
22.026 W
21.982 W
N/A
22.082 W
N/A
N/A
Power Factor:
0.015
N/A
N/A
N/A
N/A
N/A
Graphs

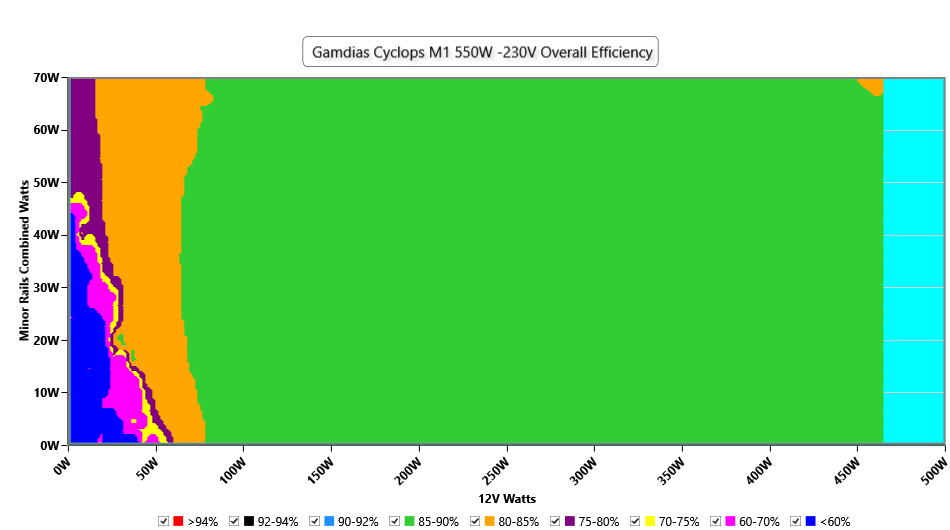

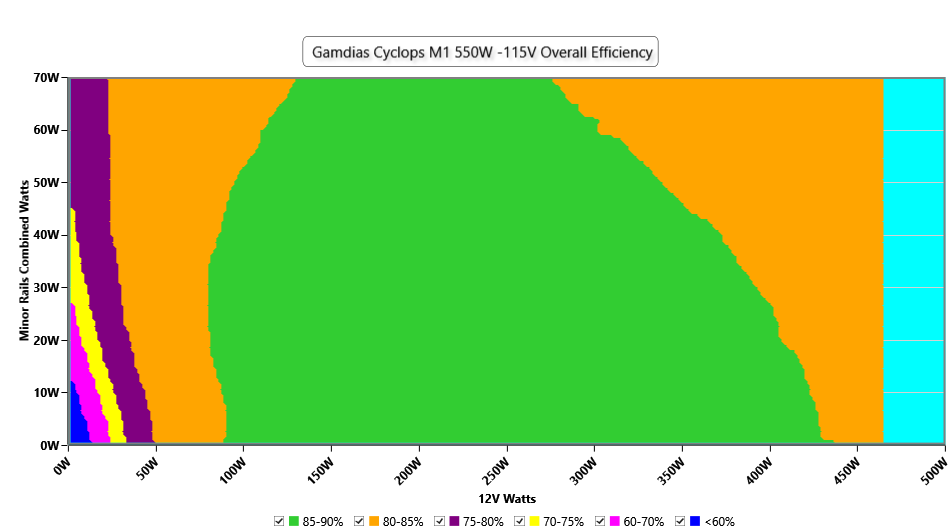

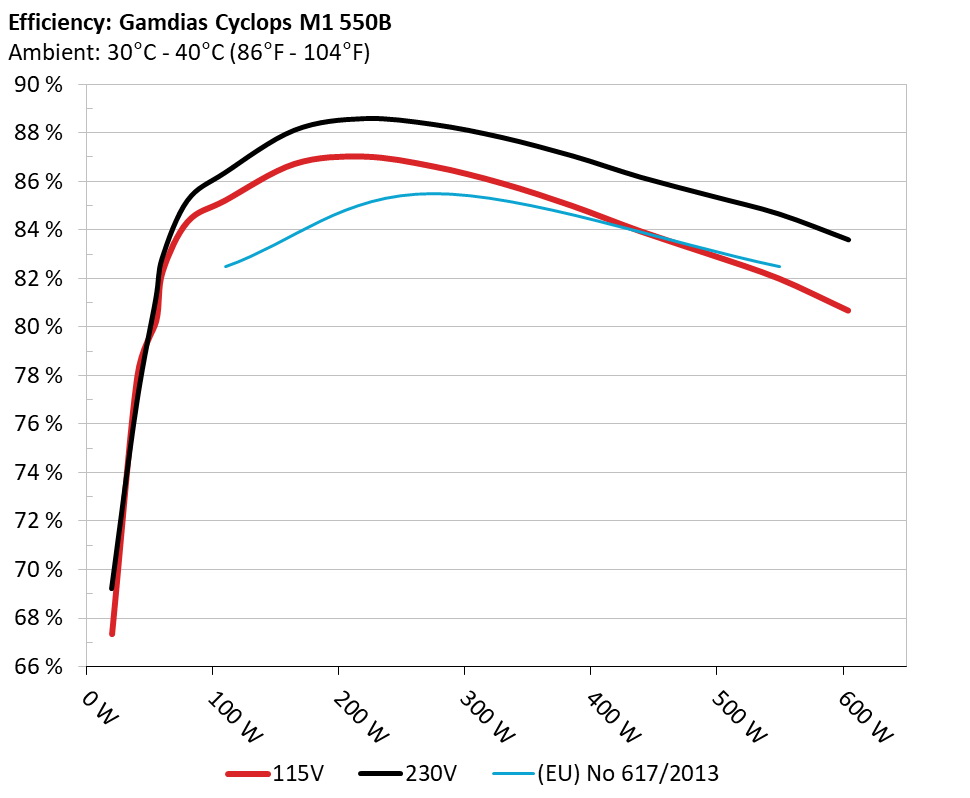

Efficiency Graph
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

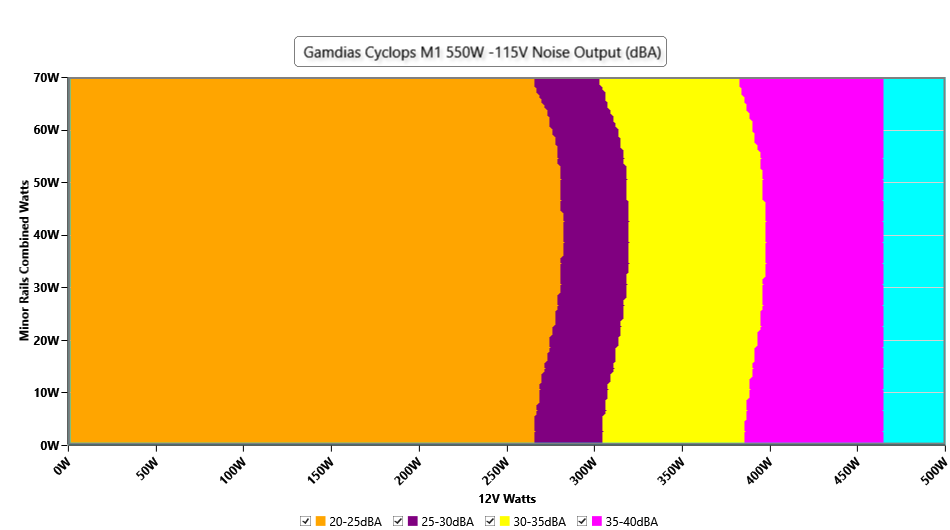

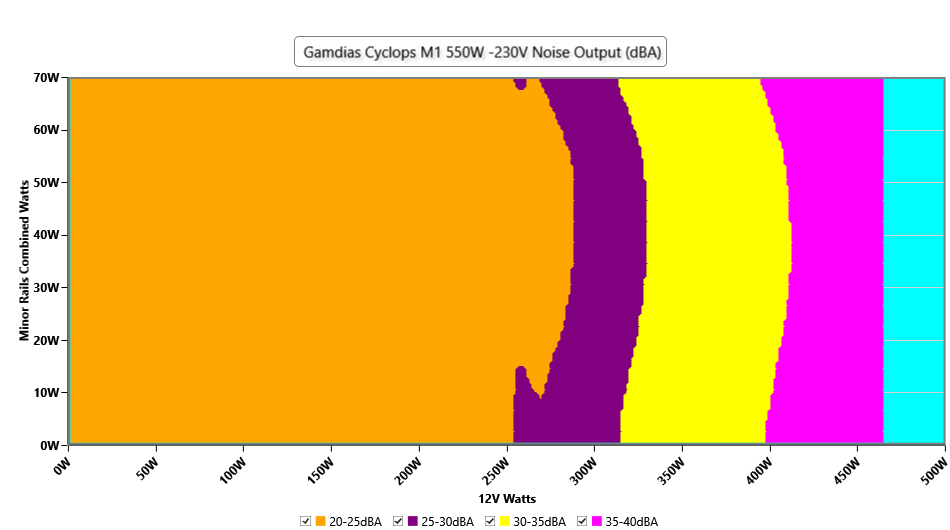

Noise Graph
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
Indicative Performance
Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

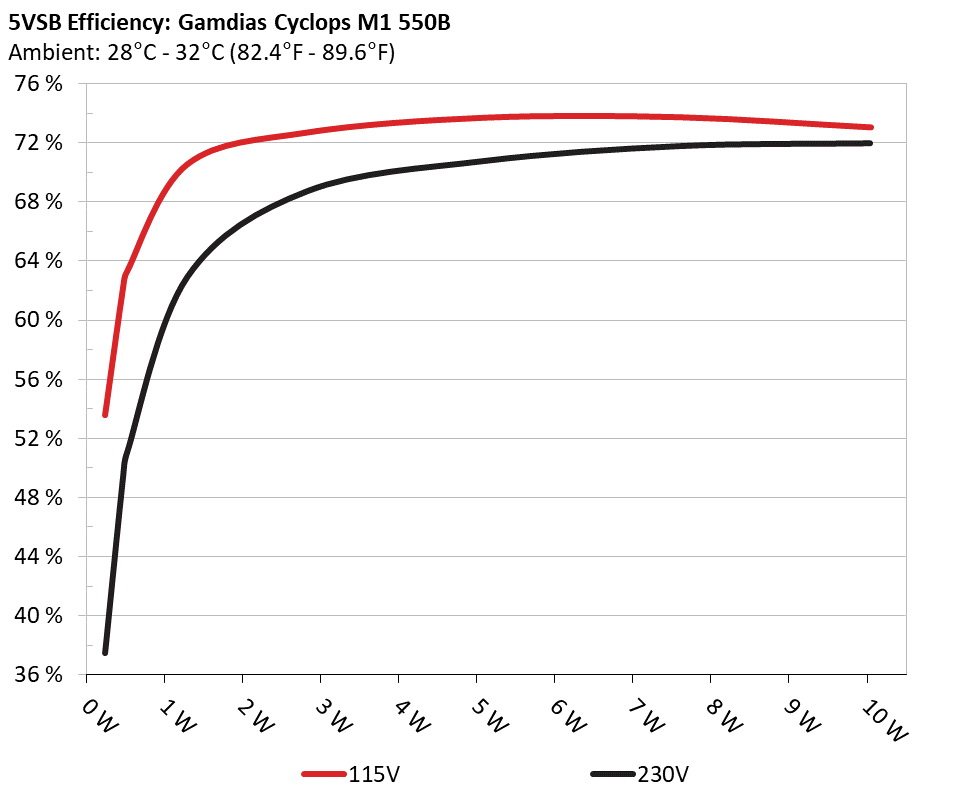

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
5VSB Efficiency (ERP LOT 3/6 & CEC)
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.233W
53.06%
0.066
5.178V
0.439W
114.93V
2
0.09A
0.466W
61.784%
0.11
5.174V
0.754W
114.93V
3
0.55A
2.826W
72.2%
0.332
5.139V
3.914W
114.91V
4
1A
5.103W
73.202%
0.387
5.103V
6.971W
114.91V
5
1.5A
7.597W
73.231%
0.418
5.064V
10.373W
114.9V
6
2A
10.049W
72.547%
0.437
5.024V
13.852W
114.91V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.233W
36.952%
0.029
5.177V
0.633W
229.89V
2
0.09A
0.466W
49.009%
0.043
5.174V
0.952W
229.88V
3
0.55A
2.826W
68.244%
0.166
5.138V
4.147W
229.88V
4
1A
5.102W
70.293%
0.245
5.102V
7.258W
229.88V
5
1.5A
7.594W
71.299%
0.292
5.062V
10.653W
229.88V
6
2A
10.042W
71.489%
0.327
5.021V
14.044W
229.88V
Supplementary Tests (For Reference)
Typical Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
2.684A
1.941A
1.947A
0.986A
55.003
79.746%
926
21.7
34.24°C
0.94
12.445V
5.152V
3.39V
5.073V
68.973
38.49°C
114.9V
20%
6.364A
2.929A
2.938A
1.191A
109.94
84.726%
925
21.7
34.93°C
0.939
12.420V
5.121V
3.37V
5.039V
129.765
39.51°C
114.88V
30%
10.399A
3.433A
3.445A
1.398A
164.938
86.23%
926
21.7
35.31°C
0.956
12.394V
5.099V
3.353V
5.006V
191.276
40.39°C
114.86V
40%
14.458A
3.941A
3.956A
1.609A
220.02
86.53%
937
22.2
35.7°C
0.966
12.368V
5.075V
3.337V
4.973V
254.269
41.22°C
114.84V
50%
18.191A
4.96A
4.979A
1.824A
275.013
86.121%
1118
27.1
36.34°C
0.972
12.342V
5.041V
3.314V
4.936V
319.333
42.39°C
114.81V
60%
21.938A
5.992A
6.015A
2A
329.814
85.421%
1342
31.9
36.61°C
0.978
12.317V
5.007V
3.292V
4.903V
386.093
43.28°C
114.8V
70%
25.704A
7.043A
7.068A
2.263A
385.006
84.501%
1579
36.3
37.48°C
0.983
12.289V
4.971V
3.269V
4.86V
455.625
44.51°C
114.77V
80%
29.487A
8.107A
8.135A
2.381A
439.481
83.447%
1737
38.5
37.88°C
0.986
12.262V
4.933V
3.245V
4.83V
526.658
46.01°C
114.75V
90%
33.673A
8.66A
8.678A
2.498A
494.479
82.495%
1856
40.9
38.47°C
0.989
12.235V
4.907V
3.227V
4.803V
599.4
47.54°C
114.73V
100%
38.089A
9.223A
9.262A
2A
549.165
81.502%
1881
41.0
39.97°C
0.992
12.204V
4.878V
3.207V
4.829V
673.803
49.98°C
114.7V
110%
42.000A
10.334A
10.478A
2A
604.12
80.183%
1883
41.0
40.12°C
0.993
12.172V
4.838V
3.178V
4.807V
753.424
51.06°C
114.68V
CL1
0.112A
8.541A
8.511A
0A
72.283
76.566%
988
23.5
34.09°C
0.939
12.418V
4.999V
3.313V
5.116V
94.413
39.61°C
114.88V
CL2
0.111A
8.94A
0A
0A
46.375
75.945%
930
21.9
34.7°C
0.914
12.439V
5.033V
3.387V
5.146V
61.062
41.8°C
114.89V
CL3
0.111A
0A
7.866A
0A
27.777
68.541%
928
21.8
34.1°C
0.842
12.446V
5.173V
3.356V
5.147V
40.526
43.19°C
114.9V
CL4
44.948A
0A
0A
0A
549.479
83.38%
1836
40.8
39.73°C
0.992
12.225V
5.094V
3.32V
5.056V
659.015
50.67°C
114.71V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
2.684A
1.941A
1.947A
0.985A
55.001
80.663%
926
21.7
34.42°C
0.605
12.443V
5.153V
3.39V
5.074V
68.449
38.62°C
229.88V
20%
6.364A
2.928A
2.939A
1.19A
109.936
85.87%
925
21.7
34.87°C
0.811
12.419V
5.122V
3.369V
5.041V
128.023
39.39°C
229.87V
30%
10.398A
3.431A
3.445A
1.397A
164.932
87.62%
926
21.7
35.32°C
0.885
12.395V
5.1V
3.353V
5.01V
188.232
40.38°C
229.86V
40%
14.456A
3.939A
3.957A
1.608A
220.013
88.098%
932
22.0
35.8°C
0.917
12.369V
5.077V
3.336V
4.976V
249.739
41.31°C
229.85V
50%
18.189A
4.959A
4.98A
1.822A
275.006
87.857%
1123
27.2
36.48°C
0.931
12.343V
5.042V
3.314V
4.939V
313.022
42.55°C
229.84V
60%
21.936A
5.991A
6.016A
2A
329.814
87.314%
1338
31.9
36.84°C
0.938
12.318V
5.008V
3.291V
4.906V
377.731
43.39°C
229.83V
70%
25.700A
7.041A
7.069A
2.261A
385.002
86.563%
1572
36.2
37.48°C
0.944
12.291V
4.972V
3.268V
4.865V
444.77
44.54°C
229.82V
80%
29.482A
8.105A
8.137A
2.379A
439.478
85.679%
1734
38.4
37.96°C
0.948
12.264V
4.934V
3.245V
4.835V
512.939
45.98°C
229.81V
90%
33.667A
8.66A
8.68A
2.496A
494.479
84.92%
1852
40.9
38.31°C
0.953
12.237V
4.907V
3.226V
4.808V
582.295
47.35°C
229.8V
100%
38.072A
9.22A
9.26A
2A
549.18
84.163%
1878
41.0
39.44°C
0.957
12.209V
4.88V
3.208V
4.835V
652.523
49.46°C
229.79V
110%
41.967A
10.328A
10.475A
2A
604.14
83.1%
1880
41.0
40.32°C
0.96
12.181V
4.84V
3.179V
4.815V
727.001
51.22°C
229.77V
CL1
0.112A
8.542A
8.512A
0A
72.285
77.463%
983
23.4
34.61°C
0.706
12.417V
4.998V
3.313V
5.116V
93.316
39.98°C
229.87V
CL2
0.111A
8.942A
0A
0A
46.38
59.807%
931
21.9
34.35°C
0.532
12.439V
5.032V
3.387V
5.146V
60.449
41.44°C
229.88V
CL3
0.111A
0A
7.869A
0A
27.783
50.75%
928
21.8
34.96°C
0.421
12.446V
5.173V
3.355V
5.147V
40.775
43.98°C
229.88V
CL4
44.947A
0A
0A
0A
549.538
86.015%
1836
40.8
39.91°C
0.956
12.227V
5.094V
3.32V
5.061V
638.902
50.89°C
229.79V
The results above are not used in the certification process
Light Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.192A
0.482A
0.483A
0.194A
20.002
66.845%
925
21.7
30.43°C
0.779
12.459V
5.187V
3.413V
5.152V
29.922
33.52°C
114.9V
40W
2.626A
0.675A
0.678A
0.292A
40.001
77.46%
924
21.7
31.59°C
0.889
12.453V
5.181V
3.408V
5.14V
51.641
34.95°C
114.9V
60W
4.060A
0.87A
0.873A
0.39A
60
81.775%
923
21.6
32.67°C
0.942
12.445V
5.173V
3.402V
5.127V
73.372
36.46°C
114.9V
80W
5.494A
1.065A
1.069A
0.489A
79.948
83.844%
924
21.7
33.38°C
0.935
12.436V
5.165V
3.396V
5.113V
95.354
37.37°C
114.88V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.192A
0.481A
0.483A
0.194A
19.997
68.718%
925
21.7
30.31°C
0.36
12.463V
5.192V
3.414V
5.154V
29.1
33.37°C
229.89V
40W
2.624A
0.675A
0.678A
0.292A
39.997
76.391%
923
21.6
31.59°C
0.52
12.454V
5.184V
3.408V
5.141V
52.358
34.91°C
229.88V
60W
4.060A
0.869A
0.873A
0.39A
59.997
82.334%
923
21.6
32.49°C
0.625
12.445V
5.175V
3.402V
5.128V
72.872
35.99°C
229.88V
80W
5.494A
1.064A
1.069A
0.489A
79.943
84.711%
923
21.6
33.13°C
0.714
12.435V
5.166V
3.395V
5.114V
94.372
37.01°C
229.88V
The results above are not used in the certification process
Ripple Measurements
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
12.69mV
15.89mV
20.31mV
14.94mV
Pass
20% Load
16.83mV
16.91mV
21.08mV
15.45mV
Pass
30% Load
24.05mV
17.17mV
21.85mV
16.16mV
Pass
40% Load
27.22mV
18.65mV
22.56mV
17.04mV
Pass
50% Load
33.97mV
18.29mV
23.89mV
18.52mV
Pass
60% Load
47.02mV
19.21mV
25.83mV
18.05mV
Pass
70% Load
58.83mV
19.93mV
28.24mV
19.90mV
Pass
80% Load
70.50mV
21.30mV
31.36mV
19.69mV
Pass
90% Load
52.08mV
21.97mV
32.74mV
20.87mV
Pass
100% Load
73.05mV
25.55mV
38.11mV
24.62mV
Pass
110% Load
81.91mV
27.97mV
40.81mV
27.56mV
Pass
Crossload1
22.97mV
24.37mV
29.98mV
13.82mV
Pass
Crossload2
17.14mV
22.07mV
16.52mV
11.20mV
Pass
Crossload3
16.42mV
18.98mV
25.17mV
11.51mV
Pass
Crossload4
69.38mV
17.89mV
26.57mV
19.61mV
Pass
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
12.43mV
15.99mV
21.23mV
13.55mV
Pass
20% Load
12.99mV
16.45mV
21.79mV
14.07mV
Pass
30% Load
14.58mV
16.55mV
21.49mV
15.86mV
Pass
40% Load
14.94mV
17.73mV
22.30mV
16.57mV
Pass
50% Load
16.47mV
18.44mV
24.35mV
16.93mV
Pass
60% Load
17.50mV
19.11mV
25.78mV
16.78mV
Pass
70% Load
18.62mV
20.08mV
28.44mV
18.11mV
Pass
80% Load
21.64mV
21.30mV
30.54mV
18.26mV
Pass
90% Load
23.99mV
23.45mV
31.51mV
18.57mV
Pass
100% Load
34.64mV
26.61mV
36.83mV
21.61mV
Pass
110% Load
44.76mV
27.40mV
40.92mV
21.95mV
Pass
Crossload1
20.81mV
22.61mV
28.93mV
12.32mV
Pass
Crossload2
17.75mV
20.79mV
15.86mV
11.10mV
Pass
Crossload3
16.73mV
12.26mV
25.68mV
11.56mV
Pass
Crossload4
39.25mV
18.41mV
26.73mV
17.23mV
Pass
The results above are not used in the certification process
Maxpower MP-0550W-B

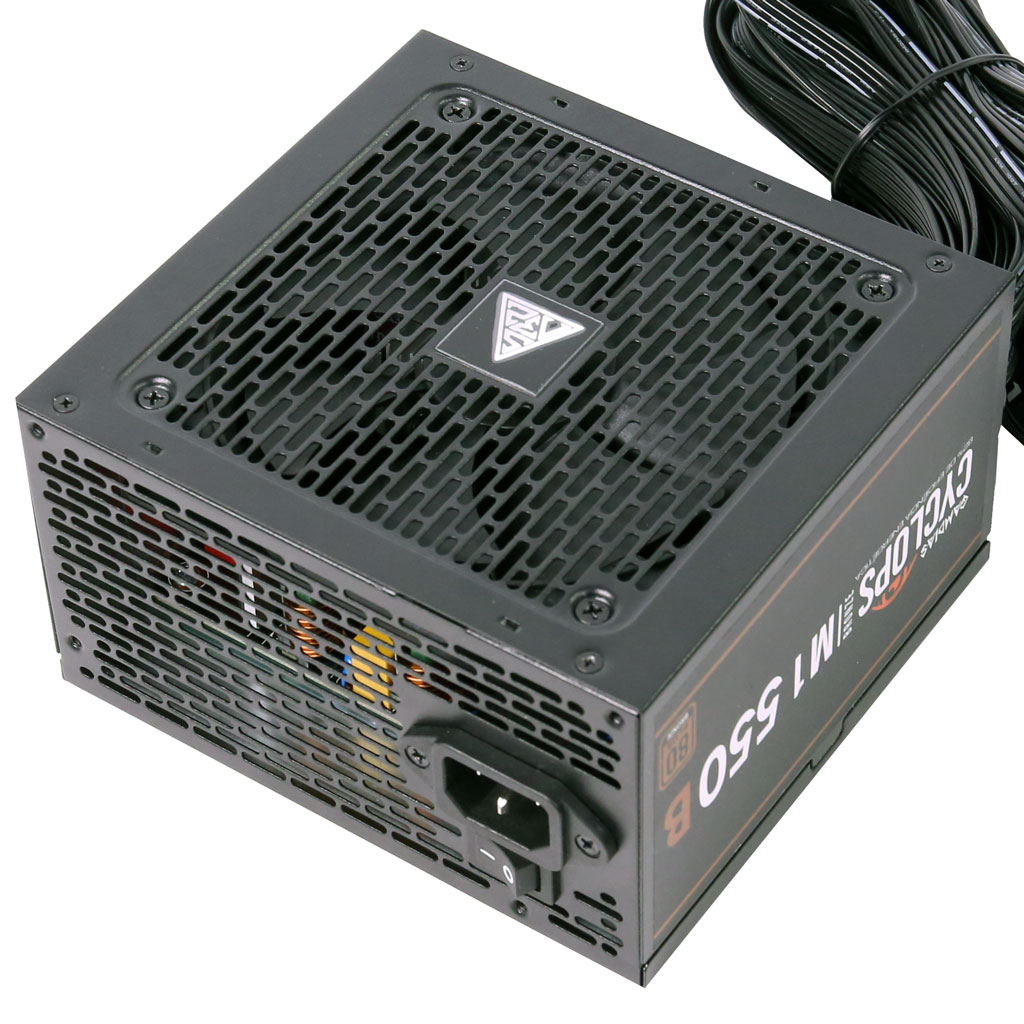

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
