CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

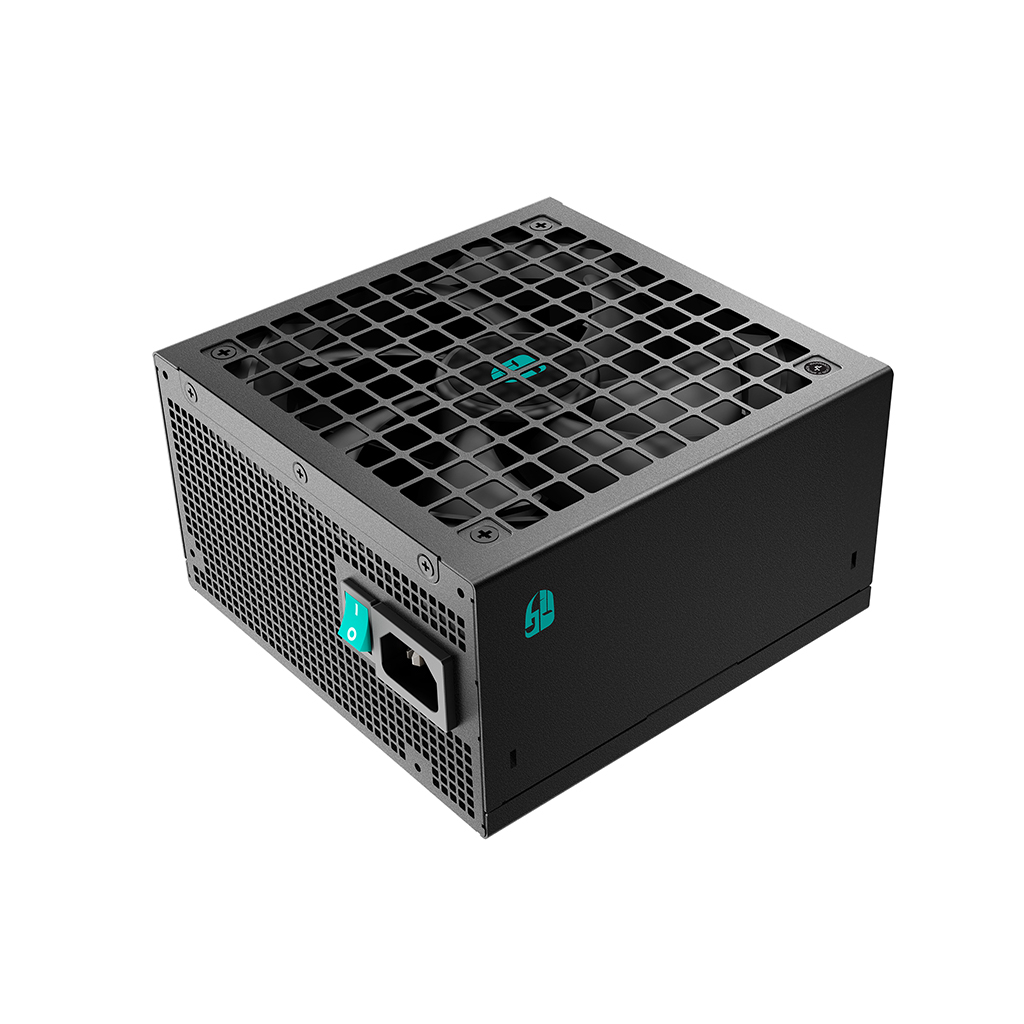

Gamer Storm PN650M
Serial Number
Lab IDGA65002319
  • Report: 24PS2319A
  • Receipt Date: Jul 25, 2023
  • Test Date: Aug 5, 2024
  • Report Date: Aug 14, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandGamer Storm
Manufacturer (OEM)CWT
SeriesPN-M
Model NumberPN650M-FC
Serial Number
DUT Notes

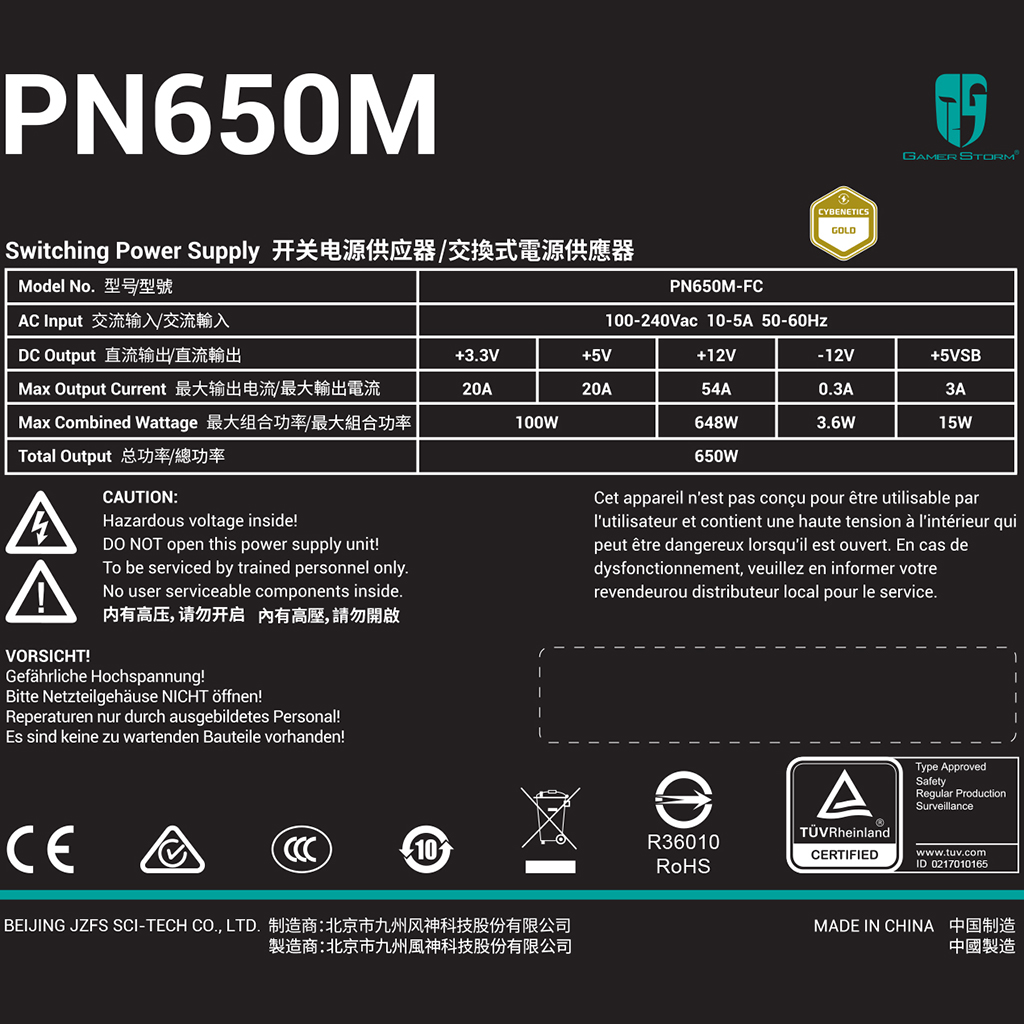

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10-5
Rated Frequency (Hz)50-60
Rated Power (W)650
TypeATX12V
Cooling120mm Rifle Bearing Fan (DF1202512SEHN)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps20205430.3
Watts100648153.6
Total Max. Power (W)650

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (550mm) 1 1 18AWG No
4+4 pin EPS12V (700mm) 2 2 18AWG No
6+2 pin PCIe (550mm) 3 3 18AWG No
12+4 pin PCIe (600mm) (450W) 1 1 16-24AWG No
SATA (450mm+120mm+120mm+120mm) / 4-pin Molex (+120mm) 2 8 / 2 18AWG No

Parts Description

General Data -
Manufacturer (OEM) CWT
Platform Model GPX
PCB Type Double-Sided
Primary Side -
Transient Filter 2x Y caps, 1x X caps, 2x CM chokes, 1x MOV, 1x CAP200DG (Discharge IC)
Inrush Protection NTC Thermistor SCK056 (5 Ohm @ 25°C) & Relay
Bridge Rectifier(s) 1x Yangjie Electronic GBU1506 (600V, 15A @ 100°C)
APFC MOSFETs 2x Way On WML25N50C4 (550V, 13A, Rds(on): 0.16Ohm) &
1x Champion CM03X FET (for reduced no-load consumption)
APFC Boost Diode 1x ST Micro Electronics STTH8S06 (600V, 8A)
Bulk Cap(s) 1x Nippon Chemi-Con (400V, 470uF, 2000h @ 100°C, KMW)
Main Switchers 4x Silan Microelectronics SVF13N50F (500V, 8.2A @ 100°C, Rds(on): 0.52Ohm)
APFC Controller Champion 6500UNX
Resonant Controller Champion CM6901X
Topology Primary side: APFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 4x IPS 014N04SA
5V & 3.3V DC-DC Converters: 4x UBIQ QM3054M6 (30V, 97A @ 25°C, Rds(on): 4.8mOhm)
PWM Controller(s): ANPEC APW7159C
Filtering Capacitors Electrolytic: 15x Chengx (2,000 @ 105°C, GR)
Polymer: 27x FCAP
Supervisor IC IN1S429I - DCG
Fan Model MARTECH DF1202512SEHN (120mm, 12V, 0.42A, Rifle Bearing Fan)
5VSB Circuit -
Standby PWM Controller Power Integrations TNY287PG

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)17.4
AC Loss to PWR_OK Hold Up Time (ms)16
PWR_OK Inactive to DC Loss Delay (ms)1.4

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.87 V 114.82 V 113.85 V 114.90 V 116.15 V PASS
Mains Frequency: 60.01 Hz 59.98 Hz 59.40 Hz 60.05 Hz 60.60 Hz PASS
Mains Voltage CF: 1.418 1.417 1.340 1.420 1.490 PASS
Mains Voltage THD: 0.15 % 0.11 % N/A 0.20 % 2.00 % PASS
Real Power: 0.039 W -0.003 W N/A 0.073 W N/A N/A
Apparent Power: 11.455 W 11.427 W N/A 11.488 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.88 V 229.82 V 227.70 V 229.95 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.418 1.417 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.16 % 0.14 % N/A 0.19 % 2.00 % PASS
Real Power: 0.111 W 0.072 W N/A 0.154 W N/A N/A
Apparent Power: 39.731 W 39.679 W N/A 39.792 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

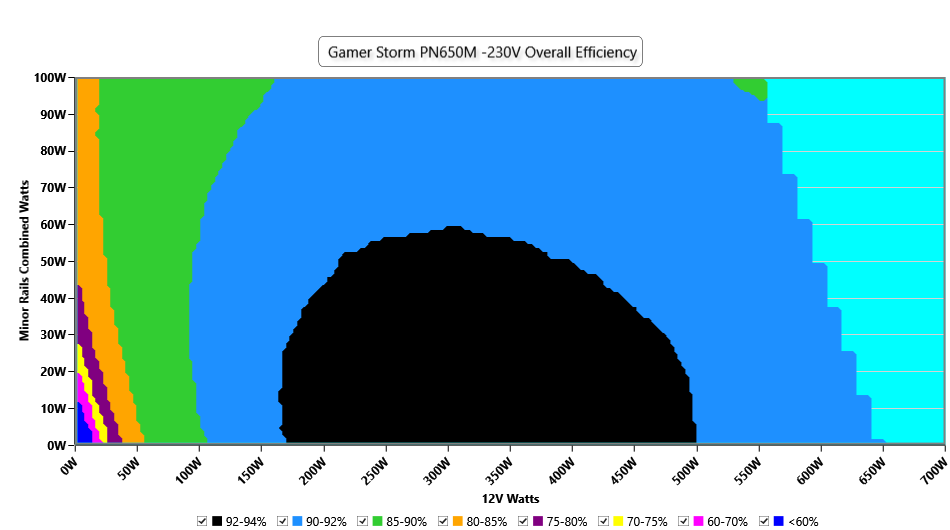

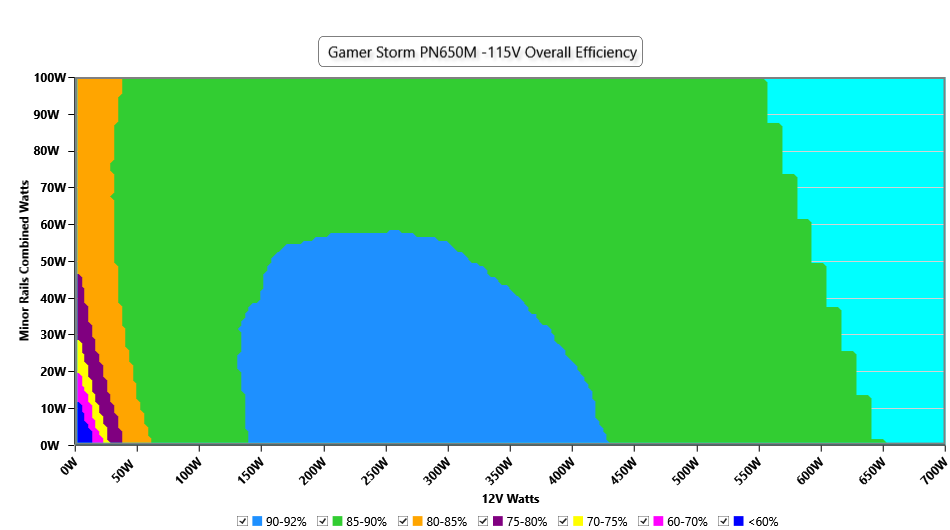

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

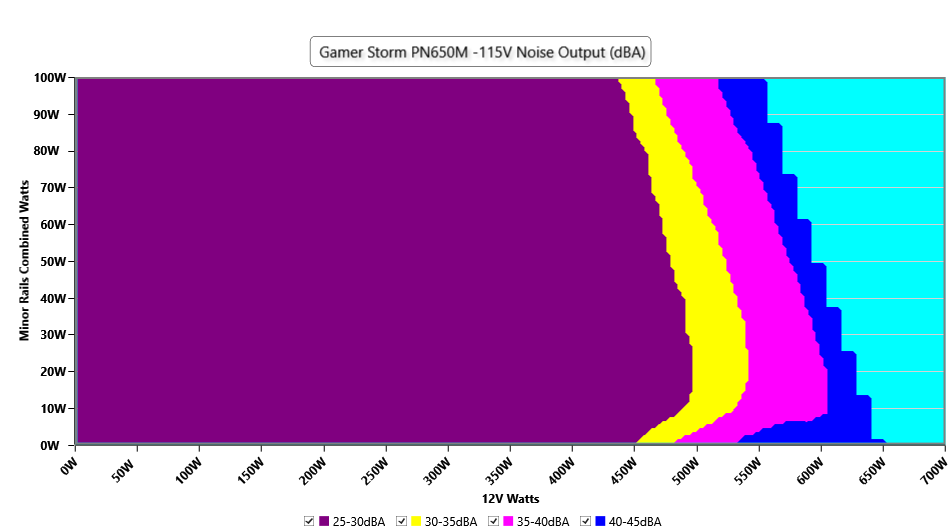

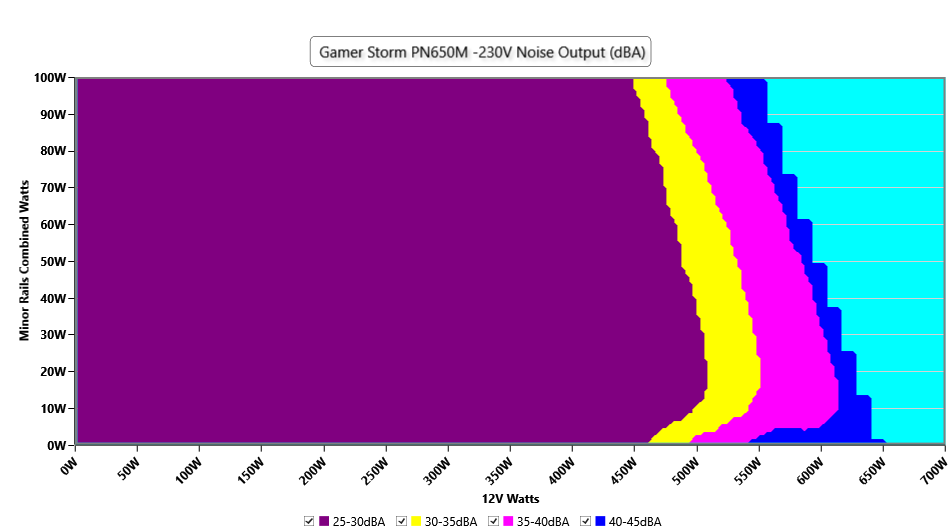

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

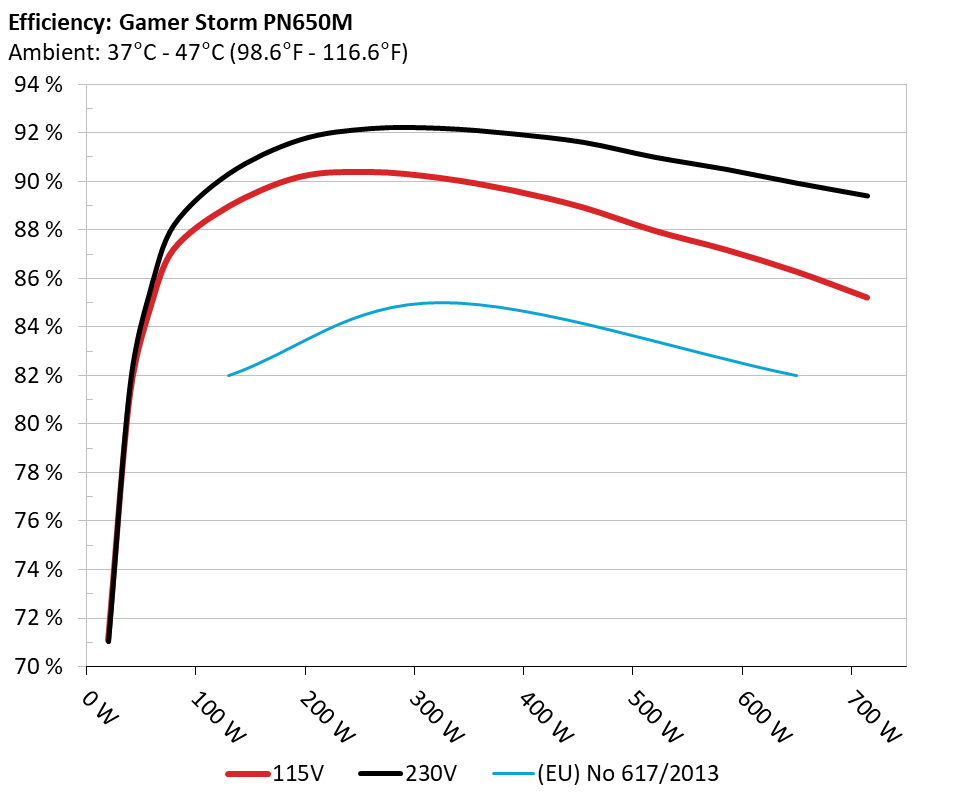

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

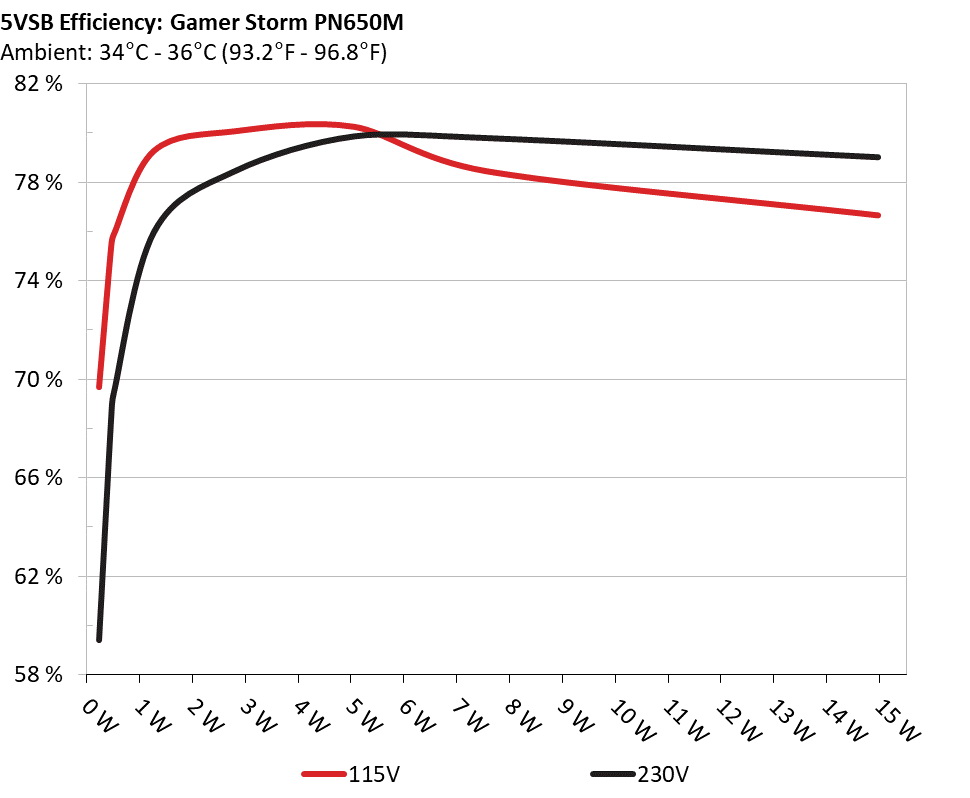

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229W 69.196% 0.032
5.089V 0.331W 114.85V
2 0.09A 0.458W 74.918% 0.058
5.089V 0.611W 114.85V
3 0.55A 2.791W 79.592% 0.261
5.074V 3.507W 114.85V
4 1A 5.059W 79.774% 0.361
5.059V 6.342W 114.85V
5 1.5A 7.561W 77.969% 0.407
5.04V 9.697W 114.85V
6 3A 14.97W 76.175% 0.479
4.99V 19.651W 114.85V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229W 58.895% 0.011
5.089V 0.389W 229.86V
2 0.09A 0.458W 67.935% 0.019
5.089V 0.674W 229.86V
3 0.55A 2.79W 77.94% 0.097
5.073V 3.58W 229.86V
4 1A 5.059W 79.362% 0.162
5.058V 6.375W 229.86V
5 1.5A 7.561W 79.292% 0.204
5.04V 9.536W 229.85V
6 3A 14.965W 78.512% 0.316
4.988V 19.062W 229.86V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.582A 1.999A 1.972A 0.991A 65.001 85.018% 1127 26.9 40.03°C 0.954
12.114V 5.002V 3.347V 5.045V 76.455 44.25°C 114.83V
20% 8.180A 3.003A 2.959A 1.194A 129.929 88.957% 1131 27.0 40.82°C 0.972
12.107V 4.995V 3.345V 5.027V 146.057 45.34°C 114.81V
30% 13.131A 3.507A 3.455A 1.397A 194.93 90.183% 1135 27.0 41.08°C 0.979
12.099V 4.99V 3.343V 5.012V 216.149 46.09°C 114.79V
40% 18.096A 4.013A 3.952A 1.602A 260.014 90.387% 1137 27.1 41.85°C 0.983
12.092V 4.984V 3.34V 4.996V 287.667 47.39°C 114.77V
50% 22.716A 5.023A 4.942A 1.808A 325.006 90.132% 1142 27.2 42.17°C 0.984
12.084V 4.977V 3.339V 4.978V 360.589 48.24°C 114.74V
60% 27.290A 6.035A 5.933A 2A 389.272 89.632% 1145 27.4 42.74°C 0.984
12.075V 4.972V 3.338V 4.961V 434.297 49.33°C 114.73V
70% 31.948A 7.049A 6.923A 2.226A 454.662 88.923% 1203 28.5 43.34°C 0.983
12.068V 4.966V 3.337V 4.942V 511.302 50.41°C 114.7V
80% 36.614A 8.066A 7.915A 2.334A 519.459 87.971% 1731 39.7 43.74°C 0.984
12.060V 4.958V 3.335V 4.928V 590.489 51.75°C 114.68V
90% 41.688A 8.584A 8.405A 2.442A 584.886 87.185% 2199 45.5 44.46°C 0.986
12.051V 4.951V 3.331V 4.914V 670.858 53.53°C 114.66V
100% 46.504A 9.102A 8.925A 3.073A 649.717 86.279% 2355 48.7 45.5°C 0.987
12.042V 4.944V 3.327V 4.882V 753.038 55.53°C 114.62V
110% 51.193A 10.128A 10.011A 3.081A 714.355 85.214% 2352 48.6 46.72°C 0.988
12.034V 4.936V 3.326V 4.87V 838.305 57.56°C 114.61V
CL1 0.115A 12.086A 11.749A 0A 101.292 82.637% 1155 27.6 41.87°C 0.967
12.110V 4.981V 3.379V 5.059V 122.579 47.33°C 114.82V
CL2 0.114A 20.042A 0A 0A 101.335 79.271% 1170 27.9 40.43°C 0.968
12.116V 4.987V 3.334V 5.064V 127.835 47.47°C 114.82V
CL3 0.114A 0A 19.27A 0A 67.382 76.646% 1136 27.1 40.98°C 0.956
12.115V 5.016V 3.425V 5.066V 87.911 49.99°C 114.84V
CL4 53.884A 0A 0A 0A 649.55 87.663% 2368 49.1 45.18°C 0.987
12.055V 4.983V 3.311V 5.001V 740.969 56.08°C 114.64V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.582A 1.998A 1.971A 0.991A 65 85.815% 1131 27.0 40.17°C 0.77
12.117V 5.005V 3.348V 5.045V 75.746 44.44°C 229.85V
20% 8.178A 3.001A 2.958A 1.193A 129.93 90.293% 1133 27.0 40.79°C 0.887
12.109V 4.999V 3.347V 5.028V 143.898 45.29°C 229.84V
30% 13.130A 3.504A 3.452A 1.397A 194.933 91.69% 1137 27.1 41.33°C 0.924
12.101V 4.994V 3.346V 5.012V 212.6 46.34°C 229.83V
40% 18.092A 4.008A 3.948A 1.601A 260.01 92.157% 1139 27.1 41.81°C 0.941
12.094V 4.99V 3.344V 4.997V 282.135 47.39°C 229.82V
50% 22.711A 5.016A 4.936A 1.807A 324.984 92.162% 1142 27.2 42.28°C 0.951
12.086V 4.984V 3.343V 4.981V 352.622 48.26°C 229.81V
60% 27.278A 6.025A 5.923A 2A 389.204 91.94% 1146 27.4 42.82°C 0.958
12.078V 4.98V 3.343V 4.963V 423.321 49.35°C 229.8V
70% 31.938A 7.036A 6.91A 2.224A 454.606 91.588% 1150 27.5 43.29°C 0.963
12.070V 4.975V 3.343V 4.945V 496.357 50.39°C 229.79V
80% 36.604A 8.051A 7.899A 2.332A 519.413 90.978% 1668 38.9 43.78°C 0.966
12.062V 4.968V 3.342V 4.931V 570.926 51.86°C 229.78V
90% 41.676A 8.565A 8.386A 2.44A 584.854 90.48% 2177 45.4 44.09°C 0.968
12.054V 4.961V 3.339V 4.917V 646.392 53.17°C 229.76V
100% 46.490A 9.082A 8.904A 3.07A 649.684 89.908% 2353 48.6 45.28°C 0.97
12.045V 4.955V 3.335V 4.886V 722.608 55.38°C 229.75V
110% 51.175A 10.105A 9.987A 3.077A 714.296 89.385% 2352 48.6 46.78°C 0.972
12.037V 4.948V 3.334V 4.874V 799.127 57.72°C 229.74V
CL1 0.114A 12.073A 11.745A 0A 101.285 83.691% 1155 27.6 41.28°C 0.863
12.112V 4.986V 3.38V 5.06V 121.023 46.84°C 229.84V
CL2 0.114A 20.027A 0A 0A 101.328 80.265% 1170 27.9 40.03°C 0.87
12.117V 4.99V 3.337V 5.066V 126.242 47.05°C 229.84V
CL3 0.114A 0A 19.27A 0A 67.378 77.463% 1133 27.0 40.07°C 0.803
12.115V 5.017V 3.425V 5.068V 86.981 49.11°C 229.85V
CL4 53.873A 0A 0A 0A 649.499 91.228% 2370 49.1 44.83°C 0.97
12.056V 4.989V 3.317V 5.004V 711.955 55.8°C 229.75V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.225A 0.499A 0.493A 0.197A 19.997 71.1% 1115 26.7 36.6°C 0.84
12.119V 5.01V 3.346V 5.081V 28.126 39.7°C 114.84V
40W 2.698A 0.699A 0.691A 0.296A 39.998 81.225% 1118 26.8 37.36°C 0.922
12.117V 5.007V 3.345V 5.075V 49.244 40.69°C 114.84V
60W 4.170A 0.899A 0.888A 0.395A 59.998 85.184% 1121 26.8 38.21°C 0.946
12.115V 5.005V 3.344V 5.068V 70.435 41.99°C 114.83V
80W 5.640A 1.099A 1.086A 0.494A 79.94 87.206% 1123 26.9 39.3°C 0.956
12.113V 5.004V 3.344V 5.061V 91.666 43.25°C 114.83V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.225A 0.499A 0.493A 0.197A 19.995 71.042% 1117 26.8 36.85°C 0.46
12.120V 5.011V 3.346V 5.081V 28.146 39.93°C 229.86V
40W 2.698A 0.699A 0.69A 0.296A 39.996 81.702% 1118 26.8 37.23°C 0.646
12.118V 5.009V 3.346V 5.075V 48.951 40.53°C 229.85V
60W 4.170A 0.898A 0.888A 0.395A 59.996 85.923% 1122 26.9 38.08°C 0.749
12.116V 5.008V 3.345V 5.069V 69.823 41.53°C 229.85V
80W 5.638A 1.098A 1.085A 0.494A 79.936 88.196% 1126 26.9 39.21°C 0.814
12.115V 5.006V 3.345V 5.062V 90.636 43.082°C 229.85V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load15.50mV12.37mV15.75mV12.83mVPass
20% Load17.39mV11.55mV15.08mV9.44mVPass
30% Load19.28mV12.16mV16.26mV14.16mVPass
40% Load21.54mV12.27mV15.80mV10.52mVPass
50% Load20.31mV11.91mV16.42mV12.11mVPass
60% Load19.64mV12.22mV16.62mV13.34mVPass
70% Load18.82mV13.50mV18.27mV19.03mVPass
80% Load20.00mV13.70mV19.29mV16.57mVPass
90% Load19.69mV12.63mV18.01mV14.32mVPass
100% Load30.32mV13.14mV23.07mV17.43mVPass
110% Load31.15mV13.10mV22.65mV17.05mVPass
Crossload127.18mV13.61mV22.25mV9.83mVPass
Crossload219.64mV20.84mV22.83mV9.39mVPass
Crossload317.49mV12.01mV19.44mV8.16mVPass
Crossload429.26mV13.39mV19.70mV12.41mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load14.78mV12.78mV15.65mV12.47mVPass
20% Load16.52mV11.96mV15.13mV9.44mVPass
30% Load19.85mV11.91mV15.80mV14.16mVPass
40% Load28.08mV14.37mV29.04mV17.04mVPass
50% Load21.02mV12.52mV17.91mV12.42mVPass
60% Load18.92mV13.45mV18.11mV13.75mVPass
70% Load18.05mV12.62mV17.75mV18.32mVPass
80% Load20.76mV13.14mV19.60mV17.91mVPass
90% Load19.39mV13.86mV19.91mV15.13mVPass
100% Load29.80mV14.57mV21.50mV15.70mVPass
110% Load31.57mV14.46mV22.42mV16.73mVPass
Crossload127.61mV14.07mV23.32mV9.77mVPass
Crossload219.84mV19.96mV23.96mV9.85mVPass
Crossload316.98mV12.68mV21.39mV8.77mVPass
Crossload429.52mV13.69mV18.59mV12.33mVPass

The results above are not used in the certification process

Gamer Storm PN650M

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
