CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

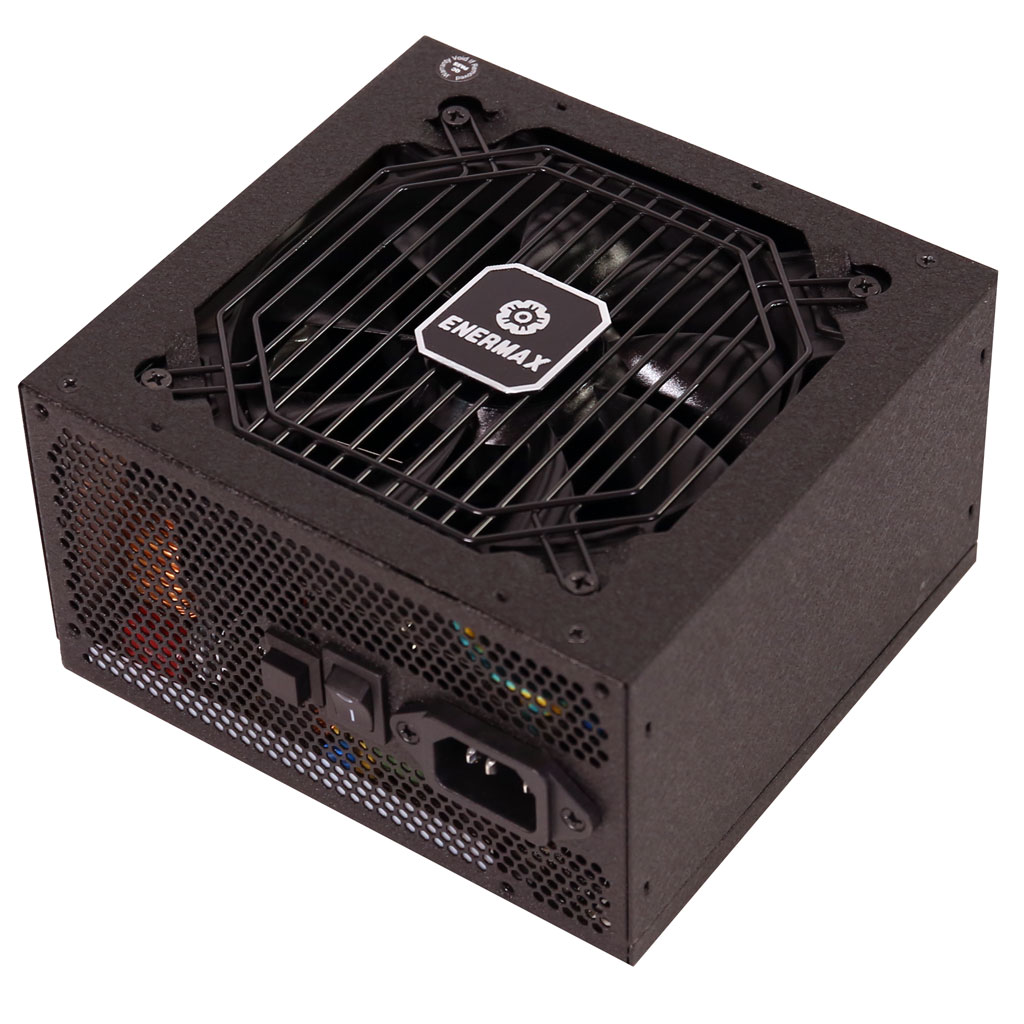

Enermax Revolution D.F.X 1050W
Serial Number230500600673
Lab IDEM10502295
  • Report: 23PS2295A
  • Receipt Date: Nov 14, 2023
  • Test Date: Nov 28, 2023
  • Report Date: Nov 29, 2023
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandEnermax
Manufacturer (OEM)SANR
SeriesRevolution D.F.X
Model NumberERT1050EWT
Serial Number230500600673
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)13-6.5
Rated Frequency (Hz)47-63
Rated Power (W)1050
TypeATX12V
Cooling120mm Double Ball Bearing Fan
(PFERS-12M)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

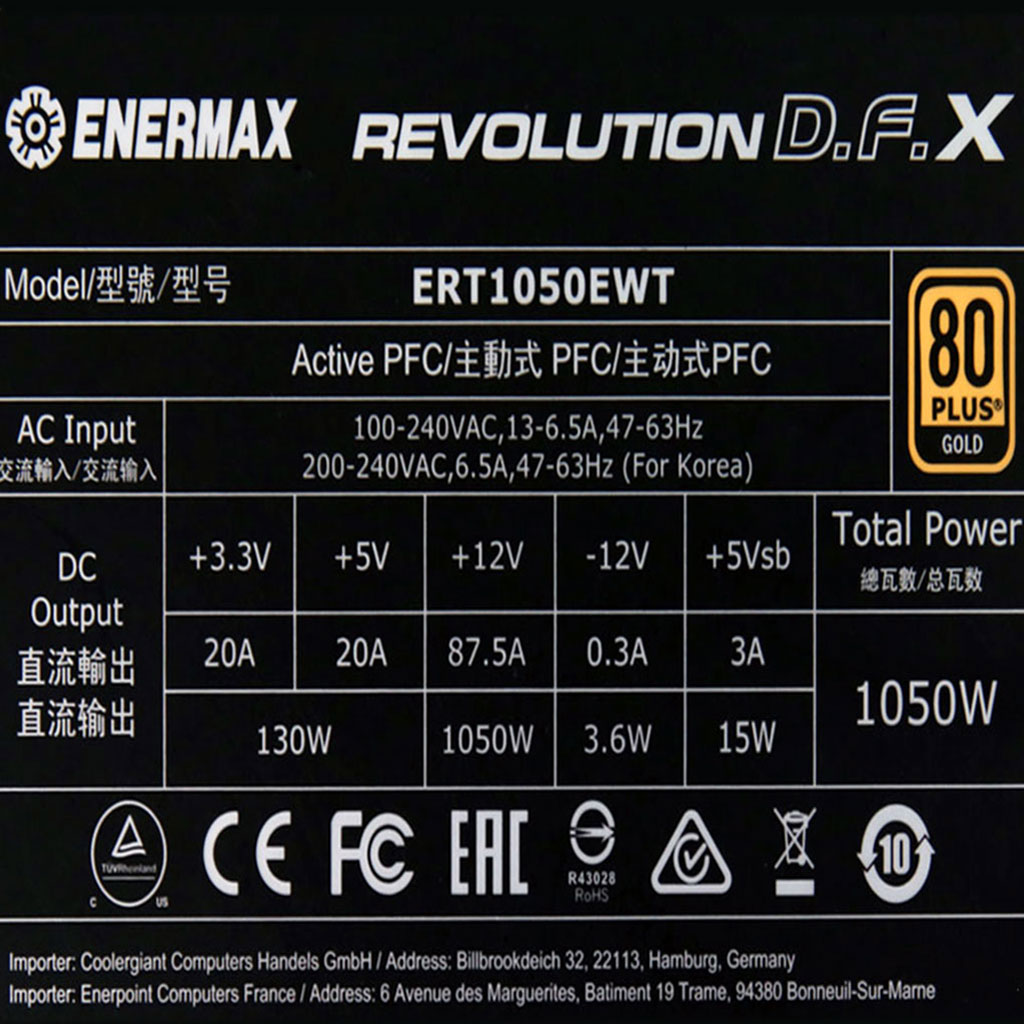

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202087.530.3
Watts1301050153.6
Total Max. Power (W)1050

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (660mm) 1 1 18-22AWG No
4+4 pin EPS12V (600mm) 1 1 18AWG No
4+4 pin EPS12V (700mm) 1 1 18AWG No
6+2 pin PCIe (650mm+150mm) 2 4 18AWG No
12+2 pin PCIe (650mm) (600W) 1 1 16-26AWG No
12+4 pin PCIe (660mm) (600W) 1 1 16-26AWG No
SATA (450mm+150mm+150mm+150mm) 3 12 18AWG No
4-pin Molex (500mm+150mm+150mm) 2 6 18AWG No
FDD Adapter (110mm) 1 1 20AWG No
RGB Cable (660mm+90mm) 1 2 26AWG No
AC Power Cord (1100mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)21.3
AC Loss to PWR_OK Hold Up Time (ms)17.7
PWR_OK Inactive to DC Loss Delay (ms)3.6

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.86 V 114.80 V 113.85 V 114.92 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.98 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.419 1.418 1.340 1.422 1.490 PASS
Mains Voltage THD: 0.15 % 0.09 % N/A 0.27 % 2.00 % PASS
Real Power: 0.056 W 0.038 W N/A 0.073 W N/A N/A
Apparent Power: 11.094 W 11.067 W N/A 11.126 W N/A N/A
Power Factor: 0.006 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.89 V 229.83 V 227.70 V 229.95 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.418 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.19 % 2.00 % PASS
Real Power: 0.119 W 0.084 W N/A 0.162 W N/A N/A
Apparent Power: 38.109 W 38.052 W N/A 38.163 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

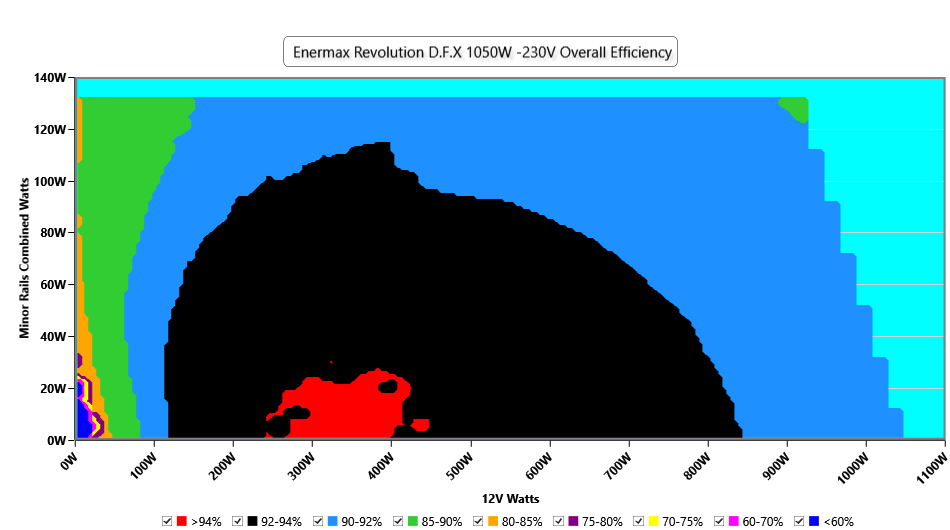

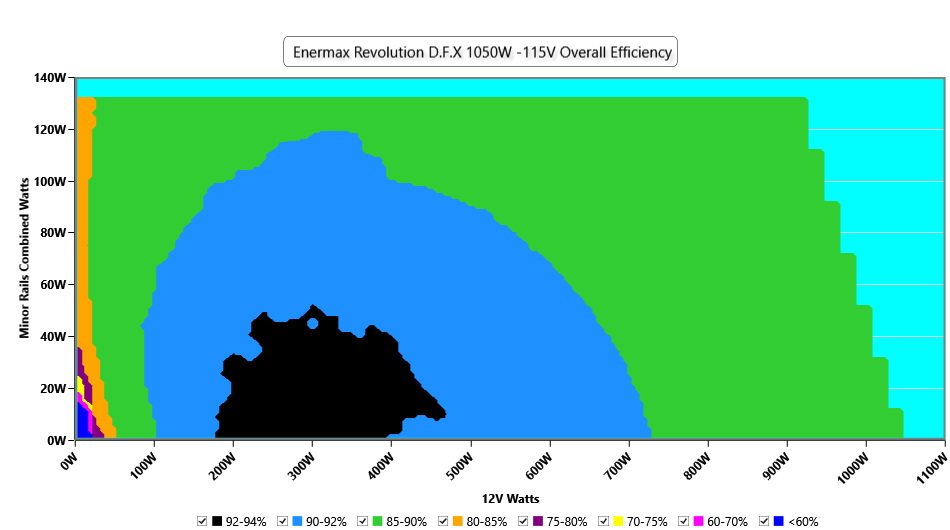

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

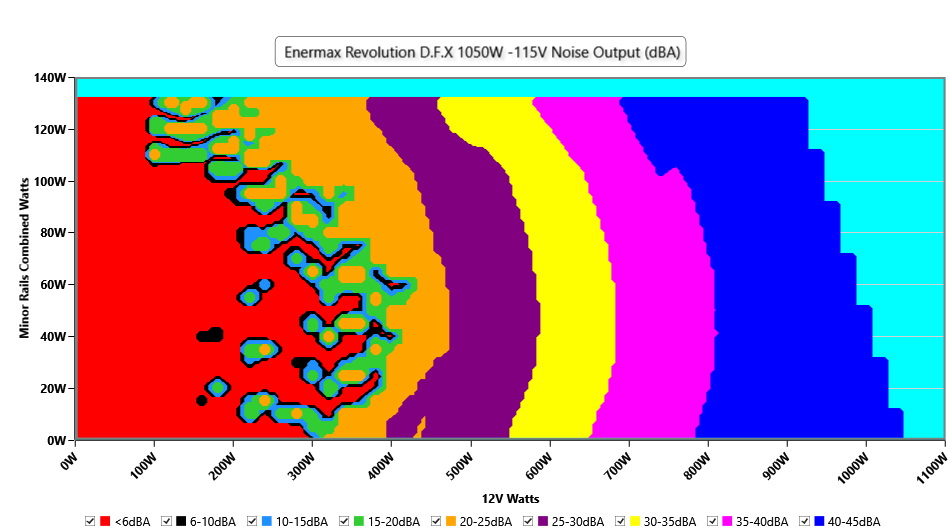

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

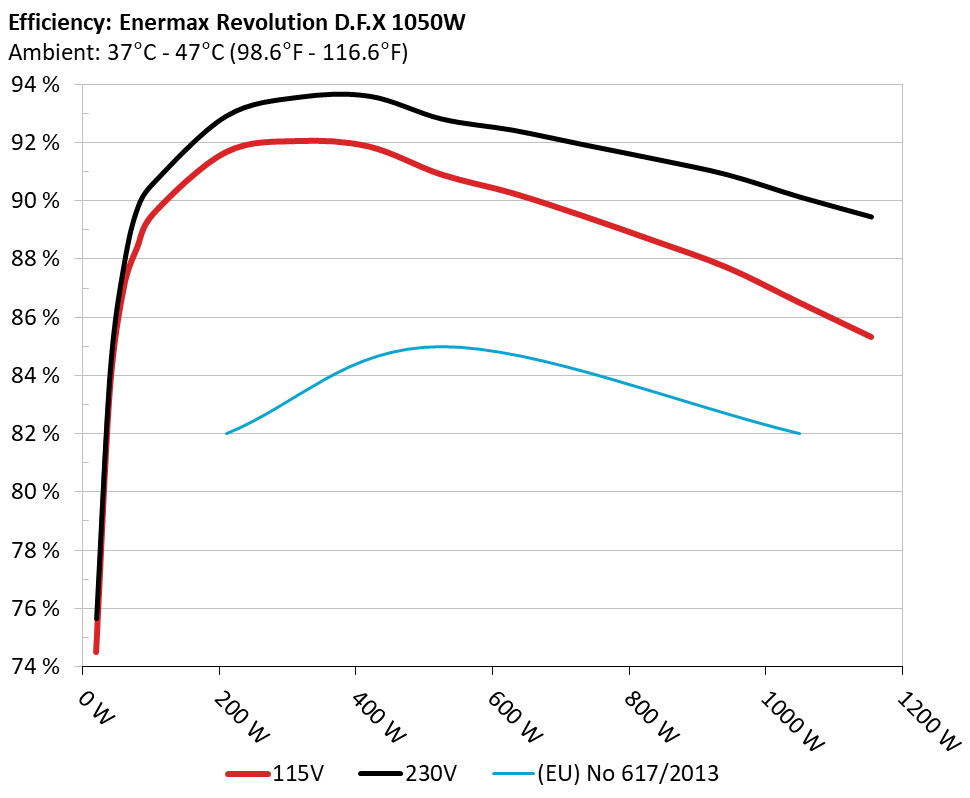

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

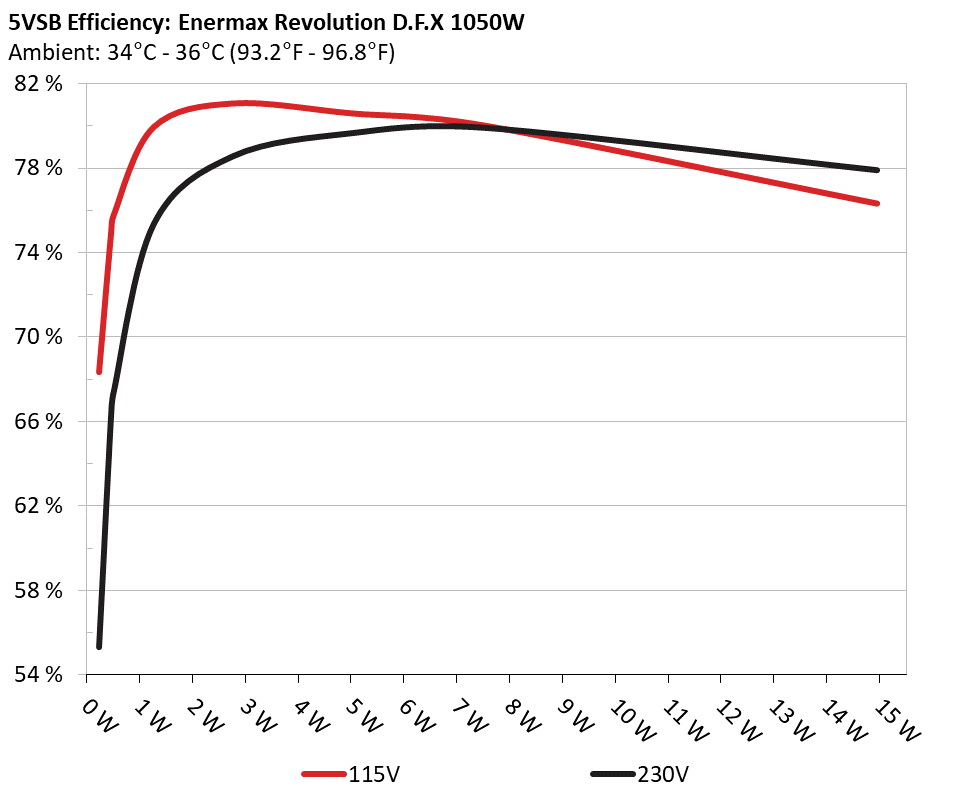

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 68.347% 0.032
5.038V 0.332W 114.86V
2 0.09A 0.453W 74.923% 0.057
5.037V 0.605W 114.86V
3 0.55A 2.766W 81.067% 0.256
5.029V 3.412W 114.86V
4 1A 5.02W 80.595% 0.358
5.02V 6.229W 114.86V
5 1.5A 7.517W 80.02% 0.406
5.011V 9.394W 114.85V
6 3A 14.949W 76.327% 0.48
4.983V 19.585W 114.86V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 55.293% 0.012
5.039V 0.412W 229.87V
2 0.09A 0.454W 66.271% 0.019
5.038V 0.685W 229.86V
3 0.55A 2.766W 78.59% 0.096
5.029V 3.52W 229.87V
4 1A 5.021W 79.683% 0.16
5.02V 6.301W 229.87V
5 1.5A 7.517W 79.937% 0.207
5.011V 9.404W 229.87V
6 3A 14.949W 77.927% 0.321
4.983V 19.184W 229.86V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.897A 1.96A 1.949A 0.996A 104.941 89.575% 0 <6.0 44.48°C 0.974
12.085V 5.101V 3.386V 5.02V 117.155 40.2°C 114.82V
20% 14.815A 2.943A 2.926A 1.197A 209.94 91.657% 933 18.7 40.73°C 0.973
12.085V 5.097V 3.383V 5.013V 229.051 45.29°C 114.79V
30% 23.084A 3.436A 3.416A 1.398A 314.948 92.037% 983 21.0 41.34°C 0.98
12.082V 5.094V 3.381V 5.006V 342.199 46.38°C 114.75V
40% 31.310A 3.927A 3.905A 1.6A 419.49 91.848% 1211 27.4 41.99°C 0.985
12.082V 5.093V 3.38V 4.999V 456.723 47.51°C 114.72V
50% 39.239A 4.91A 4.883A 1.803A 524.795 90.894% 1591 35.1 42.01°C 0.989
12.087V 5.092V 3.379V 4.992V 577.377 48.01°C 114.68V
60% 47.110A 5.893A 5.863A 2A 629.297 90.251% 1882 40.1 42.64°C 0.991
12.089V 5.091V 3.377V 4.985V 697.272 49.24°C 114.65V
70% 55.044A 6.876A 6.844A 2.21A 734.664 89.452% 2134 43.7 43.29°C 0.992
12.091V 5.09V 3.375V 4.978V 821.305 50.32°C 114.6V
80% 62.969A 7.858A 7.824A 2.313A 839.48 88.593% 2195 44.2 43.56°C 0.993
12.095V 5.09V 3.374V 4.972V 947.573 51.63°C 114.56V
90% 71.279A 8.349A 8.3A 2.416A 944.896 87.687% 2220 45.1 44.96°C 0.994
12.100V 5.09V 3.373V 4.967V 1077.581 54.01°C 114.52V
100% 79.271A 8.838A 8.806A 3.03A 1049.764 86.49% 2239 45.6 45.5°C 0.994
12.112V 5.091V 3.372V 4.951V 1213.75 55.56°C 114.48V
110% 87.147A 9.82A 9.877A 3.033A 1154.399 85.316% 2255 45.9 46.74°C 0.995
12.118V 5.092V 3.371V 4.947V 1353.158 57.66°C 114.44V
CL1 0.116A 15.38A 15.31A 0A 131.303 82.191% 1621 35.7 40.23°C 0.975
12.135V 5.091V 3.37V 5.041V 159.756 45.71°C 114.8V
CL2 0.114A 19.609A 0A 0A 101.347 81.305% 1209 27.4 40.06°C 0.977
12.111V 5.098V 3.383V 5.041V 124.651 47.09°C 114.82V
CL3 0.114A 0A 19.577A 0A 67.382 77.63% 1101 24.3 40.14°C 0.952
12.104V 5.097V 3.371V 5.041V 86.799 49.18°C 114.83V
CL4 86.833A 0A 0A 0.002A 1049.525 87.47% 2168 43.7 45.96°C 0.994
12.087V 5.096V 3.384V 5.01V 1199.883 56.89°C 114.48V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.894A 1.96A 1.949A 0.996A 104.953 90.643% 623 8.7 40.07°C 0.798
12.092V 5.101V 3.386V 5.019V 115.791 44.31°C 229.85V
20% 14.808A 2.943A 2.926A 1.197A 209.951 92.903% 1043 22.7 40.83°C 0.909
12.091V 5.097V 3.383V 5.012V 225.983 45.38°C 229.84V
30% 23.071A 3.434A 3.415A 1.399A 314.956 93.546% 1155 26.1 41.32°C 0.94
12.090V 5.096V 3.382V 5.005V 336.687 46.38°C 229.82V
40% 31.299A 3.926A 3.904A 1.601A 419.507 93.585% 1309 29.7 41.98°C 0.955
12.087V 5.095V 3.381V 4.997V 448.266 47.49°C 229.8V
50% 39.233A 4.909A 4.883A 1.804A 524.816 92.806% 1646 36.1 42.14°C 0.967
12.090V 5.092V 3.379V 4.99V 565.491 48.17°C 229.78V
60% 47.105A 5.893A 5.863A 2A 629.339 92.419% 1924 40.9 42.83°C 0.973
12.091V 5.091V 3.377V 4.983V 680.96 49.34°C 229.77V
70% 55.040A 6.876A 6.844A 2.211A 734.741 91.912% 2174 43.8 43.03°C 0.975
12.093V 5.09V 3.376V 4.976V 799.391 50.12°C 229.75V
80% 62.976A 7.859A 7.825A 2.314A 839.552 91.418% 2206 44.5 43.71°C 0.977
12.095V 5.09V 3.374V 4.97V 918.378 51.73°C 229.73V
90% 71.287A 8.351A 8.301A 2.417A 944.953 90.88% 2227 45.2 44.32°C 0.979
12.099V 5.089V 3.373V 4.964V 1039.782 53.42°C 229.71V
100% 79.264A 8.839A 8.805A 3.032A 1049.788 90.123% 2247 45.8 45.09°C 0.982
12.113V 5.091V 3.373V 4.949V 1164.859 55.13°C 229.7V
110% 87.140A 9.82A 9.876A 3.034A 1154.398 89.442% 2276 45.9 46.71°C 0.983
12.119V 5.092V 3.371V 4.945V 1290.674 57.62°C 229.67V
CL1 0.116A 15.381A 15.312A 0A 131.306 83.544% 1525 34.8 41.22°C 0.86
12.131V 5.091V 3.37V 5.04V 157.172 46.72°C 229.85V
CL2 0.115A 19.61A 0A 0A 101.356 82.428% 1250 28.2 40.94°C 0.811
12.111V 5.097V 3.383V 5.04V 122.961 47.95°C 229.85V
CL3 0.114A 0A 19.577A 0A 67.386 78.728% 1160 26.2 40.32°C 0.717
12.106V 5.097V 3.371V 5.04V 85.592 49.36°C 229.86V
CL4 86.853A 0A 0A 0.002A 1049.572 91.018% 2194 44.2 45.74°C 0.981
12.084V 5.097V 3.384V 5.008V 1153.147 56.69°C 229.69V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.49A 0.487A 0.199A 19.991 74.501% 0 <6.0 40.11°C 0.74
12.074V 5.098V 3.387V 5.037V 26.839 36.97°C 114.85V
40W 2.706A 0.686A 0.682A 0.298A 39.992 83.45% 0 <6.0 40.84°C 0.888
12.076V 5.099V 3.387V 5.035V 47.925 37.5°C 114.84V
60W 4.183A 0.882A 0.877A 0.397A 59.993 86.955% 0 <6.0 42.09°C 0.93
12.079V 5.1V 3.387V 5.033V 68.995 38.35°C 114.84V
80W 5.653A 1.078A 1.072A 0.497A 79.931 88.379% 0 <6.0 43.21°C 0.954
12.082V 5.1V 3.387V 5.03V 90.441 39.23°C 114.84V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.49A 0.487A 0.199A 20.001 75.652% 0 <6.0 39.78°C 0.391
12.069V 5.097V 3.386V 5.035V 26.438 36.73°C 229.87V
40W 2.708A 0.687A 0.682A 0.298A 40.001 84.147% 0 <6.0 40.33°C 0.534
12.074V 5.098V 3.386V 5.033V 47.537 37.05°C 229.86V
60W 4.184A 0.882A 0.877A 0.398A 59.999 87.76% 0 <6.0 41.98°C 0.646
12.078V 5.099V 3.386V 5.031V 68.366 38.49°C 229.86V
80W 5.654A 1.078A 1.072A 0.497A 79.938 89.734% 0 <6.0 43.27°C 0.729
12.083V 5.101V 3.387V 5.029V 89.092 39.41°C 229.86V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load16.93mV14.06mV14.62mV8.93mVPass
20% Load17.13mV14.68mV15.34mV10.82mVPass
30% Load16.83mV15.60mV17.14mV11.55mVPass
40% Load18.16mV17.04mV17.08mV12.93mVPass
50% Load18.92mV20.68mV22.01mV16.47mVPass
60% Load18.57mV20.58mV19.50mV17.60mVPass
70% Load18.00mV21.09mV21.03mV18.93mVPass
80% Load19.08mV24.07mV22.06mV21.65mVPass
90% Load19.23mV23.66mV22.73mV24.16mVPass
100% Load28.83mV26.16mV25.01mV32.22mVPass
110% Load29.11mV28.87mV26.34mV31.74mVPass
Crossload124.19mV21.10mV23.88mV15.50mVPass
Crossload218.57mV21.92mV24.52mV14.62mVPass
Crossload316.32mV20.32mV18.37mV12.83mVPass
Crossload429.17mV23.40mV21.77mV32.26mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load17.34mV15.91mV15.90mV9.75mVPass
20% Load16.47mV15.35mV15.65mV10.57mVPass
30% Load17.95mV16.83mV17.34mV11.85mVPass
40% Load19.18mV18.78mV19.60mV15.34mVPass
50% Load19.23mV22.84mV21.19mV15.96mVPass
60% Load19.23mV22.22mV19.80mV17.04mVPass
70% Load19.18mV22.48mV21.39mV18.47mVPass
80% Load18.87mV25.41mV23.19mV20.88mVPass
90% Load19.69mV26.48mV24.52mV24.17mVPass
100% Load29.30mV28.80mV25.67mV31.42mVPass
110% Load31.41mV30.14mV26.62mV31.16mVPass
Crossload125.80mV22.22mV24.78mV16.39mVPass
Crossload218.36mV23.71mV26.27mV14.37mVPass
Crossload317.13mV20.73mV19.08mV12.67mVPass
Crossload429.16mV25.81mV22.88mV30.67mVPass

The results above are not used in the certification process

Enermax Revolution D.F.X 1050W

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
