CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

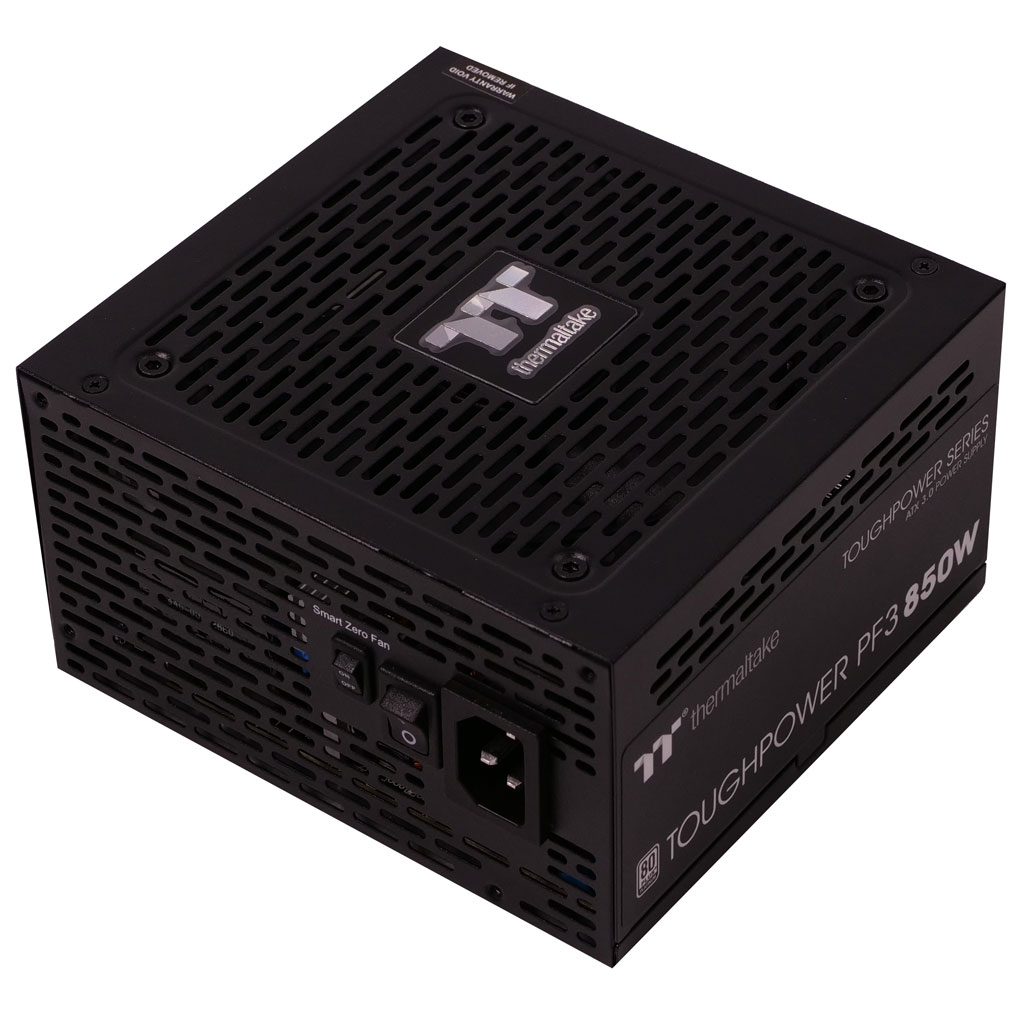

Thermaltake Toughpower PF3 850W
Serial NumberPSTPD0850FNFAPU3PD000098
Lab IDTT85002267
  • Report: 23PS2267A
  • Receipt Date: Sep 23, 2023
  • Test Date: Oct 23, 2023
  • Report Date: Oct 24, 2023
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandThermaltake
Manufacturer (OEM)HKC
SeriesToughpower PF3
Model NumberPS-TPD-0850FNFAPU-3
Serial NumberPSTPD0850FNFAPU3PD000098
DUT Notes

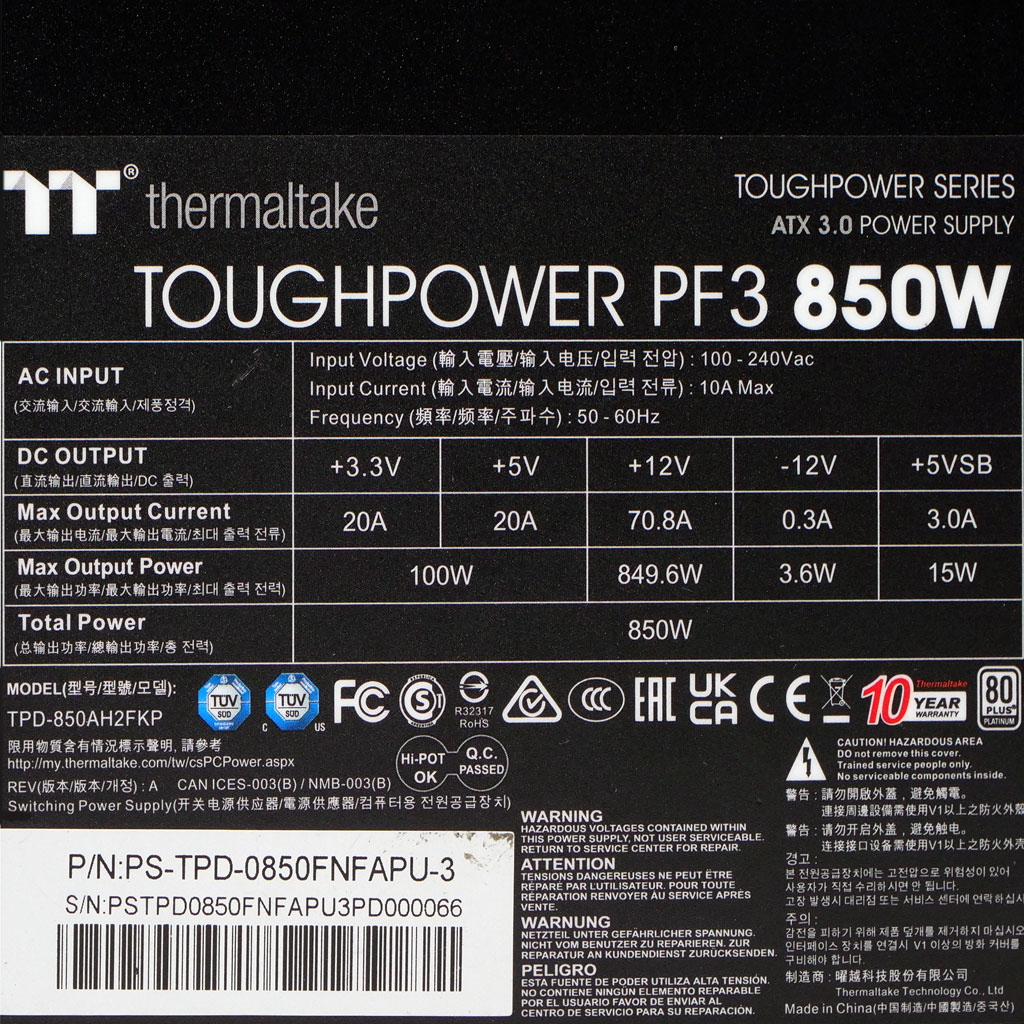

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)50-60
Rated Power (W)850
TypeATX12V
Cooling120mm Fluid Dynamic Bearing Fan
[TT-1225 (BDK12025MS)]
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202070.830.3
Watts100849.6153.6
Total Max. Power (W)850

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18AWG No
4+4 pin EPS12V (650mm+150mm) 1 2 18AWG No
6+2 pin PCIe (500mm+150mm) 2 4 18AWG No
12+4 pin PCIe (590mm) (450W) 1 1 18-26AWG No
SATA (500mm+145mm+145mm+145mm) 2 8 18AWG No
4-pin Molex (500mm+150mm+150mm+150mm) 1 4 18AWG No
FDD Adapter (150mm) 1 1 22AWG No
AC Power Cord (1380mm) - C13 coupler 1 1 16AWG -

Parts Description

General Data -
Manufacturer (OEM) HKC
PCB Type Double-Sided
Primary Side -
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor 5D-15  (5 Ohm @ 25°C) & Relay
Bridge Rectifier(s) 2x no info
APFC MOSFETs 2x WayOn WML36N60F2 (650V, 20A @ 100°C, Rds(on): 0.11Ohm)
APFC Boost Diode 1x P3D0601012
Bulk Cap(s) 2x Rubycon (420V, 390uF each or 780uF combined, 3000h @ 105°C, MXK)
Main Switchers 4x Ncepower NCE65TF130F (650V, 18A @ 100°C, Rds(on): 0.13Ohm)
APFC Controller Champion CH6502UHHX
Resonant Controller Champion CU6901VPA
Topology Primary side: APFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 8x
5V & 3.3V DC-DC Converters: 2x
PWM Controller(s): ANPEC APW7159C
Filtering Capacitors Electrolytic: 5x Nippon Chemi-Con (2-5,000 @ 105°C, KZE), 2x Nippon Chemi-Con (4-10,000 @ 105°C, KYA)
Polymer: 35x no info
Supervisor IC Weltrend WT7527RA
Fan Model TT-1225 BDK12025MS (120mm, 12V, 0.30A, Fluid Dynamic Bearing Fan)
5VSB Circuit -
Rectifier PJ1256
Standby PWM Controller PN8141

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)22.4
AC Loss to PWR_OK Hold Up Time (ms)17.8
PWR_OK Inactive to DC Loss Delay (ms)4.6

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.87 V 114.82 V 113.85 V 114.93 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.98 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.419 1.417 1.340 1.422 1.490 PASS
Mains Voltage THD: 0.15 % 0.09 % N/A 0.25 % 2.00 % PASS
Real Power: 0.051 W -0.003 W N/A 0.087 W N/A N/A
Apparent Power: 8.845 W 8.817 W N/A 8.890 W N/A N/A
Power Factor: 0.008 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.96 V 229.89 V 227.70 V 230.01 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.18 % 2.00 % PASS
Real Power: 0.141 W 0.092 W N/A 0.241 W N/A N/A
Apparent Power: 31.052 W 30.994 W N/A 31.091 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

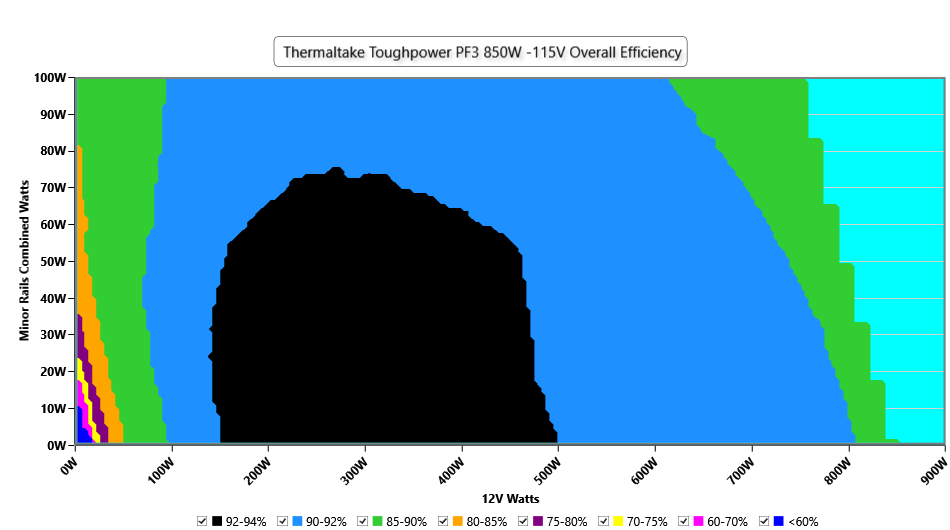

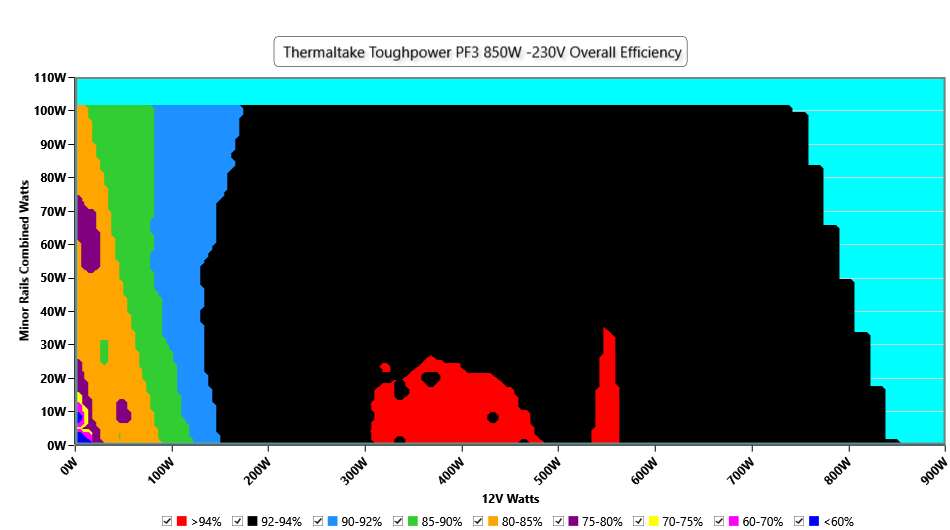

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

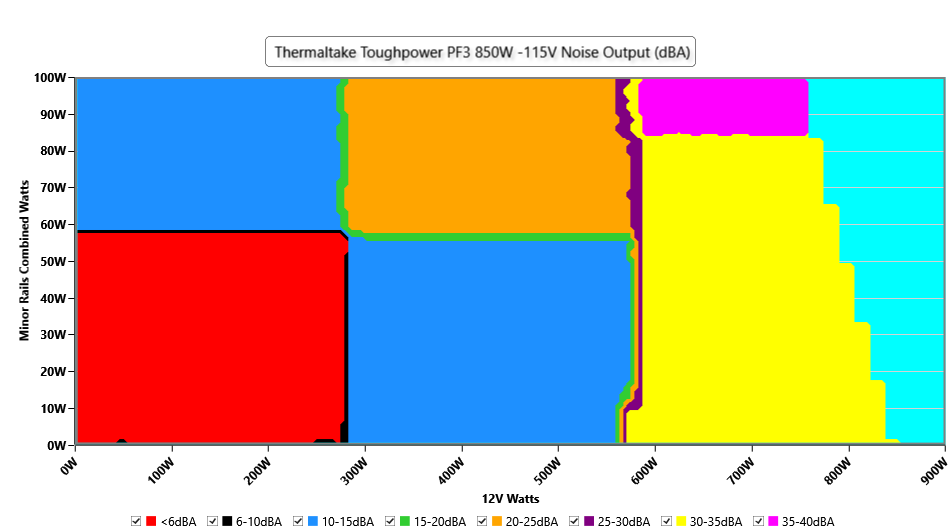

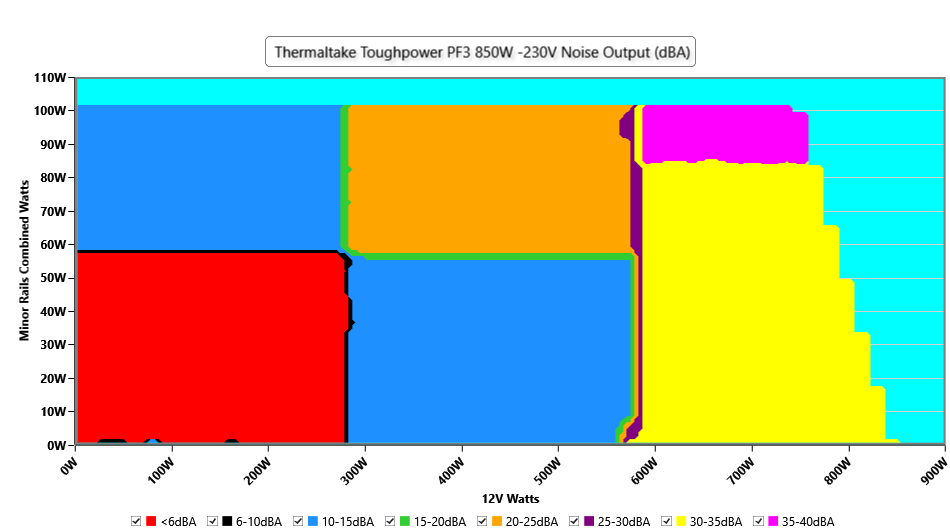

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

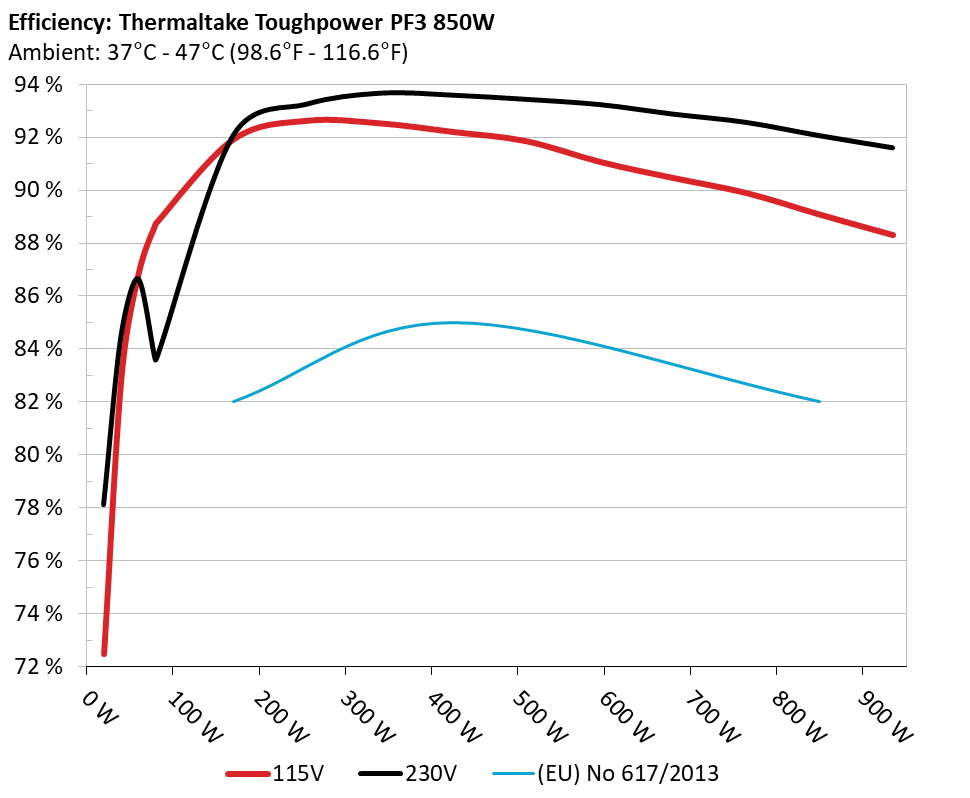

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

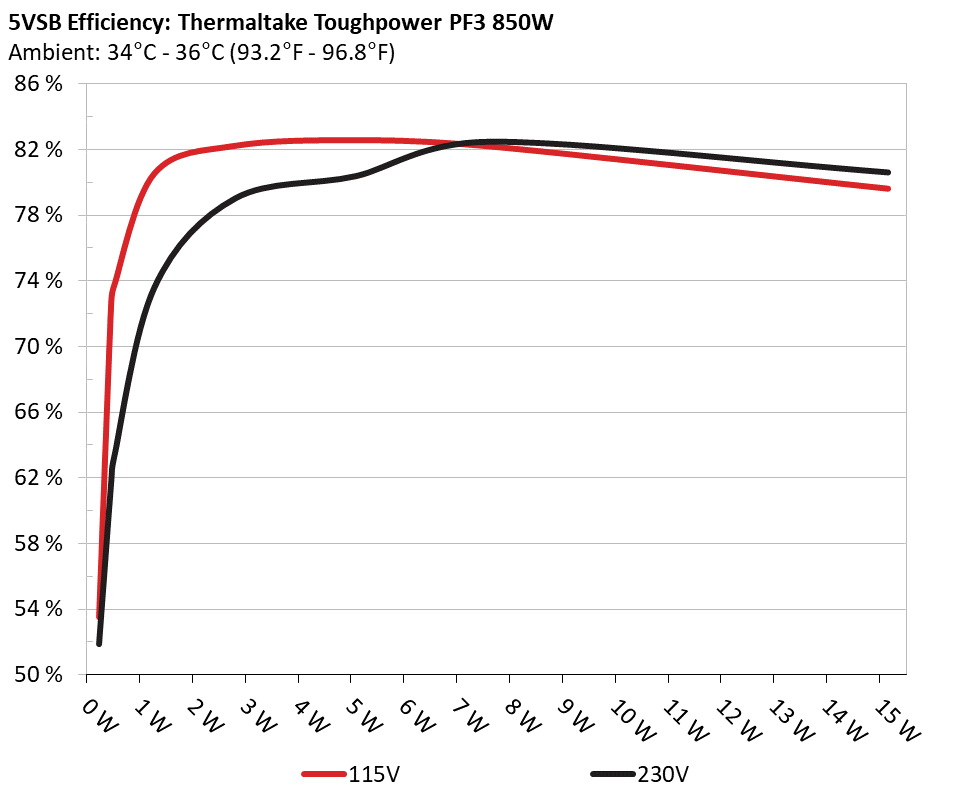

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 53.036% 0.031
5.115V 0.247W 114.87V
2 0.09A 0.46W 72.244% 0.079
5.114V 0.637W 114.87V
3 0.55A 2.806W 81.716% 0.3
5.104V 3.434W 114.87V
4 1A 5.094W 82.054% 0.374
5.095V 6.208W 114.87V
5 1.5A 7.626W 81.678% 0.426
5.085V 9.337W 114.87V
6 3A 15.162W 79.108% 0.491
5.055V 19.167W 114.87V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 51.398% 0.017
5.113V 0.448W 229.94V
2 0.09A 0.46W 61.315% 0.028
5.112V 0.751W 229.94V
3 0.55A 2.807W 78.543% 0.124
5.103V 3.573W 229.94V
4 1A 5.094W 79.905% 0.199
5.094V 6.375W 229.94V
5 1.5A 7.627W 81.996% 0.258
5.084V 9.301W 229.94V
6 3A 15.163W 80.129% 0.346
5.054V 18.924W 229.94V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.313A 1.983A 1.977A 0.982A 84.999 88.745% 0 <6.0 44.55°C 0.951
11.932V 5.043V 3.338V 5.092V 95.781 40.27°C 114.84V
20% 11.649A 2.975A 2.968A 1.181A 169.923 91.927% 0 <6.0 45.38°C 0.97
11.935V 5.041V 3.335V 5.082V 184.843 40.8°C 114.81V
30% 18.334A 3.472A 3.466A 1.38A 254.922 92.629% 0 <6.0 46.28°C 0.98
11.938V 5.04V 3.333V 5.072V 275.207 41.21°C 114.78V
40% 25.016A 3.969A 3.964A 1.58A 340.003 92.533% 1064 24.1 41.95°C 0.982
11.944V 5.039V 3.33V 5.061V 367.437 47.46°C 114.75V
50% 31.326A 4.964A 4.959A 1.782A 424.775 92.208% 1061 24.1 42.38°C 0.984
11.948V 5.037V 3.328V 5.05V 460.67 48.38°C 114.72V
60% 37.606A 5.96A 5.955A 1.984A 509.296 91.86% 1058 24.0 42.75°C 0.984
11.953V 5.034V 3.325V 5.04V 554.427 49.25°C 114.69V
70% 43.900A 6.958A 6.953A 2.187A 594.61 91.079% 1052 23.8 43.26°C 0.985
11.970V 5.031V 3.322V 5.029V 652.853 50.27°C 114.66V
80% 50.223A 7.956A 7.952A 2.291A 679.45 90.468% 1652 37.2 43.85°C 0.986
11.977V 5.028V 3.32V 5.02V 751.038 51.91°C 114.63V
90% 56.938A 8.454A 8.44A 2.394A 764.871 89.898% 1650 37.2 44.29°C 0.987
11.985V 5.027V 3.317V 5.011V 850.824 53.38°C 114.59V
100% 63.375A 8.955A 8.959A 3.004A 849.724 89.082% 1645 37.2 45.11°C 0.988
11.993V 5.025V 3.315V 4.992V 953.872 55.19°C 114.56V
110% 69.676A 9.953A 10.053A 3.009A 934.293 88.312% 1978 42.9 46.67°C 0.989
11.999V 5.023V 3.312V 4.985V 1057.953 57.59°C 114.52V
CL1 0.117A 11.963A 11.922A 0A 101.286 86.052% 1059 24.0 40.51°C 0.958
11.943V 5.032V 3.33V 5.105V 117.703 45.99°C 114.83V
CL2 0.115A 19.882A 0A 0A 101.359 84.348% 1657 37.3 40.11°C 0.959
11.939V 5.029V 3.339V 5.108V 120.17 47.14°C 114.83V
CL3 0.115A 0A 19.843A 0A 67.372 80.043% 1064 24.1 40.13°C 0.945
11.931V 5.044V 3.326V 5.105V 84.171 49.18°C 114.84V
CL4 70.861A 0A 0A 0A 849.442 89.909% 1649 37.2 45.59°C 0.988
11.988V 5.038V 3.324V 5.061V 944.782 56.56°C 114.57V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.290A 1.983A 1.977A 0.982A 85.002 83.999% 0 <6.0 44.43°C 0.814
11.987V 5.042V 3.338V 5.093V 101.194 40.21°C 229.93V
20% 11.618A 2.976A 2.968A 1.181A 169.932 92.057% 0 <6.0 45.27°C 0.904
11.967V 5.041V 3.335V 5.082V 184.593 40.72°C 229.92V
30% 18.306A 3.473A 3.466A 1.38A 254.927 93.244% 0 <6.0 46.19°C 0.937
11.956V 5.039V 3.333V 5.072V 273.398 41.15°C 229.9V
40% 24.981A 3.97A 3.964A 1.58A 340.008 93.662% 1060 24.0 41.79°C 0.952
11.961V 5.039V 3.33V 5.062V 363.016 47.31°C 229.89V
50% 31.286A 4.964A 4.959A 1.782A 424.793 93.587% 1058 24.0 42.03°C 0.961
11.963V 5.036V 3.328V 5.051V 453.901 48.09°C 229.87V
60% 37.567A 5.96A 5.956A 1.984A 509.338 93.431% 1055 23.9 42.8°C 0.966
11.966V 5.034V 3.325V 5.039V 545.148 49.31°C 229.86V
70% 43.898A 6.958A 6.954A 2.187A 594.635 93.232% 1051 23.8 43.42°C 0.97
11.971V 5.031V 3.322V 5.029V 637.803 50.51°C 229.85V
80% 50.224A 7.956A 7.952A 2.291A 679.461 92.874% 1651 37.2 43.77°C 0.972
11.977V 5.028V 3.32V 5.02V 731.588 51.8°C 229.83V
90% 56.940A 8.454A 8.44A 2.394A 764.869 92.558% 1647 37.2 44.15°C 0.974
11.984V 5.027V 3.317V 5.011V 826.365 53.16°C 229.82V
100% 63.383A 8.954A 8.959A 3.004A 849.709 92.058% 1647 37.2 45.01°C 0.976
11.991V 5.025V 3.315V 4.992V 923.015 55.02°C 229.81V
110% 69.685A 9.953A 10.052A 3.009A 934.29 91.603% 1980 42.9 46.73°C 0.978
11.997V 5.024V 3.312V 4.985V 1019.933 57.66°C 229.79V
CL1 0.116A 11.963A 11.922A 0A 101.287 83.153% 1054 23.9 40.32°C 0.848
11.975V 5.032V 3.33V 5.105V 121.807 45.84°C 229.93V
CL2 0.115A 19.882A 0A 0A 101.363 81.87% 1655 37.3 40.77°C 0.85
11.975V 5.029V 3.339V 5.108V 123.811 47.86°C 229.93V
CL3 0.115A 0A 19.844A 0A 67.375 73.383% 1052 23.8 40.12°C 0.796
11.984V 5.044V 3.326V 5.105V 91.89 49.21°C 229.94V
CL4 70.848A 0A 0A 0A 849.46 92.779% 1646 37.2 45.1°C 0.976
11.990V 5.038V 3.324V 5.061V 915.567 56.03°C 229.8V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.244A 0.495A 0.494A 0.196A 19.996 72.479% 0 <6.0 39.69°C 0.801
11.934V 5.048V 3.342V 5.113V 27.589 36.61°C 114.86V
40W 2.740A 0.693A 0.691A 0.294A 39.998 82.895% 0 <6.0 40.44°C 0.898
11.932V 5.047V 3.341V 5.109V 48.251 37.18°C 114.86V
60W 4.235A 0.892A 0.889A 0.392A 60 86.846% 0 <6.0 42.33°C 0.931
11.932V 5.046V 3.34V 5.106V 69.087 38.64°C 114.85V
80W 5.725A 1.09A 1.087A 0.49A 79.941 88.991% 0 <6.0 43.15°C 0.949
11.932V 5.045V 3.339V 5.103V 89.831 39.2°C 114.84V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.248A 0.495A 0.494A 0.196A 19.991 78.14% 0 <6.0 39.69°C 0.455
11.893V 5.047V 3.342V 5.114V 25.583 36.6°C 229.94V
40W 2.748A 0.693A 0.691A 0.293A 39.993 84.48% 0 <6.0 40.44°C 0.619
11.891V 5.047V 3.341V 5.11V 47.339 37.09°C 229.94V
60W 4.246A 0.892A 0.889A 0.392A 59.996 86.659% 0 <6.0 41.55°C 0.727
11.900V 5.046V 3.34V 5.107V 69.231 38.03°C 229.94V
80W 5.698A 1.09A 1.087A 0.49A 79.941 83.607% 0 <6.0 42.85°C 0.804
11.988V 5.044V 3.339V 5.103V 95.618 39.02°C 229.93V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load6.65mV6.49mV8.27mV6.14mVPass
20% Load7.22mV6.70mV8.38mV5.99mVPass
30% Load8.30mV6.85mV9.05mV6.30mVPass
40% Load10.31mV7.11mV9.57mV6.50mVPass
50% Load11.03mV8.29mV10.91mV7.02mVPass
60% Load11.34mV8.71mV11.07mV6.97mVPass
70% Load11.34mV8.04mV12.00mV7.79mVPass
80% Load12.48mV8.40mV12.78mV7.95mVPass
90% Load13.30mV9.48mV13.86mV8.41mVPass
100% Load19.24mV10.46mV16.27mV20.16mVPass
110% Load18.38mV11.00mV18.57mV14.12mVPass
Crossload113.40mV9.24mV10.70mV6.01mVPass
Crossload211.55mV13.19mV9.46mV5.42mVPass
Crossload39.44mV7.57mV10.86mV4.80mVPass
Crossload419.88mV9.21mV16.57mV7.02mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load6.24mV6.80mV8.43mV6.14mVPass
20% Load15.48mV7.11mV8.22mV6.19mVPass
30% Load11.64mV8.50mV12.88mV6.50mVPass
40% Load11.44mV10.15mV15.77mV6.45mVPass
50% Load10.52mV7.62mV10.55mV6.97mVPass
60% Load10.72mV8.40mV12.05mV7.28mVPass
70% Load10.93mV9.02mV11.64mV7.59mVPass
80% Load12.53mV8.60mV13.34mV7.74mVPass
90% Load13.10mV9.94mV14.43mV8.67mVPass
100% Load21.39mV10.40mV18.21mV18.72mVPass
110% Load20.48mV12.30mV18.31mV13.90mVPass
Crossload19.37mV8.66mV10.20mV5.47mVPass
Crossload29.07mV12.67mV8.89mV5.58mVPass
Crossload326.71mV6.75mV10.60mV5.16mVPass
Crossload422.02mV8.49mV18.44mV7.00mVPass

The results above are not used in the certification process

Thermaltake Toughpower PF3 850W

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
