CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

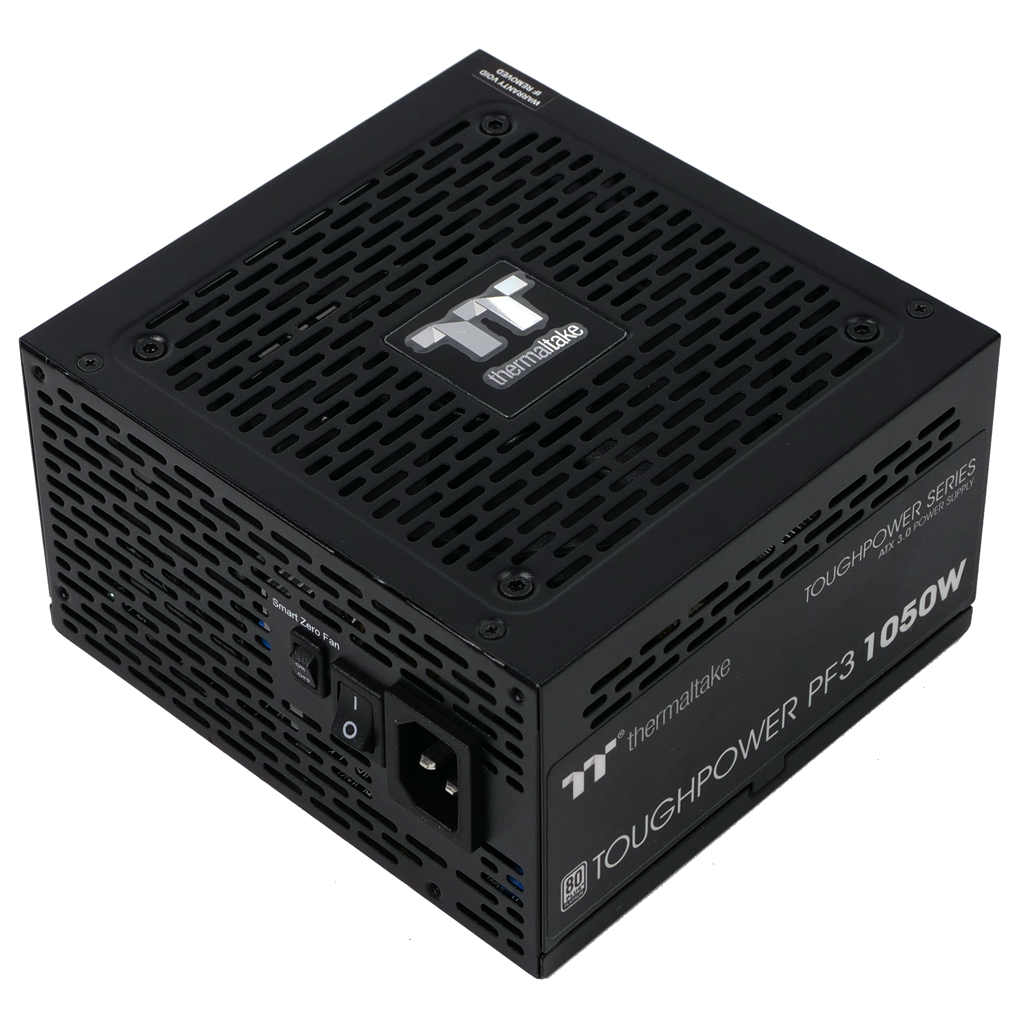

Thermaltake Toughpower PF3 1050W
Serial NumberPSTPD1050FNFAPU3PD000086
Lab IDTT10502264
  • Report: 23PS2264A
  • Receipt Date: Sep 25, 2023
  • Test Date: Oct 19, 2023
  • Report Date: Oct 24, 2023
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandThermaltake
Manufacturer (OEM)HKC
SeriesToughpower PF3
Model NumberTPD-1050AH2FKP
Serial NumberPSTPD1050FNFAPU3PD000086
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15
Rated Frequency (Hz)50-60
Rated Power (W)1050
TypeATX12V
Cooling120mm Fluid Dynamic Bearing Fan
[TT-1225 (BDK12025MS)]
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

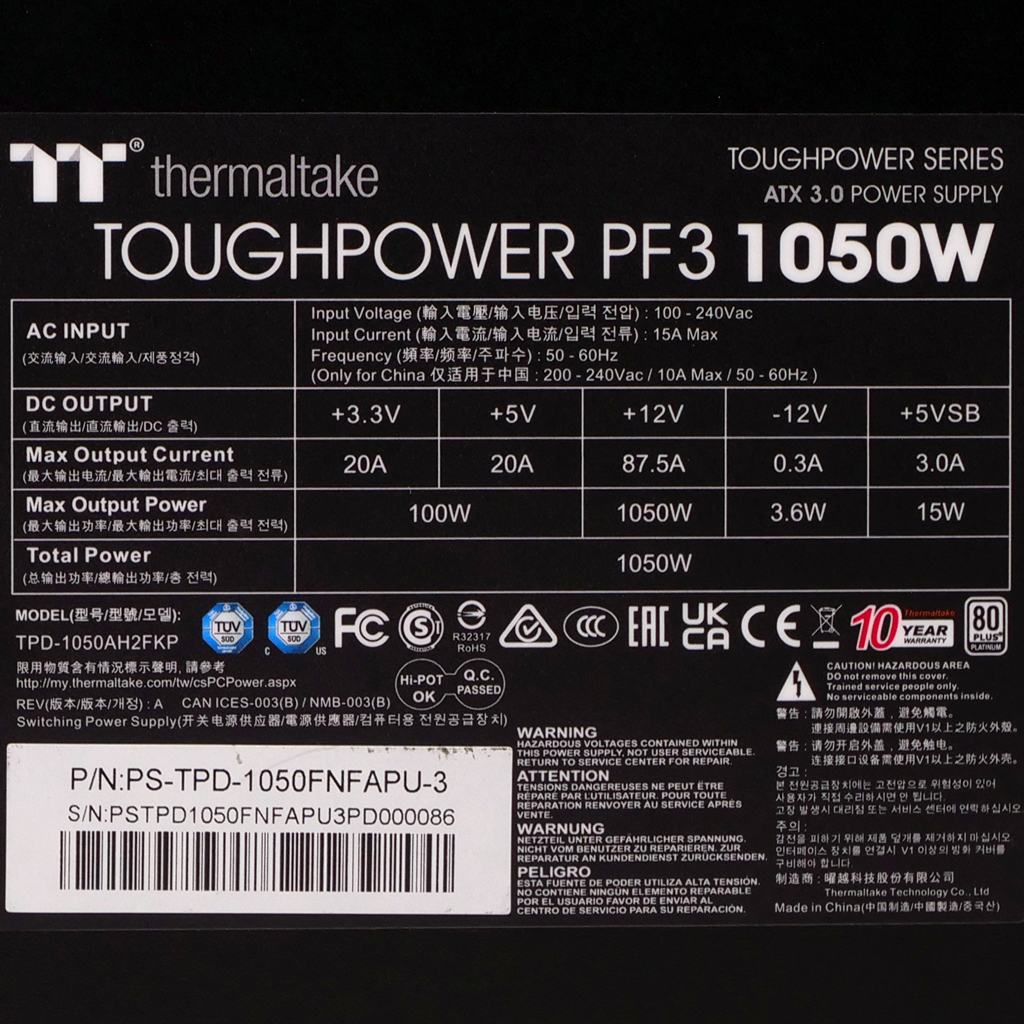

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202087.530.3
Watts1001050153.6
Total Max. Power (W)1050

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16-22AWG No
4+4 pin EPS12V (650mm) 2 2 16AWG No
6+2 pin PCIe (500mm+150mm) 2 4 16-18AWG No
6+2 pin PCIe (500mm) 1 1 16-18AWG No
12+4 pin PCIe (600mm) (600W) 1 1 16-26AWG No
SATA (500mm+145mm+145mm+145mm) 3 12 18AWG No
4-pin Molex (500mm+150mm+150mm+150mm) 2 8 18AWG No
FDD Adapter (150mm) 1 1 22AWG No
AC Power Cord (1380mm) - C13 coupler 1 1 16AWG -

Parts Description

General Data -
Manufacturer (OEM) HKC
PCB Type Double-Sided
Primary Side -
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor 5D-15  (5 Ohm @ 25°C) & Relay
Bridge Rectifier(s) 2x GBU2506L (600V, 25A @ 100°C)
APFC MOSFETs 2x WayOn WML53N60C4 (600V, 26A @ 100°C, Rds(on): 0.07Ohm)
APFC Boost Diode 1x CH3D16065L
Bulk Cap(s) 2x Rubycon (420V, 470uF each or 940uF combined, 3000h @ 105°C, MXK)
Main Switchers 4x WayOn WML36N60F2 (600V, 20A @ 100°C, Rds(on): 0.11Ohm)
APFC Controller Champion CM6502UHHX
Resonant Controller Champion CU6901VPA
Topology Primary side: APFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 8x
5V & 3.3V DC-DC Converters: 2x
PWM Controller(s): ANPEC APW7159C
Filtering Capacitors Electrolytic: 5x Nippon Chemi-Con (2-5,000 @ 105°C, KZE), 2x Nippon Chemi-Con (4-10,000 @ 105°C, KYA)
Polymer: 35x no info
Supervisor IC Weltrend WT7527RA
Fan Model TT-1225 BDK12025MS (120mm, 12V, 0.30A, Fluid Dynamic Bearing Fan)
5VSB Circuit -
Rectifier PJ1256
Standby PWM Controller PN8141

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)22.9
AC Loss to PWR_OK Hold Up Time (ms)18.3
PWR_OK Inactive to DC Loss Delay (ms)4.6

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.88 V 114.83 V 113.85 V 114.93 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.419 1.417 1.340 1.422 1.490 PASS
Mains Voltage THD: 0.15 % 0.10 % N/A 0.28 % 2.00 % PASS
Real Power: 0.051 W -0.002 W N/A 0.088 W N/A N/A
Apparent Power: 8.247 W 8.215 W N/A 8.289 W N/A N/A
Power Factor: 0.010 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.96 V 229.89 V 227.70 V 229.99 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.13 % 0.08 % N/A 0.19 % 2.00 % PASS
Real Power: 0.141 W 0.090 W N/A 0.221 W N/A N/A
Apparent Power: 28.372 W 28.332 W N/A 28.420 W N/A N/A
Power Factor: 0.006 N/A N/A N/A N/A N/A

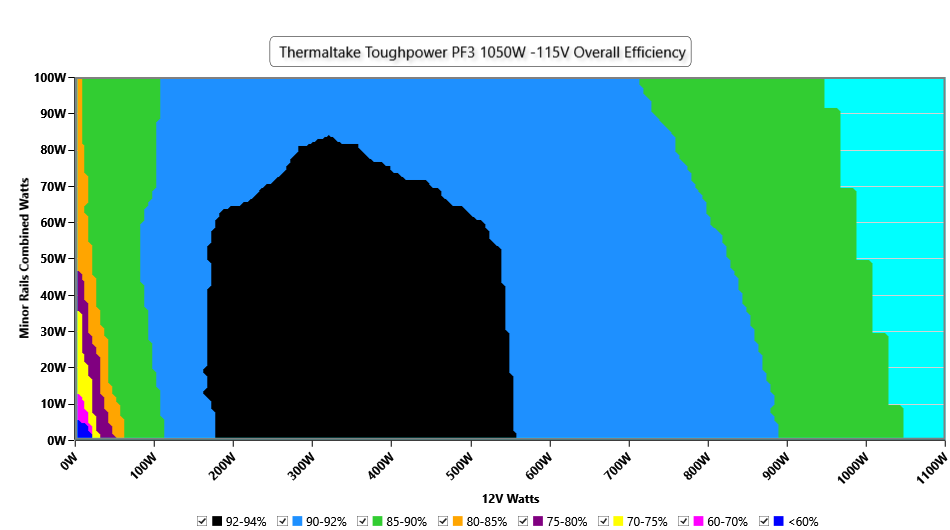

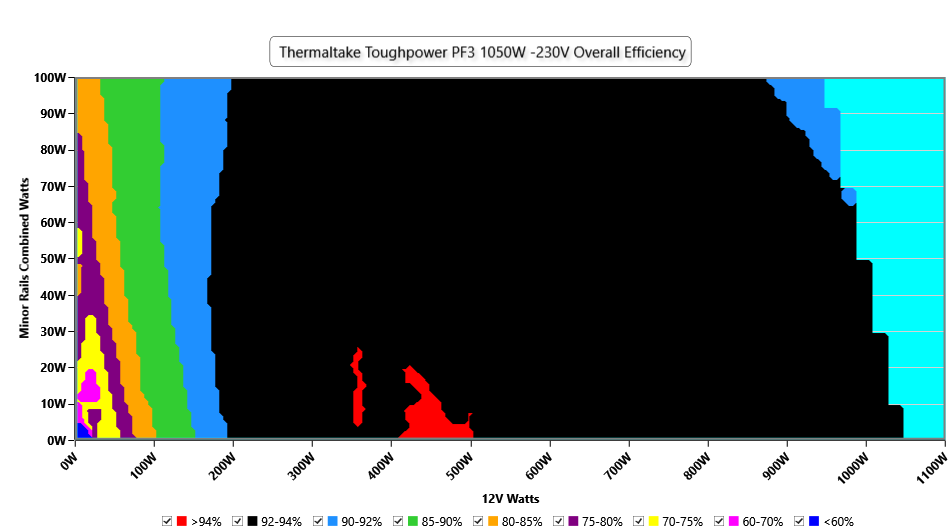

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

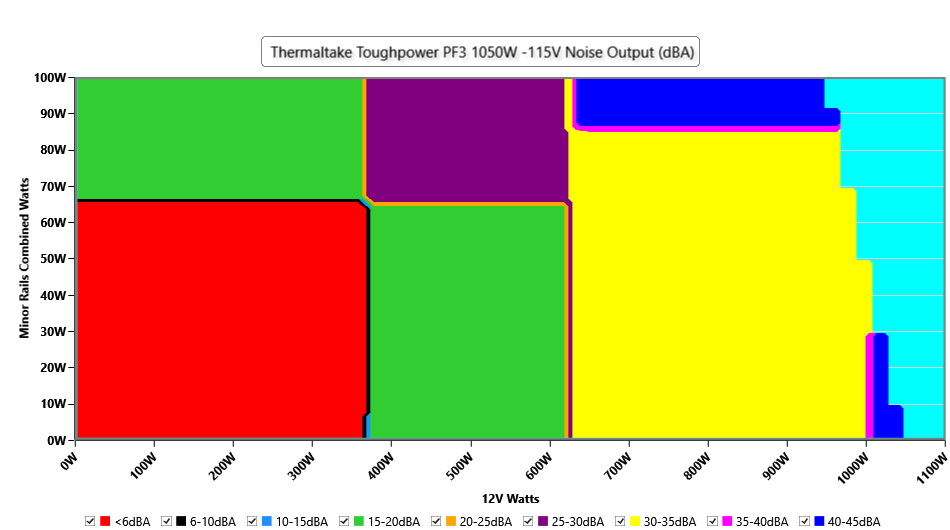

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

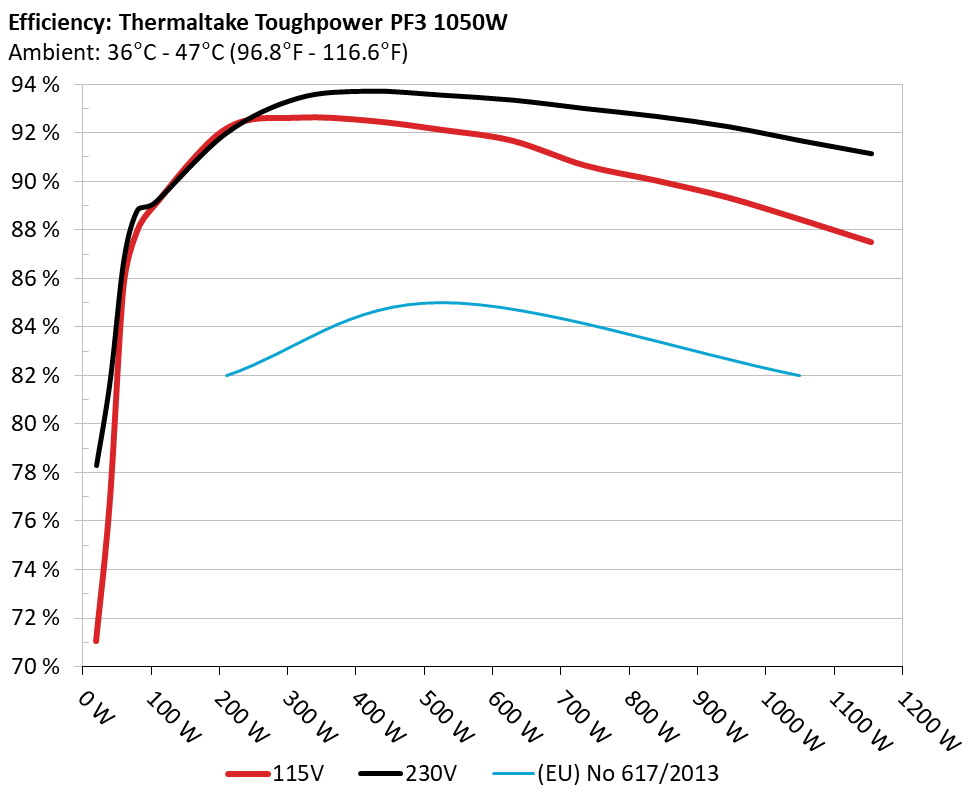

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

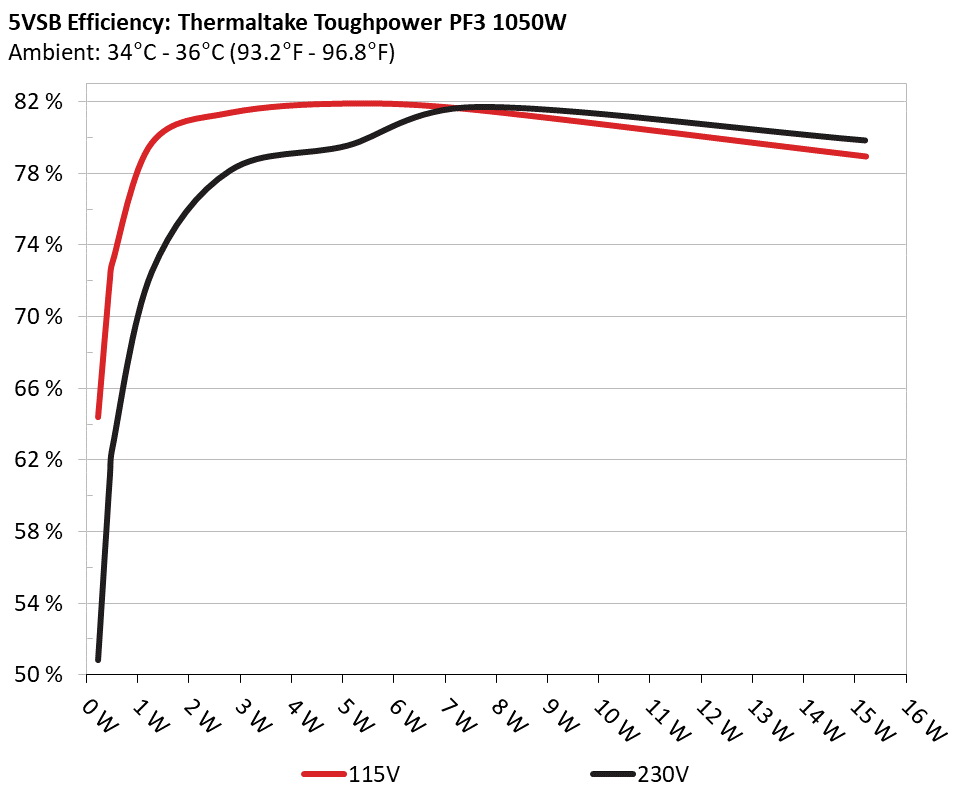

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 64.396% 0.045
5.118V 0.357W 114.87V
2 0.09A 0.461W 72.122% 0.08
5.118V 0.639W 114.87V
3 0.55A 2.81W 81.386% 0.3
5.109V 3.453W 114.87V
4 1A 5.102W 81.904% 0.377
5.102V 6.229W 114.87V
5 1.5A 7.641W 81.532% 0.424
5.094V 9.373W 114.87V
6 3A 15.212W 78.943% 0.483
5.07V 19.269W 114.86V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 50.807% 0.017
5.119V 0.454W 229.95V
2 0.09A 0.461W 61.131% 0.028
5.118V 0.754W 229.94V
3 0.55A 2.809W 78.171% 0.126
5.109V 3.593W 229.95V
4 1A 5.101W 79.559% 0.203
5.101V 6.415W 229.93V
5 1.5A 7.64W 81.717% 0.261
5.093V 9.351W 229.94V
6 3A 15.205W 79.85% 0.356
5.068V 19.043W 229.94V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.957A 1.995A 1.986A 0.98A 104.932 88.987% 0 <6.0 44.39°C 0.961
11.980V 5.012V 3.323V 5.101V 117.917 40.17°C 114.84V
20% 14.932A 2.994A 2.982A 1.178A 209.915 92.155% 0 <6.0 45.32°C 0.977
11.988V 5.01V 3.32V 5.092V 227.784 40.7°C 114.8V
30% 23.238A 3.495A 3.482A 1.377A 314.929 92.615% 0 <6.0 46.63°C 0.982
12.001V 5.008V 3.317V 5.083V 340.04 41.63°C 114.76V
40% 31.499A 3.996A 3.983A 1.577A 419.52 92.491% 1206 28.3 41.82°C 0.984
12.011V 5.006V 3.314V 5.074V 453.576 47.33°C 114.72V
50% 39.472A 4.997A 4.983A 1.777A 524.874 92.118% 1203 28.2 42.09°C 0.984
12.018V 5.003V 3.311V 5.065V 569.782 48.13°C 114.69V
60% 47.366A 6A 5.985A 1.978A 629.369 91.665% 1200 28.2 42.56°C 0.986
12.024V 5V 3.309V 5.056V 686.593 49.07°C 114.65V
70% 55.211A 7.004A 6.989A 2.179A 734.7 90.652% 1878 41.1 43.13°C 0.987
12.055V 4.998V 3.306V 5.047V 810.459 50.17°C 114.6V
80% 63.117A 8.001A 7.994A 2.282A 839.471 90.025% 1877 41.1 43.59°C 0.988
12.066V 4.995V 3.302V 5.039V 932.491 51.57°C 114.57V
90% 71.417A 8.51A 8.485A 2.384A 944.891 89.324% 1875 41.1 44.31°C 0.99
12.076V 4.994V 3.3V 5.032V 1057.819 53.23°C 114.52V
100% 79.442A 9.013A 9.008A 2.989A 1049.7 88.43% 1874 41.1 45.6°C 0.991
12.085V 4.992V 3.297V 5.017V 1187.044 55.33°C 114.47V
110% 87.348A 10.02A 10.11A 2.993A 1154.317 87.488% 2241 45.1 46.69°C 0.991
12.090V 4.99V 3.293V 5.012V 1319.415 57.51°C 114.43V
CL1 0.116A 12.039A 11.976A 0A 101.287 85.073% 1211 28.3 40.13°C 0.961
11.994V 5V 3.315V 5.115V 119.06 54.4°C 114.83V
CL2 0.115A 20.013A 0A 0A 101.348 83.672% 1215 28.3 40.91°C 0.961
11.990V 4.995V 3.324V 5.117V 121.122 50.65°C 114.83V
CL3 0.115A 0A 19.935A 0A 67.374 78.953% 1216 28.4 40.61°C 0.945
11.981V 5.013V 3.311V 5.114V 85.334 47.72°C 114.84V
CL4 86.873A 0A 0A 0.001A 1049.491 89.116% 2243 45.1 45.09°C 0.99
12.081V 5.004V 3.306V 5.074V 1177.67 52.75°C 114.48V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.926A 1.996A 1.986A 0.98A 104.95 89.103% 0 <6.0 44.58°C 0.857
12.036V 5.011V 3.323V 5.1V 117.785 40.37°C 229.93V
20% 14.879A 2.995A 2.982A 1.178A 209.945 91.982% 0 <6.0 45.46°C 0.926
12.033V 5.009V 3.32V 5.092V 228.249 40.86°C 229.91V
30% 23.184A 3.495A 3.482A 1.377A 314.942 93.421% 0 <6.0 46.26°C 0.949
12.029V 5.007V 3.317V 5.084V 337.118 41.24°C 229.89V
40% 31.426A 3.996A 3.983A 1.576A 419.489 93.714% 695 11.7 41.77°C 0.961
12.038V 5.006V 3.314V 5.075V 447.63 47.44°C 229.87V
50% 39.385A 4.997A 4.983A 1.777A 524.804 93.55% 1199 28.2 42.07°C 0.968
12.043V 5.003V 3.311V 5.065V 560.989 48.15°C 229.86V
60% 47.270A 6A 5.985A 1.978A 629.329 93.346% 1197 28.2 42.82°C 0.971
12.048V 5V 3.309V 5.056V 674.192 49.45°C 229.84V
70% 55.200A 7.004A 6.989A 2.179A 734.676 92.998% 1876 41.1 43.08°C 0.974
12.057V 4.997V 3.305V 5.047V 789.999 50.25°C 229.82V
80% 63.117A 8.001A 7.994A 2.282A 839.471 92.672% 1877 41.1 43.73°C 0.152
12.066V 4.995V 3.302V 5.117V 905.851 51.97°C 229.92V
90% 71.412A 8.511A 8.486A 2.384A 944.884 92.25% 1871 41.1 44.23°C 0.978
12.077V 4.993V 3.299V 5.032V 1024.266 53.12°C 229.79V
100% 79.438A 9.014A 9.009A 2.989A 1049.701 91.676% 1870 41.1 45.12°C 0.98
12.086V 4.992V 3.297V 5.017V 1145.015 54.89°C 229.77V
110% 87.347A 10.02A 10.11A 2.993A 1154.316 91.134% 2242 45.1 46.69°C 0.981
12.090V 4.99V 3.293V 5.011V 1266.616 57.56°C 229.75V
CL1 0.116A 12.039A 11.976A 0A 101.283 81.275% 1206 28.3 39.98°C 0.857
12.039V 5V 3.315V 5.114V 124.621 49.17°C 229.93V
CL2 0.114A 20.013A 0A 0A 101.35 80.329% 1208 28.3 40.17°C 0.859
12.042V 4.995V 3.324V 5.117V 126.167 47.25°C 229.93V
CL3 0.114A 0A 19.934A 0A 67.373 72.727% 1202 28.2 40.44°C 0.805
12.083V 5.013V 3.311V 5.114V 92.636 46.34°C 229.93V
CL4 86.863A 0A 0A 0.001A 1049.476 92.255% 2240 45.1 45.13°C 0.979
12.082V 5.004V 3.306V 5.074V 1137.583 49.11°C 229.77V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.249A 0.498A 0.496A 0.195A 19.989 71.052% 0 <6.0 39.11°C 0.823
11.880V 5.017V 3.327V 5.117V 28.131 36°C 114.86V
40W 2.749A 0.698A 0.694A 0.293A 39.99 76.787% 0 <6.0 40.42°C 0.911
11.889V 5.016V 3.327V 5.114V 52.081 37.02°C 114.85V
60W 4.218A 0.897A 0.893A 0.391A 59.99 85.65% 0 <6.0 41.79°C 0.938
11.978V 5.015V 3.326V 5.112V 70.041 38.03°C 114.85V
80W 5.701A 1.097A 1.092A 0.489A 79.923 87.939% 0 <6.0 42.92°C 0.946
11.979V 5.014V 3.325V 5.11V 90.882 39.02°C 114.84V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.246A 0.498A 0.496A 0.195A 19.986 78.271% 0 <6.0 39.36°C 0.48
11.903V 5.016V 3.327V 5.117V 25.534 36.23°C 229.94V
40W 2.740A 0.698A 0.694A 0.293A 39.988 81.792% 0 <6.0 40.25°C 0.642
11.930V 5.016V 3.327V 5.114V 48.89 36.93°C 229.94V
60W 4.176A 0.897A 0.893A 0.391A 59.991 86.767% 0 <6.0 41.83°C 0.768
12.098V 5.015V 3.326V 5.112V 69.14 38.26°C 229.93V
80W 5.658A 1.097A 1.092A 0.489A 79.934 88.809% 0 <6.0 42.9°C 0.818
12.074V 5.013V 3.324V 5.11V 81.808 39.17°C 229.93V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load8.94mV7.42mV8.74mV6.09mVPass
20% Load10.53mV21.84mV17.58mV6.61mVPass
30% Load9.60mV7.57mV9.93mV7.38mVPass
40% Load12.27mV7.68mV10.60mV7.74mVPass
50% Load11.55mV8.55mV10.86mV8.52mVPass
60% Load12.43mV8.45mV11.27mV9.14mVPass
70% Load14.38mV9.79mV12.82mV10.22mVPass
80% Load14.38mV9.89mV14.32mV10.68mVPass
90% Load13.92mV10.92mV14.94mV12.28mVPass
100% Load22.26mV11.53mV19.21mV23.13mVPass
110% Load22.85mV13.14mV20.48mV25.47mVPass
Crossload116.28mV8.83mV11.04mV6.05mVPass
Crossload212.58mV13.50mV9.31mV5.73mVPass
Crossload310.05mV7.42mV10.34mV5.37mVPass
Crossload419.93mV10.20mV19.17mV11.42mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load6.14mV6.49mV6.72mV6.35mVPass
20% Load10.88mV7.16mV7.81mV6.71mVPass
30% Load11.84mV7.73mV9.20mV7.17mVPass
40% Load13.10mV23.91mV19.34mV7.59mVPass
50% Load12.05mV17.88mV20.63mV8.05mVPass
60% Load12.27mV9.43mV12.72mV8.77mVPass
70% Load14.47mV8.97mV13.34mV10.53mVPass
80% Load14.60mV8.35mV12.00mV9.81mVPass
90% Load14.23mV10.31mV14.74mV11.77mVPass
100% Load24.00mV11.49mV19.43mV23.71mVPass
110% Load24.11mV11.31mV20.08mV23.57mVPass
Crossload19.09mV8.06mV10.38mV6.25mVPass
Crossload29.74mV13.14mV7.91mV5.99mVPass
Crossload310.16mV7.37mV9.88mV5.62mVPass
Crossload421.30mV9.49mV18.52mV11.09mVPass

The results above are not used in the certification process

Thermaltake Toughpower PF3 1050W

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
