CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Galax OMEGA GL650S
Lab IDGX65002257
  • Report: 23PS2257A
  • Receipt Date: Sep 20, 2023
  • Test Date: Nov 29, 2023
  • Report Date: Nov 30, 2023
115V230V
效率評比
115V230V
噪音評比
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Galax
製造商 (OEM)HKC
OMEGA GLS

(Vrms)100-240
(Arms)10
(Hz)50-60
(W)650
ATX12V
120mm Sleeve Bearing Fan
(AV-F12025HS)
✗
Fixed cables

Rail3.3V5V12V5VSB-12V
Max. PowerAmps181854.22.50.3
Watts100650.412.53.6
Total Max. Power (W)650

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (650mm) 1 1 18-22AWG No
8 pin (770mm) / 4+4 pin EPS12V (+150mm) 1 1 / 1 18AWG No
6+2 pin PCIe (660mm+150mm) 2 4 18AWG No
SATA (560mm+145mm+145mm+145mm) 1 4 18AWG No
4-pin Molex (560mm+150mm+150mm) 1 3 18AWG No

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary 115V

Hold-Up Time (ms)11.7
AC Loss to PWR_OK Hold Up Time (ms)21
PWR_OK Inactive to DC Loss Delay (ms)-9.3

待機電源消耗

Tables 115V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.87 V 114.81 V 113.85 V 114.93 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.98 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.419 1.417 1.340 1.421 1.490 PASS
Mains Voltage THD: 0.14 % 0.09 % N/A 0.26 % 2.00 % PASS
Real Power: 0.096 W 0.074 W N/A 0.121 W N/A N/A
Apparent Power: 8.736 W 8.705 W N/A 8.769 W N/A N/A
Power Factor: 0.011 N/A N/A N/A N/A N/A

115V

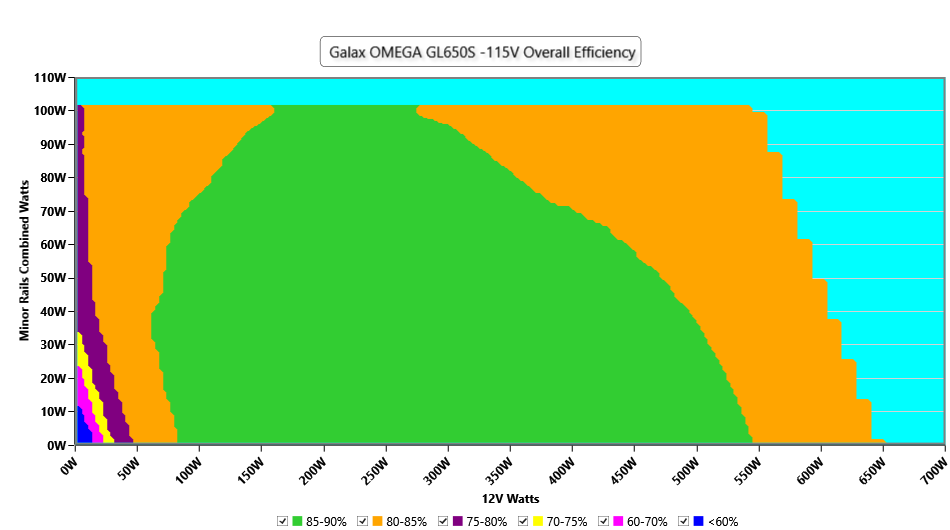

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

115V

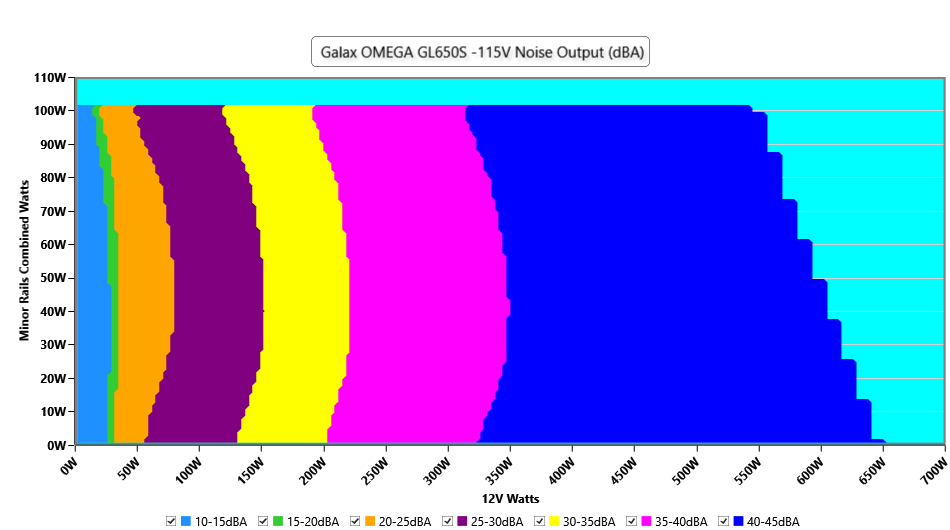

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

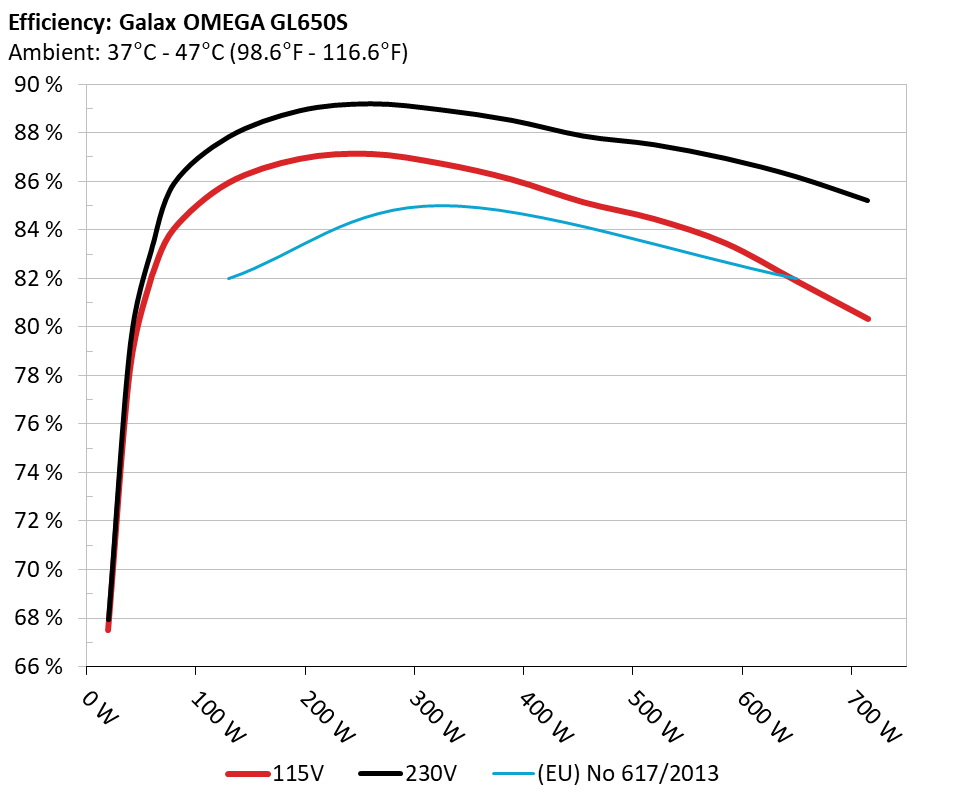

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

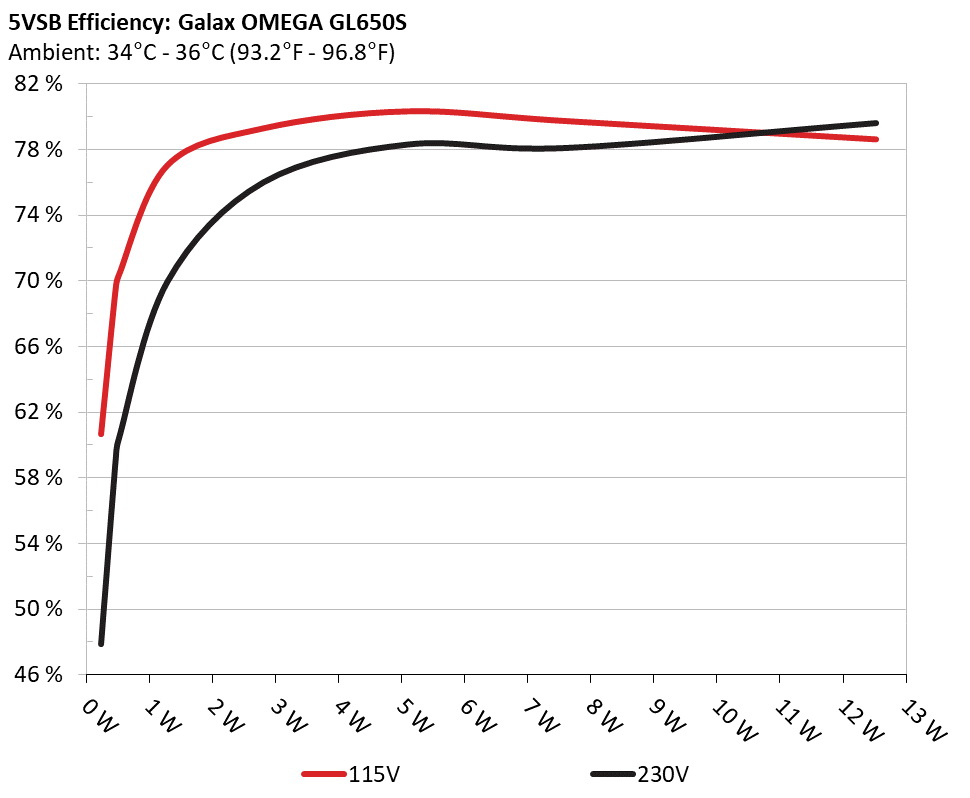

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 60.163% 0.049
5.133V 0.384W 114.86V
2 0.09A 0.462W 69.015% 0.083
5.133V 0.669W 114.86V
3 0.55A 2.809W 78.774% 0.299
5.107V 3.566W 114.87V
4 1A 5.084W 79.804% 0.361
5.084V 6.371W 114.86V
5 1.5A 7.589W 79.218% 0.406
5.059V 9.58W 114.87V
6 2.5A 12.521W 78.099% 0.45
5.008V 16.033W 114.86V

Supplementary Tests (For Reference)

115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.581A 1.974A 1.952A 0.985A 65.002 82.128% 1844 39.4 40.12°C 0.978
12.120V 5.065V 3.381V 5.076V 79.146 44.15°C 114.84V
20% 8.175A 2.969A 2.939A 1.188A 129.929 85.955% 1960 41.1 40.87°C 0.991
12.113V 5.052V 3.368V 5.05V 151.162 45.17°C 114.83V
30% 13.125A 3.472A 3.441A 1.393A 194.932 86.943% 2048 41.7 41.15°C 0.992
12.106V 5.041V 3.357V 5.025V 224.203 45.89°C 114.8V
40% 18.087A 3.976A 3.945A 1.6A 260.016 87.149% 2107 42.5 41.83°C 0.994
12.098V 5.03V 3.347V 4.999V 298.36 46.91°C 114.78V
50% 22.704A 4.984A 4.951A 1.81A 325.013 86.748% 2117 42.7 42.03°C 0.996
12.090V 5.016V 3.333V 4.972V 374.661 47.48°C 114.75V
60% 27.275A 5.997A 5.964A 2A 389.262 86.094% 2120 42.7 42.66°C 0.997
12.083V 5.003V 3.32V 4.946V 452.139 48.71°C 114.73V
70% 31.933A 7.015A 6.986A 2.237A 454.691 85.158% 2124 42.8 43.2°C 0.997
12.075V 4.99V 3.307V 4.917V 533.939 50.26°C 114.71V
80% 36.596A 8.038A 8.014A 2.35A 519.486 84.467% 2128 42.9 43.95°C 0.998
12.067V 4.976V 3.294V 4.895V 615.016 51.98°C 114.68V
90% 41.666A 8.562A 8.529A 2.463A 584.914 83.466% 2133 43 44.73°C 0.998
12.058V 4.964V 3.283V 4.873V 700.788 53.83°C 114.66V
100% 46.682A 9.088A 9.079A 2.578A 649.651 81.911% 2137 43 45.32°C 0.989
12.049V 4.951V 3.271V 4.85V 793.126 55.38°C 114.62V
110% 51.444A 10.128A 10.226A 2.588A 715.089 80.35% 2141 43 46.76°C 0.992
12.038V 4.937V 3.256V 4.832V 889.969 57.73°C 114.59V
CL1 0.115A 11.991A 11.883A 0A 101.296 79.147% 2101 42.4 40.8°C 0.989
12.109V 5.021V 3.341V 5.105V 127.985 46.29°C 114.82V
CL2 0.114A 17.902A 0A 0A 91.382 78% 1992 41.3 40.04°C 0.987
12.113V 5.027V 3.359V 5.114V 117.155 47.11°C 114.82V
CL3 0.114A 0A 17.72A 0A 60.784 72.203% 1955 41 40.49°C 0.98
12.115V 5.046V 3.352V 5.114V 84.186 49.57°C 114.83V
CL4 53.916A 0A 0A 0A 649.588 83.305% 2135 43 45.63°C 0.998
12.048V 4.994V 3.31V 5.009V 779.781 56.59°C 114.62V

The results above are not used in the certification process

115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.224A 0.492A 0.486A 0.195A 19.998 67.523% 1457 32.9 36.59°C 0.903
12.125V 5.078V 3.392V 5.128V 29.617 39.61°C 114.86V
40W 2.696A 0.69A 0.682A 0.293A 39.999 78.259% 1549 34.3 37.04°C 0.958
12.123V 5.074V 3.388V 5.118V 51.112 40.27°C 114.85V
60W 4.169A 0.887A 0.877A 0.391A 59.999 82.444% 1670 36.4 38.02°C 0.973
12.120V 5.071V 3.385V 5.109V 72.776 41.74°C 114.85V
80W 5.637A 1.085A 1.073A 0.49A 79.941 84.052% 1787 38.5 39.02°C 0.983
12.118V 5.068V 3.382V 5.1V 95.108 43°C 114.84V

The results above are not used in the certification process

115V

Test12V5V3.3V5VSBPass/Fail
10% Load18.21mV16.32mV16.83mV11.75mVPass
20% Load19.64mV17.60mV18.31mV11.96mVPass
30% Load20.36mV16.88mV18.83mV12.26mVPass
40% Load23.94mV18.22mV19.60mV13.24mVPass
50% Load27.21mV19.30mV20.06mV12.98mVPass
60% Load27.26mV21.04mV20.52mV14.11mVPass
70% Load28.79mV22.94mV22.27mV14.11mVPass
80% Load31.66mV25.51mV29.50mV14.52mVPass
90% Load35.75mV28.43mV29.91mV14.93mVPass
100% Load42.34mV33.98mV33.77mV17.34mVPass
110% Load51.94mV38.13mV39.69mV17.71mVPass
Crossload122.52mV22.82mV30.29mV14.48mVPass
Crossload221.53mV31.31mV25.50mV14.78mVPass
Crossload319.49mV21.40mV29.81mV12.98mVPass
Crossload440.41mV29.93mV24.87mV16.53mVPass

The results above are not used in the certification process

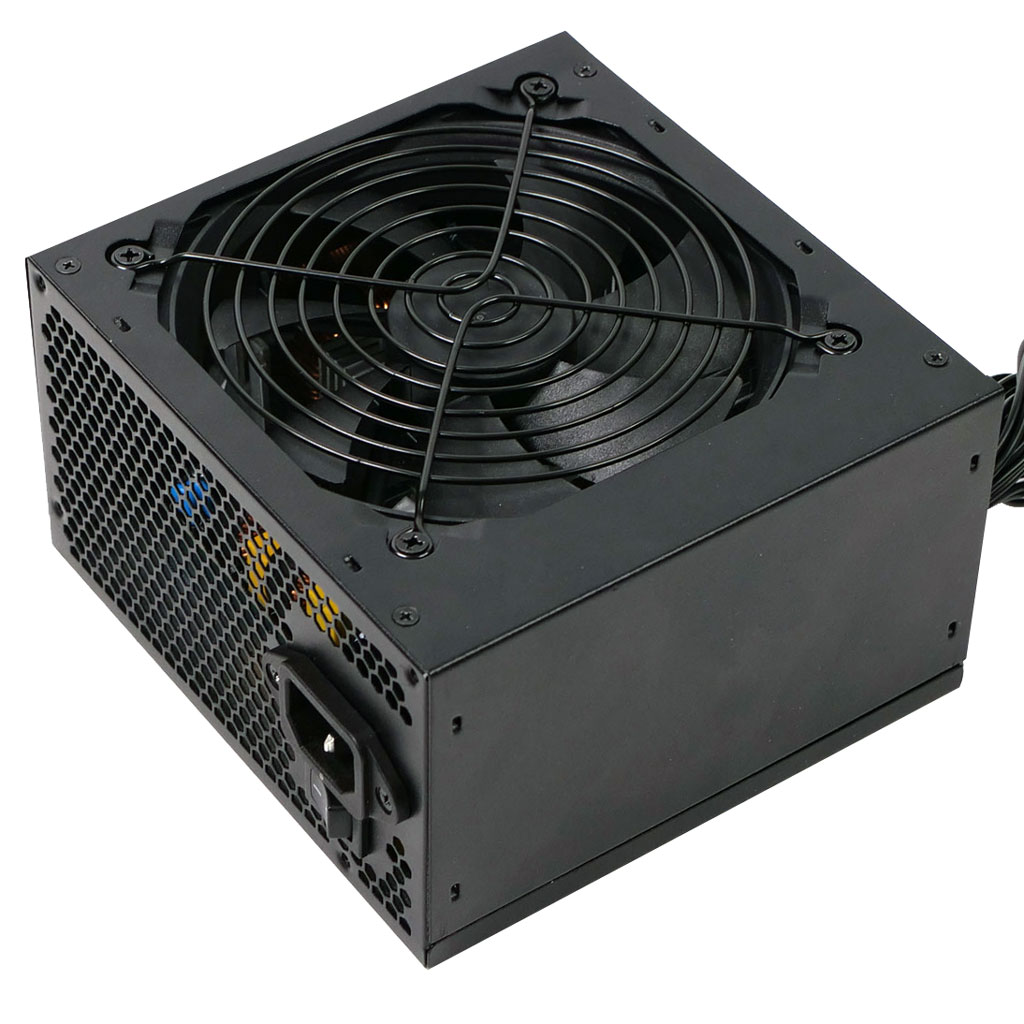

Galax OMEGA GL650S

Top side

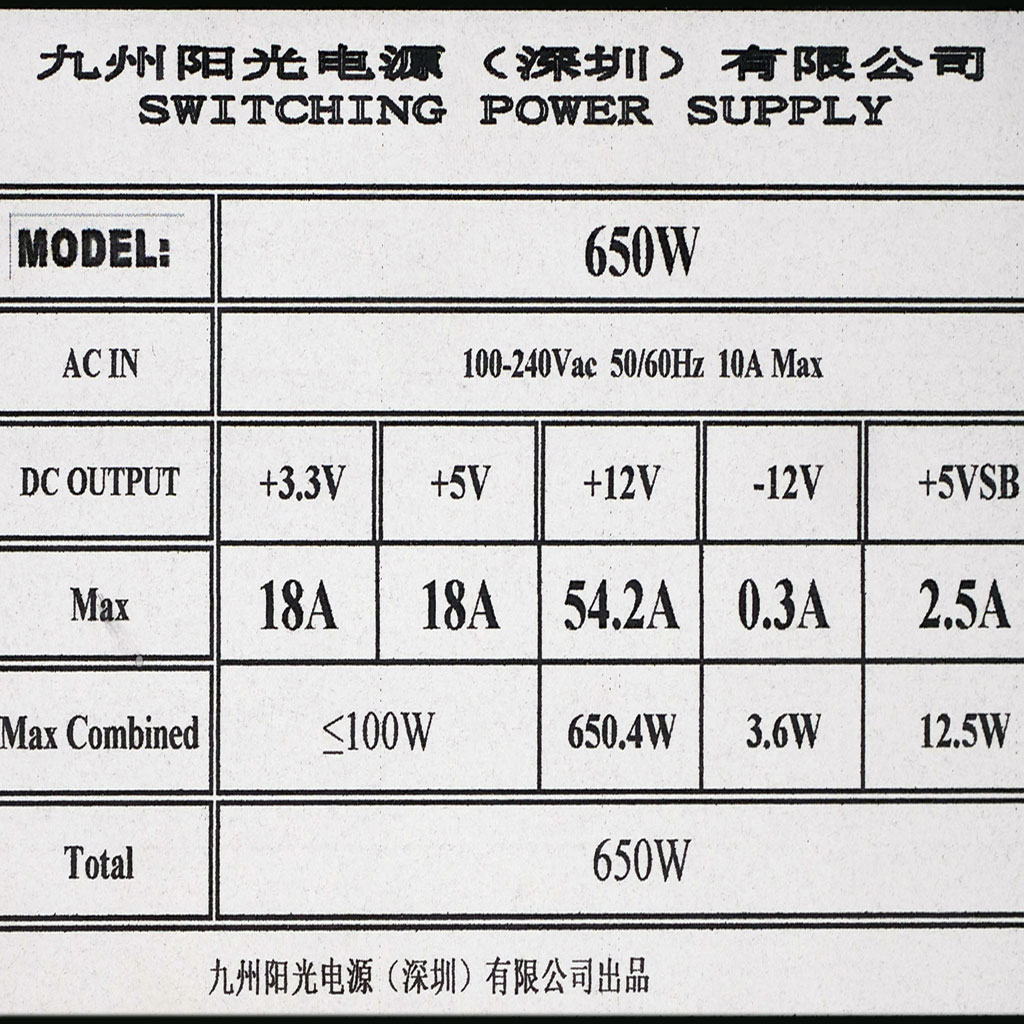

Power specifications label
CYBENETICS提供ETA和LAMBDA自願性認證 方案以推廣高效及靜音之電源供應器
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
