BOK Brushless BDM14025S (140mm, 12V, 0.34A, Hydraulic Bearing Fan)
5VSB Circuit
Rectifier
?
Standby PWM Controller
PN8141
Test Results
Temperature & Compliance Info
Temperature Range (°C /°F)
30-32 / 86-89.6
ErP Lot 3/6 Ready
✓
(EU) No 617/2013 Compliance
✓
ALPM (Alternative Low Power Mode) compatible
✓
ATX v3.0 Compliance
✓
Performance Summary 115V
Efficiency Rating
PLATINUM
Noise Rating
Standard+
Average Efficiency (>1450 load combinations)
90.120%
Average Noise Output (>1450 Load Combinations)
35.39dBA
Average PF (>1450 Load Combinations)
0.984
Efficiency With 10W (≤500W) or 2% (>500W) Load
69.638%
Standby Power Consumption
0.0856W
12V Ripple (Full Load)
40.76mV
5V Ripple (Full Load)
13.17mV
3.3V Ripple (Full Load)
15.35mV
5VSB Ripple (Full Load)
15.32mV
12V Load Regulation
0.28%
5V Load Regulation
1.57%
3.3V Load Regulation
2.21%
5VSB Load Regulation
4.56%
Inrush Current
34.700A
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
25.6
AC Loss to PWR_OK Hold Up Time (ms)
20.5
PWR_OK Inactive to DC Loss Delay (ms)
5.1
Vampire Power
Tables 115V
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
114.87 V
114.81 V
113.85 V
114.90 V
116.15 V
PASS
Mains Frequency:
60.00 Hz
59.99 Hz
59.40 Hz
60.02 Hz
60.60 Hz
PASS
Mains Voltage CF:
1.417
1.416
1.340
1.418
1.490
PASS
Mains Voltage THD:
0.14 %
0.11 %
N/A
0.19 %
2.00 %
PASS
Real Power:
0.086 W
0.025 W
N/A
0.122 W
N/A
N/A
Apparent Power:
10.059 W
10.038 W
N/A
10.084 W
N/A
N/A
Power Factor:
0.010
N/A
N/A
N/A
N/A
N/A
Graphs 115V

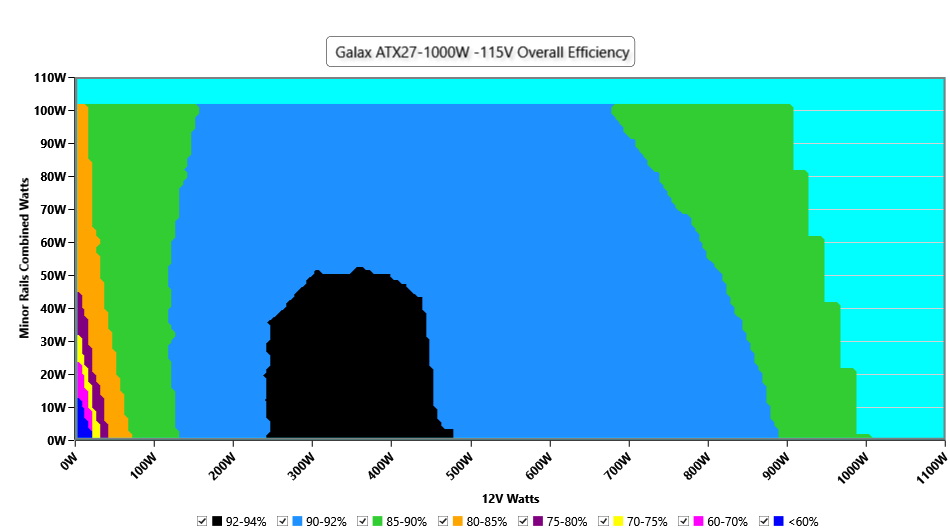

Efficiency Graph
115V
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

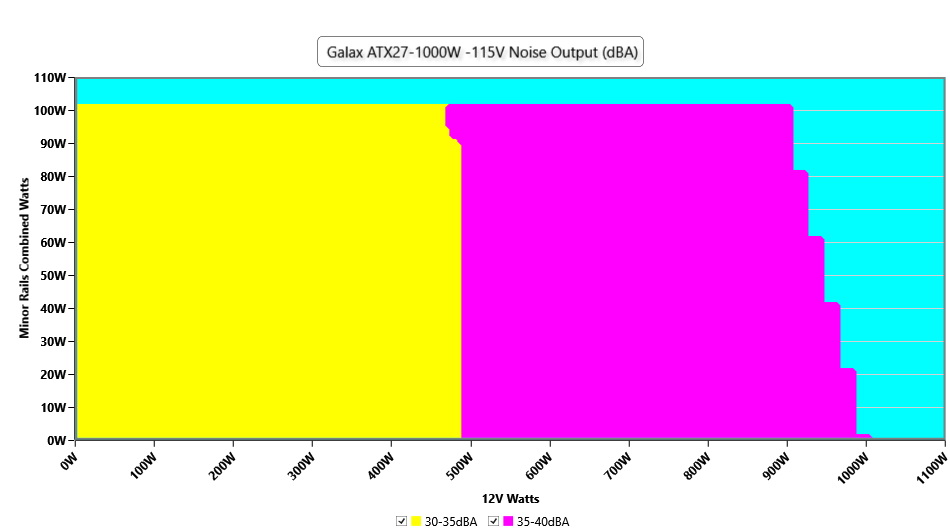

Noise Graph
115V
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
Indicative Performance

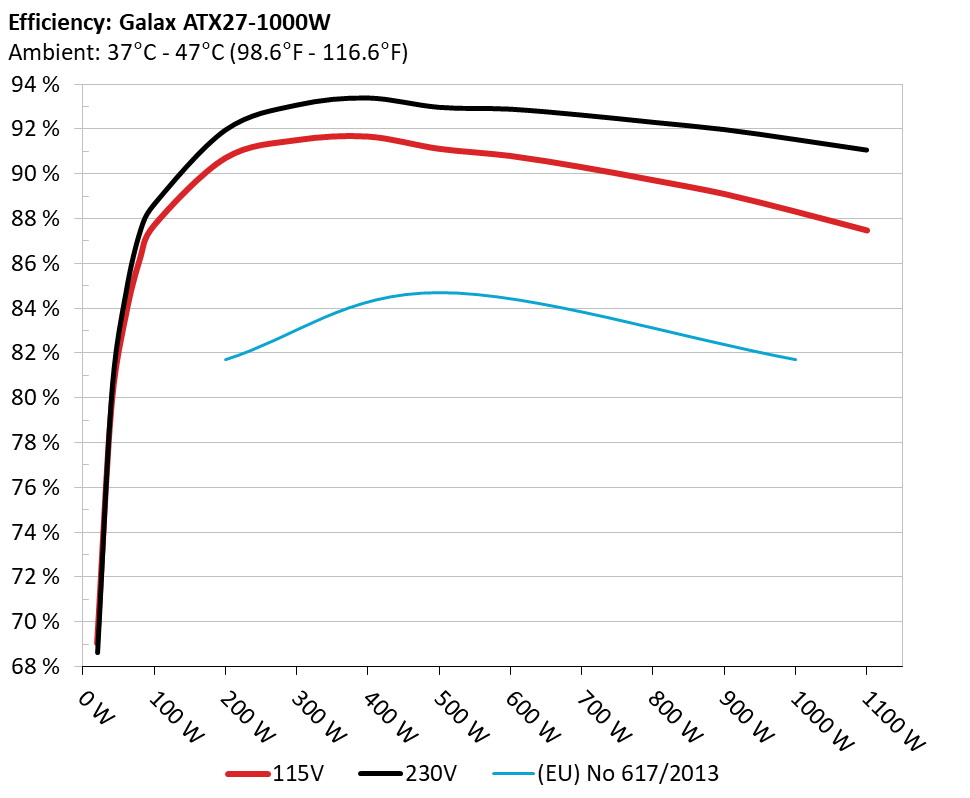

Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

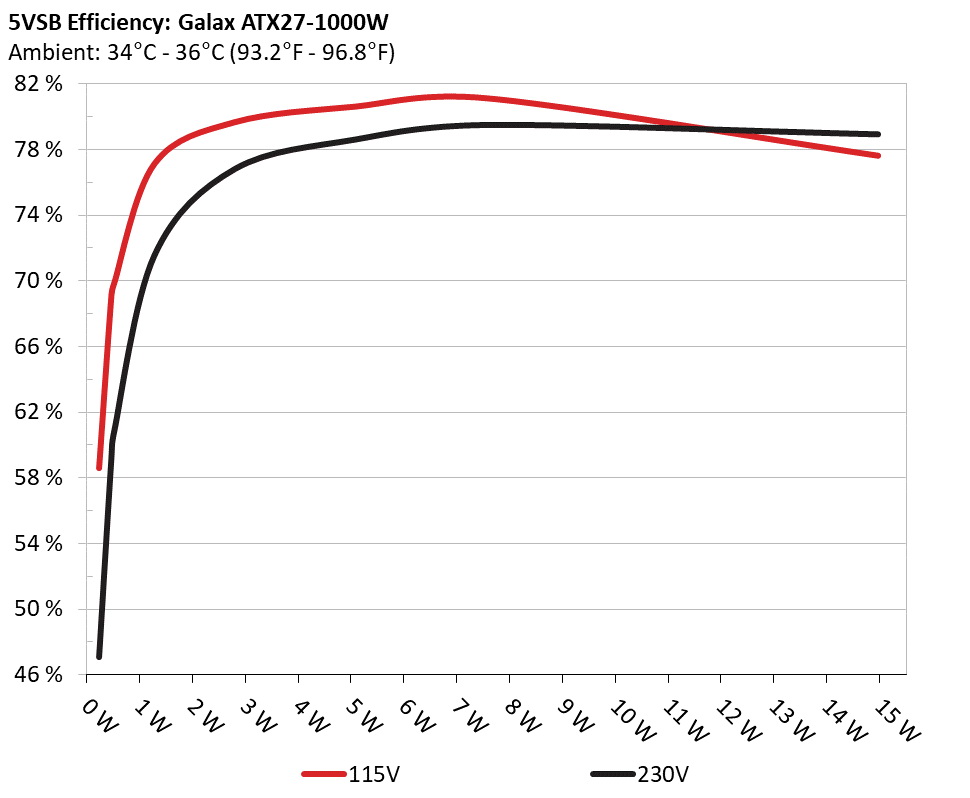

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
5VSB Efficiency (ERP LOT 3/6 & CEC) 115V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.23W
58.608%
0.039
5.119V
0.393W
114.86V
2
0.09A
0.461W
69.052%
0.065
5.117V
0.668W
114.85V
3
0.55A
2.804W
79.675%
0.267
5.098V
3.519W
114.85V
4
1A
5.079W
80.618%
0.364
5.078V
6.3W
114.85V
5
1.5A
7.586W
81.122%
0.414
5.057V
9.351W
114.86V
6
3A
14.975W
77.633%
0.487
4.992V
19.29W
114.85V
Supplementary Tests (For Reference)
Typical Load Tests 115V
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
6.519A
1.982A
1.963A
0.987A
99.992
87.999%
1120
31.9
40.23°C
0.981
12.025V
5.046V
3.362V
5.066V
113.629
44.45°C
114.81V
20%
14.063A
2.978A
2.951A
1.189A
199.948
91.005%
1349
37.2
40.83°C
0.973
12.020V
5.038V
3.355V
5.048V
219.712
45.46°C
114.78V
30%
21.967A
3.479A
3.45A
1.392A
300.003
91.805%
1350
37.2
41.01°C
0.98
12.016V
5.03V
3.348V
5.03V
326.783
46.18°C
114.75V
40%
29.837A
3.982A
3.951A
1.597A
399.597
91.963%
1351
37.2
41.6°C
0.985
12.012V
5.023V
3.341V
5.011V
434.518
47.21°C
114.72V
50%
37.371A
4.985A
4.95A
1.803A
499.326
91.42%
1352
37.2
42.32°C
0.989
12.009V
5.015V
3.333V
4.993V
546.189
48.49°C
114.68V
60%
44.979A
5.992A
5.955A
2A
599.788
91.1%
1353
37.2
42.67°C
0.991
12.006V
5.007V
3.325V
4.974V
658.382
49.28°C
114.65V
70%
52.524A
7.003A
6.964A
2.22A
699.55
90.6%
1355
37.2
43.09°C
0.992
12.003V
4.999V
3.318V
4.954V
772.128
50.16°C
114.6V
80%
60.140A
8.015A
7.976A
2.328A
799.557
90.018%
1447
39.2
43.89°C
0.993
11.999V
4.99V
3.31V
4.94V
888.22
51.91°C
114.57V
90%
68.095A
8.528A
8.477A
2.437A
899.335
89.401%
1449
39.2
44.31°C
0.994
11.996V
4.983V
3.303V
4.925V
1005.96
53.39°C
114.53V
100%
75.855A
9.044A
9.011A
3.071A
999.356
88.615%
1680
42.9
45.38°C
0.995
11.992V
4.975V
3.296V
4.886V
1127.748
55.42°C
114.5V
110%
83.550A
10.067A
10.129A
3.078A
1099.988
87.771%
1868
45.7
46.87°C
0.995
11.989V
4.966V
3.287V
4.874V
1253.248
57.79°C
114.46V
CL1
0.116A
11.989A
11.877A
0A
101.298
83.499%
1346
37.2
40.08°C
0.98
12.031V
5.021V
3.342V
5.099V
121.312
45.54°C
114.8V
CL2
0.115A
19.893A
0A
0A
101.339
82.411%
1349
37.2
40.19°C
0.979
12.028V
5.024V
3.352V
5.104V
122.967
47.28°C
114.81V
CL3
0.115A
0A
19.738A
0A
67.385
76.821%
1349
37.2
40.54°C
0.963
12.028V
5.033V
3.344V
5.104V
87.718
49.57°C
114.82V
CL4
83.419A
0A
0A
0.002A
999.968
89.437%
1534
40.6
45.64°C
0.994
11.987V
5.001V
3.318V
5.035V
1118.072
56.58°C
114.5V
The results above are not used in the certification process
Light Load Tests 115V
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.234A
0.495A
0.49A
0.196A
19.999
69.336%
1111
31.7
36.62°C
0.838
12.026V
5.053V
3.369V
5.109V
28.841
39.68°C
114.84V
40W
2.718A
0.693A
0.686A
0.294A
39.998
79.882%
1114
31.7
37.02°C
0.917
12.026V
5.052V
3.368V
5.103V
50.07
40.29°C
114.84V
60W
4.202A
0.891A
0.882A
0.392A
59.998
83.946%
1116
31.8
38.14°C
0.954
12.025V
5.05V
3.367V
5.097V
71.474
41.92°C
114.83V
80W
5.680A
1.089A
1.079A
0.491A
79.939
86.484%
1119
31.9
39.33°C
0.966
12.025V
5.049V
3.365V
5.09V
92.432
43.29°C
114.83V
The results above are not used in the certification process
Ripple Measurements 115V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
21.63mV
6.11mV
7.18mV
4.93mV
Pass
20% Load
21.64mV
6.62mV
7.95mV
5.49mV
Pass
30% Load
20.77mV
7.18mV
8.01mV
6.31mV
Pass
40% Load
20.15mV
7.85mV
9.08mV
7.24mV
Pass
50% Load
22.04mV
8.26mV
9.54mV
7.44mV
Pass
60% Load
22.61mV
8.67mV
10.31mV
8.77mV
Pass
70% Load
24.09mV
9.60mV
10.78mV
10.26mV
Pass
80% Load
25.68mV
10.98mV
12.57mV
11.24mV
Pass
90% Load
26.95mV
11.80mV
13.24mV
12.83mV
Pass
100% Load
40.76mV
13.17mV
15.35mV
15.32mV
Pass
110% Load
41.98mV
13.89mV
16.13mV
16.18mV
Pass
Crossload1
31.59mV
10.83mV
11.29mV
6.92mV
Pass
Crossload2
21.78mV
17.09mV
9.85mV
6.98mV
Pass
Crossload3
20.30mV
8.83mV
12.57mV
7.59mV
Pass
Crossload4
39.48mV
10.96mV
12.86mV
13.78mV
Pass
The results above are not used in the certification process
Galax OMEGA GLX1000

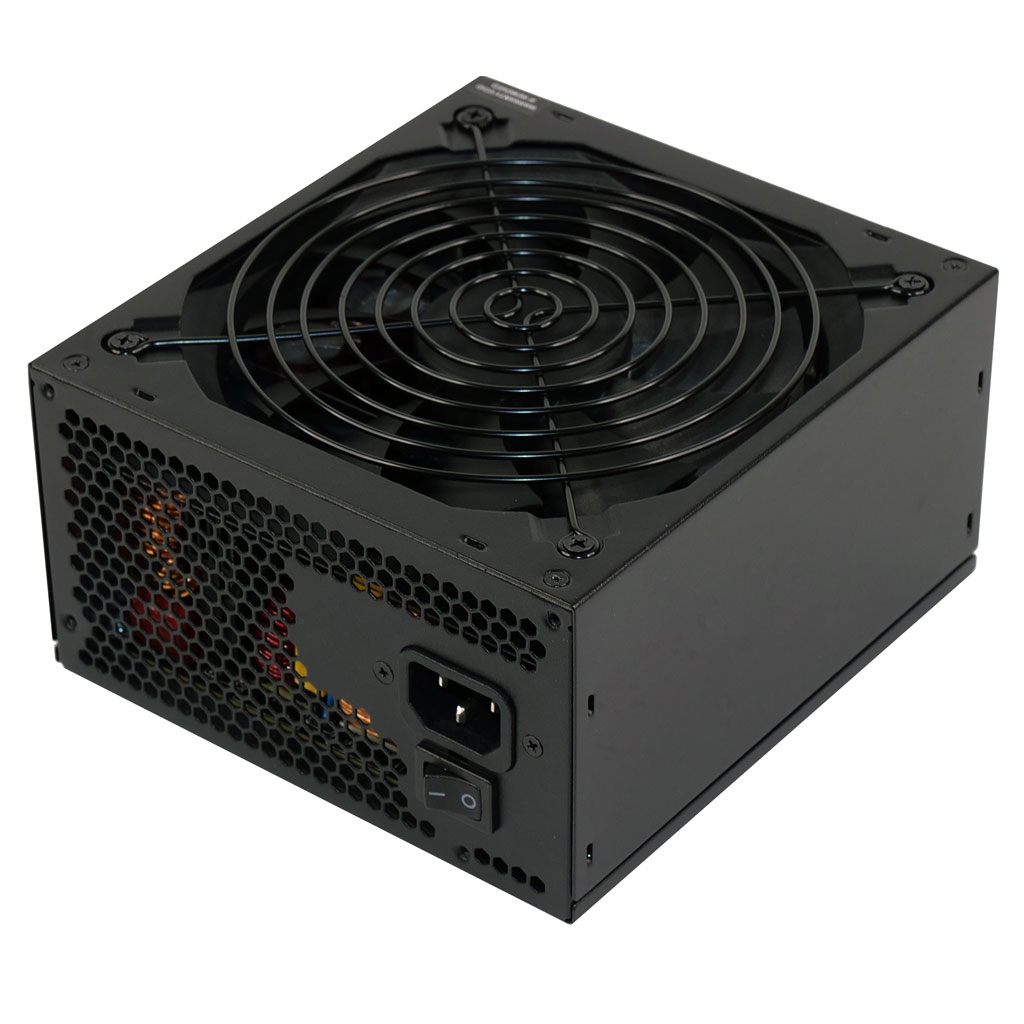

Top side

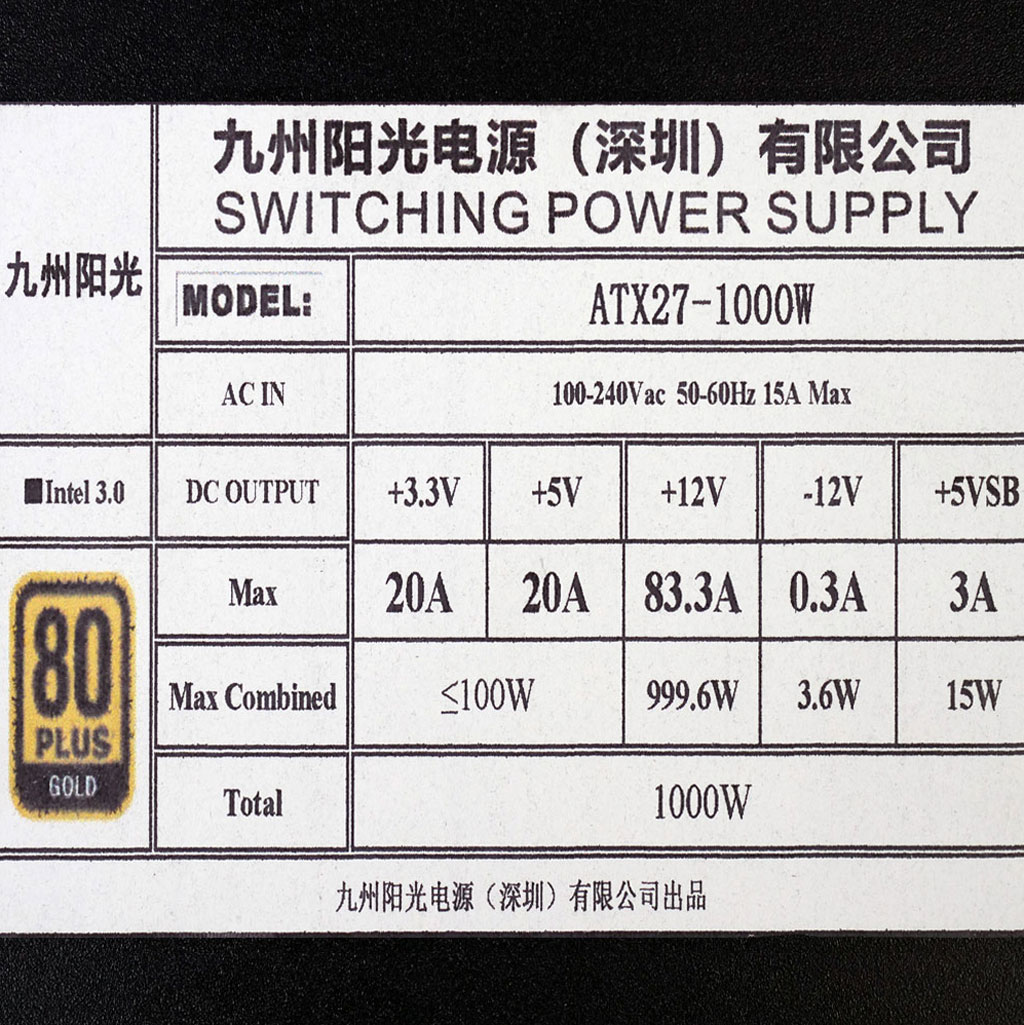

Power specifications label
