CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Kinpower PS1000GM
Serial Number
Lab IDKP10002206
  • Report: 23PS2206A
  • Receipt Date: Jun 22, 2023
  • Test Date: Jul 6, 2023
  • Report Date: Jul 6, 2023
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandKinpower
Manufacturer (OEM)Kinpower
SeriesPS-GM
Model NumberPS1000GM
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)16
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Cooling140mm Rifle Bearing Fan
(EFS-14E12H)
Semi-Passive Operation✓
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202083.530.3
Watts1031000153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18-22AWG No
4+4 pin EPS12V (700mm) 2 2 16AWG No
6+2 pin PCIe (600mm+150mm) 2 4 16-18AWG No
12+4 pin PCIe (600mm) (600W) 1 1 16-24AWG No
SATA (450mm+150mm+150mm) 2 6 18AWG No
SATA (500mm+150mm+150mm) 1 3 18AWG No
4-pin Molex (500mm+150mm+150mm) 1 3 18AWG No
AC Power Cord (1100mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data -
Manufacturer (OEM) Kinpower
PCB Type Double - Sided
Primary Side -
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 2X NTC Thermistors (MF72 2.5D 13, 2.5 Ohm) & Relay
Bridge Rectifier(s) 3x LGE  GBU2506L 600V, 25A @ 100°C (without heatsinks)
APFC MOSFETs 2x FXN65S55TF
APFC Boost Diode 1x Global Power G3S06510A (650V, 10A @ 150°C)
Bulk Cap(s) 2x Nichicon (400V, 470uF each or 940uF combined, 3000h @ 105°C, GN)
Main Switchers 2x Wayon WMJ28N50C4 (500V, 28A @ 25°C, Rds(on): 0.125Ohm)
APFC Controller Champion CM6500UNX
Resonant Controller Champion CM6901X
Topology Primary side: APFC, Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 8x Airupton AKG40N025G (40V, 74A @ 100°C, Rds(on): 2.5mOhm)
5V & 3.3V DC-DC Converters: 4x Excelliance EMB06N03HR (25V, 97A @ 100°C, Rds(on): 1.4mOhm)
PWM Controller(s): 2x Excelliance  EM5301F
Filtering Capacitors Electrolytic: 4x ChengX (2-4000 @ 105°C, GR) 1x Teapo (2000 @ 105°C, SC)
Polymer: 34x ChengX (PC Series)
Supervisor IC IN1S429I - DCG
Fan Model DWPH EFS-14E12H (140mm, 12V, 0.30A, Hydraulic Dynamic Bearing Fan)
5VSB Circuit -
Standby PWM Controller XLSEMI XL2576S

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary 115V

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)7.6
AC Loss to PWR_OK Hold Up Time (ms)14.4
PWR_OK Inactive to DC Loss Delay (ms)-6.8

Vampire Power

Tables 115V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.86 V 114.80 V 113.85 V 114.91 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.98 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.419 1.417 1.340 1.421 1.490 PASS
Mains Voltage THD: 0.15 % 0.09 % N/A 0.26 % 2.00 % PASS
Real Power: 0.077 W 0.018 W N/A 0.128 W N/A N/A
Apparent Power: 11.392 W 11.363 W N/A 11.427 W N/A N/A
Power Factor: 0.008 N/A N/A N/A N/A N/A

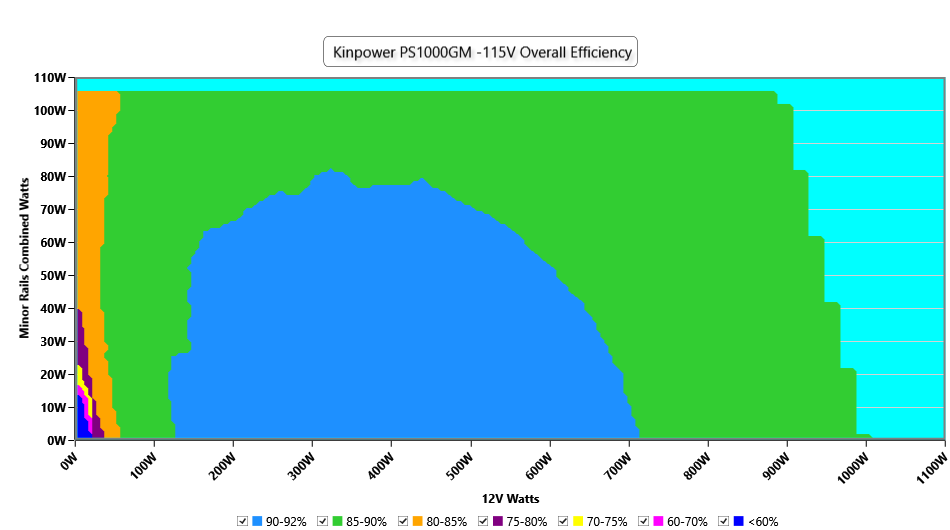

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

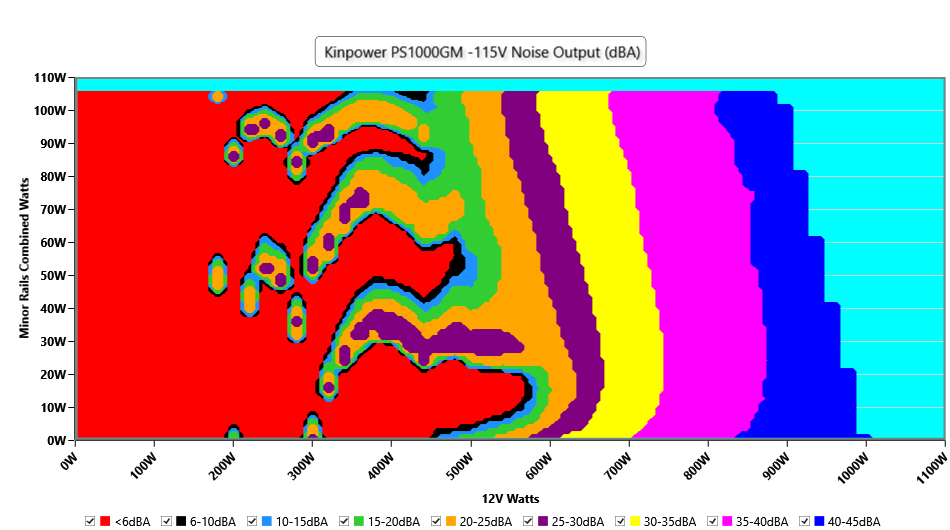

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

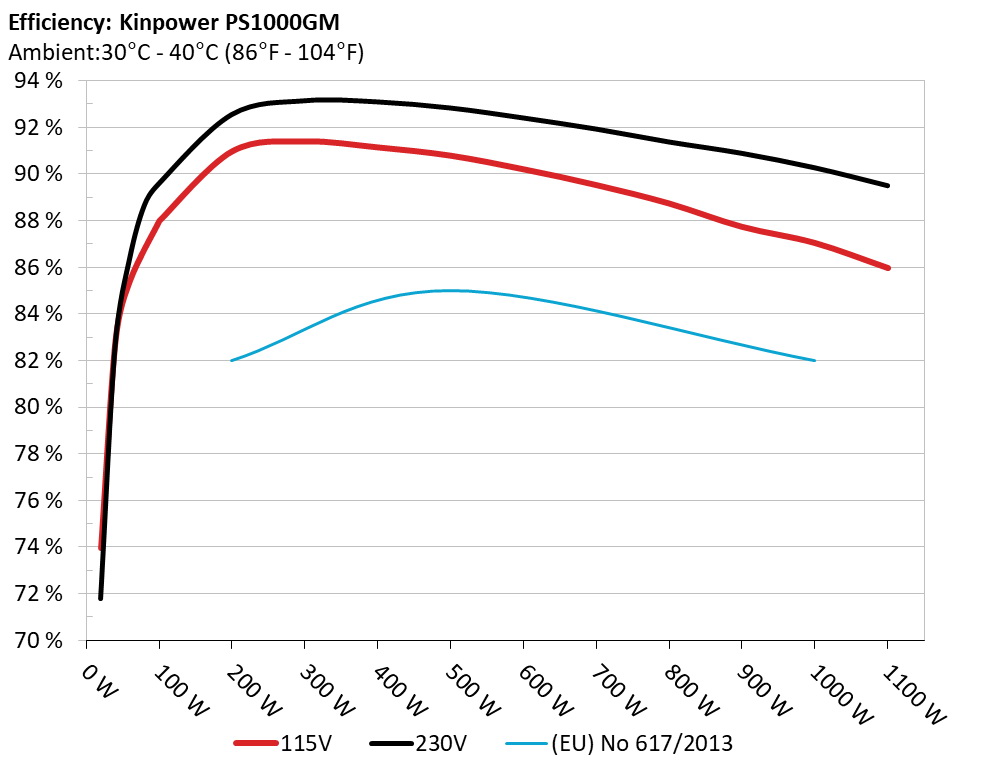

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

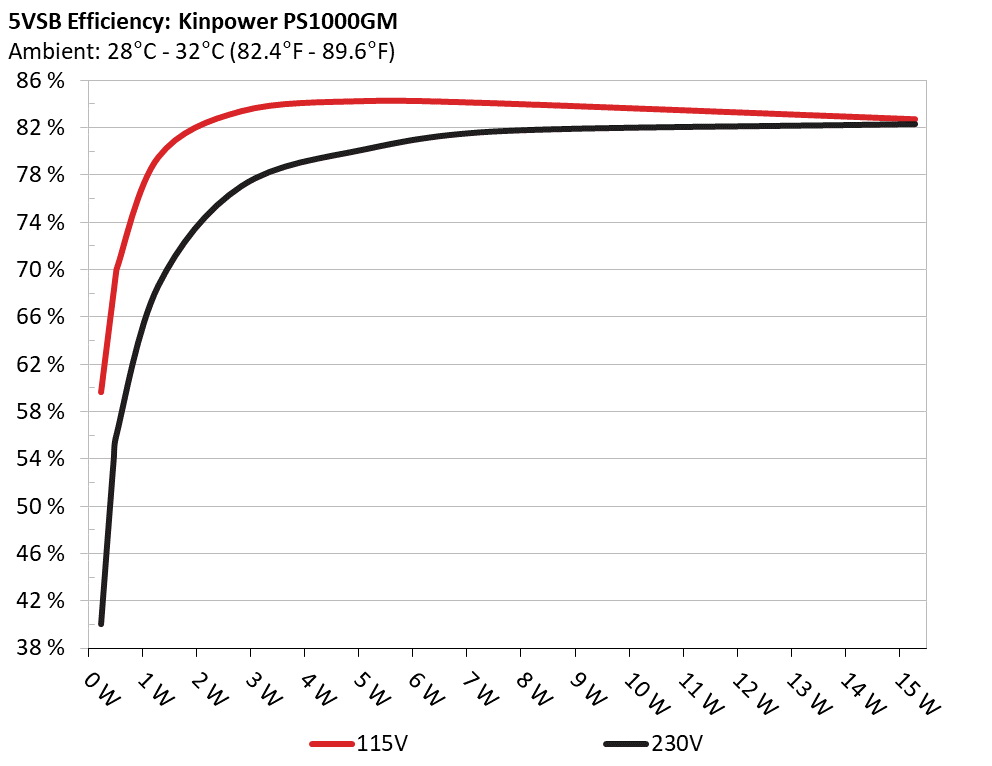

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232W 59.679% 0.037
5.156V 0.389W 114.84V
2 0.09A 0.464W 70.023% 0.062
5.155V 0.663W 114.84V
3 0.55A 2.83W 83.387% 0.24
5.145V 3.394W 114.84V
4 1A 5.136W 84.232% 0.308
5.135V 6.097W 114.84V
5 1.5A 7.688W 84.016% 0.353
5.125V 9.15W 114.84V
6 3A 15.28W 82.7% 0.414
5.093V 18.475W 114.84V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.382A 1.934A 1.966A 0.976A 99.995 87.99% 0 <6.0 38.65°C 0.928
12.284V 5.169V 3.357V 5.124V 113.645 34.42°C 114.83V
20% 13.770A 2.91A 2.962A 1.175A 199.948 90.958% 0 <6.0 39.47°C 0.964
12.276V 5.154V 3.342V 5.106V 219.828 34.88°C 114.8V
30% 21.520A 3.404A 3.468A 1.376A 299.999 91.384% 0 <6.0 40.47°C 0.978
12.265V 5.142V 3.33V 5.089V 328.283 35.41°C 114.76V
40% 29.249A 3.898A 3.978A 1.578A 399.581 91.131% 802 18.2 35.85°C 0.985
12.253V 5.131V 3.318V 5.072V 438.472 41.38°C 114.73V
50% 36.671A 4.887A 4.996A 1.781A 499.284 90.778% 771 16.8 36.3°C 0.99
12.238V 5.116V 3.303V 5.054V 550.007 42.19°C 114.69V
60% 44.183A 5.882A 6.024A 1.986A 599.851 90.189% 1177 29.7 36.95°C 0.993
12.223V 5.101V 3.287V 5.035V 665.103 43.49°C 114.66V
70% 51.645A 6.884A 7.063A 2.193A 699.577 89.516% 1452 35.3 37.03°C 0.995
12.208V 5.085V 3.271V 5.017V 781.515 44.07°C 114.62V
80% 59.190A 7.892A 8.112A 2.3A 799.611 88.724% 1662 38.9 37.71°C 0.996
12.193V 5.07V 3.254V 5V 901.243 45.77°C 114.58V
90% 67.077A 8.405A 8.639A 2.409A 899.396 87.725% 1730 40.1 38.31°C 0.993
12.179V 5.057V 3.241V 4.983V 1025.238 47.34°C 114.55V
100% 74.786A 8.923A 9.203A 3.028A 999.405 87.033% 1730 40.1 39.53°C 0.996
12.165V 5.043V 3.227V 4.954V 1148.308 49.62°C 114.5V
110% 82.444A 9.952A 10.378A 3.039A 1100.035 85.956% 1730 40.1 40.05°C 0.997
12.150V 5.025V 3.208V 4.936V 1279.751 50.99°C 114.46V
CL1 0.114A 12.196A 12.463A 0A 104.308 80.771% 1073 26.6 34.14°C 0.932
12.281V 5.084V 3.282V 5.129V 129.144 39.66°C 114.81V
CL2 0.113A 19.699A 0A 0A 101.353 78.993% 0 <6.0 43.01°C 0.931
12.288V 5.074V 3.318V 5.136V 128.314 35.94°C 114.82V
CL3 0.113A 0A 20.246A 0A 67.385 71.72% 0 <6.0 43.68°C 0.913
12.277V 5.101V 3.26V 5.133V 93.96 34.65°C 114.83V
CL4 82.087A 0A 0A 0.008A 1000.002 87.686% 1739 40.2 39.23°C 0.995
12.181V 5.11V 3.294V 5.034V 1140.444 50.18°C 114.51V

The results above are not used in the certification process

Light Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.208A 0.482A 0.489A 0.194A 19.998 73.948% 0 <6.0 33.49°C 0.734
12.298V 5.188V 3.374V 5.151V 27.045 30.43°C 114.87V
40W 2.660A 0.675A 0.685A 0.292A 39.999 82.905% 0 <6.0 35.09°C 0.846
12.286V 5.184V 3.371V 5.146V 48.25 31.81°C 114.86V
60W 4.114A 0.868A 0.882A 0.389A 59.999 85.438% 0 <6.0 36.59°C 0.888
12.283V 5.181V 3.368V 5.142V 70.226 32.8°C 114.85V
80W 5.562A 1.062A 1.079A 0.487A 79.942 87.976% 0 <6.0 37.86°C 0.913
12.282V 5.177V 3.365V 5.137V 90.865 33.88°C 114.84V

The results above are not used in the certification process

Ripple Measurements 115V

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 16.3 mV 14.3 mV 12.7 mV 9.6 mV Pass
20% Load 14.7 mV 17.5 mV 14.1 mV 12.8 mV Pass
30% Load 13.9 mV 19.7 mV 15.7 mV 16.7 mV Pass
40% Load 15.0 mV 23.3 mV 16.0 mV 21.6 mV Pass
50% Load 17.0 mV 27.5 mV 19.9 mV 25.4 mV Pass
60% Load 18.8 mV 30.4 mV 21.7 mV 30.0 mV Pass
70% Load 22.1 mV 34.7 mV 21.4 mV 34.5 mV Pass
80% Load 23.2 mV 39.1 mV 23.1 mV 38.5 mV Pass
90% Load 26.7 mV 40.4 mV 24.0 mV 44.4 mV Pass
100% Load 33.2 mV 46.0 mV 27.8 mV 50.5 mV Fail
110% Load 38.1 mV 50.6 mV 31.0 mV 54.3 mV Fail
Crossload 1 24.0 mV 51.6 mV 35.6 mV 14.1 mV Fail
Crossload 2 25.5 mV 35.0 mV 174.9 mV 14.4 mV Fail
Crossload 3 18.5 mV 45.5 mV 17.8 mV 12.8 mV Pass
Crossload 4 31.8 mV 18.4 mV 15.8 mV 50.8 mV Fail

The results above are not used in the certification process

Kinpower PS1000GM

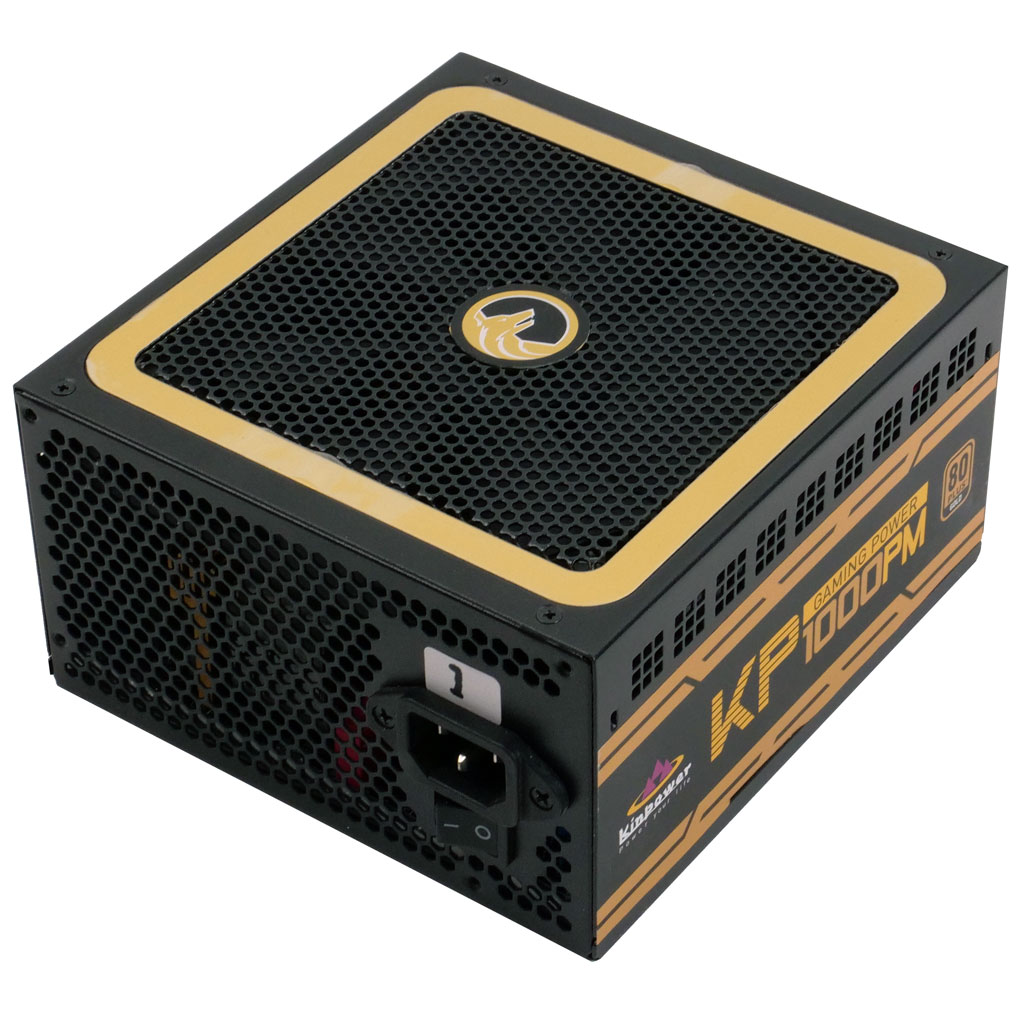

Top side

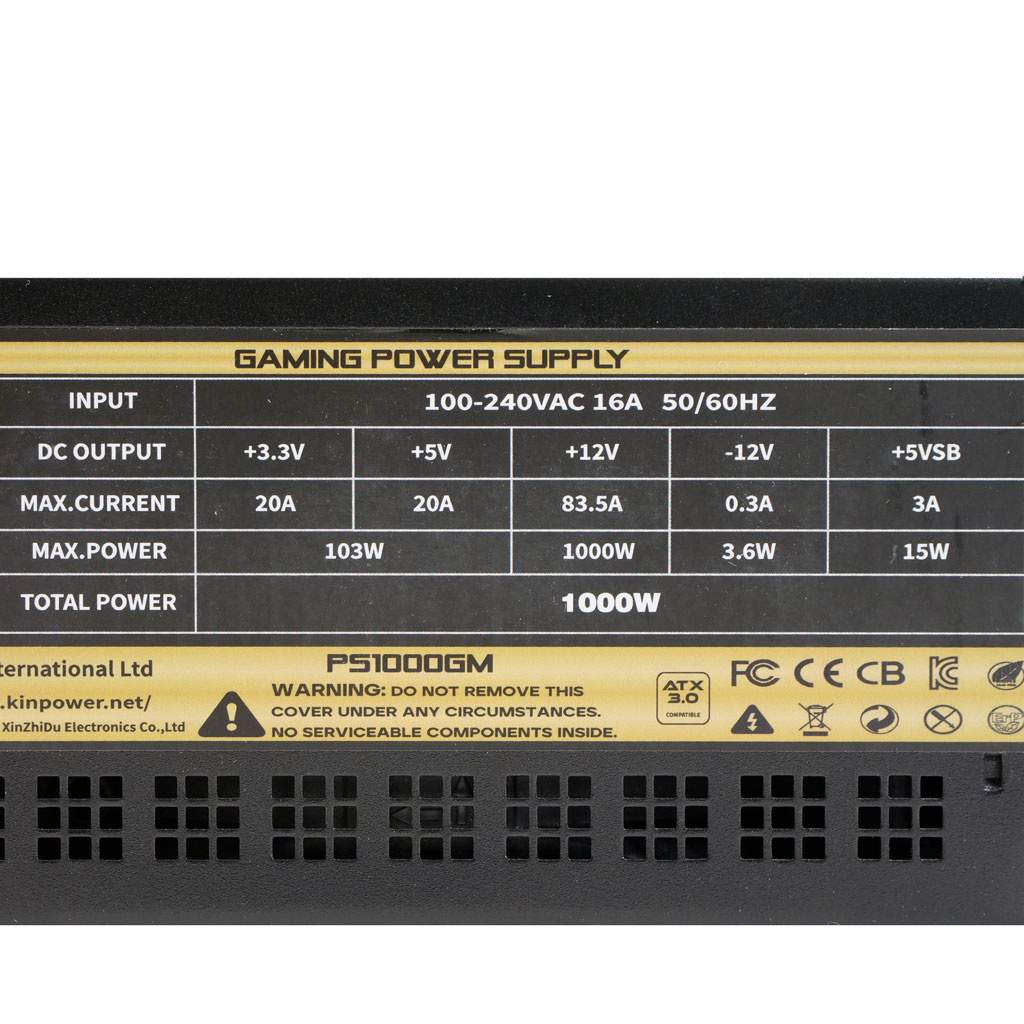

Power specifications label
