Super Flower Leadex VII XP 1000W
Serial Number
Lab IDSF10002194
  • Report: 23PS2194A
  • Receipt Date: Jun 9, 2023
  • Test Date: Jun 14, 2023
  • Report Date: Jun 15, 2023
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandSuper Flower
Manufacturer (OEM)Super Flower
SeriesLeadex VII
Model NumberSF-1000F14XP
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15
Rated Frequency (Hz)60-50
Rated Power (W)1000
TypeATX12V
Cooling140mm Fluid Dynamic Bearing Fan
(ZFF142512D)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202083.330.5
Watts100999.6156
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16-20AWG No
4+4 pin EPS12V (700mm) 2 2 18AWG No
6+2 pin PCIe (700mm) 4 4 16AWG No
12+2 pin PCIe (700mm) (600W) 1 1 16-24AWG No
SATA (550mm+130mm+130mm+130mm) 3 12 18AWG No
4-pin Molex (550mm+150mm+150mm+150mm) 1 4 18AWG No
AC Power Cord (1370mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)26.7
AC Loss to PWR_OK Hold Up Time (ms)24.1
PWR_OK Inactive to DC Loss Delay (ms)2.6

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.87 V 114.81 V 113.85 V 114.92 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.98 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.418 1.417 1.340 1.420 1.490 PASS
Mains Voltage THD: 0.15 % 0.09 % N/A 0.25 % 2.00 % PASS
Real Power: 0.064 W 0.043 W N/A 0.084 W N/A N/A
Apparent Power: 9.841 W 9.813 W N/A 9.874 W N/A N/A
Power Factor: 0.006 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.96 V 229.89 V 227.70 V 230.01 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.18 % 2.00 % PASS
Real Power: 0.105 W 0.059 W N/A 0.162 W N/A N/A
Apparent Power: 33.123 W 33.078 W N/A 33.177 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Efficiency Graph

INFO

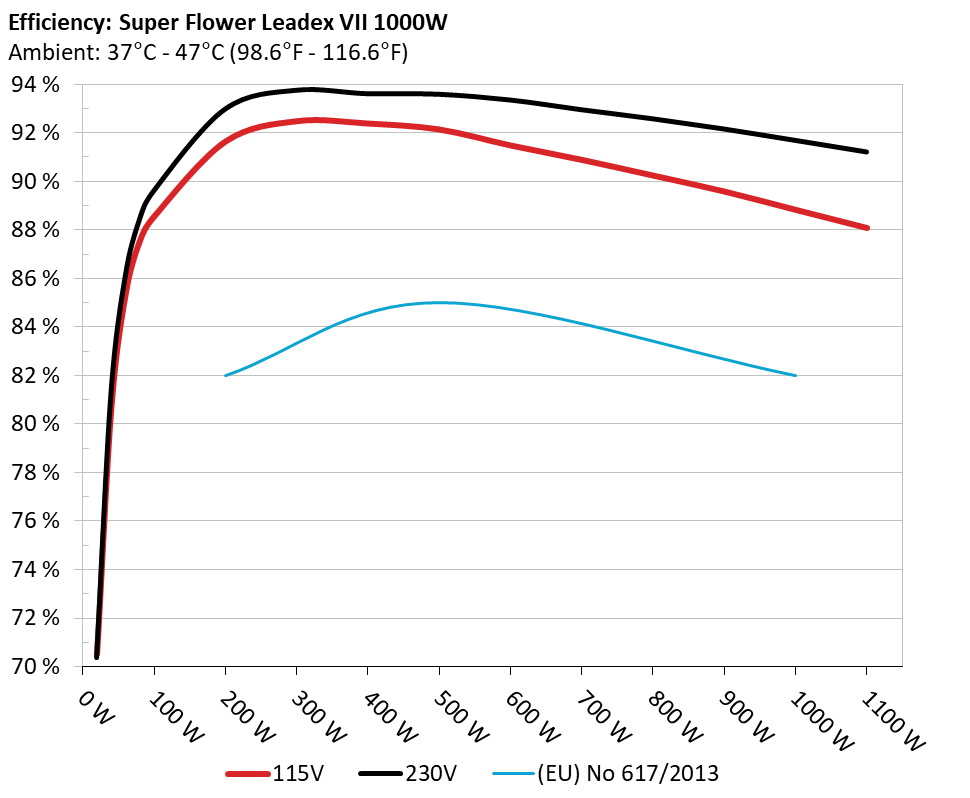

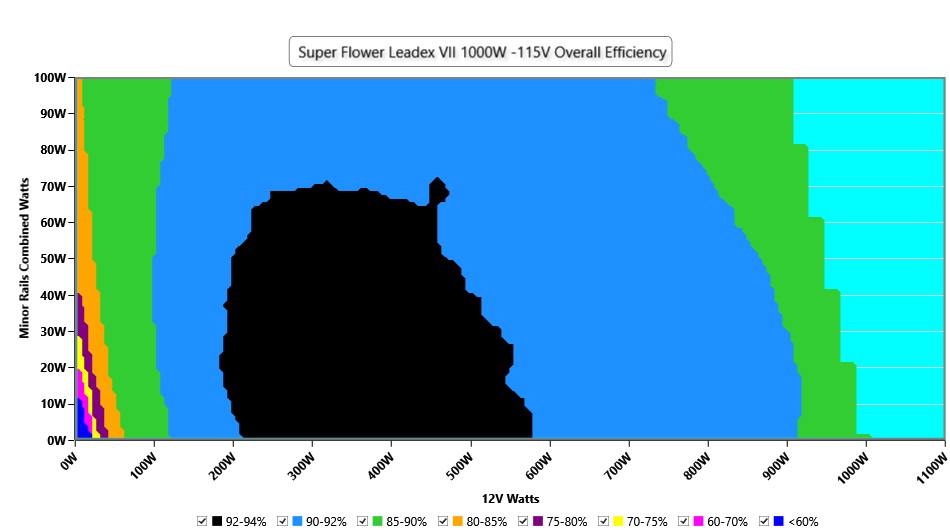

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

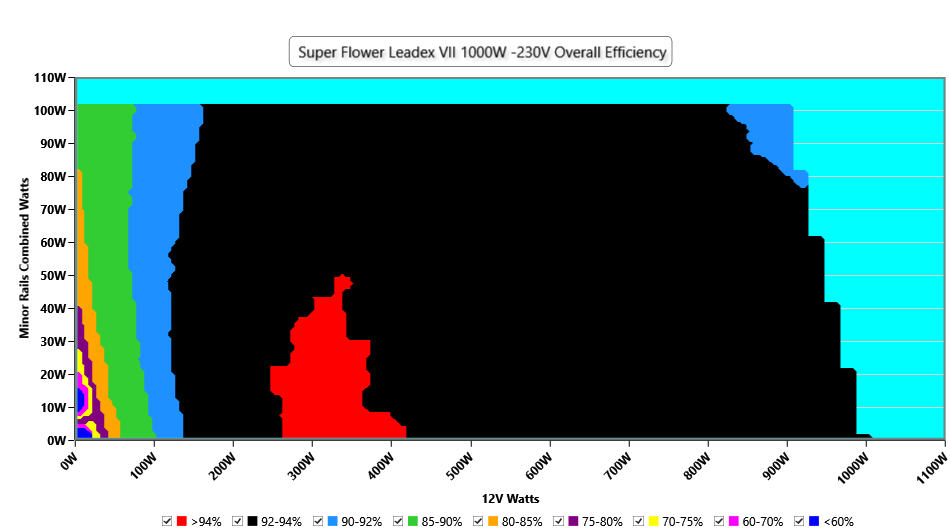

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

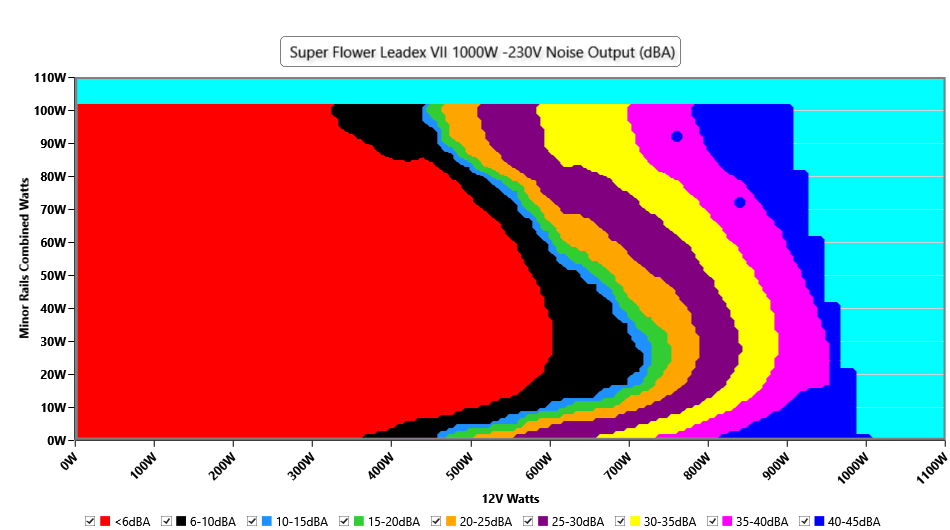

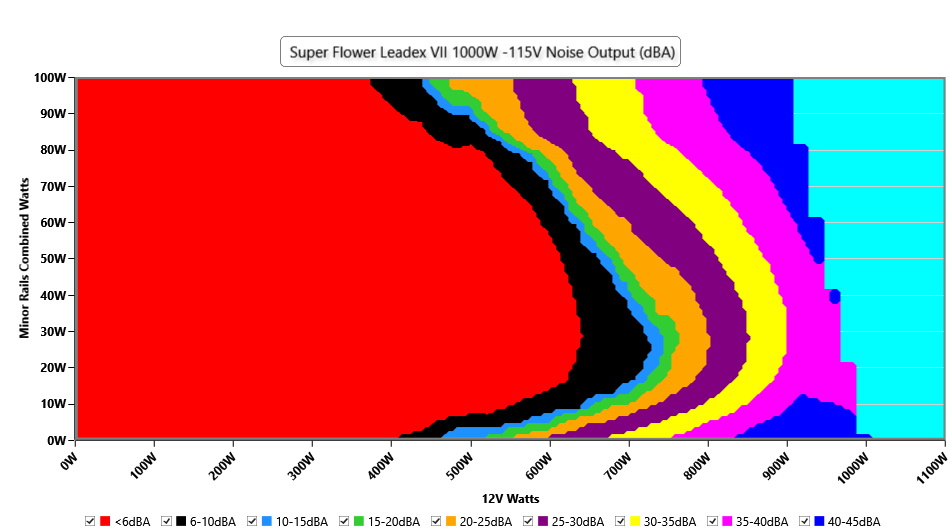

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

5VSB Efficiency

INFO

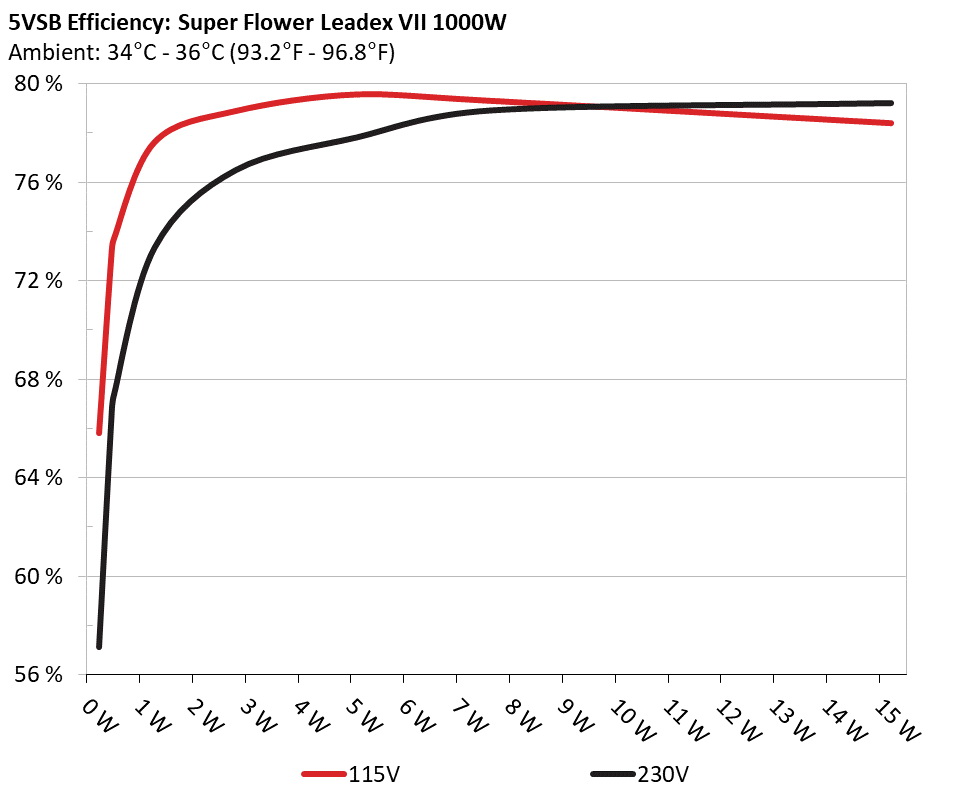

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 66.325% 0.036
5.125V 0.348W 114.87V
2 0.09A 0.461W 73.442% 0.063
5.124V 0.628W 114.86V
3 0.55A 2.814W 79.365% 0.271
5.116V 3.546W 114.86V
4 1A 5.108W 80.039% 0.359
5.108V 6.382W 114.86V
5 1.5A 7.648W 79.777% 0.413
5.099V 9.587W 114.86V
6 3A 15.213W 78.874% 0.479
5.071V 19.288W 114.85V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 57.629% 0.012
5.124V 0.401W 229.94V
2 0.09A 0.461W 66.815% 0.021
5.124V 0.689W 229.94V
3 0.55A 2.814W 76.981% 0.106
5.116V 3.656W 229.94V
4 1A 5.108W 78.311% 0.175
5.108V 6.523W 229.94V
5 1.5A 7.648W 79.408% 0.23
5.099V 9.631W 229.94V
6 3A 15.215W 79.703% 0.336
5.072V 19.089W 229.94V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.497A 1.987A 1.972A 0.981A 99.985 88.535% 0 <6.0 44.32°C 0.962
12.065V 5.032V 3.347V 5.099V 112.934 40.07°C 114.84V
20% 14.019A 2.981A 2.959A 1.179A 199.929 91.62% 0 <6.0 45.16°C 0.984
12.057V 5.033V 3.345V 5.089V 218.216 40.58°C 114.8V
30% 21.904A 3.476A 3.454A 1.378A 299.976 92.462% 0 <6.0 46.38°C 0.991
12.049V 5.034V 3.344V 5.079V 324.434 41.29°C 114.76V
40% 29.756A 3.972A 3.948A 1.578A 399.535 92.367% 404 <6.0 41.81°C 0.993
12.042V 5.036V 3.344V 5.069V 432.548 47.28°C 114.74V
50% 37.284A 4.965A 4.938A 1.779A 499.27 92.124% 421 <6.0 42.47°C 0.994
12.036V 5.036V 3.342V 5.06V 541.96 48.55°C 114.69V
60% 44.889A 5.958A 5.928A 1.98A 599.803 91.465% 726 24.9 42.61°C 0.995
12.029V 5.036V 3.34V 5.05V 655.778 49.22°C 114.66V
70% 52.441A 6.951A 6.92A 2.183A 699.543 90.872% 1058 36.6 43.39°C 0.995
12.022V 5.036V 3.339V 5.04V 769.817 50.47°C 114.62V
80% 60.041A 7.945A 7.912A 2.286A 799.572 90.226% 1306 43.6 43.73°C 0.996
12.020V 5.036V 3.337V 5.032V 886.188 52.01°C 114.58V
90% 67.965A 8.439A 8.397A 2.389A 899.346 89.571% 1501 46.2 44.56°C 0.996
12.019V 5.036V 3.335V 5.024V 1004.057 53.59°C 114.54V
100% 75.707A 8.935A 8.911A 2.997A 999.389 88.818% 1694 48.5 45.65°C 0.996
12.016V 5.037V 3.333V 5.006V 1125.226 55.66°C 114.49V
110% 83.390A 9.926A 9.996A 3.001A 1099.99 88.067% 1861 51.8 46.51°C 0.996
12.012V 5.037V 3.331V 4.999V 1249.044 57.42°C 114.45V
CL1 0.116A 11.959A 11.855A 0A 101.303 83.733% 549 15.2 40.5°C 0.964
12.070V 5.034V 3.349V 5.108V 120.996 45.99°C 114.83V
CL2 0.115A 19.877A 0A 0A 101.379 82.977% 405 <6.0 40.93°C 0.964
12.072V 5.03V 3.356V 5.111V 122.178 47.95°C 114.84V
CL3 0.115A 0A 19.734A 0A 67.385 77.615% 715 24.3 41.1°C 0.955
12.069V 5.042V 3.344V 5.109V 86.823 50.19°C 114.85V
CL4 83.234A 0A 0A 0A 999.952 89.585% 1521 47.2 45.53°C 0.996
12.014V 5.037V 3.335V 5.069V 1116.214 56.49°C 114.51V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.496A 1.988A 1.972A 0.98A 99.978 89.608% 0 <6.0 44.59°C 0.837
12.065V 5.03V 3.346V 5.099V 111.573 40.31°C 229.93V
20% 14.018A 2.982A 2.96A 1.179A 199.919 92.98% 0 <6.0 45.36°C 0.926
12.056V 5.031V 3.345V 5.089V 215.015 40.78°C 229.91V
30% 21.902A 3.477A 3.454A 1.378A 299.962 93.764% 0 <6.0 46.43°C 0.958
12.050V 5.033V 3.343V 5.08V 319.911 41.4°C 229.9V
40% 29.748A 3.973A 3.948A 1.578A 399.521 93.623% 368 <6.0 41.81°C 0.966
12.045V 5.034V 3.343V 5.07V 426.729 47.29°C 229.88V
50% 37.280A 4.966A 4.938A 1.779A 499.241 93.599% 452 6.9 42.46°C 0.972
12.037V 5.034V 3.341V 5.06V 533.374 48.47°C 229.86V
60% 44.888A 5.959A 5.928A 1.98A 599.773 93.362% 723 24.7 42.77°C 0.976
12.029V 5.035V 3.34V 5.05V 642.429 49.31°C 229.84V
70% 52.438A 6.953A 6.921A 2.182A 699.495 92.962% 1108 38.5 43.27°C 0.979
12.021V 5.035V 3.338V 5.04V 752.456 50.31°C 229.83V
80% 60.045A 7.947A 7.913A 2.285A 799.519 92.589% 1253 43.1 43.83°C 0.982
12.018V 5.034V 3.336V 5.032V 863.513 52.01°C 229.81V
90% 67.967A 8.442A 8.397A 2.388A 899.307 92.167% 1449 46.7 44.53°C 0.984
12.018V 5.034V 3.334V 5.024V 975.741 53.58°C 229.79V
100% 75.707A 8.938A 8.912A 2.996A 999.326 91.698% 1653 47.8 45.05°C 0.985
12.016V 5.035V 3.333V 5.007V 1089.81 55.15°C 229.78V
110% 83.388A 9.93A 9.997A 3A 1099.931 91.22% 1852 51.9 46.82°C 0.986
12.012V 5.035V 3.331V 5V 1205.799 57.73°C 229.76V
CL1 0.116A 11.96A 11.856A 0A 101.295 84.861% 517 13.5 40.9°C 0.85
12.070V 5.033V 3.348V 5.108V 119.385 46.38°C 229.93V
CL2 0.115A 19.878A 0A 0A 101.369 84.151% 379 <6.0 40.04°C 0.852
12.072V 5.03V 3.356V 5.111V 120.467 47.09°C 229.93V
CL3 0.114A 0A 19.735A 0A 67.381 78.529% 732 25.2 42.25°C 0.789
12.069V 5.041V 3.344V 5.109V 85.805 51.27°C 229.93V
CL4 83.235A 0A 0A 0A 999.904 92.398% 1514 46.8 45.04°C 0.985
12.013V 5.035V 3.335V 5.069V 1082.167 56.01°C 229.77V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.497A 0.493A 0.195A 19.993 70.535% 0 <6.0 40.08°C 0.823
12.071V 5.027V 3.346V 5.12V 28.345 36.97°C 114.88V
40W 2.708A 0.696A 0.69A 0.293A 39.993 80.67% 0 <6.0 40.8°C 0.917
12.069V 5.028V 3.346V 5.117V 49.577 37.54°C 114.87V
60W 4.186A 0.895A 0.887A 0.391A 59.993 85.34% 0 <6.0 42.21°C 0.952
12.068V 5.029V 3.346V 5.114V 70.295 38.47°C 114.86V
80W 5.661A 1.093A 1.085A 0.489A 79.932 87.525% 0 <6.0 43.98°C 0.956
12.066V 5.03V 3.346V 5.11V 91.326 40°C 114.84V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.497A 0.493A 0.195A 19.988 70.355% 0 <6.0 40.04°C 0.475
12.072V 5.026V 3.346V 5.12V 28.506 36.92°C 229.96V
40W 2.708A 0.696A 0.69A 0.293A 39.988 81.23% 0 <6.0 41.13°C 0.643
12.071V 5.027V 3.346V 5.117V 49.226 37.77°C 229.95V
60W 4.186A 0.895A 0.887A 0.391A 59.988 86.066% 0 <6.0 42.04°C 0.74
12.069V 5.028V 3.346V 5.114V 69.702 38.48°C 229.94V
80W 5.660A 1.094A 1.085A 0.489A 79.925 88.411% 0 <6.0 42.99°C 0.799
12.067V 5.029V 3.346V 5.11V 90.405 39.21°C 229.93V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load7.63mV6.34mV9.31mV13.57mVPass
20% Load8.20mV6.96mV9.57mV14.71mVPass
30% Load8.15mV7.83mV10.08mV14.61mVPass
40% Load9.64mV7.78mV10.39mV14.92mVPass
50% Load9.74mV8.24mV10.45mV14.91mVPass
60% Load10.31mV9.07mV10.29mV15.33mVPass
70% Load10.31mV9.99mV10.71mV15.59mVPass
80% Load10.62mV9.99mV12.46mV15.28mVPass
90% Load10.98mV11.03mV12.10mV17.19mVPass
100% Load15.79mV13.89mV14.38mV20.20mVPass
110% Load16.69mV14.66mV14.58mV20.98mVPass
Crossload112.24mV9.77mV12.60mV29.94mVPass
Crossload28.92mV10.67mV10.60mV27.05mVPass
Crossload37.84mV9.17mV13.50mV26.63mVPass
Crossload415.63mV11.99mV13.97mV29.34mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load7.80mV7.16mV10.96mV14.25mVPass
20% Load8.99mV7.26mV10.96mV14.40mVPass
30% Load11.82mV9.07mV11.27mV14.40mVPass
40% Load11.62mV9.02mV12.41mV15.28mVPass
50% Load10.72mV9.43mV12.05mV15.53mVPass
60% Load9.95mV9.32mV11.64mV14.71mVPass
70% Load11.24mV9.94mV11.64mV16.36mVPass
80% Load11.29mV10.77mV13.50mV15.95mVPass
90% Load11.14mV11.69mV12.36mV16.57mVPass
100% Load17.79mV14.01mV15.92mV20.70mVPass
110% Load18.27mV14.92mV16.00mV21.41mVPass
Crossload112.76mV10.62mV13.67mV28.47mVPass
Crossload29.13mV11.08mV12.15mV27.82mVPass
Crossload37.94mV9.94mV14.17mV26.33mVPass
Crossload417.44mV12.68mV15.66mV29.19mVPass

The results above are not used in the certification process

Super Flower Leadex VII XP 1000W

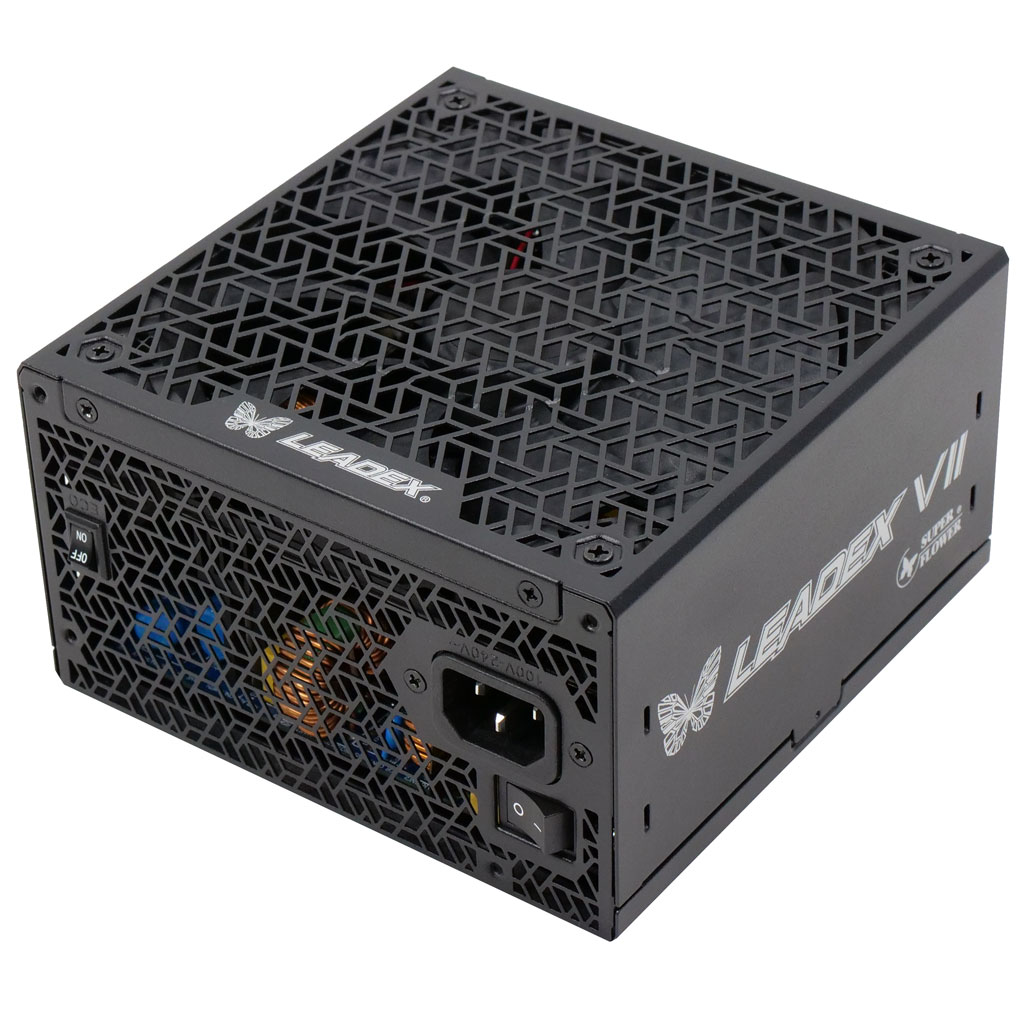

Top side

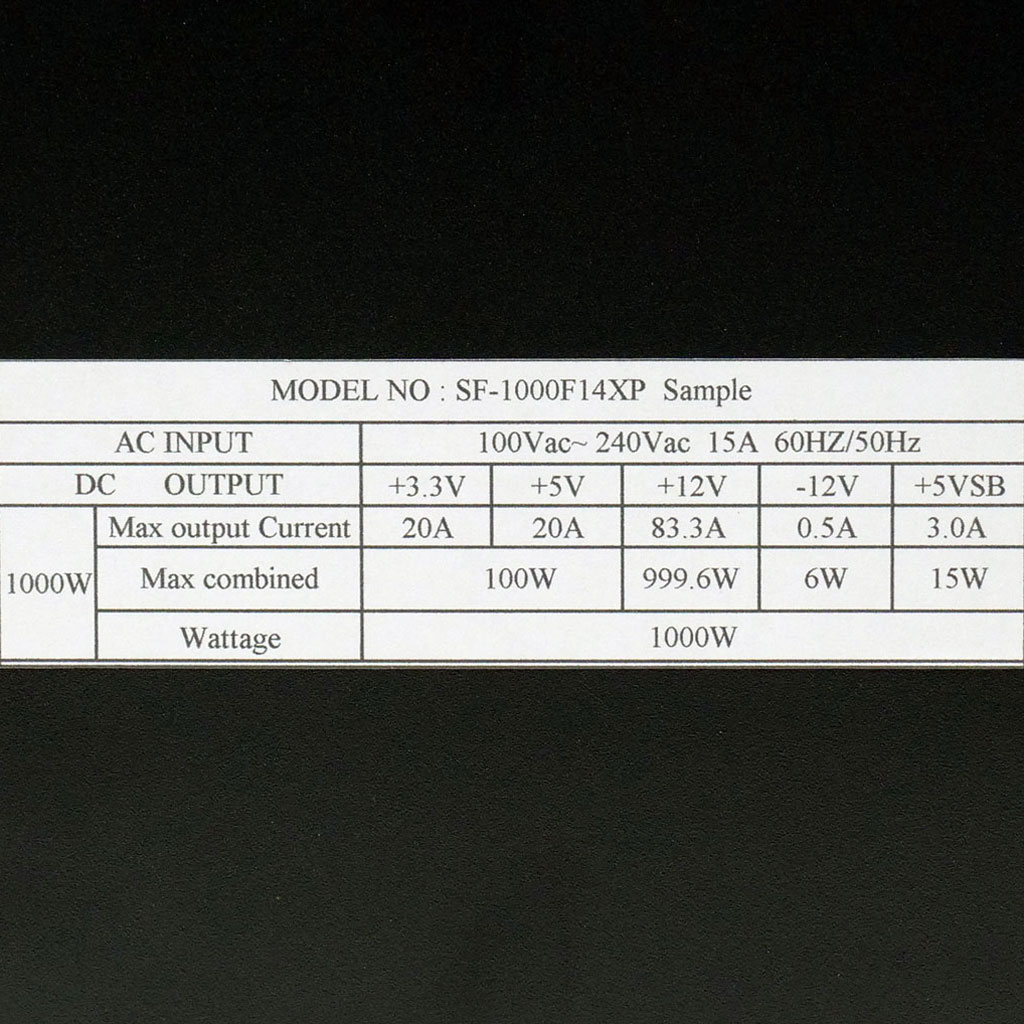

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
