CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Gamemax RGB-1050 PRO
Serial Number
Lab IDGM10502192
  • Report: 23PS2192A
  • Receipt Date: May 30, 2023
  • Test Date: Jun 12, 2023
  • Report Date: Jun 13, 2023
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandGamemax
Manufacturer (OEM)Sohoo
SeriesRGB SMART
Model NumberRGB-1050 PRO
Serial Number
DUT NotesIt cannot operate for more than one minute with 110% load at about 40°C.

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15-8
Rated Frequency (Hz)47-63
Rated Power (W)1050
TypeATX12V
Cooling140mm Fluid Dynamic Bearing Fan
(No info)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2525822.50.5
Watts12598412.56
Total Max. Power (W)1050

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (650mm) 1 1 16-20AWG No
4+4 pin EPS12V (700mm) 1 1 16AWG No
6+2 pin PCIe (550mm) 3 3 16AWG No
12+4 pin PCIe (500mm) (600W) 1 1 16-24AWG No
SATA (500mm+150mm+150mm+150mm) 1 4 18AWG No
4-pin Molex (450mm+150mm+150mm) 3 9 18AWG No

Parts Description

General Data -
Manufacturer (OEM) Sohoo
PCB Type Double Sided
Primary Side -
Transient Filter 4x Y caps, 3x X caps, 1x CM chokes, 1x MOV
Inrush Protection NTC Thermistor NTC5D-20 (5Ohm) & Relay
Bridge Rectifier(s) 2x
APFC MOSFETs 3x Sanrise Tech SRC60R090B (600V, 17.8A @ 125°C, Rds(on): 0.009Ohm)
APFC Boost Diode 2x GPT G3S06506D (650V, 15.3A @ 100°C)
Bulk Cap(s) 1x Nichicon (400V, 1000uF, 2000h @ 105°C, GG(M))
Main Switchers 2x Sanrise Tech SRC60R068BS(600V, 21.5A @ 125°C, Rds(on): 68mOhm)
APFC Controller Infineon ICE2PCS01
Resonant Controller MPS HR1213
Topology Primary side: APFC, Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 8x ZMJ ZMS008N04NC (40V, 195A @ 100°C, Rds(on): 0.91mOhm)
5V & 3.3V DC-DC Converters: 4x AII Power AP180N03G (30V, 115A @ 100°C, Rds(on): 2.1mOhm)
PWM Controller(s): Micro uP3861P
Filtering Capacitors Electrolytic: 2x Teapo (3-3,000 @ 105°C, SC), 3x Teapo (3-6,000 @ 105°C, SY)
Polymer: 21x Teapo
IC Driver MPS MP6924B
Supervisor IC Grenergy GR8313 (OVP, UVP, PG)
Fan Model no info
5VSB Circuit -
Rectifier ER2EL60CS
Standby PWM Controller PN8141

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary 115V

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)23.6
AC Loss to PWR_OK Hold Up Time (ms)21.2
PWR_OK Inactive to DC Loss Delay (ms)2.4

Vampire Power

Tables 115V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.90 V 114.82 V 113.85 V 114.97 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.98 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.419 1.417 1.340 1.421 1.490 PASS
Mains Voltage THD: 0.21 % 0.16 % N/A 0.30 % 2.00 % PASS
Real Power: 0.092 W 0.016 W N/A 0.152 W N/A N/A
Apparent Power: 12.209 W 12.164 W N/A 12.262 W N/A N/A
Power Factor: 0.009 N/A N/A N/A N/A N/A

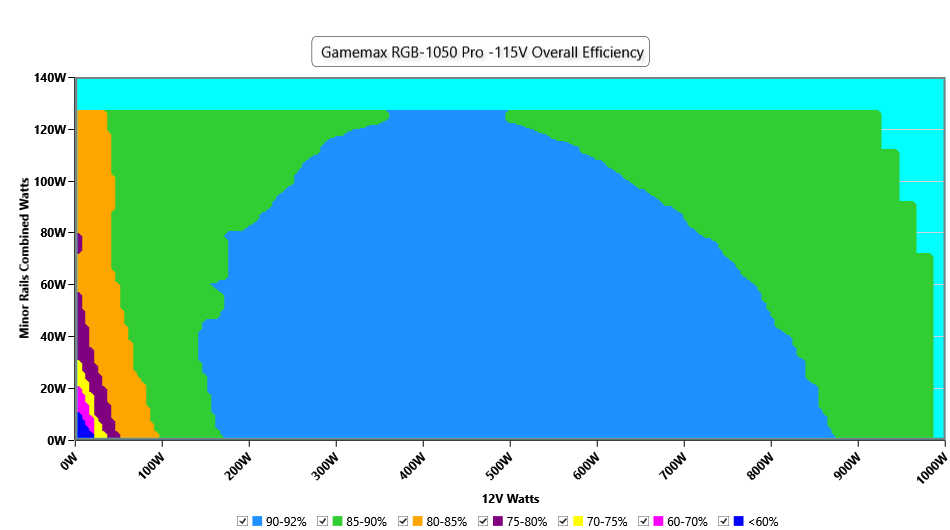

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

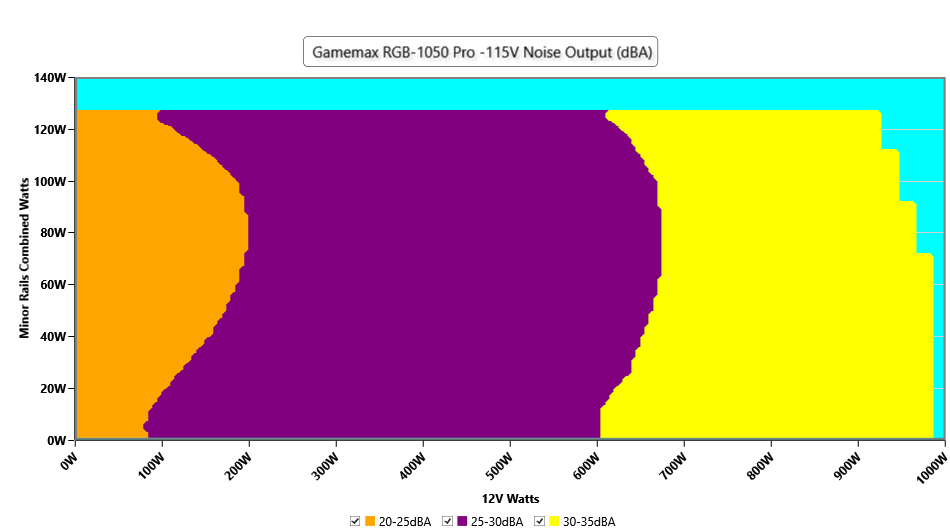

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

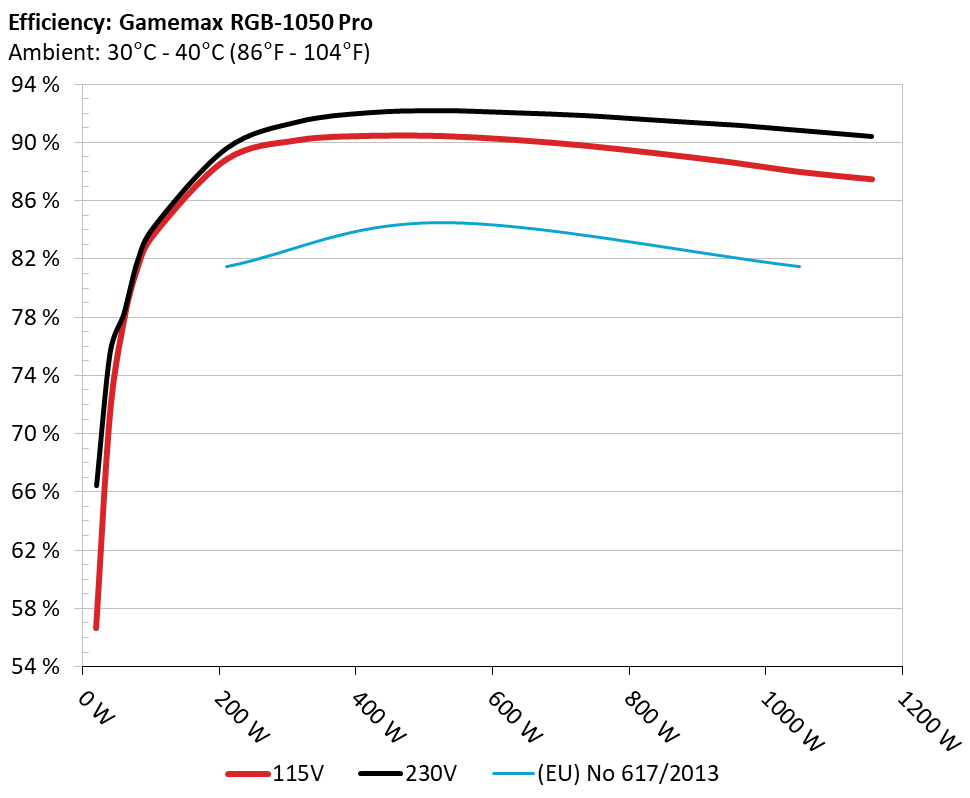

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

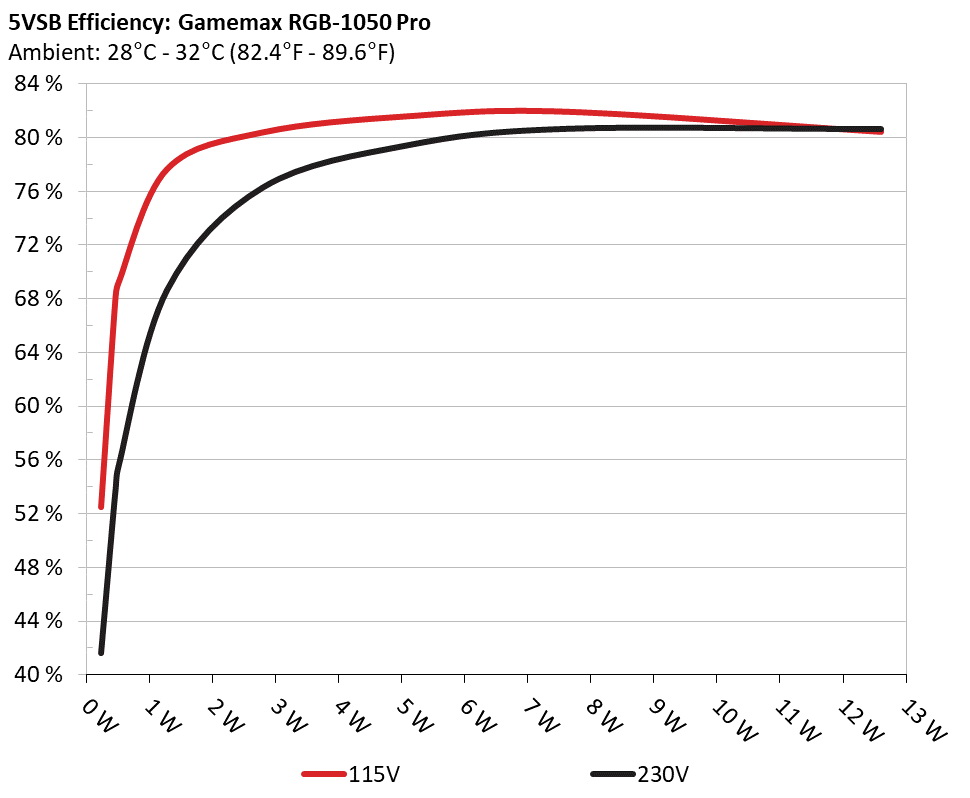

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 52.482% 0.021
5.115V 0.26W 114.91V
2 0.09A 0.46W 68.173% 0.056
5.113V 0.675W 114.92V
3 0.55A 2.804W 80.381% 0.238
5.099V 3.488W 114.91V
4 1A 5.085W 81.573% 0.339
5.086V 6.234W 114.91V
5 1.5A 7.606W 81.911% 0.395
5.071V 9.286W 114.91V
6 2.5A 12.598W 80.414% 0.461
5.04V 15.666W 114.9V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.902A 1.982A 1.976A 0.979A 104.938 84.184% 1045 23.6 33.61°C 0.958
12.074V 5.046V 3.34V 5.106V 124.647 37.87°C 114.88V
20% 14.835A 2.975A 2.967A 1.178A 209.928 89.283% 1070 24.1 34.05°C 0.992
12.067V 5.042V 3.337V 5.094V 235.123 38.63°C 114.84V
30% 23.126A 3.472A 3.463A 1.377A 314.939 90.626% 1127 25.2 35.44°C 0.991
12.059V 5.04V 3.335V 5.082V 347.518 40.49°C 114.81V
40% 31.397A 3.97A 3.961A 1.578A 419.517 90.925% 1216 27.6 35.89°C 0.993
12.049V 5.038V 3.332V 5.07V 461.388 41.4°C 114.77V
50% 39.399A 4.966A 4.957A 1.779A 524.833 90.913% 1281 28.4 36.4°C 0.994
12.039V 5.034V 3.329V 5.058V 577.293 42.31°C 114.73V
60% 47.347A 5.964A 5.954A 1.982A 629.348 90.656% 1338 28.6 36.64°C 0.994
12.029V 5.031V 3.326V 5.046V 694.211 43.15°C 114.69V
70% 55.399A 6.963A 6.954A 2.185A 734.696 90.253% 1385 30.5 37.31°C 0.995
12.014V 5.027V 3.322V 5.033V 814.036 44.34°C 114.64V
80% 63.483A 7.964A 7.956A 2.289A 839.521 89.725% 1443 32.1 37.89°C 0.995
11.997V 5.023V 3.318V 5.023V 935.662 46.02°C 114.6V
90% 72.011A 8.464A 8.444A 2.393A 944.897 89.134% 1504 33.9 38.72°C 0.995
11.977V 5.02V 3.316V 5.014V 1060.081 48.04°C 114.55V
100% 80.505A 8.968A 8.965A 2.498A 1049.605 88.442% 1559 34.3 39.73°C 0.994
11.954V 5.017V 3.313V 5.004V 1186.777 49.77°C 114.52V
110% 88.726A 9.967A 10.055A 2.502A 1154.921 87.942% 1310 28.3 40.41°C 0.994
11.937V 5.016V 3.312V 4.996V 1313.263 51.32°C 114.49V
CL1 0.115A 15.03A 15.013A 0A 126.294 80.531% 1363 29.5 35.26°C 0.977
12.074V 5.009V 3.304V 5.129V 156.829 40.79°C 114.85V
CL2 0.115A 24.987A 0A 0A 126.245 78.871% 1352 28.8 35.13°C 0.979
12.075V 4.997V 3.318V 5.131V 160.068 42.23°C 114.84V
CL3 0.114A 0A 25.03A 0A 83.9 71.973% 1280 28.4 34.61°C 0.932
12.075V 5.03V 3.297V 5.13V 116.575 43.64°C 114.88V
CL4 87.778A 0A 0A 0A 1049.496 89.044% 1496 33.2 39.69°C 0.995
11.956V 5.04V 3.325V 5.082V 1178.622 50.66°C 114.53V

The results above are not used in the certification process

Light Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
20W 1.229A 0.495A 0.494A 0.195A 19.992 57.119% 912 20.5 0.848
12.078V 5.049V 3.339V 5.134V 35.003 114.9V
40W 2.706A 0.693A 0.691A 0.292A 39.992 71.65% 927 19.8 0.916
12.077V 5.049V 3.341V 5.13V 55.817 114.9V
60W 4.184A 0.891A 0.889A 0.39A 59.992 78.06% 954 21.3 0.924
12.076V 5.049V 3.341V 5.126V 76.854 114.89V
80W 5.656A 1.089A 1.086A 0.488A 79.932 81.747% 994 22.7 0.954
12.076V 5.048V 3.341V 5.122V 97.78 114.88V

The results above are not used in the certification process

Ripple Measurements 115V

Test12V5V3.3V5VSBPass/Fail
10% Load10.59mV14.05mV16.73mV8.39mVPass
20% Load10.64mV14.10mV16.42mV8.49mVPass
30% Load11.56mV15.33mV16.98mV8.69mVPass
40% Load11.97mV14.00mV16.68mV8.95mVPass
50% Load15.40mV15.12mV17.70mV9.16mVPass
60% Load19.29mV15.99mV18.67mV9.36mVPass
70% Load22.15mV15.79mV19.13mV9.82mVPass
80% Load26.30mV15.43mV20.26mV11.10mVPass
90% Load27.27mV15.68mV19.85mV12.07mVPass
100% Load35.31mV18.56mV21.10mV13.89mVPass
110% Load33.91mV21.82mV21.03mV13.72mVPass
Crossload111.97mV18.41mV17.48mV10.93mVPass
Crossload214.63mV27.64mV17.70mV10.08mVPass
Crossload311.36mV15.53mV22.10mV10.33mVPass
Crossload433.74mV16.87mV19.28mV13.94mVPass

The results above are not used in the certification process

Gamemax RGB-1050 PRO

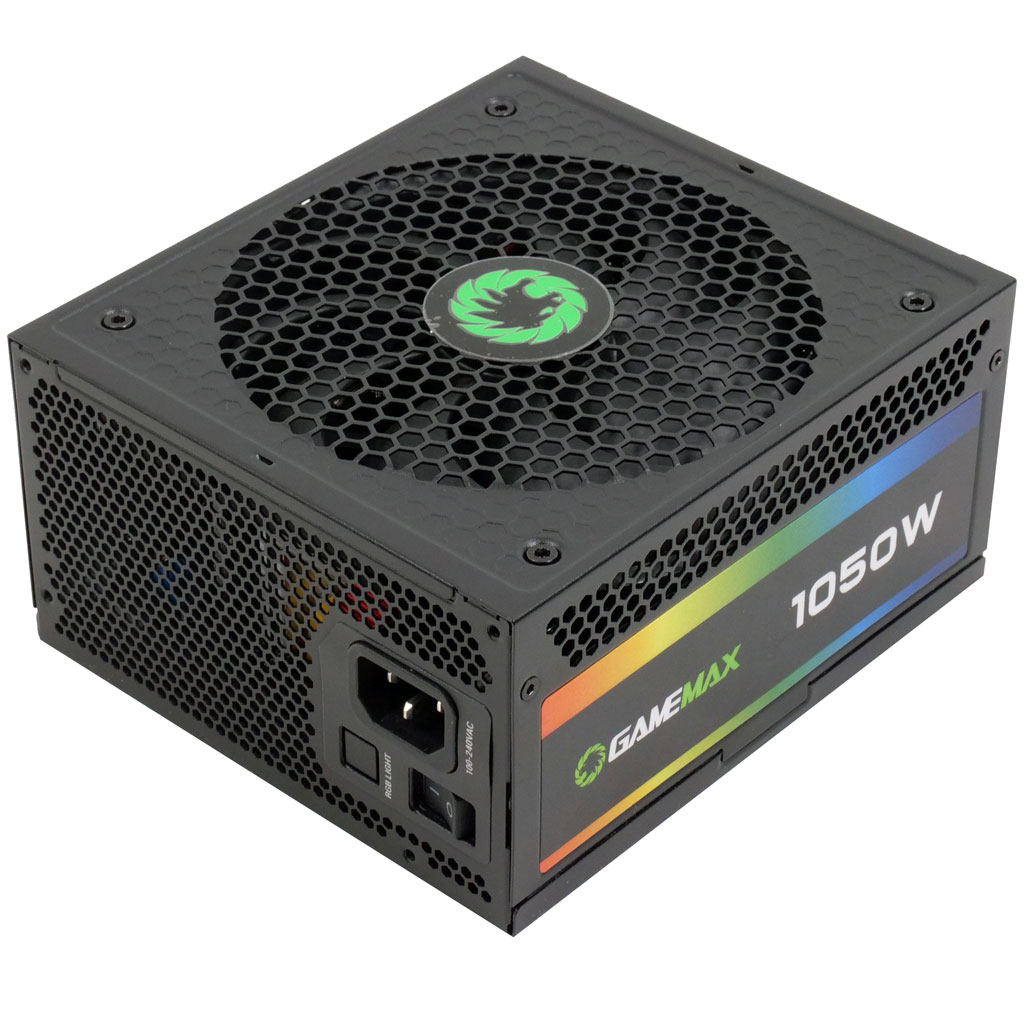

Top side

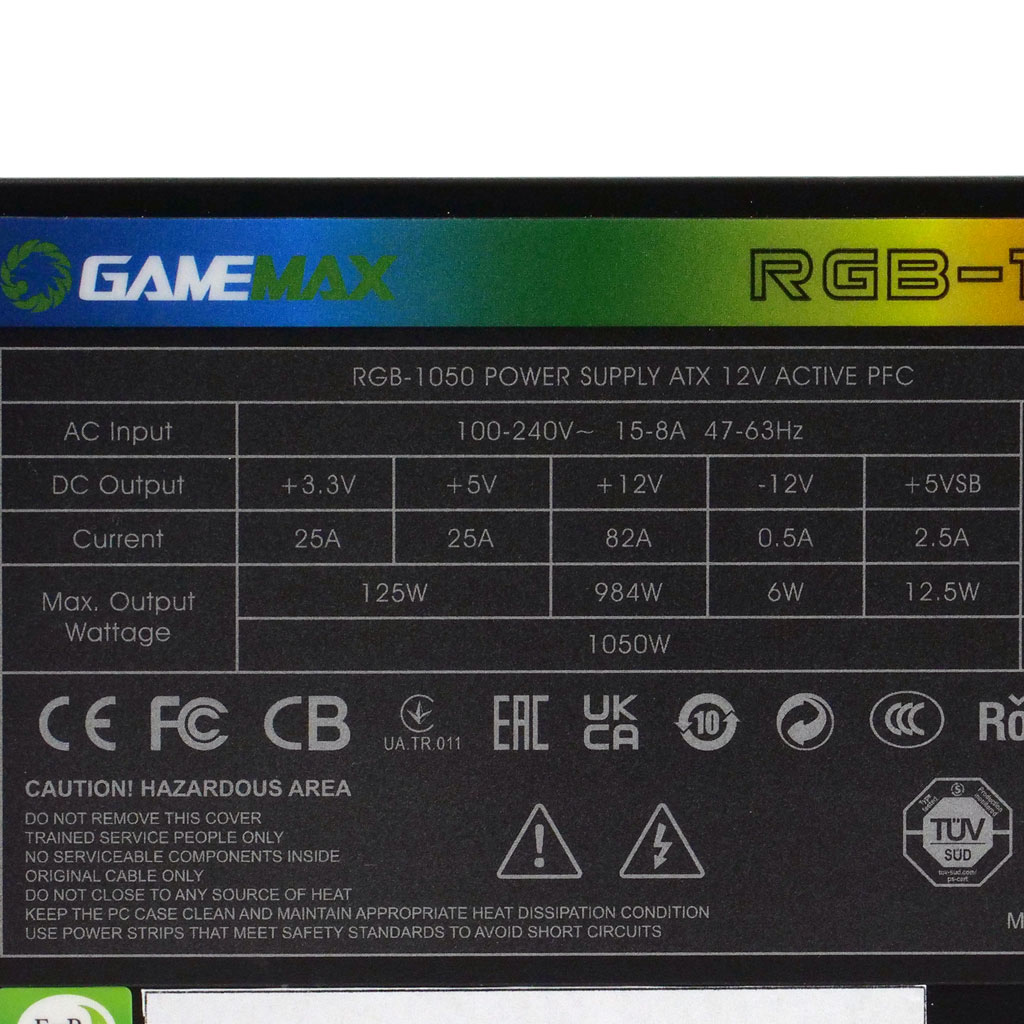

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
