Pichau Gaming Nidus 1200W
Serial Number
Lab IDPC12002179
  • Report: 23PS2179A
  • Receipt Date: May 12, 2023
  • Test Date: May 19, 2023
  • Report Date: May 19, 2023
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandPichau Gaming
Manufacturer (OEM)Channel Well Technology
SeriesNidus
Model NumberCSZ 1200W
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15
Rated Frequency (Hz)47-63
Rated Power (W)1200
TypeATX12V
Cooling135mm Fluid Dynamic Bearing Fan
(HA13525H12SF-Z)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps222210030.3
Watts1201200153.6
Total Max. Power (W)1200

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16-20AWG No
4+4 pin EPS12V (700mm) 1 1 16AWG No
8 pin EPS12V (700mm) 1 1 16AWG No
6+2 pin PCIe (600mm+150mm) 2 4 16-18AWG No
12+4 pin PCIe (600mm) (600W) 1 1 16-24AWG No
SATA (500mm+150mm+150mm+150mm) 3 12 18AWG No
4-pin Molex (500mm+150mm+150mm+150mm) 1 4 18AWG No

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary 115V

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)16.5
AC Loss to PWR_OK Hold Up Time (ms)14
PWR_OK Inactive to DC Loss Delay (ms)2.5

Vampire Power

Tables 115V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.85 V 114.79 V 113.85 V 114.90 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.97 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.419 1.417 1.340 1.421 1.490 PASS
Mains Voltage THD: 0.16 % 0.10 % N/A 0.27 % 2.00 % PASS
Real Power: 0.014 W -0.001 W N/A 0.029 W N/A N/A
Apparent Power: 11.018 W 10.994 W N/A 11.051 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

Efficiency Graph

115V

INFO

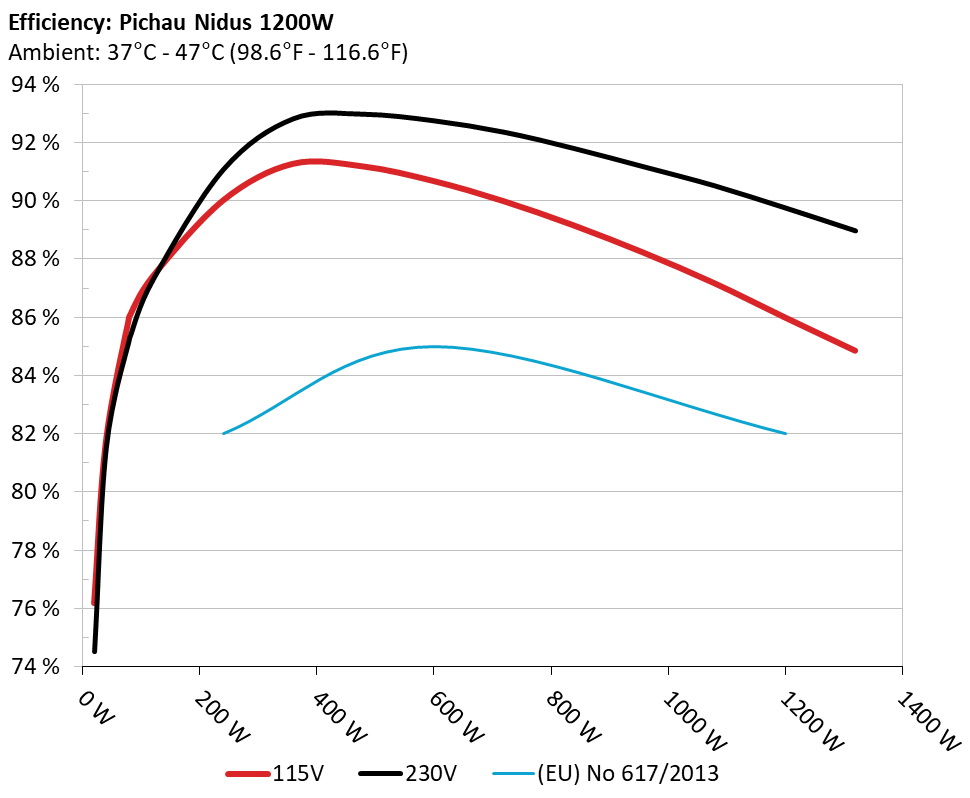

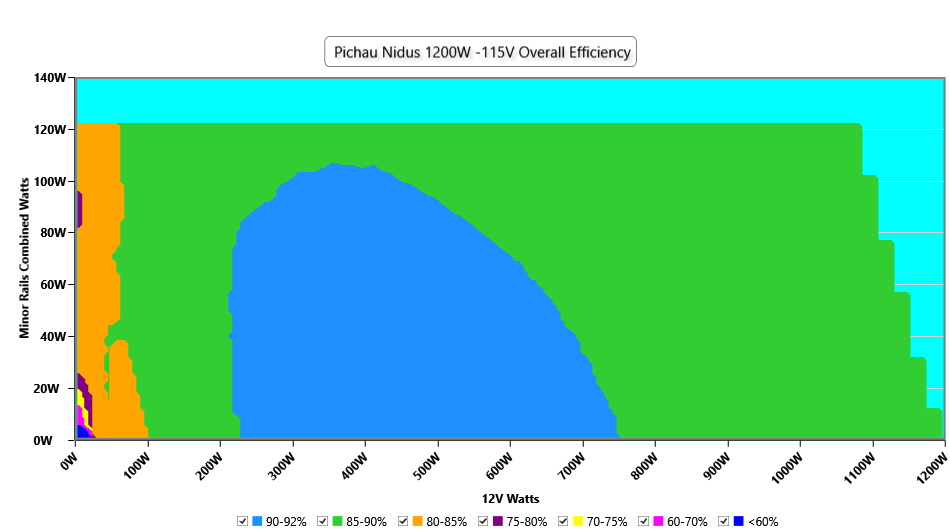

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

115V

INFO

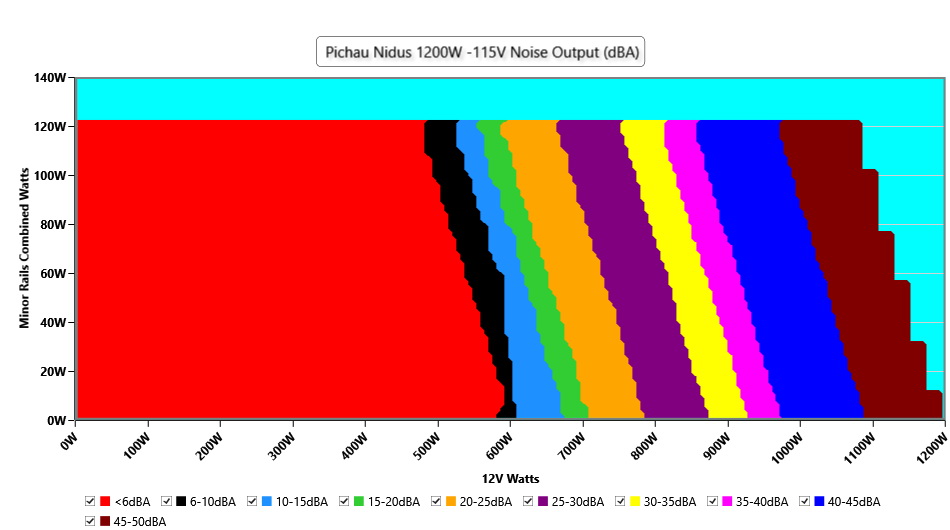

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

5VSB Efficiency

INFO

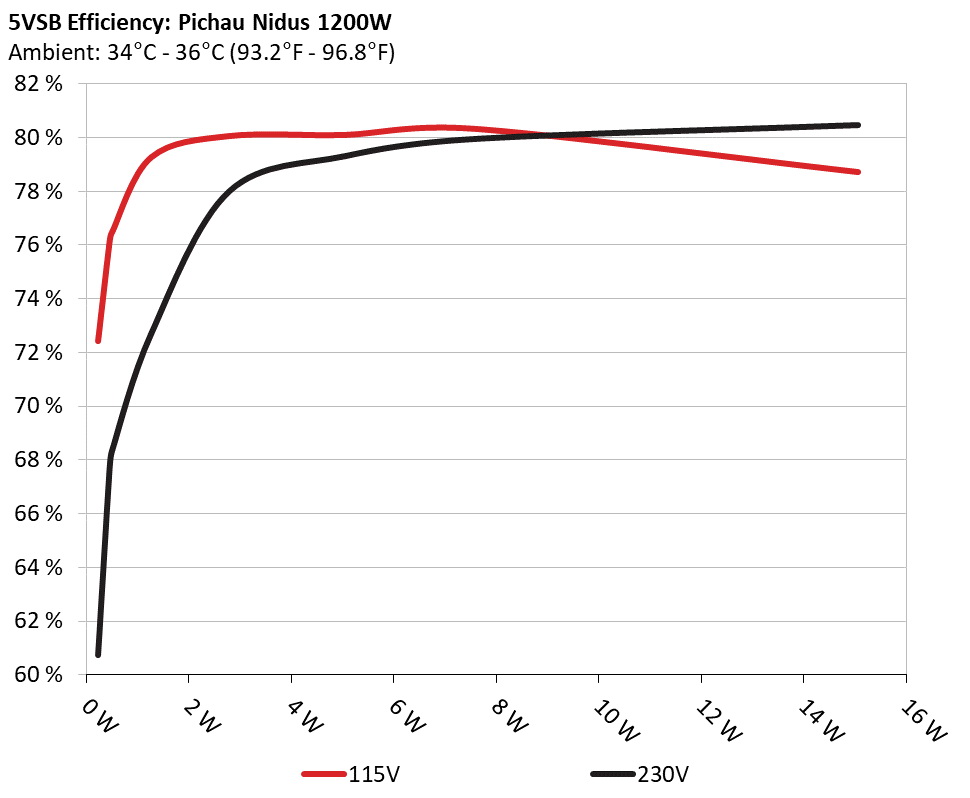

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229W 71.915% 0.031
5.08V 0.319W 114.84V
2 0.09A 0.457W 75.66% 0.059
5.079V 0.604W 114.84V
3 0.55A 2.788W 79.549% 0.266
5.07V 3.505W 114.84V
4 1A 5.061W 79.591% 0.353
5.062V 6.359W 114.84V
5 1.5A 7.577W 79.819% 0.413
5.052V 9.493W 114.84V
6 3A 15.065W 78.21% 0.489
5.022V 19.263W 114.84V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.110A 1.985A 1.953A 0.995A 119.975 87.404% 0 <6.0 44.27°C 0.983
12.129V 5.038V 3.38V 5.025V 137.264 40.04°C 114.82V
20% 17.241A 2.978A 2.932A 1.195A 239.924 90.015% 0 <6.0 45.19°C 0.989
12.124V 5.036V 3.376V 5.021V 266.54 40.6°C 114.78V
30% 26.703A 3.475A 3.425A 1.396A 359.074 91.28% 0 <6.0 46.31°C 0.983
12.097V 5.035V 3.372V 5.016V 393.382 41.25°C 114.74V
40% 36.283A 3.973A 3.919A 1.597A 479.463 91.192% 397 <6.0 41.91°C 0.985
12.079V 5.033V 3.368V 5.01V 525.768 47.35°C 114.7V
50% 45.498A 4.969A 4.904A 1.798A 599.245 90.693% 414 <6.0 42.33°C 0.988
12.061V 5.031V 3.364V 5.005V 660.74 48.31°C 114.66V
60% 54.811A 5.965A 5.892A 2A 719.784 89.996% 691 22.6 42.84°C 0.99
12.041V 5.03V 3.361V 5V 799.793 49.38°C 114.62V
70% 64.078A 6.963A 6.882A 2.202A 839.516 89.161% 931 31.9 43.06°C 0.992
12.023V 5.027V 3.357V 4.994V 941.578 50.12°C 114.57V
80% 73.444A 7.963A 7.874A 2.305A 959.517 88.217% 1227 39.9 43.75°C 0.993
12.004V 5.024V 3.353V 4.99V 1087.675 52.01°C 114.53V
90% 83.110A 8.464A 8.361A 2.407A 1079.333 87.178% 1587 46.0 44.57°C 0.994
11.994V 5.021V 3.349V 4.985V 1238.084 53.59°C 114.48V
100% 92.558A 8.968A 8.88A 3.018A 1199.396 86.003% 1587 46.0 44.91°C 0.994
11.989V 5.018V 3.344V 4.97V 1394.6 54.93°C 114.43V
110% 101.942A 9.973A 9.972A 3.02A 1320.009 84.854% 2161 52.9 46.51°C 0.995
11.984V 5.014V 3.339V 4.967V 1555.639 57.44°C 114.37V
CL1 0.116A 14.349A 14.169A 0A 121.302 82.068% 399 <6.0 41.1°C 0.981
12.125V 5.032V 3.366V 5.061V 147.808 46.54°C 114.81V
CL2 0.114A 21.855A 0A 0A 111.291 80.952% 400 <6.0 40.12°C 0.983
12.132V 5.029V 3.38V 5.077V 137.478 47.18°C 114.84V
CL3 0.119A 0A 21.645A 0A 74.045 76.167% 396 <6.0 40.71°C 0.975
12.063V 5.049V 3.354V 5.045V 97.215 49.74°C 114.87V
CL4 100.016A 0A 0A 0A 1199.958 86.874% 2027 51.8 45.79°C 0.994
11.998V 5.038V 3.355V 5.023V 1381.273 56.73°C 114.45V

The results above are not used in the certification process

Light Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
20W 1.230A 0.494A 0.486A 0.198A 19.99 76.169% 0 <6.0 0.855
12.064V 5.057V 3.393V 5.055V 26.247 114.85V
40W 2.708A 0.693A 0.681A 0.297A 39.992 81.714% 0 <6.0 0.946
12.065V 5.053V 3.391V 5.05V 48.942 114.85V
60W 4.188A 0.892A 0.877A 0.397A 59.992 86.021% 0 <6.0 0.957
12.066V 5.042V 3.384V 5.037V 69.739 114.84V
80W 5.660A 1.091A 1.073A 0.497A 79.929 85.738% 0 <6.0 0.975
12.065V 5.04V 3.382V 5.033V 93.225 114.83V

The results above are not used in the certification process

Ripple Measurements 115V

Test12V5V3.3V5VSBPass/Fail
10% Load10.38mV9.55mV8.41mV6.82mVPass
20% Load12.02mV9.65mV8.52mV6.98mVPass
30% Load12.53mV11.19mV11.49mV9.08mVPass
40% Load11.71mV9.34mV9.23mV6.98mVPass
50% Load12.38mV9.65mV8.72mV7.08mVPass
60% Load12.63mV10.01mV9.29mV7.08mVPass
70% Load13.25mV16.22mV20.26mV13.24mVPass
80% Load12.79mV11.08mV16.62mV8.83mVPass
90% Load14.32mV11.09mV12.62mV8.21mVPass
100% Load18.92mV12.69mV12.69mV9.68mVPass
110% Load19.41mV14.09mV13.63mV9.61mVPass
Crossload110.09mV10.99mV12.30mV7.84mVPass
Crossload212.07mV18.17mV8.05mV7.75mVPass
Crossload357.59mV9.60mV16.26mV8.21mVPass
Crossload418.49mV11.65mV10.82mV8.41mVPass

The results above are not used in the certification process

Pichau Gaming Nidus 1200W

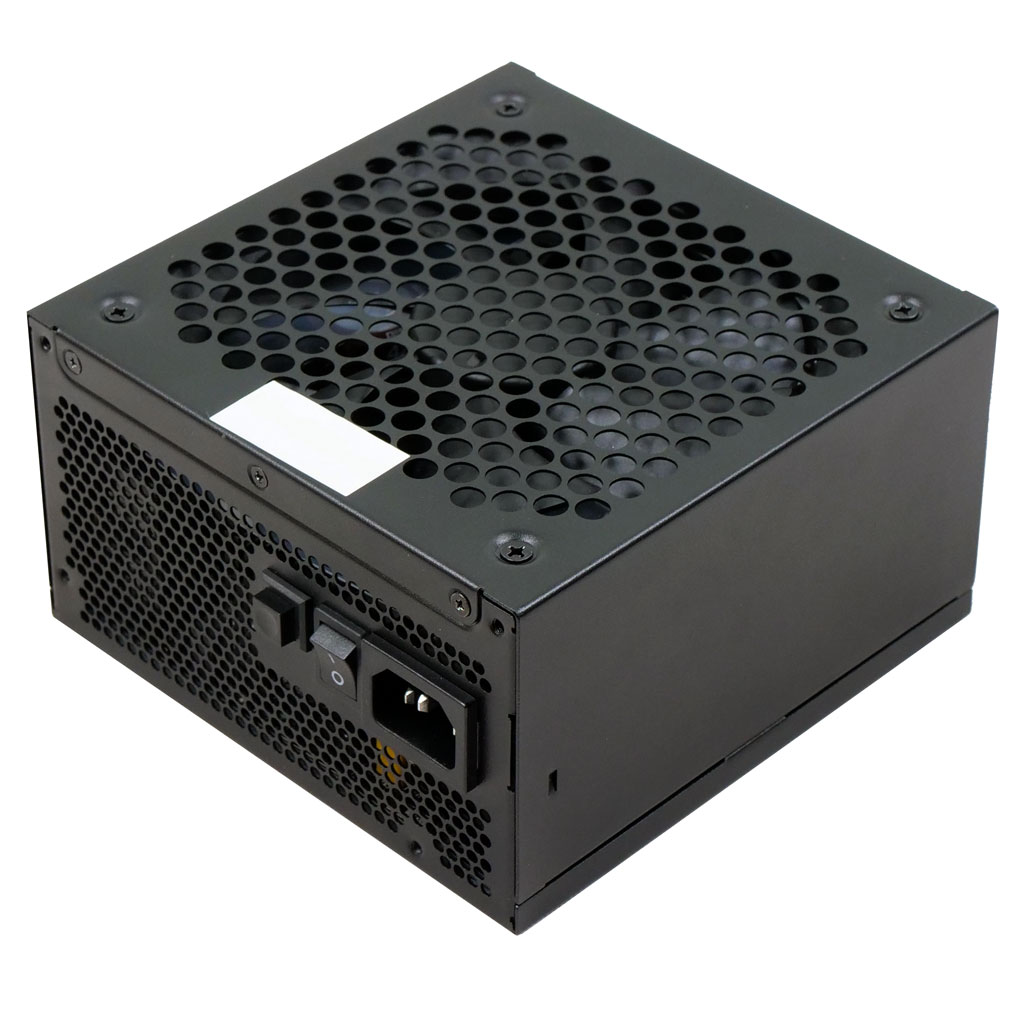

Top side

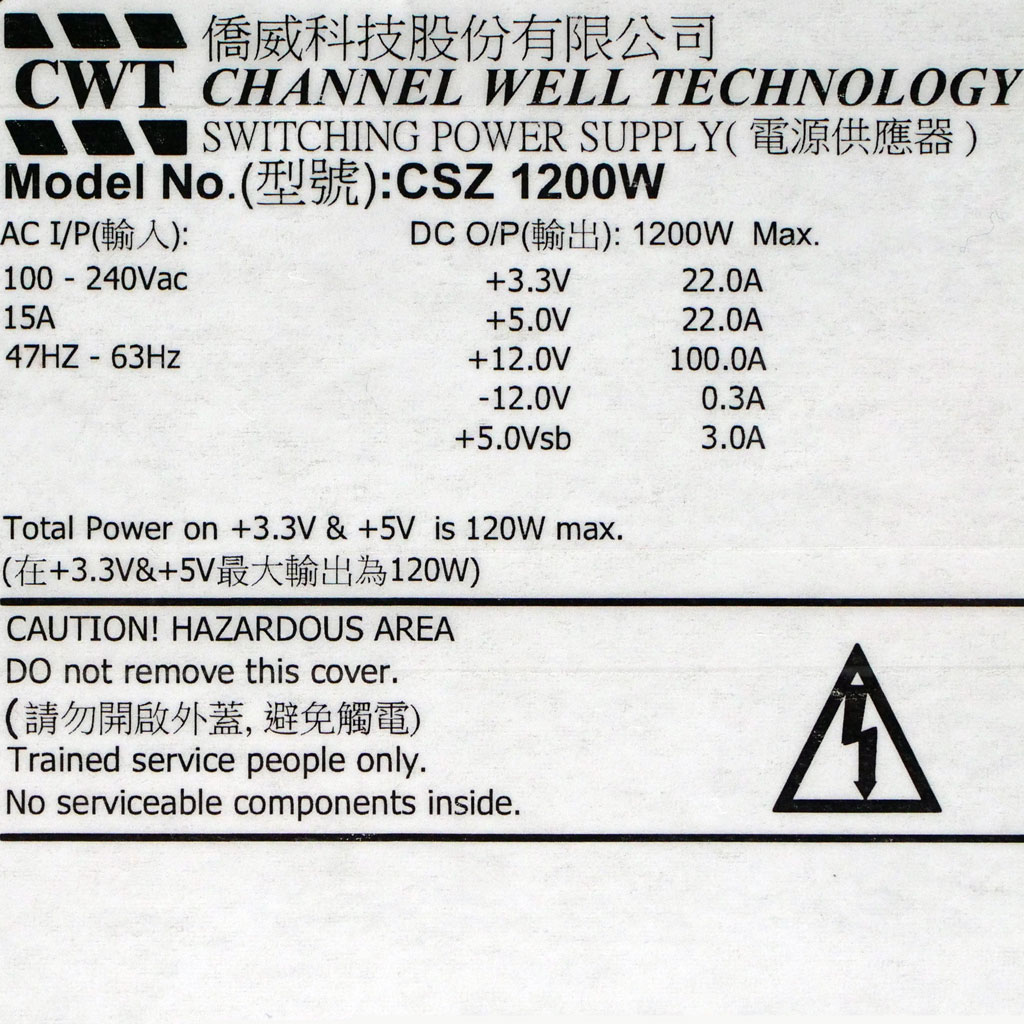

Power specifications label
