BOK BDH12025S (120mm, 12V, 0.30A, Rifle Bearing Fan)
5VSB Circuit
-
Standby PWM Controller
Power Integrations TNY286PG
Test Results
Temperature & Compliance Info
Temperature Range (°C /°F)
30-32 / 86-89.6
ErP Lot 3/6 Ready
✓
(EU) No 617/2013 Compliance
✓
Performance Summary 230V
Efficiency Rating
Noise Rating
Standard
Average Efficiency (>1450 load combinations)
83.088%
Average Noise Output (>1450 Load Combinations)
42.96dBA
Average PF (>1450 Load Combinations)
0.908
Efficiency With 10W (≤500W) or 2% (>500W) Load
0.000%
Standby Power Consumption
0.1491W
12V Ripple (Full Load)
80.04mV
5V Ripple (Full Load)
26.01mV
3.3V Ripple (Full Load)
31.14mV
5VSB Ripple (Full Load)
42.65mV
12V Load Regulation
3.22%
5V Load Regulation
2.66%
3.3V Load Regulation
3.67%
5VSB Load Regulation
3.89%
Inrush Current
84.340A
Hold-Up Time & Power Ok Signal
13.60ms
AC Loss to PWR_OK Hold Up Time
10.00ms
PWR_OK Inactive to DC Loss Delay
3.60ms
PSU Timings: T1 (20% / 100%)
55.0ms
49.0ms
PSU Timings: T3 (20% / 100%)
246.0ms
242.0ms
OPP (24.78°C / 0.00°C)
127.62%
0.00%
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
13.6
AC Loss to PWR_OK Hold Up Time (ms)
10
PWR_OK Inactive to DC Loss Delay (ms)
3.6
Vampire Power
Tables 230V
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
230.23 V
230.08 V
227.70 V
230.28 V
232.30 V
PASS
Mains Frequency:
50.00 Hz
49.99 Hz
49.50 Hz
50.01 Hz
50.50 Hz
PASS
Mains Voltage CF:
1.416
1.415
1.340
1.417
1.490
PASS
Mains Voltage THD:
0.13 %
0.10 %
N/A
0.23 %
2.00 %
PASS
Real Power:
0.149 W
0.128 W
N/A
0.193 W
N/A
N/A
Apparent Power:
21.658 W
21.519 W
N/A
21.782 W
N/A
N/A
Power Factor:
0.007
N/A
N/A
N/A
N/A
N/A
Graphs 230V

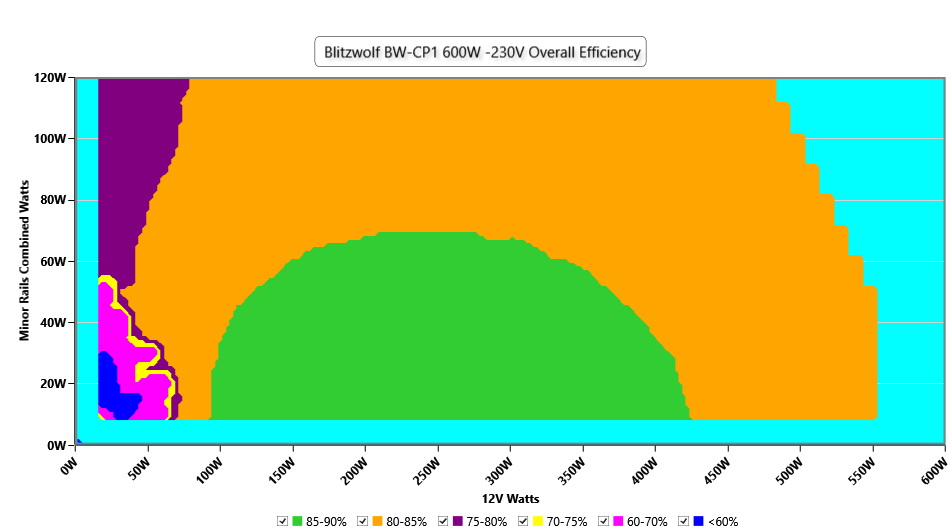

Efficiency Graph
230V
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

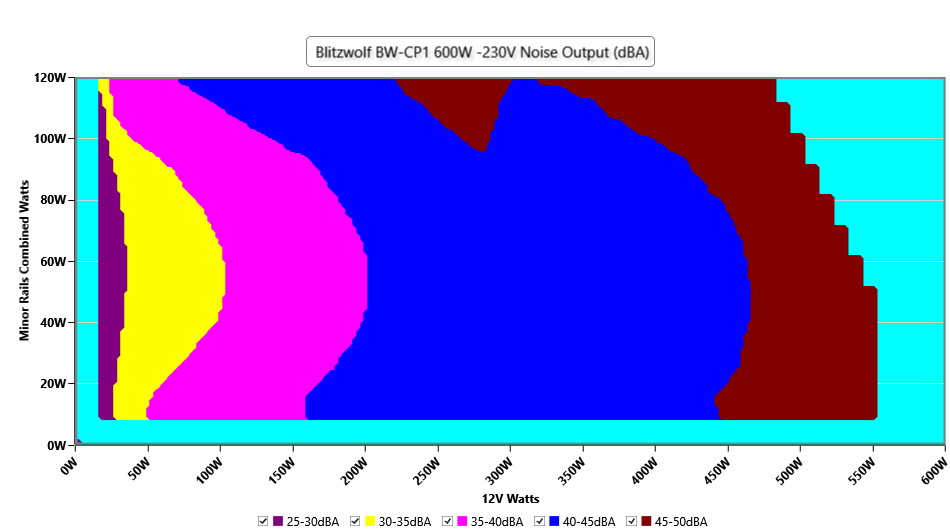

Noise Graph
230V
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
Indicative Performance

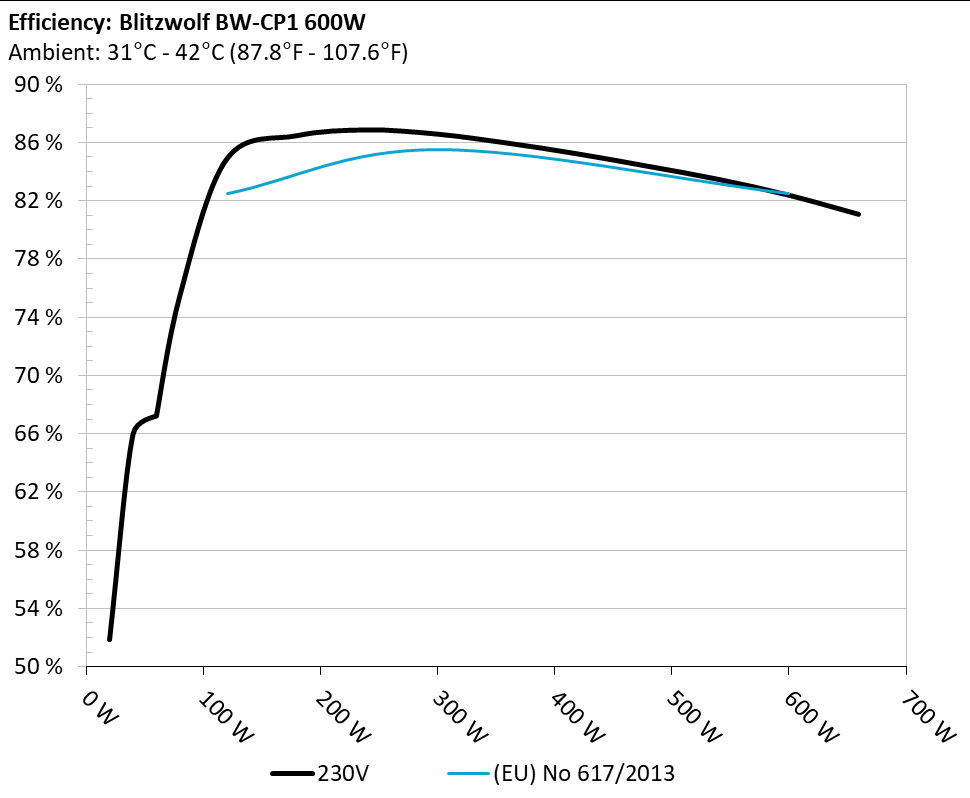

Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

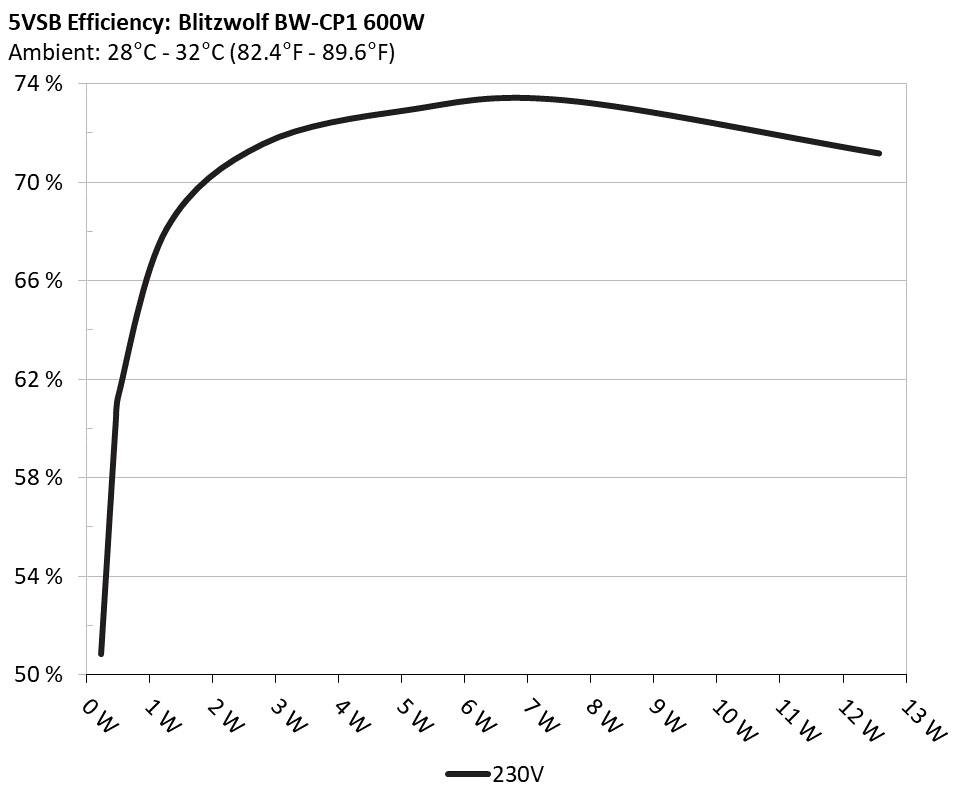

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
5VSB Efficiency (ERP LOT 3/6 & CEC) 230V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.23W
50.837%
0.021
5.109V
0.453W
230.21V
2
0.09A
0.459W
60.106%
0.035
5.107V
0.764W
230.21V
3
0.55A
2.8W
71.55%
0.154
5.092V
3.915W
230.21V
4
1A
5.078W
72.922%
0.216
5.079V
6.961W
230.21V
5
1.5A
7.594W
73.323%
0.255
5.063V
10.357W
230.21V
6
2.499A
12.574W
71.167%
0.297
5.031V
17.671W
230.21V
Supplementary Tests (For Reference)
Typical Load Tests 230V
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
3.136A
1.988A
1.984A
0.986A
59.976
66.353%
1655
38.3
34.57°C
0.638
12.237V
5.03V
3.325V
5.069V
74.534
38.58°C
230.22V
20%
7.296A
2.991A
2.986A
1.188A
119.885
84.356%
2019
43.9
34.96°C
0.805
12.200V
5.014V
3.315V
5.051V
142.118
39.22°C
230.21V
30%
11.837A
3.493A
3.495A
1.39A
179.91
85.966%
2029
43.8
35.52°C
0.858
12.154V
5.009V
3.304V
5.034V
209.279
40.28°C
230.2V
40%
16.412A
3.996A
4.008A
1.594A
239.939
86.364%
2039
44
35.87°C
0.891
12.110V
5.005V
3.293V
5.017V
277.821
40.91°C
230.2V
50%
20.641A
5.01A
5.028A
1.8A
299.879
86.075%
2216
45.9
36.46°C
0.913
12.082V
4.989V
3.281V
4.999V
348.398
41.94°C
230.19V
60%
24.922A
6.033A
6.056A
2A
359.863
85.456%
2331
47.1
37.07°C
0.929
12.041V
4.973V
3.269V
4.98V
421.104
43.15°C
230.18V
70%
29.137A
7.059A
7.093A
2.216A
419.141
84.726%
2376
47.4
38.88°C
0.939
12.014V
4.959V
3.256V
4.96V
494.707
45.93°C
230.17V
80%
33.503A
8.087A
8.134A
2.325A
479.11
83.875%
2384
47.4
38.78°C
0.946
11.977V
4.944V
3.243V
4.944V
571.228
46.86°C
230.16V
90%
38.301A
8.6A
8.658A
2.433A
538.925
82.984%
2382
47.4
39.35°C
0.952
11.918V
4.94V
3.232V
4.929V
649.431
48.38°C
230.15V
100%
43.227A
9.116A
9.219A
2.543A
599.62
81.89%
2380
47.4
40.34°C
0.957
11.855V
4.934V
3.219V
4.912V
732.214
50.43°C
230.15V
110%
47.702A
10.168A
10.382A
2.552A
659.464
80.572%
2383
47.4
42.04°C
0.961
11.817V
4.916V
3.206V
4.896V
818.472
53.01°C
230.13V
CL1
1.894A
15.116A
14.537A
0.496A
146.358
76.183%
2442
48.3
39.06°C
0.845
12.662V
4.776V
3.28V
5.039V
192.118
44.53°C
230.21V
CL2
1.874A
20.391A
1.002A
0.494A
126.472
78.827%
2177
45.5
35.52°C
0.82
12.799V
4.742V
3.293V
5.057V
160.45
42.54°C
230.21V
CL3
1.962A
1A
18.47A
0.494A
92.462
70.858%
2117
44.8
34.71°C
0.794
12.220V
5.003V
3.302V
5.056V
130.493
43.75°C
230.21V
CL4
51.421A
0.977A
1.018A
0.5A
599.205
82.311%
2310
47
41.49°C
0.957
11.443V
5.119V
3.242V
4.996V
728.001
52.39°C
230.15V
The results above are not used in the certification process
Light Load Tests 230V
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.216A
0.493A
0.494A
0.196A
19.974
51.377%
1158
28.3
30.61°C
0.408
12.198V
5.065V
3.337V
5.103V
29.638
33.65°C
230.22V
40W
2.682A
0.691A
0.693A
0.294A
39.976
65.479%
1216
30
31.66°C
0.551
12.180V
5.063V
3.333V
5.096V
51.787
34.99°C
230.22V
60W
4.154A
0.889A
0.891A
0.393A
59.975
66.737%
1473
35.3
32.75°C
0.645
12.160V
5.059V
3.33V
5.09V
75.501
36.22°C
230.22V
80W
5.618A
1.087A
1.091A
0.491A
79.9
74.957%
1427
34.1
33.45°C
0.695
12.152V
5.056V
3.326V
5.083V
94.928
37.23°C
230.22V
The results above are not used in the certification process
Ripple Measurements 230V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
18.12mV
5.84mV
15.67mV
26.92mV
Pass
20% Load
21.47mV
15.91mV
14.71mV
26.77mV
Pass
30% Load
34.28mV
17.13mV
20.17mV
25.45mV
Pass
40% Load
40.25mV
17.08mV
16.53mV
23.02mV
Pass
50% Load
26.53mV
8.03mV
18.91mV
24.29mV
Pass
60% Load
49.11mV
21.14mV
18.85mV
21.00mV
Pass
70% Load
45.11mV
20.53mV
21.49mV
27.98mV
Pass
80% Load
57.16mV
25.15mV
23.76mV
28.79mV
Pass
90% Load
55.34mV
23.48mV
26.24mV
32.44mV
Pass
100% Load
80.04mV
26.01mV
31.14mV
42.65mV
Pass
110% Load
99.35mV
31.28mV
33.38mV
51.43mV
Pass
Crossload1
29.23mV
25.48mV
21.87mV
21.83mV
Pass
Crossload2
20.35mV
23.43mV
12.49mV
21.56mV
Pass
Crossload3
33.87mV
16.87mV
23.36mV
21.10mV
Pass
Crossload4
94.04mV
22.46mV
34.64mV
48.97mV
Pass
The results above are not used in the certification process
Blitzwolf BW-CP1 600W

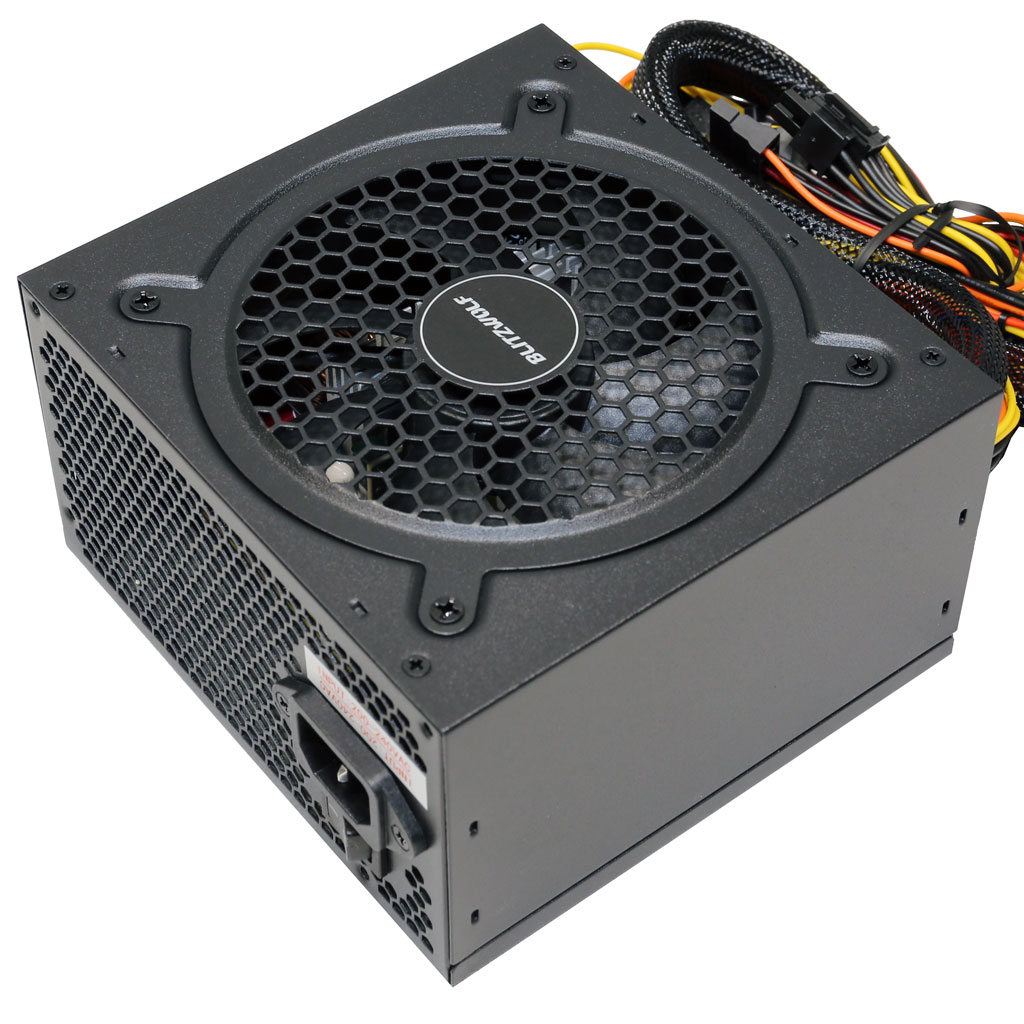

Top side

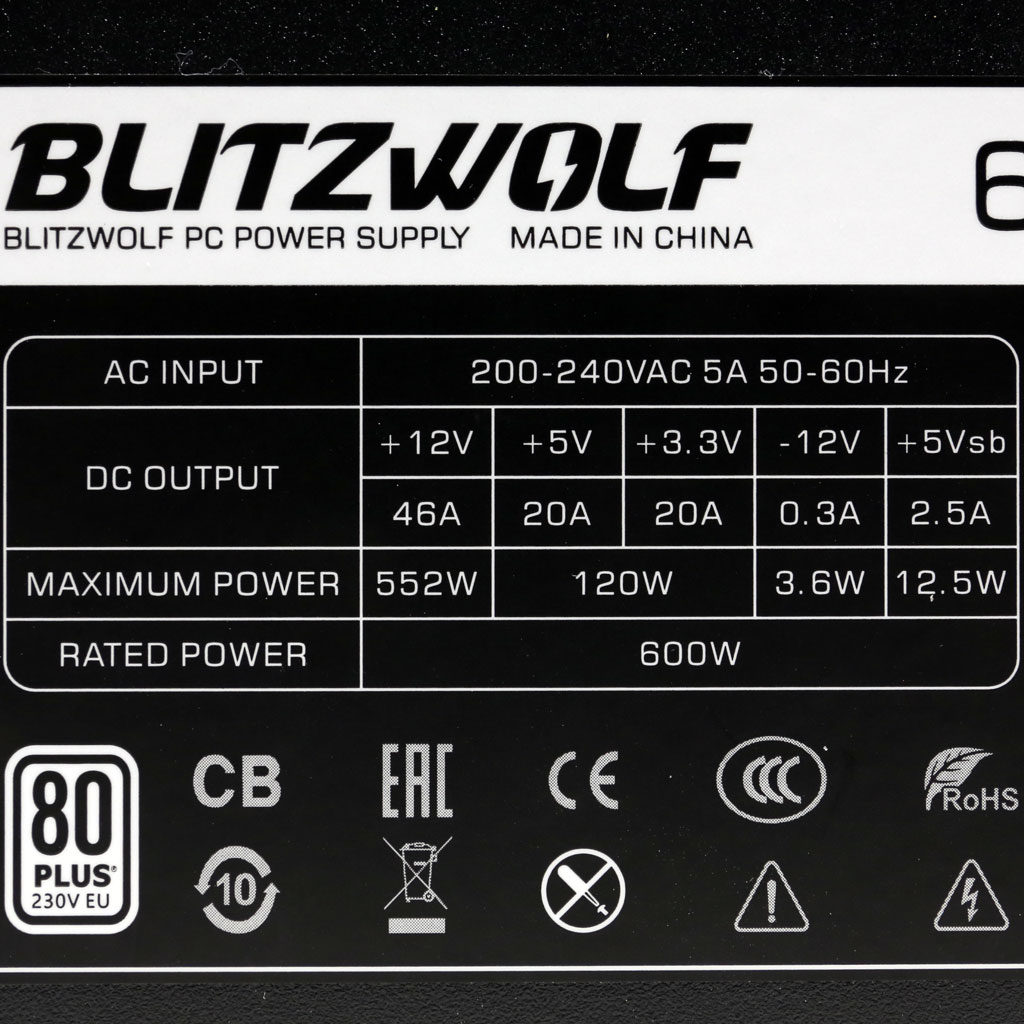

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
