SATA (500mm+155mm) / 4-pin Molex (+155mm) / FDD (+155mm)
1
2 / 1 / 1
18-22AWG
No
AC Power Cord (1340mm) - C13 coupler
1
1
18AWG
-
Test Results
Temperature & Compliance Info
Temperature Range (°C /°F)
30-32 / 86-89.6
ErP Lot 3/6 Ready
✓
(EU) No 617/2013 Compliance
✓
ALPM (Alternative Low Power Mode) compatible
✓
ATX v3.0 Compliance
✓
Performance Summary 115V
Efficiency Rating
PLATINUM
Noise Rating
A-
Average Efficiency (>1450 load combinations)
89.771%
Average Noise Output (>1450 Load Combinations)
25.46dBA
Average PF (>1450 Load Combinations)
0.993
Efficiency With 10W (≤500W) or 2% (>500W) Load
65.302%
Standby Power Consumption
0.0812W
12V Ripple (Full Load)
25.92mV
5V Ripple (Full Load)
14.71mV
3.3V Ripple (Full Load)
15.90mV
5VSB Ripple (Full Load)
38.09mV
12V Load Regulation
0.67%
5V Load Regulation
0.60%
3.3V Load Regulation
1.27%
5VSB Load Regulation
2.78%
Inrush Current
33.880A
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
19.7
AC Loss to PWR_OK Hold Up Time (ms)
17.7
PWR_OK Inactive to DC Loss Delay (ms)
2
Vampire Power
Tables 115V
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
114.87 V
114.82 V
113.85 V
114.92 V
116.15 V
PASS
Mains Frequency:
60.00 Hz
59.99 Hz
59.40 Hz
60.02 Hz
60.60 Hz
PASS
Mains Voltage CF:
1.418
1.416
1.340
1.421
1.490
PASS
Mains Voltage THD:
0.15 %
0.09 %
N/A
0.25 %
2.00 %
PASS
Real Power:
0.081 W
0.062 W
N/A
0.104 W
N/A
N/A
Apparent Power:
13.627 W
13.604 W
N/A
13.658 W
N/A
N/A
Power Factor:
0.006
N/A
N/A
N/A
N/A
N/A
Graphs 115V
Efficiency Graph
115V
INFO

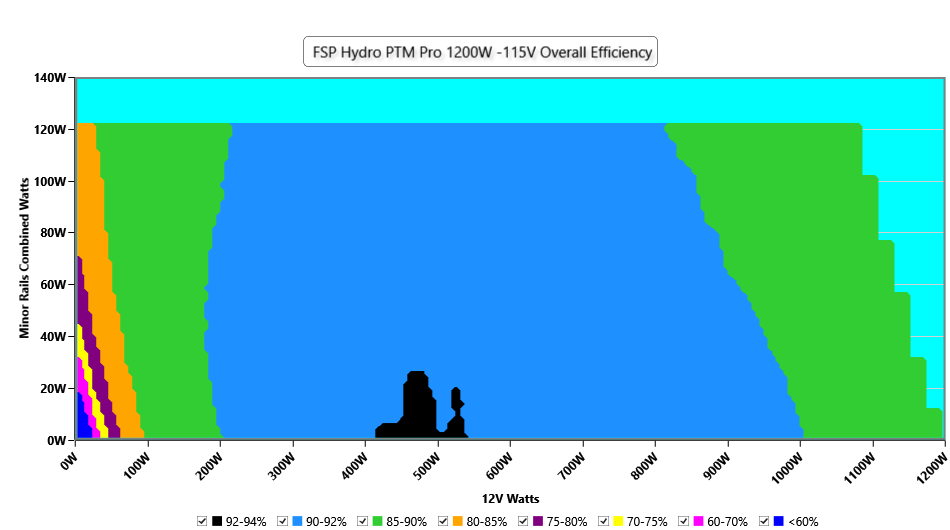

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
Noise Graph
115V
INFO

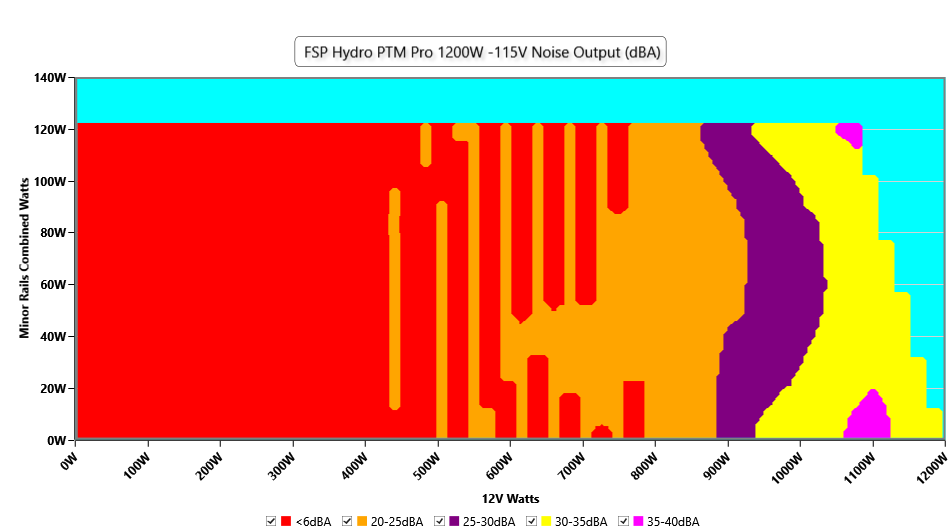

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
Indicative Performance
Efficiency under high ambient temperature
INFO

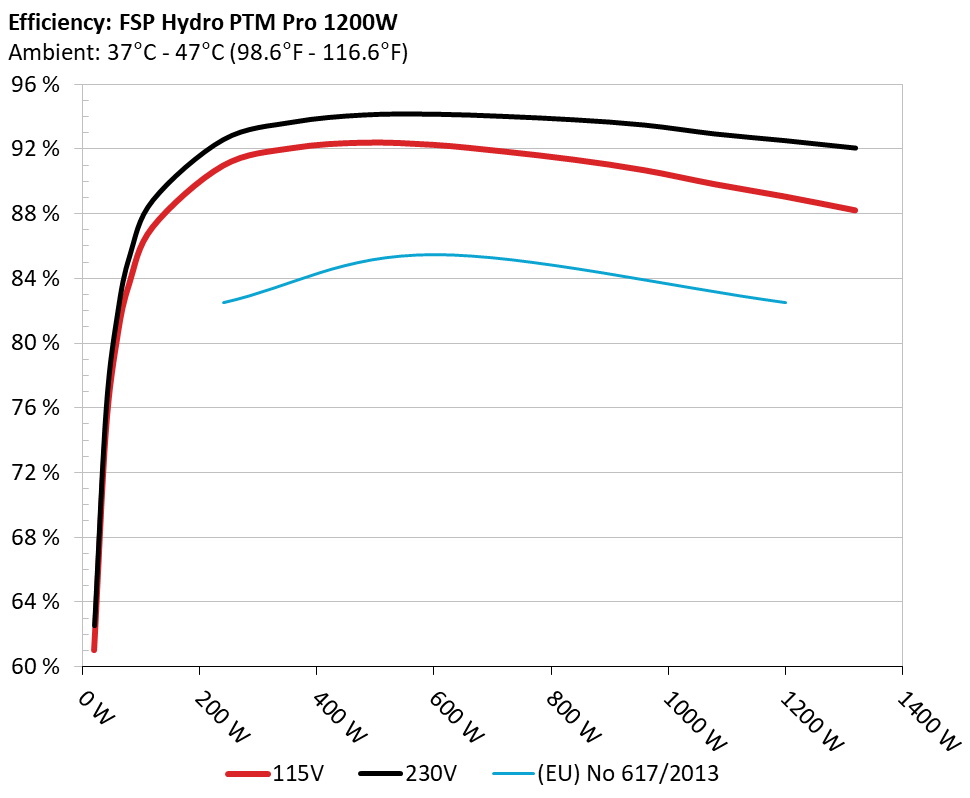

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used
5VSB Efficiency
INFO

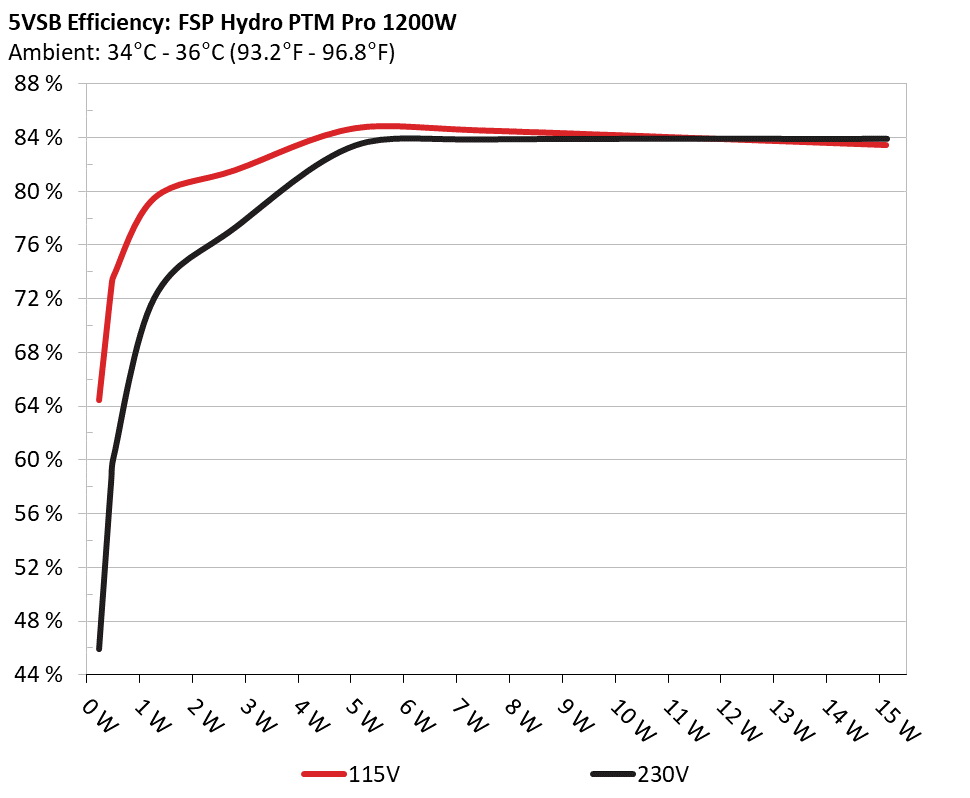

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
5VSB Efficiency (ERP LOT 3/6 & CEC) 115V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.23W
63.959%
0.028
5.104V
0.36W
114.87V
2
0.09A
0.459W
72.243%
0.049
5.103V
0.636W
114.86V
3
0.55A
2.8W
81.038%
0.224
5.092V
3.455W
114.86V
4
1A
5.085W
84.167%
0.322
5.086V
6.042W
114.87V
5
1.5A
7.617W
83.971%
0.379
5.078V
9.071W
114.87V
6
3A
15.121W
82.91%
0.468
5.041V
18.238W
114.87V
Supplementary Tests (For Reference)
Typical Load Tests 115V
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
8.083A
1.976A
1.976A
0.985A
119.964
86.666%
0
<6.0
44.72°C
0.98
12.169V
5.061V
3.34V
5.075V
138.422
40.43°C
114.83V
20%
17.186A
2.965A
2.967A
1.184A
239.908
90.454%
0
<6.0
45.51°C
0.994
12.162V
5.058V
3.336V
5.069V
265.226
40.64°C
114.79V
30%
26.573A
3.461A
3.466A
1.384A
359.107
91.547%
0
<6.0
46.45°C
0.995
12.157V
5.057V
3.332V
5.057V
392.271
41.31°C
114.75V
40%
36.075A
3.957A
3.965A
1.586A
479.491
91.877%
0
<6.0
47.41°C
0.996
12.149V
5.055V
3.329V
5.045V
521.884
41.86°C
114.71V
50%
45.199A
4.949A
4.963A
1.788A
599.254
91.744%
0
<6.0
48.38°C
0.996
12.141V
5.052V
3.325V
5.033V
653.179
42.36°C
114.66V
60%
54.415A
5.943A
5.965A
1.992A
719.79
91.333%
793
23.1
42.77°C
0.996
12.128V
5.048V
3.32V
5.02V
788.087
49.39°C
114.62V
70%
63.593A
6.94A
6.97A
2.196A
839.525
90.826%
940
28.7
43.22°C
0.996
12.115V
5.044V
3.314V
5.008V
924.327
50.28°C
114.57V
80%
72.838A
7.937A
7.976A
2.301A
959.511
90.179%
1295
38.1
43.9°C
0.995
12.104V
5.04V
3.309V
4.998V
1064.001
52.01°C
114.53V
90%
82.370A
8.438A
8.472A
2.407A
1079.305
89.319%
1555
42.8
44.46°C
0.996
12.102V
5.037V
3.305V
4.985V
1208.372
53.52°C
114.47V
100%
91.775A
8.94A
9A
3.026A
1199.334
88.556%
1884
48.5
45.13°C
0.995
12.091V
5.033V
3.3V
4.957V
1354.336
55.22°C
114.42V
110%
101.133A
9.942A
10.107A
3.032A
1319.95
87.703%
2145
51.0
46.55°C
0.995
12.079V
5.029V
3.294V
4.947V
1505.012
57.47°C
114.37V
CL1
0.114A
14.316A
14.317A
0A
121.297
83.34%
786
22.7
40.96°C
0.983
12.170V
5.043V
3.331V
5.087V
145.547
46.48°C
114.82V
CL2
0.114A
19.843A
0A
0A
101.374
81.728%
780
22.4
40.53°C
0.974
12.175V
5.039V
3.346V
5.094V
124.039
47.57°C
114.83V
CL3
0.113A
0A
19.793A
0A
67.379
76.468%
0
<6.0
49.2°C
0.958
12.173V
5.073V
3.334V
5.09V
88.113
40.19°C
114.84V
CL4
99.182A
0A
0A
0.001A
1199.895
89.097%
1655
45.1
45.4°C
0.995
12.097V
5.055V
3.313V
5.041V
1346.74
56.38°C
114.44V
The results above are not used in the certification process
Light Load Tests 115V
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.220A
0.494A
0.494A
0.196A
19.989
60.546%
0
<6.0
39.69°C
0.837
12.170V
5.061V
3.342V
5.095V
33.015
36.58°C
114.86V
40W
2.685A
0.691A
0.691A
0.294A
39.989
74.034%
0
<6.0
40.99°C
0.919
12.171V
5.062V
3.342V
5.092V
54.016
37.67°C
114.86V
60W
4.150A
0.889A
0.888A
0.393A
59.988
79.968%
0
<6.0
42.44°C
0.949
12.171V
5.063V
3.342V
5.09V
75.013
38.67°C
114.85V
80W
5.611A
1.086A
1.086A
0.491A
79.917
83.162%
0
<6.0
43.47°C
0.962
12.169V
5.061V
3.341V
5.087V
96.096
39.49°C
114.85V
The results above are not used in the certification process
Ripple Measurements 115V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
7.89mV
10.72mV
10.24mV
19.46mV
Pass
20% Load
11.36mV
12.26mV
10.86mV
27.20mV
Pass
30% Load
12.03mV
12.26mV
10.91mV
21.83mV
Pass
40% Load
13.11mV
11.95mV
11.27mV
22.86mV
Pass
50% Load
15.02mV
12.67mV
11.38mV
26.07mV
Pass
60% Load
15.79mV
13.76mV
12.46mV
25.34mV
Pass
70% Load
15.59mV
12.98mV
12.56mV
28.44mV
Pass
80% Load
17.84mV
12.78mV
13.70mV
29.22mV
Pass
90% Load
15.79mV
13.96mV
13.81mV
33.55mV
Pass
100% Load
25.92mV
14.71mV
15.90mV
38.09mV
Pass
110% Load
26.95mV
15.62mV
17.81mV
39.12mV
Pass
Crossload1
12.36mV
14.93mV
12.92mV
16.75mV
Pass
Crossload2
8.81mV
15.81mV
10.86mV
16.57mV
Pass
Crossload3
8.09mV
11.33mV
11.74mV
15.07mV
Pass
Crossload4
24.72mV
13.49mV
15.69mV
23.68mV
Pass
The results above are not used in the certification process
FSP Technology Hydro PTM Pro 1200W (ATX v3.0)

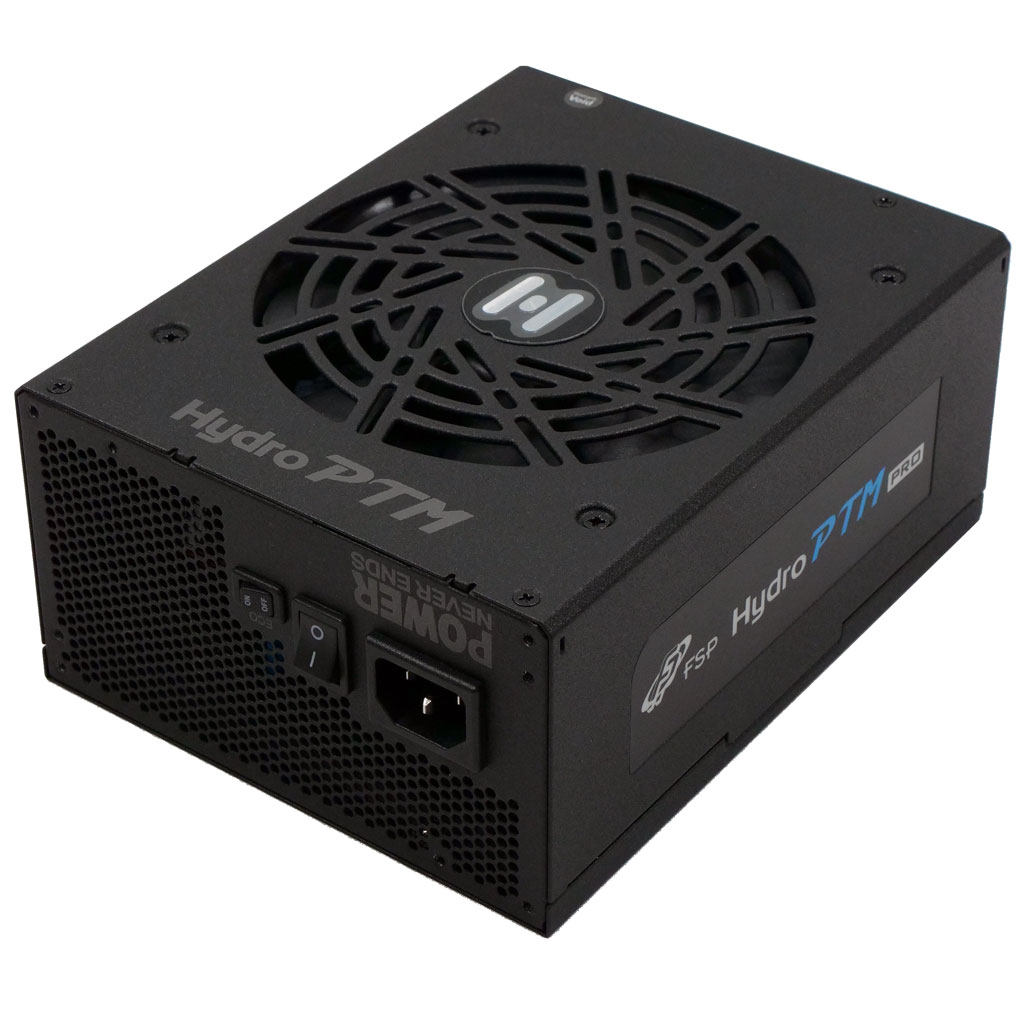

Top side

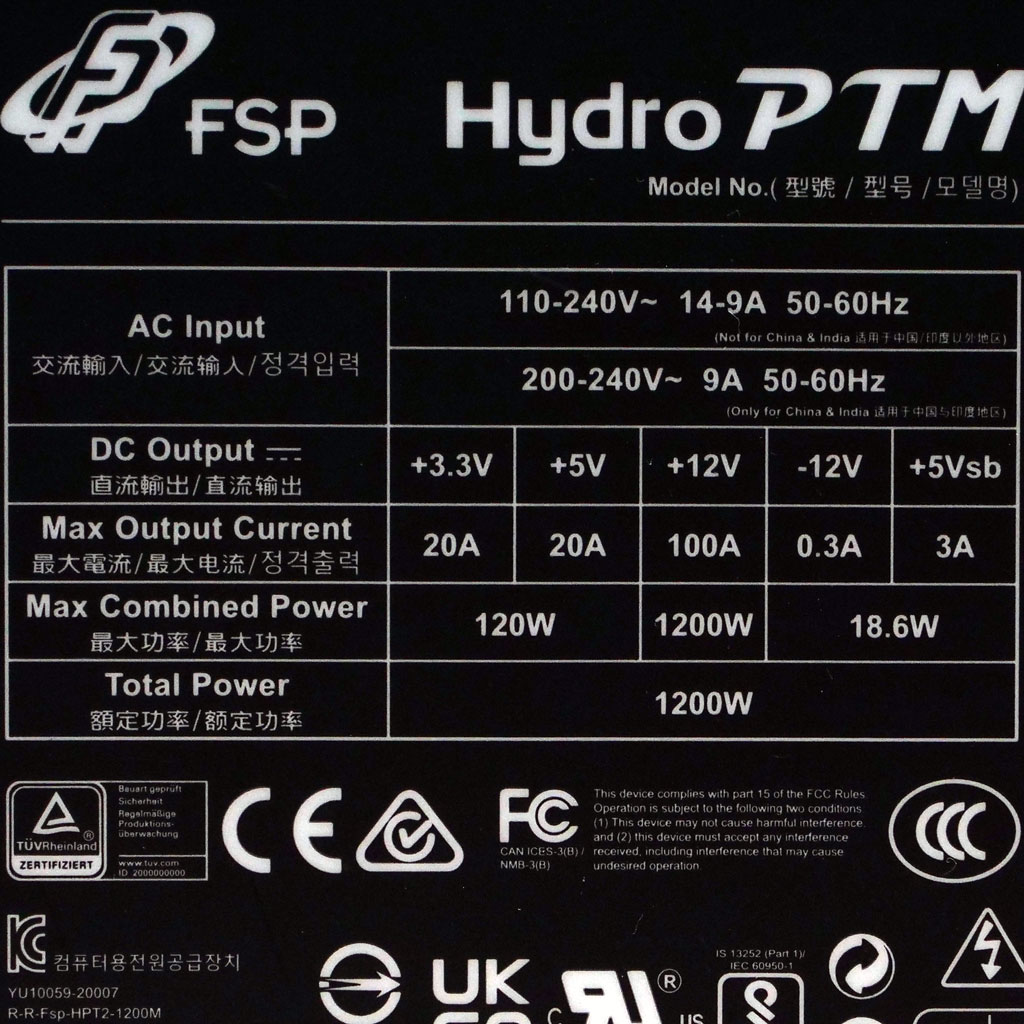

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
