CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Vetroo 1000G5
Serial Number
Lab IDVT10002164
  • Report: 23PS2164A
  • Receipt Date: Mar 23, 2023
  • Test Date: Apr 3, 2023
  • Report Date: Mar 31, 2023
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandVetroo
Manufacturer (OEM)Andyson
Series
Model Number1000G5
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)12-6
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Cooling120mm Fluid Dynamic Bearing Fan
(HA1225M12F-Z)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps252583.330.3
Watts125999.6153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18AWG No
4+4 pin EPS12V (700mm) 2 2 18AWG No
6+2 pin PCIe (500mm+150mm) 2 4 18AWG No
6+2 pin PCIe (500mm) 2 2 18AWG No
12+4 pin PCIe (610mm) (600W) 1 1 16-26AWG No
SATA (455mm+150mm+150mm+150mm) 2 8 18AWG No
4-pin Molex (455mm+150mm+150mm) 2 6 18AWG No
FDD Adapter (+100mm) 1 1 20AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) Andyson
PCB Type Double- Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor SCK205R0 & Relay HF46F-G
Bridge Rectifier(s) 2x HY2110
APFC MOSFETs 2x Infineon IPP50R140CP (550V, 15A @ 100°C, Rds(on): 0.14Ohm)
APFC Boost Diode 1x CREE C3D08060A(600V, 8A @ 152°C)
Bulk Cap(s) 2x Nippon Chemi-Con (420V, 470uF, 2000h @ 105°C, KMQ)
Main Switchers 4x Infineon IPP60R190P6 (600V, 12.7A @ 100°C, Rds(on): 0.19Ohm)
APFC Controller Champion CM6500UNX
Resonant Controller Champion CU6901VPA
Topology Primary side: APFC, Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 8x Infineon BSC014N04LS (40V, 100A @ 100°C, Rds(on): 1.4mOhm)
5V & 3.3V DC-DC Converters: 4x Infineon BSC018NE2LS (25V, 97A @ 100°C, Rds(on): 1.4mOhm)
PWM Controller(s): ANPEC APW7160A
Filtering Capacitors Electrolytic: 7x Nichicon (4-10,000h @ 105°C, HE)
3x Rubycon (6-10,000h @ 105°C, ZLH)
2x Chemi-Con (4-10,000h @ 105°C, KY)
Polymer: 7x Polycap (470μf 16V 105°C), 12 x FPcap, 5x Chemi-Con
Supervisor IC Weltrend WT7527RA (OCP, OVP, UVP, SCP, PG)
Fan Model 120mm Fluid Dynamic Bearing Fan (HA1225M12F-Z) DC12V 0.45A
5VSB Circuit
Rectifier 1x PFR10V45CT SBR (45V, 10A)
Standby PWM Controller Excelliance MOS Corp EM8569C

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)22.5
AC Loss to PWR_OK Hold Up Time (ms)17.4
PWR_OK Inactive to DC Loss Delay (ms)5.1

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.90 V 114.82 V 113.85 V 114.97 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.419 1.417 1.340 1.422 1.490 PASS
Mains Voltage THD: 0.22 % 0.17 % N/A 0.30 % 2.00 % PASS
Real Power: 0.061 W -0.005 W N/A 0.089 W N/A N/A
Apparent Power: 7.955 W 7.922 W N/A 8.001 W N/A N/A
Power Factor: 0.007 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.76 V 229.70 V 227.70 V 229.83 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.16 % 0.13 % N/A 0.20 % 2.00 % PASS
Real Power: 0.124 W 0.079 W N/A 0.175 W N/A N/A
Apparent Power: 27.332 W 27.295 W N/A 27.371 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

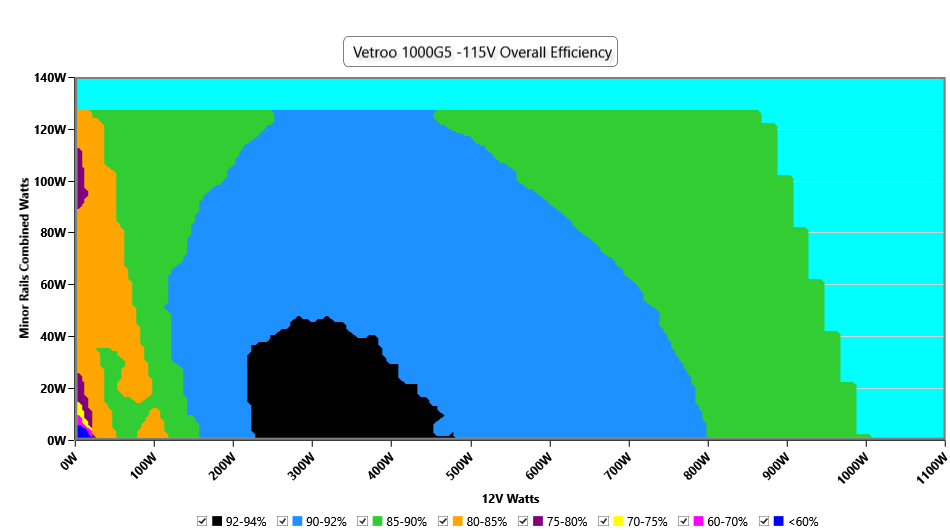

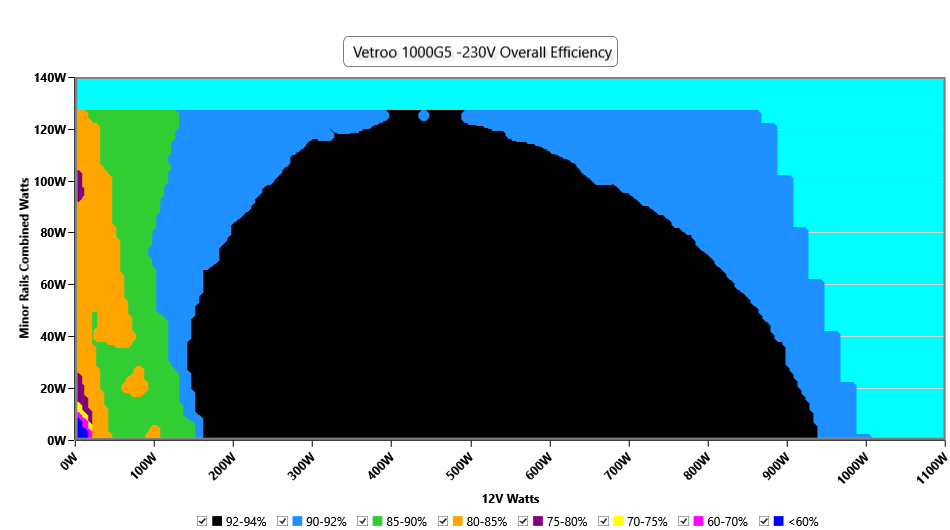

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

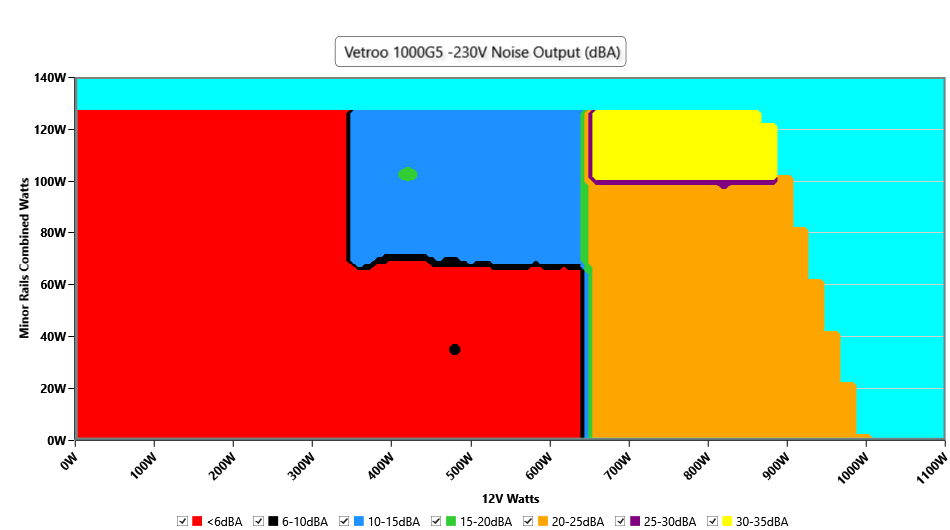

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

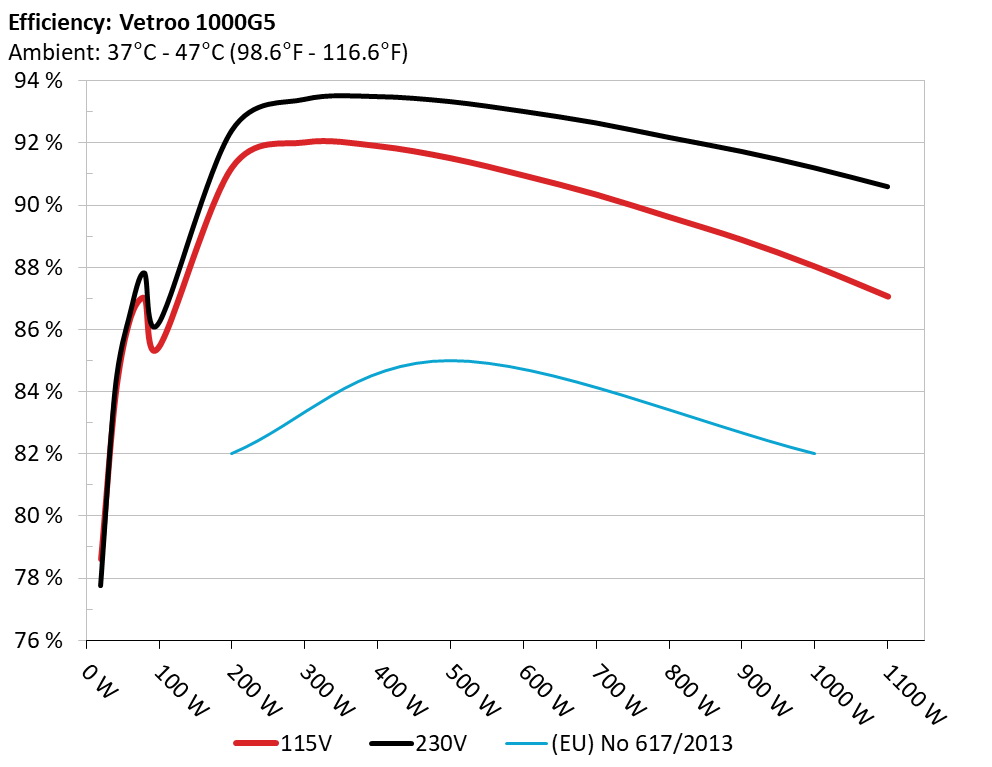

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

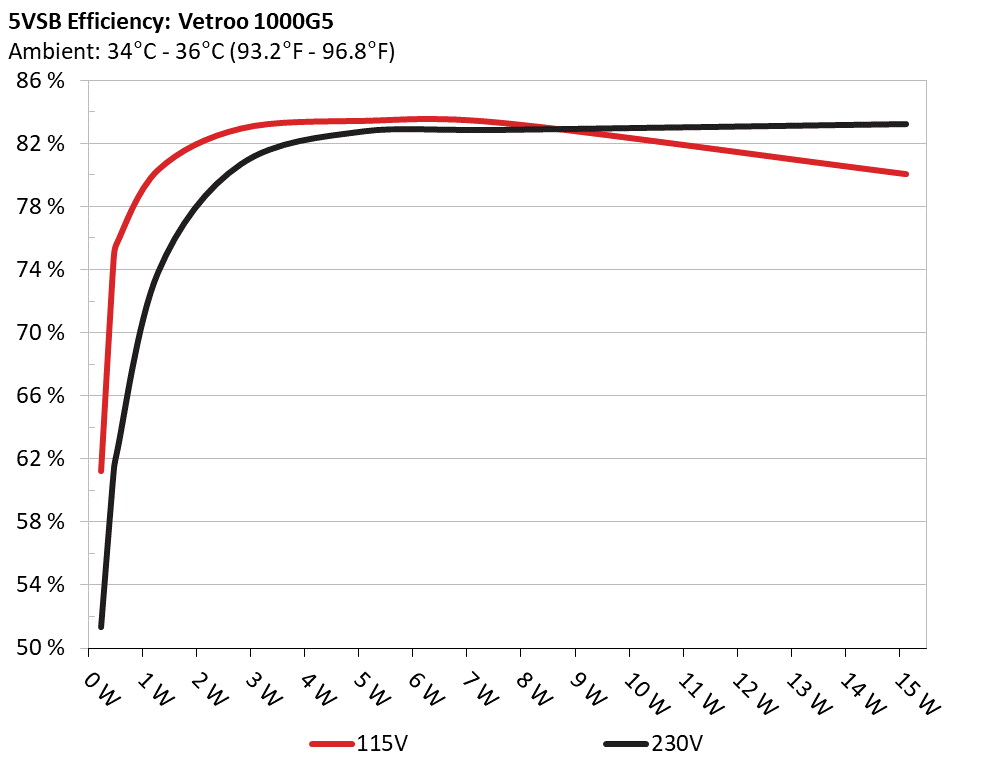

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 60.757% 0.049
5.143V 0.38W 114.88V
2 0.09A 0.463W 74.188% 0.08
5.141V 0.624W 114.88V
3 0.55A 2.819W 82.438% 0.307
5.126V 3.42W 114.88V
4 1A 5.111W 82.923% 0.396
5.111V 6.164W 114.87V
5 1.5A 7.641W 82.798% 0.436
5.094V 9.229W 114.87V
6 3A 15.123W 79.553% 0.498
5.042V 19.009W 114.87V
Test #
5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 50.827% 0.018
5.142V 0.455W 229.78V
2 0.09A 0.463W 60.665% 0.029
5.141V 0.764W 229.77V
3 0.55A 2.819W 80.179% 0.127
5.126V 3.516W 229.77V
4 1A 5.111W 82.266% 0.202
5.111V 6.212W 229.77V
5 1.5A 7.641W 82.35% 0.265
5.094V 9.279W 229.77V
6 3A 15.128W 82.717% 0.358
5.043V 18.289W 229.77V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.423A 1.993A 1.985A 0.981A 99.968 85.448% 0 <6.0 44.39°C 0.962
12.202V 5.017V 3.324V 5.094V 116.993 40.29°C 114.83V
20% 13.848A 2.991A 2.98A 1.182A 199.904 91.216% 0 <6.0 45.29°C 0.976
12.204V 5.014V 3.321V 5.077V 219.158 40.95°C 114.8V
30% 21.650A 3.491A 3.479A 1.383A 299.943 92.026% 0 <6.0 45.99°C 0.979
12.189V 5.012V 3.32V 5.06V 325.933 41.37°C 114.77V
40% 29.390A 3.992A 3.978A 1.586A 399.418 91.907% 473 <6.0 41.7°C 0.982
12.188V 5.01V 3.318V 5.044V 434.588 46.74°C 114.73V
50% 36.812A 4.993A 4.976A 1.79A 499.143 91.519% 792 14.5 42.43°C 0.982
12.187V 5.007V 3.316V 5.027V 545.395 47.89°C 114.71V
60% 44.293A 5.996A 5.976A 1.996A 599.682 90.961% 788 14.4 42.91°C 0.983
12.189V 5.003V 3.313V 5.01V 659.275 48.93°C 114.66V
70% 51.690A 7.001A 6.978A 2.203A 699.43 90.345% 783 14.3 43.4°C 0.985
12.194V 4.999V 3.31V 4.993V 774.176 50.49°C 114.63V
80% 59.160A 8A 7.98A 2.309A 799.433 89.623% 1342 31.9 43.84°C 0.986
12.197V 4.997V 3.308V 4.979V 891.993 51.94°C 114.59V
90% 66.934A 8.506A 8.469A 2.416A 899.24 88.886% 1343 31.9 44.98°C 0.987
12.203V 4.995V 3.306V 4.965V 1011.68 54.12°C 114.54V
100% 74.468A 9.01A 8.989A 3.04A 999.253 88.031% 1341 31.9 45.9°C 0.988
12.214V 4.993V 3.304V 4.934V 1135.11 56.22°C 114.51V
110% 81.930A 10.017A 10.086A 3.047A 1099.887 87.062% 1501 34.7 46.55°C 0.989
12.225V 4.99V 3.301V 4.922V 1263.335 57.41°C 114.46V
CL1 0.113A 15.081A 15.009A 0A 126.291 80.956% 794 14.5 41.39°C 0.97
12.246V 4.993V 3.305V 5.108V 156.001 46.84°C 114.82V
CL2 0.113A 25.039A 0A 0A 126.249 79.011% 1354 32.0 40.31°C 0.971
12.228V 4.987V 3.314V 5.114V 159.791 47.33°C 114.81V
CL3 0.113A 0A 24.966A 0A 83.897 70.859% 1351 32.0 40.29°C 0.963
12.217V 5.009V 3.305V 5.115V 118.4 49.39°C 114.83V
CL4 81.983A 0A 0A 0A 999.844 88.698% 1500 34.7 45.37°C 0.988
12.196V 5.013V 3.318V 5.05V 1127.245 56.31°C 114.52V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.420A 1.993A 1.985A 0.982A 99.974 86.204% 0 <6.0 44.45°C 0.852
12.208V 5.016V 3.324V 5.092V 115.974 40.23°C 229.75V
20% 13.844A 2.991A 2.98A 1.182A 199.908 92.394% 0 <6.0 45.39°C 0.923
12.208V 5.014V 3.321V 5.075V 216.365 40.74°C 229.74V
30% 21.646A 3.492A 3.479A 1.384A 299.944 93.401% 0 <6.0 46.51°C 0.948
12.192V 5.011V 3.319V 5.058V 321.136 41.37°C 229.72V
40% 29.390A 3.992A 3.978A 1.587A 399.413 93.487% 793 14.5 41.85°C 0.96
12.188V 5.009V 3.318V 5.042V 427.239 47.46°C 229.71V
50% 36.828A 4.993A 4.976A 1.791A 499.133 93.328% 791 14.5 42.38°C 0.966
12.182V 5.006V 3.315V 5.025V 534.817 48.43°C 229.69V
60% 44.316A 5.997A 5.976A 1.997A 599.665 93.012% 788 14.4 42.75°C 0.97
12.182V 5.002V 3.313V 5.008V 644.713 49.38°C 229.67V
70% 51.720A 7.002A 6.978A 2.204A 699.413 92.642% 782 14.3 43.44°C 0.973
12.187V 4.998V 3.31V 4.99V 754.966 50.48°C 229.65V
80% 59.190A 8A 7.98A 2.311A 799.407 92.175% 1343 31.9 43.78°C 0.975
12.190V 4.996V 3.308V 4.976V 867.265 51.87°C 229.64V
90% 66.978A 8.508A 8.469A 2.418A 899.235 91.723% 1343 31.9 44.82°C 0.976
12.194V 4.994V 3.306V 4.962V 980.38 53.89°C 229.61V
100% 74.532A 9.012A 8.988A 3.043A 999.246 91.194% 1342 31.9 45.73°C 0.978
12.204V 4.992V 3.304V 4.929V 1095.739 55.76°C 229.6V
110% 82.006A 10.02A 10.086A 3.05A 1099.868 90.588% 1500 34.7 46.65°C 0.979
12.213V 4.989V 3.302V 4.918V 1214.142 57.47°C 229.58V
CL1 0.113A 15.085A 15.006A 0A 126.291 81.689% 793 14.5 40.64°C 0.891
12.245V 4.991V 3.306V 5.107V 154.598 45.99°C 229.75V
CL2 0.113A 25.047A 0A 0A 126.248 79.684% 1352 32.0 40.08°C 0.894
12.217V 4.985V 3.314V 5.114V 158.434 47.13°C 229.75V
CL3 0.113A 0A 24.96A 0A 83.895 71.467% 1353 32.0 42.06°C 0.853
12.215V 5.009V 3.306V 5.115V 117.396 51.15°C 229.75V
CL4 82.039A 0A 0A 0A 999.836 91.754% 1500 34.7 45.26°C 0.977
12.187V 5.012V 3.318V 5.047V 1089.694 56.22°C 229.6V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.240A 0.5A 0.5A 0.2A 20.264 78.606% 0 <6.0 39.57°C 0.81
12.155V 5.023V 3.328V 5.129V 25.779 36.52°C 114.86V
40W 2.720A 0.7A 0.7A 0.3A 40.434 83.942% 0 <6.0 40.77°C 0.912
12.155V 5.022V 3.328V 5.124V 48.169 37.43°C 114.85V
60W 4.224A 0.9A 0.9A 0.4A 60.876 86.401% 0 <6.0 42.33°C 0.94
12.151V 5.021V 3.327V 5.118V 70.457 38.58°C 114.85V
80W 5.622A 1.095A 1.091A 0.489A 79.92 87.003% 0 <6.0 43.09°C 0.952
12.148V 5.019V 3.326V 5.113V 91.861 39.18°C 114.84V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.222A 0.498A 0.496A 0.195A 19.997 77.746% 0 <6.0 39.68°C 0.489
12.148V 5.022V 3.328V 5.128V 25.721 36.58°C 229.77V
40W 2.690A 0.697A 0.694A 0.293A 39.995 84.088% 0 <6.0 41.15°C 0.648
12.147V 5.022V 3.327V 5.123V 47.56 37.87°C 229.77V
60W 4.160A 0.896A 0.893A 0.391A 59.992 86.467% 0 <6.0 42.08°C 0.749
12.144V 5.021V 3.327V 5.118V 69.387 38.6°C 229.76V
80W 5.626A 1.096A 1.091A 0.489A 79.93 87.816% 0 <6.0 43.36°C 0.805
12.142V 5.019V 3.326V 5.112V 91.019 39.57°C 229.76V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load9.46mV13.23mV12.53mV14.94mVPass
20% Load9.98mV13.34mV12.28mV15.29mVPass
30% Load11.30mV13.59mV12.69mV16.47mVPass
40% Load10.90mV17.98mV14.22mV15.86mVPass
50% Load11.10mV14.92mV12.94mV17.59mVPass
60% Load10.49mV14.92mV13.10mV18.77mVPass
70% Load11.67mV15.28mV14.38mV19.69mVPass
80% Load12.69mV16.20mV18.31mV46.49mVPass
90% Load10.69mV16.35mV15.75mV21.79mVPass
100% Load14.86mV17.22mV16.27mV24.54mVPass
110% Load15.50mV18.33mV16.71mV28.41mVPass
Crossload111.02mV15.51mV17.23mV13.59mVPass
Crossload211.66mV21.45mV13.40mV13.40mVPass
Crossload310.79mV13.69mV20.36mV12.22mVPass
Crossload415.47mV17.72mV14.80mV14.83mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load10.39mV13.59mV12.89mV15.19mVPass
20% Load10.13mV13.64mV11.77mV15.30mVPass
30% Load11.00mV13.34mV12.23mV15.34mVPass
40% Load10.59mV16.55mV14.48mV16.06mVPass
50% Load11.15mV14.15mV12.79mV15.86mVPass
60% Load20.11mV19.72mV15.50mV20.77mVPass
70% Load11.15mV15.02mV13.66mV17.24mVPass
80% Load11.77mV15.27mV14.84mV18.31mVPass
90% Load11.31mV16.30mV15.40mV20.41mVPass
100% Load16.46mV17.61mV16.54mV22.62mVPass
110% Load16.24mV17.54mV16.59mV23.43mVPass
Crossload111.51mV14.60mV16.53mV14.01mVPass
Crossload210.90mV20.89mV12.99mV12.84mVPass
Crossload311.61mV14.00mV21.07mV12.43mVPass
Crossload416.43mV17.59mV14.88mV15.89mVPass

The results above are not used in the certification process

Vetroo 1000G5

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
