Enermax MaxTytan 1250W
Serial Number
Lab ID216
  • Report:
  • Receipt Date: Nov 1, 2018
  • Test Date: Nov 11, 2018
  • Report Date: Nov 14, 2018
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandEnermax
Manufacturer (OEM)Channel Well Technology
SeriesMaxTytan
Model NumberEDT1250EWT
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15-7
Rated Frequency (Hz)47-63
Rated Power (W)1250
TypeATX12V
Cooling140mm Magnetic Cyclone Bearing Fan
(ED142512M-PA)
Semi-Passive Operation✓
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 20 20 104 3 0.3
Watts 100 1248 15 3.6
Total Max. Power (W) 1250

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16-20AWG No
4+4 pin EPS12V (700mm) 1 1 16AWG No
8 pin EPS12V (700mm) 1 1 16AWG No
6+2 pin PCIe (600mm) 8 8 16-18AWG No
SATA (500mm+150mm+150mm+150mm) 4 16 18AWG No
4 pin Molex (500mm+140mm+140mm+140mm) 2 8 18AWG No
FDD Adapter (+100mm) 1 1 20AWG No
Coolergenie - Power Supply Cable (+600mm) 1 1 22-24AWG No
Coolergenie - 4 pin Fan Cable (+500mm) 1 1 26AWG No
Coolergenie - 4 pin Fan Extension Cable (+500mm) 1 1 26AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) Channel Well Technology
Platform Model CST
Primary Side
Transient Filter 6x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Bypass Relay
Bridge Rectifier(s) 2x Vishay LVB1560 (600V, 15A @ 125°C)
APFC MOSFETS 2x Toshiba TK25N60X (600V, 25A @ 150°C, 0.105 Ohm)
APFC Boost Diode 2x SCS110AG (600V, 10A & 117°C)
Hold-up Cap(s) 1x Chemi-Con (420V, 560uF, 2000h @ 105°C, KMR)
1x Nichicon (400V, 680uF, 2000h @ 105°C, GG)
Main Switchers 4x Alpha & Omega AOTF29S50 (600V, 18A @ 100°C, 0.15 Ohm)
FET Drivers 2x Silicon Labs Si8230BD
Primary MCU Texas Instruments UCD3138 (31.25MHz, 32-bit ARM7TDMI-S Processor, 32KB Flash, 3x Feedback loop control, 14bit DAC, up to 2MHz switching freq)
Secondary MCU Microchip PIC32MX230F064D (40 MHz, 64KB Flash, 13x analog chanels, 10bit ADC, USB interface)
Topology Primary side: Full-Bridge & LLC Resonant Converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 12x Alpha & Omega AON6240 (40V, 67A @ 100°C, 1.6 mOhm)
5V & 3.3V DC-DC Converters:
6x Sinopower SM3117NSUC (30V, 85A @ 100°C, 7.2 mOhm @ Vgs=10V)
PWM Controller: 1x Anpec APW7159C
Filtering Capacitors Electrolytics: Nippon Chemi-Con (105°C, KY, KZE)
Polymers: Apaq, Nippon Chemi-Con
Supervisor IC Infinno ST9S313-DAG(OVP, UVP) & LM358
Fan Model Enermax ED142512M-PA (139mm, 12V, 0.30A, 1560 RPM, twister bearing)
5VSB Circuit
Rectifier 1x M03N65D FET
Standby PWM Controller On Bright OB5269CP & SPN5003 (N-Channel Enhancement Mode FET)

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary 115V

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)20.4
AC Loss to PWR_OK Hold Up Time (ms)16.3
PWR_OK Inactive to DC Loss Delay (ms)4.1

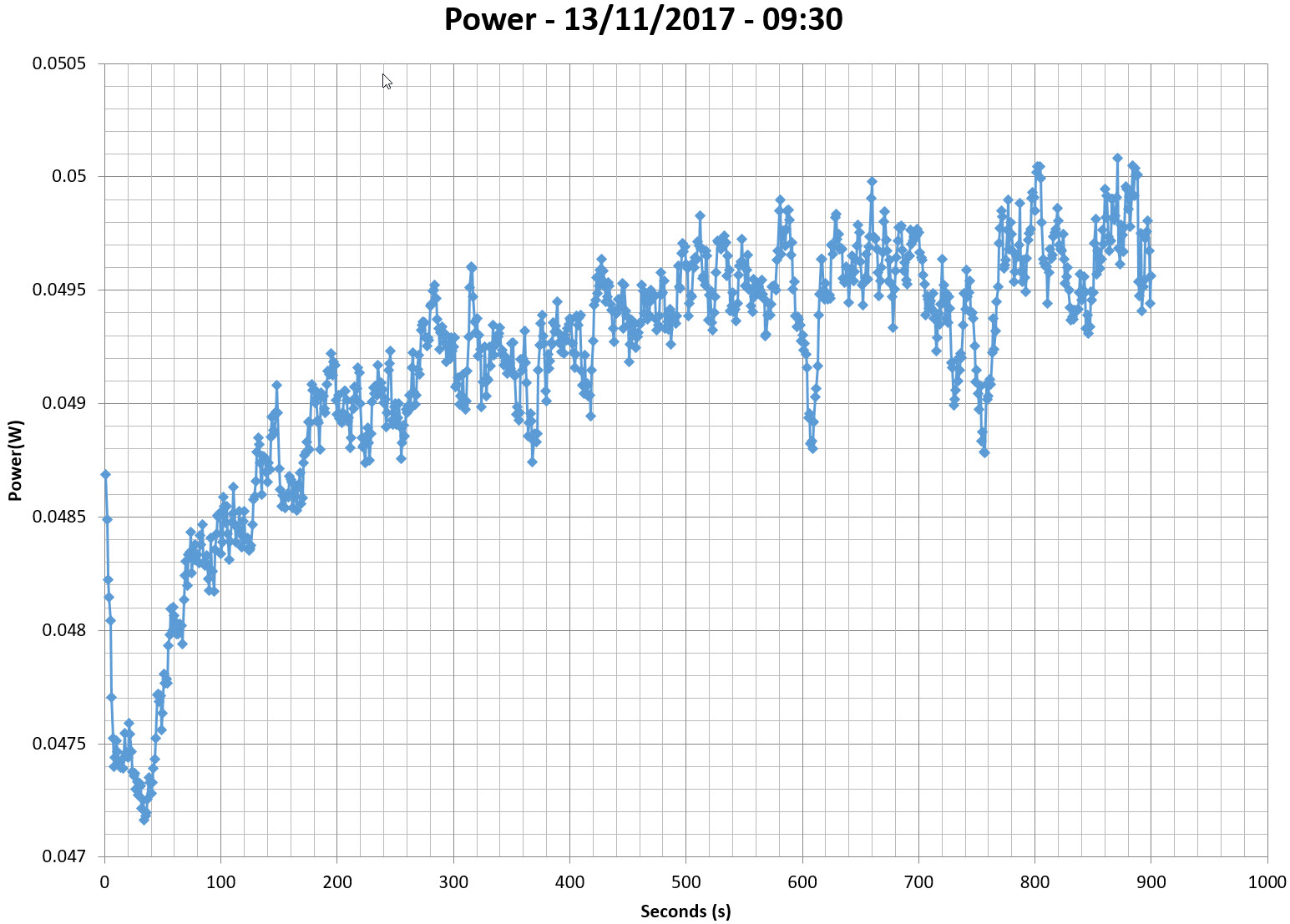

Vampire Power

Graphs 115V

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

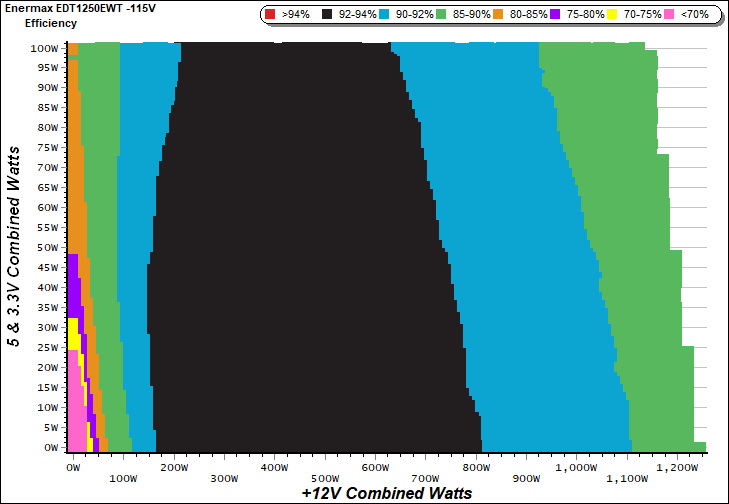

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

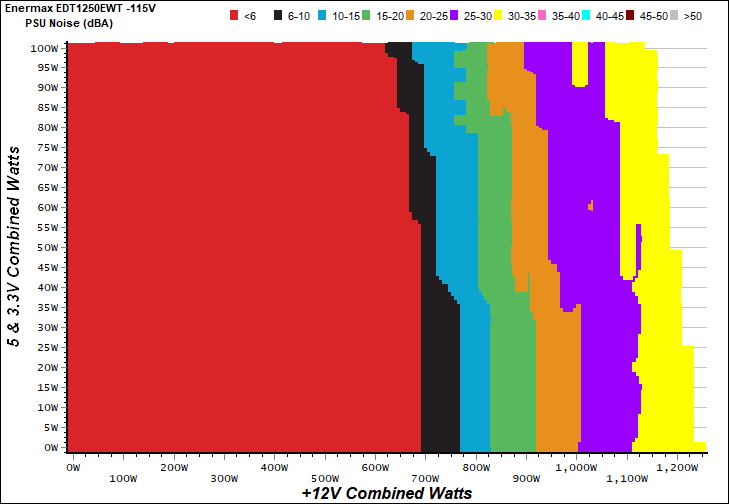

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

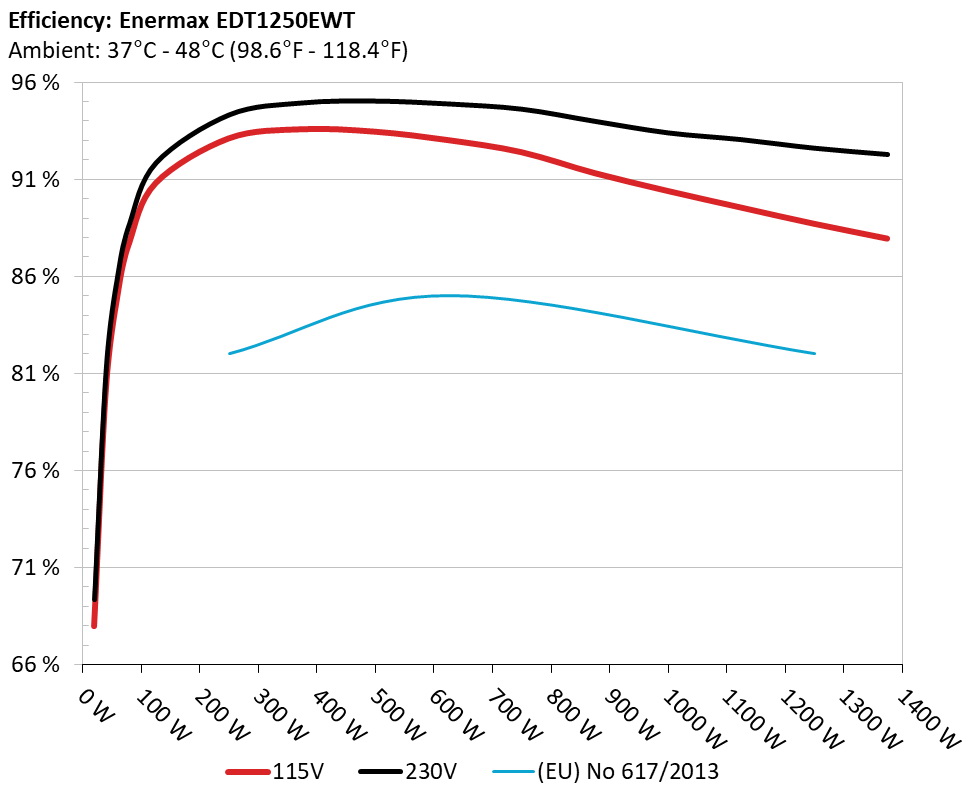

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

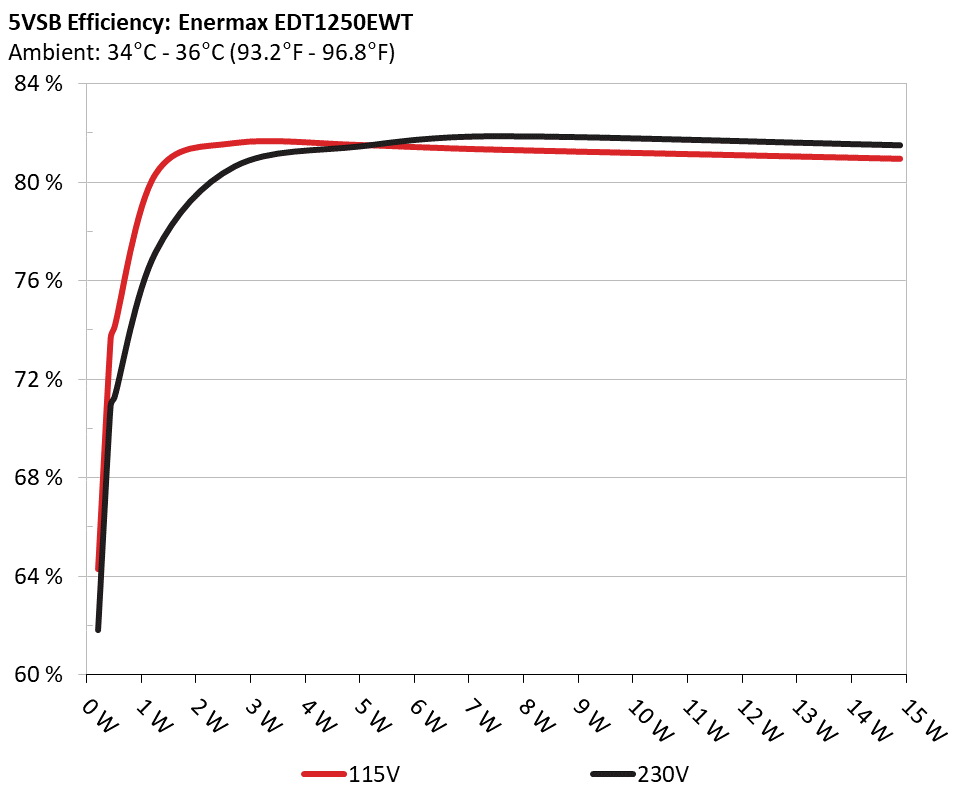

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.209 64.308% 0.032
5.016V 0.325 115.06V
2 0.088A 0.439 73.658% 0.059
5.015V 0.596 115.06V
3 0.542A 2.716 81.586% 0.270
5.008V 3.329 115.04V
4 1.002A 5.010 81.503% 0.389
4.999V 6.147 115.05V
5 1.502A 7.493 81.313% 0.456
4.990V 9.215 115.05V
6 3.001A 14.892 80.944% 0.529
4.962V 18.398 115.05V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 8.597A 1.974A 2.003A 0.991A 124.785 90.803% 0 <6.0 45.25°C 0.983
12.004V 5.062V 3.293V 5.043V 137.424 38.07°C 115.10V
2 18.235A 2.959A 3.006A 1.190A 249.621 93.105% 0 <6.0 45.76°C 0.995
11.997V 5.059V 3.290V 5.038V 268.107 38.41°C 115.10V
3 28.245A 3.464A 3.523A 1.391A 374.781 93.574% 0 <6.0 46.57°C 0.997
11.991V 5.056V 3.287V 5.033V 400.518 38.77°C 115.11V
4 38.241A 3.953A 4.017A 1.591A 499.522 93.450% 0 <6.0 47.45°C 0.998
11.986V 5.053V 3.284V 5.028V 534.533 39.30°C 115.10V
5 47.903A 4.953A 5.028A 1.791A 624.388 93.017% 0 <6.0 48.24°C 0.999
11.980V 5.052V 3.280V 5.022V 671.263 39.75°C 115.10V
6 57.570A 5.943A 6.038A 1.990A 749.301 92.394% 505 7.7 41.67°C 0.999
11.977V 5.049V 3.278V 5.018V 810.988 50.48°C 115.12V
7 67.251A 6.939A 7.052A 2.194A 874.081 91.322% 778 17.7 42.85°C 0.999
11.970V 5.045V 3.274V 5.010V 957.138 52.11°C 115.13V
8 76.937A 7.930A 8.070A 2.396A 999.077 90.402% 979 25.1 44.37°C 0.999
11.967V 5.042V 3.271V 5.005V 1105.151 54.38°C 115.13V
9 87.096A 8.443A 8.596A 2.395A 1124.191 89.549% 1144 29.0 45.19°C 0.999
11.959V 5.039V 3.267V 5.003V 1255.396 55.53°C 115.14V
10 97.008A 8.940A 9.096A 3.006A 1249.039 88.713% 1357 33.9 46.71°C 0.998
11.951V 5.035V 3.264V 4.988V 1407.947 57.34°C 115.13V
11 107.506A 8.946A 9.103A 3.005A 1373.966 87.951% 1411 35.6 47.71°C 0.998
11.946V 5.033V 3.262V 4.985V 1562.199 58.45°C 115.14V
CL1 0.098A 12.011A 12.005A 0.004A 101.505 85.883% 0 <6.0 52.96°C 0.977
12.006V 5.061V 3.292V 5.087V 118.190 46.72°C 115.14V
CL2 104.103A 1.002A 1.004A 1.002A 1258.954 89.096% 1410 35.6 47.10°C 0.998
11.965V 5.039V 3.270V 5.019V 1413.035 56.61°C 115.13V

The results above are not used in the certification process

Light Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.217A 0.490A 0.484A 0.195A 19.679 68.013% 0 <6.0 0.822
12.010V 5.064V 3.295V 5.059V 28.934 115.10V
2 2.458A 0.979A 1.000A 0.396A 39.769 80.212% 0 <6.0 0.909
12.009V 5.062V 3.294V 5.054V 49.580 115.10V
3 3.698A 1.476A 1.513A 0.590A 59.842 85.095% 0 <6.0 0.938
12.008V 5.062V 3.294V 5.051V 70.324 115.10V
4 4.932A 1.973A 2.001A 0.790A 79.780 87.753% 0 <6.0 0.955
12.006V 5.062V 3.294V 5.048V 90.914 115.10V

The results above are not used in the certification process

Ripple Measurements 115V

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 15.1 mV 7.9 mV 5.9 mV 5.7 mV Pass
20% Load 23.3 mV 8.3 mV 6.3 mV 7.1 mV Pass
30% Load 31.5 mV 9.5 mV 7.0 mV 9.1 mV Pass
40% Load 35.6 mV 10.5 mV 7.4 mV 10.8 mV Pass
50% Load 41.0 mV 11.4 mV 8.3 mV 12.6 mV Pass
60% Load 32.3 mV 12.4 mV 9.3 mV 13.8 mV Pass
70% Load 33.5 mV 13.6 mV 10.3 mV 15.7 mV Pass
80% Load 29.5 mV 15.1 mV 10.8 mV 16.0 mV Pass
90% Load 27.9 mV 14.6 mV 11.3 mV 17.0 mV Pass
100% Load 30.3 mV 17.5 mV 14.7 mV 21.4 mV Pass
110% Load 32.0 mV 16.7 mV 12.4 mV 20.9 mV Pass
Crossload 1 14.4 mV 13.2 mV 9.0 mV 4.9 mV Pass
Crossload 2 29.1 mV 13.7 mV 12.0 mV 22.1 mV Pass

The results above are not used in the certification process

Enermax MaxTytan 1250W

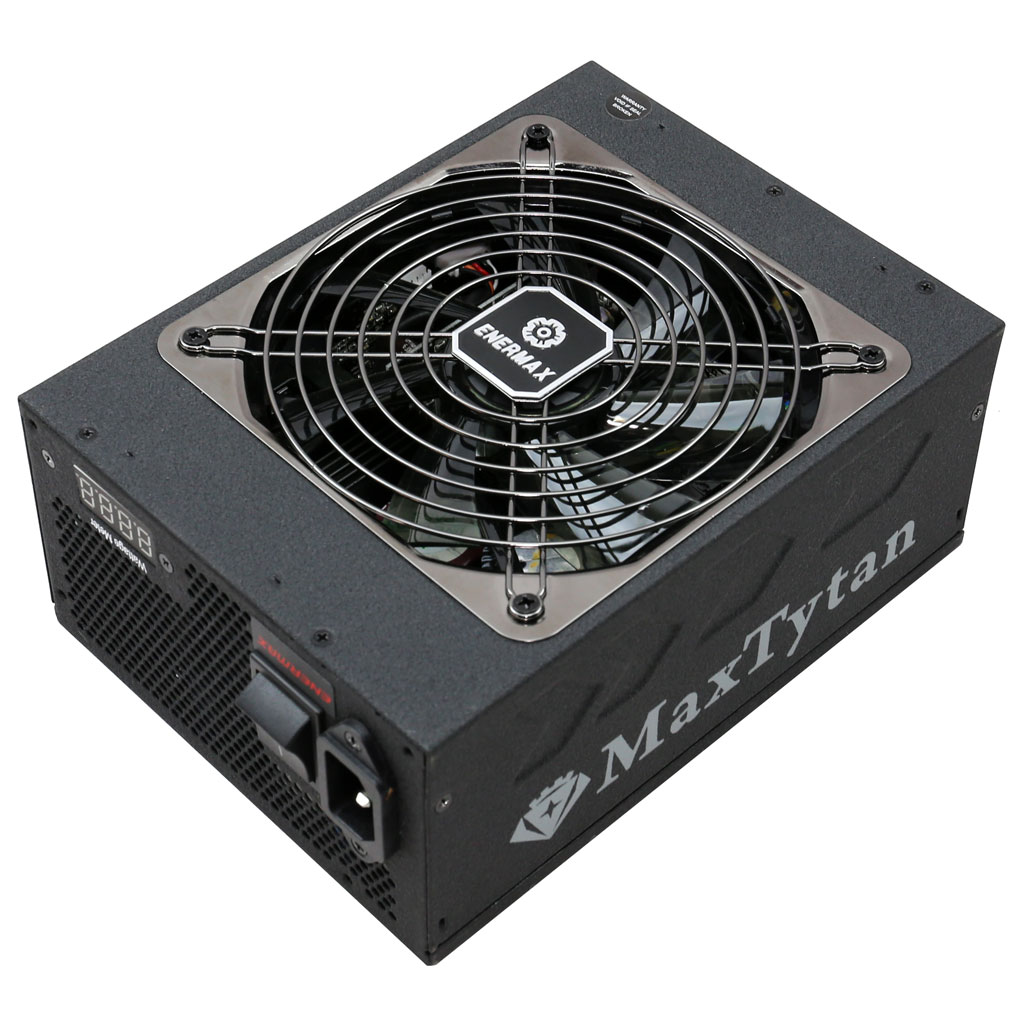

Top side

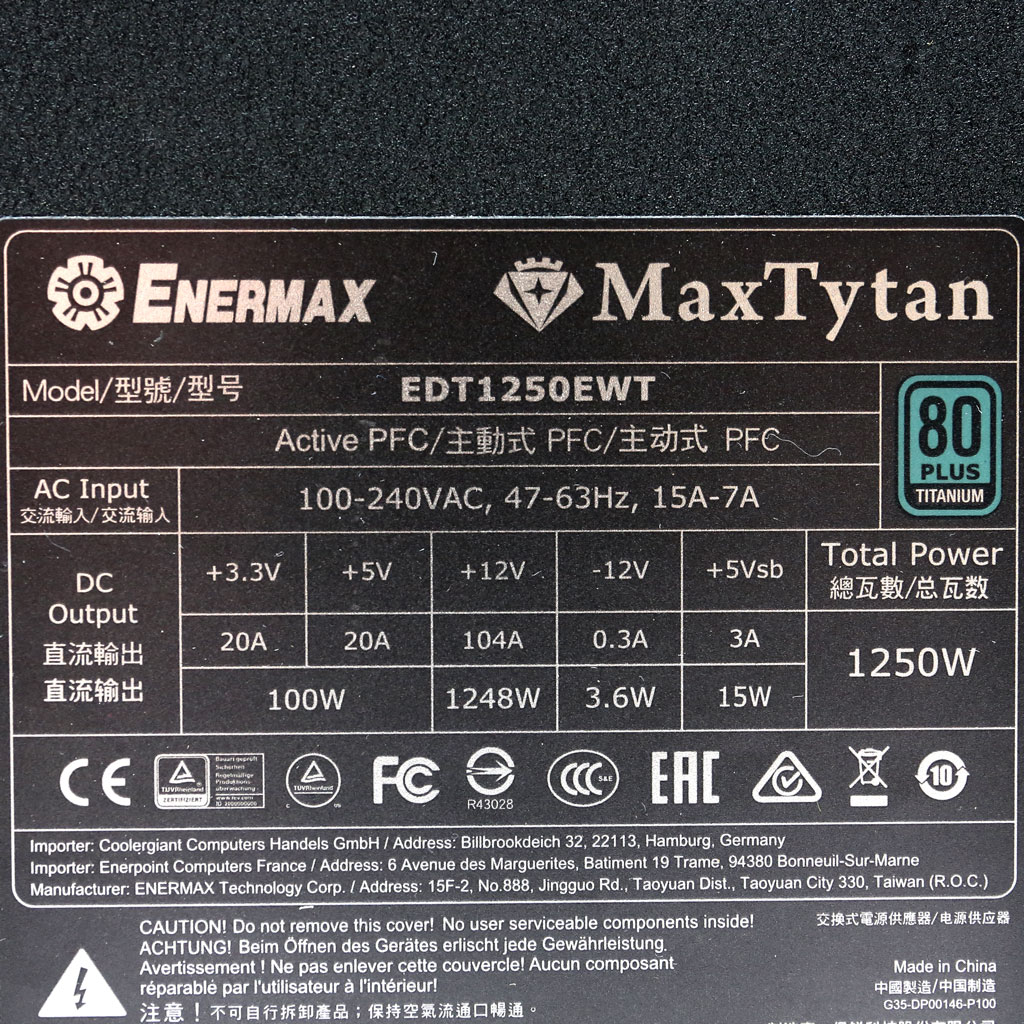

Power specifications label
