Cybenetics Test - ABKO Settler 2 800W

ABKO Settler 2 800W

ST800BBK202301010002

Lab IDAB80002138

Report: 23PS2138A
Receipt Date: Feb 10, 2023
Test Date: Feb 17, 2023
Report Date: Feb 17, 2023

	115V	230V
效率評比

115V	230V
		噪音評比

Aristeidis Bitziopoulos, Laboratory General Manager

General Information

	ABKO
製造商 (OEM)	HKC
	Settler 2
	ST800BBK202301010002
	ST800BBK202301010002

(Vrms)	200-240
(Arms)	8
(Hz)	50-60
(W)	800
	ATX12V
	120mm Sleeve Bearing Fan (AV-F12025MS)
	✗
	Fixed cables

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	18	18	66.67	2.5	0.3
Max. Power	Watts	100		800	12.5	3.6
Total Max. Power (W)		800

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 63640-80-80 x10 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P
Power Analyzers	RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes	Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A, Keithley 2015 - THD
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer	4kVA
Testing Methodology	Cybenetics PSU Test Protocol

Captive Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 20+4 pin (520mm)	1	1	18-22AWG	No
8 pin EPS12V (550mm) / 4+4 pin EPS12V (+150mm)	1	1 / 1	18AWG	No
6+2 pin PCIe (550mm+150mm)	3	6	18AWG	No
SATA (460mm+150mm+150mm+150mm)	1	4	18AWG	No
4-pin Molex (460mm+150mm) / SATA (+150mm)	1	2 / 1	18AWG	No
SATA (460mm+150mm) / 4-pin Molex (+150mm)	1	2 / 1	18AWG	No

Test Results

Temperature & Compliance Info

(°C /°F)	30-32 / 86-89.6
	✓
	✓

Performance Summary 230V

效率評比	SILVER
噪音評比	Standard+
(>1450 load combinations)	88.034%
Average Noise Output (>1450 Load Combinations)	37.16dBA
(>1450 Load Combinations)	0.976
Efficiency With 10W (≤500W) or 2% (>500W) Load	0.000%
	0.1333W
12V Ripple (Full Load)	59.08mV
5V Ripple (Full Load)	30.31mV
3.3V Ripple (Full Load)	33.83mV
5VSB Ripple (Full Load)	28.76mV
12V Load Regulation	0.15%
5V Load Regulation	1.45%
3.3V Load Regulation	2.40%
5VSB Load Regulation	3.74%
Inrush Current	151.500A
	11.00ms
AC Loss to PWR_OK Hold Up Time	17.80ms
PWR_OK Inactive to DC Loss Delay	-6.80ms
PSU Timings: T1 (20% / 100%)	64.0ms	61.0ms
PSU Timings: T3 (20% / 100%)	247.0ms	257.0ms
OPP (25.34°C / 38.69°C)	122.88%	118.63%

Hold-Up Time (ms)	11
AC Loss to PWR_OK Hold Up Time (ms)	17.8
PWR_OK Inactive to DC Loss Delay (ms)	-6.8

待機電源消耗

Tables 230V

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	229.76 V	229.72 V	227.70 V	229.83 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	50.00 Hz	49.50 Hz	50.01 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.416	1.415	1.340	1.416	1.490	PASS
Mains Voltage THD:	0.15 %	0.13 %	N/A	0.18 %	2.00 %	PASS
Real Power:	0.133 W	0.079 W	N/A	0.191 W	N/A	N/A
Apparent Power:	31.121 W	31.085 W	N/A	31.161 W	N/A	N/A
Power Factor:	0.003	N/A	N/A	N/A	N/A	N/A

Graphs 230V

230V

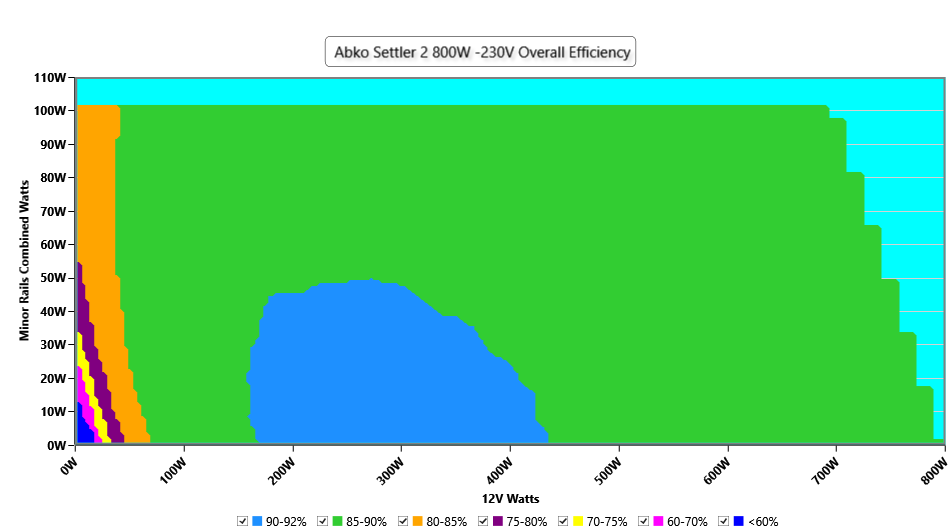

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

230V

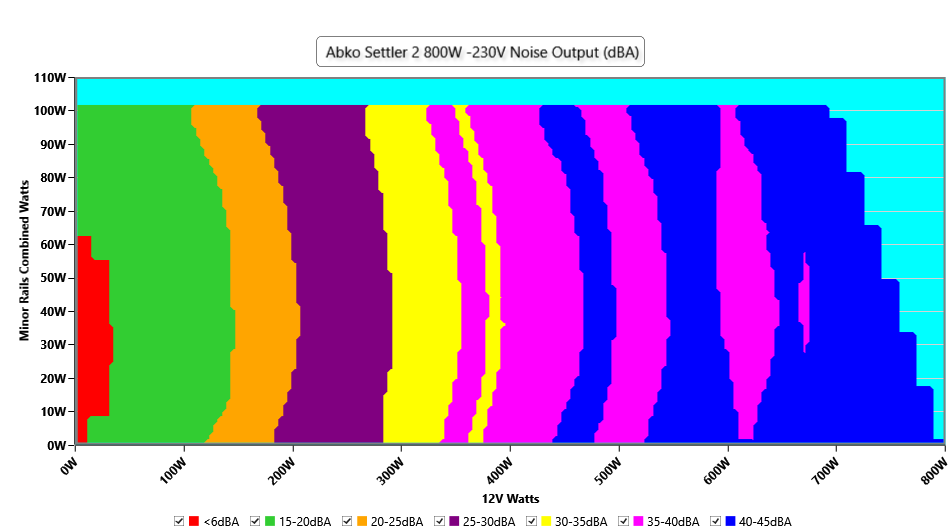

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

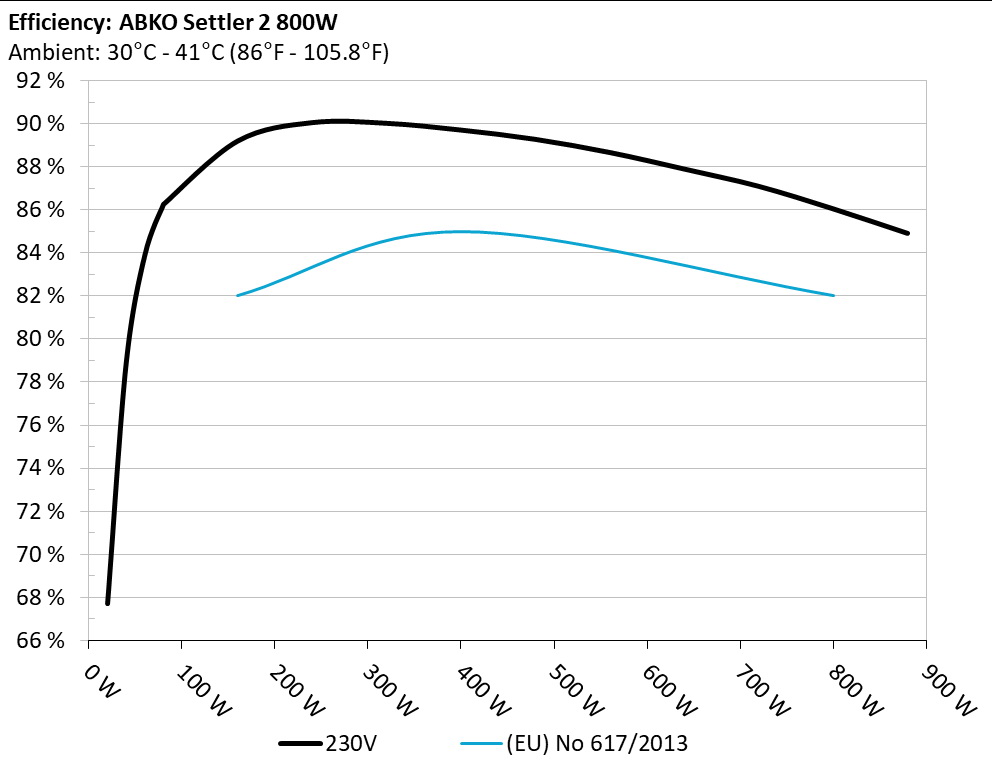

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

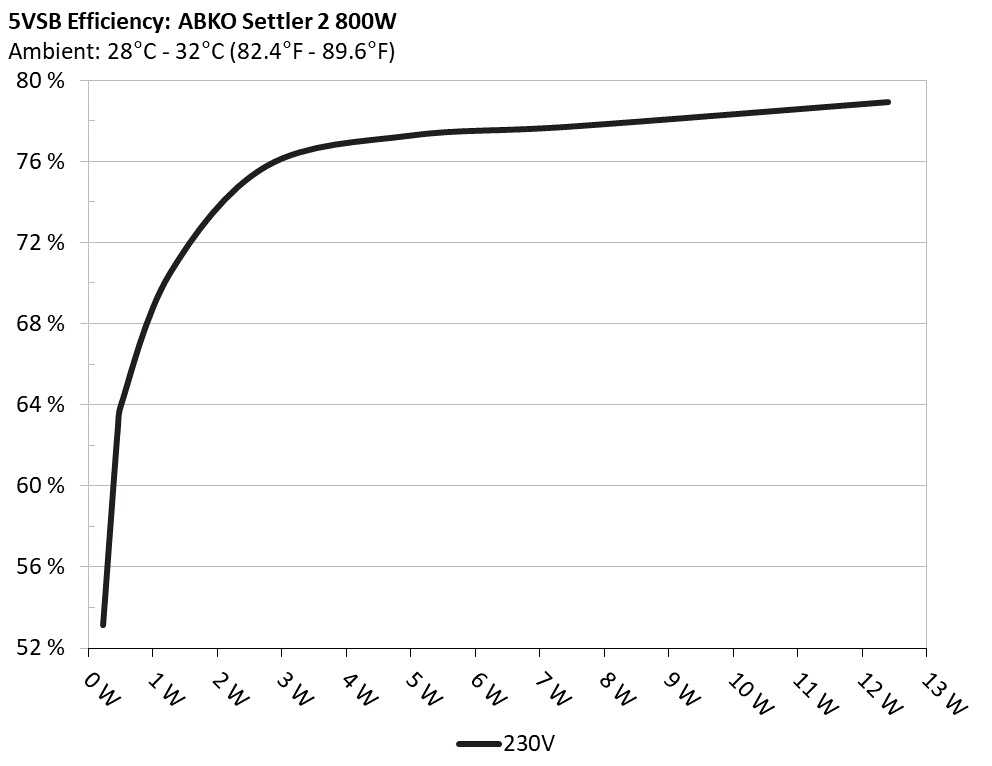

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

230V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.227W	53.119%	0.016
1	5.044V	0.429W	53.119%	229.78V
2	0.09A	0.454W	62.79%	0.027
2	5.043V	0.723W	62.79%	229.78V
3	0.55A	2.765W	75.783%	0.126
3	5.029V	3.651W	75.783%	229.78V
4	1A	5.014W	77.291%	0.178
4	5.014V	6.485W	77.291%	229.78V
5	1.5A	7.497W	77.731%	0.234
5	4.998V	9.646W	77.731%	229.78V
6	2.5A	12.407W	78.937%	0.303
6	4.964V	15.721W	78.937%	229.77V

Supplementary Tests (For Reference)

230V

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	4.812A	1.96A	1.959A	0.998A	79.995	85.556%	799	19.0	34.55°C	0.896
10%	12.136V	5.102V	3.368V	5.01V	93.501	85.556%	799	19.0	38.88°C	229.76V
20%	10.635A	2.944A	2.946A	1.202A	159.92	89.211%	1081	26.3	34.84°C	0.962
20%	12.132V	5.094V	3.36V	4.993V	179.261	89.211%	1081	26.3	39.54°C	229.75V
30%	16.813A	3.44A	3.444A	1.407A	239.954	90.066%	1332	32.3	35.49°C	0.979
30%	12.128V	5.087V	3.354V	4.976V	266.419	90.066%	1332	32.3	40.59°C	229.74V
40%	22.994A	3.936A	3.944A	1.613A	319.994	90.033%	1552	34.5	35.82°C	0.987
40%	12.125V	5.081V	3.347V	4.96V	355.423	90.033%	1552	34.5	41.53°C	229.72V
50%	28.763A	4.928A	4.942A	1.821A	399.161	89.723%	1719	37.5	36.02°C	0.991
50%	12.122V	5.072V	3.339V	4.942V	444.884	89.723%	1719	37.5	42.25°C	229.7V
60%	34.641A	5.923A	5.946A	2A	479.548	89.29%	1830	39.1	36.66°C	0.992
60%	12.122V	5.065V	3.33V	4.926V	537.065	89.29%	1830	39.1	43.53°C	229.69V
70%	40.452A	6.92A	6.955A	2.242A	559.4	88.679%	1933	41.1	37.29°C	0.994
70%	12.120V	5.058V	3.321V	4.907V	630.814	88.679%	1933	41.1	44.59°C	229.67V
80%	46.334A	7.921A	7.968A	2.351A	639.434	87.912%	1972	41.3	37.78°C	0.995
80%	12.119V	5.05V	3.313V	4.892V	727.373	87.912%	1972	41.3	45.85°C	229.66V
90%	52.545A	8.426A	8.469A	2.46A	719.239	87.111%	1979	41.3	38.19°C	0.996
90%	12.118V	5.043V	3.306V	4.877V	825.665	87.111%	1979	41.3	46.84°C	229.64V
100%	58.819A	8.933A	9.005A	2.571A	799.984	86.059%	1987	41.3	39.54°C	0.997
100%	12.118V	5.036V	3.298V	4.862V	929.576	86.059%	1987	41.3	49.29°C	229.63V
110%	64.710A	9.945A	10.126A	2.578A	879.835	84.919%	1993	41.5	41.08°C	0.996
110%	12.116V	5.027V	3.289V	4.849V	1036.12	84.919%	1993	41.5	51.85°C	229.61V
CL1	1.976A	11.864A	11.893A	0.499A	126.406	83.518%	1404	32.1	34.14°C	0.951
CL1	12.150V	5.074V	3.338V	5.012V	151.352	83.518%	1404	32.1	37.26°C	229.75V
CL2	1.976A	11.139A	0.982A	0.498A	86.496	83.532%	1126	26.1	35.18°C	0.911
CL2	12.147V	5.089V	3.359V	5.025V	103.55	83.532%	1126	26.1	37.53°C	229.76V
CL3	1.976A	0.981A	10.3A	0.498A	66.099	81.313%	928	20.5	34.39°C	0.872
CL3	12.143V	5.099V	3.359V	5.024V	81.291	81.313%	928	20.5	36.75°C	229.77V
CL4	65.156A	0.988A	0.993A	0.505A	799.482	86.961%	1968	41.3	40.11°C	0.997
CL4	12.105V	5.06V	3.324V	4.948V	919.375	86.961%	1968	41.3	47.69°C	229.63V

The results above are not used in the certification process

230V

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.224A	0.489A	0.489A	0.198A	19.992	67.72%	611	14.6	29.63°C	0.585
20W	12.127V	5.109V	3.377V	5.044V	29.52	67.72%	611	14.6	32.76°C	229.78V
40W	2.694A	0.685A	0.684A	0.298A	39.993	78.889%	619	14.6	31.13°C	0.76
40W	12.131V	5.107V	3.375V	5.039V	50.697	78.889%	619	14.6	34.59°C	229.77V
60W	4.164A	0.881A	0.88A	0.397A	59.994	83.899%	633	15.8	32.52°C	0.845
60W	12.132V	5.106V	3.373V	5.034V	71.507	83.899%	633	15.8	36.34°C	229.77V
80W	5.630A	1.077A	1.077A	0.497A	79.938	86.264%	699	16.6	33.82°C	0.894
80W	12.133V	5.105V	3.371V	5.028V	92.667	86.264%	699	16.6	37.85°C	229.77V

The results above are not used in the certification process

230V

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	12.48mV	16.96mV	17.95mV	16.57mV	Pass
20% Load	13.71mV	17.17mV	16.68mV	17.75mV	Pass
30% Load	15.81mV	17.37mV	17.19mV	17.65mV	Pass
40% Load	20.92mV	17.52mV	17.04mV	16.88mV	Pass
50% Load	21.90mV	19.16mV	18.52mV	18.26mV	Pass
60% Load	24.76mV	20.64mV	20.31mV	17.75mV	Pass
70% Load	29.57mV	19.77mV	20.26mV	19.34mV	Pass
80% Load	35.87mV	22.07mV	22.76mV	21.74mV	Pass
90% Load	43.43mV	23.86mV	24.20mV	23.38mV	Pass
100% Load	59.08mV	30.31mV	33.83mV	28.76mV	Pass
110% Load	67.07mV	36.00mV	33.52mV	33.83mV	Pass
Crossload1	19.67mV	28.83mV	25.70mV	20.29mV	Pass
Crossload2	16.11mV	22.84mV	21.02mV	15.60mV	Pass
Crossload3	11.87mV	17.17mV	20.62mV	15.45mV	Pass
Crossload4	55.26mV	23.63mV	22.35mV	24.92mV	Pass

The results above are not used in the certification process

ABKO Settler 2 800W

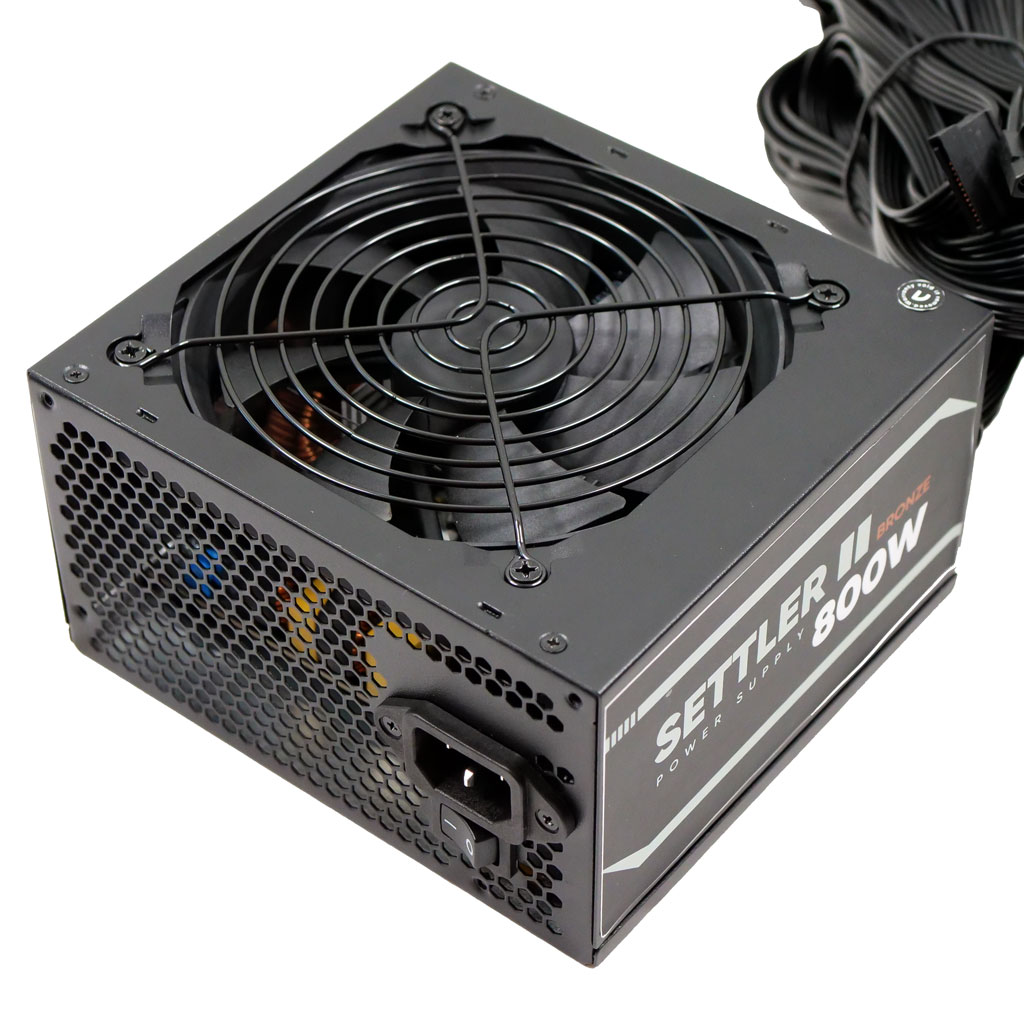

Top side

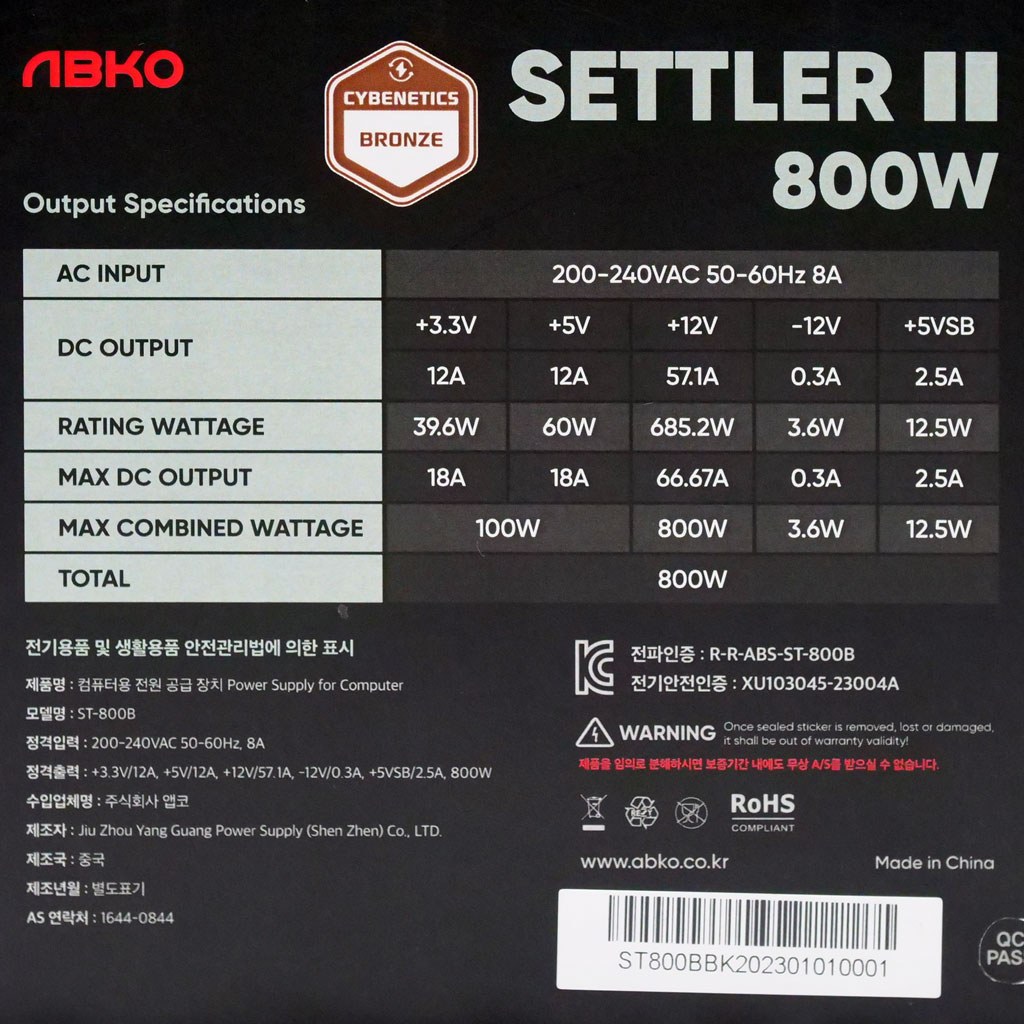

Power specifications label
