Gamer Storm PX1200G
Serial Number
Lab IDGA12002133
  • Report: 23PS2133A
  • Receipt Date: Aug 31, 2024
  • Test Date: Sep 8, 2024
  • Report Date: Sep 17, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandGamer Storm
Manufacturer (OEM)CWT
SeriesPXG
Model NumberPXC00G-FC
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15-7.5
Rated Frequency (Hz)50-60
Rated Power (W)1200
TypeATX12V
Cooling135mm Fluid Dynamic Bearing Fan (HA13525H12SF-Z)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps222210030.3
Watts1201200153.6
Total Max. Power (W)1200

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16AWG No
4+4 pin EPS12V (700mm) 2 2 16AWG No
6+2 pin PCIe (650mm) 3 3 16AWG No
12+4 pin PCIe (650mm) (600W) 1 1 16-24AWG No
SATA (500mm+150mm+150mm+150mm) 2 8 18AWG No
4-pin Molex (500mm+150mm+150mm+150mm) 1 4 18AWG No

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary 115V

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)22
AC Loss to PWR_OK Hold Up Time (ms)19.5
PWR_OK Inactive to DC Loss Delay (ms)2.5

Vampire Power

Tables 115V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.13 V 115.13 V 113.85 V 115.16 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.91 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.15 % 2.00 % PASS
Real Power: 0.015 W 0.013 W N/A 0.018 W N/A N/A
Apparent Power: 10.064 W 10.059 W N/A 10.072 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

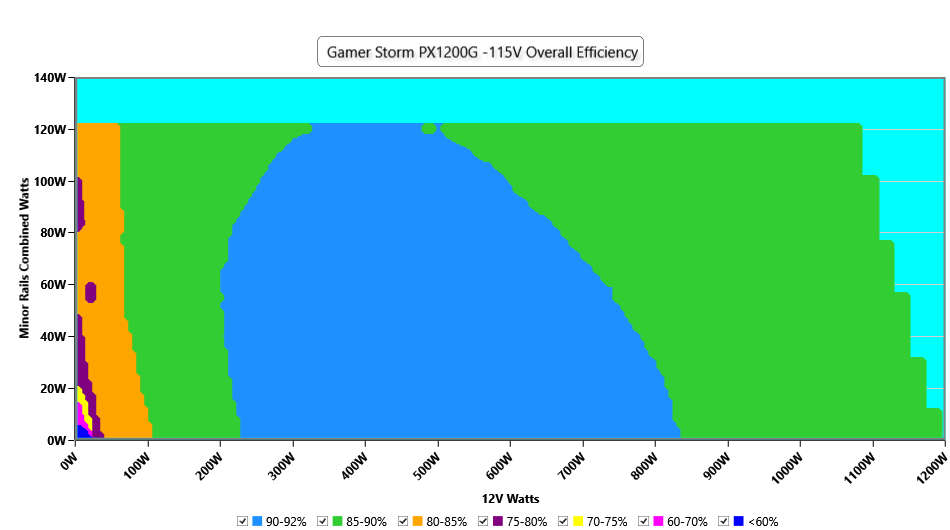

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

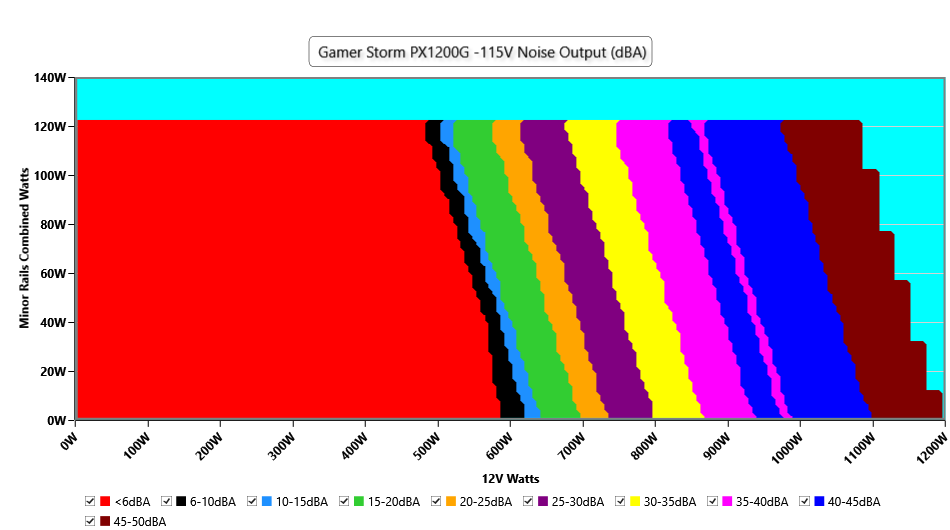

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

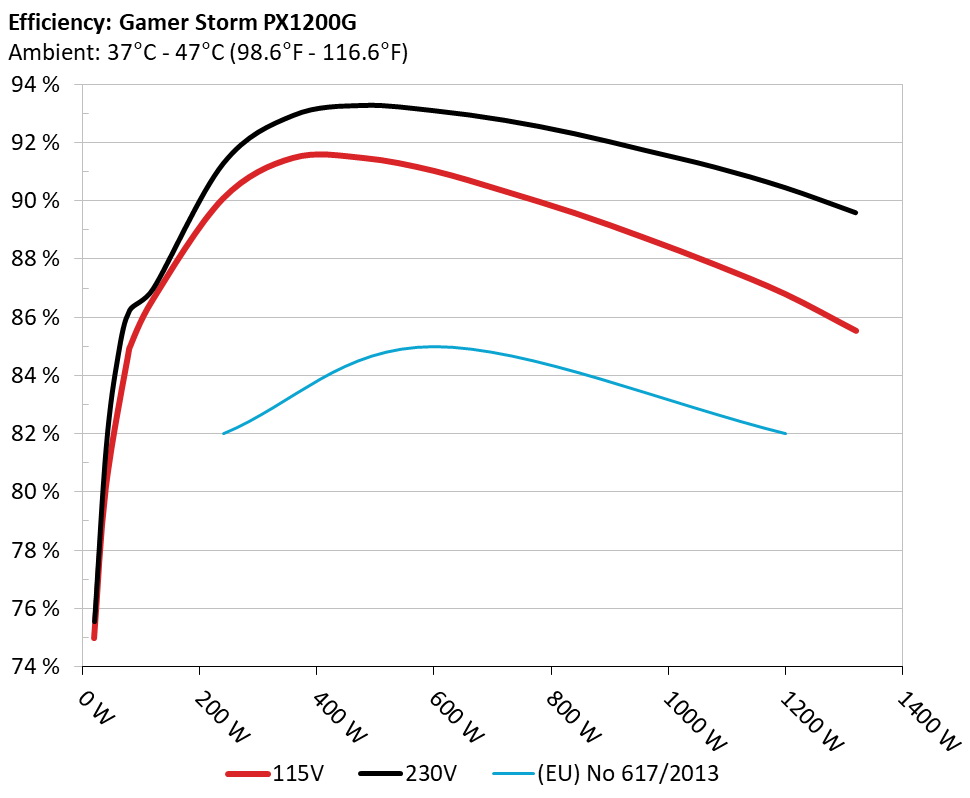

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

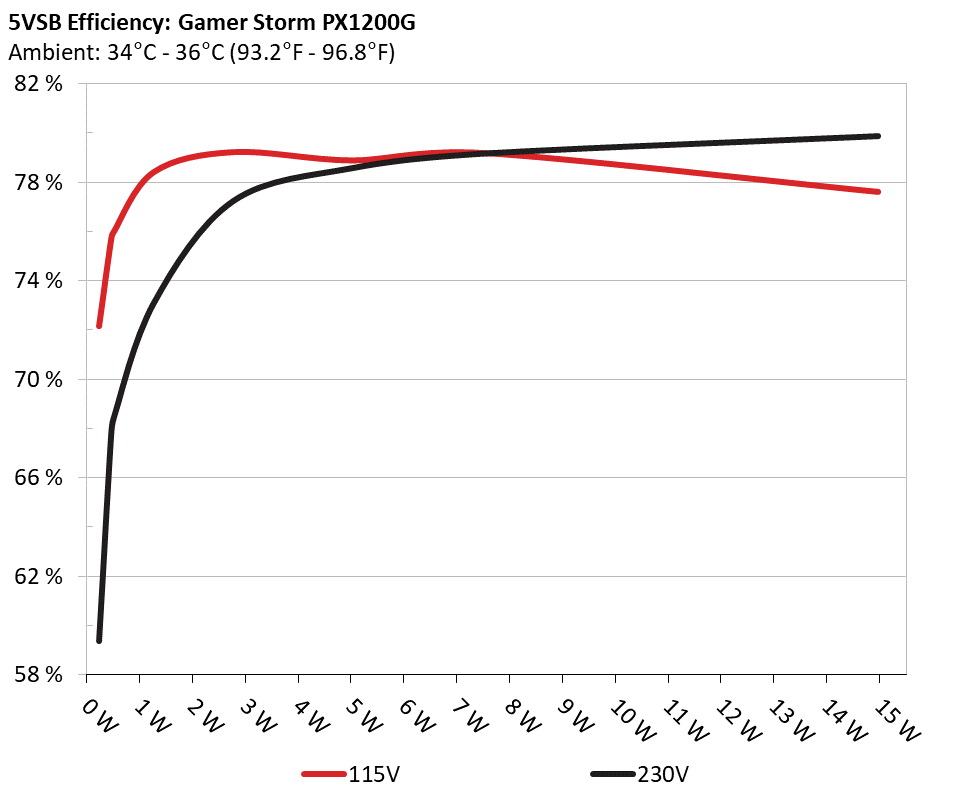

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 72.17% 0.031
5.04V 0.315W 115.1V
2 0.09A 0.454W 75.66% 0.059
5.039V 0.6W 115.11V
3 0.55A 2.768W 79.221% 0.269
5.03V 3.494W 115.12V
4 1A 5.025W 78.881% 0.374
5.022V 6.37W 115.12V
5 1.501A 7.523W 79.181% 0.429
5.013V 9.501W 115.13V
6 3.001A 14.961W 77.609% 0.501
4.986V 19.277W 115.12V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.114A 1.983A 2.003A 0.994A 120.02 86.605% 0 <6.0 44.82°C 0.982
12.129V 5.045V 3.294V 5.032V 138.588 40.48°C 115.08V
20% 17.244A 2.977A 3.006A 1.194A 239.984 90.087% 0 <6.0 45.51°C 0.988
12.125V 5.041V 3.293V 5.026V 266.388 40.63°C 115.05V
30% 26.723A 3.473A 3.508A 1.394A 359.333 91.485% 0 <6.0 46.36°C 0.985
12.097V 5.04V 3.293V 5.022V 392.775 41.13°C 115.02V
40% 36.297A 3.971A 4.01A 1.595A 479.666 91.482% 0 <6.0 47.41°C 0.987
12.080V 5.038V 3.292V 5.017V 524.33 41.72°C 114.98V
50% 45.521A 4.968A 5.015A 1.797A 599.461 91.041% 449 <6.0 42.12°C 0.988
12.059V 5.033V 3.29V 5.01V 658.448 48.23°C 114.95V
60% 54.839A 5.965A 6.02A 1.998A 719.982 90.342% 829 23.7 42.89°C 0.99
12.038V 5.031V 3.289V 5.005V 796.944 49.39°C 114.92V
70% 64.120A 6.964A 7.026A 2.2A 839.723 89.591% 1118 32.7 43.7°C 0.992
12.018V 5.028V 3.288V 5V 937.288 50.74°C 114.88V
80% 73.482A 7.964A 8.032A 2.302A 959.715 88.733% 1362 39.3 44.05°C 0.993
12.001V 5.024V 3.286V 4.996V 1081.572 52.14°C 114.84V
90% 83.150A 8.468A 8.522A 2.405A 1079.54 87.814% 1593 45.5 44.49°C 0.994
11.991V 5.02V 3.285V 4.991V 1229.349 53.54°C 114.81V
100% 92.612A 8.973A 9.044A 3.014A 1199.613 86.799% 1915 46.8 45.59°C 0.995
11.985V 5.016V 3.283V 4.977V 1382.052 55.61°C 114.77V
110% 102.003A 9.98A 10.147A 3.017A 1320.219 85.537% 2123 51.2 46.76°C 0.995
11.979V 5.01V 3.281V 4.973V 1543.464 57.68°C 114.73V
CL1 0.116A 14.303A 14.499A 0A 121.302 81.89% 401 <6.0 41.89°C 0.982
12.136V 5.048V 3.29V 5.057V 148.13 47.38°C 115.1V
CL2 0.115A 21.746A 0A 0A 111.391 80.307% 399 <6.0 38.51°C 0.982
12.143V 5.058V 3.291V 5.08V 138.71 45.57°C 115.11V
CL3 0.116A 0A 22.036A 0A 74.003 75.406% 397 <6.0 37.22°C 0.971
12.127V 5.048V 3.294V 5.04V 98.138 46.3°C 115.12V
CL4 100.090A 0A 0A 0A 1200.367 86.917% 1993 51.8 47.13°C 0.995
11.993V 5.027V 3.292V 5.034V 1381.042 58.08°C 114.78V

The results above are not used in the certification process

Light Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.225A 0.494A 0.499A 0.198A 20.003 74.966% 0 <6.0 39.86°C 0.888
12.129V 5.064V 3.303V 5.063V 26.682 36.78°C 115.1V
40W 2.695A 0.692A 0.7A 0.297A 40.001 80.146% 0 <6.0 40.38°C 0.947
12.132V 5.06V 3.302V 5.058V 49.908 37.08°C 115.1V
60W 4.166A 0.892A 0.901A 0.397A 60 84.933% 0 <6.0 41.84°C 0.961
12.129V 5.05V 3.297V 5.046V 70.639 38.06°C 115.09V
80W 5.636A 1.09A 1.101A 0.496A 79.964 84.95% 0 <6.0 43.07°C 0.971
12.123V 5.047V 3.296V 5.041V 94.136 39.13°C 115.09V

The results above are not used in the certification process

Ripple Measurements 115V

Test12V5V3.3V5VSBPass/Fail
10% Load5.06mV2.91mV4.25mV4.18mVPass
20% Load5.72mV3.22mV4.20mV4.13mVPass
30% Load11.73mV3.73mV5.48mV4.49mVPass
40% Load9.69mV3.37mV5.32mV4.94mVPass
50% Load8.31mV3.32mV4.76mV4.43mVPass
60% Load8.73mV3.89mV7.57mV4.79mVPass
70% Load9.35mV12.32mV13.61mV13.15mVPass
80% Load9.91mV4.09mV8.29mV4.84mVPass
90% Load10.62mV4.04mV9.26mV4.84mVPass
100% Load14.78mV4.88mV9.34mV5.96mVPass
110% Load15.02mV4.97mV9.94mV6.02mVPass
Crossload16.48mV4.55mV9.91mV5.09mVPass
Crossload27.41mV5.17mV4.55mV4.23mVPass
Crossload352.97mV3.78mV15.40mV5.56mVPass
Crossload414.15mV3.93mV6.19mV5.17mVPass

The results above are not used in the certification process

Gamer Storm PX1200G

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
