CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Thermaltake Toughpower SFX 1000W
Serial NumberPSSTP1000FNFAGU1SV000073
Lab IDTT10002124
  • Report: 23PS2124A
  • Receipt Date: Dec 19, 2022
  • Test Date: Jan 31, 2023
  • Report Date: Jan 31, 2023
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandThermaltake
Manufacturer (OEM)Jiu Zhou Yang Guang Power Supply (HKC)
SeriesToughpower SFX
Model NumberPS-STP-1000FNFAGU-1
Serial NumberPSSTP1000FNFAGU1SV000073
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeSFX-L
Cooling120mm Fluid Dynamic Bearing Fan
(HA1215H12SF-Z)
Semi-Passive Operation✓
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202083.330.3
Watts100999.6153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (300mm) 1 1 16-18AWG No
4+4 pin EPS12V (400mm) 2 2 16AWG No
6+2 pin PCIe (400mm+150mm) 2 4 16-18AWG No
12+4 pin PCIe (400mm) (600W) 1 1 16-26AWG No
SATA (300mm+145mm+145mm+145mm) 2 8 18AWG No
4-pin Molex (300mm+150mm+150mm+150mm) 1 4 18AWG No
FDD Adapter (150mm) 1 1 22AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data -
Manufacturer (OEM) HKC
PCB Type Double Sided
Primary Side -
Transient Filter 4x Y caps, 2x X caps, 3x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 2x GBU25KH (800V, 25A @ 90°C)
APFC MOSFETs 2x Lonten LSB65R070GF (650V, 30A @ 100°C, Rds(on): 0.07Ohm) &
CM03AX (reduce the no load consumption)
APFC Boost Diode 1x CH3D16065I
Bulk Cap(s) 2x Nippon Chemi-Con (400V, 590uF & 390uF each or 980uF combined, 2,000h @ 105°C, KHE)
Main Switchers 2x Wayon WMK53N65F2 (650V, 26A @ 100°C, Rds(on): 0.078Ohm)
APFC Controller Champion CM6502UHHX
Resonant Controller Champion CM6901X
Topology Primary side: APFC, Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 8x Infineon ISC012N04LM6 (40V, 168A @ 100°C, Rds(on): 1.2mOhm)
5V & 3.3V DC-DC Converters: 4x Infineon Infineon ISC012N04LM6 (40V, 168A @ 100°C, Rds(on): 1.2mOhm)
PWM Controller(s): ANPEC APW7159C
Isolated Gate Driver Novosense NSi6602
Filtering Capacitors Electrolytic:
1x Nichicon (2-4,000h @ 105°C, HD),
1x Nippon Chemi-Con (5-6,000h @ 105°C, KZH)
2x Nippon Chemi-Con (4-10,000h @ 105°C, KY),
1x Nippon Chemi-Con (4-10,000h @ 105°C, KYA),
1x Rubycon (2-10,000h @ 105°C, YXF),
Polymer:
11x Nippon Chemi-Con,
16x NIC

Supervisor IC INFSitronix IN1S429I (OCP, OVP, UVP, SCP, PG)
Fan Model Thermaltake (Hong Hua) HA1215H12SF-Z (120mm, 12V, 0.55A, Fluid Dynamic Bearing Fan)
5VSB Circuit -
Rectifiers Infineon ICE5QR1680AG FET (800V, 5.8A, Rds(on): 1.75Ohm) &
Meraki-IC MK91736 FET
Standby PWM Controller Infineon ICE5QR1680AG

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary 115V

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)21
AC Loss to PWR_OK Hold Up Time (ms)18.2
PWR_OK Inactive to DC Loss Delay (ms)2.8

Vampire Power

Tables 115V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.94 V 114.89 V 113.85 V 114.98 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.98 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.15 % 0.11 % N/A 0.21 % 2.00 % PASS
Real Power: 0.088 W 0.013 W N/A 0.158 W N/A N/A
Apparent Power: 10.441 W 10.420 W N/A 10.463 W N/A N/A
Power Factor: 0.012 N/A N/A N/A N/A N/A

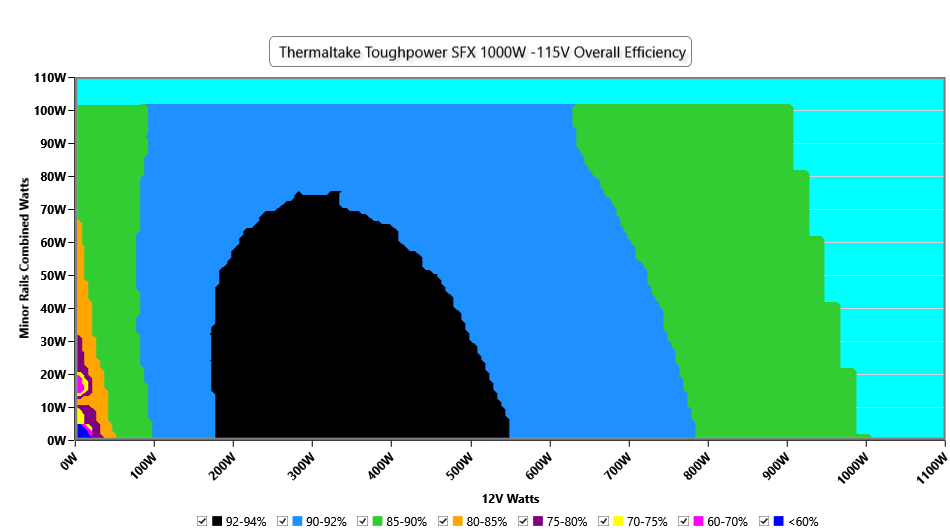

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

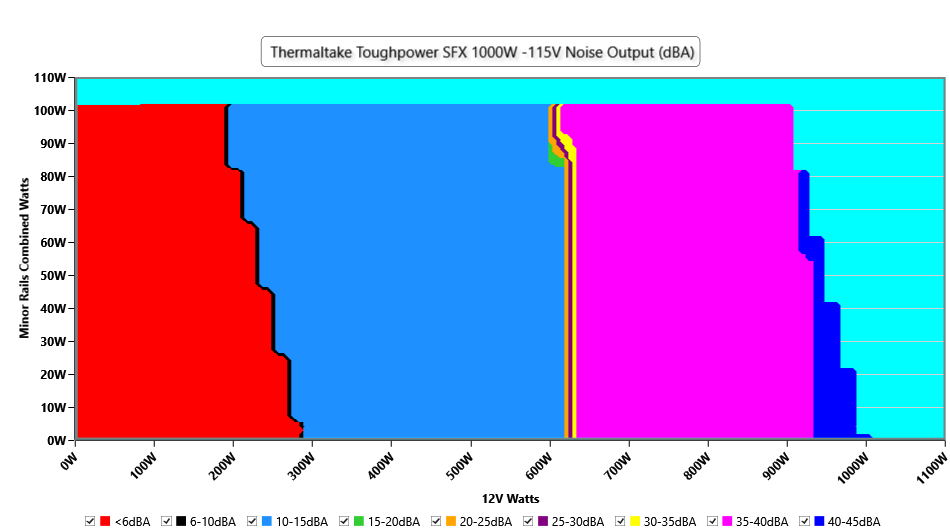

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

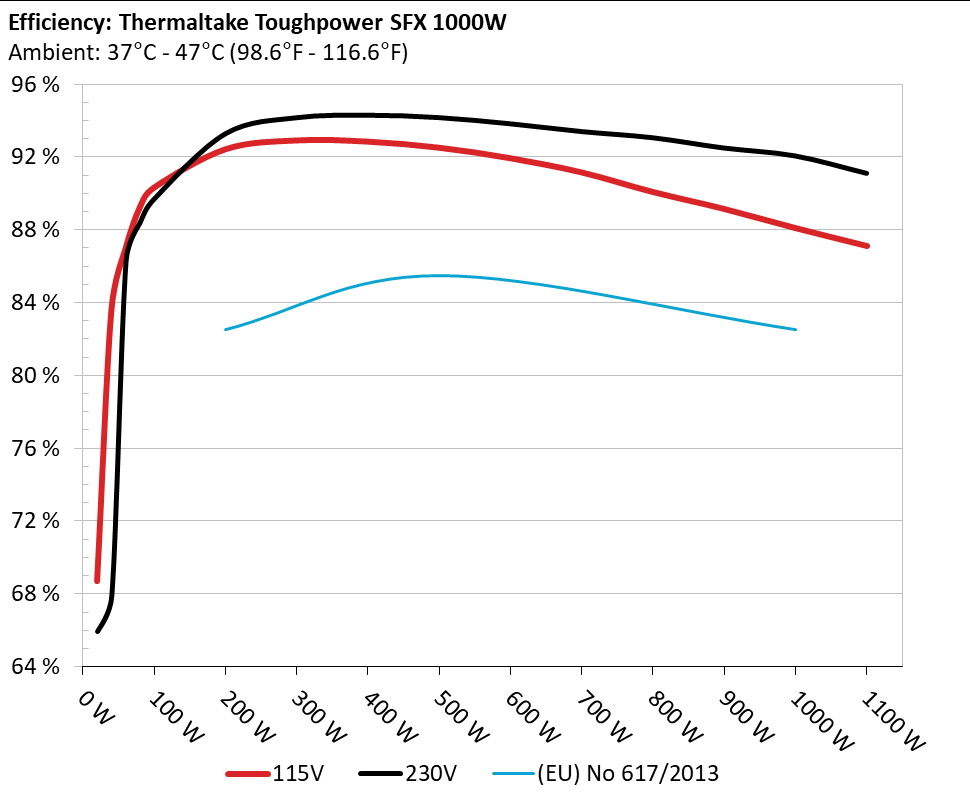

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

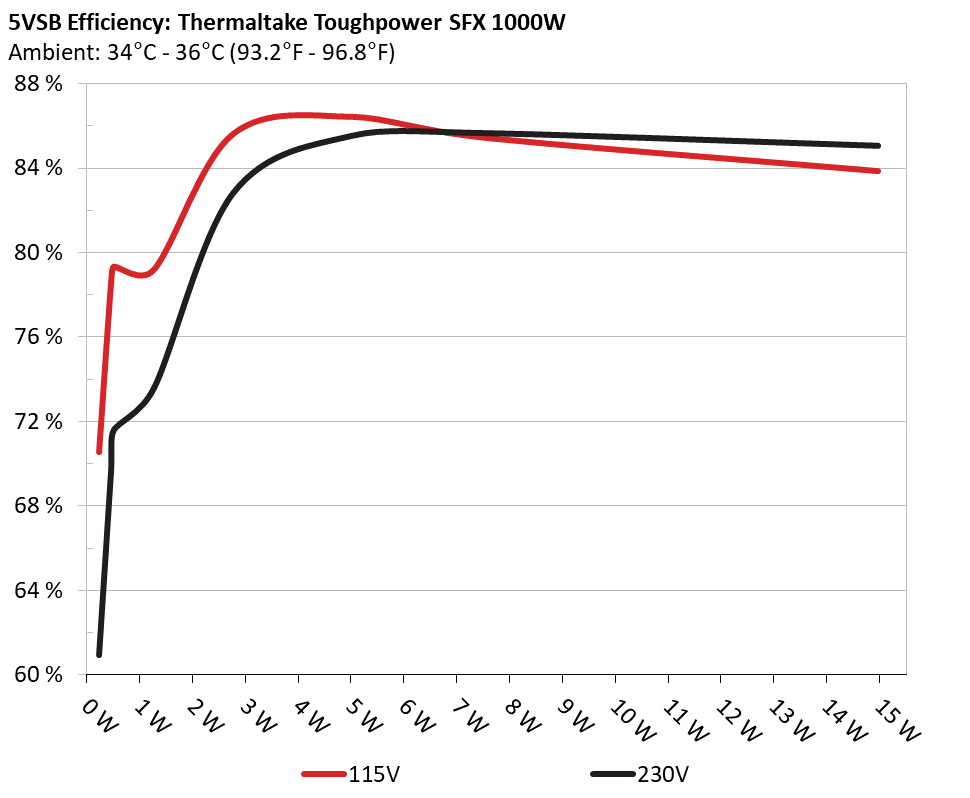

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 70.031% 0.031
5.054V 0.324W 114.94V
2 0.09A 0.455W 78.103% 0.055
5.053V 0.583W 114.94V
3 0.55A 2.773W 85.14% 0.249
5.042V 3.257W 114.93V
4 1A 5.033W 85.937% 0.351
5.033V 5.857W 114.92V
5 1.5A 7.534W 84.946% 0.403
5.023V 8.869W 114.93V
6 3A 14.974W 83.364% 0.48
4.991V 17.962W 114.92V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.489A 1.974A 1.961A 0.997A 100.02 89.841% 0 <6.0 44.24°C 0.964
12.086V 5.066V 3.366V 5.016V 111.331 39.9°C 114.91V
20% 13.994A 2.962A 2.944A 1.199A 199.982 91.948% 0 <6.0 45.68°C 0.963
12.082V 5.064V 3.363V 5.006V 217.494 40.91°C 114.89V
30% 21.856A 3.459A 3.439A 1.401A 300.048 92.434% 777 16.2 41.37°C 0.978
12.079V 5.06V 3.359V 4.996V 324.612 46.59°C 114.87V
40% 29.689A 3.954A 3.934A 1.605A 399.703 92.37% 780 16.2 41.87°C 0.986
12.075V 5.058V 3.356V 4.985V 432.724 47.51°C 114.84V
50% 37.189A 4.944A 4.922A 1.811A 499.415 92.035% 782 16.2 42.14°C 0.99
12.071V 5.057V 3.353V 4.971V 542.639 48.16°C 114.82V
60% 44.762A 5.936A 5.911A 2A 599.865 91.453% 783 16.2 43.07°C 0.992
12.067V 5.055V 3.35V 4.958V 655.928 49.61°C 114.79V
70% 52.276A 6.928A 6.903A 2.225A 699.688 90.673% 1548 37.3 43.25°C 0.994
12.062V 5.053V 3.347V 4.945V 771.665 50.28°C 114.77V
80% 59.858A 7.923A 7.896A 2.331A 799.707 89.597% 1546 37.3 43.49°C 0.995
12.058V 5.05V 3.343V 4.935V 892.564 51.53°C 114.73V
90% 67.786A 8.42A 8.382A 2.438A 899.484 88.667% 1546 37.3 44.08°C 0.995
12.053V 5.049V 3.34V 4.923V 1014.448 53.09°C 114.7V
100% 75.523A 8.918A 8.899A 3.059A 999.503 87.612% 1745 40.6 45.92°C 0.996
12.047V 5.047V 3.337V 4.904V 1140.827 55.97°C 114.69V
110% 83.189A 9.909A 9.986A 3.064A 1099.99 86.628% 2105 45.3 47.35°C 0.997
12.041V 5.047V 3.334V 4.897V 1269.806 58.29°C 114.66V
CL1 0.116A 11.901A 11.798A 0A 101.323 85.78% 0 <6.0 44.56°C 0.961
12.077V 5.06V 3.365V 5.035V 118.125 50.07°C 114.9V
CL2 0.116A 19.768A 0A 0A 101.429 84.907% 0 <6.0 43.22°C 0.961
12.083V 5.06V 3.371V 5.04V 119.456 50.24°C 114.9V
CL3 0.116A 0A 19.597A 0A 67.388 80.783% 0 <6.0 43.06°C 0.928
12.080V 5.077V 3.367V 5.035V 83.419 52.16°C 114.91V
CL4 83.001A 0A 0A 0A 1000.041 88.139% 1756 41.1 47.02°C 0.996
12.048V 5.057V 3.341V 4.984V 1134.627 57.92°C 114.68V

The results above are not used in the certification process

Light Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.493A 0.49A 0.198A 20.007 68.19% 0 <6.0 39.91°C 0.733
12.088V 5.07V 3.37V 5.043V 27.086 36.84°C 114.92V
40W 2.704A 0.69A 0.686A 0.298A 40.006 83.099% 0 <6.0 42.19°C 0.87
12.087V 5.069V 3.369V 5.039V 48.147 38.83°C 114.93V
60W 4.181A 0.888A 0.882A 0.397A 60.006 86.506% 0 <6.0 43.18°C 0.912
12.087V 5.069V 3.368V 5.035V 69.363 39.44°C 114.92V
80W 5.654A 1.085A 1.078A 0.497A 79.968 88.751% 0 <6.0 43.38°C 0.938
12.086V 5.068V 3.367V 5.031V 90.107 39.45°C 114.93V

The results above are not used in the certification process

Ripple Measurements 115V

Test12V5V3.3V5VSBPass/Fail
10% Load7.37mV7.41mV7.46mV6.24mVPass
20% Load9.11mV7.71mV7.82mV6.65mVPass
30% Load10.13mV7.46mV8.54mV7.06mVPass
40% Load11.98mV8.12mV8.64mV7.62mVPass
50% Load13.61mV10.32mV10.43mV7.88mVPass
60% Load16.94mV10.93mV11.35mV8.80mVPass
70% Load18.88mV11.49mV12.22mV8.60mVPass
80% Load19.19mV9.81mV11.61mV9.21mVPass
90% Load20.98mV11.49mV13.14mV9.41mVPass
100% Load27.09mV12.61mV14.31mV12.07mVPass
110% Load31.24mV17.06mV14.99mV13.04mVPass
Crossload112.77mV10.09mV10.18mV6.23mVPass
Crossload215.92mV12.36mV9.10mV13.97mVPass
Crossload314.38mV7.86mV12.73mV11.98mVPass
Crossload423.83mV9.22mV12.70mV17.72mVPass

The results above are not used in the certification process

Thermaltake Toughpower SFX 1000W

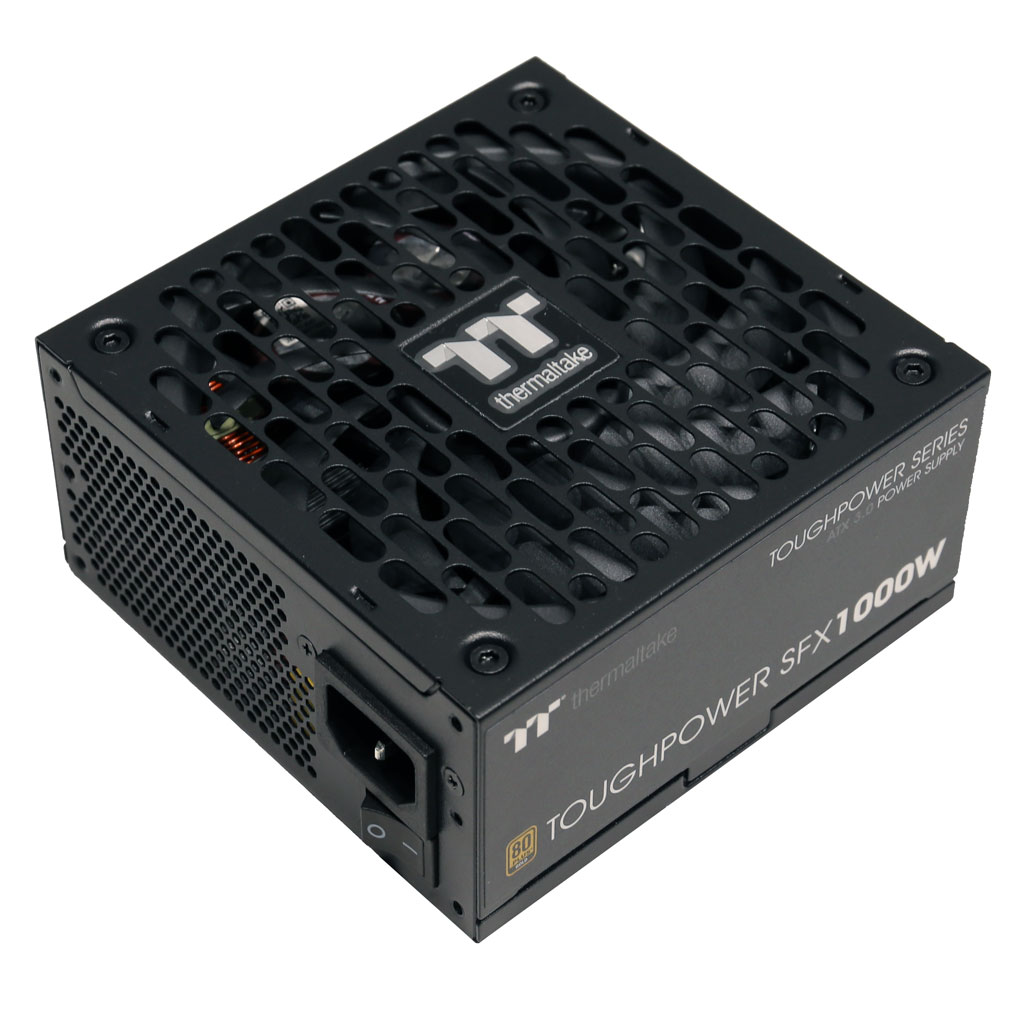

Top side

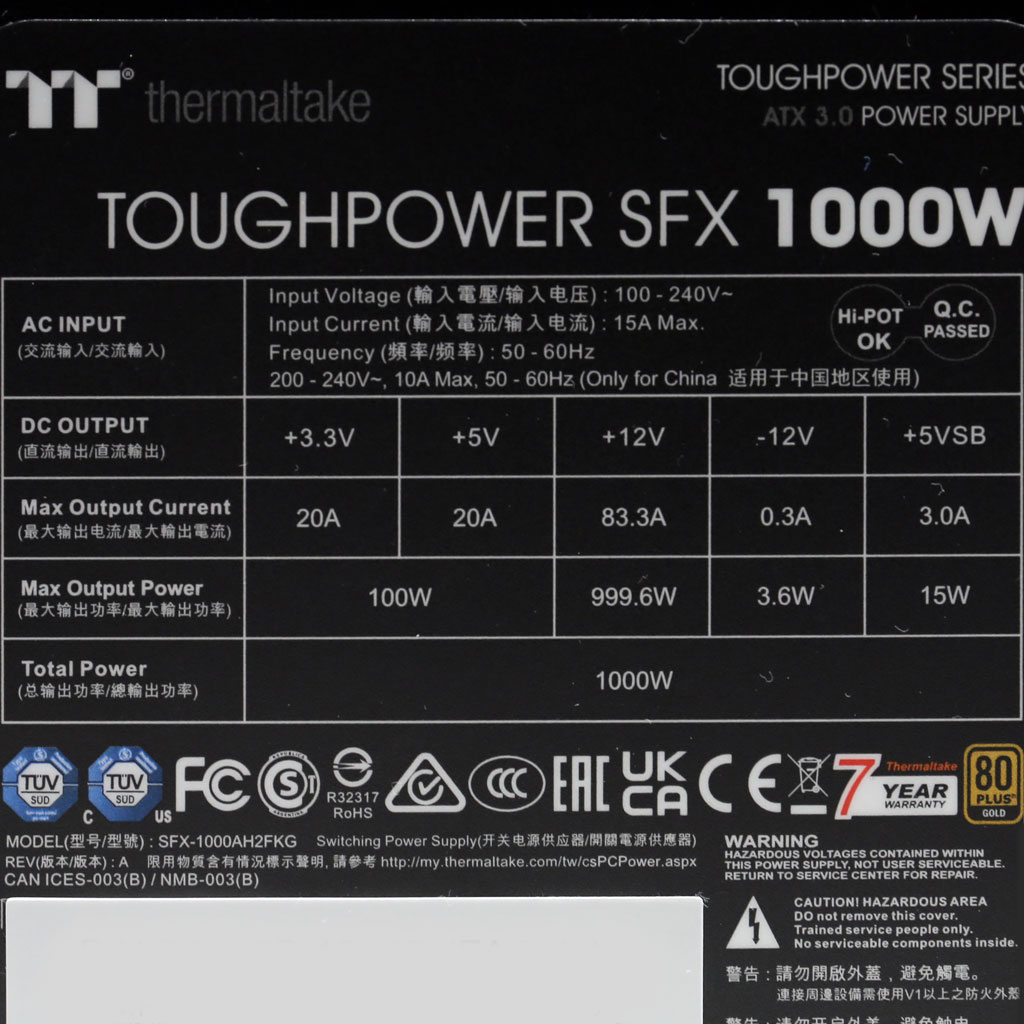

Power specifications label
