Zalman TeraMax II 1200W
Serial Number
Lab IDZL12002103
  • Report: 22PS2103A
  • Receipt Date: Dec 15, 2022
  • Test Date: Dec 28, 2022
  • Report Date: Dec 28, 2022
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandZalman
Manufacturer (OEM)Jiumeng
SeriesTeraMax
Model NumberZM1200-TMX2
Serial Number
DUT NotesThe TMX units are the same as TMX2 ones minus the 12VHPWR output port at the modular panel of the PSU

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)14-7
Rated Frequency (Hz)50-60
Rated Power (W)1200
TypeATX12V
Cooling120mm Fluid Dynamic Bearing Fan
(D12BM-12)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps252510030.3
Watts1251200153.6
Total Max. Power (W)1200

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16-18AWG No
4+4 pin EPS12V (700mm) 2 2 16AWG No
6+2 pin PCIe (550mm+150mm) 3 6 16-18AWG No
12+4 pin PCIe (600mm) (600W) 1 1 16-26AWG No
SATA (510mm+150mm+150mm+150mm) 3 12 18AWG No
4-pin Molex (500mm+150mm+150mm) / FDD (+150mm) 1 3 /1 18-22AWG No

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary 115V

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)20.6
AC Loss to PWR_OK Hold Up Time (ms)18.4
PWR_OK Inactive to DC Loss Delay (ms)2.2

Vampire Power

Tables 115V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.86 V 114.81 V 113.85 V 114.89 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.416 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.15 % 0.12 % N/A 0.19 % 2.00 % PASS
Real Power: 0.061 W 0.045 W N/A 0.077 W N/A N/A
Apparent Power: 9.896 W 9.867 W N/A 9.926 W N/A N/A
Power Factor: 0.007 N/A N/A N/A N/A N/A

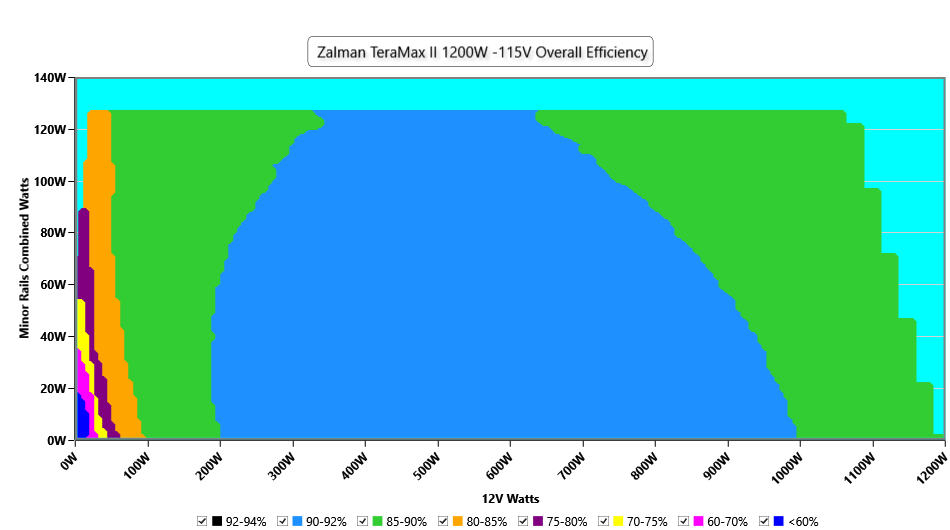

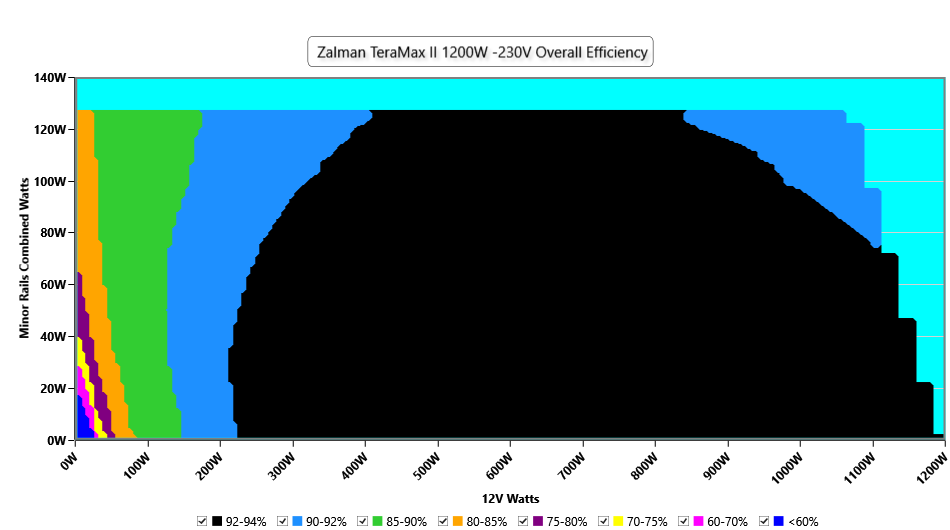

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

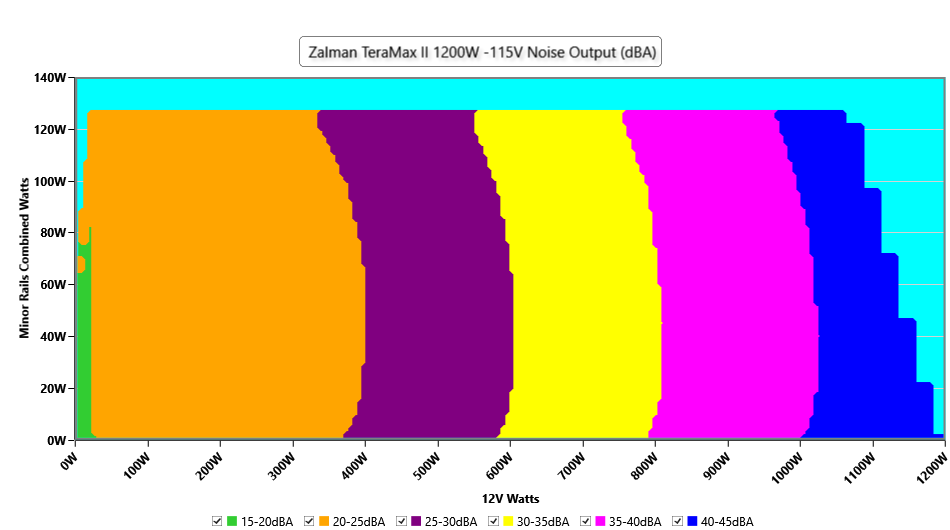

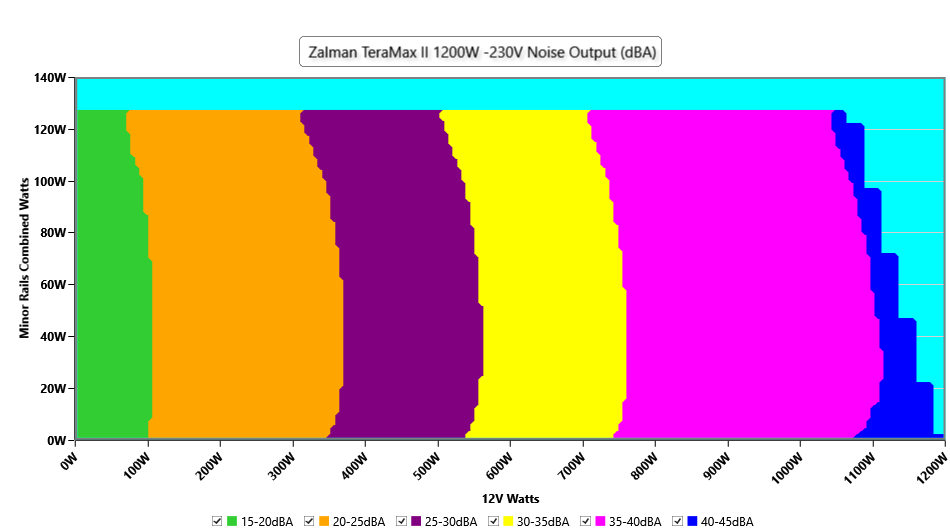

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

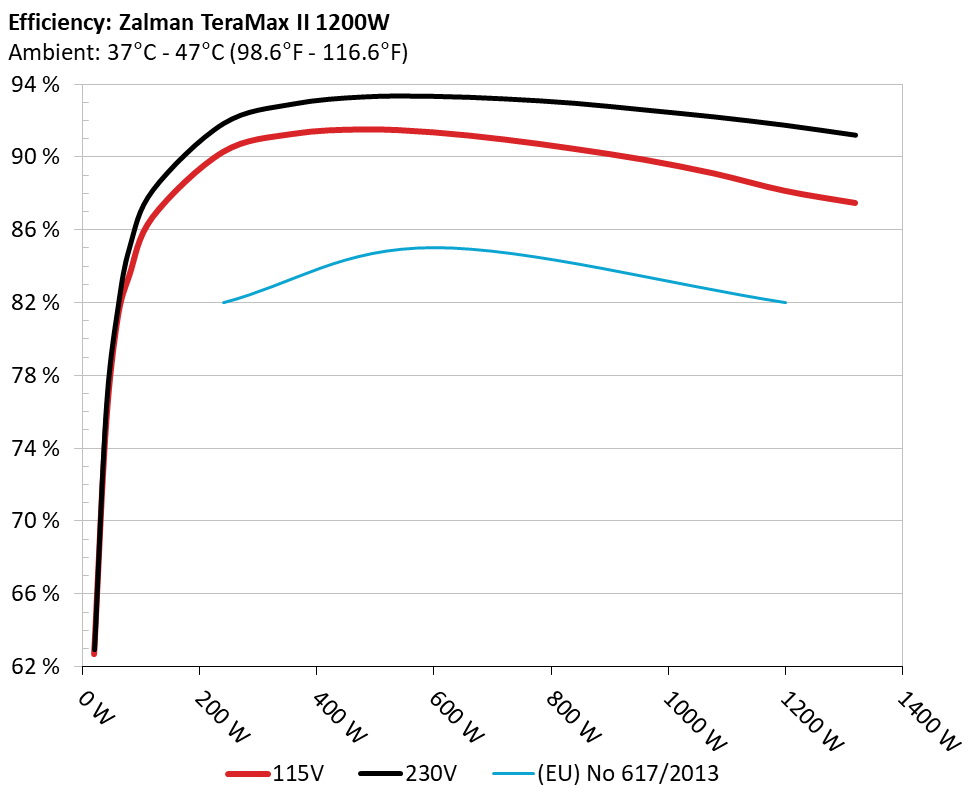

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

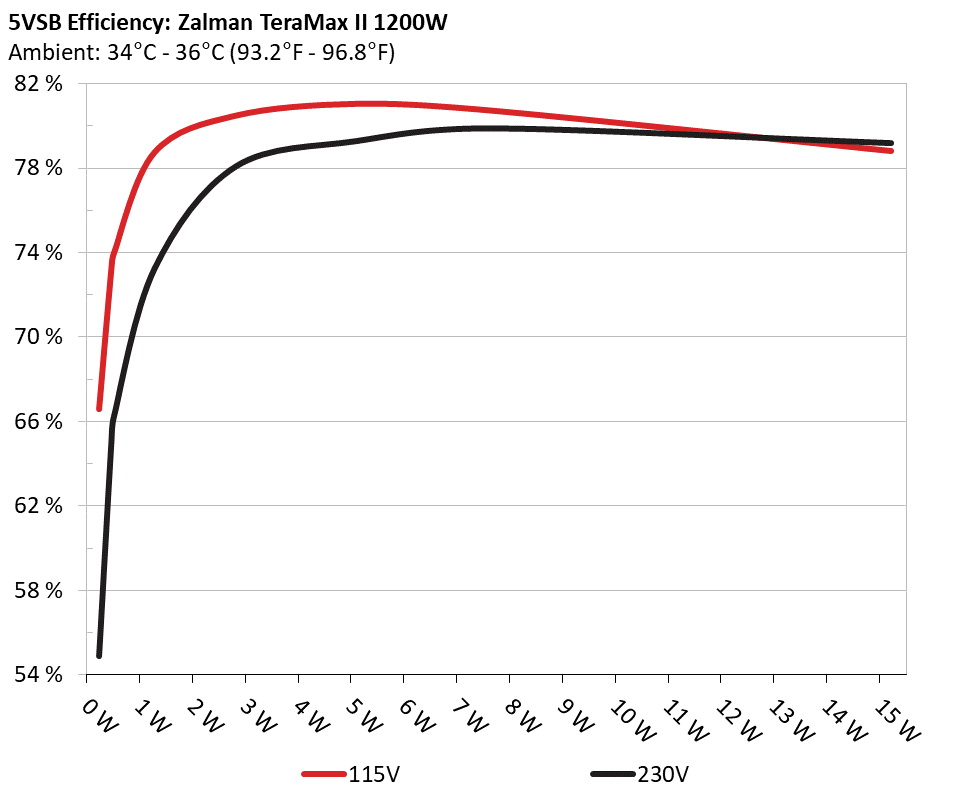

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 66.579% 0.038
5.123V 0.346W 114.87V
2 0.09A 0.461W 73.197% 0.068
5.122V 0.629W 114.86V
3 0.55A 2.812W 80.492% 0.272
5.115V 3.493W 114.85V
4 1A 5.107W 81.056% 0.344
5.108V 6.301W 114.86V
5 1.5A 7.648W 80.735% 0.393
5.099V 9.473W 114.85V
6 2.999A 15.216W 78.819% 0.455
5.074V 19.306W 114.85V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.112A 1.966A 1.96A 0.981A 119.964 86.689% 987 25.9 39.56°C 0.988
12.127V 5.087V 3.367V 5.098V 138.39 43.84°C 114.82V
20% 17.247A 2.956A 2.95A 1.179A 239.897 90.26% 1093 27.8 40.27°C 0.985
12.118V 5.075V 3.355V 5.088V 265.791 44.88°C 114.79V
30% 26.665A 3.456A 3.452A 1.378A 358.951 91.252% 1190 30.7 41.29°C 0.99
12.110V 5.063V 3.345V 5.079V 393.369 46.37°C 114.77V
40% 36.206A 3.959A 3.958A 1.578A 479.33 91.501% 1259 31.4 41.62°C 0.993
12.101V 5.052V 3.335V 5.07V 523.857 47.15°C 114.73V
50% 45.365A 4.961A 4.965A 1.778A 599.067 91.343% 1362 33.5 42.35°C 0.995
12.092V 5.04V 3.323V 5.061V 655.852 48.31°C 114.71V
60% 54.599A 5.97A 5.982A 1.98A 719.597 90.952% 1525 36.8 42.91°C 0.996
12.084V 5.026V 3.31V 5.051V 791.185 49.32°C 114.67V
70% 63.782A 6.983A 7.007A 2.181A 839.309 90.436% 1624 39.0 43.26°C 0.996
12.076V 5.013V 3.297V 5.041V 928.067 50.42°C 114.64V
80% 73.036A 8.001A 8.035A 2.284A 959.196 89.838% 1715 40.6 43.94°C 0.997
12.067V 4.999V 3.284V 5.033V 1067.696 52.05°C 114.61V
90% 82.641A 8.521A 8.554A 2.387A 1079.056 89.075% 1852 43.7 44.37°C 0.997
12.059V 4.986V 3.271V 5.024V 1211.404 53.52°C 114.58V
100% 92.062A 9.049A 9.11A 2.995A 1199.101 88.131% 1856 43.9 45.62°C 0.997
12.051V 4.972V 3.258V 5.008V 1360.582 55.72°C 114.54V
110% 101.428A 10.078A 10.253A 2.997A 1319.595 87.464% 1858 43.9 47.14°C 0.998
12.041V 4.96V 3.246V 5.004V 1508.745 57.99°C 114.5V
CL1 0.114A 14.907A 14.901A 0A 126.257 81.735% 1217 30.5 40.91°C 0.987
12.121V 5.051V 3.328V 5.103V 154.468 46.42°C 114.82V
CL2 0.113A 24.76A 0A 0A 126.368 80.405% 1162 29.4 41.92°C 0.986
12.125V 5.048V 3.334V 5.109V 157.165 49.01°C 114.82V
CL4 99.521A 0A 0A 0.001A 1199.866 88.542% 1855 43.9 45.34°C 0.998
12.056V 4.998V 3.285V 5.061V 1355.139 56.27°C 114.54V

The results above are not used in the certification process

Light Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.222A 0.49A 0.488A 0.195A 19.984 62.673% 771 19.1 36.56°C 0.875
12.132V 5.1V 3.38V 5.117V 31.887 39.62°C 114.85V
40W 2.694A 0.686A 0.684A 0.293A 39.983 75.054% 788 19.5 37.32°C 0.945
12.130V 5.098V 3.378V 5.114V 53.279 40.64°C 114.84V
60W 4.164A 0.883A 0.88A 0.391A 59.981 81.086% 811 20.6 38.21°C 0.96
12.129V 5.096V 3.376V 5.112V 73.973 41.92°C 114.84V
80W 5.630A 1.08A 1.076A 0.489A 79.923 83.466% 930 23.9 39.12°C 0.975
12.129V 5.093V 3.373V 5.108V 95.763 43.08°C 114.83V

The results above are not used in the certification process

Ripple Measurements 115V

Test12V5V3.3V5VSBPass/Fail
10% Load10.71mV8.94mV14.56mV12.04mVPass
20% Load16.53mV14.38mV17.24mV14.42mVPass
30% Load16.94mV11.69mV16.58mV16.70mVPass
40% Load16.18mV11.18mV10.77mV14.98mVPass
50% Load16.99mV12.15mV18.05mV18.87mVPass
60% Load17.19mV13.36mV13.65mV18.87mVPass
70% Load18.23mV13.42mV16.38mV23.98mVPass
80% Load18.88mV15.20mV16.38mV25.25mVPass
90% Load20.20mV14.48mV19.92mV26.11mVPass
100% Load35.72mV18.71mV18.16mV31.79mVPass
110% Load37.15mV20.04mV16.73mV31.86mVPass
Crossload118.59mV16.88mV12.73mV11.02mVPass
Crossload214.22mV28.15mV13.60mV9.21mVPass
Crossload30.00mV0.00mV0.00mV0.00mVPass
Crossload433.68mV14.02mV12.45mV25.85mVPass

The results above are not used in the certification process

Zalman TeraMax II 1200W

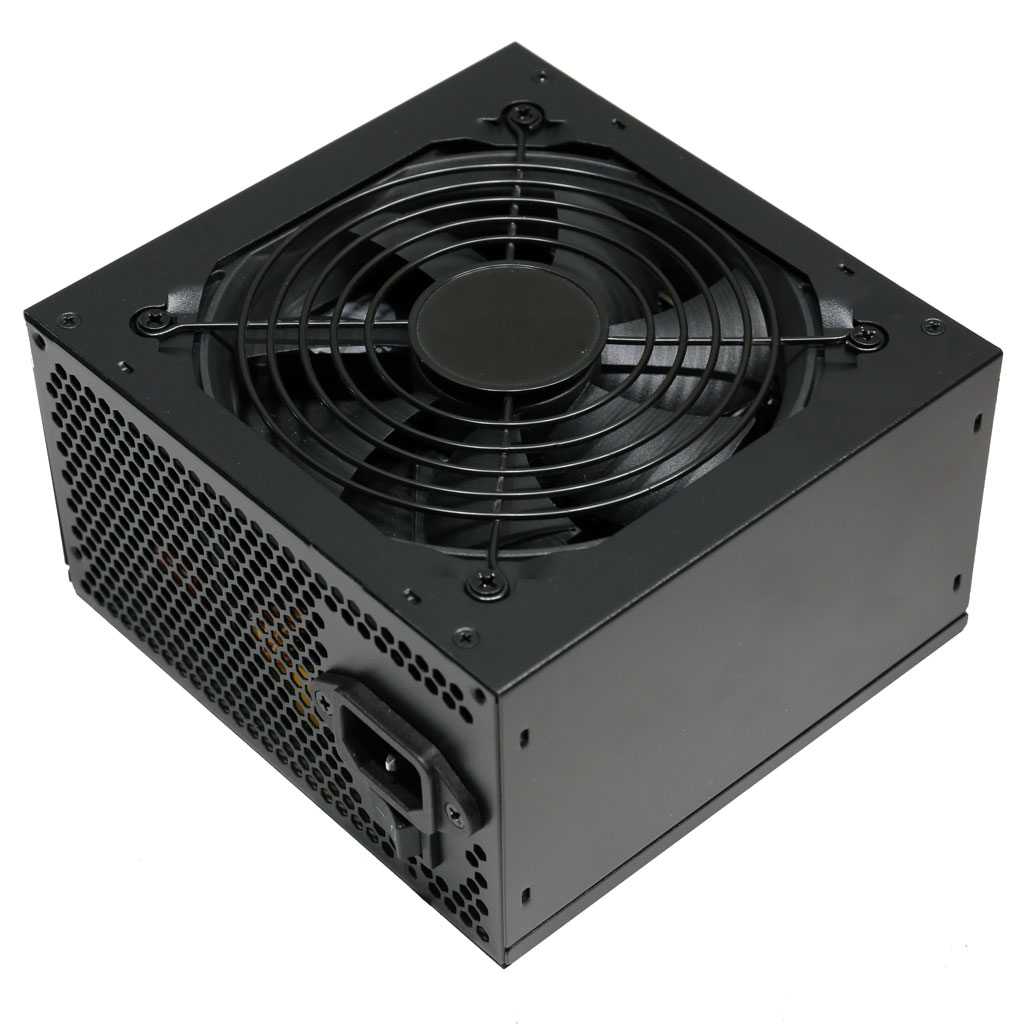

Top side

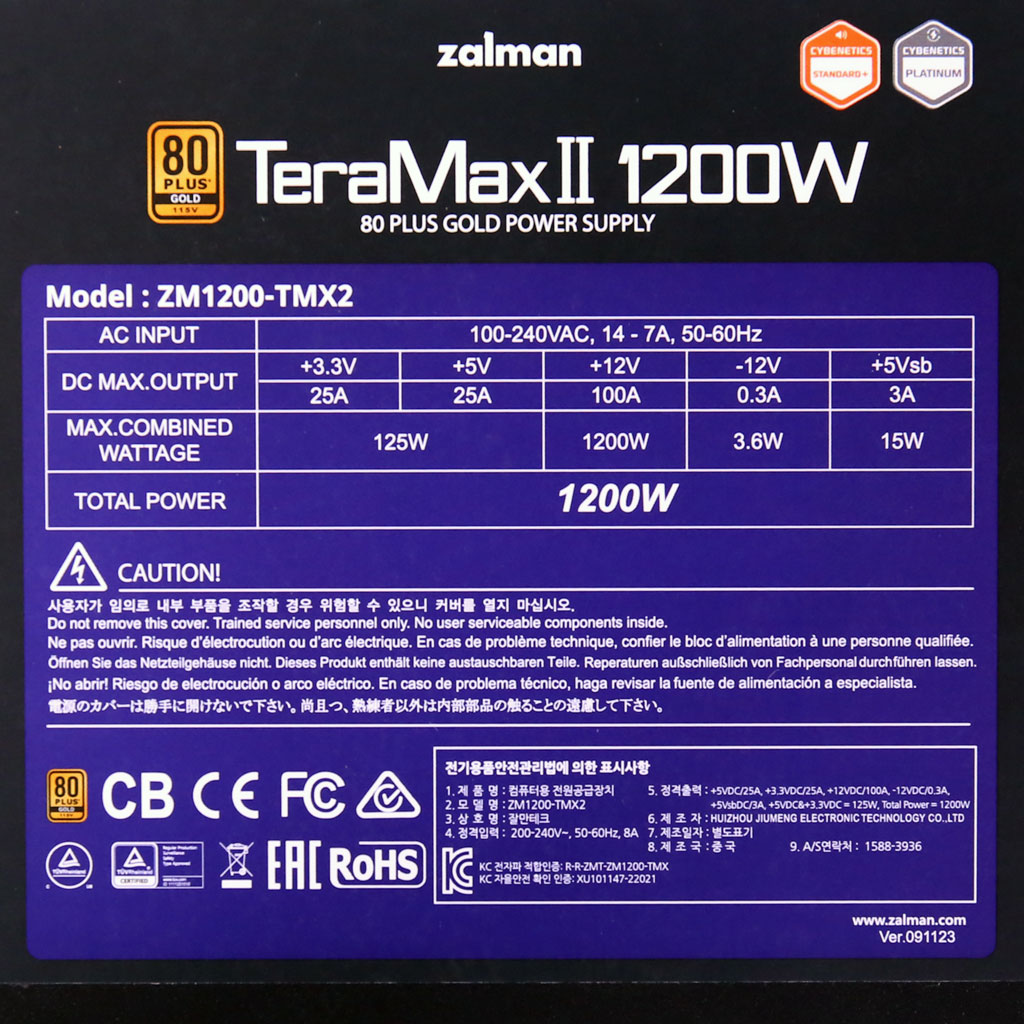

Power specifications label
