Asus ROG-STRIX-1200G-AURA-GAMING
Serial Number
Lab IDAS12002100
  • Report: 22PS2100A
  • Receipt Date: Nov 29, 2022
  • Test Date: Dec 13, 2022
  • Report Date: Dec 14, 2022
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandAsus
Manufacturer (OEM)Channel Well Technology
SeriesRog Strix
Model Number
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15-8
Rated Frequency (Hz)50-60
Rated Power (W)1200
TypeATX12V
Cooling135mm Double Ball Bearing Fan
(CF1325H12D)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps222210030
Watts1201200150
Total Max. Power (W)1200

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18AWG No
4+4 pin EPS12V (650mm) 2 2 18AWG No
6+2 pin PCIe (680mm) 2 2 18AWG No
2x 6+2 pin PCIe (680mm) 1 2 16-18AWG No
12+4 pin PCIe (670mm) (600W) 1 1 16-24AWG No
SATA (400mm+120mm) 1 2 18AWG No
SATA (400mm+120mm120mm) 1 3 18AWG No
4 pin Molex (400mm+150mm+150mm+150mm) 1 4 18AWG No
ARGB Cable (800mm) 1 1 22AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)22.6
AC Loss to PWR_OK Hold Up Time (ms)20.4
PWR_OK Inactive to DC Loss Delay (ms)2.2

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.93 V 114.89 V 113.85 V 114.96 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.15 % 0.12 % N/A 0.19 % 2.00 % PASS
Real Power: 0.018 W 0.016 W N/A 0.020 W N/A N/A
Apparent Power: 10.681 W 10.658 W N/A 10.700 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.89 V 229.86 V 227.70 V 229.95 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.13 % 0.12 % N/A 0.16 % 2.00 % PASS
Real Power: 0.084 W 0.073 W N/A 0.099 W N/A N/A
Apparent Power: 36.803 W 36.773 W N/A 36.836 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

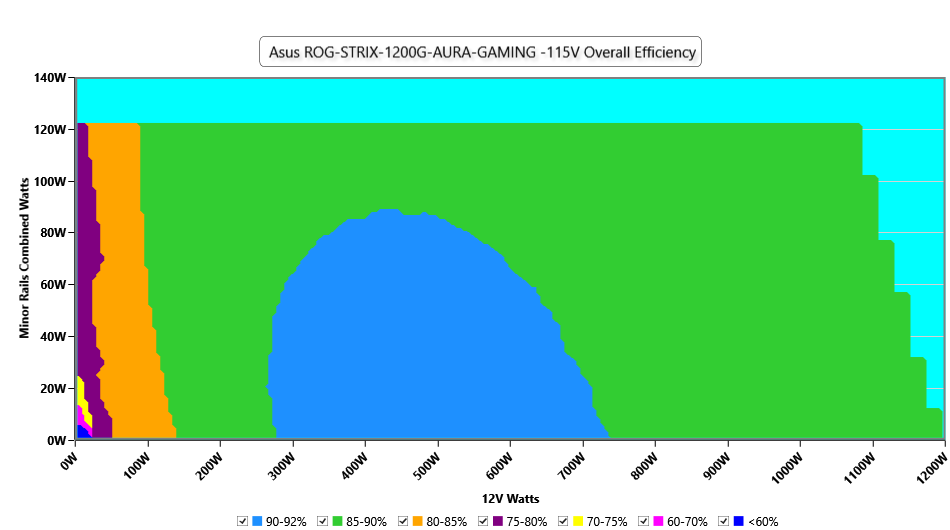

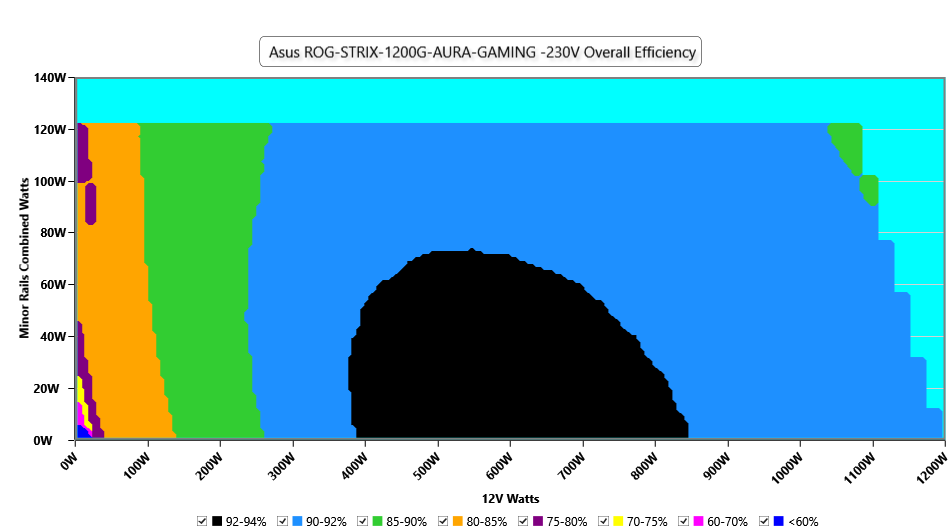

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

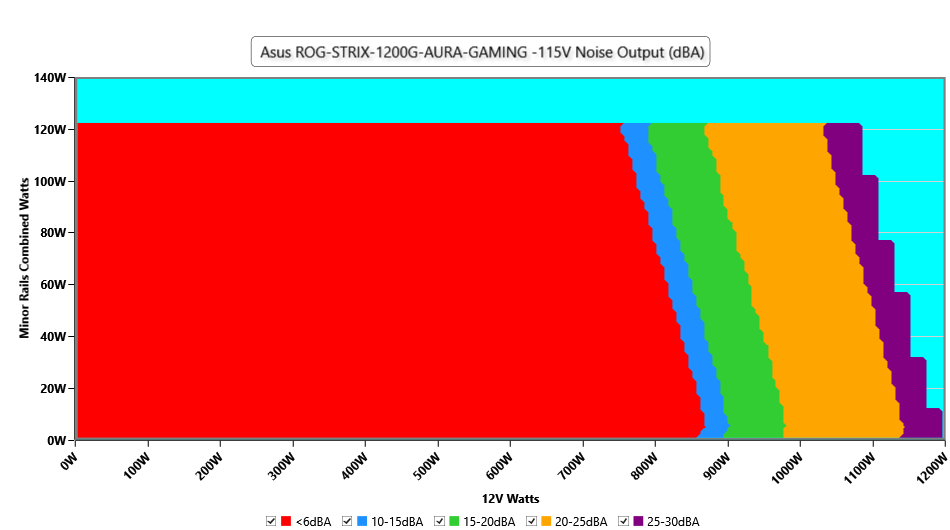

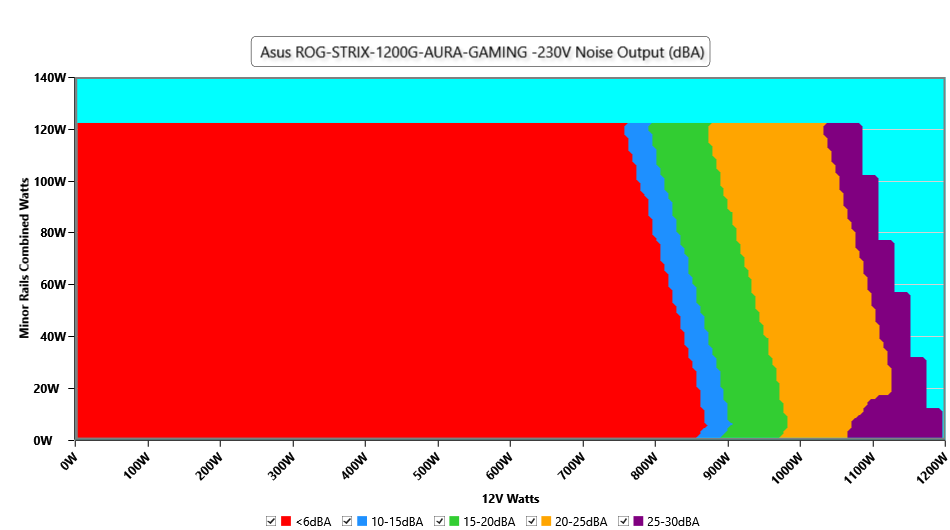

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

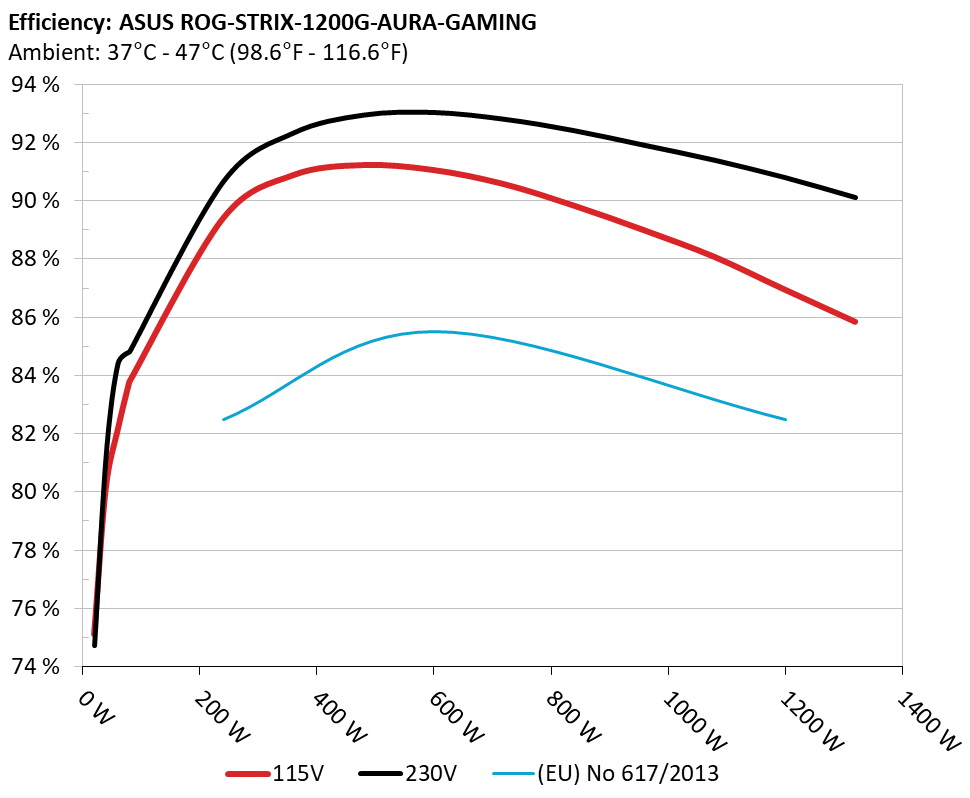

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

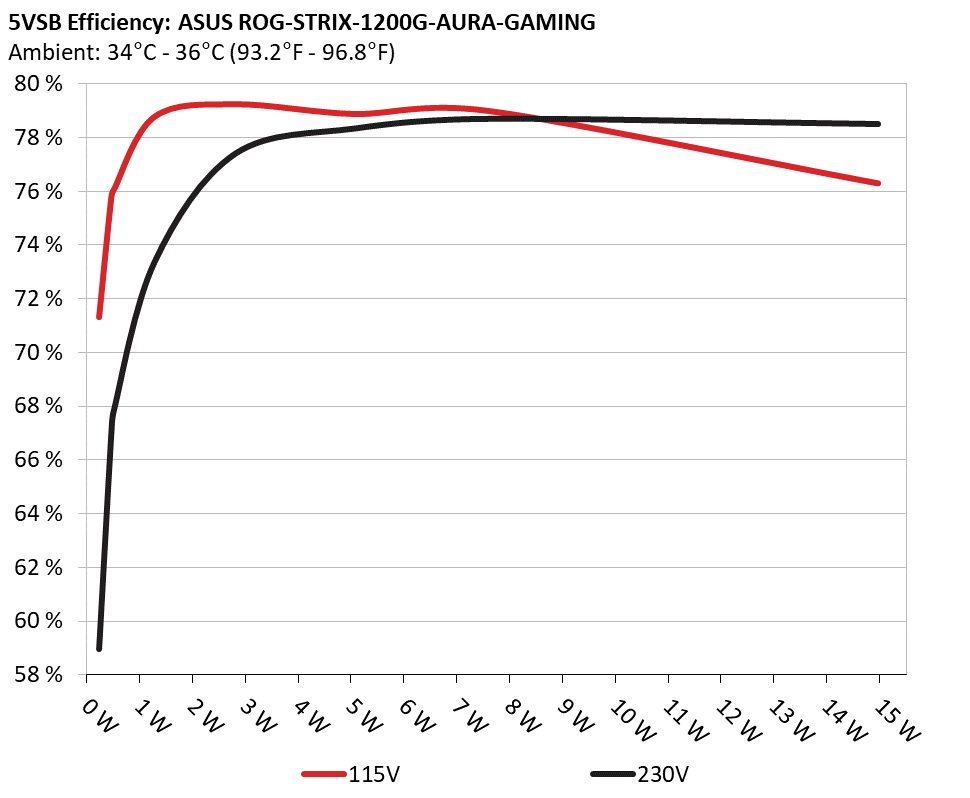

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 71.303% 0.03
5.12V 0.323W 114.93V
2 0.09A 0.461W 75.783% 0.056
5.121V 0.608W 114.94V
3 0.55A 2.805W 79.255% 0.263
5.101V 3.539W 114.92V
4 1A 5.08W 78.889% 0.371
5.08V 6.439W 114.93V
5 1.5A 7.586W 79.009% 0.427
5.057V 9.601W 114.92V
6 3A 14.963W 76.301% 0.505
4.988V 19.611W 114.93V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 58.951% 0.011
5.122V 0.39W 229.9V
2 0.09A 0.461W 66.973% 0.019
5.121V 0.689W 229.9V
3 0.55A 2.805W 77.39% 0.095
5.1V 3.625W 229.9V
4 1A 5.08W 78.332% 0.161
5.08V 6.485W 229.9V
5 1.5A 7.585W 78.687% 0.221
5.056V 9.639W 229.9V
6 3A 14.961W 78.494% 0.332
4.987V 19.06W 229.9V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.098A 1.976A 1.997A 0.99A 120.006 83.275% 0 <6.0 44.05°C 0.929
12.153V 5.062V 3.305V 5.05V 144.112 40.04°C 114.91V
20% 17.240A 2.965A 2.999A 1.193A 239.963 88.899% 0 <6.0 44.92°C 0.966
12.127V 5.059V 3.3V 5.029V 269.924 40.63°C 114.87V
30% 26.682A 3.461A 3.504A 1.398A 359.284 90.383% 0 <6.0 45.99°C 0.978
12.114V 5.057V 3.296V 5.008V 397.515 41.28°C 114.86V
40% 36.224A 3.957A 4.009A 1.604A 479.639 90.736% 0 <6.0 46.87°C 0.984
12.104V 5.055V 3.292V 4.986V 528.616 41.83°C 114.82V
50% 45.381A 4.949A 5.018A 1.812A 599.367 90.566% 0 <6.0 48.01°C 0.986
12.095V 5.052V 3.288V 4.966V 661.808 42.45°C 114.8V
60% 54.661A 5.941A 6.029A 2A 719.821 90.081% 325 <6.0 42.84°C 0.988
12.076V 5.05V 3.284V 4.966V 799.083 48.89°C 114.76V
70% 63.843A 6.936A 7.045A 2.178A 839.623 89.341% 429 <6.0 43.12°C 0.988
12.069V 5.047V 3.279V 5.05V 939.799 50.13°C 114.74V
80% 73.155A 7.931A 8.06A 2.281A 959.61 88.494% 601 18.4 43.76°C 0.989
12.053V 5.045V 3.275V 5.042V 1084.393 51.78°C 114.71V
90% 82.797A 8.43A 8.56A 2.388A 1079.426 87.582% 871 26.4 44.94°C 0.989
12.040V 5.042V 3.27V 5.026V 1232.466 54.08°C 114.67V
100% 92.264A 8.931A 9.092A 3.009A 1199.455 86.457% 1187 32.4 45.98°C 0.989
12.028V 5.039V 3.266V 4.985V 1387.335 55.99°C 114.63V
110% 101.688A 9.929A 10.208A 3.017A 1320.046 85.348% 1478 37.2 46.53°C 0.989
12.015V 5.037V 3.261V 4.972V 1546.658 57.48°C 114.61V
CL1 0.115A 14.267A 14.455A 0A 121.309 80.913% 0 <6.0 48.13°C 0.93
12.140V 5.062V 3.299V 5.076V 149.929 42.64°C 114.89V
CL2 0.115A 21.791A 0A 0A 111.415 78.617% 329 <6.0 41.65°C 0.927
12.155V 5.049V 3.306V 5.088V 141.717 48.68°C 114.89V
CL3 0.115A 0A 22.018A 0A 73.978 73.554% 325 <6.0 41.72°C 0.898
12.135V 5.086V 3.297V 5.084V 100.59 50.82°C 114.91V
CL4 99.753A 0A 0A 0A 1199.912 87.068% 1061 30.3 45.69°C 0.989
12.029V 5.042V 3.27V 5.148V 1378.143 56.66°C 114.64V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.109A 1.975A 1.997A 0.989A 119.999 84.314% 0 <6.0 44.15°C 0.854
12.135V 5.063V 3.304V 5.056V 142.318 40.11°C 229.91V
20% 17.259A 2.964A 3A 1.192A 239.956 90.145% 0 <6.0 45.14°C 0.917
12.112V 5.061V 3.3V 5.033V 266.182 40.89°C 229.89V
30% 26.709A 3.459A 3.504A 1.397A 359.248 91.815% 0 <6.0 46.12°C 0.945
12.101V 5.059V 3.296V 5.012V 391.274 41.37°C 229.88V
40% 36.253A 3.955A 4.009A 1.603A 479.595 92.435% 0 <6.0 46.76°C 0.956
12.093V 5.057V 3.293V 4.99V 518.833 41.73°C 229.86V
50% 45.413A 4.946A 5.017A 1.812A 599.352 92.524% 0 <6.0 47.72°C 0.965
12.086V 5.055V 3.289V 4.968V 647.78 42.2°C 229.84V
60% 54.678A 5.938A 6.029A 2A 719.802 92.293% 326 <6.0 42.67°C 0.971
12.072V 5.053V 3.284V 4.96V 779.914 48.76°C 229.83V
70% 63.847A 6.931A 7.044A 2.188A 839.615 91.9% 420 <6.0 43.41°C 0.975
12.068V 5.05V 3.28V 5.029V 913.612 50.42°C 229.81V
80% 73.169A 7.927A 8.059A 2.282A 959.613 91.398% 590 17.9 43.85°C 0.978
12.051V 5.048V 3.275V 5.041V 1049.916 51.93°C 229.79V
90% 82.805A 8.426A 8.559A 2.388A 1079.445 90.885% 872 26.5 44.54°C 0.981
12.039V 5.045V 3.271V 5.025V 1187.73 53.64°C 229.78V
100% 92.275A 8.926A 9.092A 3.011A 1199.467 90.291% 1176 32.4 45.72°C 0.983
12.027V 5.042V 3.266V 4.983V 1328.442 55.75°C 229.77V
110% 101.712A 9.924A 10.209A 3.019A 1320.091 89.606% 1477 37.2 46.84°C 0.985
12.012V 5.04V 3.261V 4.969V 1473.215 57.82°C 229.75V
CL1 0.115A 14.259A 14.455A 0A 121.315 81.58% 0 <6.0 48.26°C 0.855
12.158V 5.065V 3.299V 5.076V 148.706 42.73°C 229.89V
CL2 0.115A 21.782A 0A 0A 111.425 79.584% 331 <6.0 40.99°C 0.846
12.160V 5.051V 3.306V 5.087V 140.014 48.34°C 229.89V
CL3 0.115A 0A 22.018A 0A 73.98 74.762% 332 <6.0 40.16°C 0.785
12.135V 5.09V 3.297V 5.083V 98.961 49.18°C 229.89V
CL4 99.762A 0A 0A 0A 1199.99 90.823% 1050 30.1 45.95°C 0.984
12.028V 5.045V 3.27V 5.147V 1321.239 56.91°C 229.75V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.224A 0.494A 0.499A 0.196A 20.008 74.608% 0 <6.0 39.57°C 0.732
12.148V 5.066V 3.308V 5.1V 26.82 36.53°C 114.92V
40W 2.689A 0.691A 0.698A 0.294A 40.004 79.637% 0 <6.0 40.62°C 0.798
12.158V 5.065V 3.307V 5.094V 50.236 37.35°C 114.91V
60W 4.162A 0.888A 0.898A 0.393A 60.003 81.605% 0 <6.0 41.89°C 0.857
12.142V 5.064V 3.306V 5.088V 73.532 38.14°C 114.92V
80W 5.628A 1.086A 1.098A 0.492A 79.957 83.279% 0 <6.0 43.54°C 0.879
12.139V 5.063V 3.305V 5.081V 96.02 39.55°C 114.9V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.222A 0.493A 0.499A 0.196A 20.005 74.229% 0 <6.0 39.69°C 0.464
12.154V 5.067V 3.308V 5.1V 26.949 36.64°C 229.91V
40W 2.690A 0.691A 0.698A 0.295A 40.003 80.81% 0 <6.0 40.86°C 0.631
12.156V 5.066V 3.307V 5.094V 49.504 37.52°C 229.91V
60W 4.154A 0.888A 0.898A 0.393A 60.001 83.906% 0 <6.0 41.65°C 0.718
12.164V 5.065V 3.307V 5.087V 71.516 38.18°C 229.89V
80W 5.626A 1.086A 1.098A 0.492A 79.956 84.72% 0 <6.0 43.74°C 0.774
12.145V 5.064V 3.306V 5.08V 94.372 39.88°C 229.88V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load4.25mV4.55mV7.00mV4.81mVPass
20% Load8.98mV5.72mV7.36mV5.48mVPass
30% Load7.08mV9.45mV14.01mV5.37mVPass
40% Load6.55mV5.51mV8.74mV5.22mVPass
50% Load6.34mV6.03mV8.59mV6.29mVPass
60% Load6.81mV6.59mV10.07mV6.86mVPass
70% Load7.32mV6.23mV9.67mV8.03mVPass
80% Load7.52mV7.82mV12.42mV9.11mVPass
90% Load7.73mV8.27mV12.27mV9.62mVPass
100% Load11.63mV8.61mV14.03mV9.38mVPass
110% Load11.72mV8.70mV14.26mV9.01mVPass
Crossload16.46mV7.59mV14.26mV6.24mVPass
Crossload211.84mV9.09mV9.00mV5.94mVPass
Crossload317.70mV7.15mV19.38mV5.68mVPass
Crossload410.25mV7.37mV8.46mV7.97mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load4.35mV4.50mV7.06mV4.61mVPass
20% Load10.00mV4.85mV7.11mV5.37mVPass
30% Load9.18mV9.19mV13.65mV5.27mVPass
40% Load7.03mV5.92mV7.87mV5.12mVPass
50% Load6.42mV5.87mV8.44mV5.94mVPass
60% Load6.65mV6.79mV9.82mV6.45mVPass
70% Load6.75mV6.28mV10.28mV7.83mVPass
80% Load7.47mV7.30mV11.45mV8.60mVPass
90% Load7.63mV7.35mV11.35mV9.01mVPass
100% Load11.65mV8.71mV13.60mV8.49mVPass
110% Load12.53mV8.65mV12.48mV8.88mVPass
Crossload16.70mV7.67mV14.71mV6.15mVPass
Crossload27.32mV8.94mV8.90mV5.99mVPass
Crossload312.13mV6.85mV19.48mV5.53mVPass
Crossload410.32mV7.36mV8.52mV7.82mVPass

The results above are not used in the certification process

Asus ROG-STRIX-1200G-AURA-GAMING

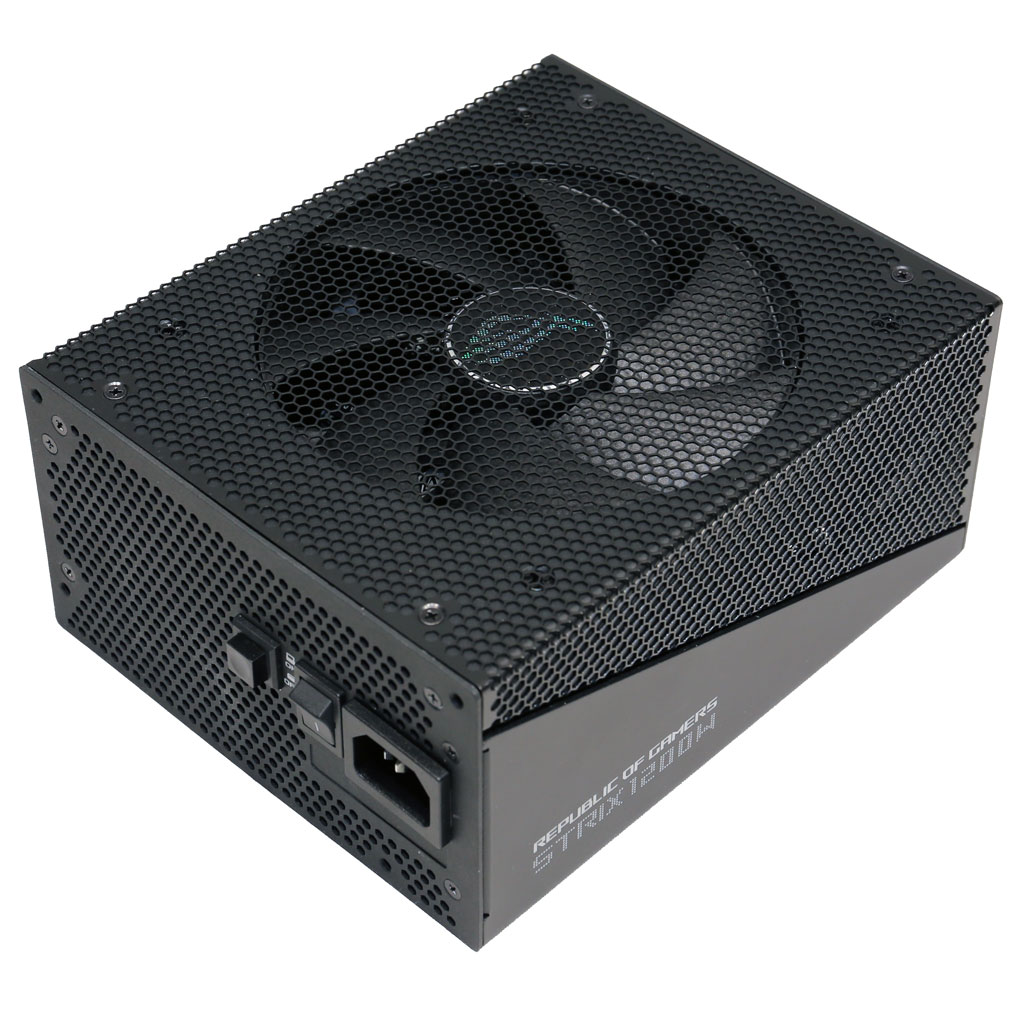

Top side

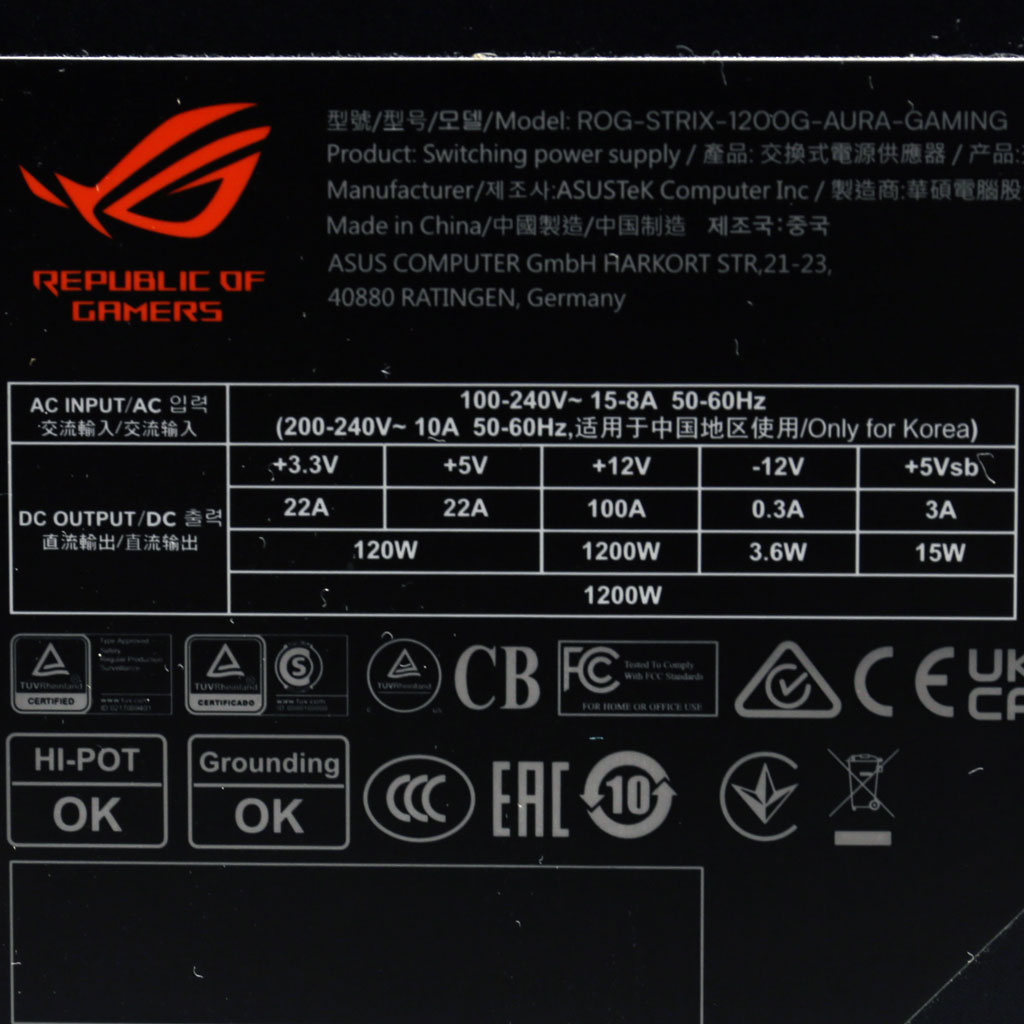

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
